Kipor KGE2400X User manual

ii
PREFACE
Thank you for purchasing a Kipor Generator from the Coast Distribution System.
This manual covers the operation and preventive maintenance of the KGE2400X generator.
All information in this publication is based on the latest product information available at the time of
printing.
We reserve the right to make changes at any time without notice and without incurring any obligation.
No part of this publication may be reproduced without written permission.
This manual should be considered a permanent part of the generator and should remain with it if it is
resold.
Pay special attention to statements preceded by the following words:
Failure to properly follow these precautions can result in property damage,
serious injury or DEATH!
Read all labels and the owner's manual before operating this generator.
Generators produce carbon monoxide, a poisonous, colorless, odorless gas that can cause death or
serious injury.
Indoor use of a generator can kill quickly. Generators should be used outdoors only.
Generators should be used outdoors only and away from garages and open windows and protected from
rain and snow.
Always stop engine before refueling. Wait 5 minutes before restarting.
Keep any source of ignition away from the fuel tank at all times.

iii
The portable generator is not meant to be used as a permanent back-up power system for the home. A
permanently installed stationary generator is designed to be safely used for this specific purpose. Do not
connect this generator directly to the home utility panel. It can only be connected to a manual style
transfer switch by a qualified electrician. Use of an automatic transfer switch (ATS) will cause severe
engine damage.
Indicates a strong possibility of severe personal injury or death if instructions are
not followed.
Indicates a possibility of personal injury or equipment damage if instructions are
not followed.
NOTE Gives helpful information.
If a problem should arise, or if you have any questions about the generator, consult an authorized dealer
or service center.
Our generators are designed to give safe and dependable service if operated
according to the instructions. Read and understand the Owner's Manual before
operating the generator. Failure to do so could result in personal injury or
equipment damage.

iv
CONTENTS
1. Safety information ···········································································································1
2. Identification of components····························································································3
3. Pre-operation check ········································································································5
4. Starting the generator ······································································································8
5. Using the generator·········································································································9
6. Stopping the generator ··································································································13
7. Maintenance··················································································································14
8. Storage··························································································································17
9. Troubleshooting·············································································································18
10. Specifications ··············································································································20
11. Wiring diagram·············································································································21
12. Warranty······················································································································22

v
This page left intentionally blank.

1
1. SAFETY INFORMATION
■ Our generators are designed to give safe and dependable service if
operated according to these instructions.
■ Read and understand the owner's manual before operating the
generator. Failure to do so could result in personal injury or
equipment damage.
■ Exhaust gas contains deadly poisonous carbon monoxide. Never run
the generator in an enclosed area. Be sure to provide adequate
ventilation.
■ The muffler becomes very hot during operation and remains hot for
several minutes after stopping the engine. Be careful not to touch the
muffler while it is hot.
■ Let the engine cool before storing the generator indoors.
■ The engine exhaust system will be heated during operation and
remain hot immediately after stopping the engine.
■ To prevent scalding, pay attention to the warning marks attached to
the generator.
■ The generator must be operated outside with adequate ventilation.
■ It cannot be operated in an enclosed compartment of any vehicle or in
a garage area.

2
To ensure safe operation:
■ Keep away from smoking materials, sparks and other sources of
combustion when refueling the generator. Always refuel in a
well-ventilated location.
■ Gasoline is extremely flammable and explosive under certain
conditions. Refuel in a well ventilated area with the engine stopped.
■ Wipe up spilled gasoline at once.
■ Restrict application of generator in high-hazard risk to causing fire
area.
■ Do not transport the generator in a vehicle with fuel in the tank.
■ Connections for standby power to a building's electrical system must
be made by a qualified electrician and must comply with all applicable
laws and electrical codes. Improper connections can allow electrical
current from the generator to back feed into the utility lines. Such
back feed may electrocute utility company workers or others who
contact the lines during a power outage and when utility power is
restored, the generator may explode, burn, or cause fires in the
building's electrical system. This generator is not designed to be
connected to an automatic transfer switch (ATS). Serious damage to
the engine may result.
■ Always make a pre-operation inspection before you start the engine.
■ Place the generator at least three feet or one meter away from
buildings or other equipment during operation.
■ Operate the generator on a level surface to prevent fuel spillage or oil
starvation.
■ Know how to stop the generator quickly and understand operation of
all the controls. Never permit anyone to operate the generator
without proper instructions. Keep children and pets away from the
generator when it is in operation.
■ Never operate the generator with the door open or any panels
removed. Do not operate in any enclosure such as an RV
compartment.
■ Keep away from rotating parts while the generator is running.
■ The generator is a potential source of electrical shocks when misused;
do not operate with wet hands.
■Do not operate the generator in rain or snow or let it get wet.

3
2. COMPONENT IDENTIFICATION
2.1 Generator Components
8
1
2
3 9
4
5
6 7 10
1. Fuel Gauge 6. Oil Filler Cap
2.Choke 7.ControlPanel
3.FuelValve 8.GasolineTank
4.AirCleaner 9.SparkPlug
5.RecoilStarter 10.Muffler
2.3 Control Panel

4
2.3SerialNumberandBarCodeIdentification
Serial Number and Barcode Location

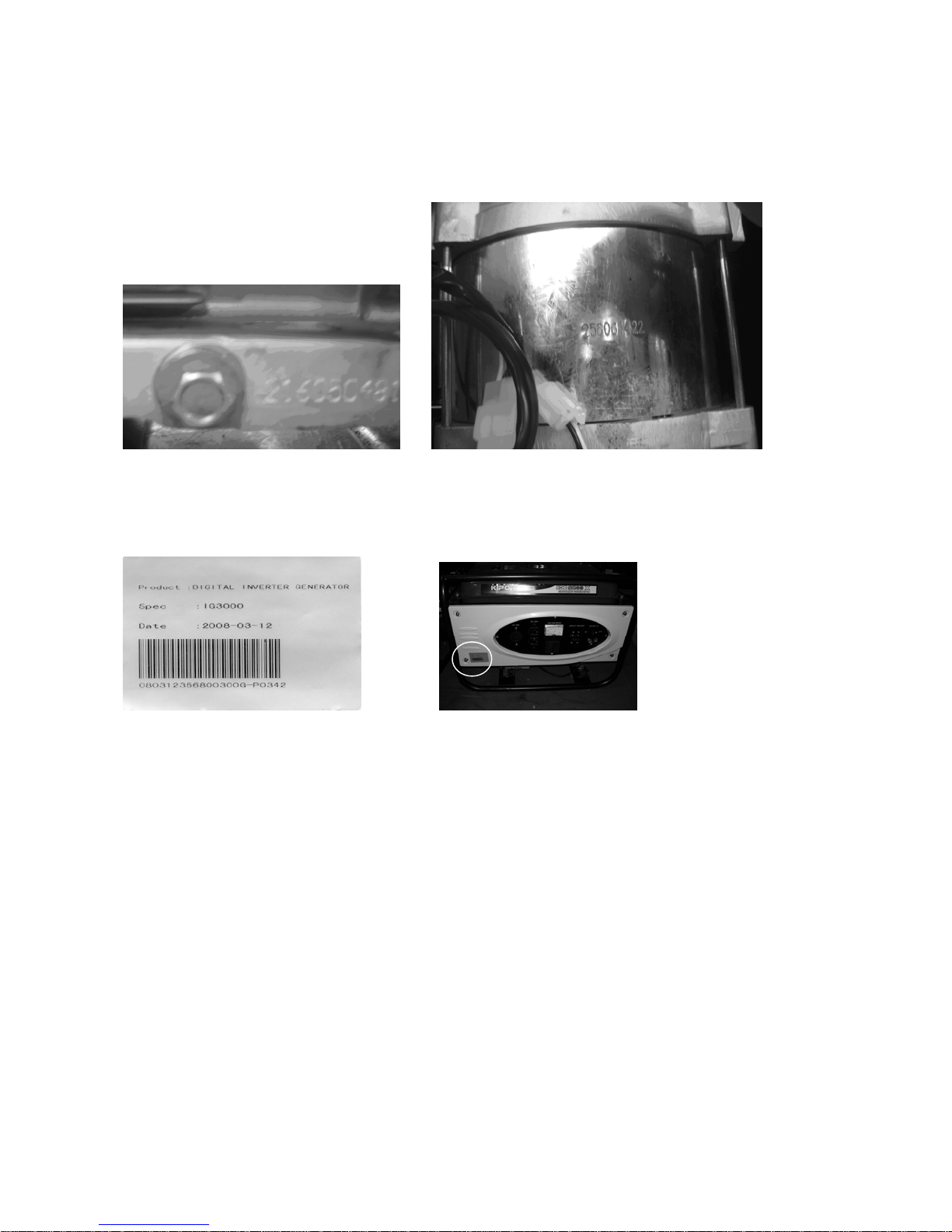

The engine serial number is located on the engine block immediately to the left of the oil drain plug.
The generator serial number is located on the aluminum shroud surrounding the alternator. Serial
numbers may be required when ordering parts.
The bar code label is found in three locations: on the generator front panel, on the packing carton,
and on the owner’s manual inside cover. The bar code identifies the production date and is used by
your dealer and the customer service center for warranty administration.
Please record this information below and keep this manual in a safe place along with the bill of sale.
Engine Serial Number ___________________________________________
Generator Serial Number _________________________________________
Bar Code Number _______________________________________________

5
3. PRE-OPERATION CHECKS
Be sure to perform the following checks before starting the generating set.
3.1 Insure the generator is on a level surface.
Check for gasoline and oil leaks and correct any problems before proceeding.
3.2 Check engine oil.
Take out the oil filler cap and clean the indicator stick with a clean lint free rag. Reinsert the oil filler cap
without rotating it. Remove the oil filler cap and examine the oil level. If the oil level is at or below the
lower level, refill the oil to the upper limit mark. Reinsert the oil filler cap and tighten securely.

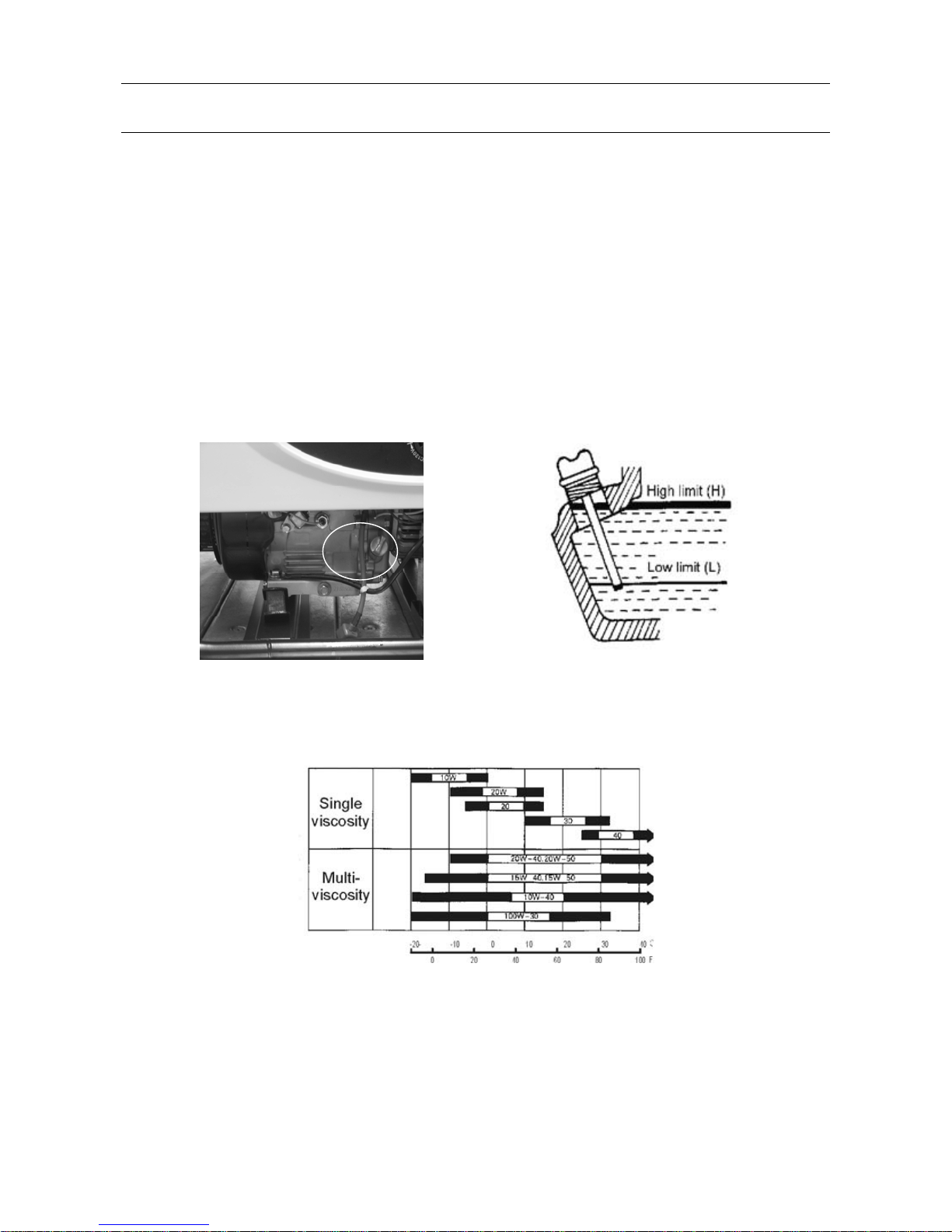

Use a quality high detergent 4 cycle motor oil that meets or exceeds API service classification SF or SG.
Select the proper viscosity from the chart below by determining the average temperature in your area.
SAE Viscosity Grades
Ambient Temperature

6
3.3 Check the fuel level
Read the gauge or remove the fuel tank cap and visually check the level. Add fuel if level is too low.
Tighten the fuel tank cap securely after filling.
•Use unleaded 87 octane regular gasoline. Do not use premium or high octane fuels.
•The engine is tuned to run on regular gasoline and engine damage and poor performance may
result from using higher octane fuels.
•Never use an oil/gasoline mixture or dirty gasoline.
•Avoid getting dirt, dust or water in the fuel tank.
■Gasoline is extremely flammable and is explosive under certain conditions.
■Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flame
or sparks in the area where the engine is refueled or where gasoline is stored.
■Do not overfill the fuel tank (there should be no fuel in the filler neck). After refueling,
make sure the fuel filler cap is closed properly and securely.
■Be careful not to spill fuel when refueling. Spilled fuel or fuel vapor may ignite. If any
fuel is spilled, make sure the area is dry before starting the engine.
■Avoid repeated or prolonged contact with skin or breathing of vapors. KEEP OUT OF
REACH OF CHILDREN.
GASOLINES CONTAINING ALTERNATE FUELS
If you decide to use a gasoline containing ethanol, be sure its octane rating is no lower than the
specification. Do not use a blend that contains more than 15% ethanol. Do not use gasoline containing
methanol.

7
3.4 Check the air cleaner

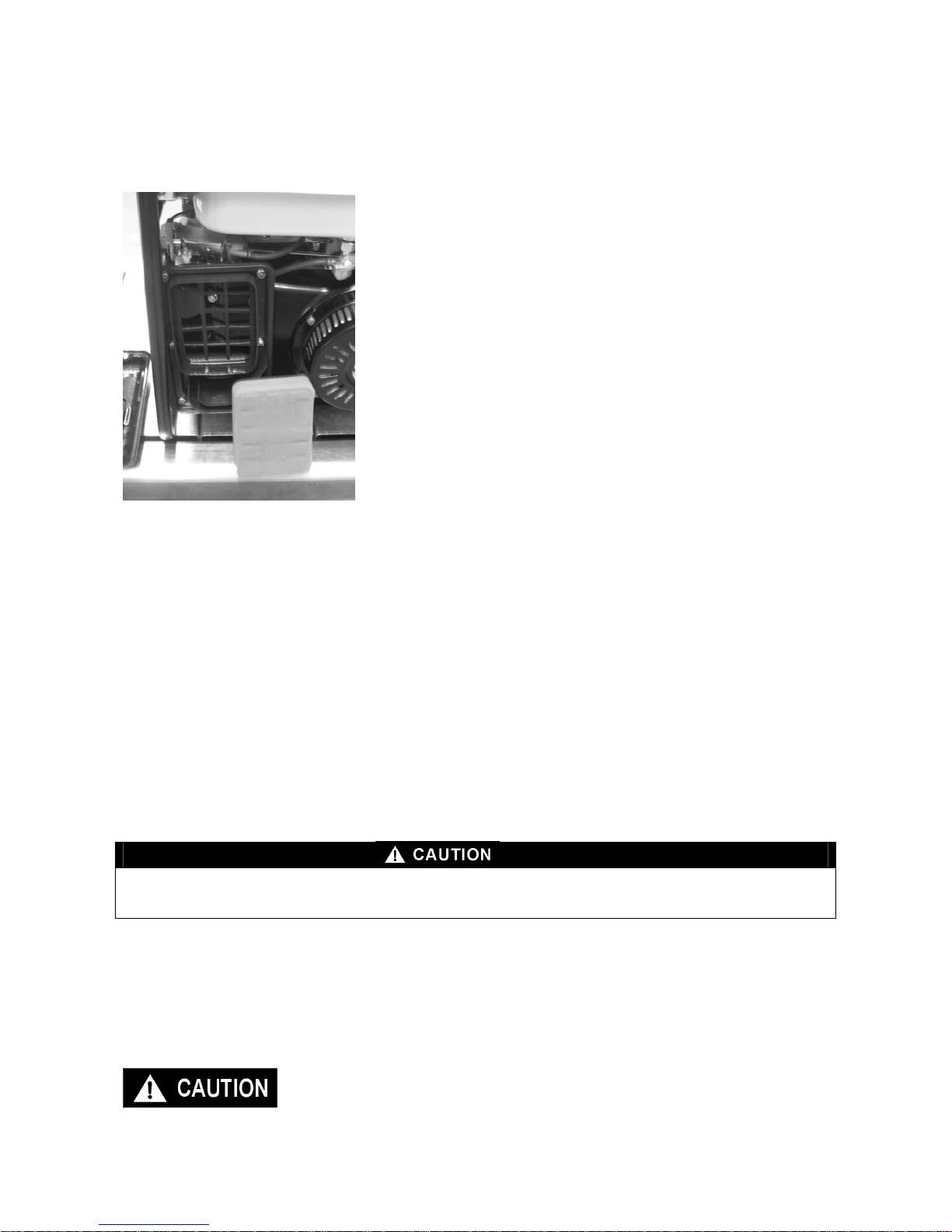

(1) Unfasten the clips and remove the air filter cover. Remove the air filter element and observe for
cleanliness.
(2) Clean the air filter element by washing in soap and water or
solvent. Squeeze dry and then soak in clean engine oil. Squeeze
out all excess oil and reinstall.
(3) Replace the element if brittle or torn.
3.5 High altitude operation
At high altitude, the standard carburetor air-fuel mixture will be excessively rich.
Performance will decrease, and fuel consumption will increase.
High altitude performance can be improved by installing a smaller diameter main jet in the carburetor. If
you continuously operate the generator at altitudes higher than 5000 feet or 1500 meters above sea
level, have your authorized dealer install the high altitude main kit. No other adjustments to the
carburetor are necessary
Even with suitable carburetor re-jetting, engine horsepower will decrease approximately 3.5% for each
1000 feet or 305 meter increase in altitude. The effect of altitude on the horsepower will be greater than
this if no carburetor modification is made. For use at lower altitudes, be sure to have your dealer return
your generator to the original specification.
■Operation of the generator at an altitude lower than the carburetor is jetted for may result in reduced
performance, overheating, and serious engine damage caused by an excessively lean air/fuel mixture.
3.6 Ambient Temperature
Generator output generally derates 1% for every 10° F (5.5℃) above 85° F (29℃). The normal operating
range of the generator is -20° to 113° F (-29° to 45℃).
■Do not operate the generator when the ambient temperature is below
-20°F (-29°)
■Do not operate the generator when the ambient temperature is above 113° F (45℃)

8
4. STARTING THE GENERATOR

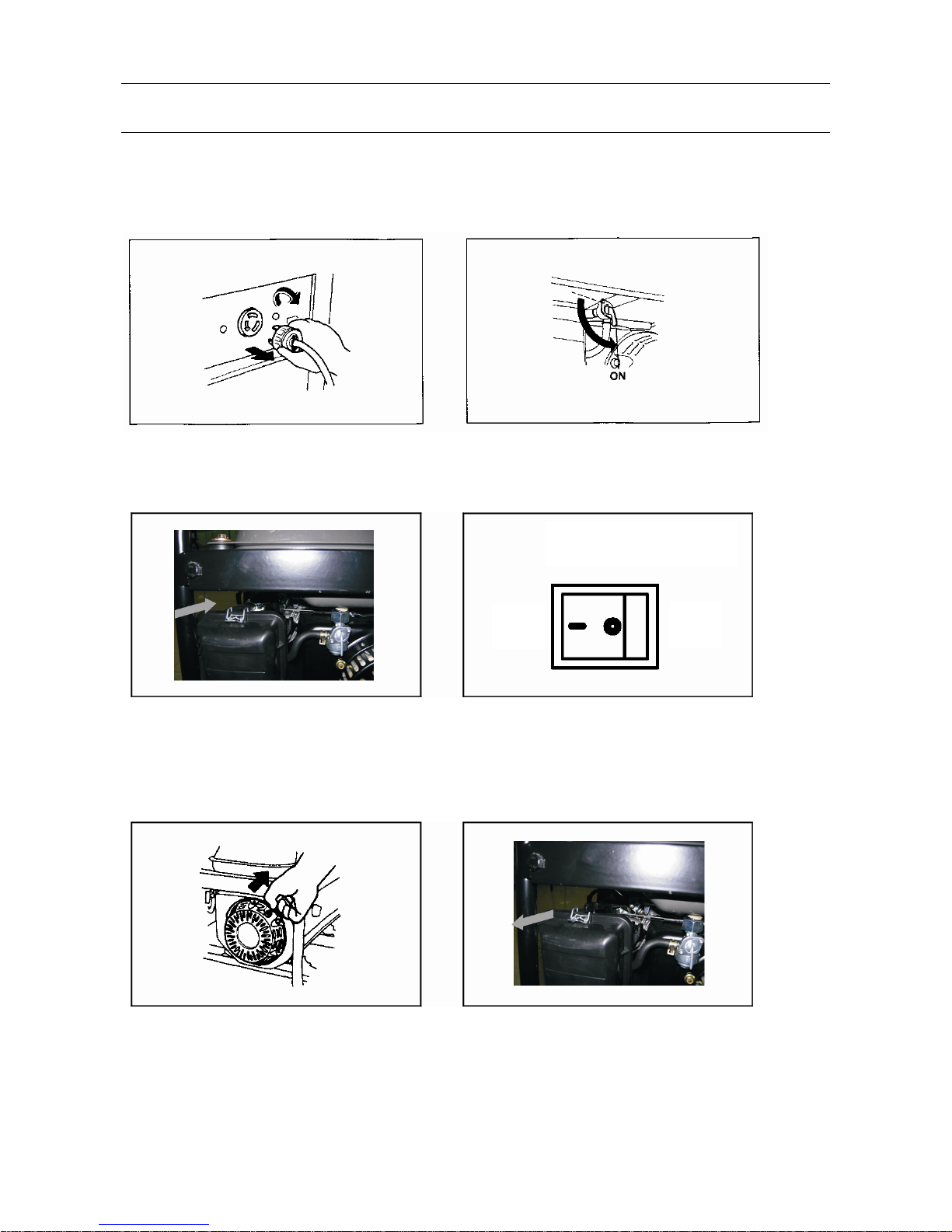

(1) Disconnect any load from the AC receptacle
and switch off the AC breaker.
(2) Set the fuel oil valve to “ON” position.
(3). Set the choke lever to “CHOKE” position. 4. Set the engine switch to "ON" position.
5. Pull the starting handle until you feel
resistance then pull it forcefully.
(6). When the engine is warm, set the
choke lever to “OFF” position.
ENGINE SW
ON OFF

9
5. USING THE GENERATOR
5.1 In order to keep the generating set in an optimal mechanical and electrical condition please
follow these instructions:
(1) Secure the grounding terminal of the set to a secure ground.
(2) If the generating set is to be connected with more than one load, connect the higher starting current
load first.
(3) Do not exceed the maximum load rating of this generator set for more than 30 continuous minutes.
(4) This set is not designed to be connected directly to a residential service panel. Use a manual style
transfer switch. Do not connect this generator to an automatic transfer switch (ATS). Severe engine
damage will result.
5.2 Application of Electrical Loads
(1) Start the generator and bring to operating temperature
(2) Switch on the AC breakers and connect the load.
(3) In case of an overload or appliance short circuit, the circuit breaker will close and stop the flow of
current to the receptacle. Reduce load or disconnect and repair the appliance. Reset the circuit breaker.

10
5.3 Load Characteristics
Electrical appliances such as fluorescent bulbs and motors will draw very high current while starting and
a higher current while running. Use the table below to manage electrical loads. When connecting more
than one appliance to the generator, connect the one with the higher current draw first. Let it come to
normal operation before connecting the second appliance.
WATTAGE
MULTIPLIER
TYPICAL
APPLIANCE WATTAGE
TYPE
START RUN START RUN
·Standard
Light
bulbs
·Heaters
X1 X1
40W
Standard light bulb
200WTV
40
200
40
200
·Fluore-
scent
lamps
X2 X1.5
Fluorescent
Lamp 40W
80
60
·Motor-
driven
equipment
X3~5 X2
Refrigerator 500W
Electric fan 200W
1500
600
1000
400

11
5.4 DC Charge Function
The DC receptacle is to be used for charging automotive and marine batteries only. Any other use such
as operating DC motors may cause irreparable alternator damage and is prohibited.
1. Connect the charging cable to the DC receptacle of the generator and then to the battery terminals.
Use only the charging cable supplied with the generator.
■To prevent the possibility of creating sparks near the battery, connect the
charging cable first to the generator then to the battery. Disconnect the
cable first at the battery.
■Before connecting the charging cable to a battery that is installed in a
vehicle, disconnect the vehicle's battery ground cable. Reconnect the
vehicle's ground cable after the charging cables are removed. This
procedure will prevent the possibility of a short circuit and sparks if
accidental contact is made between a battery terminal and the vehicle's
frame or body.
■Do not attempt to start an automobile engine with the generator still
connected to battery. The generator may be damaged.
■Connect the positive battery terminal to the positive charging cord. Do
not reverse the charging cables or serious damage to the generator
and/or battery may occur.
■The battery gives off explosive gases: keep sparks, flames and
cigarettes away. Provide adequate ventilation when charging.
■The battery contains sulfuric acid (electrolyte). Contact with skin or eyes
may cause severe burns. Wear protective clothing and a face shield.
A. If electrolyte gets on your skin, flush with water.
B. If electrolytes gets in your eyes, flush with water for at least 15
minutes and call a physician.
■Electrolyte is poisonous.
If swallowed, drink large quantities of water or milk and follow with milk
of magnesia or vegetable oil and call a physician.
■Keep out of reach of children.
The DC output is to be used to charge batteries only. Serious damage
to the stator windings can occur if connected to a DC motor or
transformer.

12
2. Start the generator.
The DC receptacle may be used while AC power is in use.
The DC receptacle is protected from an overload with a fuse. If the DC circuit is overloaded, the 5
amp fuse will blow and power to the DC receptacle will cease. The red light on the DC panel will
illuminate. Replace the fuse with one of the same capacity. Using a higher rated fuse may cause
damage to the generator alternator.

13
6. STOPPING THE GENERATOR
6.1 Normal Stop
a. Turn off all connected loads and disconnect from the generator. Switch off the AC breaker.
6.2 Put the engine switch in the off position and turn the fuel cock to “OFF”.
6.2 Emergency Shutdown
To stop the generator in an emergency, turn the engine switch “OFF”.
CAUTION:
Continually shutting down the generator with a load applied can lead to damage of the voltage regulator.

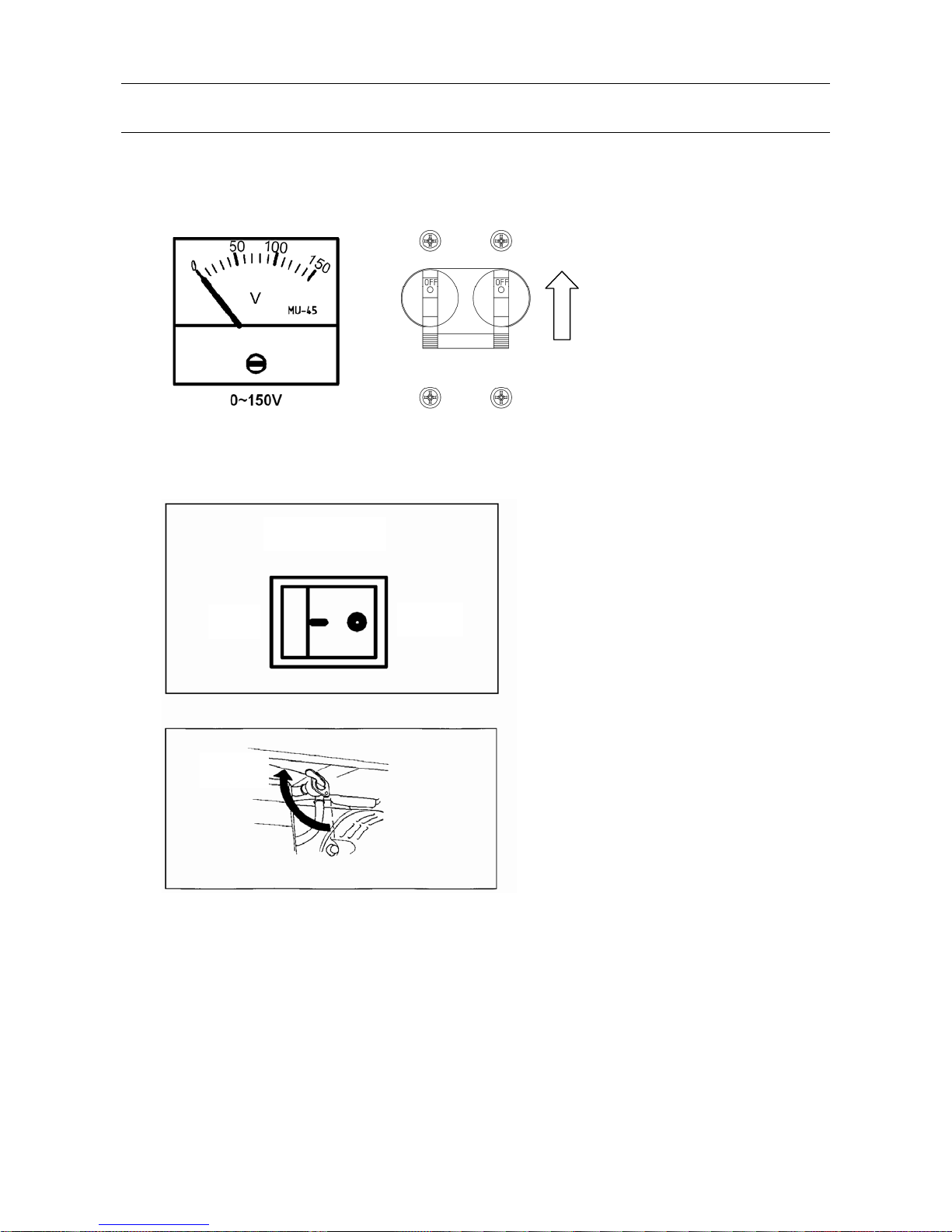

ON
ENGINE SW
OFF
OFF

14
7. MAINTENANCE
Periodical inspection and maintenance are very important for keeping your generating set in good
working condition. Be sure to shut down the set before performing any maintenance and put the
generator on dry and level ground.
Service Period (1)
Item Each
use
First
month or
20 Hrs.
Every 3
months or
50 Hrs.
Every 6
months or
100 Hrs.
Each year
or 300
Hrs.
Engine oil Check ○
Change ○○(2)
Air cleaner Check ○
Clean ○(2)
Fuel strainer
cup
Clean ○
Spark plug Clean
Adjust ○
Valves Adjust ○(3)
Fuel tank clean ○(3)
Fuel hoses Check
Every 2 years (Replace if necessary) (3)
Note:
(1) Perform at every indicated month or operating hour interval whichever occurs first. Log hours of
operation.
(2) Shorten maintenance intervals if the generator is operated in high ambient temperatures or dusty
conditions.
(2) The above-mentioned items must be performed with the assistance of a trained Kipor generator
technician.
■Use genuine Kipor parts or the equivalent. The use of replacement parts which are not of equivalent
quality may damage the generator and void the warranty.
Part Description Coast Distribution Number
Spark Plug 66162
Air Filter Element 66187
Fuel Strainer 66540
Spark Arrestor 66269
To locate a parts dealer in North America, visit the website www.kipornorthamerica.com.
