Bear DFH-B10G1 Technical manual

1
What Bear says
This product is a series of cooking lunch boxes independently
developed by our company. The appearance adopts a novel rectangular
structure, the lunch box is a square stainless steel liner, and the operation
mode is a very simple one-button control mode, which is safe and
reliable. Cooking lunch box heats food with steam, and the cooked food
not only keeps the nutrition of food from losing, but also keeps the food
clean and hygienic, which is an ideal health product. Let Bear share a
healthy
future
with
you.
Name of each part
量杯 Measuring glass
电源线Power cord
抽真空泵Vacuum pump
提手 Handle
上盖 Upper cover
卡扣Card buckle
子饭盒组件Child lunch box assembly
层架Stratum shelf
饭盒组件Lunch box assembly
主机 Host

2
Main features
1 New rectangular appearance, exquisite craft.
2. One-click operation; Simple, convenient and quick.
3. It has automatic protection against dry burning and power failure.
4. Cooking by steaming keeps the delicious taste and nutrition of food.
5. Have the functions of hot meals, steamed rice and stewed soup.
6. Rice, vegetables and soup should be packed separately.
7. Separated shelf structure, which can be used freely.
8. The container of lunch box can be vacuumized, which makes the food fresh-keeping longer
and healthier.
Usage method
Use of steamed rice
Tips: Please take off the sealing cover when cooking meals.

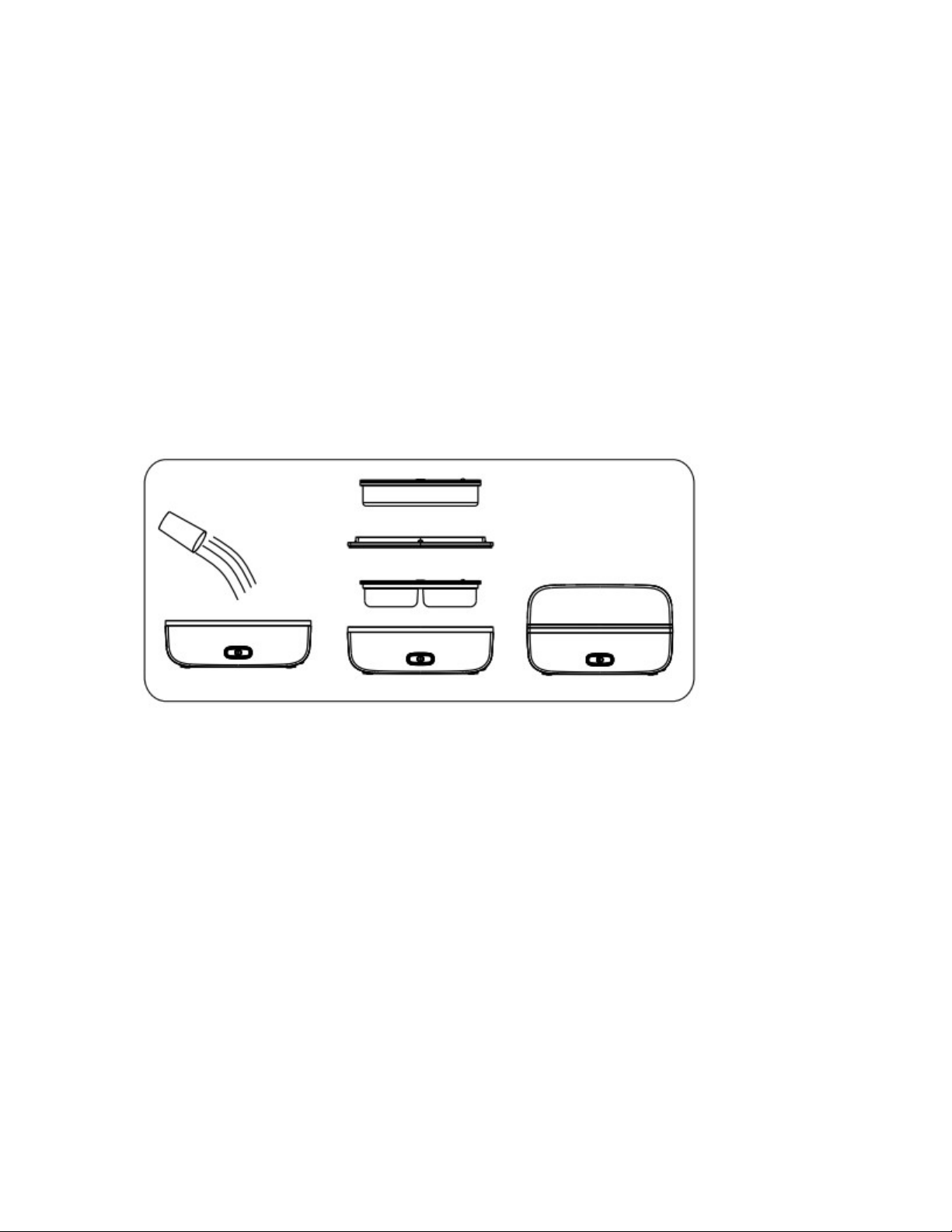

Add proper amount of water into the machine body (refer to the matching table in the manual for
details), put the food to be heated into the matching stainless steel lunch box, put the double-box
lunch box into the machine body, then cover the shelf, put the single-box lunch box on the shelf
and cover it with the upper cover, or use only one lunch box as required.

3
Function usage:
1. Turn on the power supply and press the switch button. If the indicator light is on, the button
has been pressed. At this time, the indicator light indicates that the cooking lunch box has started
to work.
2. After the cooking lunch box is boiled and dried, the power will be cut off automatically, and
the working indicator light will go out, indicating that the food has been cooked.
Hint:
When the amount of water added to the product is too small and the amount of food to be heated
is too large, it may happen that the real thing is not fully heated after the water is dried up and the
power is automatically cut off.
Stainless steel lunch box use:
1. Use of vacuum seal：
放置食物 Place food
盖上盖子 Cover the lid
用真空泵抽气 Pumping with vacuum pump

4
Check the middle silicone check valve when covering the lid of rice cooker to ensure that the
check valve and lid are assembled in place.
Vacuum airbag status indication
正常状态，保险塞上凸 In normal state, the safety plug protrudes
upward
真空状态，保险塞下凹In vacuum state, the safety plug is concave
2. Opening method of vacuum lunch box:
The upper cover can only be opened after taking out the middle silica gel one-way valve for
venting. After opening the cover, install the one-way valve back on the upper cover to avoid loss
and facilitate the next use.
Reference table of water addition and time (for reference only, you can adjust it according to your
experience)
Product
model
Combination
mode
Cooking
food
category
Cooked
degree
Food
quantity
Water
added
in food
(mL)
Water
added
in the
body
(mL)
Cooking
time
(minutes)
Remarks
DFH-
B10G1
Single layer
use
Hot
meals Heating
Fill
lunch
boxes
/ 80 15
DFH-
B10Q3
Double-
layer
use
/ 100 20
DFH-
B10J2
Single layer
use
Steamed
rice/raw
rice
Well
done
1 cup of
rice
2 cups
of rice
3 cups
of
rice
80
160
240
150 30
DFH-
B10E4
Double-
layer use
Two
cups of
rice on
each
floor
160mL
per
layer
160 35

5
Warm reminder:
1. Please don't cover the matching lunch box when cooking the above hot meals.
2. Do not touch the upper cover when the machine is working. Avoid burns!
Matters needing attention
1 before use, check whether the rated voltage on the nameplate of the product is consistent with
the voltage you use.
2.Please use a power supply with grounding protection to ensure personal safety.
3. When in use, the product should be placed on a stable platform and out of the reach of children.
4. Do not press the switch button too hard to prevent the button switch from being damaged.
5. Do not use this product on or near the surface of heat-resistant objects such as carpets and
plastics, and do not place objects damaged by steam above this product.
6. If the product burns dry, please add water to the product or unplug the power supply. Do not
touch the heating plate with your hands to prevent burns.
7 When the product is used, a large amount of steam will be sprayed from the steam port, so be
careful of being scalded by steam.
8. After cooking the food, there is still a lot of steam in the body. Do not open the upper cover
immediately, wait for a few minutes before opening it, so as to prevent steam burns.
9. The machine has the function of thermal protection. If it is necessary to cook food continuously,
the machine must be cooled properly before cooking food for the second time, otherwise the
working indicator light will not light.
10. Do not immerse the machine in water or let the liquid flow into the electric lunch box when
cleaning, so as to avoid danger.
11. If the power cord is damaged, it must be replaced with a special cord or a special component
bought from its manufacturer or maintenance department.
12. Stainless steel products (for food contact) should be cleaned with detergent for the first time,
and then washed with boiling water just boiled for more than one minute to sterilize them.

6
Repair and maintenance
1. After use, please unplug the power plug from the power socket in time.
2. Rice, dishes, shelves and covers can be cleaned with detergent and sponge. Do not use hard
steel wire to avoid damaging the surface.
3. When the machine body is dirty, it can be wiped with a wet towel. Please do not put the
machine body into water for cleaning, so as to avoid leakage and failure.
4. When the product is not used for a long time, please clean it, put it in a packing box, and put it
in a ventilated and dry place, so as not to get damp and affect the use.
Analysis of common problems
1. The power indicator is not on:
a. Is there a power outage?
b. Is the power cord plugged into the socket?
c. Is the power outlet closed?
d. Is the tail plug of the power cord of the cooking lunch box tightly connected with the tailstock
of the machine body?
e. Whether the switch button is closed.
f. Is the water dry, and the machine body is under protection against dry burning?
2. Rice cooked too well or too raw;
a. Add too much or too little water (more water is cooked too well, less water is cooked too raw)?
b. is there too thick scale on the heating plate?
Remarks: the above phenomena can not be eliminated or other faults can not be solved after
analysis. Please contact the maintenance point or distributor of our company. It is strictly
forbidden for non-professionals to disassemble and assemble this machine by themselves.

7
Product specification
Product
model
DFH-B10G1/DFH-B10Q3/DFH-B10E4/DFH-B10J2/DFH-B10E4
Rated
voltage
220V~
Rated
frequency
50HZ
Rated
capacity
1.0L
Rated
power
270W
Appearance
dimension
240X125X150mm
Product
Material Details for Food Contact
This product and food contact materials meet the requirements of relevant national standards for
food
safety:
Part
name
Material
Standard
Lunch box container
(stainless
steel)
Stainless steel 06Cr19Ni10(304) GB4806.9-2016
Lunch box cover
Carbonyl dichloride, polymer with 4,4'-
cyclohexylidene bis (2- methylphenol), 4,4'-
isopropylidenediphenol (bisphenol A) and bis
[4-(1- methyl -1- phenylethyl) phenyl] ester
(PC)
G84806.7-2016
Shelf/upper
cover/main body
Polypropylene (propylene homopolymer)/diene
ethylene copolymer (PP) GB4806.7-2016

8
Heat transfer plate
/PTC
heater
Teflon coating /YZAISi11 Cu3 GB4806.9-2016
GB4806.10-2016
Gas exchange
valve/sealing
ring
Polydimethylsiloxane (silicone rubber) GB4806.11-2016
Tips: The materials of food contact parts used in different models may be different. Please refer
to
the
actual
purchased
models.
Conditions of use: Stainless steel parts should be protected from strong acidic substances.
Environmental protection instructions
This product meets the requirements of Administrative Measures for Restricting the Use of
Harmful Substances in Electrical and Electronic Products.
During the period of environmental protection use, consumers will not have any problems
affecting consumers' health such as leakage and precipitation of harmful substances during
normal use, so they can use it with confidence.
The environmental protection service period of our products is 10 years, and the
"environmental protection service period" is valid only when the products are used under the
normal conditions described in this manual. ⑩

9
Name and content of harmful substances in products
Part name
Harmful
substance
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
chromium
(Cr(VI))
Polybrominated
biphenyls
(PBB)
Polybrominated
dibenzyl ether
(PBDE)
Plastic
components
○ ○ ○ ○ ○ ○
Circuit
board
assembly
× ○ ○ ○ ○ ○
container
○
○
○
○
○
○
Heating
element
assembly
× ○ × ○ ○ ○
Power
cord
×
○
○
○
○
○
This form is prepared according to SJ/T11364
○: indicates that the content of the harmful substance in all homogeneous materials of the part is
below the limit specified in GB/T26572
X: indicates that the content of the harmful substance in at least one homogeneous material of the
component exceeds the limit specified in GB/T26572
Remark: Some of the components marked "×" above contain harmful substances exceeding the
standard due to the limitation of the current technical level of the industry, and it is temporarily
impossible to realize substitution or reduction.
BEAR ELECTRIC APPLIANCE CO.,LTD 。
Add: No.5-21, Fuan Intensive Industrial Zone, Fuyu Village Committee, Leliu Street, Shunde
District, Foshan City
Tel：[phone]Fax：[phone]
E-mail：bears@bears. com. cn
Postal code of http://www.bears.com.cn: 528300

10
Bear
Cooking lunch box
DFH-B10G1
DFH-B10Q3
DFH-B10J2
DFH-B10E4
DFH-B10E4
Operation instruction
Please keep the instruction manual properly
Please read this instruction manual carefully before using the product!
This product is only used at home or similar places.
Executive standards: GB4706.1-2005, GB4706.19-2008、GB4806.1-2016
