BeAware Aware A1 User manual

User Manual
Aware A1/A2/A3
Indoor Climate Sensor

You can also download the instruction and operating manual, technical sheet by:
•Visiting the website:
•www.beaware.today
•Using this QR-code
•Alternative contact Technical Assistance Service
(The telephone number: [phone]
2

Congratulations
with your new
Indoor Climate Sensor
You are now only
a few steps away from
being AWARE of
the space between us

This manual was last updated
June 2020

Congratulations 6
Intended use 8
Features/ accessories 9
Web and mobile app accessories 10
In the box 11
Description of the main product elements 12
Description of the user interface 16
Safety warnings 20
Installation instructions 22
Description of how to use/ operate the product 23
Indoor Climate Thresholds' and Alerts 24
Troubleshooting section and instructions on how to solve problems 26
Maintenance information 27
Repair information 28
Information on disposal/ Recycling of the product 29
Technical specifications 31
GDPR 33
EU/ CE Declaration of conformity 34
Warranty information 35
Further Information and Contact details 36
Glossary 38
5
TABLE OF CONTENTS

Dear customer,
To d a y w e s p e n d u p t o 9 0 % o f o u r l i v e s i n d oo rs . A s a c on s e q u e n c e
the indoor environment and awareness about it, is vital for achieving
good health and wellbeing.
Congratulations on purchasing your Aware Device or Devices.
To g e t h e r w i t h t h e B e A w a re A p p , t h i s i s t h e b a s i c c om p o n e n t t o
improving your indoor environment and wellbeing.
Through the BeAware App, you will be able to link several devices to
one simple and easy to use platform. For greater convenience,
reliability and energy savings.
We hope you enjoy your new product,
The BeAware Team
CONGRATULATIONS
6

•The causes of poor indoor climate in the workplace, school or at
home, also called risk factors, are most often: Temperature, draft,
and poor air quality due to, for example, dust, degassing and
passive smoking, moisture and microorganisms as well as poor
lighting, glare and sound conditions.
•Poor indoor climate can cause discomfort symptoms and illness
ranging from eye-and mucous irritation, nausea, dizziness,
headaches and unnatural fatigue to nonspecific hypersensitivity
reactions. Resulting in poor health and wellbeing.
•Use the BeAware Devices to combat poor indoor climate.
COMBAT POOR
INDOOR CLIMATE
7

INTENDED USE
This Product may only be used together with BeAware
components, and is for indoor use only.
•Follow the safety instructions and the directions in this
manual and the BeAware App. to ensure that the product or
products are set up correctly.
•Please note the details in the technical data chapter
•Avoid installing in areas prone to high amounts of dust,
direct sunshine or heat. And keep away from water.
Do not modify the product in any way.
Note that any other use than for indoor climate
measurements is considered unintended use.
i
8

FEATURES/ ACCESSORIES
DISPLAY
MEASUREMENT
ICONMICROPHONE
LIGHT-
SENSOR
PIR SENSOR
(Movement)
9
TRESHOLDS
e

Get the BeAware App.
WEB AND MOBILDE APP
ACCESSORIES
Download and install the BeAware App.
The Web and mobile app allows to monitor data, get notifications,
and add multible sensors to one platform
•Go to the website www.beaware.today to install the App.
•Follow instructions within the app. to get started.
•An API for developers
may be requested.
10

IN THE BOX
A1
The Aware
Indoor
Climate
Sensor
Power Supply
Inclusive
International
Plug and Power
Sockets
Quick Manual
A2
The Aware
Indoor
Climate
Sensor
Senor ready
for 4x AA
Batteries.
(not included)
Quick Manual
A3
The Aware
Indoor
Climate
Sensor
Sensor ready
for
Tracy
Connection
Quick Manual
11

DESCRIPTION OF THE MAIN
PRODUCT ELEMENTS
The BeAware Indoor Climate Sensor comes in three different Models:
Aware A1 –powered by separate power supply CUI Inc SM16B;
Aware A2 –powered by 4 AA batteries;
Aware A3 –powered by Tracy® LED iBond system.
All models comes with a user-friendly Screen with Indoor Climate Vector
Iconography and measurements/ thresholds to allow for immediate
indoor climate insight.
12

All models are equipped with six onboard sensors, and a calculated
Sleep mode:
Sensor Units
1. Te m p e r a t u re , Degree Celsius C°
2. Humidity, %
3. Air quality, IAQ, eCO2 (ppm)
4. PIR (motion), Movement
5. Sound dB
6. Spectral light sensors Light On/ Off
Sleep mode MDEI/ Lux/ Kelvin
Using the BeAware App. these data can be correlated with other
sensors and weather-data for more and better indoor climate
insight.
13

PLEASE NOTE
•The Bosch BME 680 Sensor inside this devise, use a range
of 400-5000 ppm, with an accuracy of ±200 ppm.
•When the sensor is permanently installed, the precise calibration may
take up to ~2 weeks of consecutive measurements.
•~4 hours after calibration, the sensor will start delivering draft values
of eCO2.
•“CAL.” tells you that the device is calibrating. When calibrated the
device will start showing the eCO2 icon/ value.
14

15

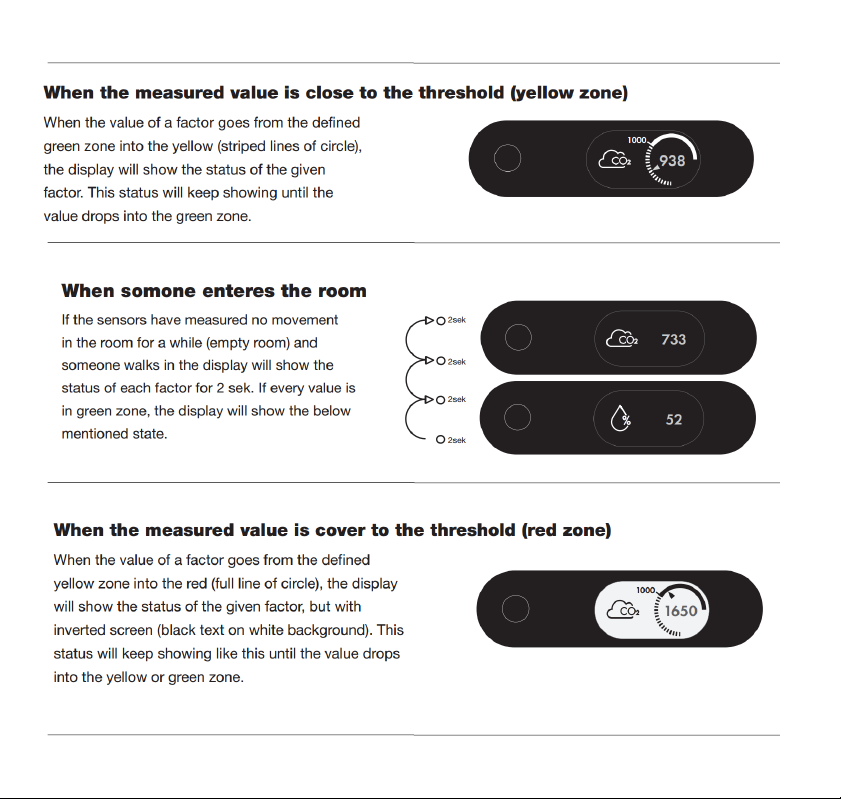

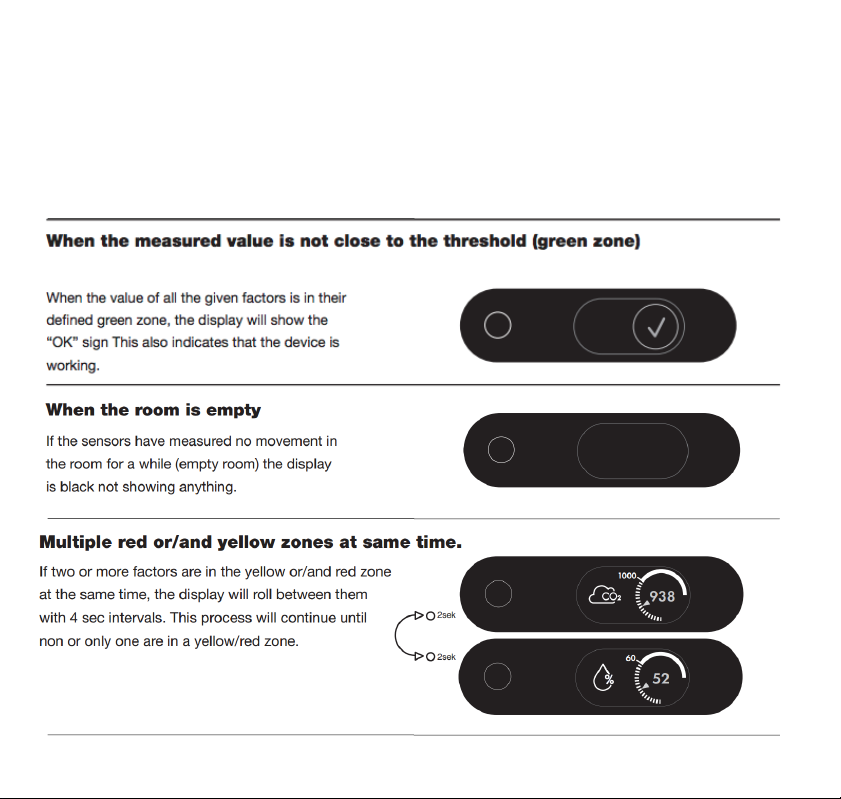

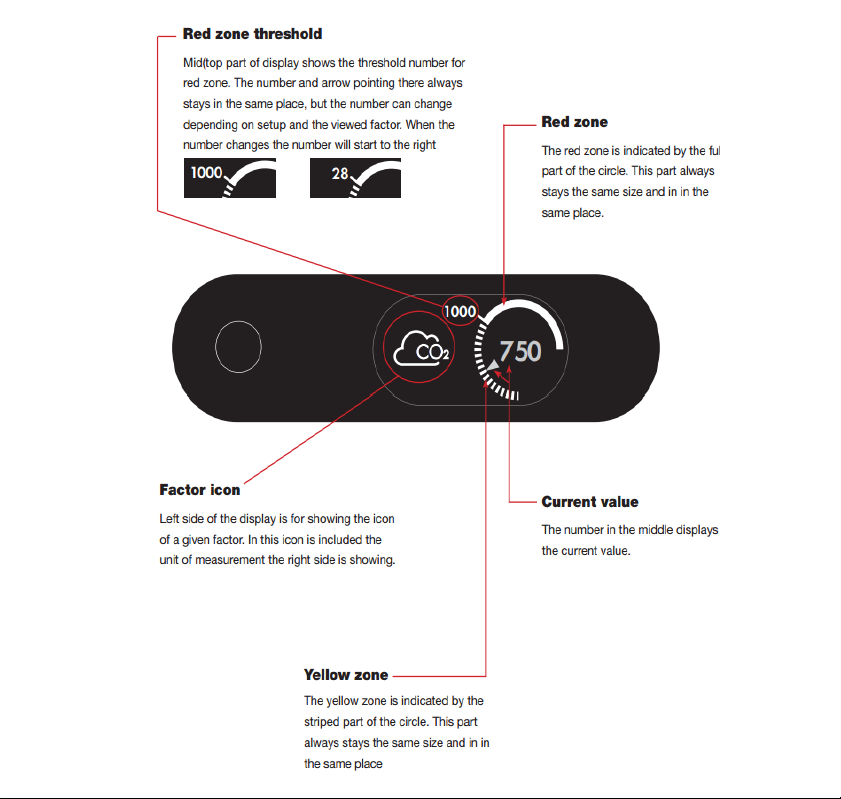

DESCRIPTION OF THE
USER INTERFACE
16

17

18
e

19
Temperature
(Degree Celsius, C°)
Air quality,
(eCO2, ppm.) Air quality, (IAQ Score)
PIR (motion)
Not available on device display
Sound, (dB)
ICONS
Humidity (%)
Sleep,
(Spectral light, MDEI)
Not available on device display
see app
e

SAFETY WARNINGS
•Before use, please read this manual carefully.
•Any use not in accordance with this manual will
result in the exclusion of warranty and the
manufacture’s liability.
•This Device should be installed and operated
with a min. distance of 20 cm a radiator.
•Do not obstruct the air intake slits on the sides
of the device.
Fire risk.
There is a risk of fire if the product is used with a
different power cable to that supplied.
•Only use the product (AW1/ AW3) with the
original power cable or Tracy.
•Caution: Risk of explosion if the battery is
replaced by an incorrect type.
!
