Becen 200w LED User manual

200w LED 3in1 Moving Head Light
User Manual
（Please read the instructions carefully before using.）

1. dismantling packing
Thank you for the choice of our products. For correct and safe use of
this product, please read the instructions carefully before installing and
using this product. This manual contains important information on
installation and application. Please strictly observe the operation
procedures of the instructions when installing and operating products.
At the same time, please keep the instructions properly.
Our LED shake head lamp uses a new beautiful high temperature
engineering plastic case and a high hardness metal body. This product
strictly follows the CE standard for design and production, and is in line
with international standards.
The DMX512 signal protocol, which can be used alone, and can be
used online, has the features of fast rotation, low noise and powerful
functions. It is suitable for small and medium concerts, theaters,
studios, night clubs and bars.
This product uses bright and stable 200wLED lamp beads. Please
carefully remove the packaging and check if the product is damaged
during the transportation process after the packaging is dismantled,
and check whether the following contents are complete.
Shakes head lamp ----1 signal line ----1
Fast lock ----2 instructions ----1 book
Power cord ----1 strip ----1 bar
8. product features
Light source: 200W LED white light module maximum power: 290W
Power supply: wide voltage input switching power supply 100V-240V 50-60Hz
Color temperature: 7500K
Lamp life: 50000 hours
Angle of light spot: 7-21 degrees
Control mode: 18 channels, DMX512 signal input, voice control, automatic
operation.
X/Y scan: 540 degrees, vertical: 270 degrees
Color: 9 color plates + white light, rainbow effect, can be positioned arbitrarily.
Pattern: 7 pluggable pattern, pattern rotation, pattern water effect fixed
pattern: 10 fixed pattern + white light, with jitter, positive and negative water
effect dimming: 0-100 linear dimming
Stroboscopic: 0-25ZH/S per second, synchronous pulse stroboscopic, random

pulse stroboscopic effect plate: 4 prism, with positive and negative rotation
effect.
Display: LCD display, Chinese and English display, reverse display product size:
343*232*537MM
Package size: 57x45x44MM net weight: 15KG
Gross weight: 18KG
2. Safety instructions
This product is a perfect product before it comes out of
the factory. To keep the product in good condition and
ensure safe operation, users should follow safety
precautions and warnings.
Important: damage caused by failure to follow this
instruction is not covered by warranty. Supplier is not
Responsible for the resulting product problem.
If the product has been exposed to an extremely unstable
temperature (such as after transportation), please do not
immediately attach the power to the product, because the
water droplets produced by the temperature change may
damage the product. Please use it after the product is
restored to normal temperature.
This product can be used in 90-260V voltage range and is
used for indoor products. Please make sure that the voltage
is not higher than the product's acceptable range!! Power
plug must be inserted into I socket with good protection.
Green or tea green conductors must be grounded.

Please check the power supply line of this product. Ensure
that the power cord is not folded or damaged, and does not
connect to other lines. Special attention should be paid
when connecting power lines or related wiring. Always
remove the power before using the product or before
cleaning.
Before you use the product, please familiarize yourself
with the operation function of the product. Please do not
expose children or unprofessional people to products.
Please don't shake this product. Do not use brute force when
installing or operating products. Do not let non
professionals operate the product. Most of the damage is
caused by unprofessional operation.
The products are not equipped with relevant maintenance
accessories. The maintenance and repair of products can
only be done by professionals. Please do not alter the
product without authorization, otherwise it may damage the
product, so the damage caused is not within the scope of
warranty. Moreover, unprofessional operation may lead to
short circuit, burn or electric shock, and so on.

3. Operation description
This product is a headlamp dyed beam lamp, which is used
to create the beam effect.
- if the product is subjected to a large temperature
difference (for example, after transportation), do not
start the product immediately, because the shrink of the
heat account will damage the product. Please wait until the
equipment reaches normal room temperature before starting
the product.
- take care of the shock. Avoid strong collisions during
the installation of the product.
Please do not lift the entire product through the lamp
holder, because the mechanical properties of the device may
be damaged.
- make sure that the product is not exposed to overheating,
too wet or dusty areas when selecting the installation site.
Please do not put any wires on the ground, otherwise you
may suffer the danger of electric shock.
Before installing the product, please ensure that the
installation point is safe
Please attach the safety rope to the product and check if
all the screws are correct during installation.

Please make sure that the lens is in good condition. Replace
lens when lens is damaged or scratched.
It is recommended that the technical personnel who are
familiar with this product operate the product. It is
forbidden for non-technical personnel to operate this
equipment, because many losses are caused by
unprofessional operation.
Please keep the packing materials properly for two
transport.
If there is no instruction from the manufacturer or
distributor, please do not alter the product without
authorization.
- any equipment failure caused by the operation of the
equipment without the instructions specified is not
covered by the warranty. And any accidents caused by short
circuit, injury, electric shock, ultraviolet radiation,
and explosion of light bulbs caused by this are not covered
by the warranty.

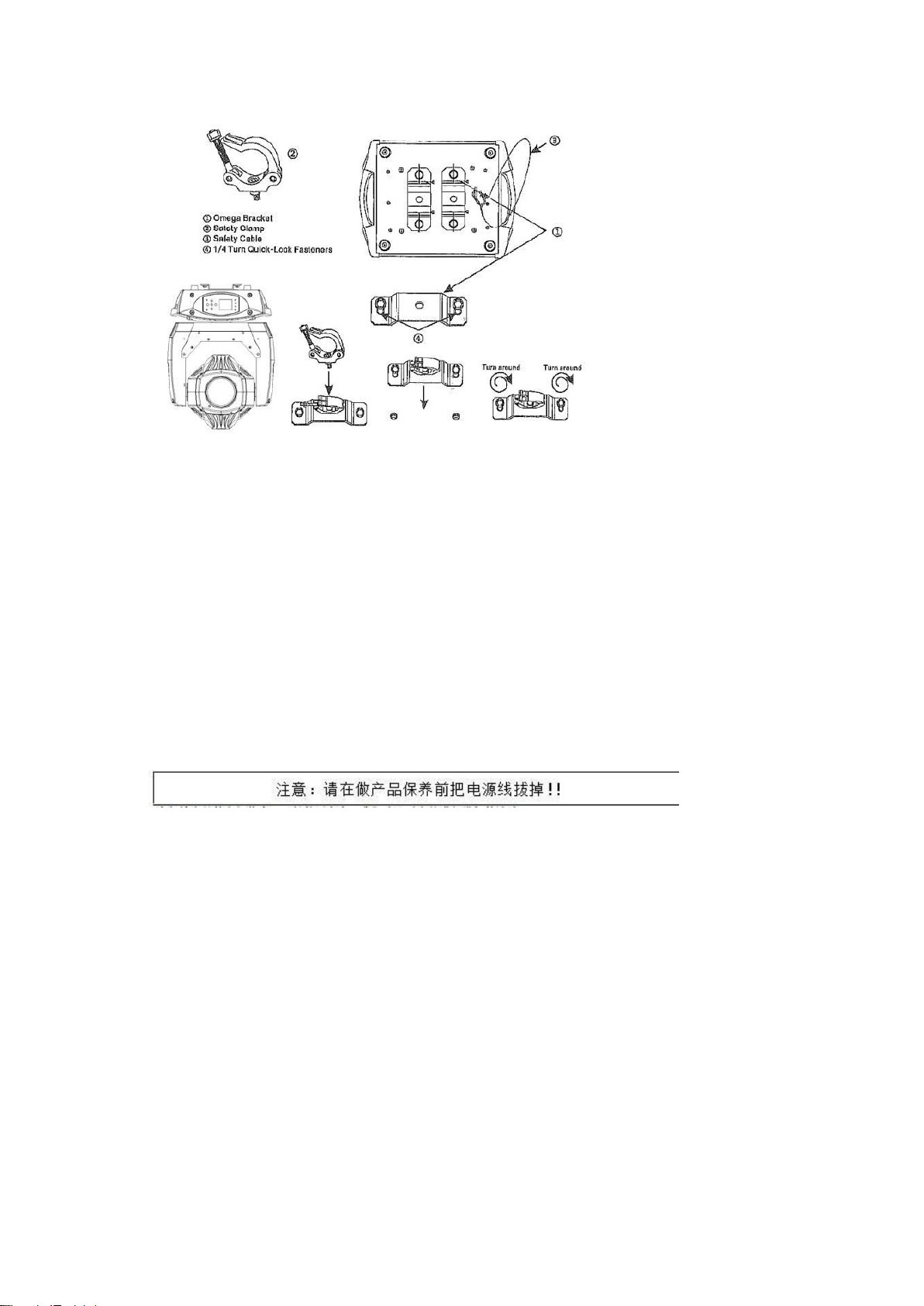

4. Product hanging and installation
Note: for safety reasons, please install this product in
the area far away from the aisle, seating area, or manually
accessible area.

Before hanging this product, make sure that the
installation point can bear 10 times the weight of the
product. Product installation must have double protective
devices, such as safety rope.
When hanging, dismantling or repairing this product, it is
forbidden to stand under the installation point.

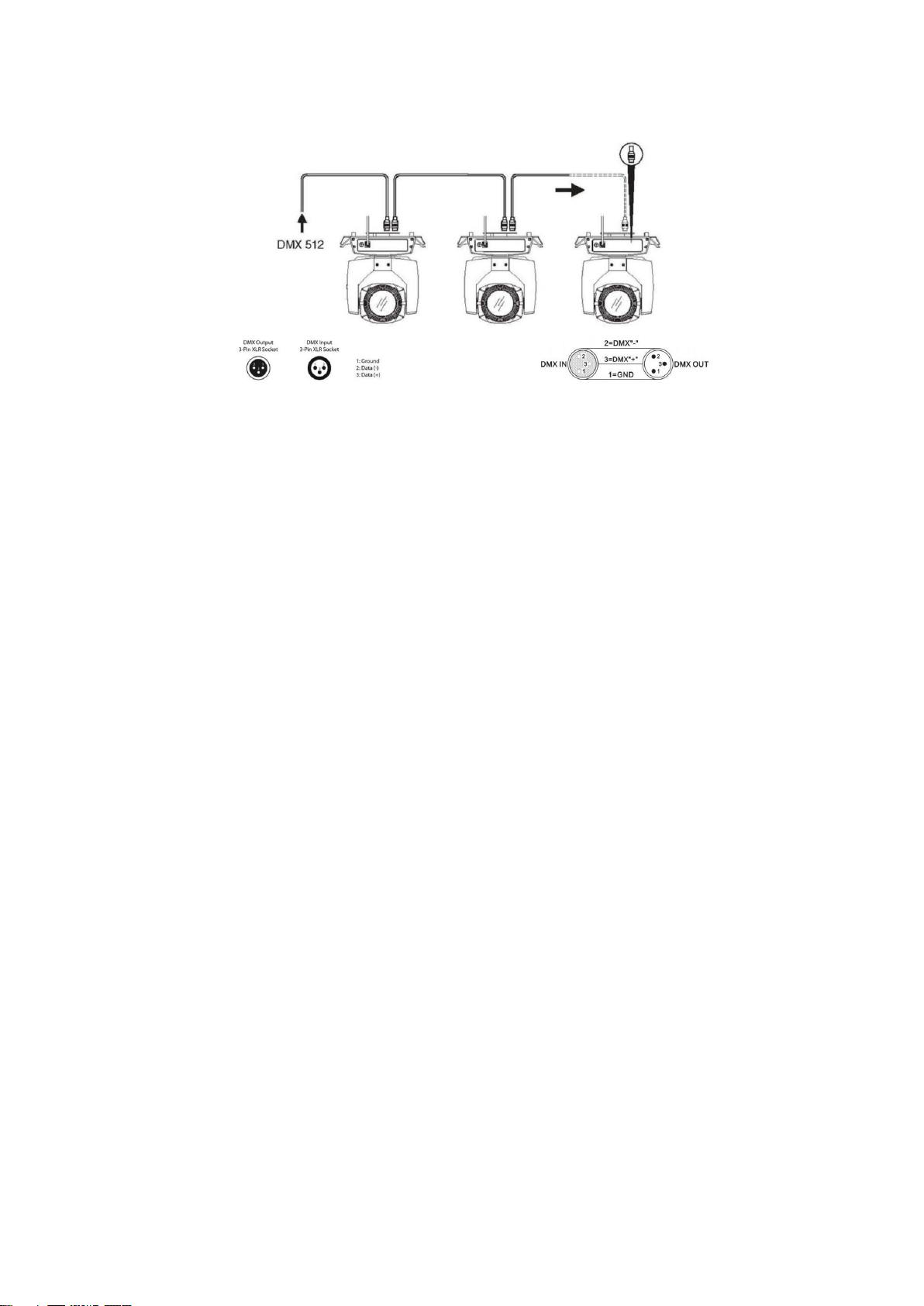

DMX-512 Control connection
Plugged the XLR signal line of the product into the signal output port of the
controller, and the female head is inserted into the signal input port on the
rear panel of the product. You can talk

about multiple products in series, the signal line needs
three cores, shielded, with XLR input and output header.
Please refer to the following picture.
DMX-512 connection requires a terminal (loop connection)
In the installation process, if the distance of the signal
line is
long, or in the noisy environment, such as the song and
dance hall,
the DMX terminal (loop connection) is recommended. This
avoids the
turbidity of digital control signals caused by electrical
noise.
The DMX terminal is composed of a simple XLR connector 2
core and

2
3
1
a 3 core connected to a 120 ohm resistor. Please insert
the terminal
into the XLR of the last product.
For the output port, please refer to the following figure.
4. Channel table (18 channel mode)
Chann
el
Funct
ion
DMX
Value
Fuction
1
X axis
0-255
0-540 degree of X axis
2
X axis fine
tuning
0-255
X axis 16bit
3
Y axis
0-255
0-240 degree of Y axis
4
Y axis fine
tuning
0-255
Y axis 16bit
5
XY Speed
0-255
From fast to slow
6
Total
dimming
0-255
From dark to bright
7
Strob
oscop
ic
0-3
Light lamp
4-99
Synchronous stroboscopic
100-149
Flicker
150-199
Burst flash
200-249
Random stroboscopic
250-255
Light lamp
5
Chrom
atic
disc
0-19
Linear change of color 1
20-39
Linear change of color 2
……
……………
……
……………
160-179
Linear change of color 9
180-199
Blank linear change
200-226
Clockwise color flow, from fast to slow
227-228
Stop
229-255
Reverse clockwise flowing water, from slow
to fast
0-4
Empty
5-54
10 fixed patterns, every 5 Digital pairs

55-154
10 fixed patterns jitter fast to slow, each
155-204
CIS pointer pattern water, from fast to slow
205-205
No function = stop
206-255
Reverse clockwise flowing water, from slow
to fast
10
Revolving
pattern
plate
0-79
7 rotating patterns + blank, every 10
80-159
7 rotating patterns + blank jitter fast
160-206
Clockwise pattern water, from fast to slow
207-208
Non functional stop
209-255
Reverse clockwise pattern water, from slow
to fast
11
Pattern disc
rotation
0-127
0-360 degrees of rotation of the pattern
128-191
The pattern rotates clockwise from fast to
192-193
Stop turning
194-255
The pattern turns clockwise from slow to
fast
12
Prism
inser
tion
0-127
Prism removal
128-255
Prism insertion
13
Prism
Rotat
ion
0-127
90 degrees of rotation of prism
128-190
The pattern rotates clockwise from fast to
191-192
Stop turning
193-255
The pattern turns clockwise from slow to
fast
14
atomi
zatio
n
0-127
Atomization removal
128-255
Atomization insertion
15
focus
0-255
0 to 100% linear focusing
16
enlar
ge
0-255
0 to 100% linear amplification
17
Macro
funct
ion
0-50
No Function
51-100
System self-test
101-150
Self-working 1
151-200
Self-working 2
201-255
声控
18
复位
0-250
无效区域
251-255
复位（保持 5 秒生效）
Menu Operation
No.
Menu
Concrete explanation

1
DMX
address
code
001-512
2
System
setup
Operation mode (DMX, sound control, self walk 1, self
walk
2, self 3)
Local number: 000-255 channel mode (18 channel)
Horizontal inversion (open, close), vertical
inversion (open, close).
Horizontal vertical exchange (open and close), motor
position error correction (on / off), screen
protection (on / off)
No signal (keep, clear) language (English, Chinese)
Restore factory settings
3
Manual mode
Empty
4
calibration
Empty
5
System test
Empty
6
系统信息
无
7. Photometric data (Liu Ming)
Lumen data at 7 degrees of beam angle
25200 lumen @4 m 11600 lumen @6 m 6500 lumen @8 M
Lumen data at 21 degrees of beam angle
3260 lumen @4 m 1530 lumen @6 m 860 lumen @8 M

9. product maintenance and cleaning
When testing this product, please pay attention to the following points:
1. the screws and components of all the installation products must be
tightly connected and not rusted.
2. shell, lens, fixings and installation locations (e.g. ceiling, hangers,
trusses, etc.) can not be deformed.
3. mechanical moving parts can not be worn and can not be rotated
unevenly.
4. the power cord must not be damaged, broken or damaged.
The installation and use of products must be carried out by trained
professional and technical personnel.
In order to keep the product in good condition and prolong its service life, we
suggest cleaning the products regularly.
1. clean the external lens and internal lens of the product every week to prevent
the light output from weakening due to the lens dust.
2. clean the fan every week.
3. every three months by the professional electrical engineer to carry out a
detailed circuit inspection of the product to ensure that the circuit contact
is good to prevent the aging of the circuit contacts due to overheating.
We suggest that products should be cleaned regularly. Please be
careful not to use damp or linen. Do not use alcohol or solvents
for cleaning.
This product is not equipped with replacement parts. Please refer

to the "installation instructions" part. If the user needs any
spare parts, please purchase it to the local distributor.
