Becker VAU 1.1/1-AC User manual

OPERATING INSTRUCTIONS  QUICK START GUIDE
VAU 1.1/1AC
FREQUENCY CONVERTER
MAKE IT BECKER

2BECKERVAU 1.1/1AC
TABLE OF CONTENTS
1 SAFETY INFORMATION 3
1.1 WARNING SYMBOLS USED 3
1.2 GENERAL INFORMATION 3
1.3 COMMISSIONING INFORMATION 3
1.4 OPERATING INFORMATION 4
1.5 INTENDED USE 5
2 INSTALLATION 6
2.1 CONNECTION SPACE 6
2.1.1 CONNECTION POWER LINE 7
2.1.2 RELAYS 7
2.1.3 MOTOR CONNECTION 7
2.1.4 FAN CONNECTIONS 7
2.1.5 SIGNAL TERMINALS 8
2.1.6 PTC/BIMETALLIC SWITCH 8
2.2 RS485 INTERFACEE 8
2.3 LOCAL OPERATION AND DISPLAY 9
3 FAULT DETECTION AND REMOVAL 9
3.1 TABLE OF THE LEDFLASH CODES 9
3.2 TABLE OF POSSIBLE ERROR MESSAGES 10
4 TECHNICAL SPECIFICATIONS 12
5 INTERFACES 13
6 CERTIFICATIONS 13
Frequency converter integrated Frequency converter separate with fan
Typ 1 - VAU1.1/1-AC-I Typ 2 - VAU1.1/1-AC-L

BECKERVAU 1.1/1AC 3
1 SAFETY INFORMATION
1.1 WARNING SYMBOLS USED
Danger (general)
Danger from electric shock and electrical discharge
Danger from hot surfaces!
1.2 GENERAL INFORMATION
i
Detailed information can be found in the VAU 1.1/1-AC operating instructions.
Visit our homepage for this: www.becker-international.com
i
IMPORTANT INFORMATION
This quick start guide represents only an excerpt of the VAU 1.1/1-AC operating instructions. The latter should be read
thoroughly before initial start-up.
The quick start guide contains safety instructions and helps the user to put the basic model of the frequency converter (FC)
into operation and to operate it with the default settings.
The frequency converter can only be operated safely if the required ambient conditions, see chapter 4, have been complied
with.
Gebrüder BECKER GmbH will not be liable for damage resulting from the non-observance of these operating instructions.
These operating instructions form a part of the product. They apply exclusively to the frequency converter of the VAU
series by Gebr. Becker GmbH. Store the operating instructions well accessible for all users near the frequency converter.
i
IMPORTANT INFORMATION
Any work concerning transport, installation and commissioning as well as maintenance may only be carried out by qua-
lified specialists (observing IEC 364/CENELEC HD 384/DIN VDE 0100 and IEC 664/DIN VDE 0110 and national accident
prevention regulations).
Qualified personnel in the meaning of these operating instructions are electricians who are familiar with the installation,
assembly, commissioning and operation of the frequency converter and the related risks. In addition they will have know-
ledge of the relevant standards and regulations based on their technical training.
WARNING
Mortal danger from fire or electric shock!
Death or serious injury!
Only use the frequency converter as intended.
Do not perform any alterations on the frequency converter.
Only use spare parts and accessories sold or recommended by the manufacturer.
During assembly ensure adequate distance to adjacent components.
CAUTION
Risk of burns from hot surfaces!
Serious skin burns from hot surfaces!
The heat sink and all other metal components can heat up to temperatures exceeding 70°C.
Adequate distance to adjacent components must be kept during assembly.
When working on the components ensure sucient cooling down times.
1.3 COMMISSIONING INFORMATION
Electrical connection
Frequency converters are equipment items for use in industrial high voltage systems and are operated with voltages which
may result in serious injury or death upon contact.
They may only be installed or worked on by qualified electricians and with the equipment switched to zero potential. These
individuals must always have access to the operating instructions which must be consistently observed by them.

4BECKERVAU 1.1/1AC
DANGER
Mortal danger from electric shock!
Death or serious injury!
Switch the frequency converter to zero potential and protect it against reactivation.
The following terminals may still carry dangerous voltages even with the motor at rest:
• mains connection terminals 1X1: PE, N, L
• motor connection terminals X2: U, V, W
• connection terminals X6, X7: relay contacts relay 1 and 2
• PTC/bimetallic switch connection terminals 1X6: T1/T2
i
IMPORTANT INFORMATION
• When working on live frequency converters the applicable national accident prevention regulations (e.g. VBG 4) must
be observed.
• The local regulations for the installation of electrical systems and accident prevention regulations must be observed.
• The electrical installation must be carried out in accordance with relevant regulations (e.g. observe conductor cross
sections, fuses, earth connections).
• If personal and fire protection is required when using the frequency converter, all-current sensitive fault current
protection switches (residual current devices of type B) must be used (in accordance with DIN VDE 0160 and EN 50178).
These oer reliable protection for the high frequency alternating currents occurring during FC operation and smooth
and pulsating direct fault currents. Common fault current protection switches of type A are not approved.
• Only use permanently wired mains connections.
• Earth the frequency converter in accordance with DIN EN 61140; VDE 0140-1.
• Contact currents > 3.5 mA may occur in the VAU. In this case an additional protective earth conductor
with the same cross section as the original earth conductor must be installed in accordance with DIN EN
61800-5-1. Whether the equipment concerned must be additionally earthed can be determined from
the respective equipment instructions. A second protective earth conductor can be connected on the
outside of the device below the control cable feed. A suitable M4x10 screw (2.0 Nm torque) is included
in the scope of delivery.
• When using dierent voltage levels (e.g. +24V/ 230 V) crossing cables must always be avoided! The user must also
ensure that the applicable regulations are complied with (e.g. double or reinforced insulation in accordance with DIN
EN 61800-5-1)!
• The circuit boards contain highly sensitive MOS semiconductor elements which are particularly sensitive to static
electricity. Please avoid, therefore, touching the strip conductors or components with your hands or with metal objects.
When connecting the conductors, only the screws of the terminal strips may be touched with insulated screwdrivers.
i
• In a residential environment this product may cause high frequency interference necessitating interference suppression
measures!
• Information on the EMC-compliant installation, such as shielding, earthing and cable routing, can be found in the
documentation of the frequency converters. This information must also be always observed for frequency converters
bearing the CE mark. Adherence to the limits required by EMC legislation is the responsibility of the manufacturer of the
plant or machine.
1.4 OPERATING INFORMATION
DANGER
Mortal danger from electric shock!
Death or serious injury!
2 mim
Due to charged capacitors the device might still carry dangerous voltage for up to 2 minutes after disconnection from
the mains.
Touching exposed or open terminals, conductors and device components can lead to serious injury or death!
Therefore, opening the device or removing the covers or control panel is only permitted 2 minutes after the device
has been switched to zero potential.
Even with the motor at rest (e.g. on account of an electronic lock, blocked drive or short circuited output terminal) the
mains connection terminals, motor terminals and terminals for the brake resistance may still carry dangerous voltage.
A shut down motor does not equate to an electrical separation from the mains.

BECKERVAU 1.1/1AC 5
DANGER
Mortal danger from rotating mechanical components!
Death or serious injury!
Under certain configurations the converter might automatically start after activation of the mains.
Systems with frequency converters installed might need to be equipped with additional protective devices in accordance with the
respective applicable safety regulations (e.g. laws on technical equipment, accident prevention regulations etc.).
If the required covers are removed without authorisation or with incorrect use, installation or operation there is a risk of serious
personal injury or property damage.
All covers must be kept closed during operation.
i
IMPORTANT INFORMATION
Please note the following information during operation:
• The frequency converter operates with high voltages.
• When operating electrical equipment, some components of this equipment inevitably carry dangerous voltages.
• The emergency stop facilities according to DIN EN 60204-1; VDE 0113-1:2007-06 must remain operational during all
operating modes of the control device. Resetting the emergency stop facility must not lead to uncontrolled or undefined
reactivation.
• To ensure safe disconnection from the mains the mains supply cable to the frequency converter must be disconnected
synchronously and at all poles.
• A pause of 1 to 2 min. must be adhered to between successive mains connections.
• Certain parameter settings may cause the frequency converter to automatically restart after a supply voltage failure.
• For a sound motor overload protection the motor parameters, in particular the I2t settings, must be configured correctly.
• The frequency converter does not provide internal motor overload protection. Motor overload protection can also
be ensured using an external PCT/bimetallic switch.
• The frequency converter must not be used as an „emergency stop facility“ (see DIN EN 60204-1; VDE 0113-1:2007-06).
• If the air is dusty, the cooling surfaces must be regularly cleaned.
1.5 INTENDED USE
i
IMPORTANT INFORMATION
• The VAU frequency converter is a device for the speed control of three phase rotary current motors.
• The frequency converter can be integrated into the device or used separately.
• Frequency converters are components intended for installation in electrical systems or machinery.
• This frequency converter is not approved for operation in explosive areas!
• When they are installed in machinery, the commissioning of the frequency converters (i.e. the start of their intended
operation) is prohibited until it has been determined that the machine complies with the provisions of applicable machinery
directive including the EMC directive at the time of commissioning; EN60204 must be observed.
• The harmonised standards of the DIN EN 50178; VDE 0160:1998-04 series in conjunction with DIN EN 60439-1; VDE
0660-500:2005-01 are applicable to this frequency converter.
• The frequency converters meet the requirements of the EC machinery directive 2006/42/EC.
• The technical data and information relating to the connection conditions can be found on the rating plate and in these
instructions and must always be adhered to.
• Repairs may only be carried out by authorised repair centres. Independent unauthorised interventions may lead to
death, personal injury and property damage. Such cases invalidate the warranty by Gebr. Becker GmbH.
• No external mechanical loads, e.g. stepping onto the housing, are permitted!

6BECKERVAU 1.1/1AC
VAU 1.1/1-AC →First steps
2 INSTALLATION
2.1 CONNECTION SPACE
After opening the terminal box cover you will find all the connection terminals of the frequency converter in the connection area.
Mains supply
PE, N, L
PTC/bimetallic
switch
Enable bridge
24V Out & Dig In 1
Fan fuse Relay
Rel.2: Collective fault message
(standard)
Rel.1: Fan control
(standard)
Control terminal RS485-interface
Connection socket for:
- PC (KombiTool)
- manual control unit (MMI)
Fan connections
Motor connection
U, V, W,
EMC - cable gland
PE Cover PE Motor

BECKERVAU 1.1/1AC 7
2.1.1 CONNECTION POWER LINE
Conductor cross-section of the mains power supply: 0,25 -4 mm2(wire-end ferrule with plastic shroud)
Stripping length: 12 mm
Terminal Connection
PE, N, L Mains supply - Conductor PE, N, L
2.1.2 RELAYS
Function Description
The relays can be parametrised with dierent functions.
COMNO
NC
Relay 2
AEM
Aggregated error message (standard),
Fault-free operation:
Malfunction:
COM - NC
COM - NO
Relay 1 Reserved for fan control
2.1.3 MOTOR CONNECTION
Conductor cross-section of the engine connection: 1,5-2,5 mm2
Terminal Connection
U, V, W Conductor U, V, W
PE Motor feed line PE
2.1.4 FAN CONNECTIONS
Terminal Connection
+ Fan FC (only for version with separate FC)
- Fan FC (only for version with separate FC)
+ Fan VASF
- Fan VASF

8BECKERVAU 1.1/1AC

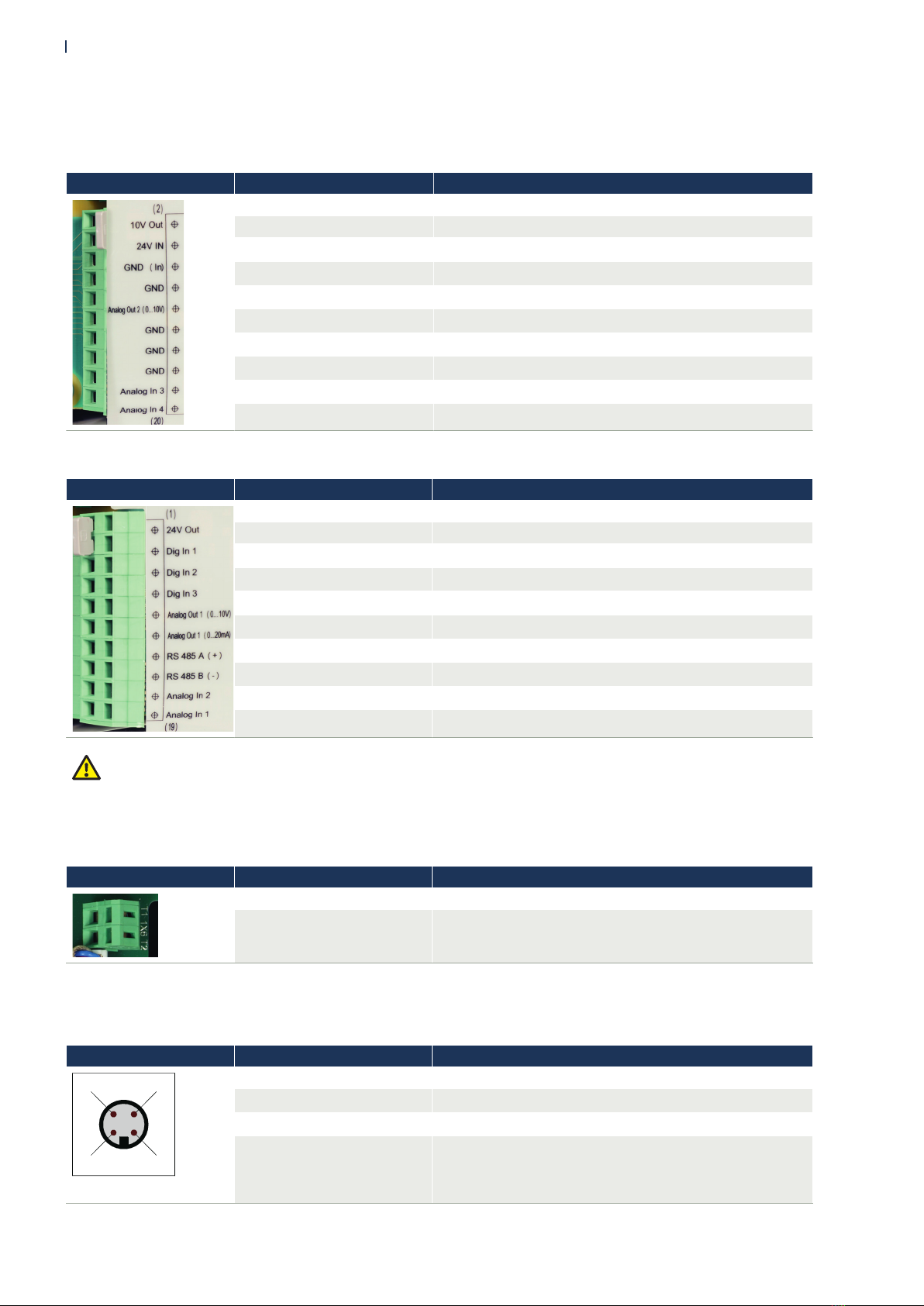

2.1.5 SIGNAL TERMINALS
Conductor cross-section of the signal lines: 0,5-1,0 mm2(wire-end ferrule with plastic shroud)
Stripping length: 9-10 mm
Connection terminals of the bottom row of the double-decker terminal block:
Terminal Connection
10V Out Int. voltage supply 10V
24V IN Ext. voltage supply
GND (In) Ground (ext. voltage supply)
GND Ground
Analog Out 2 (0V...10V) Analog voltage output
GND Ground
GND Ground
GND Ground
Analog In 3 Analog input 3
Analog In 4 Analog input 4
Connection terminals of the top row of the double-decker terminal block:
Terminal Connection
24V Out Int. voltage supply 24V
Dig In 1 Digital input 1 (enable)
Dig In 2 Digital input 2
Dig In 3 Digital input 3
Analog Out 1 (0V...10V) Analog voltage output 1
Analog Out 1 (0mA...20mA) Analog current output 1
RS 485 A(+) Serial interface RS485 line A
RS 485 B(-) Serial interface RS485 line B
Analog In 2 Analog input 2
Analog In 1 Analog input 1
NOTE
• All control voltages refer to a common reference potential (GND).
• 24 V can be taken from the respective terminals. The sum of the currents may not exceed 100 mA.
2.1.6 PTC/BIMETALLIC SWITCH
Terminal Connection
T1 Temperature monitoring 1
T2 Temperature monitoring 2
2.2 RS485 INTERFACEE
The RS485 interface is designed as a two-wire model acc. to EIA RS485 (data lines A and B) and provides the communication with
the frequency converter.
Pin assignment M12 Description
1
43
2
Pin (bus in)
124V
2 RS 485 A(+)
3 GND
4 RS 485 B(-)

BECKERVAU 1.1/1AC 9
2.3 LOCAL OPERATION AND DISPLAY
The local operation of the device is done on the operating panel as shown.
Acknowledge button
Malfunktion
RS485 interface
Potentionmeter
for adjusting the
setpoint
LEDs indicate the
converter status
Using the potentiometer (scale 0...100%), the current setpoint value can be increased or decreased.
A malfunction can be acknowledged by pressing the Acknowledgement button.
The two LEDs indicate the current converter state.
3 FAULT DETECTION AND REMOVAL
3.1 TABLE OF THE LEDFLASH CODES
Red LED Green LED Status
Operation
With optional BUS module: BUS operation (active BUS connection)
Malfunction - further information see chapter 3.2
With optional BUS module: BUS module is ready for operation
Initialisation
Legend: LED o, LED on, LED flashes, LED flashes quickly
fault see →following table of possible fault messages
→KombiTool diagnosis or read out P1011...1014
→Display handheld (MMI)

10 BECKERVAU 1.1/1AC
3.2 TABLE OF POSSIBLE ERROR MESSAGES
In case of a fault (red LED is permanently lit), the error is indicated via an extended flash code of the green LED.
The green LED briefly flashes 1-10 times. At the end of the flash code there is a pause of 5 seconds before the code is repeated. The
table below provides an overview.
Error group Error no.
KombiTool
LED MMI Name Description Cause
1x
1 4096 13 Cable break
Analogue In 1
(4..20mA / 2 - 10V
Current or voltage below the lower
limit of analogue input 1
Cable break, faulty or unconnected
external sensor
1 8192 14 Cable break
Analogue In 2
(4..20mA / 2 - 10V)
Current or voltage below the lower
limit of analogue input 2
Cable break, faulty external sensor
1 32768 16 Alarm 1 system fault Customer-specific fault via the func-
tion of the digital inputs
dependent on the application
2 1 17 Alarm 2 system fault Customer-specific fault via the func-
tion of the digital inputs
dependent on the application
2 64 23 External fault 1 The parametrised error input (digital
input) is active
2 128 24 External fault 2 The parametrised error input (digital
input) is active
2x
3 1 32 IGBT tripped Protection of the IGBT module
against overcurrent has tripped
Short circuit in the motor or motor
supply cable / regulator settings
3 128 39 Monitoring Maximum output current of the con-
verter exceeded
Cooling insucient / low speed and
high torque / cycle frequency too
high / ramp times too short / brake
not released
3x
2 2 18 FC overtemperature Internal temperature too high Cooling insucient, low speed and
high torque, cycle frequency too
high.
3 8 35 Motor overtempe-
rature
Motor temperature monitoring with
PTC/bimetallic switch has tripped
Motor overload (e.g. high torque at
low speed / ambient temperature
too high)
3 64 38 IGBT module over-
temperature
Power module / IGBT module over-
temperature
Cooling insucient, low speed and
high torque, cycle frequency too high
3 256 40 FC overtemperature Internal temperature too high Cooling insucient / low speed and
high torque / cycle frequency too
high / permanent overload
4x
3 16 36 Grid interruption A phase is missing/ mains voltage
interrupted
3 2048 43 Earth leakage Earth leakage of a motor phase Insulation fault
3 8192 45 Motor connection
interrupted
No motor currecnt in spite of excita-
tion by the FC
No Motor connected or motor not
fully connected.
5x
2 16 21 Bus Timeout Setpoint specification via bus. No
response from bus node or MMI / PC
Bus cable interrupted
2 32 22 Max auto-acknow-
ledgements
The number of max. automatic
acknowledgements (1,182) has been
exceeded
6x
1 16384 15 Blockage Motor blocked Mechanical fault or overload
7x
3 1024 42 I2t motor protection
shut-down
The internal I2t motor protection has
tripped
Permanent overload
4 2 49 Overload Max. overload of the frequency
converter exceeded for more than
60 sec.
Legend: LED flashes, LED flashes quickly
