Foreword
Beijer Electronics, MAEN979B
EPC C2D Nautic Installation Manual
Foreword
The EPC C2D Nautic series consists of enhanced Panel IPCs, compatible with
the toughest of maritime environments. Shock and vibration resistant and func-
tional throughout comprehensive temperature changes, the series features a
robust hard-disk drive, fanless CPU and Windows XP as the standard operating
system.
The series also offers the option of modifying a number of its features, affording
a customized version with a flash-memory, fanless chassis and Windows XP
embedded.
The rugged EPC C2D Nautic series provides an open platform solution that can
be utilized with the customer’s choice of software to meet the demands of any
marine environment with high performance reliability that’s built to last.
This manual describes each model and gives instructions on installation, opera-
tion and service.
© Beijer Electronics AB, MAEN979B, 2010-08
Please read the entire installation manual prior to installing and using this equipment. Only qualified
personnel may install, operate or repair this equipment. Beijer Electronics AB, including all its group
companies, is not responsible for modified, altered or renovated equipment. Because the equipment has a
wide range of applications, users must acquire the appropriate knowledge to use the equipment properly
in their specific applications.
Persons responsible for the application and the equipment must themselves ensure that each application
is in compliance with all relevant requirements, standards and legislation in respect to configuration and
safety. Only parts and accessories manufactured according to specifications set by Beijer Electronics AB
may be used.
BEIJER ELECTRONICS AB, INCLUDING ALL ITS GROUP COMPANIES, SHALL NOT BE
LIABLE TO ANYONE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSE-
QUENTIAL DAMAGES RESULTING FROM THE INSTALLATION, USE OR REPAIR OF THIS
EQUIPMENT, WHETHER ARISING IN TORT, CONTRACT, OR OTHERWISE. BUYER'S
SOLE REMEDY SHALL BE THE REPAIR, REPLACEMENT, OR REFUND OF PURCHASE
PRICE, AND THE CHOICE OF THE APPLICABLE REMEDY SHALL BE AT THE SOLE DIS-
CRETION OF BEIJER ELECTRONICS AB.

Contents
Beijer Electronics, MAEN979B
Contents
1 Safety Precautions................................................................................... 5
1.1 Nautic Approvals and Certificates .......................................................5
1.2 General ...............................................................................................6
1.3 During Installation..............................................................................7
1.4 During Use .........................................................................................7
1.5 Service and Maintenance.....................................................................8
1.6 Dismantling and Scrapping.................................................................8
2 Product Naming ..................................................................................... 9
3 Supplied Equipment ............................................................................. 10
4 Compass Safety Distance ...................................................................... 11
5 Description of Parts.............................................................................. 12
5.1 EPC C2D Nautic..............................................................................12
5.2 Display..............................................................................................13
5.3 Communication Ports .....................................................................14
5.4 Motherboard.....................................................................................15
5.5 Assembly...........................................................................................15
5.6 Power Supply ....................................................................................16
5.7 Earthing System ................................................................................17
5.8 ATX Power Switch............................................................................17
5.9 ATX Remote Connector ...................................................................18
5.10 Compact Flash Memory Card...........................................................18
6 Operation ............................................................................................. 19
6.1 Operating System..............................................................................19
6.2 Default BIOS Settings.......................................................................20
6.3 Important Items Regarding Software Installation ..............................23
6.4 Graphic Board Installation ................................................................24
6.5 Touch Screen Installation..................................................................25
6.6 Installation of LAN-/Network Card ..................................................29

Contents
Beijer Electronics, MAEN979B
7 Service .................................................................................................. 31
7.1 Introduction......................................................................................31
7.1.1 Tools .................................................................................................31
7.1.2 Preparation........................................................................................31
7.1.3 Opening the EPC..............................................................................31
7.2 Changing the Fan Filter.....................................................................32
7.3 PCI-board Installation.......................................................................32
7.4 Cable Fixing Points ...........................................................................36
8 Technical Data ..................................................................................... 37
9 Drawings .............................................................................................. 39
9.1 EPC T150/150 C2D Nautic Front View .........................................39
9.2 EPC T150/150 C2D Nautic Cut Out Drawing................................40
9.3 EPC T150/150 C2D Nautic Outline Drawings................................41
9.4 EPC T170/170 C2D Nautic Front View .........................................42
9.5 EPC T170/170 C2D Nautic Cut Out Drawing................................43
9.6 EPC T170/170 C2D Nautic Outline Drawings................................44
9.7 EPC T190/190 C2D Nautic Front View .........................................45
9.8 EPC T190/190 C2D Nautic Cut Out Drawing................................46
9.9 EPC T190/190 C2D Nautic Outline Drawings................................47
9.10 EPC Box C2D Nautic Outline Drawings..........................................48

Safety Precautions
Beijer Electronics, MAEN979B 5
1SafetyPrecautions
Both the installer and the owner and/or operator of the EPC must read and un-
derstand this installation manual.
1.1 Nautic Approvals and Certificates
The EPC C2D Nautic series are certified according to the following list. Some
approvals are in progress. Please visit our web site for the latest information.
Model CE LR BV GL DNV ABS RS EN
60945
EPC T150/150 C2D Nautic XXXXXXX X*
EPC T170/170 C2D Nautic XXXXXXX X*
EPC T190/190 C2D Nautic XXXXXXX X*
EPCBoxC2DNautic XXXXXXX X*
* Also for bridge applications
Approval/Certificate Abbreviation
Conformité Européenne CE
Lloyd’s Register LR
Bureau Veritas BV
Germanischer Lloyd GL
Det Norske Veritas DNV
American Bureau of Shipping ABS
Russian Maritime Register of Shipping RS

Safety Precautions
6Beijer Electronics, MAEN979B
1.2 General
– The EPC is intended for industrial use only.
– The EPC is constructed for naval applications and for indoor use according
to IEC 60945.
– Read the safety precautions carefully.
– Check the delivery for transportation damage. If damage is found, notify the
supplier as soon as possible.
– Do not use the EPC in an environment with high explosive hazards.
– The supplier is not responsible for modified, altered or reconstructed equip-
ment.
– Use only parts and accessories manufactured according to specifications of the
supplier.
– Read the installation and operating instructions carefully before installing, us-
ing or repairing the EPC.
– Never allow fluids, metal filings or wiring debris to enter any openings in the
EPC. This may cause fire or electrical shock.
– Only qualified personnel may operate the EPC.
– Storing the EPC where the temperature is lower/higher than recommended
in this manual can cause the LCD display liquid to congeal/become isotopic.
– The LCD display liquid contains a powerful irritant. In case of skin contact,
wash immediately with plenty of water. In case of eye contact, hold the eye
open, flush with plenty of water and get medical attention.
– The figures in this manual serves an illustrative purpose. Because of the many
variables associated with any particular installation, the supplier cannot as-
sume responsibility for actual use based on the figures.
– The supplier neither guarantees that the EPC is suitable for your particular
application, nor assumes responsibility for your product design, installation
or operation.

Safety Precautions
Beijer Electronics, MAEN979B 7
1.3 During Installation
– The EPC is designed for stationary installation on a plane surface, where the
following conditions are fulfilled:
• no high explosive risks
• no strong magnetic fields
•nodirectsunlight
• no large, sudden temperature changes
– Install the EPC according to the accompanying installation instructions.
– Ground the EPC according to the accompanying installation instructions.
– Only qualified personnel may install the EPC.
– Separate the high voltage, signal and supply cables.
– Make sure that the voltage and polarity of the power source is correct before
connecting the EPC to the power outlet.
– Peripheral equipment must be appropriate for the application and location.
– The controlling transformer has to comply with EN60742.
1.4 During Use
– Keep the EPC clean.
– Emergency stop and other safety functions may not be controlled from the
EPC.
– Do not use too much force or sharp objects when touching the keys, touch
screen etc.

Safety Precautions
8Beijer Electronics, MAEN979B
1.5 Service and Maintenance
– Only qualified personnel should carry out repairs.
– The agreed warranty applies.
– Before carrying out any cleaning or maintenance operations, disconnect the
equipment from the electrical supply.
– Clean the display and surrounding front cover with a soft cloth and mild de-
tergent.
– Replacing the battery incorrectly may result in explosion. Only use batteries
recommended by the supplier.
1.6 Dismantling and Scrapping
– The EPC or parts thereof shall be recycled according to local regulations.
– The following components contain substances that might be hazardous to
health and the environment: lithium battery, electrolytic capacitor and dis-
play.

Product Naming
Beijer Electronics, MAEN979B 9
2ProductNaming
The naming of the computers is constructed with a number of parameters that
indicate the characteristics of each model, for example EPC T170 C2D Nautic
AC according to below:
There is a variant without display; EPC C2D Box Nautic AC:
EPC T 170 C2D Nautic AC
Computer
series Optionaltouch screen Screen size Processor type Main usage Type of power supply
EPC C2D Box Nautic AC
Computer
series Processor type No display Main usage Type of power supply

Supplied Equipment
10 Beijer Electronics, MAEN979B
3 Supplied Equipment
Part Description
CD; operating system CD with operating system.
CD; driver software Driver software CD for all pre-installed components
such as mother board, touch screen, keyboard etc.
Power cable Standard power cable (European or US standard) for
units with 230 V AC power supply.
Length: approximately 3.0 m.
24 V DC units are delivered without cable.
A variety of cables are available separately.
Installation manual This manual describes specific information about
Beijer Electronics products only – not about third
party components.
Note:
Separate documentation of third party components is
included on the enclosed driver software CD + as
printed documentation.
Mounting kit Screws, nuts etc.
Sticker Device sticker with device name and part number
Note:
Place the sticker on the front of the device when
mounting, to identify device while installing and at
startup.

Compass Safety Distance
Beijer Electronics, MAEN979B 11
4CompassSafetyDistance
The EPC C2D Nautics are certified according to EN 60945 for bridge applica-
tions. The tests include a compass safety distance test.
Electrical devices, such as the EPC C2D Nautic, must be kept in a safe distance
to a compass in operation according to the following table:
Compass type Minimum distance to the EPC C2D Nautic
Steering compass 1 meter in all directions
Emergency compass
Standard compass 1.45 meter in all directions

Description of Parts
12 Beijer Electronics, MAEN979B
5DescriptionofParts
5.1 EPC C2D Nautic
The EPC C2D Nautic consists of a Front unit and a PC unit. These are installed
in the same way independent of the display size.
The EPC Box C2D Nautic consists of the PC unit only.
Front unit
PC unit

Description of Parts
Beijer Electronics, MAEN979B 13
5.2 Display
Display sizes 15", 17" and 19" are available, as well as the EPC Box C2D Nautic
without display.

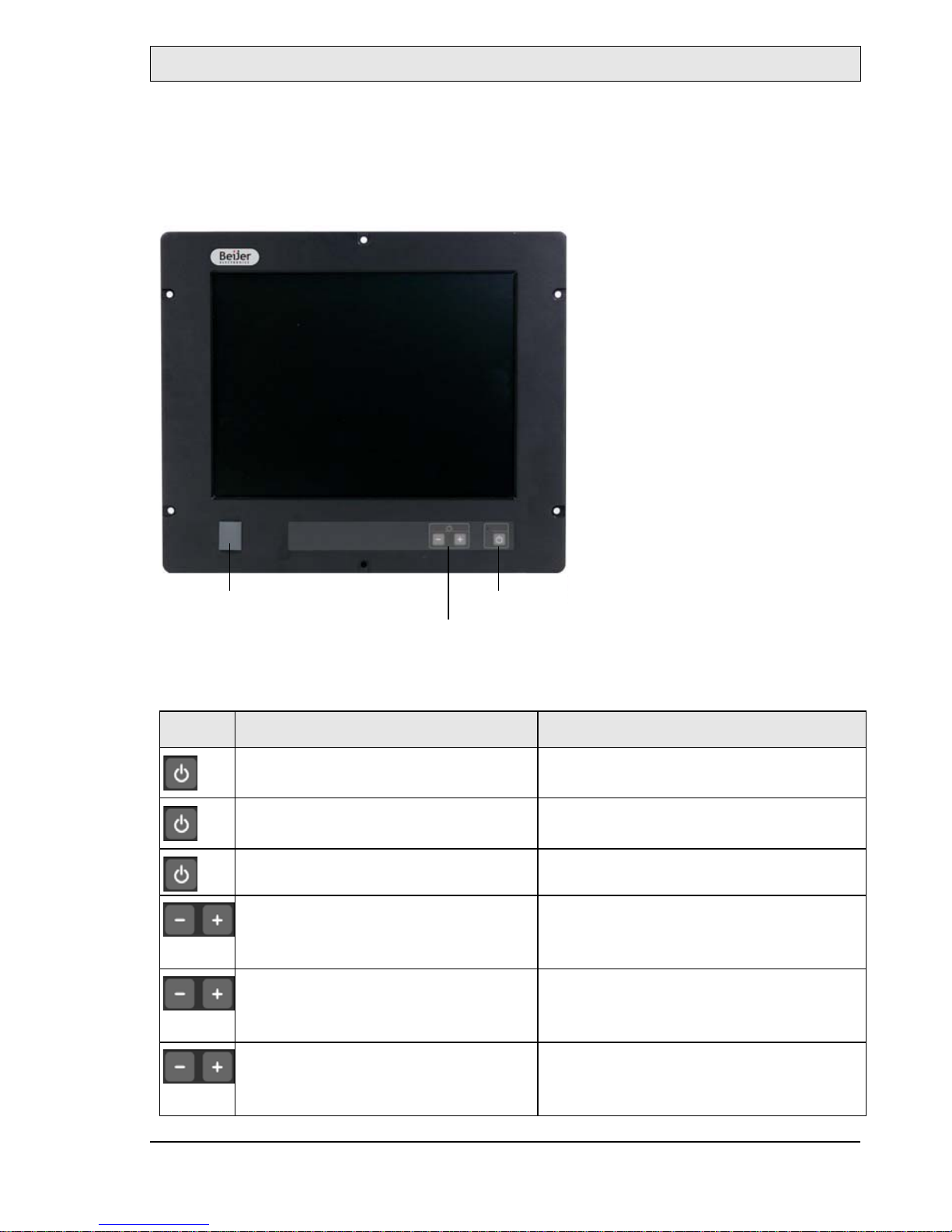

The front includes a USB-port under hatch, a power button with a LED, and a
set of dimmer buttons. The buttons are explained below:
Button Instruction Description
Press the power button quickly Turns the EPC off in a controlled way
(as from the Windows Start menu)
Press the power button for longer
than 4 seconds Forces the EPC to be turned off
Press the power button again Turns the EPC on
Press -(brightness down) on the
dimmer button (single step or auto-
matic repeating after one second)
Makes the display darker
Press + (brightness up) on the
dimmer button (single step or auto-
matic repeating after one second)
Makes the display brighter
Press + and - simultaneously for
more than one second Turns on full brightness quickly (default - may be configured according
to RBC software manual MAEN986)
USB port Power button
Dimmer buttons

Description of Parts
14 Beijer Electronics, MAEN979B
The power LED can assume the following statuses:
5.3 Communication Ports
LED Description
Green Normal operation
Red No input signal available or the screen is in energy saving mode
- The EPC is turned off or the screen is dimmed to 0 (lowest value,
darkest possible)
Power
ATX switch
PS/2 mouse
PS/2 keyboard
COM1
COM2
DVI-1
VGA
Compact Flash slot
Mic in
supply PCI slot 1
USB 1-2
LAN 1
Earth USB 3-4
LAN 2
Line in
Line out
PCI slot 2
Fan
ATX remote

Description of Parts
Beijer Electronics, MAEN979B 15
5.4 Motherboard
The EPC C2D Nautic has 2 SODIMM slots for main storage and 2 PCI-slots.
Further details on the motherboard can be found in a separate manual, included
in the delivery.
5.5 Assembly
A free space of 100 mm, for air circulation, has to be provided around the EPC,
to dissipate the heat generated during operation.
The EPC C2D Nautic is assembled with items included in the supplied mount-
ing kit.
Note:
The quality of the memory module may influence the system stability. When updating
the memory module, or adding a second one, please only use memory modules ap-
proved by Beijer Electronics. Memory modules are electrostatic sensitive compo-
nents. Relevant protective measures (earth) have to be considered during assembly/
disassembly. ESD-protective measures are to be considered when opening and work-
ing on the EPC.
Note:
Possible risk of damage to the EPC!
Protection class IP65 for the front panel is only guaranteed with a perfect fitting seal.
Pay attention to the torque when fixing the front panel.

Description of Parts
16 Beijer Electronics, MAEN979B
5.6 Power Supply
The EPC C2D Nautic is available with 230 V AC or 24 V DC power system.

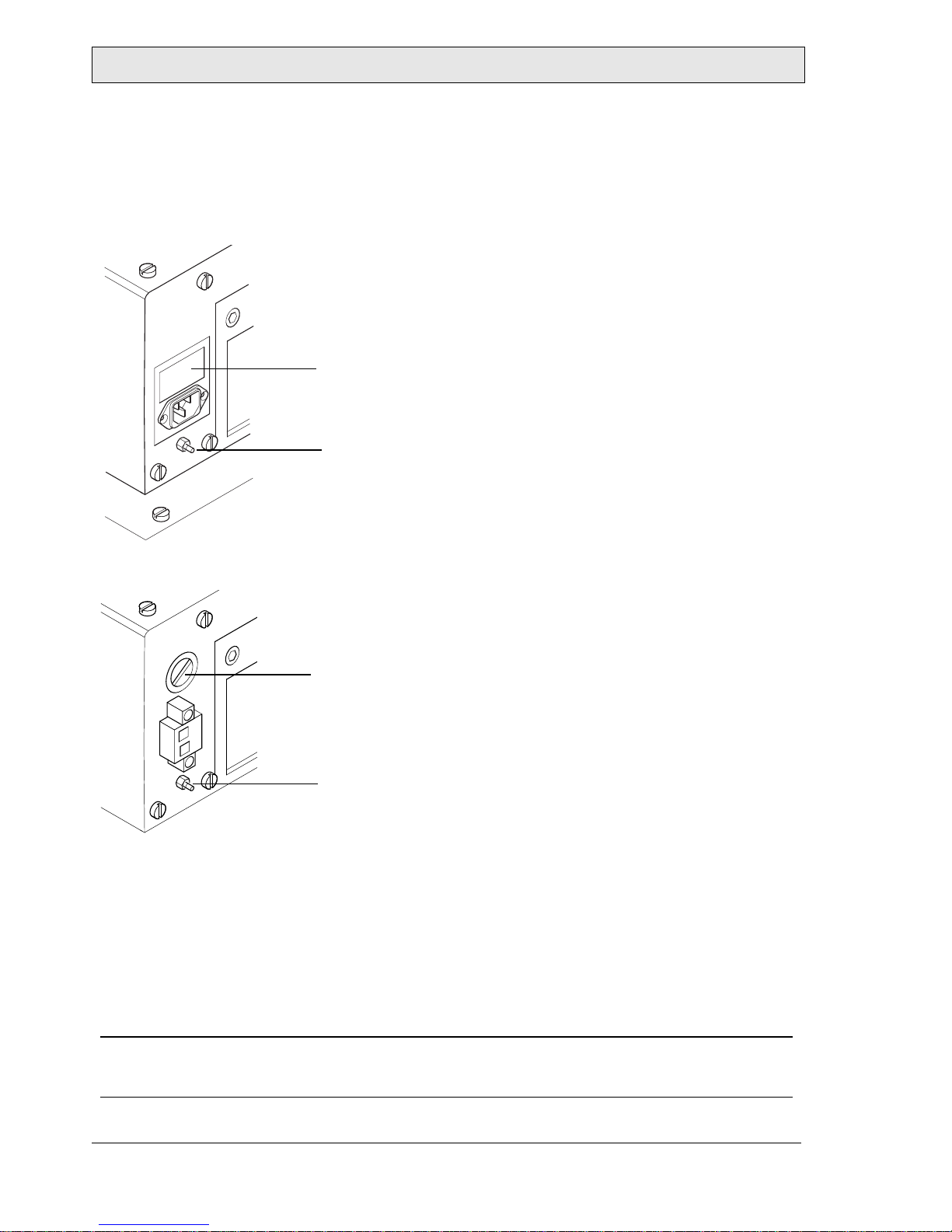

230 V AC Power Supply Connection with Integrated Fuse
24 V DC Power Supply Connection
The power supply for 24 V DC is carried out via a double-pole connector
(Phoenix MST BT 2,5/2).
The EPC C2D Nautic is certified for the connection to protective grounded
power supply according to EN60950. The EPC Box C2D Nautic can also be
operated with extra low voltage in accordance with EN60950. The controlling
transformer has to comply with EN60742.
Note:
Check the power supply system with the relevant data on the type plate.
Earth screw
Fuse 1 A
Earth screw
Fuse 6.3 A

Description of Parts
Beijer Electronics, MAEN979B 17
5.7 Earthing System
The following items have to be observed to guarantee a safe dissipation of elec-
tronic interference:
– The EPC and switch board have to be connected to the nearest possible cen-
tral earthing point.
– Make sure of a possibly low inductive connection between EPC and switch
board.
– All data cables connected to the EPC have to be of the shielded type.
– The screens have to be earthed on both sides. A low ohm connection between
the connected systems is essential. Avoid high equalizing currents through the
cable screen due to voltage fluctuations.
– The earthing connection is to be carried out with min. 4 mm² cross section.
5.8 ATX Power Switch
Power packs, main boards and operation systems are used in the EPC C2D Nau-
tic, using up to date PC-technologies such as ATX and ACPI. Switching on the
EPC is done in accordance with ATX specification via the ATX power switch
(the red button next to the power supply).
Should a correct automatic booting not function then this can have the follow-
ing reason:
In the BIOS settings, the option PWRON After PWR-Fail in the Integrated
Peripherals/Super IO Device menu must be enabled, i.e. On. See also section
6.2 Default BIOS Settings.
The operating system must be ended correctly using the Shut down command
from the operating system menu (Windows start menu), so that the operating
system of the EPC is shut down. The EPC must not be switched off while the
operating system is still running.
The power pack now has to be separated from the power supply for a minimum
of 15 seconds prior to a re-start. During the booting process the main voltage
may not fall (not even for a short time) below the permitted value.
A manual actuation of the ATX power switch, i.e. to start the BIOS menu au-
tomatically to check and confirm correct settings, can be necessary if the system
registers an error during shut-down or booting. This is not a malfunction but a
safety feature.

Description of Parts
18 Beijer Electronics, MAEN979B
5.9 ATX Remote Connector
The ATX remote terminal is a double-pole connector close to the red ATX pow-
er switch button. It is parallel connected to the button. An external push-button
switch or a relay contact can be connected to the ATX remote connector.
5.10 Compact Flash Memory Card
An external Compact Flash memory card can be used for data storage. Some
EPC models also allow mounting an internal Compact Flash memory card as a
boot-up device, or for data storage.
If a Compact Flash memory card is mounted in/removed from a running EPC,
the EPC must be restarted in order to detect the system change.
Booting from a Compact Flash Card
Follow the instructions below, in order to boot the EPC from an internal Com-
pact Flash card:
– Make sure that the Compact Flash card is used as local drive. Standard Com-
pact Flash cards are available only as removeable drives for data storage.
– Confirm that the Compact Flash card is set as first boot device in the BIOS
in order to boot the operation system from it.
– Removing the Compact Flash card while the EPC is running may damage the
operating system.
Note:
Only Compact Flash cards distributed by Beijer Electronics may be used. Third par-
ty products may cause system malfunction or performance loss.

Operation
Beijer Electronics, MAEN979B 19
6Operation
6.1 Operating System
The EPC C2D Nautic is delivered with Windows XP operating system.
The operating system and other programs are installed on drive “C:”.
Drive “D:” contains all data required for a new installation (drivers and opera-
tion system) and may also be used for user data (beneficial for example for data
backup).

Operation
20 Beijer Electronics, MAEN979B
6.2 Default BIOS Settings
The BIOS settings may need to be checked or altered if the system becomes in-
stable.
To start the setup: Switch on the EPC and press the [DEL] button, according to
the first screen image.
Selecting Load Optimized Defaults loads the following settings.
Menu Menu item Setting
Standard CMOS Features Date Current date
Time Current time
Check that all IDE-Devices (HD, CD and CF) are
correctly recognized
Advanced BIOS Features
CPU Features Execute Disable Bit Enabled
Virtualization Technology Enabled
Core Multi-Processing Enabled
Advanced BIOS Features Hard Disk Boot Priority Default
Virus Warning Disabled
Quick Power On Self Test Enabled
First Boot Device Harddisk
Second Boot Device Harddisk
Third Boot Device Disabled
Boot Other Device Disabled
Boot Up NumLock Status On
Gate A20 Option Fast
Security Option Setup
MPS Version Control For OS 1.4
Report No FDD For Win95 No
Small Logo (EPA) Show Disabled
