Beko DDS25840X User manual

www.beko.com.tr
DDS25840X
DIS25840
USA
Document Number :
Dishwasher
User manual
15 0606 01 00_AA_BEKO_E5_45_USA/ 01-03-16.(8:10)

To prevent accidents, which could cause serious injury or death, as well
as machine damage read these instructions before installation and / or
use.
CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 1
2. INSTALLATION 4
3. GETTING TO KNOW YOUR DISHWASHER 5
4. LOADING THE DISHWASHER 6
4.1 UPPER RACK 7
4.2 LOWER RACK 9
4.3 PROPER AND IMPROPER LOADING OF DISHWARE 13
5. WHAT SHOULD NOT BE WASHED IN YOUR DISHWASHER 14
6. OPERATING THE PRODUCT 15
6.1 KEYS 15
6.2 PREPARING THE MACHINE 16
6.3 PROGRAMME SELECTION 16
6.4 AUXILIARY FUNCTIONS 18
6.5 SCHEDULING THE WASHING TIME 19
6.6 STARTING THE PROGRAMME 20
6.7 CANCELLING THE PROGRAMME 21
6.8 SALT INDICATOR ( ) 21
6.9 RINSE AID INDICATOR ( ) 21
6.10 END OF PROGRAMME 21
6.11 WATER CUT-OFF WARNING 22
6.12 OVERFLOWING WARNING 22
7. DETERGENT & RINSE AID DISPENSER 23
7.1 FILLING THE DETERGENT DISPENSER 23
7.2 FILLING RINSE AID DISPENSER 24
7.3 SET THE DOSE OF RINSE AID 25
8. SETTING THE WATER SOFTENER 26
WATER HARDNESS & REGENERATION SETTINGS 26
9. FILLING THE DISHWASHER SALT DISPENSER 27
10. CARE AND MAINTENANCE 28
10.1 CARING FOR YOUR DISHWASHER EXTERIOR 29
10.2 CARING FOR YOUR DISHWASHER INTERIOR 29
10.3 CLEANING THE FILTERS 30
10.4 CLEANING THE HOSE FILTER 31
10.5 CLEANING THE IMPELLERS 31
11. TROUBLESHOOTING 33
12. TECHNICAL FEATURES 38
13. WARRANTY STATEMENT FOR THE BEKO DISHWASHERS 39

1USA
INTRODUCTION
Please read this user manual and
particularly the safety instructions
completely and carefully. They will save
you time and effort and help to ensure
optimum dishwasher performance.
Be sure to observe all listed warnings
and cautions. Look particularly for the
icons with exclamation marks inside. The
information icon will also provide important
references.
AWARNING:
Indicates a
potentially hazardous situation
which, if not avoided, could
result in death or serious injury.
ACAUTION:
Indicates a
potentially hazardous situation
which, if not avoided, may result
in injury. It may also be used to
alert against unsafe practices.
CNOTICE:
Indicates a
potentially hazardous situation
which, if not avoided, may result
in damage to the dishwasher,
the table-ware, the equipment
or the environment.
1. IMPORTANT SAFETY
INSTRUCTIONS
AWARNING:
When using
the dishwasher, follow basic
precautions, including the
following:
Read all instructions before
using the dishwasher! Save
these operating instructions
and pass them on to any future
user.
•Use the dishwasher only for its
intended purpose as described in
this user manual. This appliance is
intended for normal household use
only.
• The manufacturer disclaims
responsibility for damage or
injury caused by improper use
of this appliance.
•The information in this user manual
must be followed to minimize the risk
of fire or explosion and to prevent
property damage, personal injury or
loss of life.
•Do not operate your dishwasher
unless all the enclosure panels are
properly in place.
•Do not tamper with the controls.
•Do not abuse, sit on, stand in or on the
door or dish rack of the dishwasher.
•The cup racks are designed to support
cups, glasses and kitchen utensils.
When the cup racks are in the
dishwasher do not lean on or use the
cup racks to support your body weight.
•To reduce the risk of injury, do not
allow children to play in, on or near the
dishwasher.
•Use only detergents or rinse aids
recommended for use in a household
dishwasher and keep them in a dry
place out of the reach of children.

2USA
Check that the detergent dispenser
is empty after the completion of each
wash program.
•Dishwasher detergents are alkaline.
They can be dangerous if inhaled or
swallowed. Avoid contact with skin
and eyes and keep children and infirm
persons away from the dishwasher
when the door is opened. Consult a
doctor immediately if detergent has
been swallowed or inhaled.
•Do not drink water from the
dishwasher! Harmful residues could be
present.
•Under certain conditions hydrogen gas
may be produced in a hot water heater
system that has not been used for
two weeks or more. Hydrogen gas is
explosive. If the hot water system has
not been used for such period, before
using the dishwasher turn on all hot
water taps and let the water flow from
each for several minutes. This will
release any accumulated hydrogen
gas. As gas is flammable, do not smoke
or use an open flame during this time.
•Do not store or use flammable
liquids or vapors in the area of the
dishwasher.
•When loading items to be washed,
position sharp items so that they are
not likely to damage the door seal and
load sharp knives with the handles up
to reduce the risk of cut-type injuries.
•Do not wash plastic items unless they
are marked “dishwasher safe” or the
equivalent. For plastic items not so
marked, check the manufacturer’s
recommendations.
•If a malfunction occurs, switch off
the appliance and turn off the water
supply to the dishwasher.
•Please do not attempt to carry the
dishwasher by yourself in order
to avoid potential injuries. Two or
more people are needed to move a
dishwasher.
•Before cleaning or carrying out
maintenance, switch off the
appliance, disconnect the power plug
and turn off the water supply.
•Repairs and technical modifications
must be carried out exclusively by a
qualified technician.
•If the dishwasher is not in use for an
extended period of time (i.e. vacation
home), we recommend you check
that the baskets are empty, leave the
inside of the dishwasher clean, leave
the door cracked open to allow air to
circulate and turn off both the power
and water supply to the dishwasher.
•This appliance must be grounded.
In the event of a malfunction or
breakdown, grounding will reduce
the risk of electric shock by providing
a path of least resistance for electric
current. This appliance is equipped
with a cord having an equipment-
grounding conductor and a grounding
plug. The plug must be plugged into an
appropriate outlet that is installed and
grounded in accordance with all local
codes and ordinances.
•Potential hazards exist if any
equipment uses electricity, water and
moving parts.
•This appliance must be connected to
a grounded metal, permanent wiring
system, or an equipment-grounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead
on the appliance.
•This appliance produces ozone
within the washing compartment
during normal operation. Long-term
exposure to ozone or exposure
at elevated levels may result in
respiratory problems, especially for

3USA
the infirmed, elderly and children.
•It is the legal responsibility of parents/
legal guardians to supervise or instruct
concerning use of the machine when
the children become old enough to
operate.
•Do not leave the door open in order
not to cause a tripping hazard.
•Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding
it. Ensure that the appliance presents
no danger to children while being
stored for disposal.
•Remove the door lock or door of
the washing compartment before
disposing dishwasher so that children
or small animals can not trapped
inside.
•Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about
the possibility of recycling these
materials.
•Please check the water supply line
periodically. It is susceptible to
breakage. It becomes less flexible as
time goes by.Replace it immediately
when it is torn, cut, swollen or there is
water leakage.
•Please keep the dishwasher package
out of the reach of children after
unpacking it.
AWARNING:
If your dishwasher
is equipped with internal
illumination, lamp should only
be replaced by the Authorised
Service Agent in case of failures
that may occur on the lamp.
AWARNING:
Improper
connection of the equipment-
grounding conductor can result
in a risk of electric shock. Check
with a qualified electrician
or service representative if
you are in doubt whether the
appliance is properly grounded.
Do not modify the plug provided
with the appliance, if it will not
fit the outlet, have a proper
outlet installed by a qualified
electrician.
AWARNING:
Warning: This
product may contain chemicals
known to the state of California
to cause cancer or birth defects
or other reproductive harm.
SAVE THESE INSTRUCTIONS

4USA
2. INSTALLATION
AWARNING:
When installing
the dishwasher, follow basic
precautions, including the
following:
•Please check the standarts and local
codes for placement of machine.
•Installation, maintenance and repair
should be performed by a qualified
installer. Work by unqualified persons
could be dangerous and may void the
warranty.
•Do not operate the appliance if
damaged, malfunctioning, partially
disassembled or if it has missing or
broken parts.
•Before installation or service,
disconnect the power supply to
the work area by unplugging the
unit, “tripping” the circuit breaker or
removing the fuse.
•Only connect the dishwasher to the
power supply when all installation and
plumbing work is complete.
•Never connect the ground wire to gas
lines, or hot water pipes, plumbing
lines.
•Do not install or store the dishwasher
where it can be exposed to below
freezing temperatures or exposed to
weather.
•Dishwasher must be secured to
adjacent cabinetry using the brackets
provided. Failure to do this may cause
damage to property or bodily injury.
•Connect to a properly rated, protected
and sized power supply circuit to avoid
electrical overload. The dishwasher
is designed for an electrical supply
of 120 V (volts), 60 Hz (hertz), AC,
connected to a dishwasher-dedicated,
properly grounded electrical circuit
with a fuse or breakers rated for 15
amperes. Electrical supply conductors
shall be a minimum of # 16 AWG
copper wire rated at 75 °C (167 °F) or
higher. These requirements must be
met to prevent injury and machine
damage. Consult a qualified electrician
if in doubt.
•Do not use any extension cord or
portable outlet device to connect the
dishwasher to a power supply.
AWARNING:
Danger of
suffocation! Ensure that any
plastic wrappings, bags, small
pieces etc. are disposed of
safely and kept out of the reach
of children.

5USA

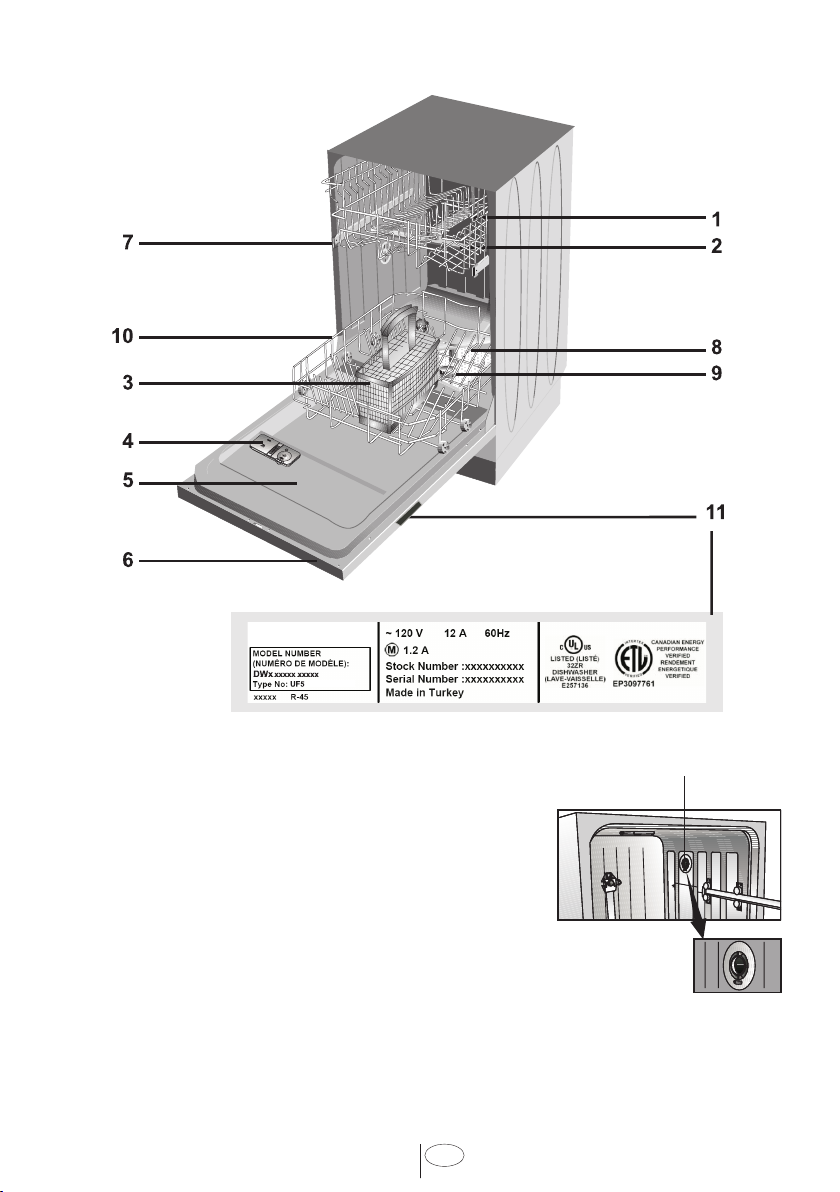

12
1. Upper rack
2. Upper spray arm
3. Cutlery basket
4. Detergent dispenser
5. Door
6. Control panel
7. Guiding track for the upper rack
8. Lower spray arm
9. Filters
10. Lower rack
11. Model and Serial Tag
12. Turbo fan heat drying system (MODEL DEPENDING)
3. GETTING TO KNOW YOUR DISHWASHER

6USA
4. LOADING THE
DISHWASHER
1. Pull the handle to open the door. If the
door is opened during operation, the
dishwasher will stop running. Once
the door is closed the program will
continue.
Upper rack (MODEL DEPENDING)
Top rack load pattern for 8 place settings
ACAUTION:
Hot steam can
escape! Danger of serious burns
or other injury.
2. Remove coarse food leftovers from
tableware.
3. Now you can load the dishwasher.
Lower rack (MODEL DEPENDING)
Bottom rack load pattern for 8 place
settings
ACAUTION:
Large knives and
other utensils with sharp tips
and edges must be placed
horizontally into the upper
rack due to risk of injury. Other
smaller knives and sharp
utensils should be placed with
sharp side down in the cutlery
basket.
ACAUTION:
Use extreme
caution when removing knives
and other sharp utensils from
the dishwasher. These items
may have shifted position
during the wash program, and
may be wet or slippery.

7USA
ACAUTION:
The cup racks
are designed to support cups,
glasses and kitchen utensils.
When the cup racks are in the
dishwasher do not lean on or
use the cup racks to support
your body weight.
•Your dishwasher holds a maximum of 8
place settings.
•Place all containers such as cups, glasses
and pots into the dishwasher with the
opening facing downwards (so that no
water can collect).
•Small and light items can go into the
upper rack.
•Long and narrow items are placed in the
middle of the racks.
•Place all large and very dirty items in the
lower rack.
•Dishes and cutlery should not be placed
above each other.
•Glasses should not touch each other.
•The movement of the spray arms must
not be hindered.
•Do not overload your dishwasher and pay
attention to manufacturer instructions
regarding dishes which are appropriate
for use in for a dishwasher. Only with
suitable dishes (mentioned in section 5)
will you obtain optimal washing results
with a sensible use of energy.
4.1 UPPER RACK
Load the upper rack with dessert plates,
cups, glasses etc.
ADJUSTABLE SHELVES
(MODEL DEPENDING)

8USA
FOLDING TINES
(MODEL DEPENDING)
There are “folding tines” in the upper rack
to allow you more space to accommodate
glasses or cups.
Simply pull in the first front folding tine,
move it to left A and right B to place in
another positon. When you need, take the
tines down until the tines fall down.




LOWER UPPER RACK
1. To lower the upper rack, hold and
press in the rack lever on one side
and carefully lower the rack without
releasing the lever B .


2. Repeat the procedure with the lever
on the opposite side of the rack.
CNOTICE:
Make sure that both
levers catch in the same height
position.
VARIABLE HEIGHT SETTING
(MODEL DEPENDING)
The upper rack is equipped with a lifting
mechanism which enables you to change
the height of the rack even if it is fully
loaded, and without having to remove it
from the dishwasher.
LIFT UPPER RACK
1. To lift the upper rack to a higher
position, hold it on one side and
carefully pull it upwards A .
2. To lift the opposite side of the rack,
hold it and pull it upwards in the same
manner.

9USA
HEIGHT SETTING
(MODEL DEPENDING)
In certain models, the height setting of
the upper rack may be changed using the
wheels which are present at two height
levels.
ACAUTION:
Make sure that
the rack is empty. Changing
the height setting while the
rack contains tableware could
cause the contents to dislodge,
causing personal injury or
damage to the tableware.
1. Release the latches on both the right
and left tracks of the upper rack by
turning them to the outside A.
2. Pull out the rack completely B .
3. Place the rack into the tracks again at
the desired height C .
4. Push the latches back into the correct
position.
4.2 LOWER RACK
Use the lower rack for plates, bowls, pots
etc.

10 USA
COLLAPSABLE LOWER BASKET
WIRES (2 & 4 PIECES)
(MODEL DEPENDING)
The foldable wires (A) located at the lower
basket of the machine are designed for
an easier placement of large pieces such
as pans, bowls, etc. You can create larger
spaces by folding each wire individually or
all them at once.
To bring the collapsible wires into
horizontal position, grab the wire from mid
position and push them in the directions
of arrows (B) To bring the wires back
to vertical position, just lift them up.
Collapsible wires will click into the latch
again
CNOTICE:
Bringing the wires
to the horizontal position
byholding them from the tips
may cause them to bend.
Therefore, it will be appropriate
to bring the wires in the
middle to horizontal or vertical
position by holding them from
their stems and pishing in the
direction of arrow.
33 44
CC
BB

11 USA
CUTLERY BASKET
(MODEL DEPENDING)
COLLAPSABLE LOWER BASKET
WIRES (2 PIECES)
(MODEL DEPENDING)
The two piece foldable wires located at the
lower basket of the machine are designed
for an easier placement of large pieces
such as pans, bowls, etc. (1, 2).
You can create larger spaces by folding
each wire individually or all of them at once.
Lay the foldable wires down by pressing on
the latch (A).




12 USA
UPPER RACK CUP HOLDER
(MODEL DEPENDING)
You can use the upper rack cup holder for
your small cups and similar small glasses.
When you don’t use the upper rack cup
holder you can remove it to create a bigger
space. To attach the upper rack cup holder,
place it in the way shown in (A). Press
downwards to secure it into its seating.
A

13 USA

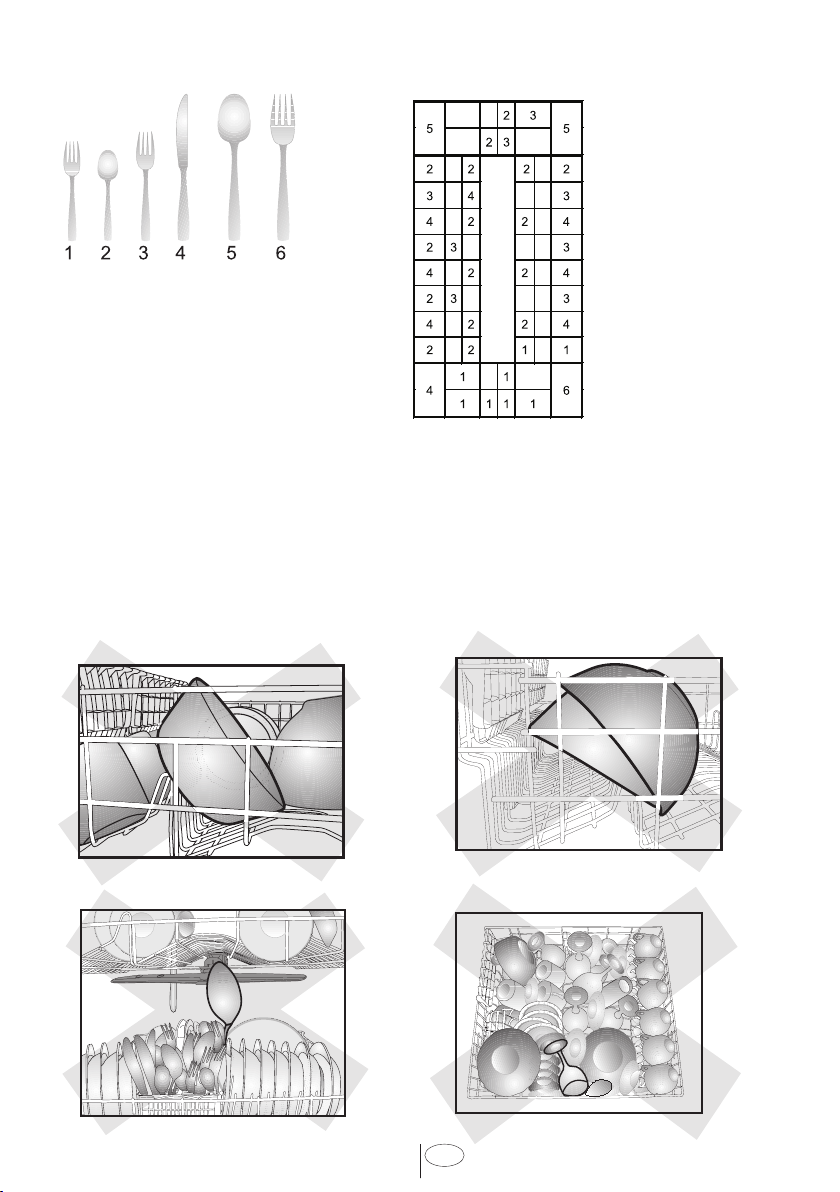

4.3 PROPER AND IMPROPER LOADING OF DISHWARE
1: Salad Fork
2: Teaspoon
3: Dinner fork
4: Knife-solid handle
5: Serving spoon
6: Serving fork
Sliding Cutlery Basket
load pattern for 8
place settings
•Place all large and very dirty items in the lower rack.
•Place all containers such as cups, glasses and pots into the dishwasher with the
opening facing downwards (so that no water can collect).
•The movement of the spray arms must not be hindered.
•Do not overload your dishwasher. Dishes and cutlery should not be placed above each
other. Glasses should not touch.
•Only with suitable dishes (mentioned in section 5) will you obtain optimal washing
results with a sensible use of energy.
incorrect incorrect
incorrect incorrect

14 USA
5. WHAT SHOULD NOT
BE WASHED IN YOUR
DISHWASHER
•Rust-sensitive steel parts like iron
and cast iron that can rust and stain
other utensils and damage the interior
stainless steel liner of the dishwasher
and void the warranty. Do not wash
copper, brass, pewter, bronze or tin.
•Cutlery with wooden or horn handles
and cutlery with mother-of-pearl or
porcelain handles will deteriorate over
time if put in the dishwasher.
•Plastics may lose their shape or color
with hot water, please follow the
instructions of plastic manufacturers.
Be sure that plastic items are marked
“dishwasher safe”.
•Glued dishes or cutlery are not
suitable for machine washing since
certain adhesives may get soft or
dissolve with hot water.
•Aluminum may fade over time.
Minerals in water and detergent may
cause the aluminum to darken or spot.
•Sterling silver articles should not be
washed in the dishwasher because
they tend to discolor and become dull
by dishwasher detergent.
•Silverware and stainless steel items
should not be in contact with each
other. Mixing these items can cause
staining. Remove and hand dry these
items immediately when the program
ends.
•Decorated glasses, porcelain, fine
china and china with gold rims are
sensitive to machine washing. They
may lose their patterns and colors
over time.
•Crystal and very fine glassware may
become opaque (etch) losing their
shine over time. You may prefer to
wash them by hand.
•Do not wash sponges or dish cloths in
dishwasher.
•Do not wash art and craft articles in
dishwasher.
•Disposable plastics and disposable
aluminum cannot withstand high
temperatures; do not wash them in
the dishwasher.
ACAUTION :
If in doubt, wash by
hand or follow the instructions
from the manufacturer of
utensils, dishes, glasses or pots
and pans.
Do not wash items soiled with
cigarette ash, candle wax,
varnish, paints or chemicals
since they can damage your
dishwasher.
CNOTICE:
We recommend
when buying new dishware, try
to choose ones that are suitable
for machine washing (marked as
dishwasher safe).
CARING FOR YOUR TABLE-WARE
The combination of high temperatures and
dishwasher detergent may cause damage
to some items if they are washed in the
dishwasher. Remember, if there is any
doubt about any aspect concerning items
to be washed in the dishwasher, follow the
instructions from the manufacturer of the
items, or wash the items by hand.

15 USA
6. OPERATİNG THE PRODUCT
1. On/Off key
2. Programme Selection / Programme
Cancel (3 seconds) key
3. Function keys & indicators
F1
F2
F3
F4
4. Programme indicator
5. Salt indicator (MODEL DEPENDING)
6.
7. Start / Cancel indicator
8. Time Delay / Programme Time indicator
9. Time Delay key
10. Time Delay indicator
11. End of Programme indicator
12.
13. Rinse Aid indicator
6.1 KEYS
On/Off key
When you press On / Off key, indicator lights illuminate on the display for ON position. The
lights turn off in OFF position.
Programme Selecton / Programme Cancel key
Press this key until the desired programme appears in the programme indicator.
To cancel the running programme open the door of the product. Press and hold the
Programme Selection / Programme Cancel keys for 3 seconds. After the 3 - 2 - 1
countdown, 0:01 is displayed, close the door of the product and wait for the draining
Not in use
Half Load Function
Sanitize Function
Extra Drying function
Fast Function
CNOTICE:
If you do not perform any operation after switching on the machine,
it will be automatically switched off within 5 seconds.
F1
F2
F3
F4
Cancel 3”
1
10
2 4 5 6 7 8
111213
3 3 9
Sanitized indicator

16 USA
process complete. Draining is completed in
2 minutes and the machine gives an audible
warning when it is completed.
Functon keys
If you press any of the Function keys
during programme selection or time delay
selection, an affirmative key signal will be
heard provided that the relevant function
is supported by the selected programme.
Function will be deemed selected when the
indicator of the selected function is lit.
To cancel the selected function, keep the
function key pressed until the function
indicator disappears.
6.2 PREPARİNG THE
MACHİNE
1. Open the door of the dishwasher.
2. Place the dishes in accordance with the
instructions in the user manual.
3. Make sure that the upper and lower
impellers rotate freely.
4. Put adequate amount of detergent
into the detergent dispenser.
6.3 PROGRAMME
SELECTİON
1. Press the On/Off button to turn on
your machine.
2. Check the Salt and Rinse Aid indicators
and add salt and/or rinse aid if needed.
3. Refer to the table of “Programme data
and average consumption values”
to determine a washing programme
suitable for your dishes.
4. Selected programme will start when
you close the door of your machine.

17 USA
012345
InnerClean Heavy+ Normal * Clean&Shine Express Rinse & Hold
(°C)
72 70 50 58 45 0
(°F)
160 167 122 136 113 0
(°C)
70 75 65 70 55 0
(°F)
140 158 149 140 131 0
-High Medium Medium Few -
----+-
++++- - ++++- -
ml
40 40 25-40 25-40 15-25 -
tsp
8 8 5-8 5-8 3-5 -
ml
-4025251
5-
tsp
-8553-
ml
-25-40 15-25 15-25 15 -
tsp
-5-8 3-5 3-5 3 -
-++--+ -++++- -+++- - ------
75 120 122-135 100 35 12
14,4 17,2 9,6-15,4 17,4 10,2 3,8
3,80 4,60 2,54-4,07 4,60 2,70 1,00
Wash Temperatures Rinse Temperatures Sanitize Water (gallons) Wash Main wash Dry Duration (minutes) Water (liters)
PROGRAM TABLE
The consumption values shown in the table were determined under standard conditions. For this reason, deviations are possible under practical conditions. * The energy-usage label is
based on this program.
15 ml
15-25 ml
+ 5 ml
Hard water Medium water Soft water
Recommended detergent amount Detergent in dispenser section Program number Program name Degree of dirtiness

18 USA
Extra Dryng functon
It provides superior drying performance.
Santze Functon
Sanitize function raises the water
temperature in the final rinse to meet the
requirements of NSF/ANSI STANDARD
184 for Residential Dishwashers. Certified
residential dishwashers are not intended
for licensed food establishments.
C
At the end of a succesfull
sanitization “S“ is displayed on
the display. “S” is not displayed
on the display if the cycle is
interrupted or the water could
not be heated to the required
temperature.
C
Available programs are
indicated on Program Table
chart.
C
Note: Only sanitizing cycles
have been designed to meet
the requirements of 6 for
soil removal and sanitization
efficacy.
There is no intention, either
directly or indirectly, that all
cycles have passed sanitization
performance tests.
Half Load functon
It is used to operate the machine without
loading it completely.
1. Load your dishes in the machine as you
like.
2. Turn the machine on with On/Off key.
3. Select the desired programme and
press the Half Load key. The Half Load
indicator will light on the display in the
Function Selected indicator.
4. Close the door of the machine to start
the programme.
C
With the Half Load function you
can save both water and power
while using the lower and upper
baskets of the machine.
6.4 AUXİLİARY FUNCTİONS
Washing programmes of your dishwasher
are designed to obtain the best cleaning
effect, considering the type of the soiling,
soiling degree and properties of the dishes
to be washed.
Auxiliary functions allow you save from
time, water and power.
C
Auxiliary functions may cause
changes in the programme
duration.
C
Auxiliary functions are not
suitable for all washing
programs. Indicator of the
auxiliary function that is not
compatible with the programme
will not be active.
Fast Functon
It shortens the time of the washing cycle
selected and decreases water consumption
by enabling washing under higher pressure.
Interor Lghtng
(MODEL DEPENDING)
Some models have interior lighting to
illuminate the interior when the door is
opened.
Changing the interior lighting
setting
1. After turning on the machine,
press Time Delay and P+ keys
simultaneously. Continue to press until
the countdown 3, 2, 1 is completed on
the display.
2. Press P+ key to activate the L: option.
The interior lighting is turned off at
"L:0" option and turned on at "L:1"
option. Set the desired option with the
Time Delay key.
