Dishwasher
User’s Manual
www.beko.com.tr

With each wash cycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level

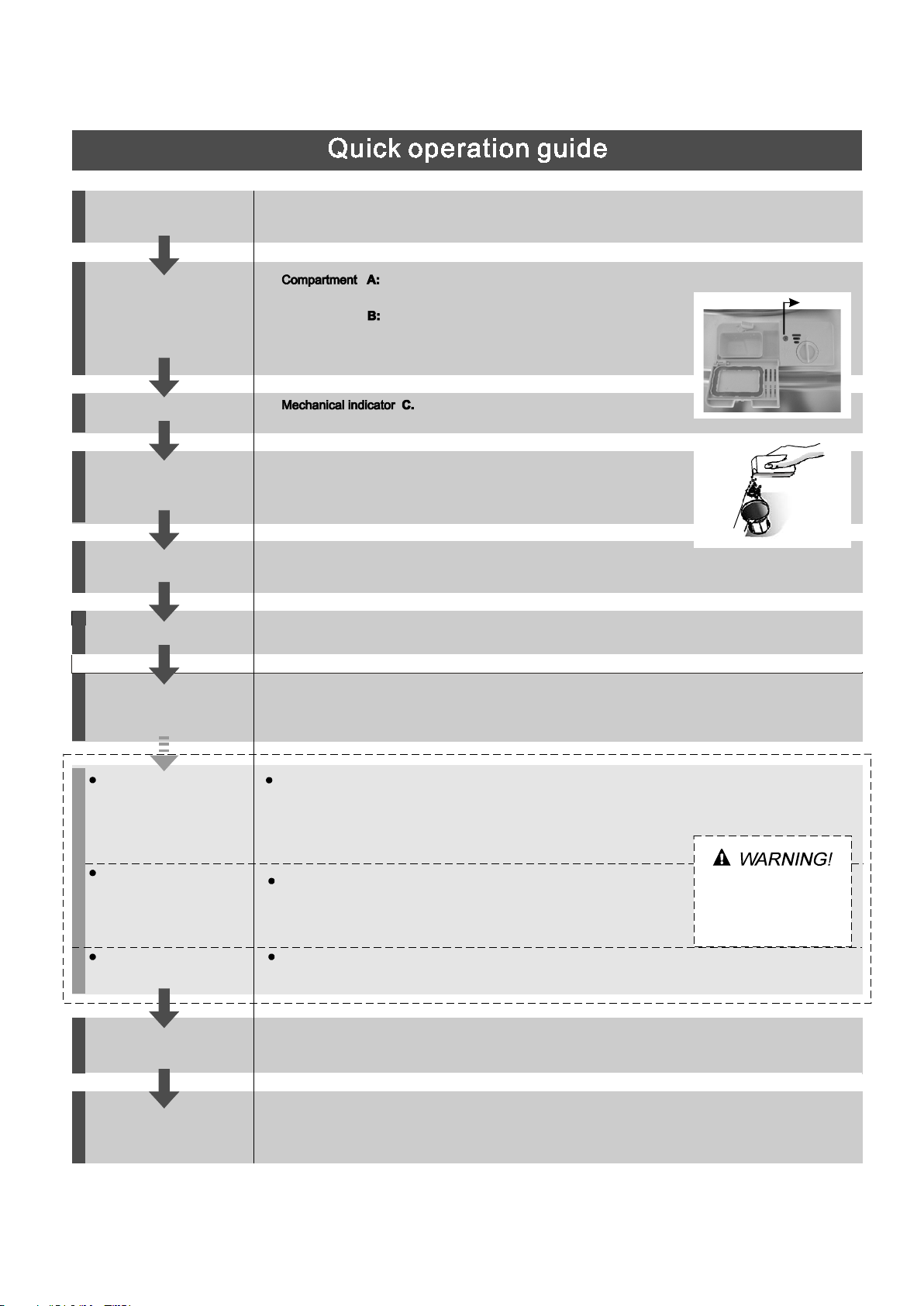

Load the baskets
Select a programme
Turn on the water tap and touch the Start/Pause button. The machine will start working
after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will also dry better.Unload the appliance, starting from the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Close the door Touch the programme button until the selected programme lights up.
( See the section entitled Operation instruction )
，
“ ”
When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop.
Turn off the appliance using the Power button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hot steam may escape
when the door is opened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Touch the Power switch button to switch on the appliance, Open the door.
1.Touch the start/pause button to stop the machine.
2.Open the door.
3.Add the forgotten dishes.
4.Close the door, then touch the start/pause button, the dishwasher will
start running again after 10 seconds.
For detailed operating method read the corresponding content on the instruction manual.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the Start/Pause button ,than press the program button more than 3 seconds to cancel the
running programme.
3. Select a new programme.
4. Restart the dishwasher.
Since the appliance is standing by, it will power off automaticly after 30 minutes without any operation.
C
Manufactured by Arcelik A.S.Karaagac Cd.No:2, 34445 Beyoglu,Istanbul,TurkeySutluce,

To review the section on troubleshooting Tips
will help you to solve some common problems
by yourself .
Dear Customer,
Please carefully read this manual before using the
dishwasher, it will help you to use and maintain the
dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions,
Operating Instructions, Installation Instructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development and updating of the product, may
make modifications without giving prior notice.
This user manual shall also be got from the
manufacturer or responsible vendor.
Keep it to refer to it at a later date.
If you can not solve the problems by yourself ,
please ask for the help of professional technicians.
Dishwasher Features.................................... ...3
Attention before or after loading the Dishwasher
Baskets..........................................................9
Filtering System.............................................13
Caring for the Dishwasher..................... .........14.
A Loading the Salt into the Softener.................4、
B Fill the Rinse Aid Dispenser.........................5、
C Function of Detergent .................................6、
Loading the Basket...........................................9
Cutlery Basket..............................................10
Wash Cycle Table...........................................11
Turning on the Appliance................................11
Change the Programme.............. ................12....
At the end of the Wash Cycle...........................12
Positioning the Appliance................... ..........16..
Water Connection.................................. .......16.
About Power Connection........................ .......16.
Connection of Drain Hoses..................... .......17.
Start of dishwasher............................. .. ......18.. ..
Before calling for service........................... .....19.
Error codes.................................... ..............20.
Technical information.............................. .....21..
Control Panel...................................................3

This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other
working environments;
-farm houses;
-by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision. For EN60335-1
This appliance is not intended for use by persons
(including children )with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. For IEC60335-1
This appliance is for indoor use only, for household
use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and maintenance the
appliance .
Use a soft cloth moisten with mild soap, and then use
a dry cloth to wipe it again.
（ ）
（ ）
When using your dishwasher,
follow the precautions listed below:

This appliance must be . In the event of a
malfunction or breakdown, grounding will reduce the risk
of anelectric shock by providing a path of least
resistance of electric current. This appliance is equipped
with a cord having an equipment- conductor
and a plug.
The plug must be plugged into an appropriate outlet that
is installed and in accordance with all local
codes and ordinances.
Improper connection of the equipment-
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the appliance
is properly grounded.
Do not modify the plug provided with the appliance;
If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
Do not abuse, sit on, or stand on the door or dish rack of
the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
earthed
earthing
earthing
earthed
earthing

2) Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points down or
placed in a horizontal position.
Check that the detergent comparment is empty after
completion of the wash cycle.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent.
For plastic items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed for
an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
Children should be supervised to ensure that they do not
play with the appliance.
The door should not be left open, since this could increase
the risk of tripping.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using
new hose sets and that old hose-sets should not be reused.
The maximum number of place settings to be washed
is
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.
6.

Safety and Environment Instructions
1 17 0- 1 38 0W
0.04-1.00MPa

2
3
48
6
3
before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
Power Button: To turn on/off the power supply.
Program indicator light:
Program Selector: Press the button to select
wash cycles
Delay Button : To press the button to delay.
Display screen: to show the reminding time
and the state(running state, delay time etc ) .
Rinse Aid Warning Light : To be on when the
rinse aid dispenser needs to be refilled.
Filter assemblyDetergent Dispenser
Cup Shelf
Cutlery Basket Rinse Aid Dispenser
Drain pipe connector
Inlet pipe connector
Spray Arms Basket
1Salt Container 5
6
7
8
9
10
3
2 4
Back ViewFront view
9 10
78
1
2
3
4
5
6
.
7
Salt Warning Light : To be on when the softener
needs to be refilled.
13
42
Start/Pause Button: Press this button to start
or pause the dishwasher.
45
48 47 46
--Intensive --Normal --ECO
--Glass --90min --Rapid

4
normal for a small amount of water to come out of the salt container.It is

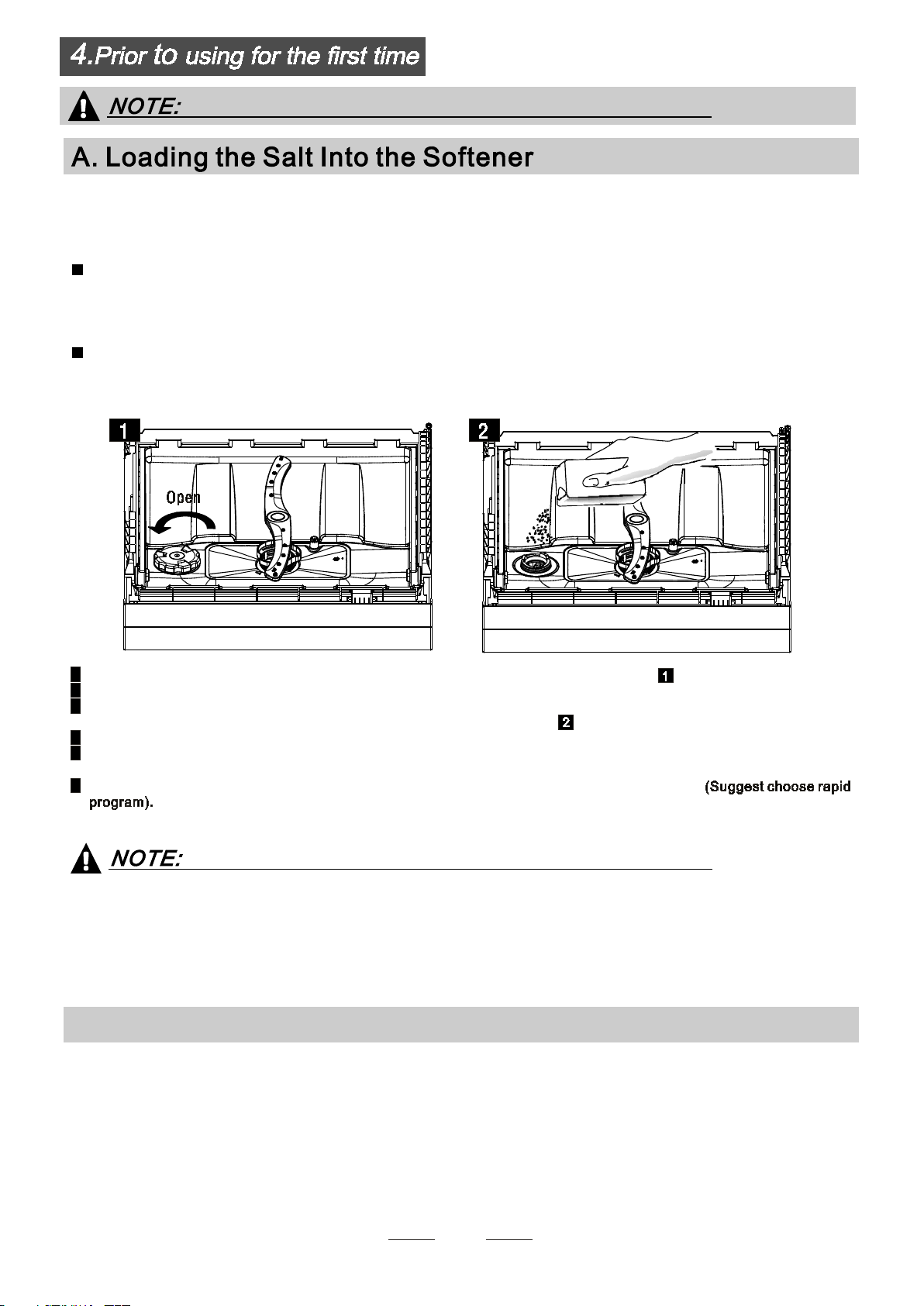

1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how fully the salt dissolves, the salt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (For some Models),you can judge when to load
the salt into the softener by the cycles that the dishwasher had run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excess salt.
Always use salt intended for use with dishwasher.
The salt container is located beneath the basket and should be filled as follows:
Attention!
Only use salt specifically designed for use in dishwashers! All other types of
salt not specifically designed for use in a dishwasher, especially table salt, will
damage the water softener. in case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any caused
damages.
Only fill with salt just before starting one of the complete washing programmes.
This will prevent any grains of salt or salty water, which may have been split,
remaining of the bottom of the machine for any period of time, which may cause
corrosion.
ARemove the basket and then unscrew and remove the cap from the salt container.
BBefore first wash, add 1lt. of water in the salt container of your machine.
CPlace the end of the funnel (supplied) into the hole and introduce about 1kg of salt.
DAfter filling the container , screw the cap tightly back clockwise.
EUsually, the salt warning light will be cease to be illuminated within 2-6 days after the salt container has been filled with
salt.
FImmediately after filling the salt into the salt container, a washing programme should be started
Otherwise filter system, pump or other important parts of the machine may be damaged by salty
water. It is out of warranty.
Step 1: Enter the status of salt adjustment
Adjusting Salt Consumption
Close the door, within 60 seconds after power on, Touch button and hold for 5 seconds,
the machine will enter setting mode.
Start/Reset
If your model have water softener, you may skip this section.no

Setting on the
water softener Digital display stalls
1
2
3
5
dH
Water Hardness level
mmol/l
1) 2)
6
0-5 0-0.9
6-11 1.0-2.0
12-17
18-22
23-34
35-45
2.1-3.0
3.1-4.0
4.1-6.1
6.2-8.0
There are 6 levels of salt consumption in all.It is recommended to select the level according to below table:
Step 2: select a certain level of salt consumption
Contact your local water board for information on the hardness of your water supply.
Touch the Start/pause button to select the proper set according to your local environment,
the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
Step 3: Exit the status of salt adjustment
Without any operation in five seconds, the machine will exit from set mode, the machine is into standby status
1) German degree of measurement for the water hardness
2) millimol, internationel unit for water hardness
*) factory setting
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes. That can leave
spots and streaks. It also improves drying by allowing water to sheet off the dishes. Your dishwasher is designed to
use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the
dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black.
The volume of the rinse aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
5
4*

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on "4". If spots and poor drying are problems, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are spotted, adjust the dial to the next
higher number until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
1
2
3
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 full
1 / 2 full
1 / 4 full - Should refill to eliminate spotting
Empty
6
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color
of the optical level indicator located next to the cap. When the rinse-aid container is full, the whole
indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let
the rinse aid get below 1 / 4 full.
during the next wash. Don't forget to replace the cap before you close dishwasher door.
Clean up any rinse aid split during filling with an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of commercial quality detergents are suitable for this purpose.
" "
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
C (Rinse-Aid indicator)

7
Adding detergent to dispenser
Based on their chemical composition, detergents can be split in two basic types:
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
Programs. Therefore please use long programs when using detergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the Wash Cycle Table . Your dishwasher uses less detergent and rinse aid then
conventional dishwasher. Generally, only one tablespoon of detergent is needed for
a normal wash load. More heavily soiled items need more detergent. Always add the
detergent just before starting the dishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
Detergent Tablets
Detergent Dispenser
Always add the detergent just before starting each wash cycle.
Only use branded detergent and rinse aid for dishwasher.
If the lid is closed: push the latch to open.
Conventional, alkaline detergents with caustic components.
Low alkaline concentrated detergents with natural enzymes.
Normally new pulverised detergent is without phosphate, thus he water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate were used in case of hard water
often white spots appear at dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
removed completely. In this case please choose a program with higher temperature.
°
The use of Normal washing program in combination with concentrated detergent reduces
pollution and is good for your dishes.

8
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels, as
illustrated on right:
Location of main wash cycle detergent.
Location of pre-wash cycle detergent
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in detergent dispenser
You see information about the amount of detergent for the single program on the page9.
Please be aware that soiling levels and water hardness can effect wash results.
Please observe the manufacturer's recommendations on the detergent packaging.
Cutlery with wooden, horn china or
mother-of-pearl handles.
Plastic items that are not heat resistant.
Older cutlery with glued parts that is not
temperature resistant.
Bonded cutlery items or dishes.
Pewter or copper items.
Crystal glass.
Steel items subject to rusting.
Wooden platters.
Items made from synthetic fibres.
Some types of glasses can become
dull after a large number of washes.
Silver and aluminium parts have a
tendency to discolour during washing.
Glazed patterns may fade if machine
washed frequently.
Not suitable for use
Limited suitability
Don't put powder detergent into the dispenser until you're ready to wash dishes.
Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Proper Use of Detergent
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from detergent manufacturers.
For particular items, select a program with as low temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the program has ended.
Consider buying utensils which are identified as dishwasher-proof.
Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
AB

9
Position the dishes and cookware so that they will not get moved by the spray of water.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not be touched.
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable energy consumption.
Load hollow items such as cups, glasses, pans etc. with the opening facing downwards so that
water cannot collect in the container or a deep base.
(For the best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large food paritcles. Soften remnants of burnt food in pans
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are face downwards.
2.Curved items, or those with recesses, should be loaded at aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotated freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
Saucers
4
Medium serving bowl
3
Glasses
1
Cups
6
Oval platter
7
Dinner plates
8
Soup plates
Dessert dishes
9
Dish
5
Cutlery basket
10
2
Serving spoons
11
7
9

10
Position the dishes and cookware so that they do not get moved by the spray of water.
Do not let any item extend through bottom.
Always load sharp utensils with the sharp point down!

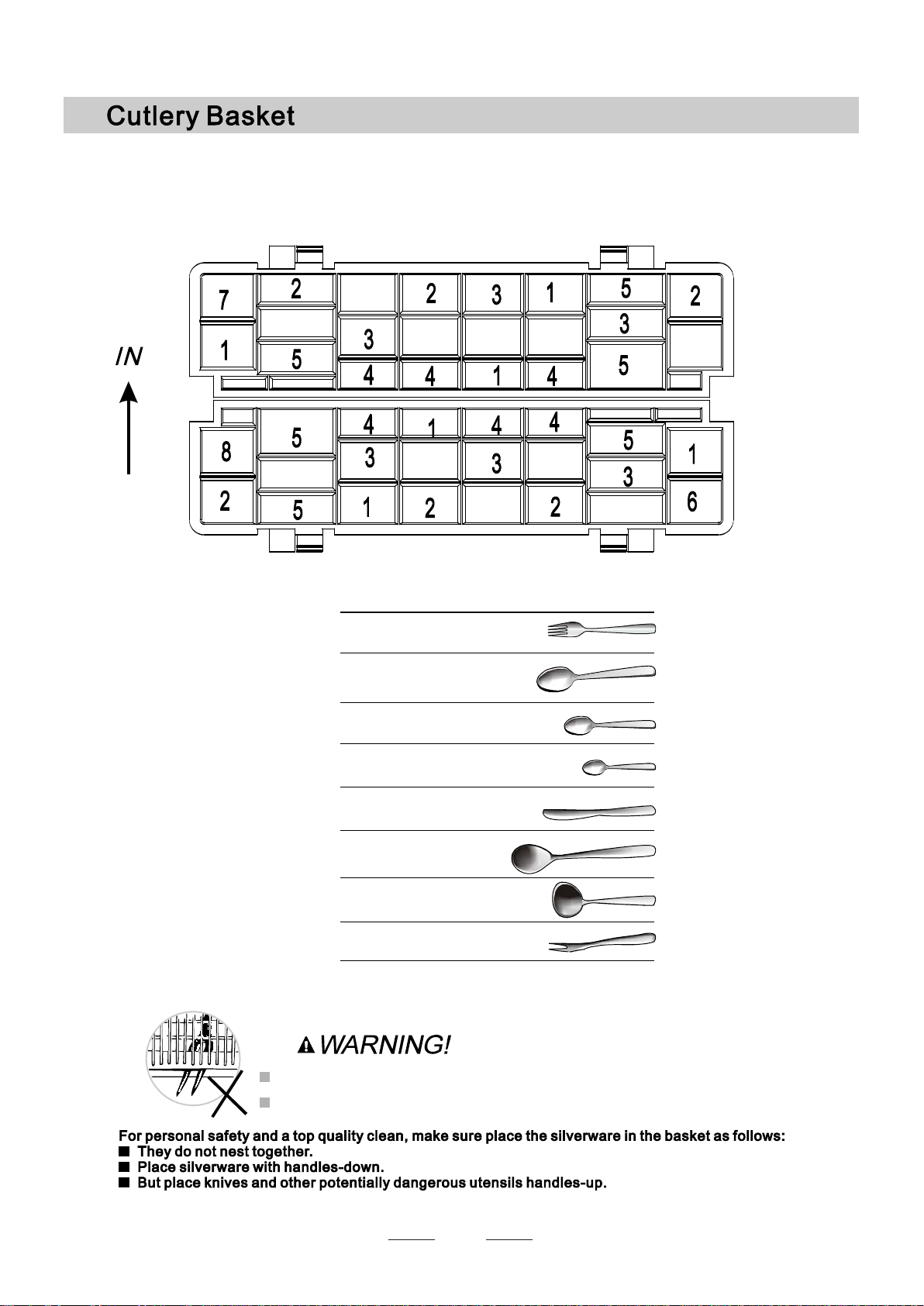

Teaspoons
4
Soup spoons
2
Forks
1
Serving forks
8
Serving spoons
6
Knives
5
3Dessert spoons
7Gravy ladles

11

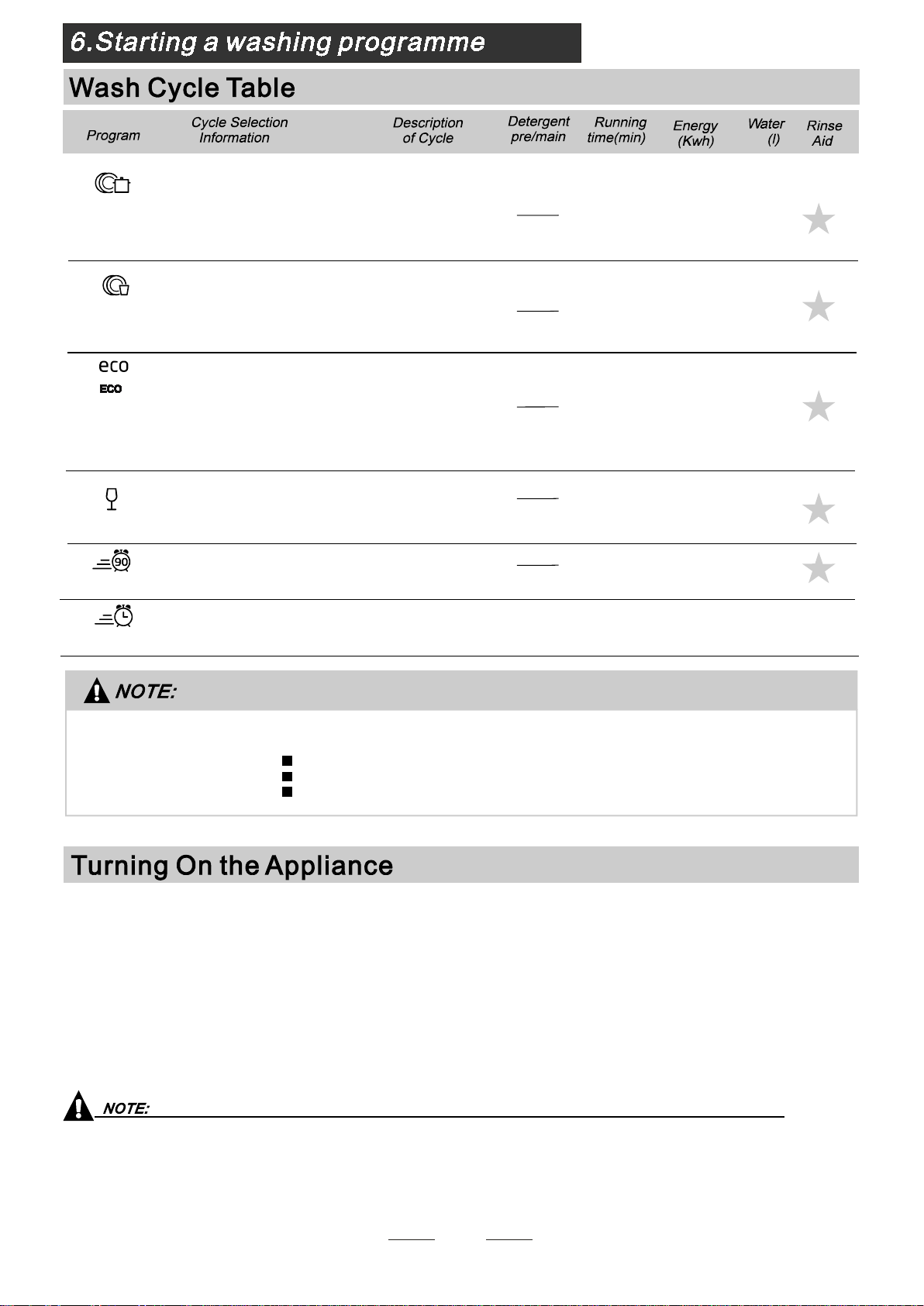

Starting a wash cycle...
Draw out the basket(see the section entitled Loading the Dishwasher ).
Pour in the detergent (see the section entitled Salt,
Detergent and Rinse Aid ).
Insert the plug into the socket. The power supply is 220-240
VAC 50 HZ, the specification of the socket is 10 A 250 VAC.
Make sure that the water supply is turned on to full pressure.
“ ”
“
”
Touch the program button , the wash program will be changed as follows direction
If a program is selected, the response light will light. Then touch the
button, the dishwasher begins to start.
ECO-> ->Intensive->NormalGlass->90 min->Rapid ;
Start/Pause
When you touch the button to pause during washing,
the program light will stop blinking and the dishwasher will mooing
every minute unless you touch the button to start.
Start/Pause
Start/Pause
For normally soiled loads,
such as pots, plates,
glasses and lightly
soiled pans.
For heaviest soiled crockery,
and normally soiled pots
pans dishes etc with dried
on soiling.
、
、
A shorter wash for lightly soiled
loads and quick wash.
For lightly soiled crockery
and glass.
15g
120
180
140
30
90
0.7
0.61
0.9
0.23
0.65
8
6.5
10
6
7.0
Pre-wash
Wash (60 )
Rinse
Rinse (70 )
Drying
℃
℃
Pre-wash
Wash (50 )
Rinse
Rinse (70 )
Drying
℃
℃
Wash(65 )
Rinse(70 )
℃
℃
Drying
Wash (40 )
Rinse
℃
Rinse (40 )℃
Intensive
Pre-wash 50
Wash (70 )
Rinse
Rinse
Rinse (70 )
Drying
℃
℃
℃
( )
90 min
Rapid
Normal
(*EN 50242)
*EN 50242 : This programme is the test cycle. The information for comparability test
in accordance with EN 50242, as follows:
Capacity: 6 setting
The power consumption of off-mode is 0.45W
left-on mode is 0.49W
Rinse aid setting: 6
This is standard programme,
it is suitable to clean normally
soiled tableware and it is the
most efficient programme in
terms of its combined energy
and water consumption for
that type of tableware.
Wash (45 )
Rinse
Rinse (60 )
Drying
℃
℃
For lightly soiled loads,
such as glasses, crystal and
fine china.
75 0.5 7.0
Glass
( )1 tablet
3/15g
(1 tablet)
3/15g
( )
1 tablet
3/15g
( )
1 tablet
18g
( )
1 tablet
18g

12
When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait a few minutes before unloading the dishwasher to avoid scald, the dishes and utensils
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
the machine will keep on working after 10 seconds.
If you open the door during washing, the machine will pause. When you
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door.
After the spray arms stop working,you can open the door
completely.
2
3
Open the door a little to stop the washing.
14
5
6
Premise:
Otherwise, the detergent may have already been
released, and the appliance may have already drained the wash water. in this
case, the detergent dispenser must be refilled (see the section entitled
" Detergent " ).
Touch
The program lights show the status of the dishwasher:
S Button to pause the machine when the door is closed ,Touch
Button more than three seconds the machine will be in stand by state ,
then you can change the program to the desired cycle setting (see the section
entitled " Starting a wash program" ).
a) One of the program lights on----------stand by or pause.
b) One of the program lights blinking----- running.
You can modify the washing program, If the dishwasher just
worked for a short time.
tart/Pause
Program
Touch the button.tart/PauseS
Touch the button, the dishwasher will run
after 10 seconds.
tart/PauseS
It is dangerous to open the door when washing,
because the hot water may scald you.
Your model has broken remember function, the machine will go on to finish the selected
program after the power cut.
close the door

13
The filter prevent larger remnants of food or other objects from getting inside the pump.
The filter system consists of a coarse filter, a flat (Main filter)
and a micro filter (fine filter).
Food and soil particles trapped by this filter are pulverized by a
special jet on the spray arm and washed down to drain.
Main filter
A
Larger items, such as pieces of bone or glass, that could block
the drain are trapped in the coarse filter. To remove the items
caught by this filter, gently squeeze the tap on the top of this
filter and lift it out.
Coarse filter
C
This filter holds soil and food residues in the sump area and
prevents it from being redeposited on the dishes during a cycle.
Fine filter
B
Filter assembly
The filter efficiently
For best performance and results, the filter assembly must be cleaned regularly. this reason, it is a good idea to
remove the larger food particles trapping in the filter after each wash cycle by rinsing the filter and cup under
running water. To remove the filter assembly, pull the cup handle in the upward direction.
removes food particles from the wash water, allowing it to be recycled during the cycle.
For
Never run the dishwasher without the filters in place.
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
and damage dishes and utensils.
the filter system will be installed.
If do it from step1 to step 3, the filter system will be removed; while if do it from Step 3 to Step 1,
Step 1 Contrarotate the filter assembly(A,B and C),
then lift it all up.
：
C
B
A
Step 2: Lift B and C up from A;
A
B
C
A
B
C
Step 3: Separate B and C.
