Beko DVS04020W User manual

Dishwasher
User’s Manual
EN
17 3881 0100_AA_BEKO_45A6_EN/ 22-08-20.(16:10)
DVS04020W
DVS04020S
DVS04020B
DVS04X20W
DVS04X20X

11/EN
Your dishwasher

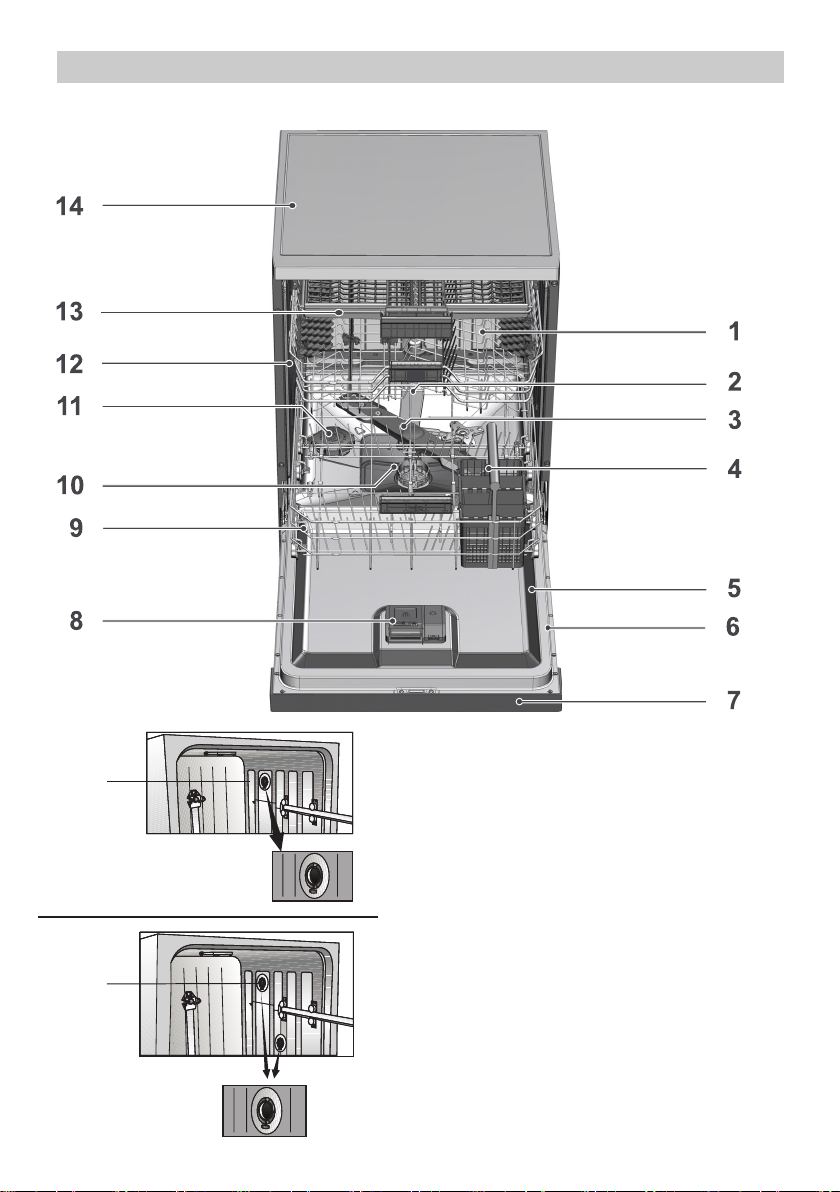

Overview
1. Upper basket
2. Upper impeller
3. Lower impeller
4. Cutlery basket (depends on model)
5. Door
6. Rating Label
7. Control panel
8. Detergent dispenser
9. Lower basket
10. Filters
11. Salt reservoir lid
12. Upper basket rail
13. Upper cutlery basket (depends on model)
14. Tabletop (depends on model)
15. Fan drying system (depends on model)
3-
15
15

12/EN
Installation
Read “Safety Instructions” section first!
Installation procedures must always be
performed by the manufacturer, authorised
service agent or a qualified person
specified by the importer. To make the
product ready for use, make sure that
the electricity, tap water supply and water
drainage systems are appropriate before
calling the authorised service agent. If
they are not, call a qualified technician
and plumber to have the necessary
arrangements carried out.
Preparation of the location and
electrical, tap water and waste water
installations at the place of installation
is under customer's responsibility.
Installation and electrical connections
must be carried out by the authorised
service agent. Manufacturer shall
not be held responsible for damages
arising from processes carried out by
unauthorised persons.
Prior to installation, check if the product
has any defects on it. If the product
is damaged, do not have it installed.
Damaged products cause risks for your
safety.
Make sure that the water inlet and
discharge hoses are not folded,
pinched or crushed while pushing the
product into its place after installation
or cleaning procedures.
The front of the appliance may not be
removed on free-standing or under-the-
counter models. The warranty will be
void if this is done.
When placing the product, pay attention not
to damage the floor, walls, piping, etc. Do
not hold the product from its door or panel
to move it.
Appropriate installation location
In the area where this product is
installed, there must not be a lockable,
sliding or hinged door that will restrict
full opening of the product’s door.
Make sure that you select a location
that will allow you to load and unload
the dishes in a fast and comfortable
manner.
•Place the product on a solid and flat
floor that has sufficient load carrying
capacity! The product must be installed
on a flat surface in order for the door to
be closed properly and securely.
•Do not install the product at places
where temperature may fall below 0ºC.
•Place the product on a hard floor. Do
not place it on a long pile rug or similar
surfaces.
Do not place the product on the power
cable.
•Make sure that you select a location
that will allow you to load and unload
the dishes in a fast and comfortable
manner.
•Install the product at a place close to
the tap and the drain hole. Select the
installation location by considering
that it will not be changed after the
connections are made.
Connecting water supply
We recommend installing a filter at
the water inlet in order to prevent the
dirt (sand, clay, rust) in the mains or
water installation of your home from
damaging the machine or the dishes.
4-

13/EN
Permitted water temperature: up to
25°C ( 60°C for products equipped
with Aquasafe+; please refer to
Aquasafe+ section )
The dishwasher may not be connected to
open warm water devices or flow-through
water heaters.
NOTICE Do not use an old or used water
inlet hose on the new product. Use the new
water inlet hose supplied with the product.
Do not make extension at the hoses.
NOTICE Connect the water inlet hose
directly to the water tap. Pressure coming
from the tap should be 0.3 bars minimum
and 10 bars maximum. If the water
pressure exceeds 10 bars, a pressure relief
valve should be installed in between.
NOTICE The water supply and draining
hoses must be securely fastened and
remain undamaged.
NOTICE Open the taps completely after
making the connections to check for water
leaks.
Aquasafe+
(depends on the model)
The Aquasafe+ system protects against
water leaks that may occur at the hose
inlet.Water contact with the valve box of
the system must be avoided to prevent
damage to the electrical system.
As the hose set contains electrical
connections and assemblies, never
shorten or lengthen the hose with
extension hoses.
If the Aquasafe+ system is damaged,
unplug the product and call the
authorised service agent.

14/EN
Drain pipe must be connected to the
sewage system and it should not be
connected to any surface water.
Adjusting the feet
If the door of the product cannot be closed
properly or if the product rocks when you
push it slightly, then you need to adjust
the feet of the product. Adjust the feet of
the product as illustrated in the installation
manual supplied with the product.
Steam may escape if the door of the
dishwasher is not adjusted properly.
Hot steam may cause serious burns
and injuries and damage your furniture.
Connection to the drain
Water discharge hose can directly be
connected to the drain hole or sink’s
drainage. See the installation manual
supplied with your machine for detailed
information.
min 300
min 120
max 1000
min 500
Electrical connection
Connect the product to a grounded
outlet protected by a fuse complying
with the values in the "Technical
specifications" table. Our company
shall not be liable for any damages
that will arise when the product is used
without grounding in accordance with
the local regulations.
•Connection must comply with national
regulations.
•Power cable plug must be easily
accessible after installation.
•Plug in the product to a grounded
socket which is protected by a fuse of
16 Amperes.
•The specified voltage must be equal to
your mains voltage.
Do not make connections via extension
cables or multi-plugs.
Damaged power cables must be
replaced by the authorised service
agent.
This appliance must be earthed. If the
fitted moulded plug is not suitable for
your socket, then the plug should be
cut off and an appropriate plug fitted.
Destroy the old plug, which is cut off as
a plug with a bared cord could cause a
shock hazard if inserted into a socket
elsewhere in the house.
The moulded plug on this appliance
incorporates a 13A fuse. Should the
fuse need to be replaced an ASTA
approved BS1362 fuse of the same
rating must be used. Do not forget
to refit the fuse cover. In the event of
losing the fuse cover, the plug must
not be used until a replacement fuse
cover has been fitted. Colour of the
replacement fuse cover must be the
same colour as that visible on the

15/EN
pin face of the plug. Fuse covers are
available from any good electrical
store.
Fitting a different plug
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying the
terminals on your plug, proceed as follows:
1. Connect the green - yellow or green
(earth) wire to the terminal in the plug
marked ‘E’ or with the symbol or
coloured green and yellow or green.
2. Connect the blue (neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (live) wire to the
terminal in the plug marked ‘L’ or
coloured red.







With the alternative plugs a 13A fuse must
be fitted either in the plug or adaptor or
in the main fuse box. If in doubt contact a
qualified electrician.

16/EN
Preparation
Read “Safety Instructions” section first!
Tips for energy saving
Following information will help you use the
product in an ecological and energy-efficient
manner.
Wipe away any coarse food remnants on the
dishes before putting them in the product.
Manual pre-rinsing of tableware items
leads to increased water and energy
consumption and is not recommended.
Washing tableware in a household
dishwasher usually consumes less energy
and water in the use phase than hand
dishwashing when the household dishwasher
is used according to the manufacturer’s
instructions.
Operate the product after filling it completely.
When selecting a programme, consider
the table of "Programme data and average
consumption values" given on Quick Guide.
Do not put more detergent than suggested
on the detergent package.
Water softening system
The product is equipped with a water
softening system which reduces the
hardness of incoming water. This system
softens the supply water to a level that will
allow washing the dishes with the required
quality.
The mains water hardness must be
softened if it is over 7°dH. Otherwise,
hardness ions will accumulate on
the dishes that are washed and may
affect the washing, rinsing and drying
performances of the machine.
Adjusting the water softening
system
Washing performance will increase when
water softening system is adjusted properly.
5-
Read “Quick Guide - Adjusting Water
Softening System” before this section!
The regeneration of the water softening
system can be done in all programmes
during drying step. When regeneration
occurs, duration, energy and water
consumption of the programme increase.
For regeneration process; frequency of
regeneration cycle, maximum additional
duration, water and energy consumption
are given in table below depending on
Eco 50°C programme water consumption,
when the dishwasher is run under standard
conditions with 14 dH water supply on its
Eco 50°C programme:
Eco 50°C water consumption (l) Regeneration after …. cycles Additional duration (min) Additional water consumption (l) Additional energy consumption (kWh)
12,3-14,7 5 5 3,0 0,05
9,6-12,2 6 5 3,0 0,05
9,0-9,5 7 5 3,0 0,05
8,0-9,0 8 5 3,0 0,05
7,0-7,9 9 5 3,0 0,05
For the water consumption of your
dishwasher on Eco 50°C programme,
look at the Programme data and average
consumption values table given on Quick
Guide.

17/EN
You can put about 2 kg of softening
salt into the salt reservoir.
5. Replace the lid and tighten it when the
reservoir is full.
You need to add salt right before
starting the machine. Thus, the
overflowing salty water will be flushed
immediately, preventing the risk
of corrosion in machine. In cases
where you would not start washing
immediately, run your machine empty
in the shortest programme.
Since different salt brands in the
market have different particle sizes and
since the water hardness may vary,
dissolution of the salt in water may
take a couple of hours. Therefore, Salt
Indicator remains on for a while after
adding salt into the machine.
Detergent
You can use powder, liquid/gel or tablet
detergents in the machine.
Only use detergents produced
particularly for use with dishwashers.
Note that detergents that contain
chlorine and phosphate can be harmful
for the environment. Liquid detergents
without chlorine may not remove tea
and coffee stains from cups.
Adding detergent
Pay attention to the warnings on the
detergent packaging to get better
washing and drying results. Contact
the manufacturer of the detergent for
Adding salt
Water softening system needs to be
regenerated in order for the product
to operate with the same performance
continuously. Dishwasher salt is used for
this purpose.
Use only special softening salts
produced particularly for the
dishwashers in your machine.
It is recommended to use granule- or
powder-formed softening salts in the
water softening system. Do not use
salts that do not completely dissolve
in water such as table salt or rock
salt. Otherwise the performance of the
system may deteriorate in time.
Salt reservoir will be filled with water
when you start the product. For this
reason, add salt before operating the
machine.
1. Firstly, take the lower basket out to add
softening salt.
2. Turn the salt reservoir lid counter-
clockwise to open it (A).
3. Add 1 liter of water to salt reservoir of
your machine only in initial use.
4. Fill the salt reservoir with salt by
using the salt funnel (D). To speed up
dissolution rate of salt in water, stir it
with a spoon.

18/EN
using detergent tablets.
3. Push the lid of the detergent dispenser
to close it. A "click" will be heard when
the lid is closed.
1
2
3
Use powder or liquid/gel detergent in
short programmes without prewash
since the solubility of the tablet
detergent changes depending on the
temperature and time.
further questions.
Do not put solvents into the detergent
dispenser. There is the risk of
explosion!
Put the detergent into the detergent
dispenser just before operating the
machine as illustrated below.
1. Push the latch to right to open the
detergent dispenser lid (A). (depends
on model)
2. Put suggested amount of powder,
liquid/gel or tablet detergent in the
reservoir.
Inside the detergent dispenser there
are level markings that help you
use appropriate amount of powder
detergent. When brimful, detergent
dispenser will contain 45 cm³ of
detergent. Fill detergent up to 15 cm³
or 25 cm³ level marks in the detergent
dispenser according to fullness of the
machine and/or soiling degree of the
dishes. One tablet is enough if you are

19/EN
3. After the empty washing cycle, review
the user manual and readjust the water
hardness level so as to suit the water
supply.
4. Make the appropriate rinse aid settings.
Rinse aid
The rinse aid used in dishwashers
is a special combination that aims to
increase drying efficiency and prevent
water or lime stains on the washed
items. For this reason, care must be
paid to have rinse aid in the rinse
aid reservoir and to use rinse aids
produced specially for dishwashers
only.
1. Open the lid of the rinse aid reservoir
with the help of the latch.
2. Fill the reservoir until “MAX” level.
Tablet detergents
In addition to the conventional tablet
detergents, there are also commercially
available detergent tablets that show water
softening salt and/or rinse aid effect. Some
types of these detergents contain special-
purpose components such as glass and
stainless steel protectors. These tablets
show their effects up to a certain water
hardness level (21°dH). Water softening
salt and rinse aid must also be used
together with the detergent if the water
hardness level is above the mentioned
level.
The best washing performance in
dishwashers is obtained by using
detergent, rinse aid and water
softening salt individually.
Observe the instructions of the
detergent manufacturer on the package
when using tablet detergents.
Contact the detergent manufacturer if
your dishes are wet and/or if you notice
limescale spots particularly on your
glasses after the washing programme
is over when using a tablet detergent.
When you switch to powder
detergent from tablet detergent:
1. Make sure that salt and rinse aid
reservoirs are full.
2. Set the water hardness to the highest
level and perform an empty run.

20/EN
3. Slightly press the point (B) of the
reservoir lid to close it.
4. If there are stains on tableware items
after washing, level must be increased
and if there is a blue trace after wiping
them by hand, it must be decreased.
This is set to position 3 as factory
default.
The rinse aid adjustment is described
under "Adjusting the amount of rinse
aid" in the section for operating the
machine.
Wipe clean any spilled rinse aid
outside the reservoir. Rinse aid that
spilled accidentally will cause foaming
and it will eventually decrease washing
performance.
Items not suitable for washing in
the dishwasher
•Never wash dishes soiled by cigarette
ash, candle remnants, polish, dyestuff,
chemicals, etc. in your dishwasher.
•Do not wash silverware and cutlery
with wooden or bone stems, glued
pieces, or pieces that are not resistant
to heat, as well as copper and tin-
plated containers in the dishwasher.
Decorative prints of chinaware as well
as aluminium and silver items may get
discoloured or tarnished after washing
in the dishwasher just as it happens in
handwashing as well. Some delicate
glass types and crystals may become
dull in time. We strongly recommend
you to check if the tableware you
are going to purchase is suitable for
washing especially in the dishwasher.
Placing the dishes into the
dishwasher
Depending on the capacity of your
dishwasher, you can use your dishwasher
in the optimum way with respect to energy
consumption and washing and drying
performance only if you place the dishes in
an orderly way.
•Wipe away any coarse food remnants
(bones, seeds, etc.) on the dishes
before placing them in the dishwasher.
•Place thin, narrow pieces in the middle
sections of baskets if possible.
•Place the heavily soiled and bigger
items in the lower basket and smaller,
delicate and light items in the upper
basket.
•Place the hollowed dishes such as
bowls, glasses and pans upside down
in the dishwasher. Thus, accumulation
of water in deep hollows is prevented.
To prevent possible injuries, always
place the sharp and pointed dishes
such as service fork, bread knife, etc.
upside down so as their pointed ends
will face down or lay them horizontally
in the dish basket.
Unload dishes in the lower basket first and
then the dishes in the upper basket.

21/EN
Suggestions for loading the dishwasher
Lower basket
Upper basket
Improper Loading Of Dishware

22/EN
Cutlery basket
(depends on model)
Cutlery basket is designed to wash your
dishes such as knife, fork, spoon, etc. in an
efficient manner.
Since the cutlery basket can be moved
(A, B), you can create more space while
placing your dishes in the lower basket and
free up space for your dishes of different
sizes.

23/EN
Collapsible lower basket tines
(depends on model)
Foldable tines (A) located at the lower
basket of the machine are designed for
an easier placement of large pieces such
as pans, bowls, etc. You can create larger
spaces by folding each tines individually or
all of them at once.
To bring the collapsible tines into horizontal
position, grab the tines from mid position
and push them in the directions of arrows
(B). To bring the tines back to vertical
position, just lift them up. Collapsible tines
will click into the latch again.
Bringing the tines to the horizontal
position by holding them from the tips
may cause them to bend. Therefore,
it will be appropriate to bring the tines
in the middle to horizontal or vertical
position by holding them from their
stems and pushing in the direction of
arrow.
Collapsible lower basket tines
(depends on model)
Foldable tines (A) located at the lower
basket of the machine are designed for
an easier placement of large pieces such
as pans, bowls, etc. You can create larger
spaces by folding each tines individually or
all of them at once.
To bring the collapsible tines into horizontal
position, grab the tines from mid position
and push them in the directions of arrows
(B). To bring the tines back to vertical
position, just lift them up. Collapsible tines
will click into the latch again.
Bringing the tines to the horizontal
position by holding them from the tips
may cause them to bend. Therefore,
it will be appropriate to bring the tines
in the middle to horizontal or vertical
position by holding them from their
stems and pushing in the direction of
arrow.

24/EN
Upper basket rack
(depends on model)
Lower basket bottle wire
(depends on model)
The bottle wire is designed for easier
washing of long pieces with wide mouths.
You may take out the bottle wire from the
basket when not in use by pulling it out
from both sides (H).
Upper basket multipurpose
service rack
(depends on model)
This accessory located at the upper basket
of your machine allows you to easily wash
pieces such as extra long ladles and bread
knives.
You can lift up the upper basket
multipurpose service rack to remove it if
you do not want to use it.
If you want to use the upper basket
multipurpose service rack again, you can
easily attach it to the side section of your
upper basket.

25/EN
Adjusting the height of the upper
basket
(depends on model)
The upper basket height adjustment
mechanism has been designed for you to
create large spaces in the lower or upper
sections of your machine depending on
your needs by adjusting the height in the
upper or lower direction while your basket
is empty or loaded.
Thanks to this mechanism, you can use
your basket in three different positions,
namely lower, middle and upper positions
(1, 2, 3).
1. To raise your basket, hold the upper
basket wires with both hands while the
basket is in the lowermost position and
pull them up (A).
2. You will hear a "Click" from the right
and left mechanisms, indicating that
the basket has reached the next level.
Release the basket.
Repeat the process if the height is not
sufficient.
1
2
3
To lower the basket, while it is in the
uppermost position;
1. Hold the upper basket wires with both
hands, slightly lift up the basket and
simultaneously push and release the
latches shown in the figure (B).
2. Lower the basket from its current
position to the lower one.
3. Release the basket after it has reached
one level down.
Repeat the process if the height is not
sufficient.
1
2
3
The movement mechanism may not
function properly if the upper basket is
overloaded or if the weight distribution
is not balanced. In heavier conditions,
there is the risk of falling one level
down.
Make sure that the adjustment
mechanism has the same positions
on the right and left sides of the upper
basket.

26/EN
Collapsible upper basket wires
(depends on model)
You can use collapsible wires when you
need a larger space for your dishes in the
upper basket of your machine.
To bring the collapsible wires into horizontal
position, grab the wire from the middle
position and push them in the direction of
arrow in the figure. Place your larger dishes
into the area created. To bring the wires
back to vertical position, just lift them up.
Bringing the wires to the horizontal
position by holding them from the tips
may cause them to bend. Therefore,
hold the wires from their stems while
bringing them to the horizontal or
vertical positions.
Ceiling cutlery basket
(depends on model)
Ceiling cutlery basket is designed to wash
your cutlery items such as forks, spoons
and etc. by placing them between the bars
on the basket.

27/EN
Operation of the product
6-
Keys
On-Off / Program Selection knob
When you select a program with the On-
Off / Program Selection knob, On Warning
control light is illuminated, and it is turned
off when you bring the knob to Off position.
Start / Pause / Cancel key
Used for starting, holding or cancelling the
selected program.
Time Delay key
It is used to set the time delay duration.
Preparation of the machine
1. Open the door of the dishwasher.
2. Load your dishes as described in the
user manual.
3. Ensure that lower and upper propellers
are rotating freely.
4. Add adequate amount of detergent in
the detergent compartment.
5. Inspect whether low salt and low rinse
aid indicators are illuminated; and add
salt and/or rinse aid if required.
6. Close the door of the dishwasher.
Program selection
1. Turn on your dishwasher with the On-
Off / Program Selection knob.
2. Select the proper washing program for
your dishes considering the program
information and average consumption
values table.
3. Select the program you have
determined with the program selection
knob.
Read “Safety Instructions” section first!
Read “Quick Quide” before this
section.
Auxiliary functions
Washing programmes of your dishwasher
are designed to obtain the best cleaning
effect, considering the type of the soiling,
soiling degree and properties of the dishes
to be washed.
Auxiliary functions are provided in order to
enable you to save time, water and energy
and to perform a more comfortable washing
with conditions specific to you.
Auxiliary functions may cause changes
in the programme duration.
Auxiliary functions are not suitable
for all washing programmes. Indicator
of the auxiliary function that is not
compatible with the programme will not
be active.
To add auxiliary function to the
programme:
1. Select the desired washing programme
by pressing the programme selection
key.
2. In the selected washing programme, if
auxiliary function is selected, its symbol
will be displayed on the screen. If the
function key is pressed again, the
symbol will disappear and selection is
cancelled.
Fast+ Function
(Depends on model)
It shortens the time of the washing cycle
selected and decreases water consumption
by enabling washing under higher pressure.
SteamGloss Function
(Depends on model)
It provides superior drying performance.

28/EN
Child (Key) Lock
(Depends on the Model)
You may prevent other persons from
affecting and changing the program flow
and delay time during the operation of the
machine.
To activate the child lock:
1. Press and hold the Child (Key) Lock
key for three seconds.
2. Child (Key) Lock indicator is illuminated
and the key lock shall be activated.
Child Lock prevents changing of the
selected functions and deactivates the
Start / Hold / Cancel key.
Child lock does not lock the door of the
machine.
Child lock automatically deactivates if
you turn off your machine with the On-
off key.
To cancel the child lock:
1. Press and hold the Child (Key) Lock
key for three seconds.
2. Child (Key) Lock indicator shall be
turned off and the key lock shall be
cancelled.
Half Load function
(Depends on model)
It is used to operate the machine without
loading it completely.
1. Load your dishes in the machine as
you like.
2. Turn the machine on with On/Off key.
3. Select the desired programme and
press the Half Load key.
While the function is enabled, the Half
Load indicator will come on in the function
selection indicator and on the display.
4. Start the programme by pressing Start
/ Pause / Cancel key.
With the Half Load function you can
save both water and power while using
the lower and upper baskets of the
machine.
Super Rinse Function
(Depends on model)
Depending on the type of the detergent
used, if a detergent dissolving issue is
encountered it will remove the resulting
stains from the dishes and enables the
optimum rinsing performance.
Tablet detergent function
(depends on model)
Allows to obtain a better drying
performance from the multi-purpose
detergents called as all in one detergents
such as 2in1, 3in1, 4in1, 5in1 and etc.,
depending on the hardness level of the tap
water.
Press and hold the tablet function buttons
on the panel to activate the tablet function
for appropriate programmes. Selecting the
tablet function will light the Tablet Detergent
indicator.
If you have used the Tablet features
during the last washing programme
you used, Tablet function will remain
active in the next washing programme
you will select. If you do not want to
use these functions in the new program
you have selected, press the Tablet
Detergent key until the indicator of the
relevant function turns off.
Tablet Detergent function may cause
change in the programme duration.

29/EN
Floor illumination
Warning to show that machine is in
washing phase
(depends on the model)
Your machine reflects a light to the floor
during the washing process. This light turns
off after the washing process is complete.
Floor illumination is activated
automatically when the washing
programme starts and remains lit until
the end of the programme.
Floor illumination cannot be cancelled
by the user.
Programming the Washing
Period
Time Delay key
You may delay the start time of the program
up to 9 hours with the Delay key. Press the
Start / Pause / Cancel key after delaying.
Program starts automatically when the
delay period is over.
With each press on the Delay key, 3-6-9
hours indicators start to flash. When you
press the Start / Pause / Cancel key while
the delay indicator you have selected is
flashing, the delay indicator illuminated
continuously and the count down starts.
When the delay period is over, the delay
indicator is turned off and the washing
program you have selected starts.
The delay indicators are turned off
if you press the Delay key while the
9-hour delay lamp is flashing. When
you press the Start / Pause / Cancel
key while the delay indicators are off,
the program you have selected shall
start without delay.
You may monitor the remaining time on
the delay from the delay indicators. For
example: When you select the 9-hour
delay option, 6-hour indicator shall start
to illuminate when the remaining time
for the start of washing program is 6
hours.
SelfDry
(Depends on the Model)
“SelfDry” feature of your machine increases
drying efficiency of your machine and saves
energy. There are two options: "OFF" and
"ON".
To activate the feature of SelfDry:
1. Press SelfDry button. When the
function is active, the indicator showing
the selection of the function lights up.
2. SelfDry is activated.
When you activate this function, the door
of your machine opens automatically at the
end of the washing program.
To deactivate the feature of SelfDry:
1. Press the button of SelfDry. When the
function is deactivated, the indicator
showing the selection of the function
turns off.
2. SelfDry is deactivated.
SelfDry opens the door of the machine
at the end of the washing circle,
thanks to the "door opening shafts".
This process takes approximately 2
minutes. If the power fails while the
shafts are moving out, do not force
to close the door. When the power is
back, the process shall be completed,
and the shafts shall return to their initial
position.
The function of SelfDry may change
the duration of the selected program.
Interior Lighting
(depends on the model)
Some models have interior lighting to
illuminate the interior when the door is
opened.
