Please read this user manual first!
Dear Customer,
We hope that you get the best results from the product which has been manufactured in state-of-the-art plants and
passed through a strict quality control procedure.
Therefore, please read the entire user manual carefully before using the product and keep it as a reference for future
use. In case of transferring the product to someone else, give the manual as well.
The user manual will help you use your product in a fast and safe way.
• Read the user manual before installing and starting your product.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Read also the other documents supplied with the product.
Remember that this user manual is also applicable for several other models. Differences between models will be
identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
Read the instructions.
CImportant information or useful hints about usage.
AWarning for hazardous situations with regard to life and property.
BWarning for electric shock.
Warning for fire hazard.
Warning for hot surfaces.

3EN
1 Important safety instructions
This section contains safety instructions that will help
protect from risk of personal injury or property damage.
Failure to follow these instructions shall void any
warranty.
General safety
• Never place the product on a carpet-covered floor;
otherwise, lack of airflow beneath the machine will
cause electrical parts to overheat. This will cause
problems with your product.
• Do not operate the product if the power cable
/ plug is damaged. Call the Authorized Service
Agent.
• Do not make any changes on the plug supplied
with the product. If it is not compatible with the
socket, have a qualified electrician change the
socket with a suitable one.
• Never touch the plug with wet hands! Never unplug
by pulling on the cable, always pull out by grabbing
the plug.
• Connect the product to a grounded outlet protected
by a fuse of suitable capacity as stated in the
technical specifications table.
• Power cable of this product is equipped with a
conductor and a grounding plug that allows for
grounding the product. This plug must be inserted
into a socket which is installed and grounded in
accordance with the local laws and regulations.
Grounding installation decreases the risk of electric
shock by opening a path with low resistance
for the electricity flow in case of a malfunction
or failure. Do not neglect to have the grounding
installation made by a qualified electrician. If you
have any suspect about the grounding installation,
have it checked by a qualified electrician or the
Authorized Service Agent. Our company shall not
be liable for any damages that will arise when the
product is used without grounding in accordance
with the local regulations.
• The product should not be plugged in during
installation, maintenance, cleaning and repair
works.
• Always have the installation and repairing
procedures carried out by the Authorized Service
Agent. Manufacturer shall not be held liable for
damages that may arise from procedures carried
out by unauthorized persons.
• Do not use electrical devices in the product.
• Do not connect the air exit of the product to the
chimney holes which are used for the exhaust
fumes of the devices operating with gas or other
types of fuel.
• You must provide enough ventilation in order to
prevent gases exiting from devices operating with
other types of fuels including the naked flame from
accumulating in the room due to the back fire
effect.
• Pay attention that the air inlet openings are
unobstructed
• Items cleaned or washed with gasoil/fuel oil,
dry-laundry solvents and other combustible or
explosive materials as well as the items that are
contaminated or spotted with such materials
should not be dried in the product since they emit
flammable or explosive vapor.
• Do not dry the laundry cleaned with industrial
chemicals in the dryer.
• Underwear that contains metal reinforcements
should not be dried in the dryer. Dryer can get
damaged if metal reinforcements come loose and
break off during drying.
• Never attempt to repair the product yourself. Do
not perform any repair or replacement procedures
on the product even if you know or have the ability
to perform the required procedure unless it is
clearly suggested in the operating instructions or
the published service manual. Otherwise, you will
be putting your life and others' lives in danger.
• For failures that you cannot remedy by applying
the procedures in safety instructions, turn off and
unplug the product and call the Authorized Service
Agent.
• Do not reach into the machine when the drum is
spinning.
• Do not use extension cords, multi-plugs or
adaptors to connect the dryer to power supply
in order to decrease the risk of fire and electric
shock.
• Never wash the product by spreading or pouring
water onto it! There is the risk of electric shock!
The final step of the drying programme, namely
the cool-down step is performed without applying
heat to ensure that the laundry items are kept at
a temperature that will not damage them. If you
open the loading door before the cool-down step
completes, hot vapour will come out.
ANever stop the dryer before the programme
completes. If you must do this, remove all laundry
quickly and lay them out to a suitable place to
dissipate the heat.
• Always clean the lint filter before or after each
loading. Never operate the dryer without the lint
filter installed.
• Clean inside and exhaust duct of the product
regularly. Do not allow fibre, dust and dirt
accumulation around the exhaust exit and at
adjacent areas.
• Power cable plug must be within easy reach after
installation.
• Do not dry unwashed items in the dryer.
• Items soiled with cooking oils, acetone, alcohol,
fuel oil, kerosene, stain removers, turpentine,
paraffin and paraffin removers must be washed
in hot water with plenty of detergent before being
dried in the dryer.
• Garments or pillows bolstered with rubber foam

4EN
(latex foam), shower bonnets, water resistant
textiles, materials with rubber reinforcement and
rubber foam pads should not be dried in the dryer.
• Do not use fabric softeners and anti-static
products unless they are recommended by the
manufacturers of the relevant product.
• Use softeners, anti-static products and etc.
in accordance with the instructions of their
manufacturers.
• Do not install the product behind a door with a
lock, sliding door or a hinged door which can strike
the product.
• Do not install or leave the dryer in places where it
will be exposed to outdoor conditions.
• Your product can be operated at temperatures
between +5°C and +35°C. If the operating
conditions fall outside of this range, operation of
the product will be adversely affected and it can
get damaged.
• Do not tamper with the controls.
• Unplug the product when it is not in use.
• Remove the loading door of the drying
compartment before decommissioning or disposing
of the product.
• Check all garments before loading and make sure
that there is no any lighters, coins, metal pieces,
needles, and etc. in their pockets or on them.
• Make sure that the pets do not enter into the
product. Check the drum of the product before
using it.
• Make sure that original spare parts and
accessories are used during maintenance works.
• Do not lean on the loading door when it is open.
The product may tip over.
• When your machine is not in use or when you
unload the laundry after completion of drying
process, turn the machine off with the On/Off
button. In cases where the On/Off button is in On
position (while the machine is energized), keep the
loading door closed.
Intended use
• This product has been designed for domestic use.
It should not be used for other purposes.
• Product must only be used for drying of textiles
that are marked accordingly.
• Dry only those articles in your product that are
stated in this manual.
• This product is not intended to be used by persons
with physical, sensory or mental disorders or
unlearned or inexperienced people (including
children) unless they are attended by a person
who will be responsible for their safety or who will
instruct them accordingly for use of the product.
Children's safety
• Electrical products are dangerous for the children.
Keep children away from the product when it
is operating. Do not let them tamper with the
product.
• Do not allow children sit/climb on or enter in the
product.
• Do not forget to close the loading door when
leaving the room where the product is located.
• Packaging materials are dangerous to children.
Keep the packaging materials out of reach of
children or dispose them by classifying according
to waste directives.
Compliance with the WEEE Directive
and Disposing of the Waste Product:
This product complies with EU WEEE
Directive (2012/19/EU). This product
bears a classification symbol for waste
electrical and electronic equipment
(WEEE).
This product has been manufactured with
high quality parts and materials which can
be reused and are suitable for recycling.
Do not dispose of the waste product with normal
domestic and other wastes at the end of its service
life. Take it to the collection center for the recycling of
electrical and electronic equipment. Please consult your
local authorities to learn about these collection centers.
Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS
Directive (2011/65/EU). It does not contain harmful and
prohibited materials specified in the Directive.
Package information
Packaging materials of the product are manufactured
from recyclable materials in accordance with our
National Environment Regulations. Do not dispose of the
packaging materials together with the domestic or other
wastes. Take them to the packaging material collection
points designated by the local authorities.

5EN
2 Installation
Refer to the nearest Authorized Service Agent for
installation of the product. To make the product ready for
use, make sure that the electricity and water drainage
system are appropriate before calling the Authorized
Service Agent. If they are not, call a qualified technician
and plumber to have any necessary arrangements
carried out.
C Preparation of the product’s location as well as the
electrical and waste water installations is under
customer’s responsibility.
BInstallation and electrical connections of the
product must be carried out by the Authorized
Service Agent. Manufacturer shall not be held
liable for damages that may arise from procedures
carried out by unauthorized persons.
A Prior to installation, visually check if the product
has any defects on it. If so, do not have it installed.
Damaged products cause risks for your safety.
A
Let your dryer wait for 12 hours before starting to
use it.
Appropriate installation location
• Install the product on a stable and level surface.
• Dryer is heavy. Do not move it by yourself.
• Operate your product in a well ventilated, dust-free
environment.
• Do not block the air ducts in front of and under
the product with materials such as long pile rugs,
wooden blocks and bands.
• Do not install the product behind a door with a
lock, sliding door or a hinged door which can strike
the product.
• Once the product is installed, it should stay at
the same place where its connections have been
made. When installing the product, make sure
that the rear wall of it does not touch anywhere
(tap, socket, etc.). Also pay attention to select an
installation location which you will not be required
to change afterwards.
• Place the product at least 1.5 cm away from the
edges of other furniture.
BDo not place the product on the power cable.
Removing the transportation safety
assembly
A
Remove the transportation safety assembly before
using the product for the first time.
1. Open the loading door.
2. There is a nylon bag inside the drum that contains
a piece of styrofoam. Hold it from its section
marked with XX XX.
3. Pull the nylon towards yourself and remove the
transportation safety assembly.
A
Make sure that no part of the transportation safety
assembly remains inside the drum.
Under counter installation
• This product can be installed under a counter if the
height of the counter is sufficient.
A
While using undercounter dryer, it should never be
operated without undercounter installation part.
Dryer Depth 60 cm 54 cm
Stock number
of under-bench
installation part
2979700100 2973600100
• Leave at least 3 cm of space around the sides and
the rear wall of the product when installing it under
a counter or in a cupboard.
Mounting over a washing machine
• A fixing device should be used between the two
machines when installing the dryer above a
washing machine. The fixing device (2977200100
white/2977200400 grey) must be installed by the
Authorized Service Agent.
• Total weight of the washing machine and the
dryer -with full load- when they are placed on top
of each other reaches to approx. 180 kilograms.
Place the products on a solid floor that has
sufficient load carrying capacity!
Connecting to the drain
In products equipped with condenser unit, water
accumulates in the water tank during the drying cycle.
You should drain accumulated water after each drying
cycle.
You can directly drain accumulated water through the
water drain hose supplied with the product instead of
periodically draining the water collected in the water
tank.

6EN
Connecting the water drain hose
1. Pull hose in the product by hand in order to
disconnect it from where it is connected. Do not
use any tools to remove the hose.
2. Connect one end of the drain hose supplied
separately with the product to the connection point
from where you removed the hose of the product
in previous step.
3. Connect the other end of the drain hose directly to
the wastewater drain or to the washbasin.
A
Hose must be fixed in every type of connection.
Your house will be flooded if the hose comes loose
during water discharge.
CWater drain hose should be attached to a height of
maximum 80 cm.
C Make sure that the water drain hose is not stepped
on and it is not folded between the drain and the
machine.
Adjusting the feet
In order to ensure that the product operates more
silently and vibration-free, it must stand level and
balanced on its feet. Balance the machine by adjusting
the feet.
Turn the feet to left or right until the machine stands
level and firmly.
CNever remove the adjustable feet from their
housings.
Electrical connection
Connect the product to a grounded outlet protected
by a fuse complying with the values in the “Technical
specifications” table. Our company shall not be liable
for any damages that will arise when the product is
used without grounding in accordance with the local
regulations.
• Connection must comply with national regulations.
• Power cable plug must be within easy reach after
installation.
• The voltage and allowed fuse or breaker protection
are specified in the “Technical specifications”
section. If the current value of the fuse or breaker
in the house is less than 10 Amps, have a qualified
electrician install a 10 Amp fuse.
• The specified voltage must be equal to your mains
voltage.
• Do not make connections via extension cables or
multi-plugs.
• The main fuse and switches must have a contact
distance of minimum 3 mm.
BDamaged power cable must be replaced by the
Authorized Service Agent.
BIf the product is faulty, it must not be operated
unless it is repaired! There is the risk of electric
shock!
First use
Before starting to use the product, make sure that
all preparations are made in accordance with the
instructions in sections “Important safety instructions”
and “Installation”.
Transportation of the product
1. Unplug the product before transporting it.
2. Remove the water drain (if any) and chimney
connections.
3. Drain the water in the product completely.
AWe recommend carrying the product in upright
position. If it is not possible to carry the machine in
the upright position, we recommend carrying it by
tilting towards the right side when looked from the
front. After the product is moved to its new place,
you should wait for 12 hours before starting it.

7EN
Warnings about sounds
C
It is normal to hear metallic noise from the
compressor sometimes during operation.
C
Water collected during operation is pumped to
water tank. It is normal to hear pumping noise
during this process.

8EN
EN 2
Height (adjustable) 84,6 cm
Width 59,5 cm
Depth 59,8 cm
Capacity (max.) 7 kg
Net weight (plastic front door usage) 49 kg
Net weight (glass front door usage) 51,5 kg
Voltage
See type labelRated power input
Model code
Type label is located behind the loading door.
Technical specifications

9EN
3 Preparations for drying
Things to be done for energy saving
Following information will help you use the product in an
ecological and energy-efficient manner.
• Operate the product at a capacity suitable for the
program you have selected and pay attention not
to overload.
• Spin your laundry at the highest speed possible
when washing them. Thus, the drying time is
shortened and energy consumption is reduced.
• Dry the same type of laundry together.
• Follow the instructions in the user manual for
programme selection.
• Leave sufficient clearance at the front and rear
side of the dryer for air circulation. Do not block
the ventilation grills at the front side of the product.
• Do not open the loading door of the machine
during drying unless necessary. If you must
certainly open the loading door, do not to keep it
open for a long time.
• Do not add new (wet) laundry during drying.
• Lint and fibres released from the laundry to the
air during the drying cycle are collected in the
Lint Filter. Clean the lint filter before or after each
drying cycle.
• Clean the filter drawer regularly either when the
Filter Drawer Cleaning warning symbol appears or
after every 5 drying cycles
• Ventilate the room, where the dryer is located, well
during drying.
• For models with lamp, keep the door closed if
the On/Off button is pressed (if the machine is
energized) when machine is not in use.
Laundry suitable for drying in the
machine
C Always obey the instructions given on the
garment tags. Dry only the laundry having a label
stating that they are suitable for drying in a dryer
and make sure that you select the appropriate
programme.
ABC
l mn
o p q
D
Laundry unsuitable for drying in the
machine
• Laundry and items stated below are not suitable
for drying in a dryer:
• Laundry items with metal attachments such
as metal buttons, metal reinforcements or belt
buckles.
• Woolen or silk garments, nylon stockings, delicate
embroidered fabrics and sleeping bags.
• Garments made of delicate and valuable fabrics.
• Tulle curtains.
• Items made of hermetic fibres such as pillows and
quilts.
• Very wet laundry items.
• Unwashed dirty laundry items.
• Laundry items containing rubber foam or rubber.
Items cleaned, washed or spotted with gasoil/fuel
oil, dry-laundry solvents, industrial chemicals or
other combustible or explosive materials should
not be dried in the dryer.
Items soiled with cooking oils, acetone, alcohol,
fuel oil, kerosene, stain removers, turpentine,
paraffin and paraffin removers must be washed
in hot water with plenty of detergent before being
dried in the dryer.
Preparing laundry for drying
• Check all garments before loading and make sure
that there is no any lighters, coins, metal pieces,
needles, and etc. in their pockets or on them.
• Laundry may be tangled after washing. Separate
the laundry items before placing them into the
dryer.
• Sort the laundry according to their types and
thicknesses. Dry the same type of laundry together.
For instance, thin kitchen towel and table cloths
get dry earlier than the thick bath towels.

10 EN
CLaundry must be spun at the highest spin speed
that the washing machine allows on basis of the
fabric type.
Correct load capacity
Follow the instructions in the “Programme selection and
consumption table”. Do not load more than the capacity
values stated in the table.
C
It is not recommended to load the dryer with
laundry exceeding the level indicated in the
figure. Drying performance will degrade when the
machine is overloaded. Furthermore, dryer and the
laundry can get damaged.
Following weights are given as examples.
Home articles Approximate
weights (g)
Cotton quit covers (double) 1500
Cotton quit covers (single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Garments Approximate
weights (g)
Blouses 150
Cotton shirts 300
Shirts 200
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs (10 pieces) 100
T-Shirts 125

11 EN
Loading the laundry
1. Open the loading door.
2. Place the laundry in the machine without
compressing.
3. Push the loading door to close.
AEnsure that no items are caught in the door.

12 EN
Spin speed / Timer programs*
Operation symbol
Pause symbol
Water Tank warning symbol
Filter cleaning warning symbol
Filter Drawer Cleaning warning symbol
Remaining Time indicator**
Child-proof Lock warning symbol
Time Delay mode
Loading door open warning symbol
Anti-creasing mode
Audio Warning Level / Cancel Audio Warning
Dryness Level
Anti-creasing is activated
* Spin speed is used to show the remaining time more accurately. It does not
affect the performance of your machine.
** Time that appears on display indicates the remaining time until the end of the
programme and changes according to the dampness level of the laundry.
4 Selecting a Programme and Operating Your Machine
Control panel
1. Washing Machine Spin Speed / Timer Programme
Selection button
2. Display
3. Start / Pause / Cancel button
4. Programme Selection knob
5. On / Off button
6. Anti-creasing button
7. Dryness Level button
8. Cancel Audio Warning button
9. Time Delay buttons
1 2 3 4 5
6789

13 EN
Preparing the machine
1. Plug in the machine.
2. Place the laundry in the machine.
3. Press the On / Off button.
C Pressing the On / Off button does not necessarily
mean that the programme has started. Press Start
/ Pause / Cancel button to start the programme.
Programme selection
1. Decide the appropriate programme from the table
below which includes drying levels.
2. Select the desired programme with the Programme
Selection knob.
Extra Dry
Only the cotton laundry is dried at
normal temperature. Thick and multi
layered laundry (towels, linens, jeans
and etc.) are dried in a way that they
do not require ironing before being
placed in the wardrobe.
Cupboard dry
Normal laundry (tablecloths,
underwear and etc.) are dried in a
way that they do not require ironing
before being placed in the wardrobe.
Iron Dry Normal laundry (shirts, dresses and
etc.) are dried ready to be ironed.
C For further programme details, see “Programme
selection and consumption table”.
Main programmes
Depending on the fabric type, the following main
programmes are available:
• Cottons
Dry durable laundry with this programme. Dries at
normal temperature. It is recommended to use for
your cotton items (bed sheets, quilt covers, towels,
bathrobes, etc.).
• Synthetics
Dry less durable laundry with this programme.
Recommended for synthetics.
Additional programmes
For special cases, following additional programmes are
available in the machine.
C
Additional programs may differ according to the
features of your machine.
• Express
You can use this program to dry your cotton laundry that
you have spun at high speeds in your washing machine.
This program dries 1 kg cotton laundry (3 Shirts/3T-
shirts) in 45 minutes.
C
To obtain better results from your dryer, your
laundry must be washed at suitable programs and
spun at the recommended speed in the washing
machine.
• Shirt
This programme dries the shirts more sensitively and
creases them less and thus, helps to iron them more
easily.
CThere may be a little moisture on the shirts at the
end of the programme. We recommend you not to
leave the shirts in the dryer.
• Jeans
Use this programme to dry your jeans that are spun at
high speeds in the washing machine.
• Mixed
Use this programme to dry non-pigmenting synthetic
and cotton laundry items together.
• Sport
Use this programme to dry together the synthetic and
cotton laundry items and the laundry items made of
mixed fabrics.
• Wool Refresh
You can use this program to ventilate and soften your
woolen laundry that can be washed in the washing
machine. Do not use this program to dry your laundry
completely. Take out your laundry and ventilate them
immediately after the program is over.
• Daily
This program is used to dry cottons and synthetics daily,
and lasts for 1.5 hour.
Daily
Timer
program
mes
Cottons Synthetics Freshen Up Anti
Creasing
Iron Dry Extra dry Cupboard
Dry
Dryness
Level
Buzzer/
cancel
On/Off Start
pause
cancel
Filter
cleaning
Child-proof
lock
Tank
full
Xpress
Jeans Shirts
BabyProtect Sport Spin Mix Delicates
Wool
Refresh Drying
Rack
Timer
Delay

14 EN
• BabyProtect
This program is used for baby clothes that bear machine
dryable approval on its label.
• Delicates
You can dry your highly delicate laundry that are suitable
for drying or laundry which is advised to be hand-
washed at a lower temperature.
C
It is recommended to use a cloth bag to prevent
certain delicate laundry from getting creased or
damaged. Take your laundry immediately out of the
dryer and hang them after the program is over in
order to prevent them from getting creased.
• Ventilation
Only ventilation is performed for 10 minutes without
blowing hot air. You can air the clothes that have
been kept at closed environments for a long time
and deodourise unpleasant odours thanks to this
programme.
• Timer programmes
You can select one of the 10 min., 20 min., 30 min., 40
min., 50 min., 60 min., 80 min., 100 min., 120 min.,
140 min. and 160 min. timer programmes to achieve
the desired final drying level at low temperatures.
CWith this programme, the machine dries for the
time selected regardless of the dryness level.

15 EN
Programme selection and consumption table
* : Energy Label standard programme (EN 61121:2012)
All values given in the table have been fixed according to EN 61121:2012 Standard. These values may deviate
from the values in the table according to the laundry type, laundry spin speed, environmental conditions and voltage
fluctuations.
EN 2
Programs Capacity (kg) Spin speed in washing machine
(rpm)
Approximate
amount of remaining
humidity
Drying time (minutes)
Cottons / Coloreds
AExtra dry 7 1000 % 60 175
ACupboard dry 7 1000 % 60 156
AIron dry 7 1000 % 60 125
BabyProtect 3 1000 % 60 80
Shirt 1.5 1200 %50 50
Jeans 4 1200 %50 120
Daily 4 1200 %50 90
Mixed 4 1000 %60 115
Sport 4 1000 %60 105
Express 1 1200 %50 45
Delicates 2 600 %40 55
Wool Refresh 1.5 600 %50 8
Synthetics
BCupboard dry 3.5 800 % 40 62
BIron dry 3.5 800 % 40 50
Energy consumption values
Programs Capacity (kg) Spin speed in washing machine
(rpm)
Approximate
amount of remaining
humidity
Energy consumption
value kWh
Cupboard dry for cottons* 7 1000 % 60 2.15
Iron dry for cottons 7 1000 % 60 1.8
Cupboard dry for synthetics 3.5 800 % 40 0.8
Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed.R407c / 0,320 kg

16 EN
Auxiliary functions
Audio Warning
The machine will give an audio warning when the
programme comes to an end. If you do not want the
machine give an audio warning, press the Volume Level
button repeatedly until “x” appears on the display. Use
the same button to adjust the volume level.
C You can activate this function either before or after
the programme starts.
Cancel
audio warning
Audio warning
level 1
Audio warning
level 2
Audio warning
level 3
Dryness level
Used to adjust the required dryness level. More drying
is performed compared to the default settings when “+”
sign appears and less drying is performed when “-” sign
appears. Programme duration can change depending on
the selection.
C You can activate this function only before the
programme has started.
Anti-creasing
You can use Anti-creasing function to prevent laundry
from creasing if you will not take the laundry out after
the program has come to an end. This program rotates
the laundry in every 240 second for 2 hours to prevent
creasing.

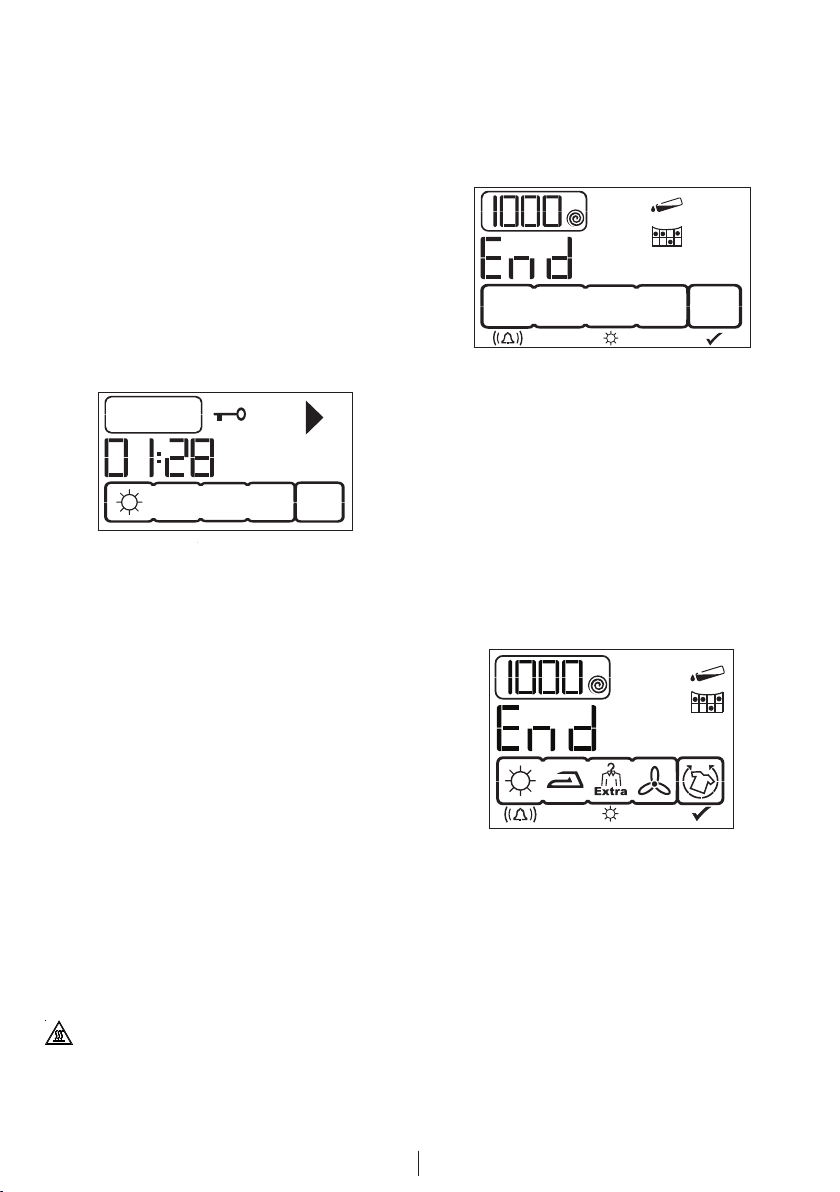

Anti-creasing is activated but the programme is still
running in the first display image below. Drying cycle is
completed and the Anti-creasing step has started in the
second display image.
C Press Anti-creasing button to activate this function.
Changing the contrast
Adjust the display contrast in order to make the symbols
on the display appear clearer. It may particularly be
necessary to change the contrast setting of the display
when the dryer is installed over a washing machine.
Press and hold the Spin Speed / Timer Programme
button for 3 seconds.
When the contrast is changed, all symbols on the
display will appear for 3 seconds in order to indicate
that the process is complete.
C Perform the same procedure to revert back to the
previous contrast setting.
Warning symbols
CWarning symbols may differ according to the
model of your machine.
Lint filter cleaning
When the programme is completed, a warning symbol
will appear to remind that the filter needs to be cleaned.
CIf the Filter Cleaning symbol flashes continuously,
refer to “Troubleshooting” section.
Water tank
When the programme is completed, a warning symbol
will appear to remind that the water tank needs to be
drained.
If the water tank becomes full while the programme
is running, the warning symbol will start to flash and
machine will pause. Drain the water in the water tank
and press Start / Pause / Cancel button to resume
the programme. The warning symbol turns off and the
programme resumes operating.
Cleaning of filter drawer
Warning symbol flashes with certain intervals to remind
that the filter drawer needs to be cleaned.
Loading door open
This warning symbol appears when the loading door of
the dryer is open.
Time Delay
Time Delay function allows you to delay the startup of
the programme up to 24 hours.
1. Open the loading door and put the laundry in.
2. Select the drying programme, spin speed and, if
required, the auxiliary functions.
3. Press Time Delay buttons + and - to set the
desired time delay. The Time Delay symbol will
flash.
4. Press Start / Pause / Cancel button. The Time
Delay starts to count down. The Time Delay
symbol lights up. Start symbol appears. The “:” in
the middle of the displayed delay time will start
flashing.

17 EN
C Additional laundry may be loaded / taken out
during the Time Delay period. At the end of the
Time Delay countdown process, Time Delay
symbol disappears, drying process starts and the
programme duration is displayed. The time on the
display is the total of normal drying time and delay
time.
Time Delay is activated by pressing the Start / Pause /
Cancel button in the above display image.
Changing the delay time
If you want to change the time during countdown:
1. Press Start / Pause / Cancel button for 3 seconds
to cancel the programme. Repeat the Time Delay
procedure for the desired time.
2. Set the desired delay time with Time Delay + and -
buttons. The Time Delay symbol will flash.
3. Press Start / Pause / Cancel button. The Time
Delay starts to count down. The Time Delay symbol
lights up. Pause symbol disappears. Start symbol
appears.
4. The “:” in the middle of the displayed delay time
will start flashing.
Cancelling the Time Delay
If you want to cancel the Time Delay countdown and
start the programme immediately:
1. Press Start / Pause / Cancel button for 3 seconds
to cancel the programme.
2. Press Start / Pause / Cancel button to start the
programme you have previously selected.
Starting the programme
Press Start / Pause / Cancel button to start the
programme.
Start / Pause symbol will light up to indicate that the
programme has started and “:” symbol between the
remaining time will continue flashing.
Progress of programme
Drying
Iron
Wardrobe
(Extra)
Ventilation
Anti-
creasing
Progress of a running programme is indicated on the
display by means of a set of symbols.
At the beginning of each programme step, the relevant
symbol in the series of symbols will light up and thus, at
the end of the programme, all symbols will remain lit up.
The rightmost symbol on the display indicates the step
being carried out.
Drying
Drying symbol lights up in all programmes apart from
ventilation.
Iron Dry
Starts to illuminate when the dryness level reach Iron
Dry step.
Cupboard Dry
Starts to illuminate when the dryness level reach
Cupboard Dry step.
Extra dry
Starts to illuminate when the dryness level reach
Wardrobe Dry Extra step.
Ventilation
Ventilation symbol illuminates when the programme
comes to an end.
C Anti-creasing symbol will illuminate at the end
of the programme if Anti-creasing function is
activated.
Child-proof Lock
Machine is equipped with a Childproof Lock which
prevents interfering with the current programme flow
by pressing any button. All buttons except the On / Off
button on the control panel are deactivated when the
Child-proof Lock is active.
In order to activate the Childproof Lock, press Audio
Warning and Anti-Creasing buttons simultaneously for
3 seconds.
To start a new programme after the current programme
is over or to interrupt the current programme, the
Child-proof Lock should be deactivated. Press the same
buttons for 3 seconds again to deactivate the Child-
proof Lock.
CLock symbol will appear on the display when the
Child-proof Lock is activated.
C
Child-proof Lock is deactivated when the machine
is switched off and on with On / Off button.
When the Child-proof Lock is activated:
•Display symbols will not change even if the position
of Programme Selection knob is changed while the
machine is running or in halt.
• If the Child-proof Lock is deactivated after
changing the position of the Programme Selection
knob while the machine is running, the machine
stops and new programme information is
displayed.

18 EN
Changing the programme after it has
started
After the machine starts, you can change the selected
programme and dry your laundry in a different
programme.
1. If you want to select Extra Dry programme instead
of Iron Dry programme, press and hold the Start /
Pause / Cancel button for 3 seconds to cancel the
programme.
2. Select Extra Dry programme by turning the
Programme Selection knob.
3. Press Start / Pause / Cancel button to start the
programme.
C
You can also select a new programme by turning
the Programme Selection knob while the machine
is operating. In this case, current programme
is aborted and the new programme information
appears on the display.
Adding / removing laundry in Pause mode
In order to add or take out laundry after the drying
programme has started:
1. Press Start / Pause / Cancel button to switch the
machine to Pause mode. Drying process will stop.
2. While in Pause mode, open the loading door, add
or take out laundry and close the loading door.
3. Press Start / Pause / Cancel button to start the
programme.
C Any laundry added after the drying process has
started may cause the clothes that are already
dried in the machine intermingle with wet clothes
and the result will be wet laundry after the drying
process is over.
C You may repeat laundry adding or removing
process as many times as you desire during
drying. However, this process will increase the
programme time and energy consumption since
the drying process will be interrupted repeatedly.
Therefore, it is recommended to add laundry
before the drying programme has started.
C
If you select a new programme by turning the
Programme Selection knob while your machine
is in Pause mode, then the current program
is aborted and new programme information is
displayed.
Do not touch the inner surface of the drum when
adding or taking out laundry while a programme is
running. Surfaces of the drum are hot.
Canceling the programme
If you want to stop drying and cancel the programme
for any reason after the machine has started to run,
press and hold the Start / Pause / Cancel button for 3
seconds. Lint Filter Cleaning and Water Tank warning
symbols light up and “End” label appears on the display
as a reminder at the end of this period.
A As the inside of the machine will be excessively
hot when you cancel the programme while the
machine is running, activate the ventilation
program to cool it down.
C
Machine will stop if you turn the Programme
Selection knob while it is operating. In this case,
current programme is aborted and the new
programme information appears on the display.
End of programme
Lint Filter Cleaning and Water Tank warning symbols
light up in the programme follow-up indicator and “End”
label appears on the display when the programme
comes to an end. The loading door can be opened and
the machine becomes ready for a second cycle.
Press On / Off button to switch off the machine.
C If Anti-creasing function is activated and the
laundry is not taken from the machine at the
end of the programme, 2-hours Anti-creasing
programme is activated.
C Clean the lint filter after each drying. (See “Lint
Filter / Loading Door Inner Surface”)
C Drain the water tank after each drying cycle. (See
“Draining the water tank”)

19 EN
5 Maintenance and cleaning
Service life of the product extends and frequently faced
problems decrease if cleaned at regular intervals.
BThis product must be unplugged during
maintenance and cleaning works (control panel,
body, etc.).
Lint Filter / Loading Door Inner
Surface
Lint and fibres released from the laundry to the air
during the drying cycle are collected in the Lint Filter.
C *Such fibre and lint are generally formed during
wearing and washing.
A Always clean the lint filter and the inner surfaces of
the loading door after each drying process.
C You can clean the lint filter housing with a vacuum
cleaner.
To clean the lint filter:
1. Open the loading door.
2. Remove the lint filter by pulling it up and open the
lint filter.
3. Clean lint, fibre, and cotton raveling by hand or
with a soft piece of cloth.
4. Close the lint filter and place it back into its
housing.
C A layer can build up on the lint filter pores that
can cause clogging of the lint filter after using the
machine for a while. Wash the lint filter with warm
water to remove the layer that builds up on the lint
filter surface. Dry the lint filter completely before
reinstalling it.
CClean the entire inner surface of the loading door
and loading door gasket.
Cleaning the sensors
There are dampness sensors in the machine that detect
whether the laundry is dry or not.
To clean the sensors:
1. Open the loading door of the machine.
2. Allow the machine to cool down if it is still hot due
to the drying process.
3. Wipe the metal surfaces of the sensor with a soft
cloth, dampened with vinegar and dry them.
CClean metal surfaces of the sensors 4 times a
year.
CDo not use metal tools when cleaning metal
surfaces of the sensors.
ANever use solvents, cleaning agents or similar
substances for cleaning due to the risk of fire and
explosion!

20 EN
Draining the water tank
Dampness of the laundry is removed and condensed
during drying process and the water that arise
accumulates in the water tank. Drain the water tank
after each drying cycle.
A Condensed water is not potable!
ANever remove the water tank when the programme
is running!
If you forget to drain the water tank, the machine will
stop during the subsequent drying cycles when the
water tank is full and the Water Tank warning symbol
will flash. If this is the case, drain the water tank and
press Start / Pause / Cancel button to resume the drying
cycle.
To drain the water tank:
1. Pull the drawer and remove the water tank
carefully.
2. Drain the water in the tank.
3. If there is lint accumulation in the funnel of the
water tank, clean it under running water.
4. Place the water tank into its seat.
Cleaning the filter drawer
Lint and fibre that could not be captured by the lint
filter are blocked in the filter drawer behind the kick
plate. Filter Drawer Cleaning warning light will light up
maximum at every 5 drying cycles as a reminder.
There is a two-level filter in the filter drawer. The first
level is the filter drawer sponge and the second level is
the filter cloth.
To clean the filter drawer:
1. Press the kick plate button to open the kick plate.
2. Remove the filter drawer cover by turning it in the
direction of arrow.
3. Pull out the filter drawer.
4. Open the filter drawer by pressing the red button.
