Beko DS 7331 PA0 User manual

Dryer
User Manual
2960311195_EN/181116.2019
EN PT
DS 7331 PA0
Secador
Manual do utlzador
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Beko DS 7331 PA0 o
cerca il tuo prodotto tra le migliori offerte di Lavatrici eAsciugatrici

2 / EN Dryer / User Manual
Please read this user manual first!
Dear Customer,
Thank you for prefering a Beko product. We hope that your product which has been
manufactured with high quality and technology will give you the best results. We advise you
to read through this manual and the other accompanying documentation carefully before
using your product and keep it for future reference. If you transfer the product to someone
else, give its manual as well. Pay attention to all details and warnings specified in the user
manual and follow the instructions given therein.
Use this user manual for the model indicated on the cover page.
Read the instructions.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful hints about usage.
AWarning for hazardous situations with regard to life and property.
BWarning against electric shock.
Warning against hot surfaces.
Warning against fire hazard.
Packaging materials of the product are manufactured from recyclable materials in
accordance with our National Environment Regulations.
Do not dispose of the packaging wastes with the domestic waste or other wastes, discard
them to the dedicated collection points designated by the local authorities.
This product was manufactured using the latest technology in environmentally friendly conditions.

3 / EN
Dryer / User Manual
1 Important instructions for safety and
environment
Ths secton contans safety nstructons that wll help
protect from rsk of personal njury or property damage.
Falure to follow these nstructons shall vod any warranty.
1.1 General safety
•The dryer can be used by chldren at and above 8
years old and by persons whose physcal, sensory or
mental capabltes were not fully developed or who
lack experence and knowledge provded that they are
supervsed or traned on the safe usage of the product
and the rsks t brngs out. Chldren should not play wth
the product. Cleanng and mantenance works should not
be performed by chldren unless they are supervsed by
someone.
•Chldren of less than 3 years should be kept away unless
contnously supervsed.
•Adjustable feet should not be removed. The gap between
the dryer and the floor should not be reduced wth
materals such as carpet, wood and tape. Ths wll cause
problems wth the dryer.
•Always have the nstallaton and reparng procedures
carred out by the Authorzed Servce.Manufacturer
shall not be held lable for damages that may arse from
procedures carred out by unauthorzed persons.
•Never wash the dryer by sprayng or pourng water onto t!
There s the rsk of electrc shock!

4 / EN Dryer / User Manual
Important instructions for safety and
environment
1.1.1 Electrcal safety
AElectrcal safety nstructons should be followed
whle electrcal connecton s made durng the
nstallaton.
AThe applance must not be suppled through an
external swtchng devce, such as a tmer,or
connected to a crcut that s regularly swtched on
and off by utlty.
•Connect the dryer to a grounded outlet protected by a
fuse at the value specfed on the type label. Have the
groundng nstallaton performed by a qualfed electrcan.
Our company shall not be lable for any damages that
wll arse when the dryer s used wthout groundng n
accordance wth the local regulatons.
•The voltage and allowed fuse protecton s stated on the
type label plate.
•The voltage specfed on the type label must be equal to
your mans voltage.
•Unplug the dryer when t s not n use.
•Unplug the dryer from the mans durng nstallaton,
mantenance, cleanng and repar works.
•Do not touch the plug wth wet hands! Never unplug by
pullng on the cable, always pull out by grabbng the plug.
•Do not use extenson cords, mult-plugs or adaptors to
connect the dryer to power supply n order to decrease the
rsk of fre and electrc shock.
•Power cable plug must be easly accessble after
nstallaton.
BDamaged mans cable should be changed notfyng
the Authorzed Servce.
BIf the dryer s faulty, t must not be operated unless
t s repared by an authorzed servce agent! There s
the rsk of electrc shock!

5 / EN
Dryer / User Manual
Important instructions for safety and
environment
1.1.2 Product safety
Superheatng of the clothes nsde of the dryer can
occur f you cancel the programme or n the event
of a power falure whlst the dryer s runnng, ths
concentraton of heat can cause self-combuston and
fre so always actvate the ventlaton programme
to cool down or quckly remove all laundry from the
dryer n order to hang them up and dsspate the
heat.
Ponts to be taken nto consderaton for fre
hazard:
Below specfed laundry or tems must not be dred n
the dryer consderng fre hazard.
•Unwashed laundry tems
•Items soled wth ol, acetone, alcohol, fuel ol,
kerosene, stan removers, turpentne, paraffn or
paraffn removers must be washed n hot water
wth plenty of detergent before beng dred n the
dryer.
For ths reason especally the tems contanng the
above specfed stans must be washed very well, to
do ths use adequate detergent and choose a hgh
washng temperature.

6 / EN Dryer / User Manual
Important instructions for safety and
environment
Below specfed laundry or tems must not be
dred n the dryer due to the fre hazard:
•Garments or pllows bolstered wth rubber foam
(latex foam), shower bonnets, water resstant
textles, materals wth rubber renforcement and
rubber foam pads.
•Clothng cleaned wth ndustral chemcals.
Items such as lghter, match, cons, metal parts,
needle etc. may damage the drum set or may lead to
functonal problems. Therefore check all the laundry
that you wll load nto your dryer.
Never stop your dryer before the programme
completes. If you must do ths, remove all laundry
quckly and lay them out to dsspate the heat.
Clothes that are washed nadequately may gnte on
ther own and even may gnte after dryng ends.
•You must provde enough ventlaton n order to prevent
gases extng from devces operatng wth other types of
fuels ncludng the naked flame from accumulatng n the
room due to the back fre effect.
AUnderwear that contans metal renforcements
should not be dred n the dryer. Dryer may be
damaged f metal renforcements come loose and
break off durng dryng.
CUse softeners and smlar products n accordance
wth the nstructons of ther manufacturers.
CAlways clean the lnt flter before or after each
loadng. Never operate the dryer wthout the lnt
flter nstalled.

7 / EN
Dryer / User Manual
Important instructions for safety and
environment
•Never attempt to repar the dryer by yourself. Do not
perform any repar or replacement procedures on the
product even f you know or have the ablty to perform
the requred procedure unless t s clearly suggested n the
operatng nstructons or the publshed servce manual.
Otherwse, you wll be puttng your lfe and others’ lves n
danger.
•There must not be a lockable, sldng or hnged door that
may block the openng of the loadng door n the place
where your dryer s to be nstalled.
•Install your dryer at places sutable for home use.
(Bathroom, closed balcony, garage etc.)
•Make sure that pets do not enter the dryer. Check the
nsde of the dryer before operatng t.
•Do not lean on the loadng door of your dryer when t s
open, otherwse t may fall over.
•The lnt must not be allowed to accumulate around the
tumble dryer
1.2 Mountng over a washng machne
•A fxng devce should be used between the two machnes
when nstallng the dryer above a washng machne. The
fttng devce must be nstalled by the authorzed servce
agent.
•Total weght of the washng machne and the dryer -wth
full load- when they are placed on top of each other
reaches to approx. 180 klograms. Place the products on a
sold floor that has suffcent load carryng capacty!
AWashng machne cannot be placed on the dryer.
Pay attenton to the above warnngs durng the
nstallaton on your washng machne.

8 / EN Dryer / User Manual
Important instructions for safety and
environment
Installation Table for Washing Machine and Dryer
Dryer
Depth
Washing Machine Depth
62 cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm
54 cm Can be nstalled Can be
nstalled Cannot be
nstalled
60 cm Can be nstalled Cannot be
nstalled
1.3 Intended use
•Dryer has been desgned for domestc use. It s not sutable
for commercal use and t must not be used out of ts
ntended use.
•Use the dryer only for dryng laundry that are marked
accordngly.
•The manufacturer waves any responsblty arsen from
ncorrect usage or transportaton.
•The servce lfe of the dryer that you purchased s 10 years.
Durng ths perod, orgnal spare parts wll be avalable to
operate the dryer properly.
1.4 Chld safety
•Packagng materals are dangerous for the chldren. Keep
packagng materals away from chldren.
•Electrcal products are dangerous for the chldren. Keep
chldren away from the product when t s operatng. Do
not let them tamper wth the dryer. Use the chld-proof
lock n order to prevent the chldren to tamper wth the
dryer.

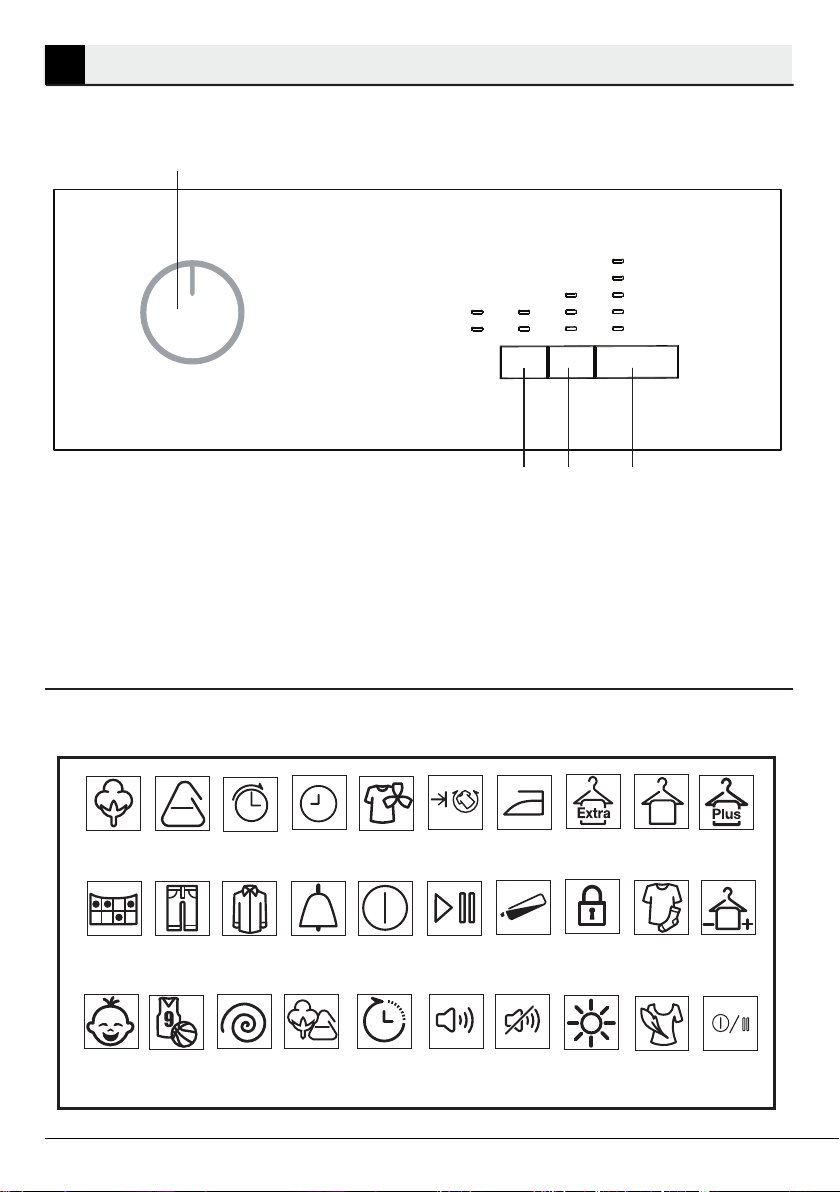

CChld-proof lock s on the control panel.
(See Chld lock)
•Keep loadng door closed even when the dryer s not n use.

9 / EN
Dryer / User Manual
Important instructions for safety and
environment
1.5 Complance wth the WEEE regulaton
and dsposng of the waste product
Ths product comples wth EU WEEE Drectve
(2012/19/EU). Ths product bears a classfcaton
symbol for waste electrcal and electronc equpment
(WEEE).
Ths product has been manufactured wth hgh
qualty parts and materals whch can be reused
and are sutable for recyclng. Do not dspose of the waste
product wth normal domestc and other wastes at the end
of ts servce lfe. Take t to the collecton center for the
recyclng of electrcal and electronc equpment. Please
consult your local authortes to learn about these collecton
centers.
1.6 Complance wth RoHS Drectve:
The product you have purchased comples wth EU RoHS
Drectve (2011/65/EU). It does not contan harmful and
prohbted materals specfed n the Drectve.
1.7 Package nformaton
Packagng materals of the product are manufactured
from recyclable materals n accordance wth our Natonal
Envronment Regulatons. Do not dspose of the packagng
materals together wth the domestc or other wastes. Take
them to the packagng materal collecton ponts desgnated
by the local authortes.

10 / EN Dryer / User Manual
Important instructions for safety and
environment
1.8 Techncal Specfcatons
EN
Heght (Mn. / Max.) 84,6 cm / 86,6 cm*
Wdth 59,5 cm
Depth 54 cm
Capacty (max.) 7 kg**
Net weght (plastc front door usage) 46,5 kg
Net weght (glass front door usage) 48,5 kg
Voltage
See type label***Rated power nput
Model code
* Mn. heght: Heght wth adjustable feet are closed.
Max. heght: Heght wth adjustable feet are opened
maxmum.
** Dry laundry weght before washng.
*** Type label s located behnd the loadng door.
CTechncal specfcatons of the dryer are subject to
specfcaton wthout notce to mprove the qualty of
the product.
CFgures n ths manual are schematc and may not
match the product exactly.
C
Values stated on markers on the dryer or n the other
publshed documentaton accompanyng wth the
dryer are obtaned n laboratory n accordance wth
the relevant standards. Dependng on operatonal and
envronmental condtons of the dryer, these values
may vary.

11 / EN
Dryer / User Manual
2 Your Dryer
2.1 Package Contents
12 3 5
4
1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*
*It can be supplied with your machine depending on its model.

12 / EN Dryer / User Manual
3Installaton
Before the calling the nearest Authorized
Service for the installation of the dryer,
ensure that electrical installation and
water drain is appropriate referring to the
user’s manual.(See 3.3 Connecting to the
drain and 3.5 Electrical connection) If
they are not suitable, contact a qualified
electrician and technician to make necessary
arrangements.
CPreparation of the dryer's location
as well as the electrical and
waste water installations is under
customer's responsibility.
APrior to installation, visually check
if the dryer has any defects on
it. If the drier is damaged, do
not have it installed. Damaged
products cause risks for your
safety.
ALet your dryer wait for 12 hours
before starting to use it.
3.1 Appropriate installation
location
Install the dryer on a stable and level surface.
Dryer is heavy. Do not move it by yourself.
• Operate your dryer in a well ventilated,
dust-free environment.
• The gap between the dryer and the
surface should not be reduced by the
materials such as carpet, wood and tape.
• Do not cover the ventilation grills of the
dryer.
• There must not be a lockable, sliding or
hinged door that may block the opening
of the loading door in the place where
your dryer is to be installed.
• Once the dryer is installed, it should stay
at the same place where its connections
have been made. When installing the
dryer, make sure that its rear wall does
not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from
the edges of other furniture.
• Your dryer can be operated at
temperatures between +5°C and +35°C.
If the operating conditions fall outside
of this range, operation of the dryer
will be adversely affected and it can get
damaged.
• The rear surface of the tumble dryer
shall be placed against a wall.
BDo not place the dryer on the
power cable.
3.2 Removing the
transportation safety
assembly
ARemove the transportation safety
assembly before using the dryer
for the first time.
• Open the loading door.
• There is a nylon bag inside the drum that
contains a piece of styrofoam. Hold it
from its section marked with XX XX.
• Pull the nylon towards yourself and
remove the transportation safety
assembly.
ACheck that no part of the
transportation safety assembly
remains inside the drum.
3.3 Connecting to the drain
In products equipped with condenser
unit, water accumulates in the water tank
during the drying cycle. You should drain
accumulated water after each drying cycle.
You can directly drain accumulated water
through the water drain hose supplied with
the product instead of periodically draining
the water collected in the water tank.
Connecting the water drain hose
1-2 Pull hose at the behnd of the dryer
by hand n order to dsconnect t from
where t s connected. Do not use any
tools to remove the hose.

13 / EN
Dryer / User Manual
Installation
3Connect one end of the dran hose
suppled wth the dryer to the
connecton pont from where you
removed the hose of the product n
prevous step.
4Connect the other end of the dran hose
drectly to the wastewater dran or to
the washbasn.
1
3 4
2
AHose connection should be made
in a safe manner. Your drain
house will be flooded if the hose
comes out of its housing during
water discharge.
CWater drain hose should be
attached to a height of maximum
80 cm.
CMake sure that the water drain
hose is not stepped on and it is
not folded between the drain and
the machine.
3.4 Adjusting the feet
• In order to ensure that the dryer
operates more silently and vibration-
free, it must stand level and balanced
on its feet. Balance the machine by
adjusting the feet.
• Turn the feet to left or right until the
dryer stands level and firmly.
CNever unscrew the adjustable
feet from their housings.
3.5 Electrical connection
For specific instructions for electrical
connection required during installation (see
1.1.1 Electrical Safety)
3.6 Transportation of the dryer
Unplug the dryer before transporting it.
Drain all water that has remained in the
dryer.
If direct water drain connection is made, then
remove the hose connections.
A
We recommend carrying the
dryer in upright position. If it is
not possible to carry the machine
in the upright position, we
recommend carrying it by tilting
towards the right side when
looked from the front.
3.7 Warnings about sounds
CIt is normal to hear a metallic
noise from the compressor
sometimes during operation.
CWater collected during operation
is pumped to water tank. It is
normal to hear pumping noise
during this process.

14 / EN Dryer / User Manual
Installation
3.8 Changing the illumination
lamp
In case an illumination lamp is used in your
laundry dryer.To change the Bulb/LED used
for illumination of your tumble dryer, call your
Authorized Service.
The lamp(s) used in this appliance is not
suitable for household room illumination.
The intended purpose of this lamp is to
assist the user to place laundry in the tumble
dryer in a comfortable way. The lamps used
in this appliance have to withstand extreme
physical conditions such as vibrations and
temperatures above 50 °C

15 / EN
Dryer / User Manual
4Preparaton
4.1 Laundry suitable for drying in the dryer
Always obey the instructions given on the garment tags. Dry only the laundry having a
label stating that they are suitable for drying in a dryer and make sure that you select the
appropriate programme.
Drying
Settings
At any temperature At high temperature At medium temperature At low temperature Without heating Hang to dry Lay to dry Hang wet to dry Lay in shadow to dry Dry-cleanable
Iron -
IRON
Dry or Steam
Iron at high
temperature
Iron at medium
temperature Iron at low
temperature
Do not iron
Iron without
steam
Maximum temperature 200 0C150 0C110 0C
LAUNDRY DRYING SYMBOLS
Drying
Symbols Suitable for
dryer No Iron Sensitive /
Delicate dry
Do not dry
with dryer
Do not dry Do not dry-
clean
4.2 Laundry not suitable for
drying in the dryer
CDelicate embroidered fabrics,
woollen, silk garments, delicate
and valuable fabrics, airtight
items and tulle curtains are not
suitable for machine drying.
4.3 Preparing laundry for
drying
• Laundry may be tangled with each other
after washing. Separate the laundry
items before placing them into the dryer.
• Dry garments having metal accessories
such as zippers, inside out.
• Fasten the zippers, hooks and buckles
and button sheets.
4.4 Things to be done for
energy saving
Following information will help you use the
dryer in an ecological and energy-efficient
manner.
• Spin your laundry at the highest speed
possible when washing them. Thus, the
drying time is shortened and energy
consumption is reduced.
• Sort out the laundry depending on their
type and thickness. Dry the same type
of laundry together. For example thin
kitchen towels and tableclothes dries
earlier than thick bathroom towels.
• Follow the instructions in the user
manual for programme selection.
• Do not open the loading door of the
machine during drying unless necessary.
If you must open the loading door, do not
keep it open for a long time.
• Do not add wet laundry while the dryer is
in operation

16 / EN Dryer / User Manual
Preparation
• Clean the lint filter before or after each
drying cycle. (See 6.1 Cleaning Lint
Filter / Loading Door Inner Surface)
• Clean the filter drawer periodically when
there is visible air collection on it or
when the symbol lights up, if there is a
filter drawer cleaning warning symbol «
» available. (See 6. 4 Cleaning the
filter drawer)
• Ventilate the room, where the dryer is
located, well during drying.
4.5 Correct load capacity
Follow the instructions in the “Programme
selection and consumption table”. Do not
load more than the capacity values stated in
the table.
CIt is not recommended to load
the dryer with laundry exceeding
the level indicated in the figure.
Drying performance will degrade
when the machine is overloaded.
Furthermore, dryer and the laundry
can get damaged.
Following weights are given as examples.
Laundry Approximate
weights (g)*
Cotton quilt covers
(double) 1500
Cotton quilt covers
(single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 250
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs (10
pieces) 100
T-Shirts 125
*Dry laundry weight before washing.

17 / EN
Dryer / User Manual
5Operatng the product
5.1 Control panel
1. On/Off/Program selecton button
2. Start/Pause button
3. Delay tme button
4. Audo alarm level button
Daily
Start/
Wait/
Ready
Timer
programs
Cottons Synthetics Freshen
Up
End/anti-
creasing
Iron dry Extra
dry
Cupboard
dry
Cupboard
dry plus
Dryness
Level
Drying
Buzzer On/Off Start
pause
cancel
Filter
cleaning
Child-proof
lock
Ta n k
full
Xpress
Jeans Shirts
BabyProtect Sport Spin Mix Delicates
Volume up Mute
Timer
Delay
5.2 Screen symbols
1
23
4

18 / EN Dryer / User Manual
Operating the product
5.3 Preparation of Tumble
Dryer
• Plug in the tumble dryer.
• Open the loading door.
• Place the laundry into the tumble dryer
without overloading.
• Push and close the loading door.
ATake care not to trap any laundry
inside the loading door.
• When you select the desired program by
using On/off/program selection button,
the machine will turn on.
1
23
4
CSelection of program by using
On/off/program selection button
doesn’t mean that the program
has been started. Press the
Start/Pause button to start the
program.
5.4 Program selection
There are 15 programs included in your
tumble drier.
1
23
4
• Program selection and consumption
table have been given in the order that
might be mostly preferred by users.

19 / EN
Dryer / User Manual
Operating the product
5.5 Program selection and consumption table
Programs Program Descrpton Capacty
(kg)
Spn Speed
n Washng
Machne
(rpm)
Dryng Tme
(mn)
Cotton Cupboard Dry
You may dry all your cotton laundry n ths program.
(T-shrt, pants, pyjamas, baby clothes, underwear,
lnen, etc.) You can put your laundry n the wardrobe
wthout ronng.
7 / 3,5 1000 174 / 107
Cotton Cupboard Dry + You may use ths program for extra dryness n thck laundry such as pants, tracksut. You can put your
laundry n the wardrobe wthout ronng. 7 1000 180
Cotton Iron Dry You may dry your cotton laundry to be roned n ths program to have them slghtly damp for ease of
ronng. (Shrt, T-shrt, tablecloth, etc.) 7 1000 140
Cotton Extra Dry You may dry your thck cotton laundry n ths program such as towels, bathrobe, etc. You can put
your laundry n the wardrobe wthout ronng. 7 1000 185
Synthetc Cupboard Dry
You may dry all your synthetc laundry n ths
program. (Shrt, T-shrt, underwear, tablecloth, etc.)
You can put your laundry n the wardrobe wthout
ronng.
3.5 800 70
Synthetc Iron Dry You may dry your synthetc laundry to be roned n ths program to have them slghtly damp for ease of
ronng. (Shrt, T-shrt, tablecloth, etc.) 3.5 800 60
Jeans You may dry denm pants, skrts, shrts or jackets n
ths program. 4 1200 150
Xpress
You can use ths program to dry your cotton laundry
that you have spun at hgh speeds n your washng
machne. Ths program dres 1 kg cotton laundry (3
Shrts/3T-shrts) n 50 mnutes.
1 1200 50
Shrts It dres the shrts n a more senstve manner, and
causes less creasng and easer ronng. 1.5 1200 60
Sport You may dry your sports clothes that are approprate
for tumble dryng n ths program. 4 1000 135
BabyProtect Program used for baby clothng wth can be dred
approval on the label. 3 1000 80
Delcates You may dry your delcate laundry or laundry wth hand wash symbol (slk blouses, thn underwear,
etc.) at low temperature n ths program. 2 600 70
Refresh
It just provdes arng for 10 mnutes wthout any hot
ar. You can ar the cotton and lnen laundry that are
kept closed for a long tme , and elmnate the odour
n them.
- - 10
Tme programs
You may select from tme programs between 30
and 45 mnutes to acheve the desred dryng level
at low temperature. In ths program, tumble drer’s
operaton lasts for the set tme ndependently from
the dryness of laundry.
- - -

20 / EN Dryer / User Manual
Operating the product
Energy consumpton values
Programs Capacty(kg) Spn Speed n Washng Machne
(rpm)
Approxmate
resdual
mosture
content
Energy
consumpton
value (kWh)
Cotton Wardrobe Dryness 7 / 3,5 1000 60% 1,80 / 1,20
Cotton Iron Dryness 7 1000 60% 1,55
Synthetc Wardrobe Dryness 3.5 800 40% 0,70
Power consumpton of the off-mode for the standart cotton programme at full load,
PO (W) 0,5
Power consumpton of the left-on mode for the standart cotton programme at full
load, PL (W) 1,0
Contans fluornated greenhouse gases covered by the Kyoto Protocol. Hermetcally sealed.
R134a / 0,30 kg - GWP:1430 - 0,429 tCO2e
„Cotton cupboard dry programme“ used at full and partial load is the standard
drying programme to which the information in the label and the fiche relates, that
this programme is suitable for drying normal wet cotton laundry and that it is the
most efficient programme in terms of energy consumption for cotton.
* : Energy Label standard program (EN 61121:2012)
All values in the table have been specified as per the EN 61121:2012 standard. Consumption
values may vary from the values in the table depending on the variances in laundry type, spin
speed, ambient conditions, and voltage values.
5.6 Auxiliary functions
Audio alarm
An audio alarm is heard when the program is
completed in the tumble drier. If you do not
want to hear the audio alarm, please press
the “Audio Alarm” button. When you press
the audio alarm button, the light turns on
and you hear no alarm at the completion of
program.
CYou may select this function
before or after the program
starts.
5.7 Warning indicators
CWarning indicators may vary
depending on the model of your
tumble drier.
Filter cleaning
The warning indicator turns on to show that
the filter needs to be cleaned.
Water tank
The warning indicator turns on to show that
the water tank needs to be drained.
If the water tank fills during the operation
of program, warning indicator flashes and
machine pauses. In such a case, drain the
water in water tank and start the program
by pressing Start/Pause button. Warning
indicator turns off and program is resumed.
Delay time
If you prefer to dry your laundry after a
certain period of time, you may delay the
start of program up to 3, 6 or 9 hours thanks
to the delay function.
Open the loading door, and put the laundry
in.
