Beko DV 1572 X User manual

DV 1572 X
Dryer
User Manual
2960311165_EN/100815.1433

Please read this user manual first!
Dear Customer,
Thank you for prefering a Beko product. We hope that your product which has been manufactured with high quality
and technology will give you the best results. We advise you to read through this manual and the other accompanying
documentation carefully before using your product and keep it for future reference. If you transfer the product to
someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and
follow the instructions given therein.
Use this user manual for the model indicated on the cover page.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful hints about
usage.
AWarning for hazardous situations with regard
to life and property.
BWarning against electric shock.
Warning against hot surfaces.
Warning against fire hazard.
Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations.
Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated
collection points designated by the local authorities.

3 / 28 EN
Dryer / User Manual
1 Important instructions for safety and
environment 4
1.1 General safety ..........................................4
1.1.1 Electrical safety....................................5
1.1.2 Product safety .....................................6
1.2 Mounting over a washing machine.............8
1.3 Intended use.............................................9
1.4 Child safety ..............................................9
1.5 Compliance with the WEEE regulation
and disposing of the waste product................10
1.6 Compliance with RoHS Directive:..............10
1.7 Package information ...............................10
1.8 Technical Specifications...........................11
2 Your Dryer 12
2.1 Overview ................................................12
2.2 Package Contents...................................13
3 Installation 14
3.1 Appropriate installation location ...............14
3.2 Ventilation hose and connection
(for products equipped with an outlet vent) .....14
3.3 Adjusting feet .........................................15
3.4 Electrical connection ...............................15
3.5 First use.................................................15
3.6 Transportation of the machine..................15
3.7 Changing the illumination lamp................15
3.8 Changement de la lampe d’éclairage .......15
4 Préparation 16
4.1 Laundry suitable for drying in the dryer ....16
4.2 Laundry not suitable for drying in the dryer16
4.3 Preparing laundry for drying ....................16
4.4 Things to be done for energy saving.........16
4.5 Correct load capacity...............................17
5 Selecting a Programme and Operating
Your Machine 18
5.1 Control panel ..........................................18
5.2 Preparing the machine ............................19
5.3 Programme selection ..............................19
5.4 Main programmes...................................19
5.5 Special programmes ...............................19
5.6 Programme selection and consumption
table ............................................................21
5.7 Auxiliary function.....................................22
5.8 Starting the programme ..........................22
5.9 Progress of programme...........................22
5.10 Changing the programme after it has
started .........................................................22
5.11 Child-proof lock ....................................23
5.12 Ending the programme through
cancelling.....................................................24
5.13 End of programme ................................24
6 Maintenance and cleaning 25
6.1 Filter Cartridge / Door Inner Surface .........25
6.2 Sensor (models equipped with a sensor)...25
7 Suggested solutions for problems 26
TABLE OF CONTENTS

4 / 28 EN
Dryer / User Manual
1 Important instructions for safety and environment
This section contains safety instructions that will help protect from risk of
personal injury or property damage. Failure to follow these instructions shall
void any warranty.
1.1 General safety
•The dryer can be used by children at and above 8 years old and by
persons whose physical, sensory or mental capabilities were not fully
developed or who lack experience and knowledge provided that they
are supervised or trained on the safe usage of the product and the risks
it brings out. Children should not play with the product. Cleaning and
maintenance works should not be performed by children unless they are
supervised by someone.
•Children of less than 3 years should be kept away unless continously
supervised.
•Adjustable feet should not be removed. The gap between the dryer and
the floor should not be reduced with materials such as carpet, wood and
tape. This will cause problems with the dryer.
•Always have the installation and repairing procedures carried out by the
Authorized Service. Manufacturer shall not be held liable for damages
that may arise from procedures carried out by unauthorized persons.
•Never wash the dryer by spraying or pouring water onto it! There is the
risk of electric shock!

5 / 28 EN
Dryer / User Manual
1.1.1 Electrical safety
AElectrical safety instructions should be followed while electrical
connection is made during the installation.
•Connect the dryer to a grounded outlet protected by a fuse at the value
specified on the type label. Have the grounding installation performed by
a qualified electrician. Our company shall not be liable for any damages
that will arise when the dryer is used without grounding in accordance
with the local regulations.
•The voltage and allowed fuse protection is stated on the type label plate.
•The voltage specified on the type label must be equal to your mains
voltage.
•Unplug the dryer when it is not in use.
•Unplug the dryer from the mains during installation, maintenance,
cleaning and repair works.
•Do not touch the plug with wet hands! Never unplug by pulling on the
cable, always pull out by grabbing the plug.
•Do not use extension cords, multi-plugs or adaptors to connect the dryer
to power supply in order to decrease the risk of fire and electric shock.
•Power cable plug must be easily accessible after installation.
BDamaged mains cable should be changed notifying the Authorized
Service.
BIf the dryer is faulty, it must not be operated unless it is repaired by
an authorized service agent! There is the risk of electric shock!

6 / 28 EN
Dryer / User Manual
1.1.2 Product safety
Points to be taken into consideration for fire hazard:
Below specified laundry or items must not be dried
in the dryer considering fire hazard.
•Unwashed laundry items
•Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain
removers, turpentine, paraffin or paraffin removers must be
washed in hot water with plenty of detergent before being dried in
the dryer.
For this reason especially the items containing the above specified
stains must be washed very well, to do this
use adequate detergent and choose a high washing
temperature.
Below specified laundry or items must not be dried in the
dryer due to the fire hazard:
•Garments or pillows bolstered with rubber foam (latex foam),
shower bonnets, water resistant textiles, materials with rubber
reinforcement and rubber foam pads.
•Clothing cleaned with industrial chemicals.
Items such as lighter, match, coins, metal parts, needle etc. may
damage the drum set or may lead to functional problems. Therefore
check all the laundry that you will load into your dryer.
Never stop your dryer before
the programme completes. If you must do this, remove all laundry
quickly and lay them out to dissipate the heat.
Clothes that are washed inadequately may ignite on their own and
even may ignite after drying ends.
•You must provide enough ventilation in order to prevent gases exiting
from devices operating with other types of fuels including the naked flame
from accumulating in the room due to the back fire effect.

7 / 28 EN
Dryer / User Manual
AUnderwear that contains metal reinforcements should not be dried
in the dryer. Dryer may be damaged if metal reinforcements come
loose and break off during drying.
CUse softeners and similar products in accordance with the
instructions of their manufacturers.
CAlways clean the lint filter before or after each loading. Never
operate the dryer without the lint filter installed.
•Never attempt to repair the dryer by yourself. Do not perform any repair
or replacement procedures on the product even if you know or have the
ability to perform the required procedure unless it is clearly suggested in
the operating instructions or the published service manual. Otherwise,
you will be putting your life and others’ lives in danger.
•There must not be a lockable, sliding or hinged door that may block
the opening of the loading door in the place where your dryer is to be
installed.
•Install your dryer at places suitable for home use. (Bathroom, closed
balcony, garage etc.)
•Make sure that pets do not enter the dryer. Check the inside of the dryer
before operating it.
•Do not lean on the loading door of your dryer when it is open, otherwise it
may fall over.
•The lint must not be allowed to accumulate around the tumble dryer

8 / 28 EN
Dryer / User Manual
1.2 Mounting over a washing machine
•A fixing device should be used between the two machines when installing
the dryer above a washing machine. The fitting device must be installed
by the authorized service agent.
•Total weight of the washing machine and the dryer -with full load- when
they are placed on top of each other reaches to approx. 180 kilograms.
Place the products on a solid floor that has sufficient load carrying
capacity!
AWashing machine cannot be placed on the dryer. Pay attention
to the above warnings during the installation on your washing
machine.
Installation Table for Washing Machine and Dryer
Dryer Depth Washing Machine Depth
62cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm
54 cm Can be
installed
Can be
installed
Can be
installed
Can be
installed
Can be
installed
Can be
installed
Cannot be
installed
60 cm Can be
installed
Can be
installed
Can be
installed
Can be
installed
Can be
installed
Cannot be
installed
Cannot be
installed

9 / 28 EN
Dryer / User Manual
1.3 Intended use
•Dryer has been designed for domestic use. It is not suitable for
commercial use and it must not be used out of its intended use.
•Use the dryer only for drying laundry that are marked accordingly.
•The manufacturer waives any responsibility arisen from incorrect usage
or transportation.
•The service life of the dryer that you purchased is 10 years. During this
period, original spare parts will be available to operate the dryer properly.
1.4 Child safety
•Packaging materials are dangerous for the children. Keep packaging
materials away from children.
•Electrical products are dangerous for the children. Keep children away
from the product when it is operating. Do not let them tamper with the
dryer. Use the child-proof lock in order to prevent the children to tamper
with the dryer.
CChild-proof lock is on the control panel. (See Child lock)
•Keep loading door closed even when the dryer is not in use.

10 / 28 EN
Dryer / User Manual
1.5 Compliance with the WEEE regulation
and disposing of the waste product
This product complies with EU WEEE Directive (2012/19/EU). This
product bears a classification symbol for waste electrical and
electronic equipment (WEEE).
This product has been manufactured with high quality parts and
materials which can be reused and are suitable for recycling. Do
not dispose of the waste product with normal domestic and other
wastes at the end of its service life. Take it to the collection center for the
recycling of electrical and electronic equipment. Please consult your local
authorities to learn about these collection centers.
1.6 Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS Directive
(2011/65/EU). It does not contain harmful and prohibited materials
specified in the Directive.
1.7 Package information
Packaging materials of the product are manufactured from recyclable
materials in accordance with our National Environment Regulations. Do
not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated
by the local authorities.
Please visit the following website to get more information on the product.
http://www.beko.com

11 / 28 EN
Dryer / User Manual
1.8 Technical Specifications
* Min. height: Height with adjustable feet are closed.
Max. height: Height with adjustable feet are opened maximum.
** Dry laundry weight before washing.
*** Type label is located behind the loading door.
CTechnical specifications of the dryer are subject to specification
without notice to improve the quality of the product.
CFigures in this manual are schematic and may not match the
product exactly.
C
Values stated on markers on the dryer or in the other published
documentation accompanying with the dryer are obtained in
laboratory in accordance with the relevant standards. Depending on
operational and environmental conditions of the dryer, these values
may vary.
EN
Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 53 cm
Capacity (max.) 7 kg**
Weight (net) 32 kg
Voltage
See type label***Rated power input
Model code

12 / 28 EN
Dryer / User Manual
2Your Dryer

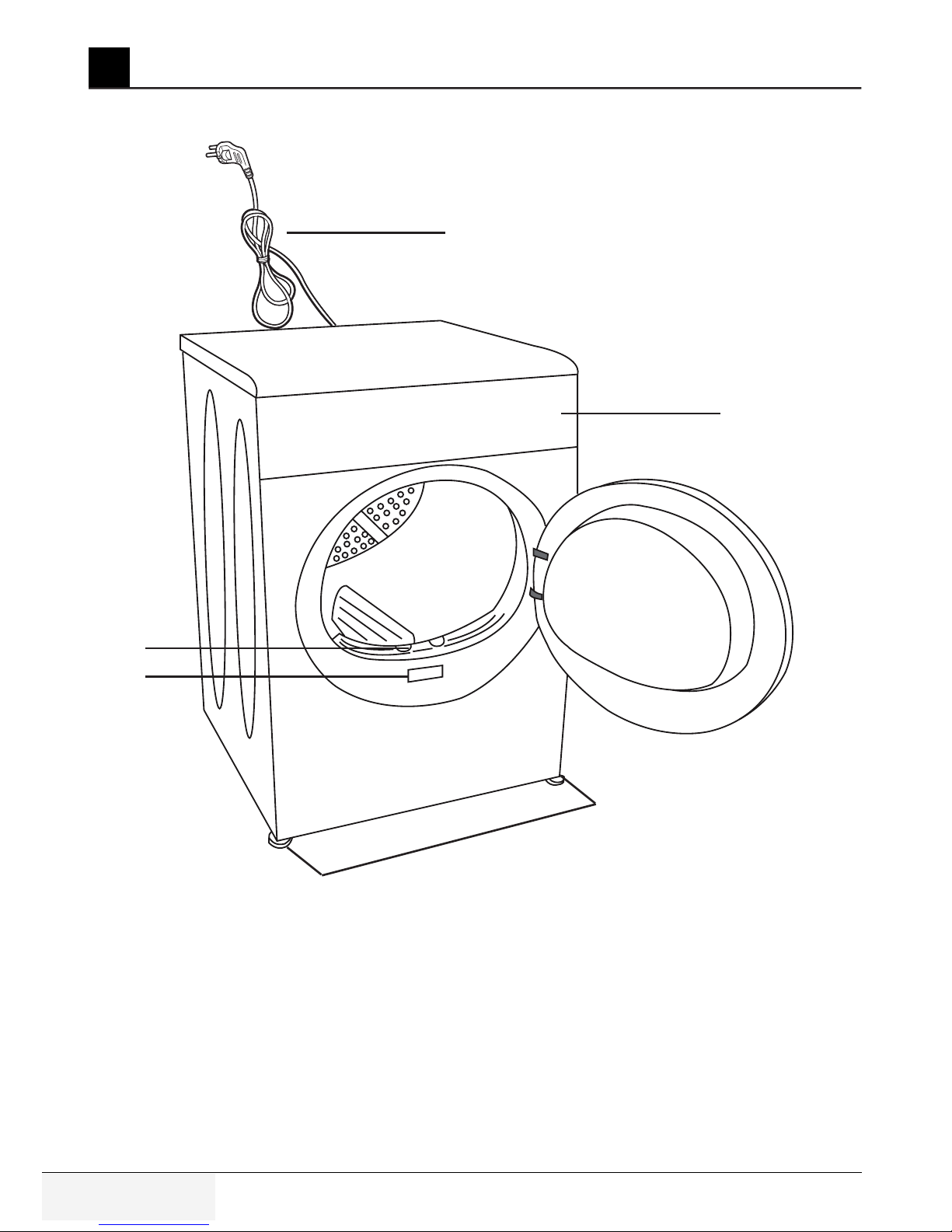

2.1 Overview
1
5
2
3
4
1- Control panel
2- Adjustable feet
3-Rating plate
4- Fluff filter
5- Power cord

13 / 28 EN
Dryer / User Manual
2 Your Dryer

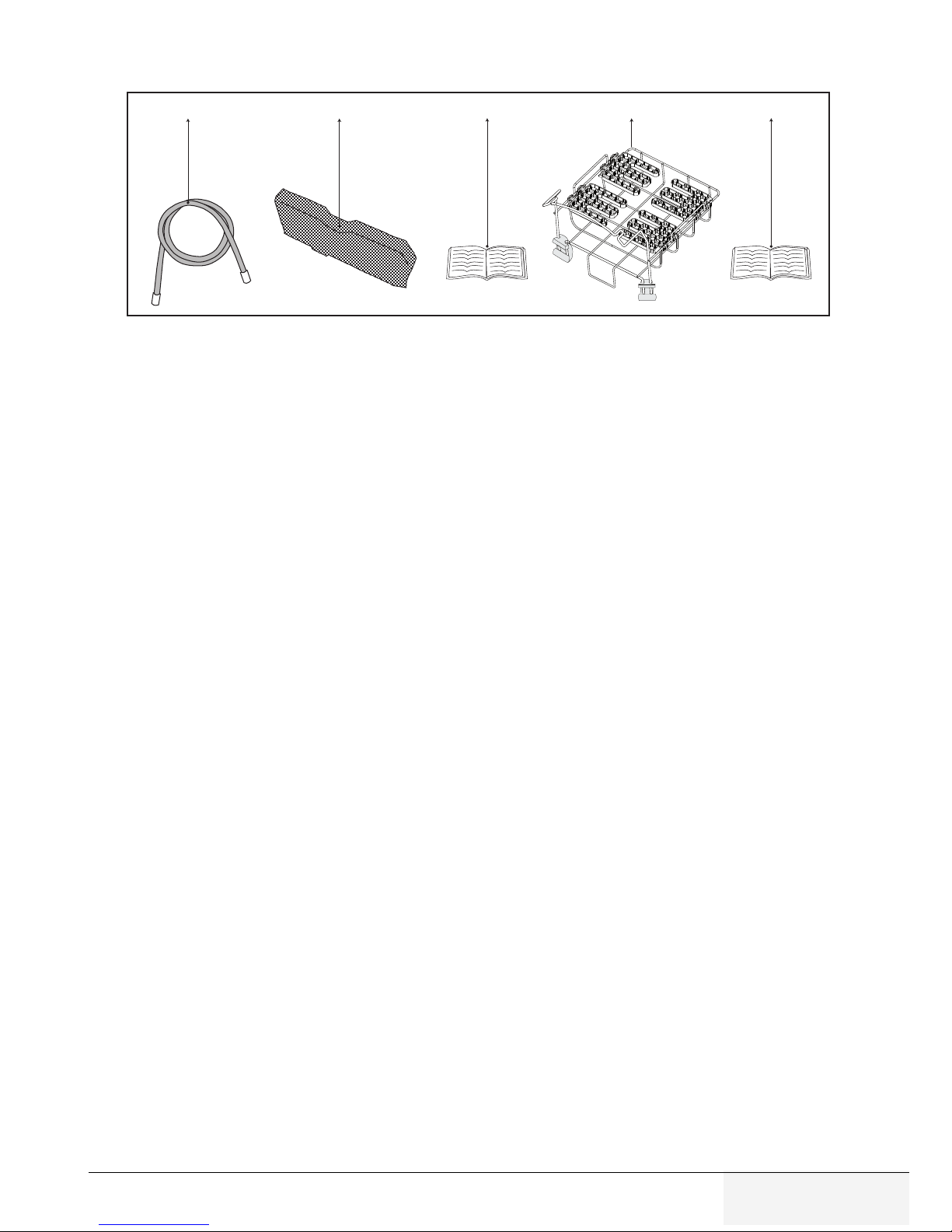

2.2 Package Contents
12 3 5
4
1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*
*It can be supplied with your machine depending on its model.

14 / 28 EN
Dryer / User Manual
3Installation
Refer to the nearest Authorised Service Agent for
installation of your product.
CPreparation of location and electrical
installation for the product is under
customer’s responsibility.
BInstallation and electrical connections must
be carried out by a qualified personnel.
APrior to installation, visually check if the
product has any defects on it. If so, do not
have it installed. Damaged products will
cause risks for your safety.
3.1 Appropriate installation location
• Installtheproductinanenvironmentwhichhasno
risk of freezing and is in a stable and level position.
• Operateyourproductinawellventilated,dust-free
environment.
• Donotblocktheairductsinfrontofandunderthe
product with materials such as long pile rugs and
wooden bands.
• Donotplaceyourproductonalongpilerugoron
similar surfaces.
• Donotinstalltheproductbehindadoorwithalock,
sliding door or a hinged door which can strike the
product.
• Oncetheproductisinstalled,itshouldstayatthe
same place where its connections have been made.
When installing the product, make sure that the
rear wall of it does not touch anywhere (tap, socket,
etc.) and also pay attention to install the product at
a place where it will stay permanently.
BDo not place the product on top of the power
cable.
• Keepatleast1.5cmdistancetowallsofother
furniture.
Under counter installation
• Aspecialpart(Partno:2959700100)replacing
the top trim must be provided and installed by
the Authorised Service Agent in order to use the
machine under a counter or in a cupboard. It should
never be operated without the top trim.
• Leaveatleast3cmofspacebetweentheside
and rear walls of the product and the walls of the
counter/cupboard when installing your product
under a counter or in a cupboard.
3.2 Ventilation hose and connection
(for products equipped with an outlet
vent)
Ventilation hose allows exhaust air from inside the
machine
Vented dryer has 1 air outlet.
Stainless sheet metal or aluminum pipes can be
used instead of a hose. The pipe diameter should be
minimum 10 cm.
Maximum hose and pipe lengths are given in the table
below.
Hose Pipe
Maximum length 4 m 5 m
1 elbow 45° -1.0 m -0.3 m
1 elbow 90° -1.8 m -0.6 m
1 elbow 90° short -2.7 m
1 wall passage -2.0 m -2.0 m
CEach elbow and other passages should be
subtracted from the maximum length stated
above.
To connect a ventilation hose;
1. Connect the air outlet hose to the hose spacer piece
by turning it counterclockwise.
2. Make the hose passages as shown below.
CExhaust of humid air from the dryer into the
room is inconvenient. It may damage the walls
and furniture in the room.
CThe ventilation hose can be routed outdoors
via a window or it can be connected to the air
outlet in the bathroom.
CAir outlet hose must be routed directly to the
outdoors. There must be a limited number of
elbows as not to hinder ventilation.
CTo prevent water accumulation in the hose,
make sure that it is not folded on the floor.

15 / 28 EN
Dryer / User Manual
3.4 Electrical connection
Connect the machine to a grounded outlet protected
by a fuse of suitable capacity as stated in the technical
specifications table. Our company shall not be liable for
any damages that will arise when the machine is used
on a circuit without grounding.
• Connectionmustcomplywithnationalregulations.
• Ifthecurrentvalueofthefuseorbreakerinthe
house is less than 16 Amps, have a qualified
electrician install a 16 Amp fuse.
• Powercableplugmustbewithineasyreachafter
installation.
• Thevoltageandallowedfuseorbreakerprotection
are specified in the “Technical Specifications”
section.
• Thespecifiedvoltagemustbeequaltoyourmains
voltage.
• Donotmakeconnectionsviaextensioncablesor
multi-plugs.
• Themainfuseandswitchesmusthaveacontact
distance of minimum 3 mm.
BDamaged power cable must only be replaced
by a qualified electrician.
BIf the product is faulty, it must not be operated
unless it is repaired! There is the risk of
electric shock!
3.5 First use
• Tohavetheproductreadyforoperationbefore
calling the authorised service agent, make sure
that its location and power supply installations
are appropriate. If they are not, call a qualified
electrician to have any necessary arrangements
carried out.
• Makesurethatthepowerconnectionsofthe
product are in accordance with the instructions
given in relevant chapters of this manual.
3.6 Transportation of the machine
1. Unplug the machine from the mains.
2. Remove the water drain (if any) and chimney
connections.
3. Drain water remained in the machine completely
before transportation.
3.7 Changing the illumination lamp
In case an illumination lamp is used in your laundry
dryer.
To change the Bulb/LED used for illumination of your
tumble dryer, call your Authorized Service.
The lamp(s) used in this appliance is not suitable for
household room illumination. The intended purpose of
this lamp is to assist the user to place laundry in the
tumble dryer in a comfortable way.
BThe ventilation hose should not be connected
to the chimney of a stove or a fireplace.
BDo not operate your product at the same time
with heaters such as a coal or gas stove.
Airflow may cause the chimney to flare up.
3.3 Adjusting feet
In order to ensure that your product operates more
silently and vibration-free, it must stand level and
balanced on its feet. Front feet of your product can be
adjusted. Balance the machine by adjusting the feet.
1. Loosen the feet by hand.
2. Adjust the feet until the product stands level and
firmly on the floor.
CDo not use any tools to loosen the adjustable
feet, otherwise, they can be damaged.
CNever remove the adjustable feet from their
housings.
CYou may supply 2 plastic pieces from an
Authorized Service with 2951620100 part
number. These parts prevent your machine
from slipping when the machine locates on
wet and slippery surfaces. You may assemble
mentioned parts to the front adjustable feet by
fitting and pressing them to snap into ground
of feet.

16 / 28 EN
Dryer / User Manual
4.1 Laundry suitable for drying in the dryer
Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are
suitable for drying in a dryer and make sure that you select the appropriate programme.
Drying
Settings
At any temperature At high temperature At medium temperature At low temperature Without heating Hang to dry Lay to dry Hang wet to dry Lay in shadow to dry Dry-cleanable
Iron -
IRON
Dry or Steam
Iron at high
temperature
Iron at medium
temperature Iron at low
temperature
Do not iron
Iron without
steam
Maximum temperature 200 0C150 0C110 0C
LAUNDRY DRYING SYMBOLS
Drying
Symbols Suitable for
dryer No Iron Sensitive /
Delicate dry
Do not dry
with dryer
Do not dry Do not dry-
clean
4 Preparation
4.2 Laundry not suitable for drying in
the dryer
CDelicate embroidered fabrics, woolen, silk
garments, delicate and valuable fabrics,
airtight items and tulle curtains are not
suitable for machine drying.
4.3 Preparing laundry for drying
• Laundry may be tangled with each other after
washing. Separate the laundry items before
placing them into the dryer.
• Dry garments having metal accessories such as
zippers, inside out.
• Fasten the zippers, hooks and buckles and button
sheets.
4.4 Things to be done for energy
saving
Following information will help you use the dryer in an
ecological and energy-efficient manner.
• Spin your laundry at the highest speed possible
when washing them. Thus, the drying time is
shortened and energy consumption is reduced.
• Sort out the laundry depending on their type and
thickness. Dry the same type of laundry together.
For example thin kitchen towels and table clothes
dries earlier than thick bathroom towels.
• Follow the instructions in the user manual for
programme selection.
• Do not open the loading door of the machine
during drying unless necessary. If you must
certainly open the loading door, do not to keep it
open for a long time.
• Do not add wet laundry while the dryer is in
operation
• Clean the lint filter before or after each drying
cycle.
• Clean the condenser regularly at least once every
month or after every 30 drying cycles.

17 / 28 EN
Dryer / User Manual
• Ventilate the room, where the dryer is located, well
during drying.
4.5 Correct load capacity
Follow the instructions in the “Programme selection and
consumption table”. Do not load more than the capacity
values stated in the table.
CIt is not recommended to load the dryer
with laundry exceeding the level indicated
in the figure. Drying performance will
degrade when the machine is overloaded.
Furthermore, dryer and the laundry can get
damaged.
Following weights are given as examples:
Laundry Approximate weights
(g)*
Cotton quit covers (double) 1500
Cotton quit covers (single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 250
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs (10 pieces) 100
T-Shirts 125
*Dry laundry weight before washing.

18 / 28 EN
Dryer / User Manual
1. Filter cleaning warning light
Warning light turns on when the filter is full.
2. Programme follow-up indicator
Used to follow-up the progress of the current
programme.
3. Cancel audio warning
Used to cancel the audio warning given at the end
of the programme.
4. On/Off button
Used to turn on and off the machine.
5.1 Control panel
5. Selecting a Programme and Operating Your Machine
5. Programme selection knob
Used to select a programme.
6. Start/Pause/Cancel button
Used to start, pause or cancel the programme.
7. Water tank warning light*
Warning light turns on when the water tank is full.
8. Time delay selection button*
Used to set the time delay.
* It may change according to the specifications of your
dryer
1 2 3 4
568
Timer
programmes
Cottons Synthetics Freshen Up Iron Dry Extra dry Cupboard
Dry
Dryness
Level
Buzzer/
cancel
On/Off Start
pause
cancel
Clean
filter
Xpress
Jeans Shirts Mix Delicates
Time
Delay
Cupboard
dry plus End/anti-
crease
Child-proof
lock
Mini

19 / 28 EN
Dryer / User Manual
5.2 Preparing the machine
1. Plug in your machine.
2. Place the laundry in the machine.
3. Press the “On/Off” button.
CPressing the “On/Off” button does not
necessarily mean that the programme has
started. Press “Start/Pause/Cancel” button
of the machine to start the programme.
5.3 Programme selection
Decide the appropriate programme from the table below
which includes drying temperatures in degrees. Select
the desired programme with the programme selection
button.
Extra dry
Dry at high temperature only for
cotton laundry. Thick and multi
layered laundry (E.g.: towels, linens,
jeans) are dried in a way that they do
not require ironing before placing in
the wardrobe.
Cupboard Dry
Normal laundry (E.g.: tablecloths,
underwear) are dried in a way that
they do not require ironing before
placing in the drawers.
Cupboard Dry
Plus
Normal laundry (E.g.: tablecloths,
underwear) are dried in a way that
they do not require ironing before
placing in the drawers, but more
than those in the ready to wear
option.
Iron Dry Normal laundry (E.g., Shirts, dresses)
are dried ready to be ironed.
CFor further programme details, see,
“Programme Selection Table”
5.4 Main programmes
Depending on the type of laundry, the following main
programmes are available:
• Cottons
You can dry your durable laundry with this programme.
Dries at high temperature. It is recommended to use
for your cotton items (such as bed sheets, quilt cover,
underclothing, etc.).
• Synthetics
You can dry your less durable laundry with this
programme. It dries at a lower temperature compared
to the cottons programme. It is recommended for your
synthetic laundry (such as shirts, blouses, synthetic/
cotton blended laundry, etc.).
CDo not dry curtains and lace in your
machine.
• Anti-creasing
A 2-hour anti creasing programme to prevent
laundry from creasing will be activated if you do not
take the laundry out after the programme is over.
This programme rotates the laundry without heat in
10-minute intervals to prevent creasing.
5.5 Special programmes
For special cases, there are also extra programmes
available:
CAdditional programmes may differ
according to the model of your machine.
• Mini
You can use this programme to dry the cottons that are
spun at high speeds in your washing machine. It can dry
your 1,2 kg Cotton laundry (3 Shirts / 3 T-Shirts) within
50 minutes.
CIn order to obtain better results from the
dryer programmes, your laundry must be
washed with suitable programme and spun
at the recommended spin speeds in your
washing machine.
• Shirts
Dries the shirts in a more sensitive way so that they are
less creased and ironed easily.
CShirts may contain little amount of
dampness at the and of the programme.
It is advised not to leave the shirts in the
dryer.
• Jeans
You can use this programme to dry the jeans that are
spun at high speeds in your washing machine.
CReview the relevant part of the programme
table.
• Mix
Used to dry synthetic and cotton laundry that do not
release colour. Used for laundry that is suitable for
drying.
• Delicates
You can dry at a lower temperature your very delicate
laundry (silk blouses, fine underwear, etc.) that are
suitable for drying or laundry which is advised to be hand-
washed.

20 / 28 EN
Dryer / User Manual
CIt is recommended to use a cloth bag to
avoid certain delicate garments and laundry
from getting creased or damaged. Take your
garments immediately out of the dryer and
hang them after the programme ends in
order to prevent them being creased.
• Freshen Up
Only ventilation is performed for 10 minutes without
blowing hot air. You can air your clothes that have been
kept at closed environments for a long time thanks to
this programme to deodorize unpleasant odors.
• Timer programmes
You can select one of the 15 min., 30 min., 75 min.
timer programmes to achieve the desired final drying
level at low temperatures. Programme dries at the
selected time regardless of the drying temperature.
