Beko 4305ED User manual

4305ED
CONSERVATOR WITH SLIDING GLASS LIDS

WARNING!
In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally
friendly refrigerant the R600a (flammable only under certain conditions) you must observe the following rules:
Do not hinder the free circulation of the air around the appliance.
Do not use mechanical devices in order to accelerate the defrosting, others than the ones recommended by the
manufacturer.
Do not destroy the refrigerating circuit.
Do not use electric appliances inside the food keeping compartment, other than those that might have been
recommended by the manufacturer.

Advice for recycling of the old appliance /1
Packing Recycling /2
Transport instructions /2
Warnings and special advice /2
Setting up /3
Electric connection /3
Switching off /4
Appliance description /4
Freezer operation /4
Food conservation /5
Defrosting of the appliance /5
Cleaning of the appliance /6
Defects finding guide /6
Appliance data sheet /7
GB Content

1

2
3
4
6
5

Congratulations for your choice!
The appliance you have purchased is one in the
products range and represents a harmonious joinng between
the refrigeration technique with the aestetical outlook. It has a
new and attractive design and is built according to the
European and national standards which guarantee its operation
and safety features. At the same time, the used refrigerant,
R600a, is environment-friendly and it does not affect the ozone
layer.
In order to use the best your conservator with sliding glass lids,
we advise you to read carefully the information in these user
instructions.
Advice for recycling your old appliance
If your newly purchased appliance replaces an older appliance,
you must consider a few aspects.
The old appliances are not valueless scrap. Their disposal,
while preserving the environment, allows the recovery of
important raw materials.
Make your old appliance useless :
- disconnect the appliance from the supply;
- remove the supply cord (cut it);
- remove the eventual locks on the door to avoid the blocking of
children inside, while playing, and the endangering of their lives.
The refrigerating apliances contain insulating materials and
refrigerants which require a proper recycling.
1
GB Instruction for use
This appliance is not intended for use by person with reduced physical, sensory or mental
capabilities or lack of experience and knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the appliance.

Packing Recycling
WARNING!
Do not allow children to play with the
packing or with parts of it. There is the risk
of suffocation with parts of corrugated
cardboard and with plastic film.
In order to get to you in good condition, the
appliance was protected with a suitable
packing. All the materials of the packing are
compatible with the environment and
recyclable. Please help us recycle the packing
while protecting the environment !
IMPORTANT!
Before putting the appliance in operation, read
carefully and entirely these instructions. They
contain important information concerning the
setting up, use and maintenance of the
apliance.
The manufacturer is free of any responsibility
if the information in this document are not
observed. Keep the instructions in a safe
place in order to reach them easily in case of
need. They can also be useful subsequently
by another user.
ATTENTION!
This appliance must be used only for its
intended purpose, (household use), in
suitable areas, far from rain, moisture or
other weather conditions.
Transport instructions
The appliance must be transported, as much
as possible, only in vertical position. The
packing must be in perfect condition during
transport.
If during transport the appliance was put in
horisontal position (only according to the
markings on the packing), it is advised that,
before putting it into operation, the appliance
is left to rest for 12 hours in order to allow the
settling of the refrigerating circuit.
The failure to to observe these instructions
can cause the breakdown of the
motorcompressor and the cancellation of its
warranty.
Warnings and general advice
Do not plug in the appliance if you noticed
a failure.
The repairs must be done only by qualified
personel.
In the following situations please unplug the
appliance from the mains:
- when you defrost completely the appliance;
- when you clean the appliance.
To unplug the appliance, pull by the plug,
not by the cable!
Ensure the minimum space between the
appliance and the wall against which it is
placed.
Do not climb on the appliance.
Do not allow the children to play or hide
inside the appliance.
Never use electric appliances inside the
freezer, for defrosting.
Do not use the appliance near heating
appliances, cookers or other sources of heat
and fire.
Do not leave the sliding lids open longer
than necessay for placing or taking out the
food.
Do not leave the food in the appliance if it is
not working.
Do not keep inside products containing
flammable or explosive gases.
Never touch cold metal parts or frozen food
with wet hands because your hands can
quickly freeze on the very cold surfaces.
Avoid using the appliance under the direct
sunshine. Protect it against the sunbeams
effect by means of an umbrella.
2
GB Instruction for use

Excess deposit of ice on the frame and the
baskets should be removed regularly with the
plastic scraper provided. Do not use any
metal parts to remove the ice.
If you do not use your appliance for a few
days, it is not advisable to switch it off. If you
do not use it for a longer period, please
proceed as follows :
- unplug the appliance;
- empty the freezer;
- defrost it and clean it;
- leave the sliding lids open in order to avoid
the formation of unpleasant odours.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard.
If your appliance has a lock, keep it locked
and store the key in a safe place, out of the
reach of children. If you are discarding an
appliance with lock, make sure that, is made
ineffective. This is very important so as to
avoid children being trapped inside, which
may cause their loss of life.
Setting up
The ambient temperature is an important
factor for the operation of your appliance, from
the point of view of the reaching of the inside
temperatures with a minimum consumption of
energy and for appraising its lifetime.
This appliance has been designed to work
and to ensure the designed parameters
(specified in the user manual and on the
rating plate) in a range of ambient
temperatures of up to 400C.
At temperatures which are lower or higher
than the lower limit, respectively the upper
limit, disturbances can occur in the good
operation of the appliance.
The correct installment is essential to ensure
the operation of the appliance at its maximum
performances.
For this reason, we recommend to place the
appliance in rooms, avoiding rain, moisture or
other atmospheric factors.
The appliance must be installed far from any
source of heat and fire. Installing it in a warm
room, direct exposure to the sunbeams or
placing the appliance near a source of heat
(heaters, cookers, ovens), would increase its
energy consumption and reduce its lifetime.
Therefore, this appliance must be installed
only in areas which allow a good circulation of
the air and protection against the sunbeams.
Please observe the following minimun
distances:
100 cm from the cookers working with coal
or oil;
150 cm from the electric and gas cookers.
Ensure the free circulation of the air around
the appliance, by observing the distances
shown in Item 2.
Assemble on the condenser (in the rear side)
the supplied spacers. (Item 3).
Place the appliance in a perfectly even, dry
and well ventilated place.
Assemble the supplied accessories.
Electric connection
Your appliance is intended to operate at a
single-phase voltage of 220-240V/50 Hz.
Before plugging in the appliance, please make
sure that the parameters of the mains in your
house (voltage, currect type, frequency)
comply to the operation parameters of the
appliance.
The information concerning the supply
voltage and the absorbed power is given on
the marking label placed in the back side of
the appliance.
The electric installation must comply with
the law requirements.
The earthing of the appliance is
compulsory. The manufacturer has no
responsibility for any damage to persons,
animals or goods which may arise from
the failure to observe the specified
conditions.
3
GB Instruction for use

The appliance is endowed with a supply
cord and a plug (European type, marked
10/16A) with double earthing contact for
safety. If the socket is not the same type with
the plug, please ask a specialised electrician
to change it.
Do not use extension pieces or multiple
adapters.
Switching off
The switching off must be possible by taking
the plug out of the socket or by means of a
mains two-poles switch placed before the
socket.
Operation
Before putting into operation, clean the inside
of the appliance (see chapter „Cleaning").
After finishing this operation please plug in the
appliance, adjust the thermostat knob to an
average position. The green and red LEDs in
the signalling block must light. Leave the
appliance work for about 2 hours without
putting food inside it.
If your appliance is provided with a signalling
system, when it is connected to the electrical
supply, the red and green leds will light.

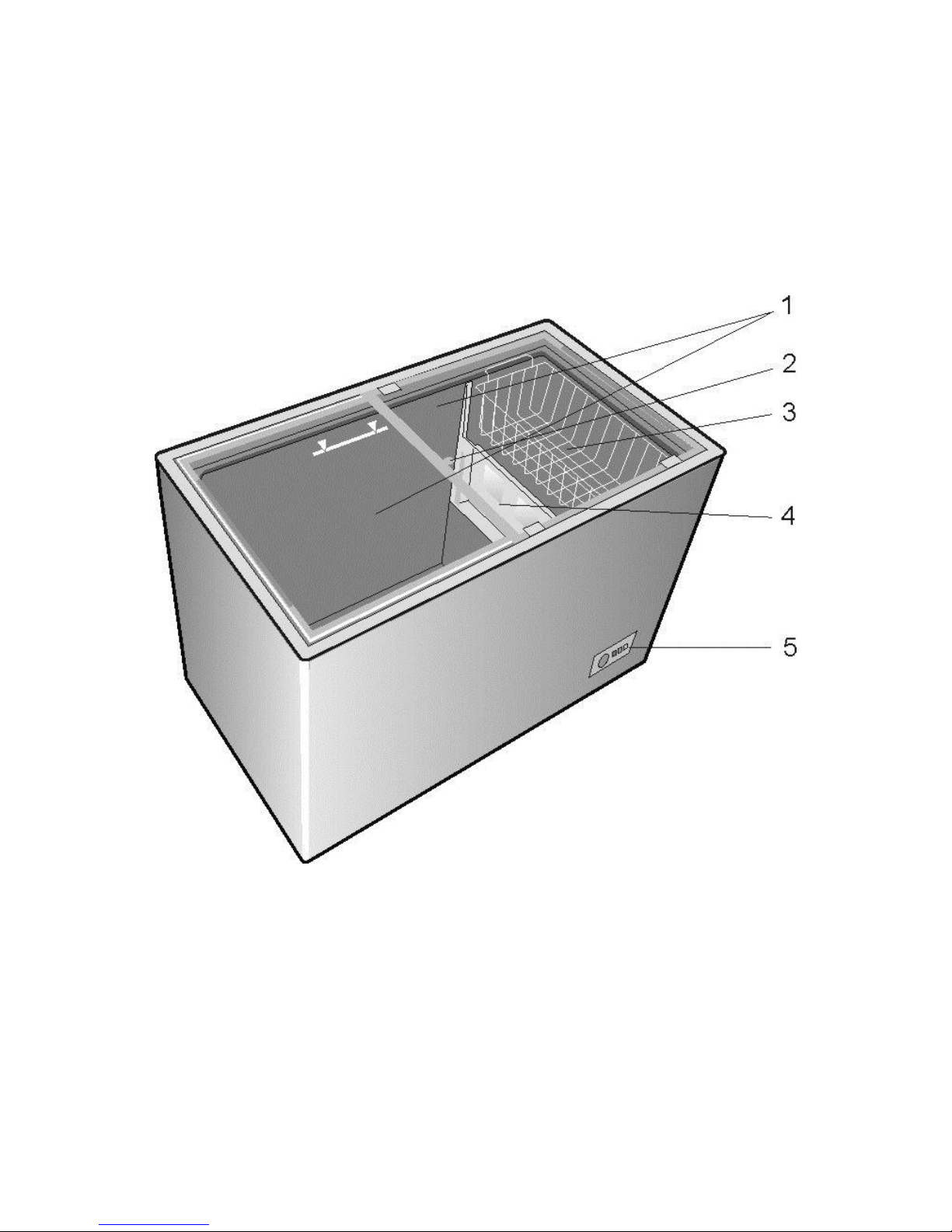

Appliance description
(Item. 1)
1. Sliding lids
2. Lock housing (optional)
3. Basket
4. Tray
5. Thermostat box
Freezer operation
Temperature adjustment
The temperature of the conservator is
adjusted by means of the knob assembled on
the thermostat (item. 4), position „MAX” being
the lowest temperature.
The achieved temperatures can vary
according to the conditions of use of the
appliance, such as: place of the appliance,
ambient temperature, frequency of opening of
the sliding lids, extent of loading with food.
The position of the thermostat knob will
change according to these factors. Normally,
for an ambient temperature of approx. 400C,
the thermostat will be adjusted on an average
position.
For the version with signalling system, it is
placed on the front side of the appliance.
(Item 5).
It includes:
1. Thermostat adjustment knob –the inside
temperature is adjusted.
2. green LED –shows that the appliance is
supplied with electric energy.
3. red LED –damage –lights if the
temperature in the freezer is too high. The
LED will operate 15-45 minutes after the
putting into operation of the freezer, then it
must go off. If the LED goes on during the
operation, this means that defects have
occurred.
4. Orange button–fast freeze –by pushing it
the orange led goes on, showing that the
appliance entered into the "fast freeze"
mode . The exit of this mode is done by
pushing the button again, and the orange
led goes off.
The three LEDs give information about the
mode of operation of the freezer.
4
GB Instruction for use

Defrosting of the appliance
The ice build-up is a normal phenomenon.
The quantity and the rapidity of ice build-up
depends on the ambient conditions and on the
frequency of the opening of the sliding lids.
Defrost the appliance anytime it is needed
when the ice layer is excessively thick.
We advise you to defrost the appliance
when the quantity of frozen food is the least.
- Unplug the appliance.
- Take out the frozen food, wrap it in several
sheets of paper and put them in refrigerator or
a cool place.
Take the separator panel and put it under the
freezer in the direction of the dripping tube.
Take out the obstructing plug. The water
which results will be collected in the special
tray (separator panel). After the melting of the
ice and the run-off of the water please wipe
with a cloth or with a sponge, then dry well.
Put the obstruction plug back in its place.
(Item. 6)
-For a quick defrosting, leave the sliding lids
open.
Do not use sharp metal objects to remove
the ice.
Do not use hairdriers or other electric
heating appliances for defrosting.
Food conservation
The conservator with display is designed to
keep the frozen food, as well as to display and
sell frozen food .
For the conservation of the food you can
also use the basket of the appliance.
Fizzy drinks should not be kept in the
conservator.
In case of an electricity breakdown, do not
open the sliding glass lids.
Frozen food will not be affected if the
breakdown lasts less than 6 hours.
Energy saving mode
• Avoid placing the appliance in a sunny area
or near a heat source.
• Provide a good ventilation of the compressor
and of the condenser.
• Do not leave the sliding lids open longer
than necessary and open them only when
needed.
• Keep the condenser clean (the system of
tubes at the rear of the appliance).
5
GB Instruction for use

Defects finding guide
The appliance does not work.
There is a power failure.
The plug of the supply cord is not inserted
well into the socket.
The fuse is blown.
The thermostat is in „OFF” position.
The temperatures are not low enough(red
LED on –for the model with signalling
system).
The food prevents the sliding lids from
closing (the charging limit was exceeded).
The appliance was not placed correctly.
The appliance is placed too close to a heat
source.
The thermostat knob is not in the correct
position.
Excessive ice build-up
The sliding lids have not been closed
correctly.
The following are not defects
Possible noddings and cracks coming from
the product: circulation of the refrigerant in
the system.
Inside cleaning
Before starting the cleaning, unplug the
appliance from the mains.
It is advisable to clean the appliance when
you defrost it.
Wash the inside with lukewarm water
where you add some neutral detergent. Do not
use soap, detergent, gasoline or acetone
which can leave a strong odour.
Wipe with a wet sponge and dry with a soft
cloth.
During this operation, avoid the excess of
water, in order to prevent its entrance into the
thermal insulation of the appliance, which
would cause unpleasant odours.
Outside cleaning
Clean the outside of the appliance by means
of a sponge soaked in soapy warm water, wipe
with a soft cloth and dry.
The cleaning of the outside part of the
refrigerating circuit (motorcompressor,
condenser, connection tubes) will be done with
a soft brush or with the vacuum-cleaner.
During this operation, please take care not to
distort the tubes or detach the cables.
Do not use scouring or abrasive materials !
After having finished the cleaning, replace
the accessories at their places and plug in the
appliance.
6
GB Instruction for use

Appliance data sheet
BRAND
MODEL
4305ED
APPLIANCE TYPE
CONSERVATOR
WITH SLIDING GLASS LIDS
Total gross volume (l)
312
Total useful volume (l)
267
Energy consumption (kWh/24h) (*)
2.2
Overall dimensions (H x L x D)
1104.6 x 754.6 x 670
Overall dimensions during operation (H x L x D)
1104.6 x 754.6 x 700
Ambient-temperature class
5L3
Ambient temperature (0C)
+40
Temperaturi interioare (0C)
max -12
Noise (dB (A) re 1 pW)
41
Ecological refrigerating agent R600a
(*) The actual consumption of electric energy depends on the use conditions and on the
location of the appliance.
7
The bubbling and gurgling noises coming from
the refrigerant circulating in the pipes of the
appliance, are normal operating noises.
Warning !
Never try to repair yourself the appliance or its
electric components. Any repair made by an
unauthorised person is dangerous for the user
and can result in the warranty cancellation.
GB Instruction for use
Noises during operation
In order to keep the temperature at the value
you have adjusted, the compressor of the
appliance starts periodically.
The noises which can be heard in such
situation are normal.
They are redced as soon as the appliance
reaches the operation temperature.
The humming noise is made by the
compressor. It can become a little stronger
when the compressor starts.
The symbol on the product or on packaging indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local city office, you
household waste disposal service or the shop where you purchased the product.

4578334800
EN
