Please read this manual before using the product!
Dear Customer,
We'd like you to make the best use of our product, which has been manufactured in modern facilities
with care and meticulous quality controls.
Thus, we advice you to read the entire user manual before you use the product. In case the product
changes hands, do not forget to hand the guide to its new owner along with the product.
This guide will help you use the product quickly and safely.
• Please read the user guide carefully before installing and operating the product.
• Always observe the applicable safety instructions.
• Keep the user guide within easy reach for future use.
• Please read any other documents provided with the product.
Keep in mind that this user guide may apply to several product models. The guide clearly indicates any
variations of different models.
CImportant information and useful
tips.
ARisk of life and property.
BRisk of electric shock.
The product’s packaging is made of
recyclable materials, in accordance
with the National Environment
Legislation.

2 /36 EN Refrigerator / User Manual
1. Safety and environment instructions3
2 Your Refrigerator 7
3 Installation 8
3.1 Appropriate installation location . . . . . . . . .8
3.2 Installing the plastic wedges. . . . . . . . . . . .8
3.3 Electrical connection . . . . . . . . . . . . . . . . .8
3.4 Adjusting the feet. . . . . . . . . . . . . . . . . . . .9
3.5 Illumination lamp . . . . . . . . . . . . . . . . . . . .9
3.6 Door open warning. . . . . . . . . . . . . . . . . . .9
3.7 Water connection. . . . . . . . . . . . . . . . . . .10
3.7.1 Before Installation . . . . . . . . . . . . . . . . . .11
3.8 Connecting the water hose to the
refrigerator . . . . . . . . . . . . . . . . . . . . . . .11
3.9 Connecting the water line to the water
supply . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.10 Water filter . . . . . . . . . . . . . . . . . . . . . . . .11
3.10.1 Attaching the internal filter into the
refrigerator . . . . . . . . . . . . . . . . . . . . . . .11
3.11 Before starting to use the water/ice
dispenser . . . . . . . . . . . . . . . . . . . . . . . .13
3.12 Transportation of the product . . . . . . . . . .13
4 Preparation 14
4.1 Things to be done for energy saving . . . . .14
4.2 Recommendations for the fresh food
compartment. . . . . . . . . . . . . . . . . . . . . .14
4.3 Initial use. . . . . . . . . . . . . . . . . . . . . . . . .15
5 Operating the product 19
5.1 Indicator panel. . . . . . . . . . . . . . . . . . . . .19
5.2 Indicator panel . . . . . . . . . . . . . . . . . . . . . .21
5.3 Dual cooling system. . . . . . . . . . . . . . . . .25
5.4 Freezing fresh food . . . . . . . . . . . . . . . . .25
5.5 Recommendations for preserving the frozen
food . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
5.6 Placing the food. . . . . . . . . . . . . . . . . . . .26
5.7 Deep-freeze information. . . . . . . . . . . . . .26
5.8 Removing door shelves . . . . . . . . . . . . . .26
5.9 Moving door rack . . . . . . . . . . . . . . . . . . . .26
5.10 Glass shelves. . . . . . . . . . . . . . . . . . . . . .26
5.11 Frost Free Chill compartment . . . . . . . . . .27
5.12 Crisper . . . . . . . . . . . . . . . . . . . . . . . . . .27
5.13 Humidity controlled crisper . . . . . . . . . . . .27
(Everfresh+(R) . . . . . . . . . . . . . . . . . . . . . . . . .27
5.14 Butter & Cheese section . . . . . . . . . . . . .28
5.15 Egg holder. . . . . . . . . . . . . . . . . . . . . . . .28
5.16 Movable middle section . . . . . . . . . . . . . .29
5.17 Ice container . . . . . . . . . . . . . . . . . . . . . .29
5.18 Blue light. . . . . . . . . . . . . . . . . . . . . . . . .30
5.19 IonGuard . . . . . . . . . . . . . . . . . . . . . . . .30
5.20 Odour filter . . . . . . . . . . . . . . . . . . . . . . .30
5.21 Using inner water dispenser . . . . . . . . . . .30
5.22 Dispensing Water . . . . . . . . . . . . . . . . . . .30
5.23 Maintaining water dispenser . . . . . . . . . . .31
5.24 Icematic . . . . . . . . . . . . . . . . . . . . . . . . .31
5.26 Refrigerator Shelf Weight Limitations. . . . .32
6. Maintenance and cleaning 33
6.1 Avoiding bad odours. . . . . . . . . . . . . . . . .33
6.2 Protecting the plastic surfaces . . . . . . . . .33
7 Troubleshooting 34

3 / 36 EN Refrigerator / User Manual
1. Safety and environment instructions
This section provides the safety
instructions necessary to prevent
the risk of injury and material
damage. Failure to observe these
instructions will invalidate all
types of product warranty.
Intended use
A
WARNING:
Keep ventilation openings, in
the appliance enclosure or in
the built-instructure, clear of
obstruction.
A
WARNING:
Do not use mechanical
devices or other means to
accelerate the defrosting
process, other than those
recommended by the
manufacturer.
AWARNING:
Do not damage the
refrigerant circuit.
A
WARNING:
Do not use electrical
appliances inside the food
storage compartments
of the appliance, unless
they are of the type
recommended by the
manufacturer.
This appliance is intended to be
used in household and similar
applications such as
– staff kitchen areas in shops,
offices and other working
environments;
– farm houses and by clients
in hotels, motels and other
residential type environments;
– bed and breakfast type
environments;
– catering and similar non-retail
applications.
1.1.General safety
• This product should not be
used by persons with physical,
sensory and mental disabilities,
without sufficient knowledge
and experience or by children.
The device can only be
used by such persons under
supervision and instruction of
a person responsible for their
safety. Children should not be
allowed to play with this device.
• In case of malfunction, unplug
the device.
• After unplugging, wait at least
5 minutes before plugging in
again.
• Unplug the product when not in
use.
• Do not touch the plug with wet
hands! Do not pull the cable to
plug off, always hold the plug.

4 /36 EN Refrigerator / User Manual
Important instructions for safety and environment
• Do not plug in the refrigerator if
the socket is loose.
• Unplug the product during
installation, maintenance,
cleaning and repair.
• If the product will not be used
for a while, unplug the product
and remove any food inside.
• Do not use the product when
the compartment with circuit
cards located on the upper
back part of the product
(electrical card box cover) (1) is
open.
1
1
• Do not use steam or steamed
cleaning materials for cleaning
the refrigerator and melting the
ice inside. Steam may contact
the electrified areas and cause
short circuit or electric shock!
• Do not wash the product by
spraying or pouring water on it!
Danger of electric shock!
• In case of malfunction, do not
use the product, as it may
cause electric shock. Contact
the authorised service before
doing anything.
• Plug the product into an
earthed socket. Earthing
must be done by a qualified
electrician.
• If the product has LED type
lighting, contact the authorised
service for replacing or in case
of any problem.
• Do not touch frozen food with
wet hands! It may adhere to
your hands!
• Do not place liquids in bottles
and cans into the freezer
compartment. They may
explode.
• Place liquids in upright position
after tightly closing the lid.
• Do not spray flammable
substances near the product,
as it may burn or explode.
• Do not keep flammable
materials and products with
flammable gas (sprays, etc.) in
the refrigerator.
• Do not place containers
holding liquids on top of the
product. Splashing water on
an electrified part may cause
electric shock and risk of fire.
• Exposing the product to rain,
snow, sunlight and wind will
cause electrical danger. When

5 / 36 EN Refrigerator / User Manual
Important instructions for safety and environment
relocating the product, do not
pull by holding the door handle.
The handle may come off.
• Take care to avoid trapping any
part of your hands or body in
any of the moving parts inside
the product.
• Do not step or lean on the door,
drawers and similar parts of
the refrigerator. This will cause
the product to fall down and
cause damage to the parts.
• Take care not to trap the power
cable.
1.1.1 HC warning
If the product comprises a cooling
system using R600a gas, take
care to avoid damaging the
cooling system and its pipe while
using and moving the product.
This gas is flammable. If the
cooling system is damaged, keep
the product away from sources
of fire and ventilate the room
immediately.
CThe label on the inner left
side indicates the type of
gas used in the product.
1.1.2 For models with
water dispenser
• Pressure for cold water inlet
shall be maximum 90 psi (6.2
bar). If your water pressure
exceeds 80 psi (5.5 bar), use a
pressure limiting valve in your
mains system. If you do not
know how to check your water
pressure, ask for the help of a
professional plumber.
• If there is risk of water hammer
effect in your installation,
always use a water hammer
prevention equipment in
your installation. Consult
Professional plumbers if you
are not sure that there is no
water hammer effect in your
installation.
• Do not install on the hot water
inlet. Take precautions against
of the risk of freezing of the
hoses. Water temperature
operating interval shall be 33°F
(0.6°C) minimum and 100°F
(38°C) maximum.
• Use drinking water only.

6 /36 EN Refrigerator / User Manual
Important instructions for safety and environment
1.2.Intended use
• This product is designed for
home use. It is not intended for
commercial use.
• The product should be used to
store food and beverages only.
• Do not keep sensitive
products requiring controlled
temperatures (vaccines,
heat sensitive medication,
medical supplies, etc.) in the
refrigerator.
• The manufacturer assumes no
responsibility for any damage
due to misuse or mishandling.
• Original spare parts will be
provided for 10 years, following
the product purchasing date.
1.3.Child safety
• Keep packaging materials out
of children’s reach.
• Do not allow the children to
play with the product.
• If the product’s door comprises
a lock, keep the key out of
children’s reach.
1.4. Compliance with WEEE Directive
and Disposing of the Waste Product
This product complies with EU WEEE
Directive (2012/19/EU). This product bears a
classification symbol for waste electrical and
electronic equipment (WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Do not dispose of the
waste product with normal domestic
and other wastes at the end of its
service life. Take it to the collection
center for the recycling of electrical and electronic
equipment. Please consult your local authorities to
learn about these collection centers.
1.5. Compliance with RoHS Directive
• This product complies with EU WEEE Directive
(2011/65/EU). It does not contain harmful and
prohibited materials specified in the Directive.
1.6. Package information
• Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose of the packaging
materials together with the domestic or other
wastes. Take them to the packaging material
collection points designated by the local
authorities.

7 / 36 EN Refrigerator / User Manual

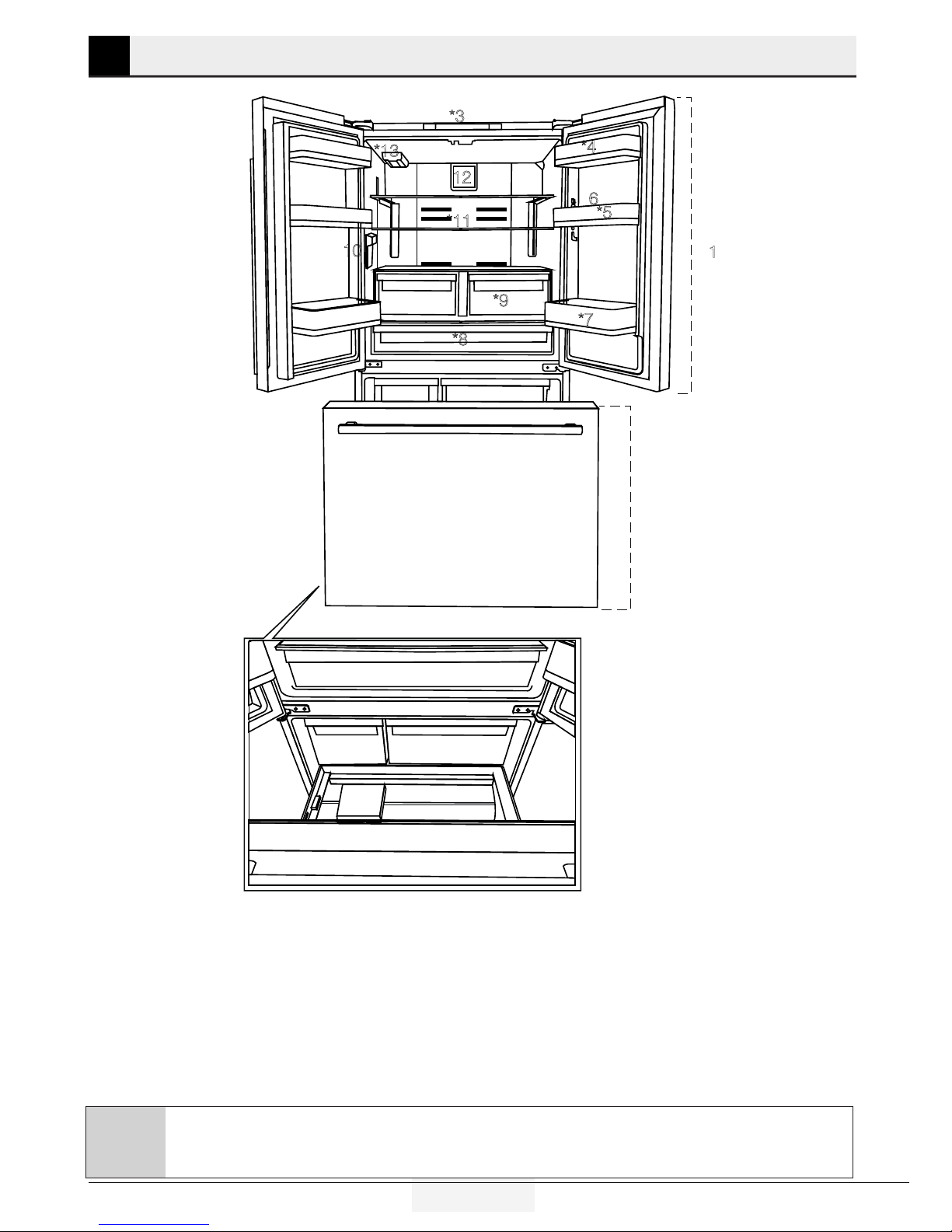

2 Your Refrigerator
1- Fridge compartment
2- ButFreezer compartment
3- Display/indicator panel
4- Butter & cheese section
5- Fridge compartment door shelf
6- Egg tray
7- Bottle shelf
8- Chiller compartment
9- Crispers
10- İnner water dispenser
11- Adjustable glass shelf
12- Fan
13- Water filter
14- Ice container
15- Frozen food storage compartment (upper)
16- Frozen food storage compartment (upper)
17- Seperator
2
*3
1
*7
*5
*8
*9
10
12
*13
*11
6
*4
14 15
16
*17
CFigures in this user manual are schematic and may not match the product exactly. If the subject parts
are not included in the product you have purchased, then those parts are valid for other models.

8 /36 EN Refrigerator / User Manual
3 Installation
To make the product ready for use, make sure
that the electricity insert & water installation is
appropriate. If not, call a qualified electrician and
plumber to have any necessary arrangements
carried out.
CPreparation of the location and electrical
installation at the place of installation is
under customer's responsibility.
BProduct must not be plugged in during
installation. Otherwise, there is the risk of
death or serious injury!
B
WARNING: Installation and electrical
connections of the product must be carried
out by the Authorised Service Agent.
Manufacturer shall not be held liable for
damages that may arise from procedures
carried out by unauthorised persons.
AWARNING: Prior to installation, visually
check if the product has any defects on
it. If so, do not have it installed. Damaged
products cause risks for your safety.
CMake sure that the power cable is not
pinched or crushed while pushing the
product into its place after installation or
cleaning procedures.
3.1 Appropriate installation location
A
WARNING: If the door of the room where
the product will be placed is too small for
the product to pass, then the product's
doors must be removed and the product
must be turned aside to pass it through.
•Chooseaplaceatwhereyouwouldusethe
product comfortably.
•Installtheproductatleast30cmawayfrom
heat sources such as hobs, ovens, heater
cores and stoves and at least 5 cm away from
electrical ovens. Product must not be subjected
to direct sun light and kept in humid places after
installation.
•Appropriateairventilationmustbeprovided
around your product in order to achieve an
efficient operation. If the product is to be placed
in a recess in the wall, pay attention to leave at
least 5 cm distance with the ceiling and side
walls.
•Donotplacetheproductonthematerialssuch
as rugs or carpets.
•Placetheproductonanevenfloorsurfaceto
prevent jolts.
•Donotinstalltheproductinplaceswherethe
temperature falls below 10ºC /50°F.
CIf two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.
3.2 Installing the plastic wedges
Plastic wedges are used to create the distance
for the air circulation between the product and
the rear wall. Insert the 2 plastic wedges onto the
rear ventilation cover as illustrated in the figure.
To install the wedges, remove the screws on the
product and use the screws given in the same
pouch with the wedges.
3.3 Electrical connection
Connect the product to a grounded outlet
protected by a fuse complying with the values in
the rating plate. The Manufacturer shall not be
liable for any damages that will arise when the
product is used without grounding in accordance
with the local regulations.
•Electricalconnectionmustcomplywithnational
regulations.
•Powercableplugmustbewithineasyreach
after installation.
•Thevoltageandallowedfuseorbreaker
protection are specified in the Rating Plate
which is affixed to interior of the product. If
the current value of the fuse or breaker in the
house does not comply with the value in the
rating plate, have a qualified electrician install a
suitable fuse.
•Thespecifiedvoltagemustbeequaltoyour
mains voltage.
•Donotmakeconnectionsviaextensioncables
or multi-plugs.

9 / 36 EN Refrigerator / User Manual
Installation
BWARNING: Damaged power cable must
be replaced by the Authorised Service
Agents.
BWARNING: If the product has a failure, it
should not be operated unless it is repaired
by the Authorised Service Agent! There is
the risk of electric shock!

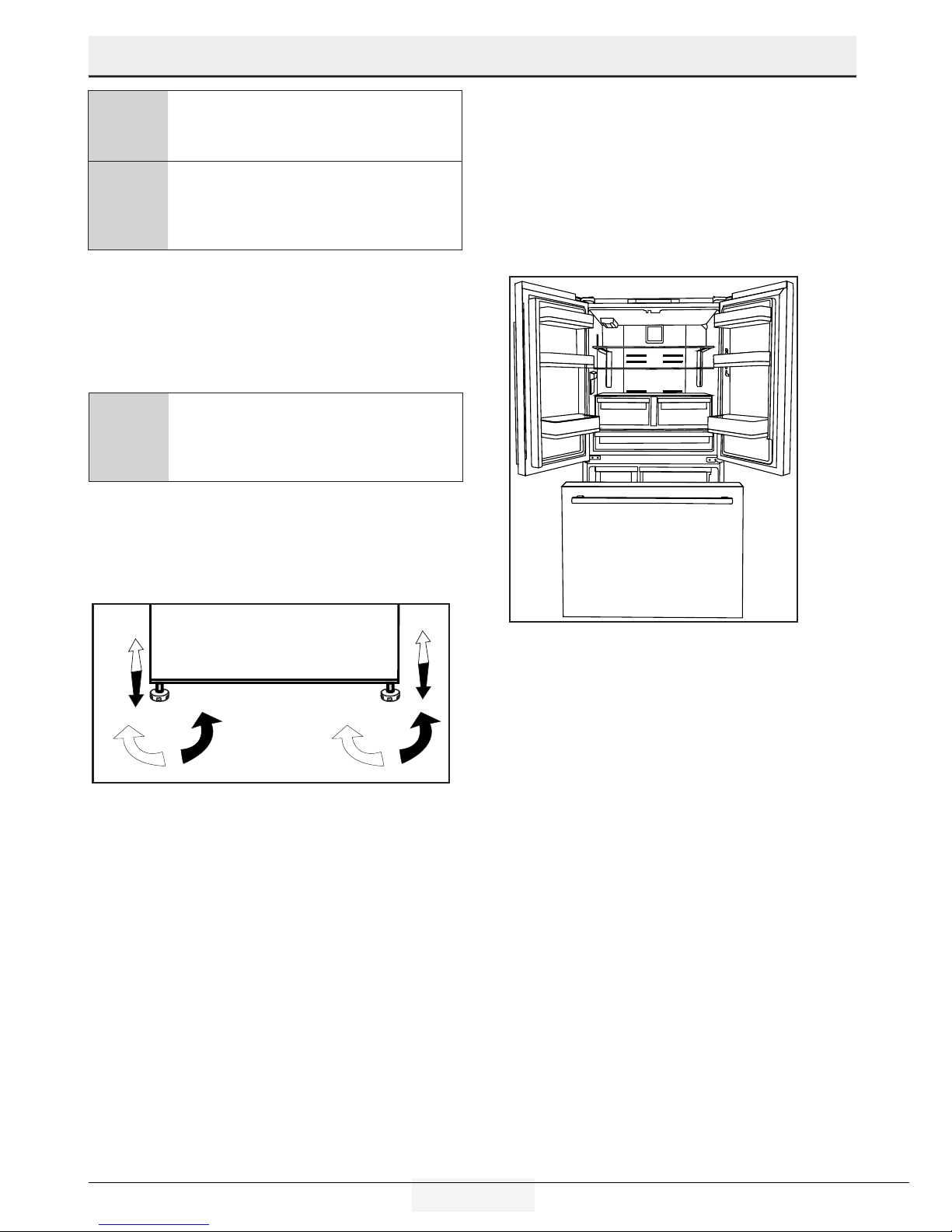

3.4 Adjusting the feet
If the product stands unbalanced after installation
adjust the feet. Taking help from someone to
slightly lift the refrigerator will facilitate this
process.
BWARNING: First unplug the product.
Product must not be plugged in when
adjusting the feet. There is the risk of
electric shock!
Turn the front feet to balance the product. The
corner where the foot exists is lowered when you
turn in the direction of arrow and raised when you
turn it in the opposite direction.
3.6 Door open warning
(This feature may vary depending on the door
of the product and may not exist in some
models.)
An audio warning signal will be given when the
door of your product is left open for 1 minute. This
warning will be muted when the door is closed or
any of the display buttons (if any) are pressed.
3.5 Illumination lamp
Do not attempt to repair yourself but call the
Authorised Service Agent if the LED illumination
lamps do not go on or are out of order.
The lamp(s) used in this appliance is not suitable
for household room illumination. The intended
purpose of this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer in a safe and
comfortable way.

10 /36 EN Refrigerator / User Manual
Installation
-Upper hinge group is fixed with 3 screws.
-The hinge cover is attached after the sockets are
installed.
- Then the hinge cover is fixed with two screws.
3.7 Water connection
Depending on the model of the refrigerator, you
can connect it either to water mains. First you
must connect the water hose to the refrigerator.
AWARNING: Refrigerator and the pump, if
any, must be unplugged during connection.
Check that following part have been delivered
together with the product:
External water filter.

11 / 36 EN Refrigerator / User Manual
Installation
3.7.1 Before Installation
Make sure that you have everything necessary
to ensure proper installation before proceeding,
including:
Your product comes with an internal water filter for
use inside the fridge. Part number of the filter is
4918450200 and you can use this part number
when ordering replacement filters.
3.10.1 Attaching the internal
filter into the refrigerator
1.Pull the water filter cover slowly.
2.Remove the water filter bypass cover by turning
it downwards.

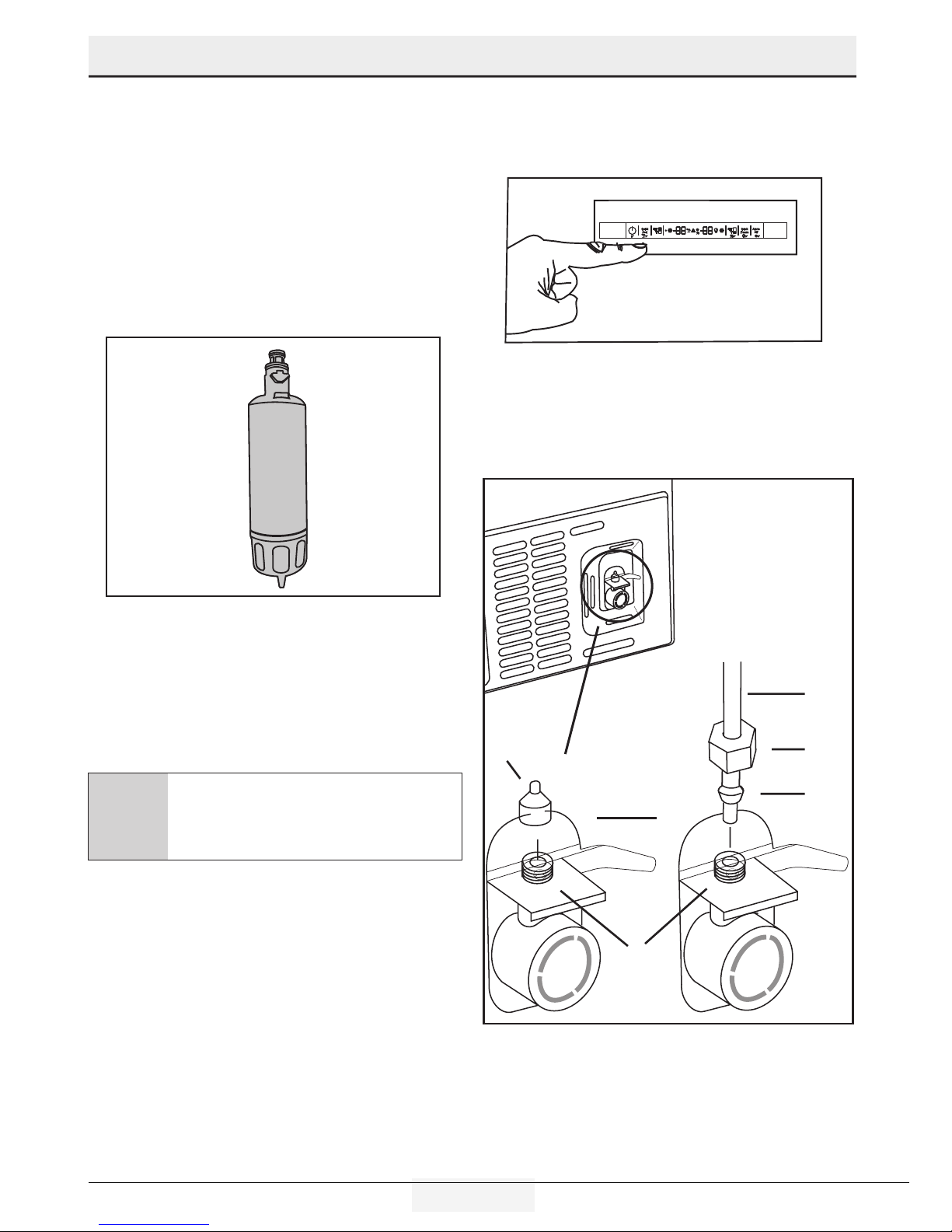

3.8 Connecting the water
hose to the refrigerator
1.Slip the union (B) onto the water hose (A).
2.Push the water hose downwards firmly to slip it
onto the water inlet valve (C).
3.Tighten the union (C) by hand to secure it onto
the water inlet valve.
CNormally, you are not required to tighten
the union with a tool. However, you can use
a spanner or pliers to tighten the union if
there is a leakage.
3.9 Connecting the water line
to the water supply
Connect the water line to a water supply valve. If a
valve is not present or you are not sure, consult a
qualified plumber.
3.10 Water filter
(in some models)
Your refrigerator may be equipped with an external
or internal filter depending on its model. To fit the
water filter, follow the instructions below referring
to the figures supplied:
E
C
A
B
D

12 /36 EN Refrigerator / User Manual
Installation
AWARNING: Ensure that the Ice Off mode
is enabled before removing the by-pass
cover.
CIt is normal that a few drops of water drip
after the cover has been removed.
3.Place the water filter cover into the mechanism
and push forwards to lock it in place.
4.Press “Ice Off” button on the display again to
exit this mode.
AWARNING: Ensure that the Ice Off mode
is enabled before removing the by-pass
cover.
CIt is normal that a few drops of water drip
after the cover has been removed.
3.Place the water filter cover into the mechanism
and push forwards to lock it in place.
4.Press “Ice Off” button on the display again to
exit this mode.
CWater filter must be replaced every 6
months. When replacing the water filter
or if you will not use the filter anymore,
remove it as illustrated in the figure and
install the bypass cover. Make sure that the
"Ice Off" mode is enabled before removing
the filter.
AWARNING: Water filter cleans some
foreign particles in the water. It does not
purify water from microorganisms.
AWARNING: Ice Off button must be
pressed before replacing the water filter or
installing the by-pass cover.
AWARNING: Unplug the product during the
replacement of the filter.

13 / 36 EN Refrigerator / User Manual
Installation
3.11 Before starting to use the
water/ice dispenser
• If the water pressure is below 1 bar or a pump
demijohn will be used, than a separate must be
used as well.
• Water system of the refrigerator must be
connected to the cold water line. It must not
be connected to hot water line.
• No water may be obtained in the initial start-
up of the refrigerator. Because there is air in
the system. To discharge air from the system,
press dispenser latch for 1-2 minutes until
water comes from the dispenser. Water flow
may be irregular at the beginning. After the
air in the system is discharged, water flow will
return to normal.
• During initial use, you will have to wait
approximately 12 hours for the water to cool
down.
• It will take around 1-2 days for the system to
produce required amount of ice.
• The first 10 glasses of water should not be
consumed.
• First several glasses of water may be turbid
when the filter is used for the first time.
Therefore, do not consume the first several
glasses of water.
• If the water dispenser is not used for a long
period of time, first 1-2 glasses of water can
be hot.
• If a power outage or a temporary failure occurs
while the refrigerator is operating, ice can melt
down a little bit and then get frozen again. In
such a case, ice cubes can stick to each other.
If the outage or failure prolongs, ice can melt
down causing water leakage. If you experience
such a problem, empty and clean the ice
container.
• Ice cubes can stick to each other if they are left
in the container for a long time.
• Water system installation of the refrigerator
must be performed by a qualified plumber.
• If the product is to be connected to the water
mains, make sure that you use potable water.
• Water system of the product is designed to
operate only with water. Do not use beverage
such as soft drinks and/or juices in the water
system.
• It is recommended that the water is
disconnected if you will not be using the
refrigerator for a long period of time due to
vacation or similar reasons.
• Do not attempt to dismantle the ice container
group assembly parts.
• Do not attempt to clean the ice container
assembly without removing it from the
refrigerator.
• When taking water from the water dispenser,
remove the glass from the opening 1 second
after releasing the trigger. Thus, water in the
system will not drip into the drip tray.
3.12 Transportation of the product
1.Unplug the product before transporting it.
2.Remove water connections.
3.Secure the shelves, accessories, crisper and
etc. in the refrigerator by adhesive tape before
repackaging it.
CPackaging must be tied with thick tapes or
strong ropes and the rules of transportation
printed on the package must be followed.
COriginal packaging and foam materials
should be kept for future transportations.
AWARNING: Packaging materials
are dangerous for the children. Keep
packaging materials in a safe place away
from reach of the children.

14 /36 EN Refrigerator / User Manual
4 Preparation
4.2 Recommendations for the
fresh food compartment
• Do not allow the food to touch the temperature
sensor in fresh food compartment. To allow the
fresh food compartment keep its ideal storage
temperature, sensor must not be hindered by
food.
• Do not put hot food and beverages inside the
product.
4.1 Things to be done for
energy saving
AConnecting the product to electric energy
saving systems is risky as it may cause
damage on the product.
• Do not leave the doors of your refrigerator open
for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload the refrigerator. Cooling
capacity will fall when the air circulation inside
is hindered.
• Do not place the refrigerator in places subject
to direct sunlight. Install the product at least
30 cm away from heat sources such as hobs,
ovens, heater cores and stoves and at least 5
cm away from electrical ovens.
• Pay attention to store your food in refrigerator
in closed containers.
• You can load maximum amount of food to the
freezer compartment of the refrigerator by
removing the freezer compartment shelf of
drawer. Declared energy consumption value
of the refrigerator was determined with the
freezer compartment shelf or drawer removed
and with maximum amount of food loaded.
There is no risk in using a shelf or drawer
suitable for the shapes and sizes of the foods
to be frozen.
• Thawing frozen food in fridge compartment will
both provide energy saving and preserve the
food quality.
CThe ambient temperature of the room
where you install the refrigerator should
at least be 10ºC /50°F. Operating your
refrigerator under cooler conditions than
this is not recommended.
CInside of your refrigerator must be cleaned
thoroughly.
CIf two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.

15 / 36 EN Refrigerator / User Manual
Preparation
4.3 Initial use
Before starting to use the product, check that all
preparations are made in accordance with the
instructions in sections "Important instructions for
safety and environment" and "Installation".
• Clean the interior of the refrigerator as
recommended in the “Maintenance and
cleaning” section. Check that inside of it is dry
before operating it.
• Plug the refrigerator into the grounded wall
outlet. When the door is opened the interior
illumination will turn on.
• Run the refrigerator without putting any food
for 6 hours and do not open its door unless
certainly required.
CYou will hear a noise when the compressor
starts up. The liquids and gases sealed
within the refrigeration system may also
give rise to noise, even if the compressor is
not running and this is quite normal.
CFront edges of the refrigerator may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.

16 /36 EN Refrigerator / User Manual
Preparation
DIMENSIONS [36”FRENCHREFRIGERATOR]

1

PRODUCTDIMENSIONS








17 / 36 EN Refrigerator / User Manual
Preparation
DIMENSIONS [36”FRENCHREFRIGERATOR]

2

FreezerDoorOpenMax(Drawer)



Height
Overall
"A"
Height
TopOfCabinet
"B"
DepthCabinetOnly

"C""O"
DepthWithoutHandles
"D"
1771mm(69,72") 1710mm(67,32") 600mm(23,62") 680,5mm(26,79")
   
Depth
WithHandles
"E"
Width
Cabinet
"F"
Depth
DrawerOpen
"G"
TotalDepthDrawerOpen
"H"
737mm(29,01") 908mm(35,74") 1157mm(45,55") 1178,5mm(46,40”)
   
Depth
DoorsOpen90°
"I"
TotalDepthDoors
Open90°"J"
WidthDoors
Open90°WithHandles
"K"
WidthDoorsOpen90°
FromCabinetToHandle
"L"
1072,6mm(42,22") 1094mm(43,07") 1059,2mm(41,70") 75,6mm(2,97")
   
WidthDoorsOpen130°
FromHandleToHandle
"M"
WidthDoorsOpen130°
FromCabinetToHandle
"N"
DepthDoorsOpen130°
"P"
DepthDoorsOpen130°
"R"
1530.2mm(41,70") 311,2mm(12,25") 391mm(15,39") 991mm(39.01")

Min Clearance From the Top: 50mm (2”)
Min Clearance From the Sides: 50mm (2”)

18 /36 EN Refrigerator / User Manual
Preparation
DIMENSIONS [36”FRENCHREFRIGERATOR]

3

FreshFoodDoorOpen90°


FreshFoodDoorOpen130°(Max)

5.1 Indicator panel
Touch-control indicator panel allows you to set the temperature and control the other functions of the
refrigerator. Just press the relevant buttons for function settings.
1234 5 6 78910 11 12 13 14 15 16

19 / 36 EN Refrigerator / User Manual
5 Operating the product
CFigures in this user manual are schematic and may not match the product exactly. If the subject parts
are not included in the product you have purchased, then those parts are valid for other models.
5.1 Indicator panel
Touch-control indicator panel allows you to set the temperature and control the other functions of the
refrigerator. Just press the relevant buttons for function settings.
1234 5 6 78910 11 12 13 14 15 16
1-On/Off function
Press the On/Off button for 3 seconds to turn off or
turn on the fridge.
2-Quick Fridge Function
When you press Quick Fridge button, the tempe-
rature of the compartment will be colder than the
adjusted values.
This function can be used for food placed in the
fridge compartment and required to be cooled
down rapidly.
If you want to cool large amounts of fresh food, it
is recommended to active this feature before put-
ting the food into the fridge. Quick Fridge indica-
tor will remain lit when the Quick Fridge function is
enabled. To cancel this function press Quick Fridge
button again. Quick Fridge indicator will turn off
and return to its normal settings.
If you do not cancel it, Quick Fridge will cancel it-
self automatically after 2 hours or when the fridge
compartment reaches to the required temperature.
This function is not recalled when power restores
after a power failure.
3-Vacation Function
Press the Quick Fridge\Vacation button for 3 se-
conds to activate Vacation function.”--” icon co-
mes on when the function is active. Function is
deactivated by pressing the same button for 3 se-
conds again or by pressing Fridge set button.
When vacation mode is activated, set values does
not seem for fresh food cabin. Line is occured on
segments of fresh food.
When vacation mode is activated, tempature of
fresh food is hotter than 50 Fahrenheit degree(
10 celcius degree) so please do not keep foods in
fresh food cabinet. Tempature of freezer is not af-
fected.
4-Fridge Set Function
This function allows you to make the fridge com-
partment temperature setting. Press this button to
set the temperature of the fridge compartment to
8, 7, 6, 5, 4, 3, 2 or 1°C respectively.
5-Off Indicator
Off Indicator lits when the fridge is “Off” mode.
6-Quick Fridge Indicator
This icon lits when the Quick Fridge function is ac-
tive.
7-Fridge Compartment Temperature Setting
Indicator
Indicates the temperature set for the Fridge
Compartment.
8-Vacation Indicator
This icon lits when the Vacation function is active.
9-High Temperature Error / Warning
Indicator
This icon comes on during high temperature failu-
res and error warnings.
10-Freezer Compartment
Temperature Setting Indicator Indicates the tempe-
rature set for the Freezer Compartment.
11-Eco-Extra Indicator
Eco-Extra Indicator lits when the Eco Extra functi-
on is active.
