Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in a 1st-class
manufacturing facility and checked under the most meticulous quality control
procedures, will provide you with years of good service.
For this, we recommend you to carefully read the entire manual of your
product before using it and keep it at hand for future reference.
This manual
• Will help you use your appliance quickly and safely.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
1 Your refrigerator 3
2 Warnings 4
Electrical requirements...........................6
Warning! This appliance must be
earthed..........................................................6
Energy saving tips..................................... 7
Compliance with WEEE Directive and
Disposing of the Waste Product: .......8
Compliance with rohs directive: .........8
Package information................................8
3 Installation 9
Installation Instructions .........................9
Repositioning The Door........................10
4Before operating 16
Starting........................................................16
5 Using your refrigerator 17
Setting the operating temperature......
Indicator lights...............................................
Making ice cubes...........................................
Defrosting of the appliance.....................
LED indicators and control panel ......17
Temperature Setting .............................18
Freezing Fresh Food...............................18
Storing Frozen Food...............................19
Making Ice Cubes .....................................19
Defrosting ..................................................19
6 Maintenance and
cleaning 20
Protection of plastic surfaces .......... 20
7 Troubleshooting 21
8 Guarantee Details 25

EN
3
1.Control Panel
2.Fast freeze compartments
2a.Lift up flap2b.Drop down flap
3.Ice bank
4.Ice cube tray
5.Extra large drawer
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in
the product you have purchased, then it is valid for other models.
1
2a
2b
5
5
5
6
3
5
5
4
1Your refrigerator
Congratulations on your choice of a Beko quality Appliance which has been
designed to give you service for many years.

EN
4
2Warnings
• Do not connect your
appliance to the
electricity supply until
all packing and transit
protectors have been
removed.
• If transported
horizontally leave to
stand upright for at
least 4 hours before
switching on to allow
compressor oil to settle
• If you are discarding an
old refrigerator with a
lock or latch fitted to the
door, disable the lock/
latch, ensure that it is
left in a safe condition to
prevent the entrapment
of young children.
• This fridge/freezer
must only be used for its
intended purpose i.e the
storing and freezing of
edible foodstuff.
• Do not dispose of the
appliance on a fire.
At Beko, the care
and protection of our
environment is an
ongoing commitment.
This appliance which is
among the latest range
introduced is particularly
environment friendly.
Your appliance
contains non CFC / HFC
natural substances
in the cooling system
(Called R600a) and
in the insulation
(Called cyclopentane)
which are potentially
flammable if exposed
to fire. Therefore, take
care not to damage,
the cooling circuit /
pipes of the appliance
in transportation
and in use. In case of
damage do not expose
the appliance to fire
or potential ignition
source and immediately
ventilate the room
where the appliance is
situated.
• We suggest you contact
your local authority for
disposal information
and facilities available.
• See Installation
Instructions on page
11 for information on
suitable location.

EN
5
• To obtain the best
possible performance
and trouble free
operation from your
appliance it is very
important to carefully
read these instructions.
• On delivery, check to
make sure that the
product is not damaged
and that all the parts
and accessories are in
perfect condition.
• Ensure that the
plug remains readily
accessible. Do not use
multiple adapter or
extension cable.
• Failure to observe
these instructions may
invalidate your right to
free service during the
guarantee period.
• Keep ventilation
openings, in the
appliance enclosure or
in the built-in structure,
clear of obstruction.
• Do not damage the
refrigerant circuit.
• Do not use electrical
appliances inside
the food storage
compartments of
the appliance, unless
they are of the type
recommended by the
manufacturer.
• We suggest you keep
these instructions in
a safe place for easy
reference.
• This appliance can
be used by children
aged from 8 years and
above and persons
with reduced physical,
sensory or mental
capabilities or lack
of experience and
knowledge if they have
been given supervision
or instruction
concerning use of the
appliance in a safe
way and understand
the hazards involved.
Children shall not play
with the appliance.
Cleaning and user
maintenance shall not
be made by children
without supervision.
• Children should be
supervised to ensure
that they do not play
with the appliance.

EN
6
Electrical
requirements
Before you insert
the plug into the wall
socket make sure that
the voltage and the
frequency shown on the
rating plate inside the
appliance corresponds to
your electricity supply.
Rating label is on the left
hand side of fridge inner
liner.
We recommend that this
appliance be connected
to the mains supply
via a suitable switched
and fused socket. The
appliance must be
positioned so that the
plug is accessible.
WARNING:
When positioning the
appliance ensure the
supply cord is not trapped
or damaged.
Should the mains lead
of the appliance become
damaged or should it
need replacing at any
time, it must be replaced
by a special purpose
made mains lead which
can only be obtained
from a Beko authorised
service agent.
Warning! This
appliance must be
earthed
If the fitted moulded
plug is not suitable for
your socket, then the
plug should be cut off
and an appropriate plug
fitted. Destroy the old
plug which is cut off as
a plug with bared cord
could cause a shock
hazard if inserted into a
socket elsewhere in the
house.
Themouldedplugonthis
appliance incorporates
a 13 A fuse. Should the
fuse need to be replaced
an ASTABEAB approved
BS 1362 fuse of the same
rating must be used. Do
not forget to refit the
fuse cover. In the event of
losing the fuse cover the
plug must not be used
until a replacement fuse
cover has been fitted.

EN
7
Colour of the
replacement fuse cover
must be the same colour
as that visible on the pin
face of the plug. Fuse
covers are available from
any good electrical store.
Important! Fitting A
Different Plug

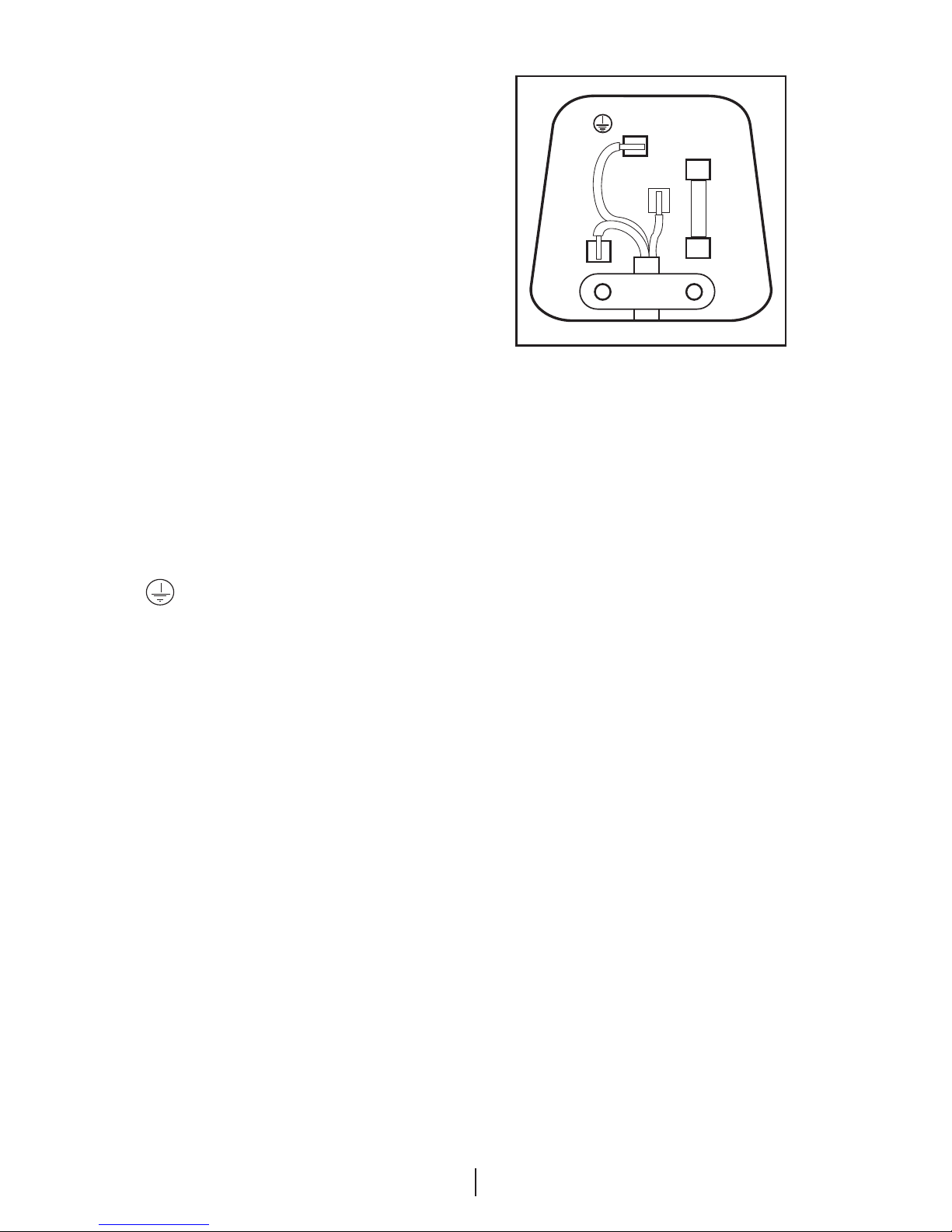

1.As the colours of the wires in the
mains lead of this appliance may
not correspond with the coloured
markings identifying the terminals
in your plug proceed as follows: (See
diagram).
2.Connect the green-yellow or green
(Earth) wire to the terminal in the
plug marked ‘E’ or with the symbol
or coloured green and yellow or
green.
3.Connect the blue (Neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
4.Connect the brown (Live) wire to the
terminal in the plug marked ‘L’ or
coloured red.
5.With alternative plugs a 13 A fuse
must be fitted either in the plug or
adaptor or in the main fuse box. If in
doubt contact a qualified electrician.
Energy saving tips
1.Ensure your appliance is installed in a
well ventilated area.
2.Ensure the time between buying
chilled/frozen food and placing
them in your appliance is kept at
minimum, particularly in summer.
We recommend you use a cool bag
or a special carrier bag to carry
perishable food.
FITTED WITH
BS 1362 13A FUSE ALWAYS
FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
GREEN &
YELLOW
OR
GREEN
N
BLUE
OR
BLACK
L
BROWN
OR
RED
22mm.
6mm.
6mm.
6mm. 32mm.
12mm.
FUSE
CORD GRIP
3.Do not leave the door (s) of your
appliance open longer than
necessary and ensure they are
closed properly after each opening.
4.Defrost frozen food in the fridge
compartment, so that frozen food
acts as an ice pack to assist cooling
in the fridge.
5.Energy consumption of this
appliance is measured while freezer
compartment is loaded without
use of top shelf lid and the drawers
except the bottom drawer. It is
advised that freezer compartment
is loaded without use of drawers
except the bottom drawer in order to
achieve maximum loading capacity.

EN
8
Compliance with
WEEE Directive and
Disposing of the
Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This
product bears a
classification symbol for
waste electrical and
electronic equipment (WEEE).This
product has been manufactured with
high quality parts and materials which
can be reused and are suitable for
recycling. Do not dispose of the waste
product with normal domestic and
other wastes at the end of its service
life. Take it to the collection center for
the recycling of electrical and
electronic equipment. Please consult
your local authorities to learn about
these collection centers.
Compliance with rohs
directive:
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not contain
harmful and prohibited materials
specified in the Directive.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.

EN
9
3Installation

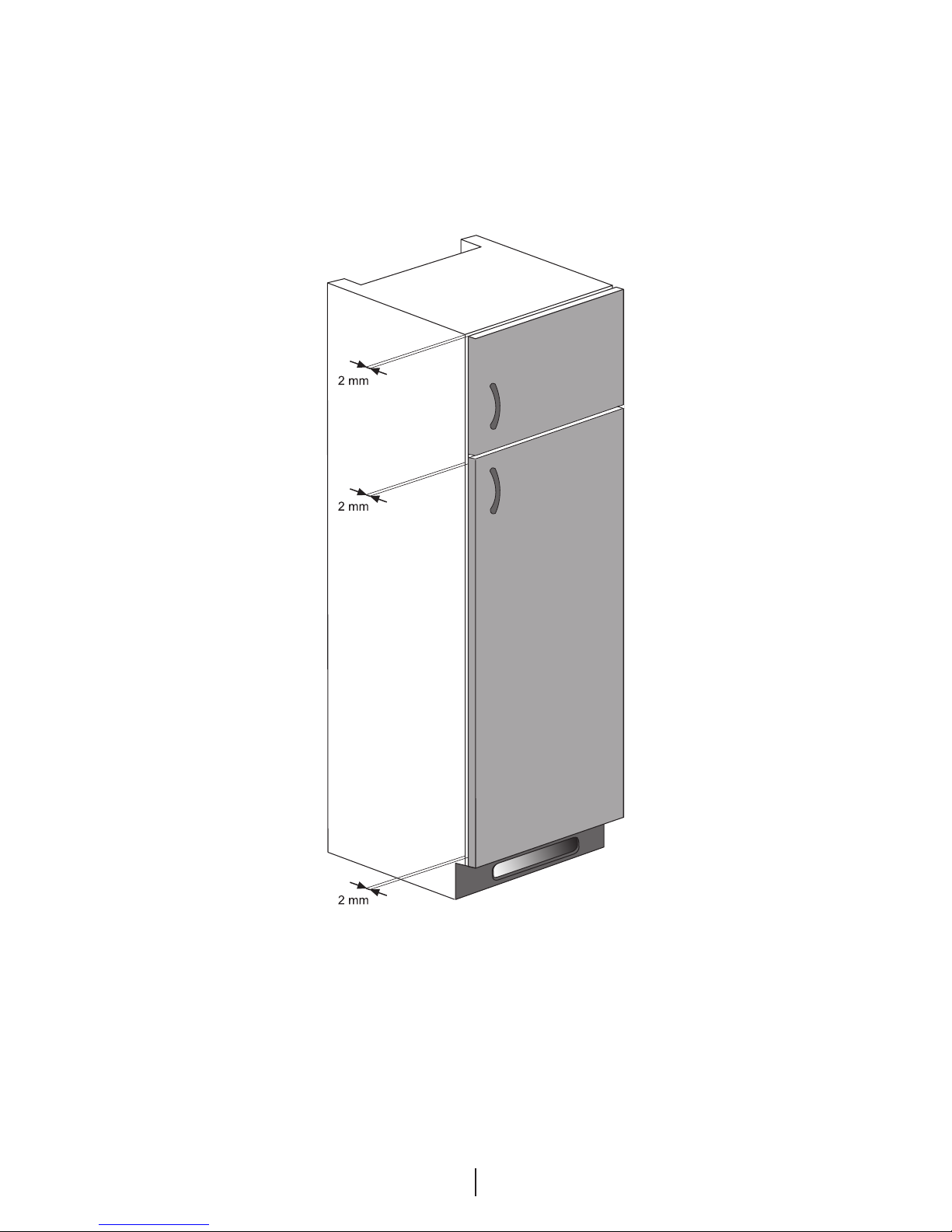

1.To avoid a hazard due to instability
of the appliance, it must be fixed in
accordance with the instructions.
2.Do not operate this appliance unless
installed in furniture (The appliance
should be located on a smooth
surface).
3.Refer to "Cleaning and Care" section
to prepare your appliance for use.
Installation Instructions

EN
10
Repositioning The Door
Follow the step by step instructions
and the diagram below. Numbers in
brackets refer to diagrams
1.Switch off at the socket outlet and
pull out the mains plug.
2.Remove all food, loose items and
fittings from inside the appliance
and door shelves.
3.Unscrew the bolts and remove the
upper and bottom hinges from the
cabinet and door.(1) (2)
4.Remove stoppers. (3) (4)
5.Fit the stoppers on the opposite side.
(5) (6)
6.Reposition the upper hinge on the
opposite side as bottom hinge (7)
7.Reposition the bottom hinge on the
opposite side as upper hinge. (8)
Locate the door and tighten the
bolts fixing the door.

EN
11

EN
12

EN
13

EN
14

EN
15

EN
16
4 Before operating
Starting
Final Check
Before you start using the
refrigerator check that:
1. The front feet have been adjusted
so the appliance is level.
2. The interior is dry and air can
circulate freely at the rear.
3. Clean the interior as recommended
under “CLEANING AND CARE.”
4. Insert the plug into the wall socket
and switch on the electricity supply.
Avoid accidental disconnection by
taping over the switch. Green light
will glow and the compressor will
start running in about five minutes.
5. You will hear a noise as the
compressor starts up. The liquid
and gases sealed within the
refrigeration system may also
give rise to noise, whether the
compressor is running or not which
is quite normal.
6. We recommend that you set the
thermostat halfway between Min.
and Max. (See section Temperature
Control and Adjustment).
7. Do not load the appliance
immediately it is switched on.
Wait until the correct storage
temperature has been reached.
We recommend that you check
the temperature with an accurate
thermometer (see; Temperature
Control and Adjustment)
8. If there is a power failure do not
open the door. Frozen food should
not be affected if the failure lasts
for less than 11 hours. If the failure
is longer, then the food should
be checked and either eaten
immediately or cooked and then
re-frozen.
9. If you find the freezer door difficult
to open just after you have closed
it, don’t worry. This is due to the
pressure difference which will
equalise and allow the door to open
normally after a few moments.
10. You will hear a vacuum sound just
after closing the door. This is quite
normal.
11. When you switch on, the appliance
will not start immediately, because
the appliance incorporates a
protection device in the electronics -
wait for about 5 minutes.

EN
17
5Using your refrigerator
4 5 6 1 2 3
LED indicators and control
panel
LED indicators in the front section of
your refrigerator are intended to help
you in monitoring the operation of
your appliance.
Keep your food in the refrigerator in a
safe manner by monitoring and using
these LEDs and controls as explained
below:
Fast Freeze Button (4): Used to
freeze the food quickly. Compressor
may not operate immediately but
after some time when the button is
pressed and this is quite normal.
Thermostat Setting Button (5):
Used to set your refrigerator between
minimum and maximum values.
Temperature Indicator (6): Displays
the inner temperature of your
refrigerator.
Orange LED (1): Lights up when the
fast freeze button on the LED panel is
pressed. In this case, your refrigerator
operates continuously.
Press the button again when the
food you would like to fast freeze
comes to the desired temperature and
the orange LED will turn off.
Green LED (2): Lights up continuously
after plugging in your refrigerator.
Red LED (3): It warns user by lighting
up continuously when there is not
enough cooling in the refrigerator,
when the door remains open for a
long time and when excessive food is
loaded.
If the red LED lights up continuously
when the conditions stated in the
adjacent column do not exist, then call
Service.

EN
18
Freezing Fresh Food
Freezing capacity of your appliance
in a 24 hours period is 10 kg (22 lb).
Never exceed this maximum capacity.
If large amounts of fresh food is
going to be frozen, press the fast
freeze button ideally 8 hrs. before
putting the fresh food in the freezer.
It is strongly recommended to leave
fast freeze button on for 24 hrs. to
freeze the maximum amount of fresh
food declared as the freezing capacity.
When fast freeze button is on -27 °C
will flash for 5 seconds on display.
Do not freeze too large a quantity at
any one time.
You may place fresh food to be frozen
in any part of the freezer.
Do not close air flow channels while
loading.
Temperature Setting
The interior temperature of your
refrigerator changes for the following
reasons;
•Seasonaltemperatures,
•Frequentopeningofthedoorand
leaving the door open for long periods,
• Food put into the refrigerator
without cooling down to the room
temperature,
• The location of the refrigerator in
the room (e.g. exposing to sunlight).
You may adjust the varying interior
temperature due to such reasons by
using the thermostat. If the ambient
temperature is higher than 30°C, turn
the thermostat button to maximum
position.

EN
19
Storing Frozen Food
Prepacked commercially frozen
food should be stored in accordance
with the frozen food manufacturer's
instructions for a frozen food
storage compartment.
To ensure that the high quality
achieved by the frozen food
manufacturer and the food retailer is
maintained the following should be
remembered:
1. Put packets in the freezer as
quickly as possible after purchase.
2. Do not exceed "Use By", "Best
Before" dates on the packaging.
Making Ice Cubes
Fill the ice-cube tray 3/4 full with
water and place it on the special Ice
Bank.Store ice-cubes in the Ice Bank.
Defrosting
Theappliancedefrosts automatically.
The defrost water drains into a plastic
reservoir at the back of the appliance
and evaporates automatically.
Ensure that the reservoir is fixed
properly above the compressor.
