Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the user
manual as well.
The user manual will help you use the product in a fast and safe way.
 Read the manual before installing and operating the product.
 Make sure you read the safety instructions.
 Keep the manual in an easily accessible place as you may need it later.
 Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
CONTENTS
1 Your Refrigerator 3
2 Important Safety
Warnings 4
Intended use .....................................4
For products with a water dispenser;.6
Child safety........................................6
Compliance with WEEE Directive and
Disposing of the Waste Product: .......7
Compliance with RoHS Directive: .....7
Package information..........................7
HCA Warning ....................................7
Things to be done for energy saving ..7
Recommendations for the fresh food
compartment.....................................9
3 Installation 10
Points to be paid attention to when the
relocation of the refrigerator .............10
Electrical connection........................10
Disposing of the packaging .............11
Disposing of your old refrigerator .....11
Placing and Installation ....................11
Adjusting the legs ............................12
Changing the illumination lamp .......12
4 Preparation 13
5Using your refrigerator
Indicator Panel 14
Door Open Warning.........................20
Dual cooling system: .......................20
Freezing fresh food ..........................20
Recommendations for preservation of
frozen food ......................................21
Defrosting........................................21
Placing the food ..............................21
Deep-freeze information ..................22
Odour filter ......................................22
Egg section .....................................22
Blue light/HarvestFresh....................23
Water Dispenser ..............................24
Rotary storage container .................26
Sliding storage container .................26
Ice making.......................................27
Humidity Controlled Crisper.............27
(FreSHelf).........................................27
Movable Body shelf: ........................28
6 Maintenance and
cleaning 29
Protection of plastic surfaces ..........29
7 Troubleshooting 30

EN
3
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included
in the product you have purchased, then it is valid for other models.
1Your Refrigerator
1. Egg holder
2. *Door shelves
3. *Sliding and Rotary storage containers
4. Adjustable legs
5. Freezer compartment drawers
6. *Snack compartment/ Crisper
7. Crisper
8. *Blue light/Harvest fresh
9. *Adjustable glass shelves
10. *Bottle shelf
11. *Movable body shelf
12. Fan
13. Fridge compartment
14. Freezer compartment
*optional
1
12
13
14
4
5
*6
7
*8
*9
*10
*11
*2
*3

EN
4
2Important Safety Warnings
Pleasereviewthe followinginformation.
Failure to observe this information may
cause injuries or material damage.
Otherwise, all warranty and reliability
commitments will become invalid.
Original spare parts will be provided
for 10 years, following the product
purchasing date.
Intended use
– WARNING: Keep ventilation
openings, in the appliance
enclosure or in the built-in
structure, clear of obstruction.
– WARNING: Do not use mechanical
devices or other means to
accelerate the defrosting
process, other than those recommended
by the manufacturer.
– WARNING: Do not damage
the refrigerant circuit.
This warning is only applicable to
appliances with refrigerating circuits
which are accessible to the
user.
– WARNING: Do not use electrical
appliances inside the food
storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
This appliance is intended to be
used in household and similar
applications such as
– staff kitchen areas in shops, offices
and other working environments;
– farm houses and by clients
in hotels, motels and other
residential type environments;
– bed and breakfast type environments;
– catering and similar non-
retail applications.
General safety
 
the product, we recommend you
to consult the authorized service
in order to learn the required
information and authorized bodies.
 
all your questions and problems
related to the refrigerator. Do not
intervene or let someone intervene
to the refrigerator without notifying
the authorised services.
 
compartment; Do not eat cone ice
cream and ice cubes immediately
after you take them out of the
freezer compartment! (This may
cause frostbite in your mouth.)
 
compartment; Do not put bottled
and canned liquid beverages
in the freezer compartment.
Otherwise, these may burst.
 
they may stick to your hand.
 
cleaning or defrosting.

materials should never be used in
cleaning and defrosting processes
of your refrigerator. In such cases,
the vapor may get in contact with
the electrical parts and cause
short circuit or electric shock.
 
refrigerator such as the door as
a means of support or step.

EN
5
 
inside the refrigerator.
 
the refrigerant is circulating, with
drilling or cutting tools. The refrigerant
that might blow out when the
gas channels of the evaporator,
pipe extensions or surface
coatings are punctured causes
skin irritations and eye injuries.
 
ventilation holes on your
refrigerator with any material.
 
by only authorised persons.
Repairs performed by incompetent
persons create a risk for the user.
 
a maintenance or repair work,
disconnect your refrigerator’s mains
supply by either turning off the relevant
fuse or unplugging your appliance.
 
when pulling off the plug.
 Ensure highly alcoholic beverages
are stored securely with the lid
fastened and placed upright.
 
flammable and explosive
substances in the refrigerator.
 
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
 
used by persons with physical,
sensory or mental disorders
or unlearned or inexperienced
people (including children) unless
they are attended by a person
who will be responsible for their
safety or who will instruct them
accordingly for use of the product
 
refrigerator. Consult with the service
agent if you have any concerns.
 
shall be guaranteed only if the
earth system in your house
complies with standards.
 
snow, sun and wind is dangerous
with respect to electrical safety.
 
when there is a power cable
damage to avoid danger.
 
the wall outlet during installation.
Otherwise, risk of death or
serious injury may arise.
 
only storing food items. It must not
be used for any other purpose.
 
is located on the left wall
inside the refrigerator.
 
to electricity-saving systems; they
may damage the refrigerator.
 
refrigerator, do not look at the
blue light with optical tools.

wait for at least 5 minutes to start
the refrigerator after power failure.

handed in to the new owner of the
product when it is given to others.
 
cable when transporting the
refrigerator. Bending cable may
cause fire. Never place heavy

EN
6
objects on power cable. Do not
touch the plug with wet hands
when plugging the product.
 
if the wall outlet is loose.
 
directly on inner or outer parts of
the product for safety purposes.
 
inflammable gases such as
propane gas near the refrigerator
to avoid fire and explosion risk.
 
with water on top of the
refrigerator, otherwise this may
cause electric shock or fire.

with excessive amounts of food. If
overloaded, the food items may fall
down and hurt you and damage
refrigerator when you open the
door. Never place objects on top
of the refrigerator; otherwise, these
objects may fall down when you
open or close the refrigerator’s door.

vaccines, heat-sensitive medicine
and scientific materials and etc.
should not be kept in the refrigerator.

time, refrigerator should be
unplugged. A possible problem
in power cable may cause fire.
 
legs are not properly secured
on the floor. Properly securing
adjustable legs on the floor can
prevent the refrigerator to move.
 
do not hold it from door handle.
Otherwise, it may be snapped.
 
next to another refrigerator or freezer,
the distance between devices should
be at least 8cm. Otherwise, adjacent
side walls may be humidified.
For products with a water
dispenser;
Pressure of water mains should be
minimum 1 bar. Pressure of water
mains should be maximum 8 bars.
 
Child safety

be kept away from reach of children.
 
prevent them from tampering
with the product.

EN
7
Compliance with WEEE
Directive and Disposing of
the Waste Product:


product bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).This product has
been manufactured with
high quality parts and
materials which can be reused and are
suitable for recycling. Do not dispose of
the waste product with normal domestic
and other wastes at the end of its
service life. Take it to the collection
center for the recycling of electrical and
electronic equipment. Please consult
your local authorities to learn about
these collection centers.
Compliance with RoHS
Directive:
The product you have purchased
    
    
harmful and prohibited materials
specified in the Directive.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
HCA Warning
If your product’s cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the product
catch a fire and ventilate the room in
which the unit is placed.
Ignore this warning if your
product’s cooling system contains
R134a.
Type of gas used in the product is
stated in the type plate which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
 
very frequently and do not leave the
doors open for a long time. When
doors are open, warm air enters
the fridge/freezer cabinets and the
appliance consumes more energy
to cool down the foodstuffs.Thus
please do not open doors frequently
in order to save energy and to keep
foods at ideal storage temperature.
 
by placing foods in front.

EN
8
 
in your refrigerator.
 
so that the air circulation
inside is not prevented.
 
under direct sunlight or near
heat emitting appliances such as
ovens, dishwashers or radiators.
 
food in closed containers.
 
compartment will both provide energy
saving and preserve the food quality.
 
cold packs (pcm) at recommended
places below when storing foodstuffs
in freezer compartments.
It helps to keep your foodstuffs colder
for more time when electricity is off
or your appliance is unplugged.
 
freshfood compartment, please
activate vacation mode for energy
saving. Freezer compartment
keeps frezing normalıy
when vacation mode is on.
 
settings are +4°C and -18°C
for freshfood and freezer
compartments respectively.
 
the freezer compartment of your
refrigerator, the upper drawer has to
be removed and placed on top of wire
rack. Power consumption stated for
your refrigerator has been determined
after removing the icebox, ice tray and
upper drawer as to allow maximum

loading is highly recommended.
 

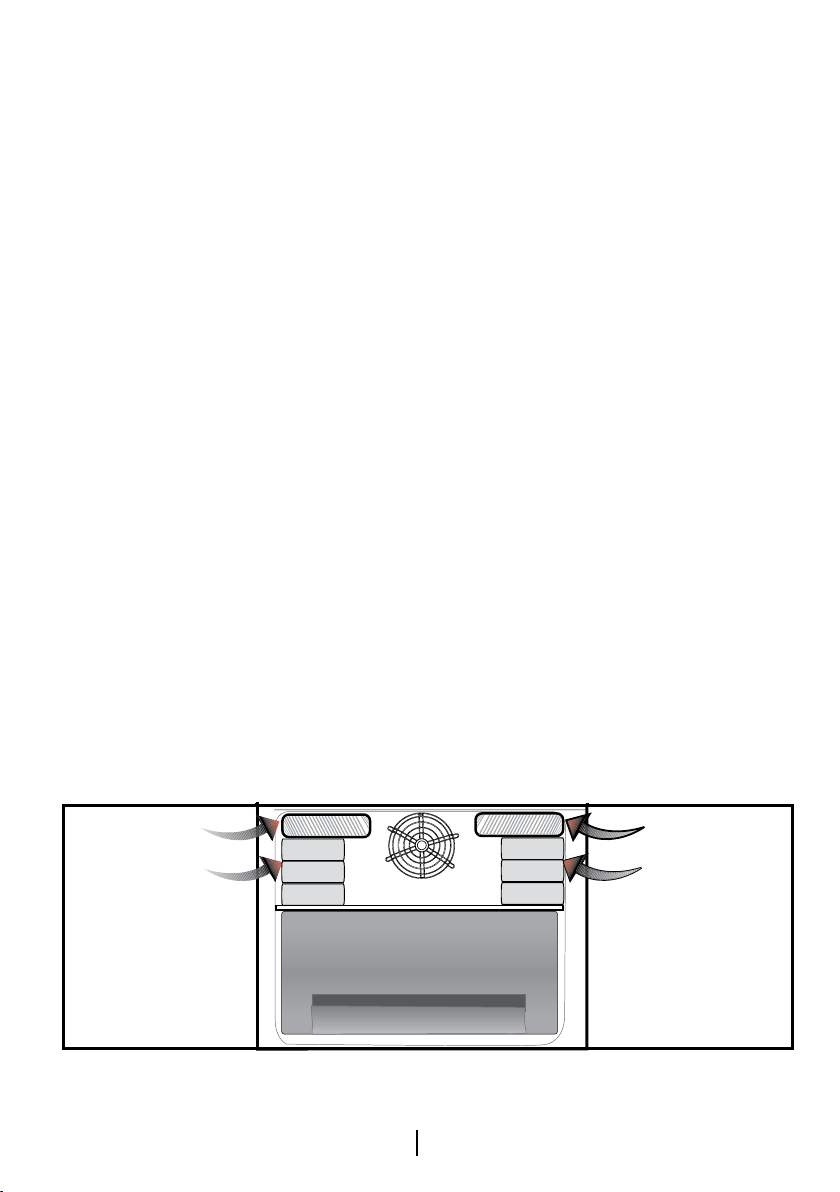

by placing foods in front of the
freezer compartment fan. Foods
should be loaded by leaving
minimum 5 cm space in front
of the protective fan grid.
cold pack
foodstuffs
foodstuffs
cold pack

EN
9
Recommendations for the
fresh food compartment
*May not be available in all models
Do not allow the food to touch the
temperature sensor in fresh food
compartment. To allow the fresh food
compartment keep its ideal storage
temperature, sensor must not be
hindered by food.
Do not place hot foods in the
product.

EN
10
3Installation
BIn case the information which are
given in the user manual are not
taken into account, manufacturer
will not assume any liability for this.
Points to be paid attention
to when the relocation of the
refrigerator
1. Your refrigerator should be
unplugged.Before transportation of
your refrigerator, it should be emptied
and cleaned.
2. Before it is re-packaged,
shelves, accessories, crisper, etc.
inside your refrigerator should be
fixed with adhesive tape and secured
against impacts. Package should
be bound with a thick tape or sound
ropes and the transportation rules
on the package should be strictly
observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the refrigerator,
Check the following before you
start to use your refrigerator:
4. Clean the interior of the
refrigerator as recommended in the
“Maintenance and cleaning” section.
5. Connect the plug of the
refrigerator to the wall socket. When
the fridge door is opened, fridge
internal lamp will turn on.
6. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is not
running and this is quite normal.
7. Front edges of the refrigerator
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
 The power plug must be easily
accessible after installation.
 Electrical safety of your refrigerator
shall be guaranteed only if the
earth system in your house
complies with standards.
 The voltage stated on the label
located at left inner side of
your product should be equal
to your network voltage.
 Extension cables and multi plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated
before it is repaired! There is
the risk of electric shock!

EN
11
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions stated by your local
authorities. Do not throw away with
regular house waste, throw away on
packaging pick up spots designated by
the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
 You may consult your authorized
dealer or waste collection center
of your municipality about the
disposal of your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the doors
of your refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a
place that allows ease of use.
2. Keep your refrigerator away
from heat sources, humid places and
direct sunlight.
3. Your product requires adequate
air circulation to function efficiently. If
the product will be placed in an alcove,
remember to leave at least 5 cm
clearance between the product and
the ceiling, rear wall and the side walls.
4. If the product will be placed in
an alcove, remember to leave at least
5 cm clearance between the product
and the ceiling, rear wall and the side
walls. Check if the rear wall clearance
protection component is present at its
location (if provided with the product).
If the component is not available, or if
it is lost or fallen, position the product
so that at least 5 cm clearance shall
be left between the rear surface of the
product and the wall of the room. The
clearance at the rear is important for
efficient operation of the product.
5. Do not place your product on
the materials such as rug or carpet.
6. Place your refrigerator on an
even floor surface to prevent jolts.

EN
12
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning its front legs as illustrated in the
figure. The corner where the leg exists is
lowered when you turn in the direction
of black arrow and raised when you
turn in the opposite direction. Taking
help from someone to slightly lift the
refrigerator will facilitate this process.
Changing the illumination
lamp
     
illumination of your refrigerator, call your
AuthorisedService.
The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose of
this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer in
a safe and comfortable way.The lamps
used in this appliance have to withstand
extreme physical conditions such as
temperatures below -20 °C.
(only chest and upright freezer)

EN
13
4Preparation
 Your refrigerator should be instal-
led at least 30 cm away from heat
sources such as hobs, ovens, cent-
ral heater and stoves and at least
5 cm away from electrical ovens
and should not be located under
direct sunlight.
 The ambient temperature of the
room where you install your ref-
rigerator should at least be 10°C.
Operating your refrigerator under
cooler conditions is not recom-
mended with regard to its effici-
ency.
 Please make sure that the interior
of your refrigerator is cleaned tho-
roughly.
 If two refrigerators are to be ins-
talled side by side, there should
be at least 2 cm distance between
them.
 When you operate your refrige-
rator for the first time, please
observe the following instructions
during the initial six hours.
 The door should not be opened
frequently.
 It must be operated empty witho-
ut any food in it.
 Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for
the problems” section.
 Original packaging and foam ma-
terials should be kept for future
transportations or moving.
 The baskets/drawers that are pro-
vided with the chill compartment
must always be in use for low
energy consumption and for bet-
ter storage conditions.
 Food contact with the temperatu-
re sensor in the freezer compart-
ment may increase energy con-
sumption of the appliance. Thus
any contact with the sensor(s)
must be avoided.
 In some models, the instrument
panel automatically turns off 5 mi-
nutes after the door has closed. It
will be reactivated when the door
has opened or pressed on any key.
 Due to temperature change as
a result of opening/closing the
product door during operation,
condensation on the door/body
shelves and the glass containers is
normal
 Since hot and humid air will not di-
rectly penetrate into your product
when the doors are not opened,
your product will optimize itself
in conditions sufficient to protect
your food. In this energy saving
function, functions and compo-
nents such as compressor, fan,
heater, defrost, lighting, display
and so on will operate according
to the needs to consume minimum
energy while maintaining the
freshness of your foodstuff.

EN
14
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included
in the product you have purchased, then it is valid for other models.
5 Using your refrigerator Indicator Panel
Indicator panels may vary depending on your product’s model.
Indicator panel aids in using your refrigerator with its audio and visual functions.
1 7 3
45*62
1. Freezer Compartment
Tem p era t ure In d ica tor
2. Error Status Indicator
3. Fridge Compartment
Tem p era t ure In d ica tor
4. Fridge Compartment
Tem p era t ure Se t tin g But t on
5. Economy Mode Indicator
6. Ioniser Indicator
7. Freezer Compartment
Tem p era t ure Se t tin g But t on

EN
15
1. Freezer Compartment
Temperature Indicator
It indicates the temperature set for
Freezer compartment.
2. Error Status Indicator
If your refrigerator does not cool
adequately or if there is a sensor
failure, this indicator will be activated.
When this indicator is active, Freezer
Compartment Temperature indicator
will display "e" and Fridge Compartment
Temperature Indicator will display
numbers such as "1,2,3…". These
numbers on the indicator provides
information about the error to the
service personnel.
3. Fridge Compartment
Temperature Indicator
Indicates the temperature set for
Fridge compartment.
4. Fridge Compartment
Temperature Setting Button
Press this button to set the
temperature of the fridge compartment
to 8, 6, 4, 2, 8... respectively. Press this
button to set the desired temperature
for the fridge compartment.
5. Economy Mode Indicator
Indicates that the refrigerator is
running in energy-efficient mode.
6. Ioniser Indicator
Indicator light lights up continuously.
This light indicates that your refrigerator
is protected against the bacteria.
7. Freezer Compartment
Temperature Setting Button
Press this button to set the temperature
of the freezer compartment to -18, -20,
-22, -24, -18... respectively. Press this
button to set the desired temperature
for the freezer compartment.

EN
16
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included
in the product you have purchased, then it is valid for other models.
* OPTIONAL
15
14
1
2
3
4
5
13
12
11
10
9
7
6
8
1. Fridge compartment setting button
2. Freezer compartment setting
/ Icematic on-off button
3. Error status indicator
4. Key lock indicator
5. Eco Extra Function indicator
6. 
7. 
8. Energy saving function (display off)
9. Economic usage indicator
10. Quick fridge function indicator
11. Quick fridge function button
12. Fridge compartment temperature
setting indicator
13. Quick freeze function button
14. Freezer compartment
temperature setting indicator
15. Quick freeze function indicator

EN
17
* OPTIONAL
15
14
1
2
3
4
5
13
12
11
10
9
7
6
8
1. Fridge Compartment Setting
Button
This function allows you to make
the fridge compartment temperature
setting. Press this button to set the
temperature of the fridge compartment
to 8, 6, 4, 2 respectively.
2. Freezer Compartment Setting /
Icematic On-Off Button
This function allows you to make
the freezer compartment temperature
setting. Press this button to set
the temperature of the freezer
compartment to -18, -20, -22 and -24
respectively.
To stop ice formation, press Icematic
on-off button for 3 seconds. Water
flow from water tank will stop when
this function is selected. However, ice
made previously can be taken from
the Icematic. To restart ice formation,
press Icematic on-off button for 3
seconds.
3. Error Status Indicator
If your refrigerator does not cool
adequately or if there is a sensor
failure, this indicator will be activated.
When this indicator is active,
Freezer Compartment Temperature
indicator will display "E" and Fridge
Compartment Temperature Indicator
will display numbers such as "1,2,3…".
These numbers on the indicator
provides information about the error to
the service personnel.
When you place hot food into the
freezer compartment or if you leave the
door open for a long time, exclamation
mark can illuminate for some time.
This is not a failure; this warning will
disappear when the food cools down.
4. Key Lock Indicator

want your refrigerator temperature
setting changed. Press Fridge
compartment setting button and
Freezer compartment setting button
simultaneously for a long time (3 sec)
to activate this function.
5. Eco Extra Function Indicator
It indicates that the Eco-Extra
function is active.
If this function is active, your
refrigerator will automatically detect
the least usage periods and energy-
efficient cooling will be performed
during those times. Economy indicator
will be active while energy-efficient
cooling is performed.
Press the relevant button again to
deactivate this function.
6. Eco Extra/Vacation Button
Press this button briefly to activate
the Eco Extra function. Press and hold
this button for 3 sec. to activate the

again to deactivate the selected
function.
7. Vacation Function Indicator
Indicates that the vacation function
is active. If this function is active,
"- -" appears on the indicator of the
fridge compartment and no cooling is
performed in the fridge compartment.
Other compartments will be cooled in
accordance with the temperature set
for them.
Press the relevant button again to
deactivate this function.

EN
18
8. Energy saving function (display
off)
If the product doors are kept closed
for a long time energy saving function
is automatically activated and energy
saving symbol is illuminated.When
energy saving function is activated,
all symbols on the display other than
energy saving symbol will turn off. When
the Energy Saving function is activated,
if any button is pressed or the door is
opened, energy saving function will be
canceled and the symbols on display
will return to normal.
Energy saving function is activated
during delivery from factory and cannot
be canceled.
9. Economy Mode Indicator
Indicates that the refrigerator is
running in energy-efficient mode.
Freezer Compartment temperature
This indicator will be active if the
function is set to -18 or the energy
efficient cooling is being performed
due to Eco-Extra function.
10. Quick Fridge Indicator
This icon flashes in an animated style
when the Quick Fridge function is
active.
11. Quick Fridge Function
When you press the Quick Fridge
button, the temperature of the
compartment will be colder than the
adjusted values.
This function can be used for food
placed in the fridge compartment and
required to be cooled down rapidly.
If you want to cool large amounts of
fresh food, it is recommended to active
this feature before putting the food into
the fridge.
Quick Fridge indicator turns on when
the Quick Fridge function is on. To
cancel this function press Quick Fridge
button again.
If you do not cancel it, Quick Fridge
will cancel itself automatically after 4
hours or when the fridge compartment
reaches to the required temperature.
This function is not recalled when
power restores after a power failure.
12. Fridge Compartment
Temperature Setting Indicator
Indicates the temperature set for the
Fridge Compartment.
13. Freezer Compartment
Temperature Setting Indicator
Indicates the temperature set for the
Freezer Compartment.
14. Quick Freeze Function
Quick Freeze indicator turns on when
the Quick Freeze function is active. To
cancel this function press Quick Freeze
button again. Quick Freeze indicator
will turn off and return to its normal
settings. If you do not cancel it, Quick
Freeze will cancel itself automatically
after 8 hours or when the freezer
compartment reaches to the required
temperature.
If you want to freeze large amounts
of fresh food, press the Quick Freeze
button before putting the food into the
freezer compartment.
If you press the Quick Freeze button
repeatedly with short intervals, the
electronic circuit protection will be
activated and the compressor will not
start up immediately.
This function is not recalled when
power restores after a power failure.

EN
19
15. Quick Freeze Indicator
This icon flashes in an animated style
when the Quick Freeze function is
active.
cold pack
foodstuffs
foodstuffs
cold pack
