Beko CSA38220D User manual

CSA38220D
GB Instruction for use
CZ Pokyny pro používání
SK Návod na použitie
PL Instrukcja Obsługi
LV Lietošanas instrukcija

WARNING!
In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally
friendly refrigerant the R600a (flammable only under certain conditions) you must observe the folloving rules:
Do not hinder the free circulation of the air around the appliance.
Do not use mechanic devices in order to accelerate the defrosting, others than the ones recommended by the
manufacturer.
Do not destroy the refrigerating circuit.
Do not use electric appliances inside the food beeping compartment, others than those that might have been
reccommended by the manufacturer.
UPOZORNĚNÍ!
Aby byl zajištěn normální provoz vaší chladničky, která používá pro životní prostředí zcela neškodné chladicí
médium R600a (vznětlivé pouze za určitých podmínek), musíte dodržet následující pravidla:
Nebraňte ve volné cirkulaci vzduchu kolem přístroje.
Nepoužívejte mechanická zařízení pro zrychlení odmražení kromětěch, která jsou doporučená výrobcem.
Nelikvidujte chladicí okruh.
Nepoužívejte elektrické spotřebiče uvnitřprostoru pro potraviny kromětěch, která by mohl doporučit výrobce.
VAROVANIE!
Aby sa zabezpečila normálna prevádzka vašej chladničky, ktorá používa úplne ekologicky nezávadné chladivo
R600a (horľavé len pri určitých podmienkach), musíte dodržiavaťnasledujúce pravidlá:
Nebráňte voľnej cirkulácii vzduchu okolo spotrebiča.
Nepoužívajte mechanické prístroje na urýchľovanie rozmrazovacieho procesu, iné ako odporúča výrobca.
Neporušujte chladiaci okruh.
Nepoužívajte elektrické spotrebiče vo vnútri pípacieho priestoru potravín, iné ako tie, ktoré odporúčal výrobca.
UWAGA!
Aby zapewnićnormalnąpracętej, wykorzystującej całkowicie przyjazny środowisku (łatwopalny tylko w pewnych
warunkach) środek chłodniczyR600,chłodziarko-zamrażarki, należyprzestrzegaćnastępującychzasad:
Nienależyblokowaćswobodnego przepływupowietrzawokółchłodziarko-zamrażarki.
W celu przyśpieszenia rozmrażania nie należy używaćżadnych innych urządzeńmechanicznych niżzalecane przez
producenta.
Niewolnouszkodzićobwodu chłodniczego.
Wewnątrz komoryprzechowywania żywnościnie należyużywaćżadnychinnychurządzeńelektrycznychniżewentualnie
zalecanych przezproducenta.
UZMANĪBU!
Lai garantētu jūsu sasaldēšanas iekārtas (kura izmanto viedei nekaitīgu dzesēšanas vielu R600a - uzliesmojošs
tikai pie noteiktiem apstākļiem), ir nepieciešams ievērot sekojošo:
Netrauciet gaisa cirkulācijai ap iekārtu.
Neizmantojiet nekādas mehāniskās iekārtas atkausēšanas paātrināšanai.
Nesabojājiet dzesēšanas ķēdi.
Nodalījumāpārtikas produktu glabāšanai neizmantojiet nekādas mehāniskās iekārtas, ja ražotājs to neiesaka.

Safety first /1
Electrical requirements /2
Transportation instructions /2
Installation instructions /2
Getting to know your appliance /3
Suggested arrangement of food in the appliance /3
Temperature control and adjustment /4
Before operating /4
Storing frozen food /4
Freezing fresh food /4
Water dispenser /5
Making ice cubes /7
Defrosting /7
Replacing the interior light bulb /7
Cleaning and care /7
Repositioning the door /8
Do’s and don’ts /8
Information about operating noises /9
Trouble – shooting /9
Thechnical data /10
Bezpečnost především /11
Elektrické požadavky /12
Pokyny pro transport /12
Pokyny pro instalaci /12
Seznámení s vaším spotřebičem /13
Doporučené rozložení potravin ve spotřebiči /13
Kontrola a nastavení teploty /14
Před spuštěním /14
Ukládání zmrzlých potravin /14
Mražení čerstvých potravin /14
Nádržka na vodu /15
Tvorba kostek ledu /17
Odmrazování /17
Výměna vnitřní žárovky /17
Čištění a péče /17
Změna pozice dvířek /18
Co dělat a co nedělat /18
Informace o provozních hlucích /19
Odstraňování potíží /19
Technická data /20
Bezpečnosťnadovšetko /21
Elektrické požiadavky /22
Prepravné pokyny /22
Inštalačné pokyny /22
Poznávanie spotrebiča /23
Navrhnuté rozmiestnenie potravín v spotrebiči /23
Riadenie a nastavenie teploty /24
Pred uvedením do prevádzky /24
Skladovanie zmrazených potravín /24
Mrazenie čerstvých potravín /24
Dávkovačvody /25
Tvorba kociek ľadu /27
Rozmrazovanie /27
Výmena žiarovky vnútorného svetla /27
Čistenie a údržba /27
Premiestňovanie dverí /28
Čo sa má a čo sa nesmie robiť/28
Informácie o prevádzkovom hluku /29
Riešenie problémov /29
Technické údaje /30
GB
Index
SK
Index
CZ
Obsah
Bezpieczeństwo przede wszystkim /31
Podłączenie do zasilania /32
Instrukcja transportu i ustawienia /32
Montaż/32
Zapoznaj sięz Twoim urządzeniem /33
Porady dotyczące przechowywania żywności /33
Regulacja temperatury /34
Uruchamianie /34
Porady dotyczące przechowywania zamrożonej
żywności /34
Mrożenie świeżej żywności /35
Jak robićkostki lodu /35
Odmrażanie /35
Dozownik wody /36
Wymiana żarówki /38
Czyszczenie urządzenia /38
Zmiana kierunku otwierania drzwi /38
Środki ostrożności w trakcie użytkowania /38
Dźwięki wydawane podczas pracy /39
Usuwanie usterek /39
Odzysk opakowania /40
Odzysk starego urządzenia chłodniczego /40
Charakterystyka techniczna /41
Tabliczka znamionowa /41
Drošības norādījumi! /42
Elektriskās prasības /43
Transportēšana /43
Uzstādīšana /43
Apraksts /44
Pārtikas produktu izvietošana /44
Temperatūras regulēšana /44
Pirms ekspluatācijas /44
Sasaldētu produktu glabāšana /44
Sasaldēšana /44
Ledus kubiņu gatavošana /44
Ūdens automāts /45
Tirīšana un apkalpošana /47
Traucējumu meklēšana /47
Tehniskais apraksts /47
PL
Spis treści
LV
Saturs

1

2
3
4
9
5
6
7
8
10

11

Congratulations on your choice of a Quality
Appliance, designed to give you many years of service.
Safety first!
Do not connect your appliance to the electricity supply
until all packing and transit protectors have been
removed.
• Leave to stand for at least 4 hours before switching
on, to allow compressor oil to settle, if transported
horizontally.
• If you are discarding an old appliance with a lock or
latch fitted to the door, ensure that it is left in a safe
condition to prevent the entrapment of children.
• This appliance must only be used for its intended
purpose.
• Do not dispose of the appliance on a fire. Your
appliance contains non CFC substances in the
insulation which are flammable. We suggest you
contact your local authority for information on disposal
and available facilities.
• We do not recommend use of this appliance in an
unheated, cold room. (e.g. garage, conservatory,
annex, shed, out-house etc.)
To obtain the best possible performance and trouble
free operation from your appliance it is very important to
read these instructions carefully. Failure to observe
these instructions may invalidate your right to free
service during the guarantee period.
Please keep these instructions in a safe place for easy
reference.
GB Instruction for use
1
This appliance is not intended for use by person wit
h reduced physical, sensory or mental
capabilities or lack of experience and knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

GB Instruction for use
Electrical requirements
Before inserting the plug into the wall socket
make sure that the voltage and the frequency
shown in the rating plate inside the appliance
corresponds to your electricity supply.
We recommend that this appliance is
connected to the mains supply via a suitably
switched and fused socket in a readily
accessible position.
Warning! This appliance must be earthed.
Repairs to electrical equipment should only be
performed by a qualified technician. Incorrect
repairs carried out by an unqualified person
are carry risks that may have critical
consequences for the user of the appliance.
ATTENTION!
This appliance operates with R600a which is
an environmental friendly but flammable gas.
During the transportation and fixing of the
product, care must be taken not to damage
the cooling system. If the cooling system is
damaged and there is a gas leakage from the
system, keep the product away from open
flame sources and ventilate the room for a
while.
WARNING - Do not use mechanical devices
or other means to accelerate the defrosting
process, others than those recommended by
the manufacturer.
WARNING - Do not damage the refrigerant
circuit.
WARNING - Do not use electrical appliances
inside the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
Transportation instructions
1. The appliance should be transported only in
an upright position. The packing as supplied
must be intact during transportation.
2. If during the transport the appliance, has
been positioned horizontally, it must not be
operated for at least 4 hours, to allow the
system to settle.
3. Failure to comply with the above
instructions could result in damage to the
appliance, for which the manufacturer will not
be held liable.
4. The appliance must be protected against
rain, moisture and other atmospheric
influences.
Important!
• Care must be taken while cleaning/carrying
the appliance not to touch the bottom of the
condenser metal wires at the back of the
appliance, as this could caus
e injury to fingers
and hands.
• Do not attempt to sit or stand on top of your
appliance as it is not designed for such use.
You could injure yourself or damage the
appliance.
• Make sure that the mains cable is not caught
under the appliance during and after moving,
as this could damage the cable.
• Do not allow children to play with the
appliance or tamper with the controls.
Installation instructions
1. Do not keep your appliance in a room
where the temperature is likely to fall below 10
degrees C (50 degrees F) at night and/or
especially in winter, as it is designed to
operate in ambient temperatures between +10
and +32 degrees C (50 and 90 degrees F). At
lower temperatures the appliance may not
operate, resulting in a reduction in the storage
life of the food.
2. Do not place the appliance near cookers or
radiators or in direct sunlight, as this will
cause extra strain on the appliance's
functions. If installed next to a source of heat
or freezer, maintain the following minimum
side clearances:
From Cookers 30 mm
From Radiators 300 mm
From Freezers 25 mm

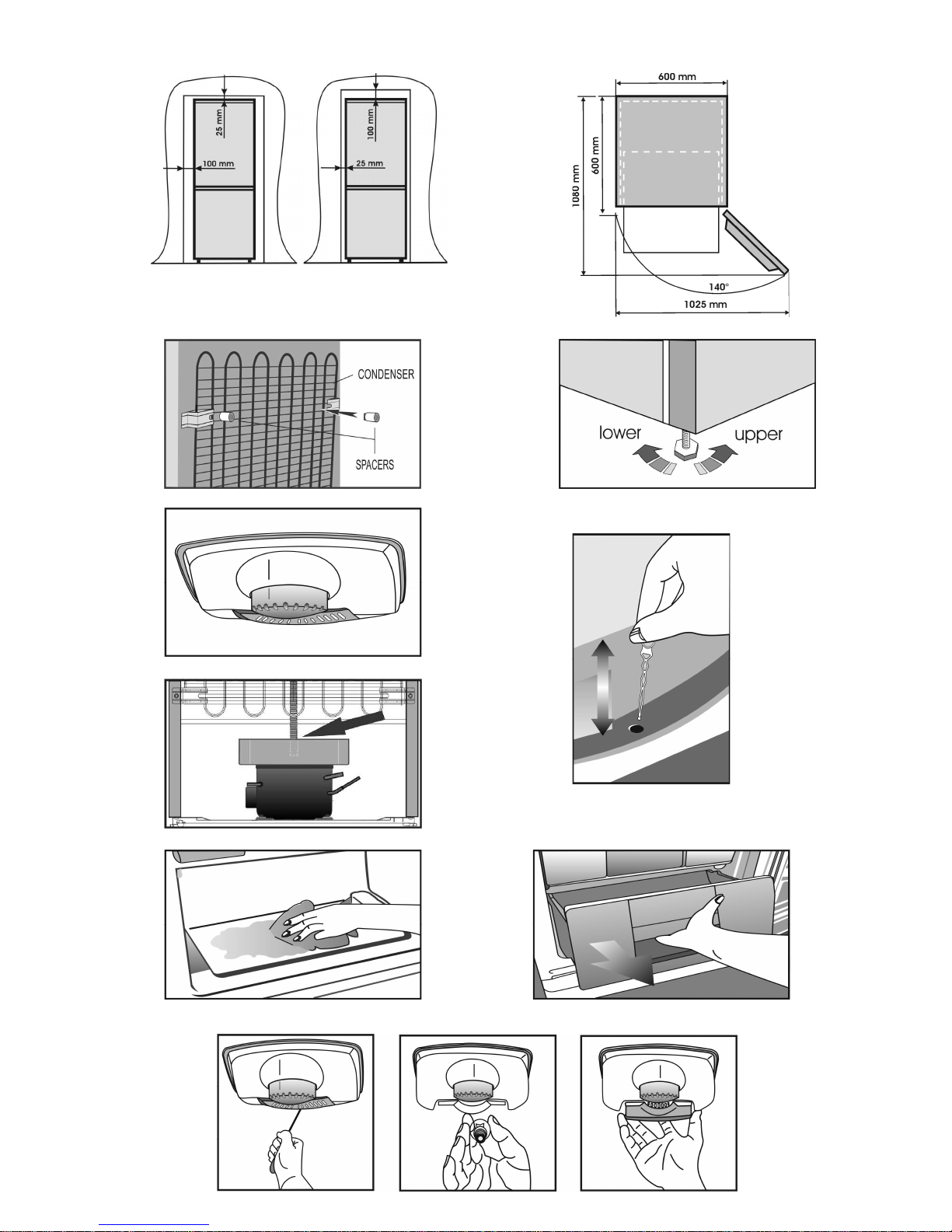

3. Make sure that sufficient room is provided
around the appliance to ensure free air
circulation (Item 2).
• Put the back airing lid to the back of your
refrigerator to set the distance between the
refrigerator and the wall (Item 3).
2

GB Instruction for use
4. The appliance should be positioned on a
smooth surface. The two front feet can be
adjusted as required.To ensure that your
appliance is standing upright adjust the two
front feet by turning clockwise or anti-
clockwise, until firm contact is secured with
the floor. Correct adjustment of feet prevents
excessive vibration and noise (Item 4).
5. Refer to "Cleaning and Care" section to
prepare your appliance for use.
Getting to know your appliance
(Item 1)
1 - Thermostat and lamp housing
2-Wine bottlessupport
3 - Adjustable Cabinet shelves
4 - Water collector
5 - Crisper cover
6 - Crispers
7 - Ice traysupport& ice tray
8 - Compartment for quickly freezing
9 - Compartments for frozen froods keeping
10 - Adjustable foot
11 - Dairy Compartment
12 - Shelf for jars
13 - Water dispencer
14 - Door shelves
Suggested arrangement of food in
the appliance
Guidelines for obtaining optimum storage and
hygiene:
1. The fridge compartment is for the short-
term storage of fresh food and drinks.
2. The freezer compartment is
rated and suitable for the freezing and
storage of pre-frozen food.
The recommendation for storage as
stated on the food packaging should be
observed at all times.
3. Dairy products should be stored in the
special compartment provided in the door
liner.
4. Cooked dishes should be stored in airtight
containers.
5. Fresh wrapped produce can be kept on
the shelf. Fresh fruit and vegetables should be
cleaned and stored in the crispers.
6. Bottles can be kept in the door section.
7. To store raw meat, wrap in polythene
bags and place on the lowest shelf. Do not
allow to come into contact with cooked food,
to avoid contamination. For safety, only store
raw meat for two to three days.
8. For maximum efficiency, the removable
shelves should not be covered with paper or
other materials to allow free circulation of cool
air.
9. Do not keep vegetable oil on door
shelves. Keep the food packed, wrapped or
covered. Allow hot food and beverages to cool
before refrigerating. Leftover canned food
should not be stored in the can.
10. Fizzy drinks should not be frozen and
products such as flavoured water ices should
not be consumed too cold.
11. Some fruit and vegetables suffer damage
if kept at temperatures near 0°C. Therefore
wrap pineapples, melons, cucumbers,
tomatoes and similar produce in polythene
bags.
12. High-proof alcohol must be stored upright
in tightly closed containers. Never store
products that contain an inflammable
propellant gas (e.g. cream dispensers, spray
cans, etc.) or explosive substances. These
are an explosion hazard.
3

GB Instruction for use
Temperature control and adjustment
Operating temperatures are controlled by the
thermostat knob (Item 5) and may be set at
any position between 1 and 5 (the coldest
position).
The average temperature inside the fridge
should be around +5°C (+41°F).
Therefore adjust the thermostat to obtain the
desired temperature. Some sections of the
fridge may be cooler or warmer (such as
salad crisper and top part of the cabinet)
which is quite normal. We recommend that
you check the temperature periodically with a
thermometer to ensure that the cabinet is kept
to this temperature. Frequent door openings
cause internal temperatures to rise, so it is
advisable to close the door as soon as
possible after use.
The fan provides the uniformity of
temperatures inside the refrigerator.
Before operating
Final Check
Before you start using the appliance check
that:
1. The feet have been adjusted for perfect
levelling.
2. The interior is dry and air can circulate
freely at the rear.
3. The interior is clean as recommended
under "Cleaning and care.”
4. The plug has been inserted into the wall
socket and the electricity is switched on.
When the door is open the interior light will
come on.
And note that:
5. You will hear a noise as the compressor
starts up. The liquid and gases sealed within
the refrigeration system may also make some
(noise), whether the compressor is running or
not. This is quite normal.
6. Slight undulation of the top of the cabinet is
quite normal due to the manufacturing
process used; it is not a defect.
7. We recommend setting the thermostat knob
midway and monitor the temperature to
ensure the appliance maintains desired
storage temperatures (See section
Temperature Control and Adjustment).
8. Do not load the appliance immediately it is
switched on. Wait until the correct storage
temperature has been reached. We
recommend checking the temperature with an
accurate thermometer (see; Temperature
Control and Adjustment).
Storing frozen food
Your freezer is suitable for the long-term
storage of commercially frozen foods and also
can be used to freeze and store fresh food.
For storing home-frozen fresh food ref
er to the
storage-life guide on the door-liner.
If there is a power failure, do not open the
door. Frozen food should not be affected if the
failure lasts for less than 18 hrs. If the failure
is longer, then the food should be checked
and either eaten immediately or cooked and
then re-frozen.
Freezing fresh food
Please observe the following instructions to
obtain the best results.
Do not freeze too large a quantity at any one
time. The quality of the food is best preserved
when it is frozen right through to the core as
quickly as possible.
Do not exceed the freezing capacity of your
appliance in 24 h.
Placing warm food into the freezer
compartment causes the refrigeration
machine to operate continously until the food
is frozen solid. This can temporarily lead to
excessive cooling of the refrigeration
compartment.
When freezing fresh food, keep the
thermostat knob at medium position. Small
quantities of food up to 1/2 kg. (1 lb) can be
frozen without adjusting the temperature
control knob.
Take special care not to mix already frozen
food and fresh food.
4
