Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in 1st class
manufacturing facilitiesand checked under the most meticulous quality control
procedures, will provide
you with years of good service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
This product is supplied with the selective sorting symbol for waste electrical
and electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled to minimise its impact on
the environment. For further information, please contact your local or regional
authorities.
Electronic products not included in the selective sorting process are potentially
dangerous for the environment and human health due to the presence of
hazardous substances.
Recycling

EN
2
CONTENTS
1 Your refrigerator 3
2 Warnings 4
Electrical Requirements ................. 5
Warning! This Appliance Must Be
Earthed ......................................... 5
Energy Saving Tips........................ 6
3 Installation 7
TRANSPORTATION
INSTRUCTIONS ............................ 7
Installation Instructions .................. 7
Replacing the interior light bulb ..... 9
REVERSING THE DOORS........... 11
4 Before operating 13
STARTING................................... 13
5 Using your refrigerator 14
Using interior compartments........ 14
Cooling........................................ 15
Placing the food .......................... 15
Zero temperature compartment... 16
6 Maintenance and
cleaning 17
7 Do’s and Don’ts 18

EN
3

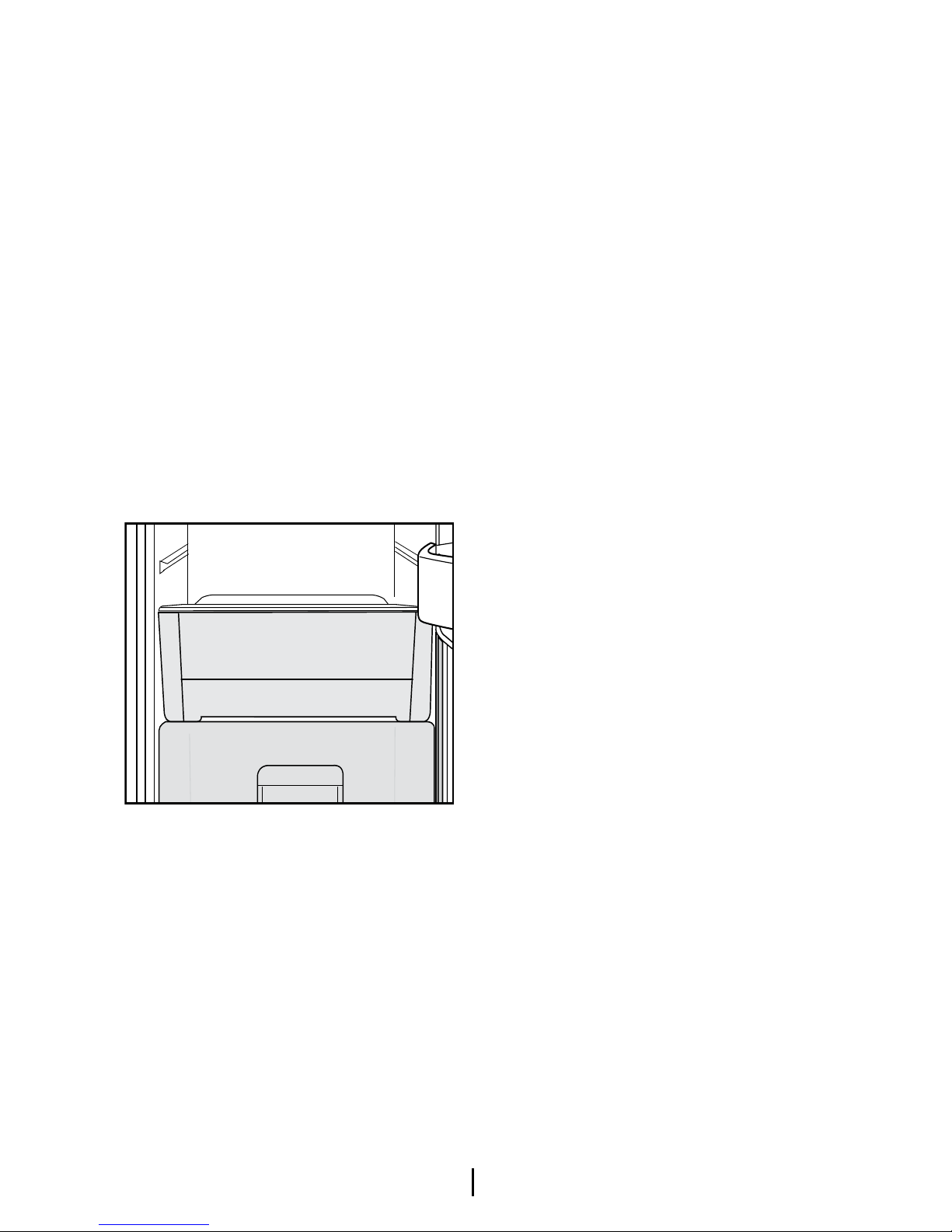

1Your refrigerator
1- Trim plastic front
2- Thermostat control
3- Movable shelves
4- Defrost water collection channel -
Drain tube
5- Crisper cover
6- 0 °C Compartment
7- Crisper
Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
3
14
4
9
12
10
10
1
2
7
11
13
6
5
8
8- Adjustable front feet
9- Egg compartment
10- Adjustable door shelves
11- Wine cellar
12- Bottle shelf
13- Dairy compartment
14- Fan
Congratulations on your choice of a BEKO quality Appliance which has been
designed to give you service for many years.

EN
4
2Warnings
•DO NOT connect your appliance to
the electricity supply until all packing
and transit protectors have been
removed.
• If transported horizontally leave
to stand upright for at least 4
hours before switching on to allow
compressor oil to settle.
• If you are discarding an old
refrigerator with a lock or latch fitted
to the door, disable the lock/latch,
ensure that it is left in a safe condition
to prevent the entrapment of young
children.
• This fridge/freezer must only be used
for its intended purpose i.e the storing
and freezing of edible foodstuff.
• Do not dispose of the appliance on a
fire. At BEKO, the care and protection
of our environment is an ongoing
commitment. This appliance which
is among the latest range introduced
is particularly environment friendly.
Your appliance contains non CFC /
HFC natural substances in the cooling
system (Called R600a) and in the
insulation (Called cyclopentane) which
are potentially flammable if exposed
to fire. Therefore, take care not to
damage, the cooling circuit / pipes of
the appliance in transportation and in
use. In case of damage do not expose
the appliance to fire or potential
ignition source and immediately
ventilate the room where the appliance
is situated.
• We suggest you contact your local
authority for disposal information and
facilities available.
• See Installation Instructions on on
page 8 for information on suitable
location.
• To obtain the best possible
performance and trouble free
operation from your appliance it is
very important to carefully read these
instructions.
• On delivery, check to make sure
that the product is not damaged and
that all the parts and accessories are
in perfect condition.
• Ensure that the plug remains readily
accessible. Do not use multiple
adapter bar or extension cable.
• Failure to observe these instructions
may invalidate your right to free
service during the guarantee period.
• Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant
circuit.
• Do not use electrical appliances
inside the food storage
compartments of the appliance,
unless they are of the type
recommended by the manufacturer.
• We suggest you keep these
instructions in a safe place for easy
reference.
• This appliance is not intended for
use by persons (including children)
with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.

EN
5
• Children should be supervised to
ensure that they do not play with the
appliance.
Electrical Requirements
Before you insert the plug into the wall
socket make sure that the voltage and
the frequency shown on the rating
plate inside the appliance corresponds
to yourelectricity supply.
Rating label is on the left hand side of
fridge inner liner.
We recommend that this appliance be
connected to the mains supply via a
suitable switched and fused socket.
The appliance must be positioned so
that the plug is accessible.
Should the mains lead of the appliance
become damaged or should it need
replacing at any time, it must be
replaced by a special purpose made
mains lead which can only be obtained
from a BEKO Authorised Service
Agent.
Warning! This Appliance
Must Be Earthed
If the fitted moulded plug is not
suitable for your socket, then the plug
should be cut off and an appropriate
plug fitted. Destroy the old plug which
is cut off as a plug with bared cord
could cause a shock hazard if inserted
into a socket elsewhere in the house.
The moulded plug on this appliance
incorporates a 13 A fuse. Should
the fuse need to be replaced an
ASTABEAB approved BS 1362 fuse
of the same rating must be used. Do
not forget to refit the fuse cover. In the
event of losing the fuse cover the plug
must not be used until a replacement
fuse cover has been fitted.
Colour of the replacement fuse cover
must be the same colour as that
visible on the pin face of the plug. Fuse
covers are available from any good
electrical store.

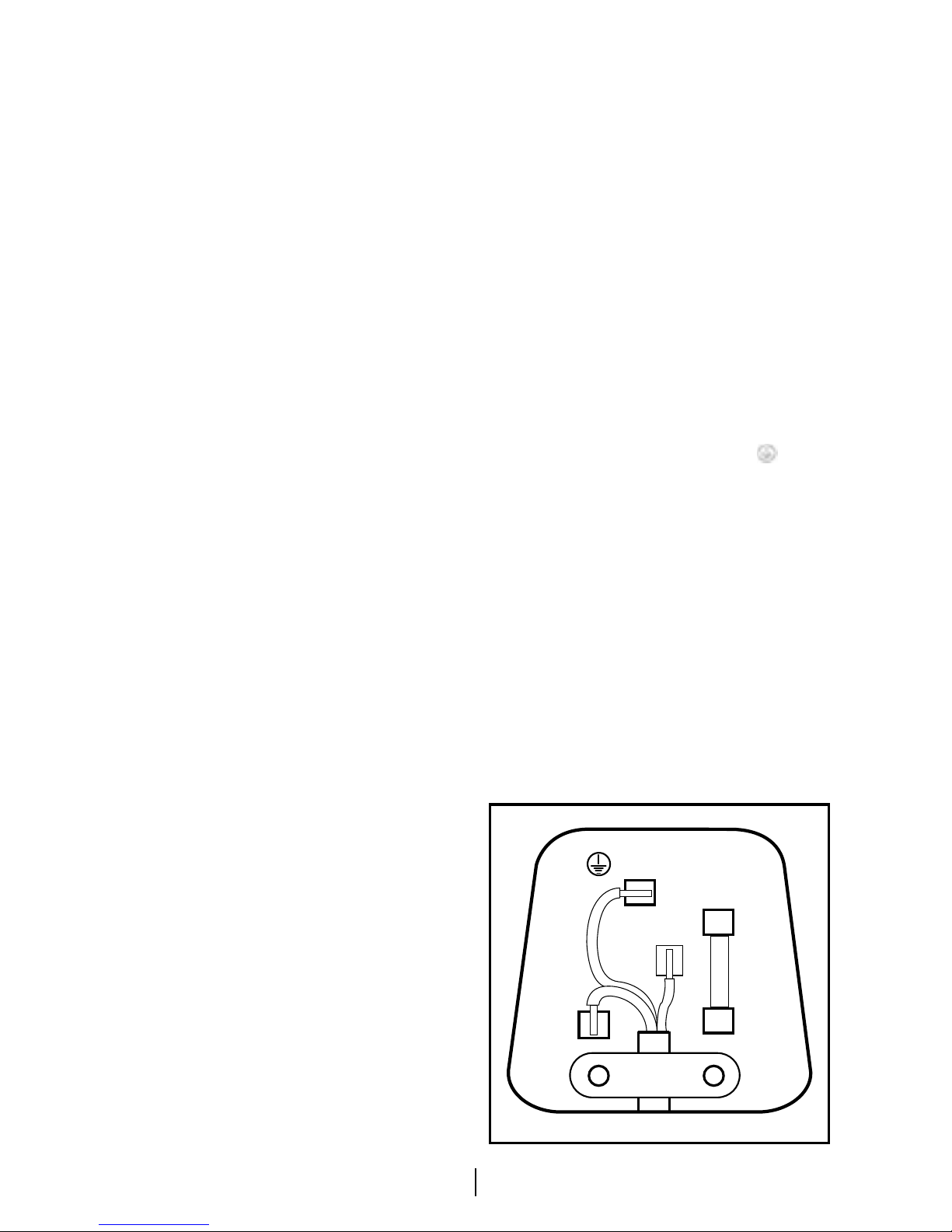

Important! Fitting A Different Plug
As the colours of the wires in the
mains lead of this appliance may
not correspond with the coloured
markings identifying the terminals in
your plug proceed as follows: (See
diagram).
1. Connect the green-yellow or green
(Earth) wire to the terminal in the plug
marked ‘E’ or with the symbol or
coloured green and yellow or green.
2. Connect the blue (Neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (Live) wire to
the terminal in the plug marked ‘L’ or
coloured red.
With alternative plugs a 13 A fuse must
be fitted either in the plug or adaptor
or in the main fuse box. If in doubt
contact a qualified electrician.
FITTED WITH
BS 1362 13A FUSE ALWAYS
FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
GREEN &
YELLOW
OR
GREEN
N
BLUE
OR
BLACK
L
BROWN
OR
RED
22mm.
6mm.
6mm.
6mm. 32mm.
12mm.
FUSE
CORD GRIP

EN
6
Energy Saving Tips
1- Ensure your appliance is installed in
a well ventilated area.
2- Ensure the time between buying
chilled/frozen food and placing them
in your appliance is kept at minimum,
particularly in summer. We recommend
you use a cool bag or a special carrier
bag to carry perishable food.
3- Do not leave the door (s) of your
appliance open longer than necessary
and ensure they are closed properly
after each opening.
4- Defrost frozen food in the fridge
compartment, so that frozen food acts
as an ice pack to assist cooling in the
fridge.

EN
7
3Installation
TRANSPORTATION
INSTRUCTIONS
1. The appliance should be
transported only in a vertical
upright position. The packing as
supplied must be intact during
transportation.
2. If during the course of transport
the appliance has to be
transported horizontally, the
product must only be laid on its
right hand side (when facing the
door front) and it must not be
operated for at least 4 hours to
allow the system to settle after
the appliance is brought back to
upright position.
3. Failure to comply with the
instructions could result in damage
occurring to the appliance. The
manufacturer will not be held
responsible if these instructions are
disregarded.
4. The appliance must be protected
against rain, moisture and other
atmospheric influences.
5. When positioning your appliance
take care not to damage your
flooring, pipes, wall coverings etc.
Do not move the appliance by
pulling by the door or handle.
6. Empty any water in the drain tray
and Water Dispenser tank before
moving. See section ‘Defrosting’
and ‘Care & cleaning’ for further
information.
7. Make sure that the defrost water
pipe at the back of the product is
fixed to the plastic evaporating pan
on the top of the compressor, to
avoid defrost water spillage on the
floor.
Important Care must be taken
when carrying the appliance to avoid
touching the bottom of the condenser
metal support/pipework at the back of
the appliance as you might injure your
fingers and hands or damage your
product.
Important Make sure that mains cable
is not caught under the appliance
during and after carrying/moving the
appliance, to avoid the mains cable
becoming cut or damaged.
Do not attempt to sit or stand on top
of your appliance. You could injure
yourself and damage the appliance.
BEKO plc declines to accept any
liability should the instructions not be
followed.
Installation Instructions
1. Fit the two plastic wall spacers
supplied with the appliance onto the
condenser at the back of the appliance
by rotating 1/4 turn.
2. Locate the appliance on a smooth
surface.
3. To ensure it is standing upright
adjust the two front feet by turning
clockwise or anti-clockwise, until it is

EN
8
in firm contact with the floor. Correct
adjustment of feet avoids excessive
vibration and noise.
4. A special receptacle is supplied to
store the mains plug during transit. The
receptacle is fixed at the back of the
cabinet on the side of the compressor.
Gently remove the plug from the
receptacle. Never pull the mains cord,
you may damage the appliance. In
case of transportation, ensure you
locate the plug in the receptacle
provided to avoid transit damage.
5. The space in the room where the
appliance is installed must
not be smaller than 10 cubic metres.
6. Fit the front grille supplied with your
appliance as shown in
the diagram.

EN
9
Replacing the interior light
bulb

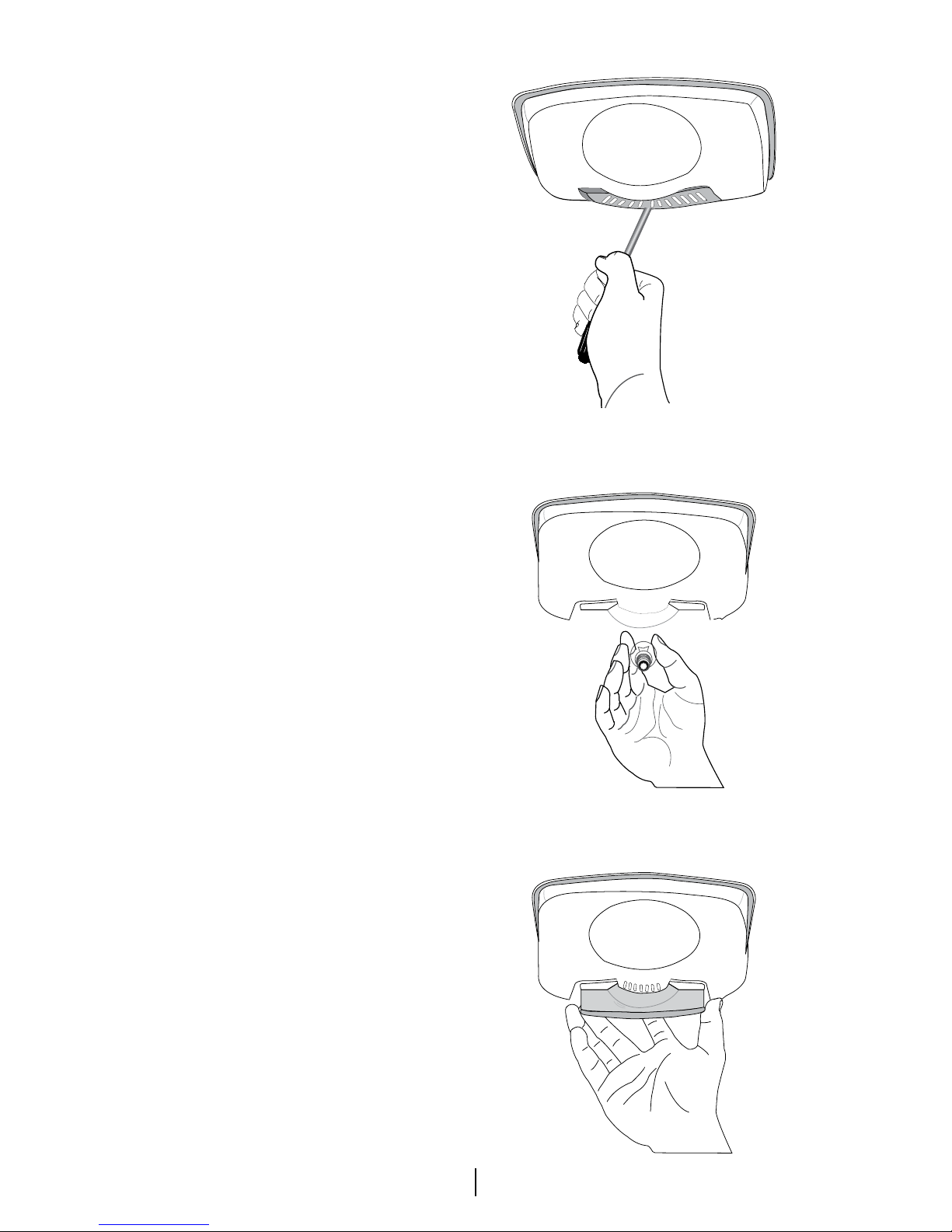

Should the light fail to work, proceed
as follows.
1. Switch off at the socket outlet and
pull out the mains plug.
• You may find it useful to remove
shelves for easy access.
2. Use a flat tipped screwdriver to
remove the light diffuser cover by
inserting the blade in each of the two
recesses to prise off each side.
3. First check that the bulb hasn’t
worked loose by ensuring it is screwed
securely in the holder. Replace the
plug and switch on. If the bulb works,
replace the light cover by inserting the
rear lug and pushing up to locate the
front two lugs.
4. If the light still fails to work, switch
off at the socket outlet and pull out
the mains plug. Replace the bulb with
a new 15 watt (max) screw cap (SES)
bulb.
5. Carefully dispose of the burnt-out
light bulb immediately. Replacement
light bulb can easily be obtained from
a good local electrical or DIY store.

EN
10
3
2
1
6
4
9
7
10
11
14
12
16
16
13
15
8
5
45°
(12)
180°
20
21
18
19
17

EN
11
REVERSING THE DOORS
We recommend that you reverse the
door before switching on for the first
time.
Tools required: Small and medium size
flat and cross-headed screwdrivers, a
pair of pliers.
Spare Parts supplied in the plastic
bag: The following parts, which are
exclusively for left hand side fitted
hinge operation are supplied in a
plastic bag with the appliance:
- Door top trim hinge covers – there
are 2 different parts, one for each side
of top trim.
We suggest you keep all the parts
supplied in the plastic bag and also
parts, which have been removed when
reversing the door, in a safe place for
possible future, re-use.
IMPORTANT: We suggest you ask
somebody to help you when moving
the appliance around and to hold the
door when removing / re-fitting hinges
and the door to avoid any injury and
damage to the product.
Please refer to diagrams supplied. To
follow numbers in brackets below,
refer to the main diagram.
1.Switch off the appliance at the
socket outlet and pull out the mains
plug.
2.Remove all loose items and fittings
and food inside the appliance.
3.Gently prise off plastic hinge covers
on both sides of front top panel using
a small flat-headed screwdriver. (1-2)
4-Unscrew the bolts of the top hinge
and remove top hinge. (3)
5-Remove door carefully off the
bottom hinge and stand door upright
in a safe place.(4)
6.Gently prise off plastic hinge cover
on door top trim. Fit the other door top
trim plastic off hinge cover supplied in
the plastic bag.(5)
7.Gently tilt the appliance back
against a strong wall on its rear side
sufficiently to allow the lower hinge
to be removed. Take care to protect
the appliance, your wall and floor
coverings. You can utilise the original
packaging to do this.Once you tilt the
appliance back, check to make sure
the appliance is completely stable and
safe before you carry on. (6)
8.Unscrew and remove the front feet
and 1 bolt. (7)
9-Unscrew and remove the bottom
hinge. (8)
10-Unscrew and remove the bottom
hinge door stopper and bushing and
reposition them on the other side while
rotating the bushing 180°. (9)
11- Fit the bottom hinge and tighten
the screws as shown in figure. (10)
12-Fit the other front feet as shown in
figure. (11)
13-Rotate the top hinge 180°.
Unscrew the hinge pin and re-tighten it
to the opposite side. (12)
14-Fit the top hinge on the left hand
side bushing of the door. (13)
15-Locate and re-fit door to bottom
hinge pin. (14)

EN
12
16-Re-fit the upper hinge on the
opposite side by using a flat headed
screwdriver. (15)
17.Fit front top panel plastic hinge
covers on the opposite sides. (16)
18.Remove the handle cover gently
taking care not to damage the
appliance.(17)
19.Unscrew and remove the handle
(18). Do not unscrew the yellow
coloured screws!
20.Rotate 180 degrees and fit handle
to the other side after removing hole
plugs gently.(19,20)
21 .Fit the handle cover.(21)
22-Adjust the two front feet if
necessary.
23-Check that door opens and closes
easily, it is aligned correctly and there
are no gaps allowing air into the
cabinet. If there are gaps between the
door seal and the cabinet, adjust the
door seal by gently pulling away from
the door using fingers.
24-Check that all the hinge screws are
tightened. Avoid over tightening the
screws.
25-Put all items, fittings back in the
appliance.
26-Wait for at least 4 hours to allow
the system to settle before switching
on.
27-Once the correct storage
temperatures have been reached in
the appliance, put back all the food.

EN
13
4Before operating
STARTING
Final Check
Before you start using the refrigerator
check that:
1.The front feet have been adjusted
so the appliance is level.
2.The interior is dry and air can
circulate freely around the outside of
the product.
3.Clean the interior as recommended
under “CLEANING AND CARE.”
4.Insert the plug into the wall socket
and switch on the electricity supply.
When the door is open the interior light
will come on.
5.You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
whether the compressor is running or
not which is quite normal.
6. We recommend that you set the
thermostat thermostat to 3 (three) and
monitor the temperature to ensure
the appliance maintains desired
storage temperatures (See section
Temperature Control and Adjustment).
7. Do not load the appliance
immediately it is switched on. Wait until
the correct storage temperature has
been reached.
We recommend that you check
the temperature with an accurate
thermometer

EN
14
5Using your refrigerator
Thermostat control
The thermostat is located on the top
trim of the refrigerator.
Important:
When you adjust the set temperature,
there may be a short delay before the
compressor starts to operate. This is
normal and not a compressor fault.
Using interior compartments
Body shelves: Distance between
the shelves can be adjusted when
necessary.
Crisper: Vegetables and fruits can be
stored in this compartment for longer
periods without decaying.
Bottle shelf: Bottles, jars and tins can
be placed in these shelves.
Stopping your product
If your thermostat is equipped with “0”
position:
- Your product will stop operating
when you turn the thermostat button
to “0” (zero) position. Your product
will not start unless to you turn the
thermostat button to position “1” or
one of the other positions again.
If your thermostat is equipped with
“min” position:
- Unplug your product to stop it.

EN
15
Cooling
Food storage
The fridge compartment is for the
short-term storage of fresh food and
drinks.
Store milk products in the intended
compartment in the refrigerator.
Bottles can be stored in the bottle
holder or in the bottle shelf of the door.
Raw meat is best kept in a
polyethylene bag in the compartment
at the very bottom of the refrigerator.
Allow hot foods and beverages to cool
to room temperature prior to placing
them in the refrigerator.
• Attention
Store concentrated alcohol only
standing upright and tightly closed.
• Attention
Do not store explosive substances or
containers with flammable propellant
gases (canned cream, spray cans etc.)
in the device. There is a danger of
explosion.
Placing the food
Egg tray Egg
Fridge
compartment
shelves
Food in pans, covered
plates and closed
containers
Fridge
compartment door
shelves
Small and packaged
food or drinks (such
as milk, fruit juice and
beer)
Crisper Vegetables and fruits
Defrosting of the appliance
The appliance defrosts automatically.

EN
16
Zero temperature
compartment
This compartment has been designed
to store frozen food which would be
thawed slowly (meat, fish, chicken,etc.)
as required.Zero temperature
compartment is the coldest place
of your refrigerator in which dairy
products (cheese, butter), meat,
fish or chicken may be kept at ideal
storage conditions.Vegetables and/
or fruits must not be placed in this
compartment.

EN
17
6Maintenance and cleaning
** We recommend that you switch off
the appliance at the socket outlet and
pull out the mains plug before clean-
ing.
** Never use any sharp abrasive instru-
ment, soap, household cleaner, deter-
gent and wax polish for cleaning.
** Use luke warm water to clean the
cabinet of the appliance and wipe it
dry.
** Use a damp cloth wrung out in a so-
lution of one teaspoon of bicarbonate
of soda to one pint of water to clean
the interior and wipe it dry.
** Make sure that no water enters the
temperature control box.
** If the larder refrigerator is not going
to be used for a long period of time
switch it off, remove all food, clean it
and leave the door ajar.
** Any dust that gathers on the con-
denser, which is located at the back
of the appliance, should be removed
once a year with a vacuum cleaner.
** Check door seals regularly to ensure
they are clean and free from food
particles.
** Removal of door rack :
** To remove a door rack, remove all
the contents and then simply push the
door tray upwards from the base.
** Make sure that the special plastic
container (drain tray) at the back of
the appliance which collects defrost
water is clean at all times. If you want
to remove the tray to clean it follow the
instructions below :
• Switch off at the socket outlet and
pull out the mains plug.
• Push the lug down with the tip of
a screw driver & pull out firmly.
• Clean the drain tray and wipe it
dry.
• Reassemble reversing the se-
quence and operations.
** Removal of Chiller Zone
Compartment Drawer:
Pull it out as far as possible and then
lift up and remove it completely.
Special Container
Compressor
1
2

EN
18
7Do’s and Don’ts
Do- Clean your larder refrigerator
regularly.
Do- Keep raw meat and poultry
below cooked food and dairy
products and ideally in the Zero
Degree compartment drawer.
Do- Keep food for as short a time
as possible and adhere to ‘Best
Before’ and “Use By” dates.
Do- Take off any unusable leaves
on vegetables and wipe off any
soil.
Do- Leave lettuce, cabbage,
parsley and cauliflower on the
stem.
Do- Wrap cheese firstly in
greaseproof paper and then in a
polythene bag excluding as much
air as possible.
Do- Wrap meat, fish and offal in
polythene bags.
Do- Wrap bread well to keep it
fresh..
Do- Chill white wines, beer, lager
and mineral water before serving.
Do- Melon in your fridge. It can be
chilled for short periods as long as
it is wrapped to avoid it flavouring
other food.
Don't - Leave door door open for
long periods as this will make the
larder refrigerator more costly to
run.
Don't- Poisonous or any
dangerous substances in the larder
refrigerator.Your larder refrigerator
has been designed for the storage
of edible foodstuffs only.
Don't- Consume food which has
been stored for an excessive time
in the larder refrigerator.
Don't- Store cooked and fresh
food together in the same
container. They should be
packaged and stored separately..
Don't- Let defrosting food or food
juices drip onto food in your larder
refrigerator.
PROBLEM SOLVING
If the appliance does not operate
when switched on, check whether:
• The plug is inserted properly in
the socket and that the power
supply is on. (To check the power
supply to the socket, plug in
another appliance)
• The fuse has blown/circuit
breaker has tripped/main
distribution switch has been turned
off.
• The temperature control has
been set correctly.
• New plug is wired correctly if you
have changed the fitted moulded
plug.
If the appliance is still not operating
after the above checks, please
refer to the section on “How To
Obtain Service”.
Please ensure that above checks
have been made as a charge will
be made if no fault is found.

EN
19
HOW TO OBTAIN SERVICE
Please keep your purchase receipt or other proof of purchase in a safe
place; you will need to have it should the product require attention under
guarantee.
You should also complete the details below; it will help us assist you when
requesting service. (The model number is printed on the Instruction Booklet and
the serial number is printed on the Rating Label affixed to the appliance)
Model No: Serial No: Retailer: Date of purchase:
For service under guarantee simply telephone the appropriate number
below
UK Mainland & Northern Ireland
Fridges & Freezers 0845 6004903
Electric Cookers 0845 6004902
Gas & Dual Fuel Cookers 0845 6004905
Washing Machines 0845 6004906
& Dishwashers
Republic of Ireland
All Refrigeration, All Cookers 01 862 3411
Washing Machines & Dishwashers
Before requesting service please check the trouble-shooting guide in
the Operating Instructions as a charge may be levied where no fault is
found even though your product may still be under guarantee.
Service once the manufacturers guarantee has expired.
If you have purchased an extended guarantee please refer to the instructions
contained within the extended guarantee agreement document. Otherwise
please call the appropriate number above where service can be obtained at a
charge.
Should you experience any difficulty in obtaining service please contact the Beko
Customer Help-Line. Tel: [phone] e-mail: [email protected]
