Refrigerator
User manual

Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you an
effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the user
manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
1 Your cooler/freezer 3
2Important Safety
Warnings 4
Intended use ...............................................4
General safety ...........................................4
For products with a water dispenser;7
Child safety .................................................. 7
Compliance with WEEE Directive and
Disposing of the Waste Product: ....... 7
Package information................................8
HC warning...................................................8
Things to be done for energy saving 8
3 Installation 9
Points to be paid attention to when
the relocation of the cooler/freezer .9
Before you start the cooler/freezer, .9

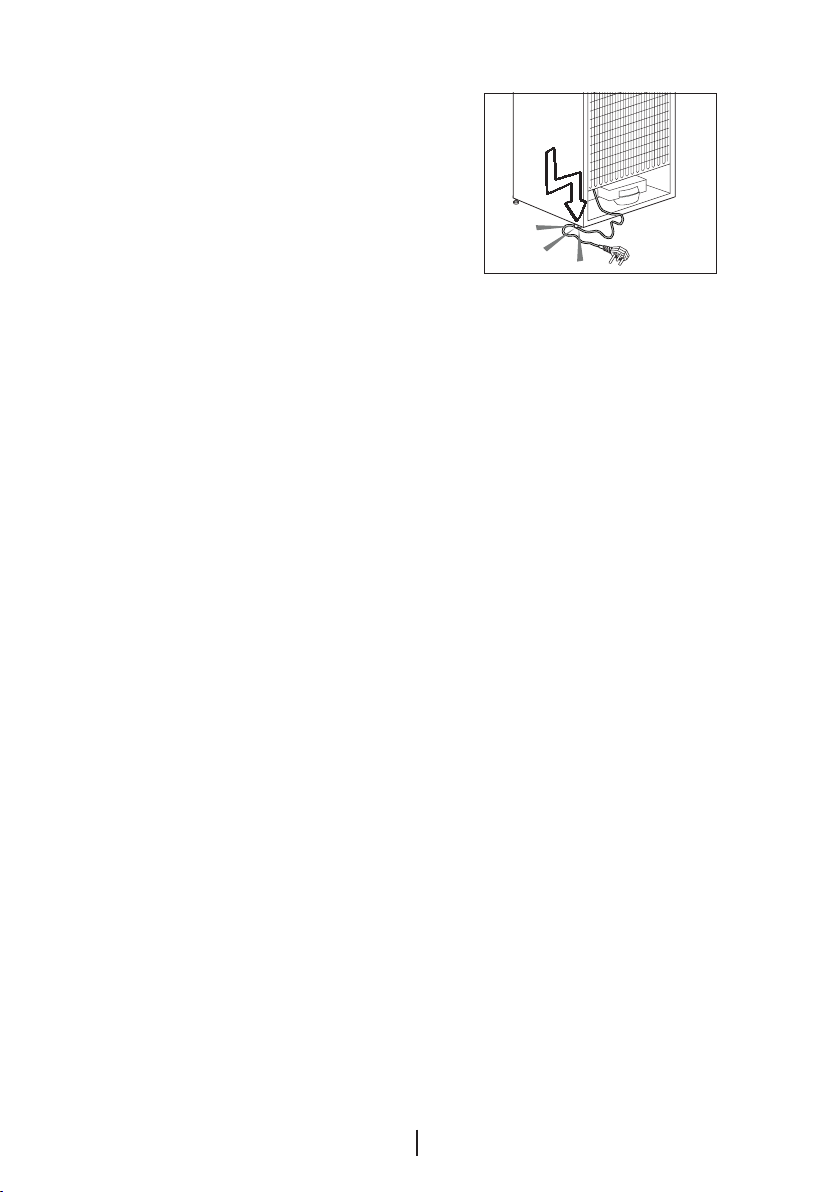

Electrical connection ...............................9
Disposing of the packaging.................10
Disposing of your old cooler/
freezer .........................................................10
Placing and Installation.........................10

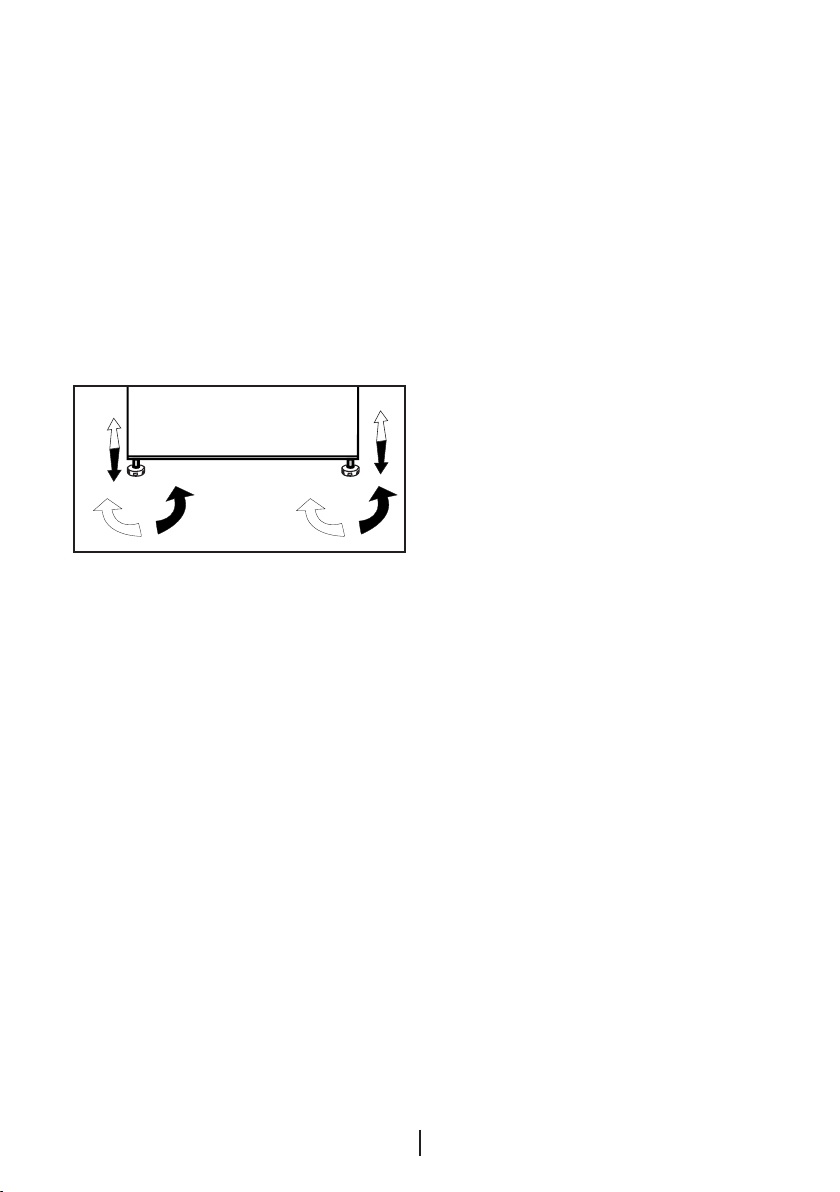

Adjusting the legs................................... 11
Reversing the doors...............................12
Reversing the doors...............................13
4 Preparation 14
5 Using your cooler/
freezer 15
Setting the operating temperature.15
LED indicators and control panel ......15
6 Maintenance and
cleaning 19
Protection of plastic surfaces ...........19
7 Troubleshooting 20
CONTENTS

EN
3
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1Your cooler/freezer
1. Reflectors
2. Top trim
3. Indicator lights
4. Thermostat knob
5. Ice bank
6. Fast-freeze compartment
7. Frozen-food compartments
8. Adjustable front feet
1
5
7
7
6
8
42
3

EN
4
Please review the following
information. Failure to observe
this information may cause
injuries or material damage.
Otherwise, all warranty and
reliability commitments will
become invalid.
The service life of your product
is 10 years. During this period,
original spare parts will be
available to operate the product
properly.
Intended use
A
WARNING:
Keep ventilation
openings, in the
appliance enclosure or
in the built-instructure,
clear of obstruction.
WARNING:
Do not use mechanical
devices or other means
to accelerate the
defrostingprocess,
other than those
recommended by the
manufacturer.
WARNING:
Do not damage the
refrigerant circuit.
WARNING:
Do not use electrical
appliancesinsidethefood
storage compartments
of the appliance, unless
they are of the type
recommended by the
manufacturer.
This appliance is intended
to be used in household and
similar applications such as
– staff kitchen areas in shops,
offices and other working
environments;
– farm houses and by clients
in hotels, motels and other
residential type environments;
– bed and breakfast type
environments;
– catering and similar non-
retail applications.
General safety
• When you want to dispose/
scrap the product, we
recommend you to consult the
authorized service in order to
learn the required information
and authorized bodies.
• Consult your authorized
service for all your questions
and problems related to
the cooler/freezer. Do not
intervene or let someone
intervene to the cooler/
freezer without notifying the
authorised services.
• For products with a freezer
compartment; Do not eat
cone ice cream and ice
cubes immediately after
you take them out of the
freezer compartment! (This
may cause frostbite in your
mouth.)
• For products with a freezer
compartment; Do not put
bottled and canned liquid
beverages in the freezer
compartment. Otherwise,
these may burst.
2Important Safety Warnings

EN
5
• Do not touch frozen food by
hand; they may stick to your
hand.
• Unplug your cooler/freezer
before cleaning or defrosting.
• Vapor and vaporized cleaning
materials should never
be used in cleaning and
defrosting processes of your
cooler/freezer. In such cases,
the vapor may get in contact
with the electrical parts and
cause short circuit or electric
shock.
• Never use the parts on your
cooler/freezer such as the
door as a means of support or
step.
• Do not use electrical devices
inside the cooler/freezer.
• Do not damage the parts,
where the refrigerant is
circulating, with drilling or
cutting tools. The refrigerant
that might blow out when
the gas channels of the
evaporator, pipe extensions
or surface coatings are
punctured causes skin
irritations and eye injuries.
• Do not cover or block the
ventilation holes on your
cooler/freezer with any
material.
• Electrical devices must be
repaired by only authorised
persons. Repairs performed by
incompetent persons create a
risk for the user.
• In case of any failure or during
a maintenance or repair
work, disconnect your cooler/
freezer’s mains supply by
either turning off the relevant
fuse or unplugging your
appliance.
• Do not pull by the cable when
pulling off the plug.
• Place the beverage with
higher proofs tightly closed
and vertically.
• Never store spray cans
containing flammable and
explosive substances in the
cooler/freezer.
• Do not use mechanical devices
or other means to accelerate
the defrosting process, other
than those recommended by
the manufacturer.
• This product is not intended
to be used by persons with
physical, sensory or mental
disorders or unlearned
or inexperienced people
(including children) unless
they are attended by a person
who will be responsible
for their safety or who will
instruct them accordingly for
use of the product
• Do not operate a damaged
cooler/freezer. Consult with
the service agent if you have
any concerns.
• Electrical safety of your
cooler/freezer shall be
guaranteed only if the earth
system in your house complies
with standards.
• Exposing the product to
rain, snow, sun and wind is
dangerous with respect to
electrical safety.

EN
6
• Contact authorized service
when there is a power cable
damage to avoid danger.
• Never plug the cooler/freezer
into the wall outlet during
installation. Otherwise, risk
of death or serious injury may
arise.
• This cooler/freezer is intended
for only storing food items.
It must not be used for any
other purpose.
• Label of technical
specifications is located on
the left wall inside the cooler/
freezer.
• Never connect your cooler/
freezer to electricity-saving
systems; they may damage
the cooler/freezer.
• If there is a blue light on the
cooler/freezer, do not look
at the blue light with optical
tools.
• For manually controlled
cooler/freezers, wait for at
least 5 minutes to start the
cooler/freezer after power
failure.
• This operation manual should
be handed in to the new
owner of the product when it
is given to others.
• Avoid causing damage
on power cable when
transporting the cooler/
freezer. Bending cable may
cause fire. Never place heavy
objects on power cable.
• Do not touch the plug with
wet hands when plugging the
product.
• Do not plug the cooler/freezer
if the wall outlet is loose.
• Water should not be sprayed
on inner or outer parts of the
product for safety purposes.
• Do not spray substances
containing inflammable gases
such as propane gas near the
cooler/freezer to avoid fire
and explosion risk.
• Never place containers filled
with water on top of the
cooler/freezer; in the event
of spillages, this may cause
electric shock or fire.
• Do not overload the cooler/
freezer with food. If
overloaded, the food items
may fall down and hurt you
and damage cooler/freezer
when you open the door.
• Never place objects on top of
the cooler/freezer; otherwise,
these objects may fall down
when you open or close the
cooler/freezer's door.
• As they require a precise
storage temperature,
vaccines, heat-sensitive
medicine and scientific

EN
7
materials and etc. should not
be kept in the cooler/freezer.
• If not to be used for a long
time, cooler/freezer should be
unplugged. A possible problem
in power cable may cause fire.
• Cooler/freezer may move
if adjustable legs are not
properly secured on the floor.
Properly securing adjustable
legs on the floor can prevent
the cooler/freezer to move.
• When carrying the cooler/
freezer, do not hold it from
door handle. Otherwise, it may
be snapped.
• When you have to place your
product next to another
cooler/freezer or freezer, the
distance between devices
should be at least 8cm.
Otherwise, adjacent side walls
may be humidified.
• The product shall never be
used while the compartment
which is located at the top or
back of your product and in
which electronic boards are
available (electronic board box
cover) (1) is open.
1
1
For products with a water
dispenser;
Pressure of water mains
should be minimum 1 bar.
Pressure of water mains
should be maximum 8 bars.
• Use only potable water.
Child safety
• If the door has a lock, the key
should be kept away from
reach of children.
• Children must be supervised
to prevent them from
tampering with the product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic
waste at the end of its service life.
Take it to a collection point for the
recycling of electrical and electronic
equipment. Please consult your
local authorities to learn the nearest
collection point. Help protect the
environment and natural resources by
recycling used products. For children’s
safety, cut the power cable and break
the locking mechanism of the door, if

EN
8
any, so that it will be non-functional
before disposing of the product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and
our national asset wealth.
If you want to contribute to the
re-evaluation of the packaging
materials, you can consult to your
environmentalist organizations or the
municipalities where you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage
and transportation. In the event of
damage, keep your product away from
potential fire sources that can cause
the product catch a fire and ventilate
the room in which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for
energy saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is
not prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep your
refrigerator at least 30cm away from
heat emitting sources and at least
5cm from electrical ovens.
• Pay attention to keep your food in
closed containers.
• For products with a freezer
compartment; You can store
maximum amount of food items
in the freezer when you remove
the shelf or drawer of the freezer.
Energy consumption value stated
for your refrigerator has been
determined by removing freezer
shelf or drawer and under maximum
load. There is no harm to use a shelf
or drawer according to the shapes
and size of food to be frozen.
• Thawing frozen food in fridge
compartment will both provide
energy saving and preserve the food
quality.

EN
9
3Installation
3. Connect the plug of the cooler/
freezer to the wall socket. When the
fridge door is opened, fridge internal
lamp will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give
rise to noise, even if the compressor
is not running and this is quite
normal.
5. Front edges of the cooler/freezer
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in
compliance with national regulations.
• The power plug must be easily
accessible after installation.
BThe manufacturer will not be liable
for any event caused by disregarding
the information supplied in this user
manual.
Points to be paid attention
to when the relocation of
the cooler/freezer
1. Your cooler/freezer should be
unplugged.Before transportation
of your cooler/freezer, it should be
emptied and cleaned.
2. Before it is re-packaged, shelves,
accessories, crisper, etc. inside
your cooler/freezer should be fixed
with adhesive tape and secured
against impacts. Package should
be bound with a thick tape and the
transportation rules on the package
should be strictly observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the
cooler/freezer,
Check the following before you start
to use your cooler/freezer:
1. Attach 2 plastic wedges as
illustrated below. Plastic wedges
are intended to keep the distance
which will ensure the air circulation
between your cooler/freezer and
the wall. (The picture is drawn up
as a representation and it is not
identical with your product.)
2. Clean the interior of the cooler/
freezer as recommended in the
“Maintenance and cleaning” section.
1
2
3
3
3
1

EN
10
• Electrical safety of your cooler/
freezer shall be guaranteed only
if the earth system in your house
complies with standards.
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
• Extension cables and multi plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BFaulty product must not be operated
before it is repaired! There is the risk
of electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with
the waste instructions stated by your
local authorities. Do not throw away
with regular house waste, throw away
on packaging pick up spots designated
by the local authorities.
The packing of your cooler/freezer is
produced from recyclable materials.
Disposing of your old
cooler/freezer
Dispose of your old cooler/freezer
without giving any harm to the
environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your cooler/freezer.
Before disposing of your cooler/
freezer, cut out the electric plug and, if
there are any locks on the door, make
them inoperable in order to protect
children against any danger.
Placing and Installation
AIf the entrance door of the room
where the cooler/freezer will be
installed is not wide enough for the
cooler/freezer to pass through, then
carefully remove the doors of your
cooler/freezer and pass it sideways
through the door.
1. Install your cooler/freezer to a place
that allows ease of use.
2. Keep your cooler/freezer away from
heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your cooler/
freezer in order to achieve an
efficient operation. If the cooler/
freezer is to be placed in a recess in
the wall, there must be at least 5 cm
distance with the ceiling and at least
5 cm with the wall. Do not place your
product on the materials such as rug
or carpet.
4. Place your cooler/freezer on an even
floor surface to prevent jolts.
WARNING:
Do not locate extension
sockets or charging transformers/
power supplies or Lithium-Iron battery
operated products adjacent to the
compressor as they could overheat.

EN
11
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator
by turning its front legs as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone
to slightly lift the refrigerator will
facilitate this process.

EN
12
1
60°
9
14
60°
16
10
2
3
4
5
8
77
12 12
11
11
6
6
15
13
Reversing the doors
Proceed in numerical order

EN
13
1
2
55 mm
595 mm
820 mm
3
4
a
ac
b
bd
e
b b
840 mm
Reversing the doors
Proceed in numerical order

EN
14
4Preparation
• Your cooler/freezer should be
installed at least 30 cm away from
heat sources such as hobs, ovens,
central heater and stoves and at
least 5 cm away from electrical
ovens and should not be located
under direct sunlight.
• The ambient temperature of the
room where you install your cooler/
freezer should at least be 10°C.
Operating your cooler/freezer
under cooler conditions is not
recommended with regard to its
efficiency.
• Please make sure that the interior
of your cooler/freezer is cleaned
thoroughly.
• If two cooler/freezers are to be
installed side by side, there should
be at least 2 cm distance between
them.
• When you operate your cooler/
freezer for the first time, please
observe the following instructions
during the initial six hours.
• The door should not be opened
frequently.
• It must be operated empty without
any food in it.
• Do not unplug your cooler/freezer.
If a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for
the problems” section.
• Original packaging and foam
materials should be kept for future
transportations or moving.
• Due to temperature change as
a result of opening/closing the
product door during operation,
condensation on the door/body
shelves and the glass containers is
normal.

EN
15
5Using your cooler/freezer
Setting the operating
temperature
2 1 3
LED indicators and control
panel
There are two coloured indicator
lights located on the front of the
appliance which shows the operating
mode of the freezer.
Green Indicator (1):
Illuminates when the appliance is
connected to the mains and will glow
as long as electricity is available.
The green light will not glow if the
thermostat is set to ‘0’ position. The
green indicator does not give any
indication of the temperature inside
the freezer.
Red Indicator (2) Illuminates:
a) If the pre-set temperature can not
be maintained.
b) If excessive amounts of fresh food
are placed inside.
c) If the appliance door is left open
accidentally.
Thermostat knob (3)
Thermostat knob is located on the
indicator light set.
The operating temperature is
regulated by the temperature control.

EN
16
Warm Cold
1 = Lowest cooling setting (Warmest
setting)
4 = Highest cooling setting (Coldest
setting)
(Or)
Min. = Lowest cooling setting
(Warmest setting)
Max. = Highest cooling setting
(Coldest setting)
Please choose the setting according
to the desired temperature.
The interior temperature also
depends on ambient temperature,
the frequency with which the door is
opened and the amount of food kept
inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
The normal storage temperature
of your appliance should be -18 °C (0
°F). If the thermostat knob is turned
counter clockwise from position
1, the appliance will be switched
off and “click” sound will be heard.
Lower temperatures can be obtained
by adjusting the thermostat knob
towards Position 4.
We recommend checking the
temperature with a thermometer to
ensurethatthestoragecompartments
are kept to the desired temperature.
Remember at take the reading
immediately since the thermometer
temperature will rise very rapidly after
you remove it from the freezer.
Freezing food
The freezing area is marked with
symbol on the door liner.
You can use the appliance for
freezing fresh food as well as for
storing pre-frozen food.
Please refer to the recommendations
given on the packaging of your food.
AAttention
Do not freeze fizzy drinks, as the
bottle may burst when the liquid in it
is frozen.
Be careful with frozen products such
as coloured ice-cubes.
Do not exceed the freezing capacity
of your appliance in 24 hours. See the
rating label.
In order to maintain the quality of the
food, the freezing must be effected as
rapidly as possible.
Thus, the freezing capacity will not
be exceeded, and the temperature
inside the freezer will not rise.

EN
17
1-
4-
-2
-3
AAttention
Keep the already deep-frozen food
always separated with freshly placed
food.
When deep-freezing hot food, the
cooling compressor will work until the
food is completely frozen. This can
temporarily cause excessive cooling
of the refrigeration compartment.
If you find the freezer door difficult
to open just after you have closed it,
don’t worry. This is due to the pressure
difference which will equalize and
allow the door to open normally after
a few minutes.
You will hear a vacuum sound just
after closing the door. This is quite
normal.

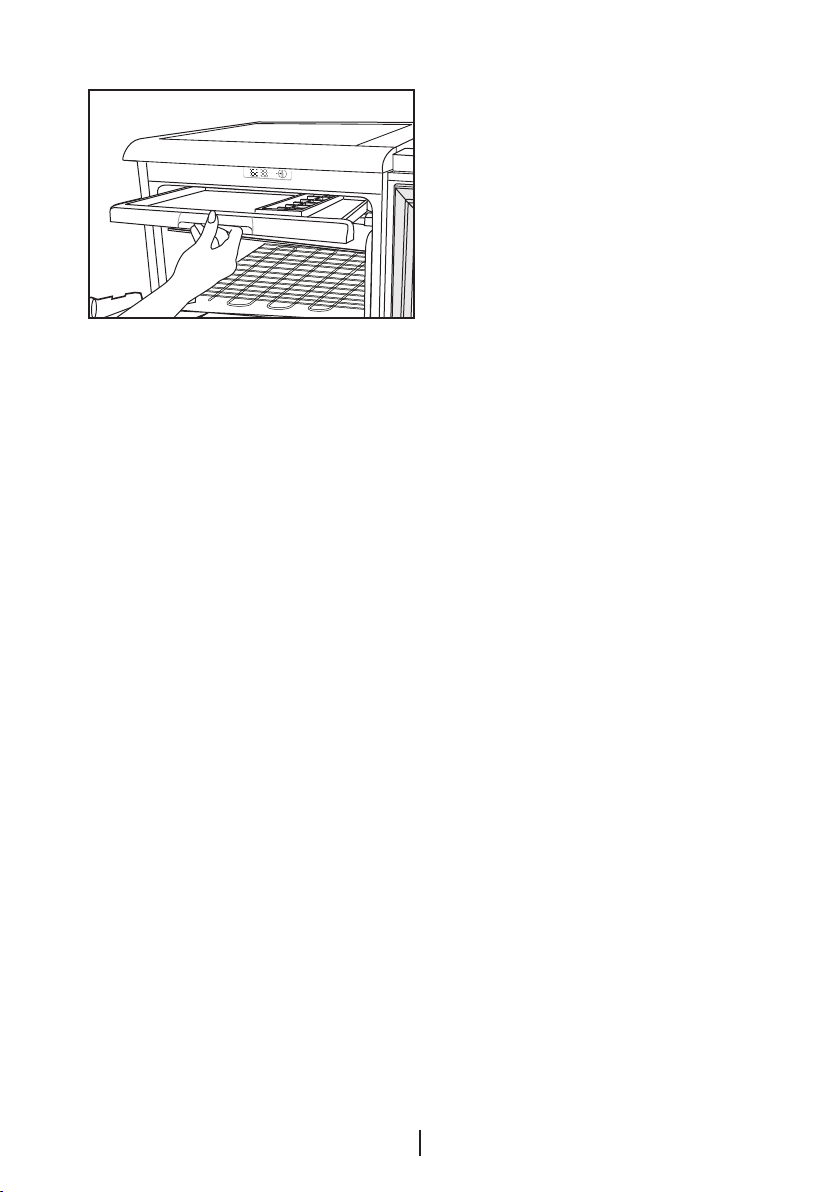

Making ice cubes
Fill the ice-cube tray 3/4 full with
water and place it in the freezer.
As soon as the water has turned into
ice, you can take out the ice cubes.
Never use sharp objects such as
knives or forks to remove the ice
cubes. There is a risk of injury!
Let the ice cubes slightly thaw
instead, or put the bottom of the tray
in hot water for a short moment.
Defrosting of the appliance
Excessive build-up of ice will affect
the freezing performance of your
appliance.
It is therefore recommended that you
defrost your appliance at least twice
a year, or whenever the ice build-up
exceeds 7 mm.
Defrost your appliance when there is
only little or no food in it.
Take out the deep-frozen food from
the drawers. Wrap the deep-frozen
food in several layers of paper, or a
blanket, and keep it in a cold place.
Unplug the appliance or switch
off the circuit breaker to start the
defrosting process.

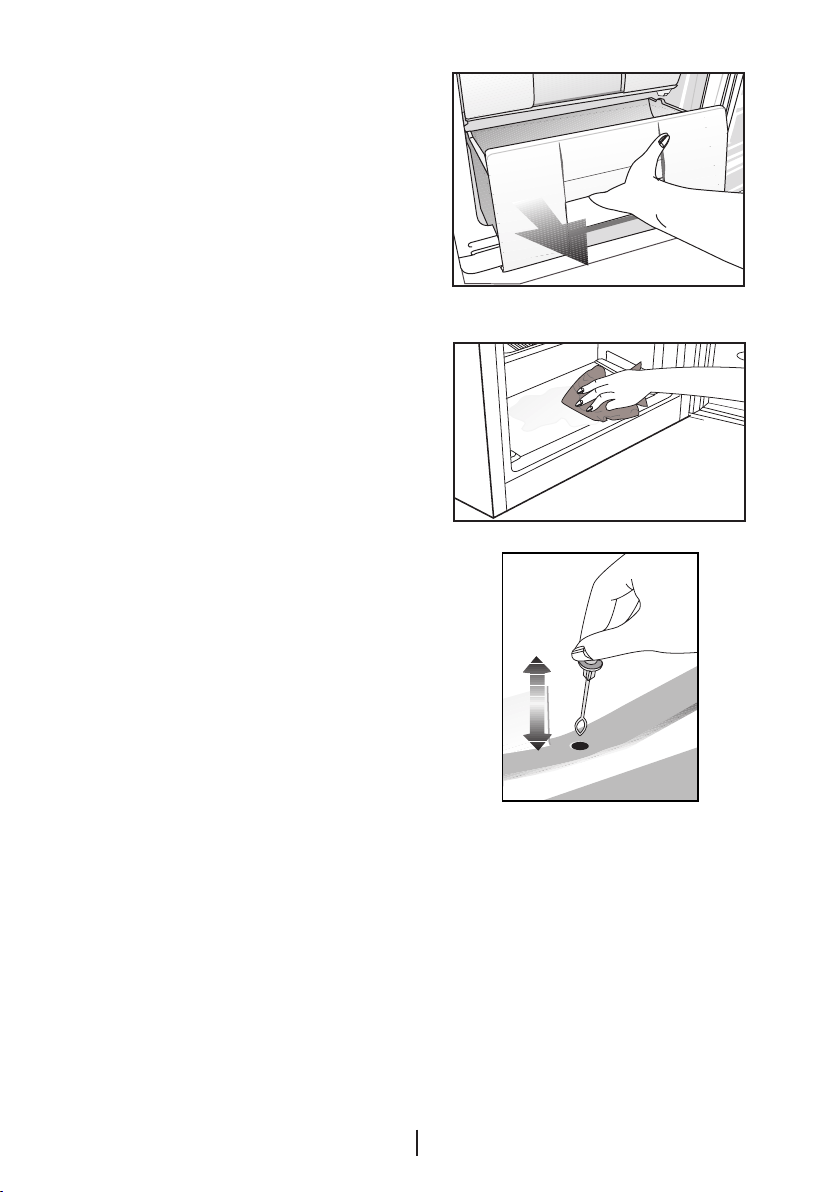

Take out the accessories (like shelf,
drawer etc.) from the appliance and
use a suitable container to collect the
thawing water.

EN
18
Use a sponge or a soft cloth to
remove thawing water if necessary
Keep the door open during
defrosting.
For quicker defrosting, place
containers with warm water inside
the appliance.
Never use electrical devices,
defrosting sprays or pointed or sharp-
edged objects such as knives or forks
to remove the ice.
After the defrosting is done, clean
the inside.
Reconnect the appliance to the
mains. Place the frozen food into the
drawers and slide the drawers into the
freezer.
Check regularly to see if the drain
pipe is clogged or not and clear it with
the stick in the hole when necessary.

EN
19
6Maintenance and cleaning
A Never use gasoline, benzene or
similar substances for cleaning
purposes.
B We recommend that you unplug the
appliance before cleaning.
B Never use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish
for cleaning.
B For non-No Frost products,
water drops and frosting up to a
fingerbreadth occur on the rear wall
of the Fridge compartment. Do not
clean it; never apply oil or similar
agents on it.
B Only use slightly damp microfiber
cloths to clean the outer surface
of the product. Sponges and other
types of cleaning cloths may scratch
the surface.
C Use lukewarm water to clean the
cabinet of your refrigerator and wipe
it dry.
C Use a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe
it dry.
B Make sure that no water enters the
lamp housing and other electrical
items.
B If your refrigerator is not going to
be used for a long period of time,
unplug the power cable, remove all
food, clean it and leave the door ajar.
C Check door seals regularly to ensure
they are clean and free from food
particles.
A To remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
A Never use cleaning agents or water
that contain chlorine to clean the
outer surfaces and chromium coated
parts of the product. Chlorine causes
corrosion on such metal surfaces.
A Do not use sharp, abrasive tools,
soap, household cleaning agents,
detergents, kerosene, fuel oil,
varnish etc. to prevent removal and
deformation of the prints on the
plastic part. Use lukewarm water
and a soft cloth for cleaning and
then wipe it dry.
Protection of plastic
surfaces
CDo not put the liquid oils or oil-
cooked meals in your refrigerator
in unsealed containers as they
damage the plastic surfaces of your
refrigerator. In case of spilling or
smearing oil on the plastic surfaces,
clean and rinse the relevant part
of the surface at once with warm
water.
