Beko GNE 134605 FX User manual

Refrigerator
Réfrigérateur
Hűtőszekrény
Тоңазытқыш
Холодильник
Frižider
لاچخی
GNE 134605 FX

EN
1
Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you an
effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
1 Your Refrigerator 3
2 Important Safety
Warnings 4
Intended use .....................................4
General safety ..................................4
For products with a water dispenser;.6
Child safety........................................6
Compliance with the AEEE Regulation
and Disposing of the Waste Product..6
Package information..........................6
HCA warning.....................................6
Things to be done for energy saving..7
Recommendations for the fresh food
compartment.....................................7
3 Installation 8
Points to be paid attention to when the
relocation of the refrigerator ............... 8
Before you start the refrigerator,.........8
Electrical connection.......................... 8
Disposing of the packaging ...............9
Disposing of your old refrigerator .......9
Placing and Installation ......................9
Floor balance adjustment ................10
Adjusting the gap between the upper
door ................................................10
Changing the illumination lamp .......11
Installing Water Filter .......................12
Connection of the Water Pipe to the
Refrigerator .....................................12
Connection of Water Hose to the
Jug .................................................13
Connection of the Water Pipe to the
Cold Water Mains Line ....................14
Prior to first use of Water Dispenser.16
CONTENTS
4 Preparation 17
5 Using your refrigerator 18
Indicator Panel.................................18
Door Open Alarm: ..........................21
Things to do to have the filter usage
time calculated automatically...........22
Sliding Body Shelves .......................23
Egg tray...........................................23
Crisper ............................................23
Chiller compartment ........................23
Movable Middle Section .................24
Multi Zone Storage Compartment ..24
Blue light .........................................24
Sliding Body Shelves With Rear
Hangers ..........................................25
Butter & Cheese Section .................25
Using the water spring.....................25
Spillage Tray ....................................25
Minibar ............................................26
Dual cooling system: .......................27
Freezing fresh food .......................... 27
Recommendations for preservation of
frozen food ...................................... 28
Placing the food ..............................28
Deep-freeze information ..................28
6 Maintenance and
cleaning 29
Protection of plastic surfaces ..........29
7 Recommended solutions
for the problems 30

EN
3
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

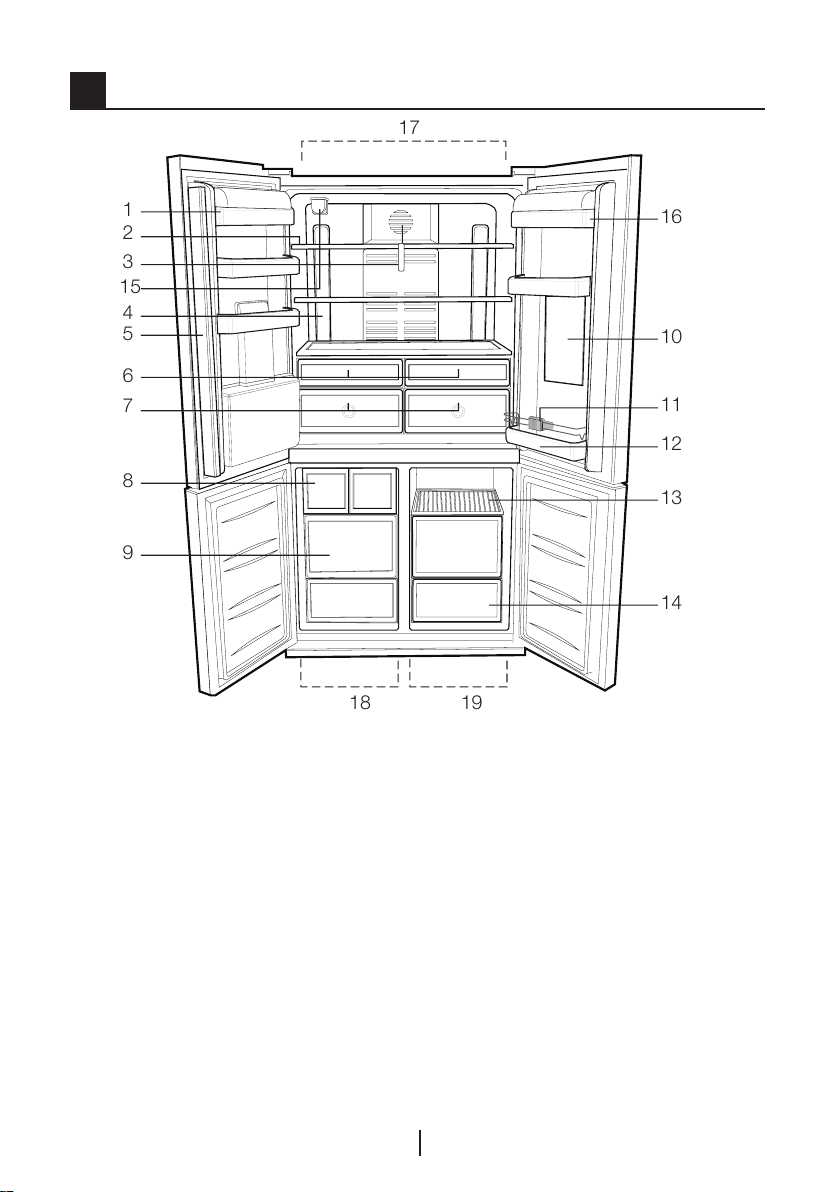

1Your Refrigerator
1- Fridge compartment door shelves
2- Fridge compartment glass shelves
3- Diffuser cover
4- Illumination lens
5- Movable middle section
6- Chiller compartment
7- Crisper
8- Icematic
9- Frozen food storage
compartments
17
18 19
2
3
6
7
8
9
5
4
16
13
11
14
1
12
10
15
10- Minibar
11- Bottle holder
12- Bottle shelf
13- Food storage compartment shelves
14- Food storage compartments
15- Water Filter
16- Dairy compartment
17- Fridge compartment
18- Freezer compartment
19- Multi Zone

EN
4
2Important Safety Warnings
Please review the following information.
Failure to observe this information may
cause injuries or material damage.
Otherwise, all warranty and reliability
commitments will become invalid.
The service life of your product is 10
years. During this period, original spare
parts will be available to operate the
product properly.
Intended use
This product is intended to be used
• indoors and in closed areas such as
homes;
• in closed working environments such
as stores and offices;
• in closed accommodation areas such
as farm houses, hotels, pensions.
• It should not be used outdoors.
General safety
• When you want to dispose/scrap the
product, we recommend you to consult
the authorized service in order to learn
the required information and authorized
bodies.
• Consult your authorized service for all
your questions and problems related to
the refrigerator. Do not intervene or let
someone intervene to the refrigerator
without notifying the authorised
services.
• For products with a freezer
compartment; Do not eat cone ice
cream and ice cubes immediately
after you take them out of the freezer
compartment! (This may cause frostbite
in your mouth.)
• For products with a freezer
compartment; Do not put bottled and
canned liquid beverages in the freezer
compartment. Otherwise, these may
burst.
• Do not touch frozen food by hand; they
may stick to your hand.
• Unplug your refrigerator before cleaning
or defrosting.
• Vapor and vaporized cleaning materials
should never be used in cleaning
and defrosting processes of your
refrigerator. In such cases, the vapor
may get in contact with the electrical
parts and cause short circuit or electric
shock.
• Never use the parts on your refrigerator
such as the door as a means of
support or step.
• Do not use electrical devices inside the
refrigerator.
• Do not damage the parts, where the
refrigerant is circulating, with drilling or
cutting tools. The refrigerant that might
blow out when the gas channels of the
evaporator, pipe extensions or surface
coatings are punctured causes skin
irritations and eye injuries.
• Do not cover or block the ventilation
holes on your refrigerator with any
material.
• Electrical devices must be repaired
by only authorised persons. Repairs
performed by incompetent persons
create a risk for the user.
• In case of any failure or during a
maintenance or repair work, disconnect
your refrigerator’s mains supply by
either turning off the relevant fuse or
unplugging your appliance.
• Do not pull by the cable when pulling
off the plug.
• Place the beverage with higher proofs
tightly closed and vertically.
• Never store spray cans containing
flammable and explosive substances in
the refrigerator.

EN
5
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• This product is not intended to be
used by persons with physical, sensory
or mental disorders or unlearned
or inexperienced people (including
children) unless they are attended by
a person who will be responsible for
their safety or who will instruct them
accordingly for use of the product
• Do not operate a damaged refrigerator.
Consult with the service agent if you
have any concerns.
• Electrical safety of your refrigerator shall
be guaranteed only if the earth system
in your house complies with standards.
• Exposing the product to rain, snow,
sun and wind is dangerous with respect
to electrical safety.
• Contact authorized service when there
is a power cable damage to avoid
danger.
• Never plug the refrigerator into the wall
outlet during installation. Otherwise, risk
of death or serious injury may arise.
• This refrigerator is intended for only
storing food items. It must not be used
for any other purpose.
• Label of technical specifications is
located on the left wall inside the
refrigerator.
• Never connect your refrigerator to
electricity-saving systems; they may
damage the refrigerator.
• If there is a blue light on the refrigerator,
do not look at the blue light with optical
tools.
• For manually controlled refrigerators,
wait for at least 5 minutes to start the
refrigerator after power failure.
• This operation manual should be
handed in to the new owner of the
product when it is given to others.
• Avoid causing damage on power cable
when transporting the refrigerator.
Bending cable may cause fire. Never
place heavy objects on power cable.
• Do not touch the plug with wet hands
when plugging the product.
• Do not plug the refrigerator if the wall
outlet is loose.
• Water should not be sprayed on inner
or outer parts of the product for safety
purposes.
• Do not spray substances containing
inflammable gases such as propane
gas near the refrigerator to avoid fire
and explosion risk.
• Never place containers filled with water
on top of the refrigerator; in the event of
spillages, this may cause electric shock
or fire.
• Do not overload the refrigerator with
food. If overloaded, the food items may
fall down and hurt you and damage
refrigerator when you open the door.
• Never place objects on top of the
refrigerator; otherwise, these objects
may fall down when you open or close
the refrigerator's door.
• As they require a precise temperature,
vaccines, heat-sensitive medicine and
scientific materials and etc. should not
be kept in the refrigerator.

EN
6
• If not to be used for a long time,
refrigerator should be unplugged. A
possible problem in power cable may
cause fire.
• The plug's tip should be cleaned
regularly with a dry cloth; otherwise, it
may cause fire.
• Refrigerator may move if adjustable
legs are not properly secured on the
floor. Properly securing adjustable legs
on the floor can prevent the refrigerator
to move.
• When carrying the refrigerator, do not
hold it from door handle. Otherwise, it
may be snapped.
• When you have to place your product
next to another refrigerator or freezer,
the distance between devices should
be at least 8cm. Otherwise, adjacent
side walls may be humidified.
For products with a water
dispenser;
Pressure of water mains should be
minimum 1 bar. Pressure of water
mains should be maximum 8 bars.
• Use only potable water.
Child safety
• If the door has a lock, the key should
be kept away from reach of children.
• Children must be supervised to prevent
them from tampering with the product.
Compliance with the AEEE
Regulation and Disposing of
the Waste Product
This product does not contain harmful
and forbidden materials described
in the "Regulation on the Control of
the Waste Electrical and Electronic
Equipment" issued by the T.R. Ministry
of Environment and City Planning.
Complies with the AEEE Regulation.
This product has been
manufactured with high
quality parts and materials
which can be reused and are
suitable for recycling.
Therefore, do not dispose the
product with normal
domestic waste at the end of its service
life. Take it to a collection point for the
recycling of electrical and electronic
equipment. Please consult your local
authorities to learn the nearest collection
point. Help protect the environment and
natural resources by recycling used
products. For children's safety, cut the
power cable and break the locking
mechanism of the door, if any, so that it
will be non-functional before disposing of
the product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated by
the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and our
national asset wealth.
If you want to contribute to the re-
evaluation of the packaging materials,
you can consult to your environmentalist
organizations or the municipalities where
you are located.
HCA warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,

EN
7
Recommendations for the
fresh food compartment
*optional
• Do not allow the food to touch the
temperature sensor in fresh food
compartment. To allow the fresh food
compartment keep its ideal storage
temperature, sensor must not be
hindered by food.
• Do not place hot foods in the product.
temperature
sensor
food
MILK
juice
etc.
temperature
sensor
temperature
sensor
food
MILK
juice
etc.
temperature
sensor
keep your product away from potential
fire sources that can cause the product
catch a fire and ventilate the room in
which the unit is placed.
Ignore this warning if your product's
cooling system contains R134a.
Type of gas used in the product is stated
in the type label which is on the left wall
inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator under
direct sunlight or near heat emitting
appliances such as ovens, dishwashers
or radiators. Keep your refrigerator at
least 30cm away from heat emitting
sources and at least 5cm from electrical
ovens.
• Pay attention to keep your food in
closed containers.
• For products with a freezer
compartment; You can store maximum
amount of food items in the freezer
when you remove the shelf or drawer
of the freezer. Energy consumption
value stated for your refrigerator has
been determined by removing freezer
shelf or drawer and under maximum
load. There is no harm to use a shelf or
drawer according to the shapes and
size of food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
8
3Installation
BIn case the information which are given
in the user manual are not taken into
account, manufacturer will not assume
any liability for this.
Points to be paid attention
to when the relocation of the
refrigerator
1. Your refrigerator should be unplugged.
Before transportation of your
refrigerator, it should be emptied and
cleaned.
2. Before it is re-packaged, shelves,
accessories, crisper, etc. inside your
refrigerator should be fixed with
adhesive tape and secured against
impacts. Package should be bound
with a thick tape or sound ropes and
the transportation rules on the package
should be strictly observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the
refrigerator,
Check the following before you start to
use your refrigerator:
1. Attach 2 plastic wedges as illustrated
below. Plastic wedges are intended to
keep the distance which will ensure the
air circulation between your refrigerator
and the wall. (The picture is drawn
up as a representation and it is not
identical with your product.)
2. Clean the interior of the refrigerator as
recommended in the “Maintenance and
cleaning” section.
3. Connect the plug of the refrigerator to
the wall socket. When the fridge door
is opened, fridge internal lamp will turn
on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is not
running and this is quite normal.
5. Front edges of the refrigerator may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.

EN
9
• The power plug must be easily
accessible after installation.
• Electrical safety of your refrigerator shall
be guaranteed only if the earth system
in your house complies with standards.
• The voltage stated on the label located
at left inner side of your product should
be equal to your network voltage.
• Extension cables and multi plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is the risk of electric
shock!
Disposing of the packaging
The packing materials may be dangerous
for children. Keep the packing materials
out of the reach of children or dispose of
them by classifying them in accordance
with the waste instructions stated by
your local authorities. Do not throw away
with regular house waste, throw away on
packaging pick up spots designated by
the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorized dealer
or waste collection center of your
municipality about the disposal of your
refrigerator.
Before disposing of your refrigerator, cut
out the electric plug and, if there are any
locks on the door, make them inoperable
in order to protect children against any
danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the doors
of your refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a place that
allows ease of use.
2. Keep your refrigerator away from heat
sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 5 cm distance with the ceiling and
at least 5 cm with the wall. Do not place
your product on the materials such as
rug or carpet.
4. Place your refrigerator on an even floor
surface to prevent jolts.

EN
10
Floor balance adjustment
AIf your refrigerator is unbalanced;
BFirst unplug the product. The product
must be unplugged when making the
balance adjustment. There is the risk of
electric shock.
4
1 2 3
1- Ventilation cover is removed by
unscrewing its screws as illustrated in
the figure before the procedure. You
can balance your refrigerator by turning
the front legs of it as illustrated in the
figure. The corner where the leg exists is
lowered when you turn in the direction of
black arrow and raised when you turn in
the opposite direction. Taking help from
someone to slightly lift the refrigerator will
facilitate this process.
2. After the balance issue is remedied,
install back the ventilation cover and
fasten the screws.
3. Remove the screws fastening the
lower ventilation cover using a Philips
screwdriver.
Adjusting the gap between
the upper door
CYou can adjust the gap between the
fridge compartment doors as illustrated
in the figures.
Door shelves should be empty when
adjusting the door height.
C Using a screwdriver, remove the
screw of upper hinge cover of the door
you want to adjust.

EN
11
C Adjust the door appropriately as you
desire by loosing the screws.
C Fix the door you have adjusted by
tightening the screws without changing
the position of the door.
C Replace the hinge cover and fix with
the screw.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call your
Authorized Service.

EN
12
Installing Water Filter
(in some models)
Two different water sources may
be connected to the refrigerator for
water supply: the mains cold water
supply and water in a jug.
Installation Requirements
A pump should be used for jug water
usage.
Check that the parts stated below are
supplied with your appliance.
1. Union for connection of the water
pipe to the rear of the appliance. (If it
does not fit, provide it from the nearest
authorized service.)
2. 2 pieces of pipe clips (In case required
to secure the water pipe)
Note: Since the following parts are not
required in use with a jug, they may not
be found in the product you purchased.
3. 5-meter long water pipe (1/4 inch in
diameter)
4. Cold mains water valve with mesh filter
(Tap Adapter)
5. Water Filter or externally connectable
filter to be fitted to the bracket inside
the fridge compartment.
Place where the external filter is going to
be fitted should be determined first.
(Applies to the filter being used outside
the refrigerator.) Then, determine the
distance between the filter and the
refrigerator and required hose lengths
from the filter to the refrigerator water
inlet.
Water filter must be hold upright as shown
in the figure. It is important to properly
attach the filter to water inlet and water
outlet points.
After attaching the filter, do not use first 3-4
glasses of water.
Connection of the Water
Pipe to the Refrigerator
1. After installing the union onto the
water pipe, insert the water pipe to
the refrigerator inlet valve by pressing
downwards firmly.
2. Fix union as seen in the opposite
figure, by squeezing by hand on the
refrigerator inlet valve.
(a- Water Pipe, b-Union, c-Valve)
CNote 1: You should not need to
tighten the union with a tool to achieve
water tight assembly. In case of a leak
use a spanner or a pair of pliers to
tighten the union.
3
1
4
2
*5
c
a
a
b
1
2

EN
13
Connection of Water Hose to
the Jug
(in some models)
To connect water to the refrigerator from
a jug, a pump is needed. Follow the
instructions below after connecting one
end of the water pipe coming out of the
pump to the refrigerator as described on
the previous page.
1. Finish the connection by pushing the
other end of the water pipe into the
water pipe inlet of the pump as shown
in the figure.
2. Put and fix the pump hose into the jug
as shown in the figure.
3. After completing the connection, plug in
and run the pump.
To provide an efficient operation of the
pump, wait for 2-3 minutes after
starting the pump.
CYou may refer to the user manual
of the pump while making the water
connection.
CThere is no need to use water filter in
case a jug is used.
CPump must be used when jug will be
used.

EN
14
Connection of the Water
Pipe to the Cold Water Mains
Line
(in some models)
If you want to use your refrigerator by
connecting it to the cold water mains
line,
you will have to connect a standard 1/2"
valve connection fitting to the cold water
supply in your house. In case this valve is
not present or in case you are not sure,
consult a qualified plumber.
1. Separate the union from the tap
adaptor. (Figure A)
2. Install the tap adaptor to 1/2” valve
fitting as shown in the figure. (Figure B)
3. After inserting the water pipe to the
union, install it to the tap adaptor and
insert to the tap as shown in the figure.
(Figure C)
4. Tighten the union manually. In case of a
leak use a spanner or a pair of pliers to
tighten the union.
ACaution: Secure the water pipe
to suitable points by means of the
pipe clips supplied to avoid any
damage or displacement or accidental
disconnection.
ACaution: After turning on the water
valve, make sure that there is no leakage
at both connection points of the water
pipe. In case of a leak, turn off the valve
immediately and tighten all joints again
using a spanner or a pair of pliers.
ACaution: Make sure that standard
1/2" valve fitting fed by cold mains water
supply is available and is turned off fully.

EN
15
To fit the water filter follow the
instructions below referring to figures
supplied:
1. Press ice cancel button on the display.
2. Remove the filter cover in the fridge
compartment by pulling it forward.
3. Take out the water filter by-pass cover
by rotating it downwards.
ACaution: Make sure that the “Ice off”
mode is active before taking out the by-
pass cover.
Note: It is normal that a few drops of
water drip after the cover has been taken
out.
4. Remove the lid on top of the water filter
to place it as shown in the figure and
turn upwards to lock it.
5. Press ice cancel button on the display
again to exit from this mode.
Water filter should be replaced every 6
months.
If you want to have the filter change time
calculated automatically and receive a
warning at the end of usage time, please
read "Calculating the Filter Usage Time
Automatically" section.

EN
16
The water filter must be removed as
shown in the figure when it is going to
be replaced or when it will no longer
be used and by-pass cover must be
attached. It must be made sure that Ice
Off mode is active before taking it out.
ACaution: Water filter cleans some
foreign particles in the water. It does not
purify water from microorganisms.
ACaution: Ice Off button must always
be pressed during replacement of the
water filter or installing the by-pass
cover.
Prior to first use of Water
Dispenser
CWater mains pressure must not be
below 1 bar.
CWater mains pressure must not be
above 8 bars.
CPumps must be used in case the
supply water pressure drops below 1 bar
or if a jug is going to be used.
CWater system of the refrigerator must
be connected to the cold water line. It
must not be connected to hot water line.
CNo water may be obtained in the
initial operation of the refrigerator. This
is caused by the air in the system. To
discharge air from the system, press
Dispenser latch for periods of 1 minute
until water comes from the Dispenser.
Water flow may be irregular in the
beginning. Irregular water flow will be
normalized after the air in the system is
discharged.
CAt the initial startup of the refrigerator
approx.12 hours must pass before cold
water can be obtained.
CWater mains pressure must be
between 1-8 bars for the operation of
Ice/Water Dispenser smoothly. For this,
check that 1 glass of water (100 cc) can
be filled in 10 seconds.
CThe first 10 glasses of water should
not be consumed.
CApproximately the first 30 cubes
of ice to be obtained from the Ice
Dispenser must not be used.
CAlways use the water filter when a jug
is not being used.

EN
17
4Preparation
CYour refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not be
located under direct sunlight.
CThe ambient temperature of the room
where you install your refrigerator
should at least be 10°C. Operating your
refrigerator under cooler conditions
than this is not recommended with
regard to its efficiency.
CPlease make sure that the interior of
your refrigerator is cleaned thoroughly.
CIf two refrigerators are to be installed
side by side, there should be at least 2
cm distance between them.
CWhen you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.

EN
18
5Using your refrigerator
Indicator Panel
This touch-control indicator panel allows you to set the temperature without opening
the door of your refrigerator. Just touch the relevant button with your finger to set the
temperature.
1. Eco-Extra / Vacation Button
2. Fast Freeze Button
3. Freezer Compartment Temperature
Setting Button
4. Fridge Compartment Temperature
Setting Button
5. Quick Cool Button
6. Multi Zone Compartment
Temperature Setting Button
7. Vacation Function Indicator
8. Eco-Extra Function Indicator
9. Fast Freeze Function Indicator
10. Freezer Compartment Temperature
Indicator
11. Fridge Compartment Temperature
Indicator
12. Quick Cool Function Indicator
13. Multi Zone Compartment Temperature
Indicator
14. Economy Mode Indicator
15. Error Status Indicator
16. Key Lock Indicator
17. Ice Cancel Button
18. Ice Off indicator
19. Cancel Filter Change Warning Button
20. Filter Change Warning Indicator
1 7 11 12 15 4
5
6
2
3
16
17
18 20 19
10 9 14 138
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

EN
19
1. Eco Extra/Vacation Button
Press this button briefly to activate the
Eco Extra function. Press and hold this
button for 3 sec. to activate the Vacation
function. Press this button again to
deactivate the selected function.
2. Fast Freeze Button
Press this button briefly to activate the
Fast Freeze function. Press this button
again to deactivate the selected function.
3. Freezer Compartment
Temperature Setting Button
Press this button to set the temperature
of the freezer compartment to -18, -20,
-22, -24, -18... respectively. Press this
button to set the desired temperature for
the Freezer Compartment.
4. Fridge Compartment Temperature
Setting Button
Press this button to set the temperature
of the fridge compartment to 8, 6, 4, 2,
8... respectively. Press this button to set
the desired temperature for the Fridge
Compartment.
5. Quick Cool Button
Press this button briefly to activate the
Quick Cool function. Press this button
again to deactivate the selected function.
6. Multi Zone Compartment
Temperature Setting Button
You can set the Multi Zone
Compartment either as a Freezer or a
Cooler. Press and hold this button for a
long time (3 sec) to set the Multi Zone
Compartment as a Freezer or a Cooler.
This compartment is set as a Freezer
Compartment at factory.
If the Multi Zone Compartment is set as
a Freezer, then the temperature of the
Multi Zone Compartment will change
as -18, -20, -22, -24, -18... respectively
each time you press this button. If the
Multi Zone Compartment is set as a
Fridge, then the temperature of the Multi
Zone Compartment will change as 10, 8,
6, 4, 2, 0, -6, ... respectively each time
you press this button.
7. Vacation Function Indicator
Indicates that the vacation function
is active. If this function is active,
"- -" appears on the indicator of the
fridge compartment and no cooling is
performed in the fridge compartment.
Other compartments will be cooled in
accordance with the temperature set for
them.
Press the relevant button again to
deactivate this function.
8. Eco Extra Function Indicator
It indicates that the Eco-Extra function
is active. If this function is active, your
refrigerator will automatically detect
the least usage periods and energy-
efficient cooling will be performed during
those times. Economy indicator will be
active while energy-efficient cooling is
performed.
Press the relevant button again to
deactivate this function.
