Beko RCNE720E30DXPN User manual

RCNE720E30DXPN
EN/RO
58 5174 0000/AB-EN-RO
Refrigerator
User Manual
Frigider
Manual de instrucţiuni

Please read this manual before using the product!
Dear Valued Customer,
We wish you to get the best results from your product that has been manufactured meticulously at modern plants
and tested with detailed quality control checks.
For this reason, we recommend that you read this user manual thoroughly before starting the product. If you hand
over the product to someone else, please remember to give the user manual as well.
This manual will help you use your appliance in a fast and safe way.
 Please read this user manual carefully before installing and using the product.
 Always follow the applicable safety instructions.
 Keep the user manual in an easily accessible place for further use.
 Please read all the other documents provided with the product.
Please keep in mind that this manual may apply to several product models. This manual expressly indicates the
differences between various models.
CImportant information and
useful hints.
ARisk of injury and property
damage.
BRisk of electric shock.
Packaging materials of
this product has been
manufactured from recyclable
materials in accordance with
the National Environment
Regulations.
A
A
A
C
SUPPLIER’S NAME MODEL IDENTIFIER (*)
INFORMATION
C
.The model information as stored in the product data base
can be reached by entering following website and searching
for your model identifier (*) found on energy label.
https://eprel.ec.europa.eu/

3 /25 EN
Refrigerator / User Manual
1 Important Instructions Regarding Safety and
Environment 4
1.1. General Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1.1 Hydrocarbon (HC) Warning . . . . . . . . . . . . . . . . . 6
1.1.2 For Products with a Water Dispenser/Ice Machine6
1.2. Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3. Children's Safety . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4. Compliance with the WEEE Directive and Disposing
of the Waste Product: . . . . . . . . . . . . . . . . . . . . 7
1.5. Compliance with RoHS Directive . . . . . . . . . . . . . 7
1.6. Package information. . . . . . . . . . . . . . . . . . . . . . 7

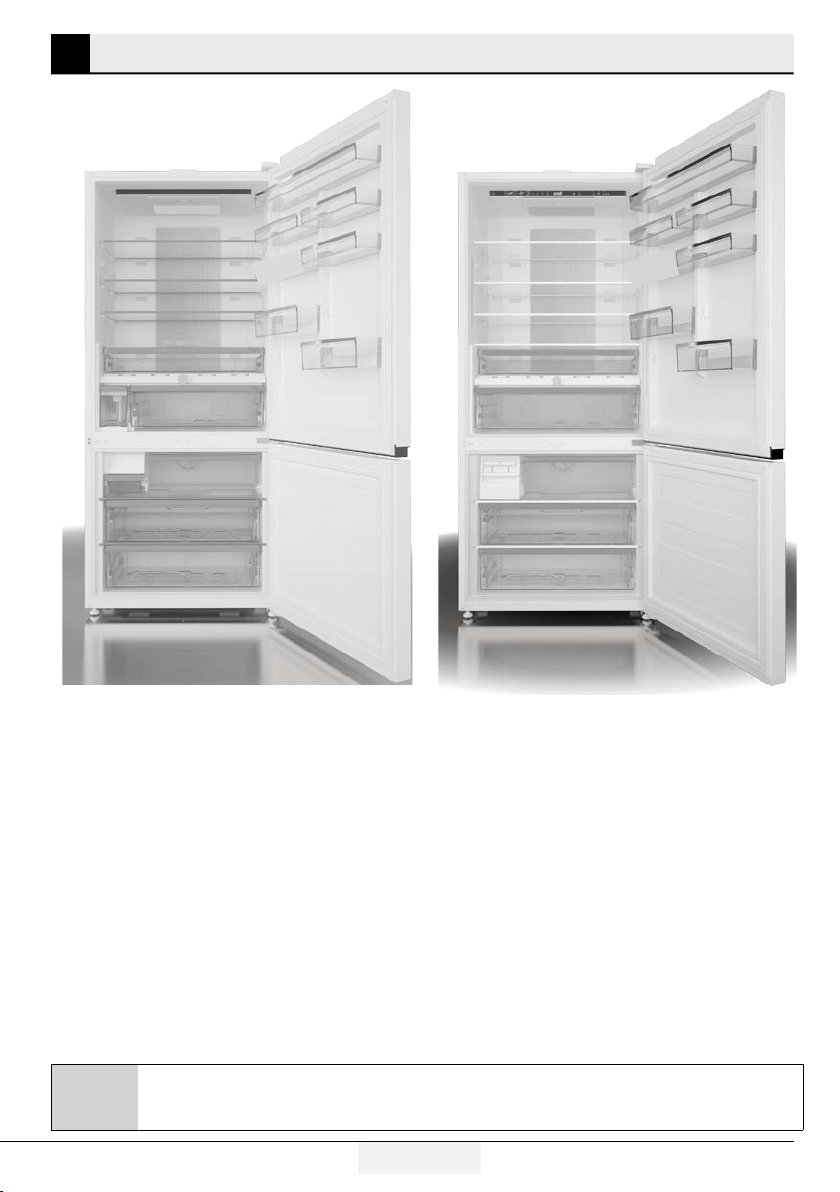

2 Your Refrigerator 8
3 Installation 9
3.1. Appropriate location for installation . . . . . . . . . . . 9
3.2. Installing the plastic wedges . . . . . . . . . . . . . . . . 9
3.3. Adjusting the feet . . . . . . . . . . . . . . . . . . . . . . . . 9
3.4. Electrical connection. . . . . . . . . . . . . . . . . . . . . 10
4 Preparation 11
4.1. Things to be done for energy saving . . . . . . . . . 11
4.2. Initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Operating the product 12
5.1. Indicator panel . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.2. Indicator panel . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.3. Ice machine . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.4. Icematic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.5. Ice tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

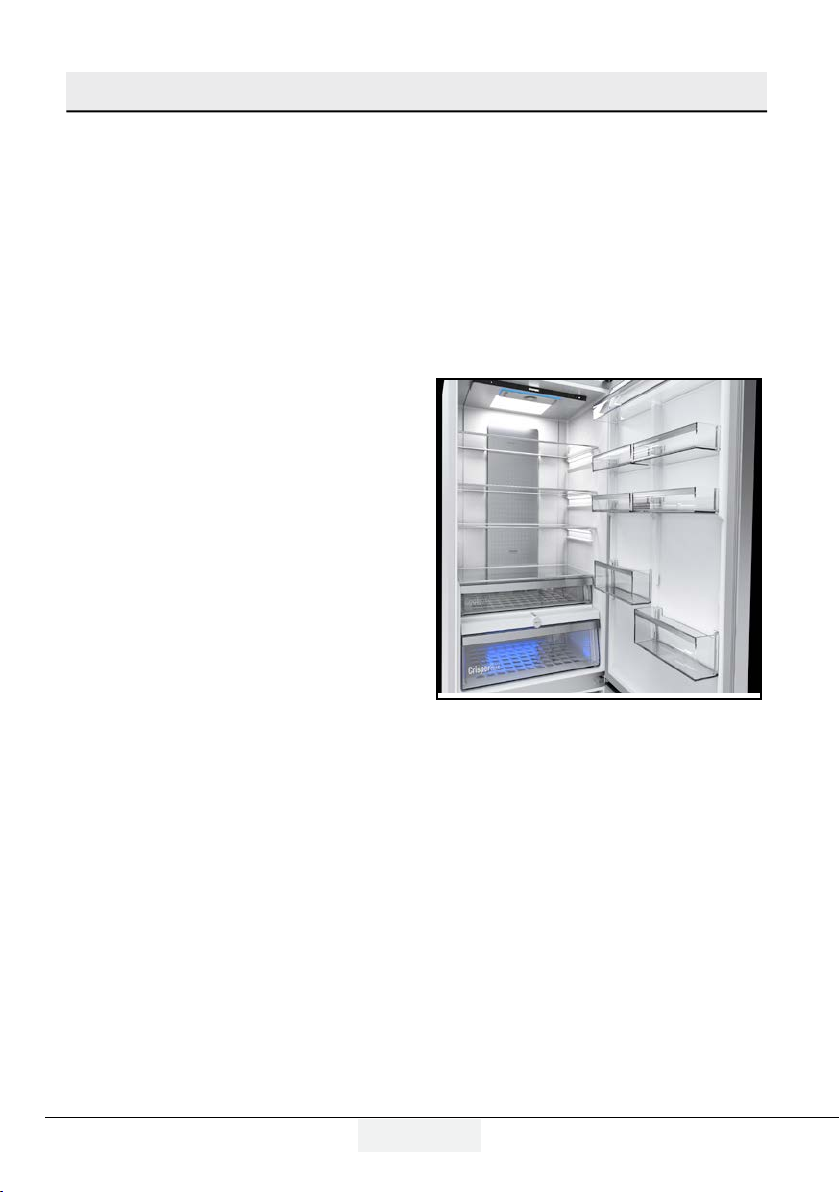

5.6. Blue light/HarvestFresh. . . . . . . . . . . . . . . . . . . 17
5.7. Deodoriser Module . . . . . . . . . . . . . . . . . . . . . . 17
(FreshGuard) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.8. Chiller compartment. . . . . . . . . . . . . . . . . . . . . 18
5.9. Crisper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.10.Using the water dispenser . . . . . . . . . . . . . . . . 19
5.11.Filling the water dispenser's tank . . . . . . . . . . . 19
5.12.Cleaning the water tank . . . . . . . . . . . . . . . . . . 19
5.13.Drip tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.14.Humidity-controlled crisper (Ever Fresh). . . . . . . 21
5.15.Freezing fresh food. . . . . . . . . . . . . . . . . . . . . . 21
5.16.Recommendations for preserving the frozen food22
5.17.Deep-freeze information . . . . . . . . . . . . . . . . . . 22
5.18.Placing the food . . . . . . . . . . . . . . . . . . . . . . . . 22
5.19.Door open warning. . . . . . . . . . . . . . . . . . . . . . 22
5.20.Illumination lamp . . . . . . . . . . . . . . . . . . . . . . . 22
6 Care and Cleaning 23
6.1. Avoiding Bad Odours . . . . . . . . . . . . . . . . . . . . 23
6.2. Protection of plastic surfaces . . . . . . . . . . . . . . 23
6.3. Cleaning the Inner Surface . . . . . . . . . . . . . . . . 23
6.4. Stainless Steel Outer Surfaces . . . . . . . . . . . . . 23
6.5. Cleaning Products with Glass Doors . . . . . . . . . 24
7 Troubleshooting 25

4 /25EN Refrigerator / User Manual
This chapter contains safety information
that will help you avoid the risk personal
injury or property damage. Failure to
follow these instructions shall render any
product warranty void.
Intended use
A
WARNING:
Keep ventilation openings, in
the appliance enclosure or in
the built-instructure, clear of
obstruction.
A
WARNING:
Do not use mechanical
devices or other means to
accelerate the defrosting
process, other than those
recommended by the
manufacturer.
A WARNING:
Do not damage the refrigerant
circuit.
A
WARNING:
Do not use electrical
appliances inside the food
storage compartments of the
appliance, unless they are of
the type recommended by the
manufacturer.
This appliance is intended to be used in
household and similar applications such
as
– staff kitchen areas in shops, offices and
other working environments;
– farm houses and by clients in hotels,
motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail
applications.
1.1. General Safety
 This product is not suitable to be
used, approached or entered in by
children, or persons with physical,
sensory or mental disabilities, or by
persons who lack experience and
information. Children should not play
with the product. Cleaning and care
should not be performed by children
unless they are supervised by an adult.
Failure to comply with the instructions
and uncontrolled use may result in
dangerous situations!
 Unplug the product if you encounter a
failure during use.
 If the product malfunctions, it must
not be operated until repaired by the
authorised service provider. Risk of
electric shock!
 Plug the product into a grounded
socket protected by a fuse that
corresponds to the value on its
nameplate. Have a qualified electrician
ground the product. Our company
cannot be held responsible for
damages resulting from the failure to
use the product with a grounded socket
pursuant to local regulations.
 Unplug the product when not in use.
 Never wash the product by spreading
or pouring water onto it! Risk of electric
shock!
 Never touch the plug with wet hands!
 Never unplug the product by pulling the
cable. Always pull the plug by holding
the socket.
1Important Instructions Regarding Safety and Environment

Instructions for safety and environment
5 /25EN
Refrigerator / User Manual
 Do not plug the refrigerator if the wall
socket is loose.
 Never connect your refrigerator to
energy saving devices. Such systems
are harmful to your product.
 Unplug the product during
installation, care, cleaning and
repairing procedures.
 Always have the Authorised Service
Provider install the product and
establish its electrical connections.
The manufacturer cannot be held
responsible for damages caused
by procedures performed by
unauthorised persons.
 Do not eat cone ice cream or ice
cubes immediately after you take
them out of the freezer compartment!
This may cause frostbite in your
mouth!
 Do not touch frozen food with wet
hands! They may stick to your hand!
 Do not put bottled or canned
liquid beverages in the freezer
compartment. They may burst!
 Never use steam or steam cleaners
to clean or defrost the refrigerator.
Steam gets into contact with the live
parts in your refrigerator, causing
short circuit or electric shock!
 Do not use mechanical devices
or other means to accelerate the
defrosting process other than those
recommended by the manufacturer.
 Never use the parts in your
refrigerator such as the door and
drawer as a means of support or
step. This may cause the product to
tip over or damage the parts of it.
 Do not damage the parts where the
refrigerant is circulating with drilling
or cutting tools. The refrigerant
that might blow out when the gas
channels of the evaporator, pipe
extensions or surface coatings are
punctured causes skin irritations
and eye injuries.
 Do not cover or block the ventilation
holes in your refrigerator with any
object.
 Place the beverage with higher
proofs tightly closed and vertically.
 Do not use gaseous sprays near the
product since there is the risk or fire
or explosion!
 Flammable items or products that
contain flammable gases (e.g. spray)
as well as explosive materials should
never be kept in the appliance.
 Do not place vessels filled with liquid
onto the product. Splashing water
on an electrical part may cause
electric chock or the risk of fire.
 Do not store items that need precise
temperature adjustment (such as
vaccines, heat-sensitive medication,
science materials etc.) in the
refrigerator.
 If you are not going to use the
product for a long time, unplug it
and remove the food in it.
 If there is a blue light on the
refrigerator, do not look at this light
with optical tools.
 Exposing the product to rain, snow,
sun or wind is dangerous in terms of
electrical safety.
 In products with mechanical control
(thermostat), wait for 5 minutes
to plug in the product again after
unplugging.
 Do not overload the refrigerator.
Objects in the refrigerator may fall
down when the door is opened,

Instructions for safety and environment
6 / 25 EN Refrigerator / User Manual
causing injury or damage. Similar
problems may arise if any object is
placed onto the product.
 If the product has a door handle, do
not pull the handle when re-locating
the product. The handle might be
loose.
 Be careful not to jam your hand or
any other body part in the moving
parts of the refrigerator.
 Do not put your hand or any other
foreign materials into the ice
machine while it is operating.
1.1.1 Hydrocarbon (HC) Warning
 If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention not to damage the cooling
system or the piping during use and
transportation. If damaged, keep
the product away from potential fire
sources that may cause it to catch
fire and ventilate the room where the
product is placed.
C
If the product is damaged and
if you see gas leak, please
keep away from the gas. It may
cause frostbite when it gets into
contact with the skin.
(including R134)
CIgnore this warning if the cooling
system of your product contains
R134a.
C
Type of gas used in the product
is stated on the type plate which
is on the left wall inside the
refrigerator.
AWARNING:
Never throw the product into fire
for disposal.
1.1.2 For Products with a Water
Dispenser/Ice Machine
 Pressure for cold water inlet shall
be maximum 90 psi (620 kPa).
If your water pressure exceeds
80 psi (550 kPa), use a pressure
limiting valve in your mains
system. If you do not know how to
check your water pressure, ask for
the help of a professional plumber.
 If there is a risk of water impact
in your installation, always use a
water impact protection equipment
in that installation. Please consult
professional plumbers if you are
not sure if there is water impact in
your installation.
 Do not make installation on the hot
water inlet.
 Take the necessary measures
against the freezing risk of the
hoses. The water temperature
operating range must be 0.6°C
(33°F) minimum and 38°C
(100°F) maximum.
A
WARNING:
Never connect the product
to a cold water mains with a
pressure of 550 kPa (80 psi)
or above.
1.2. Intended Use
 This product has been designed
for domestic use. It is not suitable
for commercial use and it must not
be used out of its intended use.

Instructions for safety and environment
7 /25EN
Refrigerator / User Manual
 It must be used only for storing
food.
 The manufacturer will not take any
responsibility for damages resulting
from improper use or transport.
 Original spare parts will be available
for 10 years after the purchase date
of the product.
1.3. Children's Safety
 If there is a lock on the door of the
product, the key should be kept out
of the reach of children.
 Do not let children play with the
product.
A
DANGER:
Before disposing your old
refrigerator or freezer:
 Children may get locked
inside.
 Remove the doors.
 Leave the shelves to
prevent children from
getting inside the product
easily.
1.4. Compliance with the WEEE Directive
and Disposing of the Waste Product:
This product complies with EU WEEE Directive
(2012/19/EU). This product bears a classifica-
tion symbol for waste electrical and electronic
equipment (WEEE).
This symbol indicates that this prod-
uct shall not be disposed with other
household wastes at the end of its
service life. Used device must be re-
turned to offical collection point for
recycling of electrical and electronic devices. To
find these collection systems please contact to
your local authorities or retailer where the prod-
uct was puchased. Each household performs
important role in recovering and recycling of old
appliance. Appropriate disposal of used appli-
ance helps prevent potential negative conse-
quences for the environment and human
health.
1.5. Compliance with RoHS Directive
The product you have purchased complies with
EU RoHS Directive (2011/65/EU). It does not
contain harmful and prohibited materials speci-
fied in the Directive.
1.6. Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations.
Do not dispose of the packaging materials to-
gether with the domestic or other wastes. Take
them to the packaging material collection points
designated by the local authorities.
A
DANGER:
Risk of Fire or Explosion:
 This product uses flammable
refrigerant.
 Do not use mechanical devices to
defrost the refrigerator.
 Do not use chemicals for cleaning.
 Do not pierce the refrigerant pipe.
 If the refrigerant pipe is pierced, it
must be repaired only by licensed
service personnel.
 Please consult the repair/user
manual before cleaning the product.
All safety instructions must be
followed.
 Dispose the product according to
federal or local regulations.

8 /25EN Refrigerator / User Manual
1. Door shelves of fridge compartment
2. Freezer compartment drawers
3. Icematic
4. Water tank
5. Crisper
6. Crisper cover
7. Chiller compartment
8. Glass shelves of fridge compartment
9. Odour filter (violed)
10. Inside display
11. Glass shelves of fridge compartment
12. Freezer compartment
*Optional
2Your Refrigerator
C*Optional:Figures in this user manual are given as an example and may not match the product
exactly. If the relevant parts are not available in the product you purchased, the figure applies to other
models.
*1
*3
*4
6
*5
7
*8
11
12
*2
*1
*2
*3
*5
7
*8
9
10
11
6
12
It may not apply to all models

9 /25 EN
Refrigerator / User Manual
3Installation
3.1. Appropriate location for installation
Contact an Authorized Service for the installation of the
product. In order to prepare the product for use, refer the
information in the user manual and ensure that electrical
installation and water installation are appropriate. If not,
call a qualified electrician and technician to have any
necessary arrangements carried out.
B
WARNING: Manufacturer shall not
be held liable for damages that may
arise from procedures carried out by
unauthorized persons.
BWARNING: Product must not be plugged
in during installation. Otherwise, there is
the risk of death or serious injury!
A
WARNING: : If the door clearance of the
room where the product will be placed is
so tight to prevent passing of the product,
contact the authorised service provider.
 
jolts.

there must be a clearance of at least 2 cm between
the side walls and the cabin/furniture.
 
sources such as hobs, heater cores and stoves and at
least 5 cm away from electrical ovens.

kept in humid places.
 
function efficiently. If the product will be placed in an
alcove, remember to leave at least 5 cm clearance
between the product and the ceiling, rear wall and the
side walls.

function efficiently. If the product will be placed in an
alcove, remember to leave at least 5 cm clearance
between the product and the ceiling, rear wall and the
side walls.

to leave at least 5 cm clearance between the product
and the ceiling, rear wall and the side walls. Check
if the rear wall clearance protection component is
present at its location (if provided with the product). If
the component is not available, or if it is lost or fallen,
position the product so that at least 5 cm clearance
shall be left between the rear surface of the product
and the wall of the room. The clearance at the rear is
important for efficient operation of the product.
 In environments where the room temperature drops
below 10°C, the refrigerator will continue to run to
preserve the food in the freezer. However, fresh food
in the fridge compartment might freeze due to the
cold environment.
3.2. Installing the plastic wedges
Plastic wedges supplied with the product are used to
create the distance for the air circulation between the
product and the rear wall.
1. To install the wedges, remove the screws on the
product and use the screws supplied together with
the wedges.
2. Insert the 2 plastic wedges onto the rear ventilation
cover as illustrated in the figure.

Installation
10 / 25EN Refrigerator / User Manual
3.3. Adjusting the feet
If the product stands unbalanced after installation,
adjust the feet on the front by rotating them to the
right or left.
 Our company shall not be liable for any
damages that will arise when the product
is used without grounding and electrical
connection in accordance with the national
regulations.
 Power cable plug must be within easy reach
after installation.
 Do not extension cords or cordless multiple
outlets between your product and the wall
outlet.
C
Hot surface warning!

pipes to improve the cooling system for
the side walls. The hot fluid might flow
through these surfaces, causing heat on
the side walls. This is normal and does
not require service maintenance. Be
careful when touching these areas.
A WARNING: “The protective films on the vertical handle” will be removed.
3.4. Electrical connection
AWARNING: Do not make connections
via extension cables or multi-plugs.
BWARNING: Damaged power cable
must be replaced by the Authorized
Service Agent.
CIf two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.

11 /25 EN
Refrigerator / User Manual
4.1. Things to be done for energy saving
mehmet
AConnecting the product to electric energy
saving systems is risky as it may cause
damage on the product.
 For a freestanding appliance; ‘this refrigerating
appliance is not intended to be used as a built-in
appliance’ ;
 Do not leave the doors of your refrigerator open for
a long time.
 Do not put hot food or drinks in your refrigerator.
 Do not overload the refrigerator, cooling capacity will
fall when the air circulation inside is hindered.
 To be able store maximum food in the freezer
compartment of your refrigerator, the upper flap
and drawer must be removed and placed on top of
glass shelves. Power consumption stated for your
refrigerator has been determined after removing the
icebox, ice tray and flap and the middle drawer as
to allow maximum loading. Using the upper flap and
lower drawer while loading is highly recommended.
 Depending on the features of your product, thawing
frozen food in fridge compartment will both provide
energy saving and preserve the food quality.
 Since hot and humid air will not directly penetrate
into your product when the doors are not opened,
your product will optimize itself in conditions
sufficient to protect your food. Functions and
components such as compressor, fan, heater,
defrost, lighting, display and so on will operate
according to the needs to consume minimum
energy under these circumstances.
 Airflow should not be blocked by placing foods in
front of the freezer compartment fan. Foods should
be loaded by leaving minimum 5 cm space in front
of the protective fan grid.
4Preparation
 The temperature sensor in the freezer compartment
must not directly contact food packages. In case of
contact with the sensor, the power consumption of
the product may increase.
CInside of your product must be cleaned.
CIf two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.
4.2. Initial use
Before starting to use your refrigerator, ensure that
all preparations are made in accordance with the
instructions in sections "Instructions for safety and
environment" and "Installation".
Run the product without putting any food for 6 hours
and do not open its door unless certainly required.
C
starts up. The liquids and gases sealed
within the refrigeration system may also
give rise to noise, even if the compressor is
not running. This is normal.
CIt is normal that the front edges of
the refrigerator are hot. These areas
are designed to be warm to avoid
condensation.

12 /25EN Refrigerator / User Manual
5Operating the product
5.1. Indicator panel
Indicator panels may vary according to the product model.
Audio – visual functions on the indicator panel helps you in using your product.
C*Optional: Figures in this user manual are given as an example and may not match the product
exactly. If the relevant parts are not available in the product you purchased, the figure applies to other
models.
1. Temperature Adjustment / Temperature Increase
2. Temperature Adjustment- Slider / Temperature
value indicator
3. Temperature Unit Selection (°C) Celsius indicator
4. Temperature Unit Selection (°F) Fahrenheit
indicator
5. Temperature Adjustment / Temperature Decrease
6. Quick Fridge function indicator / button
7. * Wireless
8. Eco Mode indicator/button
9. *Joker Freezer indicator/button
10. *Auto Door
11. High Temperature Warning/Error
12. *Bottle Cooler
13. *Filter Replacement Warning/Button
14. Menu Button
15. Product On/Off indicator/button
16. *Icematic indicator/button
17. *Sabbath Mode
18. Vacation Mode indicator/button
19. Key Lock indicator
20. Quick Freeze function indicator/button
21. Cabin Selection
22. Fridge compartment indicator
23. Freezer compartment indicator
It may not apply to all models
1
2
3
4
*16
*17
18
20
21
22
23
19
5
6
8
*7
*10
*12
*13
14
15
11
*9a
*9b

Operating the product
13 /25EN
Refrigerator / User Manual
1. Temperature Adjustment / Temperature
Increase
When pressed, increases the temperature of the
selected compartment.
2. Temperature Adjustment- Slider/
Temperature value indicator
Shows the temperature value of the selected
compartment. Plus, you can slide your finger up or
down to increase or decrease the temperature.
3. Temperature Unit Selection (°C)
Celsius indicator
When the button is pressed, the temperature unit is
selected as Celsius.
It is the Celsius indicator. When the Celsius
indication is activated, temperature set values are
shown in Celsius and the relevant icon turns on by
100%.
Fahrenheit icon turns on by 50%.
4. Temperature Unit Selection (°F)
Fahrenheit indicator
When the button is pressed, the temperature unit is
selected as Celsius.
It is the Fahrenheit indicator. When the Fahrenheit
indication is activated, temperature set values are
shown in Fahrenheit and the relevant icon turns on
completely.
Celsius icon turns on by 50%.
5. Temperature Adjustment / Temperature
Decrease
When pressed, decreases the temperature of the
selected compartment.
5.2. Indicator panel
Indicator panels may vary according to the product model.
Audio – visual functions on the indicator panel helps you in using your product.
C*Optional: Figures in this user manual are given as an example and may not match the product
exactly. If the relevant parts are not available in the product you purchased, the figure applies to other
models.
It may not apply to all models
Select !
15 21 22 23 521*13 *7
*11 *10 *17 *12 *16 *9b *9a
818
6
20
4
3
6. Quick fridge function indicator
When the quick fridge function is activated, the
indicator turns on by 100%. When the function
is cancelled, the product returns to its normal
settings and the indicator turns on by 50%.
Quick fridge function button
It is used to activate or deactivate the quick fridge
function.
CUse quick fridge function when you
want to quickly cool the food placed
in the fridge compartment. If you want
to cool large amounts of fresh food,
activate this function before putting the
food into the product.
CIf you do not cancel it, quick fridge
will cancel itself automatically after 1
hours at the most or when the fridge
compartment reaches to the required
temperature.
CIf you press the quick fridge button
repeatedly with short intervals, the
electronic circuit protection will be
activated and the compressor will not
start up immediately.
CThis function is not recalled when
power restores after a power failure.
7. *Wireless
When the button is pressed, the product is
introduced to the home network. When the function

Operating the product
14 / 25EN Refrigerator / User Manual
is activated, the indicator turns on by 100%, when it
is cancelled, the indicator turns on by 50%.
8. Eco mode indicator/button
Press this button to activate and deactivate the Eco
mode.
When the Eco mode is activated, the indicator turns
on by 100%. When the function is active, the freezer
will start to run in the eco mode at least 6 hours
later. When the function is cancelled, the indicator
will turn on by 50%.
9a. *Joker freezer indicator/button
When the button is pressed, the joker
compartment runs as a freezer and the indicator
turns on by 100%. Joker fridge compartment
turns on by 50%.
9b. *Joker fridge indicator/button
When the button is pressed, the joker
compartment runs as a fridge and the indicator
turns on by 100%. Joker freezer compartment
turns on by 50%.
10.* Auto Door
Press this button to activate or deactivate the Auto
Door mode. When the function is activated, the
indicator turns on by 100%. When the function is
cancelled, the indicator will turn on by 50%.
When the function is active, touch the relevant
section on the door handle to make the door open
automatically.
11. High Temperature Warning/Error
This indicator illuminates during power failure, high
temperature failures and error warnings. During
long-term power failures, the highest temperature
value that the freezer compartment reaches will
blink on the digital display. After checking the food
located in the freezer compartment, press the high
temperature button to clear the warning.
12. *Bottle Cooler
Press this button to activate or deactivate the bottle
cooler mode.
When the function is activated, the indicator turns
on by 100%. When the function is cancelled, the
indicator turns on by 50%.
13. *Filter Replacement Warning/Button
This icon turns on when the filter needs to be reset.
When the button is pressed, the filter will be reset
and the reset icon will go off.
14. Menu Button
It is used the activate or deactivate the sleep mode
for the display. If you do not press any button or
open the door in 30 seconds, it switches to sleep
mode automatically.
15. Product On/Off indicator/button
Press and hold the On/Off button for 3 seconds to
switch on or off the product.
When the product is turned off, the product on/off
indicator turns on by 100%, and all the other indi-
cators go off. To turn on the product, press and hold
the button for 3 seconds again. The refrigerator will
turn on and the on/off indicator will turn on by 50%.
16. *Icematic indicator/button
Press this button to activate or deactivate the
Icematic. If the indicator is on by 100%, this means
that the icematic is running. If the indicator is on by
50%, this means that the icematic is off.
CWater flow from water tank will stop
when this function is not selected.
However, ice made previously can be
taken from the icematic.
17. *Sabbath Mode
Press this button to activate or deactivate the
Sabbath mode. When the function is activated, the
indicator turns on by 100%. When the function is
cancelled, the indicator will turn on by 50%.
18. Vacation Mode indicator/button
Press this button to activate the vacation mode The
vacation mode indicator will turn on by 100%. When
the vacation mode is active, “- -” will be shown
on the Temperature Value Indicator and no active
cooling is performed in the fridge compartment.
It is not suitable to keep the food in the fridge
compartment when this function is activated. Other
compartments will continue to be cooled according
to their set temperatures.
To cancel this function press Vacation function
button again. When the function is cancelled, the
indicator will turn on by 50%.
19. Key Lock indicator
Press and hold the quick fridge and vacation
buttons simultaneously for 3 seconds. When
pressing the button, a countdown will start in the
temperature value indicator. When the key lock
is activated, the key lock indicator will turn on by
100% and the key lock mode will be enabled.

Operating the product
15 /25EN
Refrigerator / User Manual
Buttons will not function when the key lock mode is
active. Press and hold the quick fridge and vacation
buttons again simultaneously for 3 seconds. When
pressing the button, a countdown will start in the
temperature value indicator. When the key lock is
cancelled, the key lock indicator will turn on by 50%
and the key lock mode will be disabled.
Activate this function if you want to prevent
changing of the temperature setting of the
refrigerator.
20.Quick freeze function indicator
When the quick freeze function is activated,
the indicator will turn on by 100%. When the
function is cancelled, the product will return to its
normal settings and the indicator will turn on by
50%.
Quick freeze function button
It is used to activate or deactivate the quick freeze
function.
Press this button to activate or deactivate the quick
freeze function. When you activate the function, the
freezer compartment will be cooled to a temperature
lower than the set value.
CUse the quick freeze function when you
want to quickly freeze the food placed
in freezer compartment. If you want
to freeze large amounts of fresh food,
activate this function before putting the
food into the product.
CIf you do not cancel it, Quick Freeze
will cancel itself automatically after 24
hours at the most or when the fridge
compartment reaches to the required
temperature.
C
This function is not recalled when
power restores after a power failure.
21. Cabin Selection
Press the cabin selection button to see and change
the temperature value of the fridge or freezer on the
Temperature Value indicator.
22. Fridge compartment indicator
When this indicator is active, the temperate of the
fridge compartment is displayed on the temperature
value indicator.
23 Freezer compartment indicator
When this indicator is active, the temperate of the
freeze compartment is displayed on the temperature
value indicator.

Operating the product
16 / 25EN Refrigerator / User Manual
5.3. Ice machine
(This feature is optional)
Ice machine allows you to obtain ice from the
product easily.
Using the ice machine
1. Remove the water tank from the fridge
compartment.
2. Fill the water tank with water.
3. Replace the water tank. First ice cubes will be
ready in approximately four hours in the ice machine
drawer located in the freezer compartment.
CWhile the water tank is completely
filled, you will be able to obtain
approximately 60-70 ice cubes.
CThe water within the tank should be
renewed in every 2-3 weeks.
5.4. Icematic
(This feature is optional)
Icematic allows you to obtain ice from the product
easily.
Using the icematic
1. Take out the icematic pulling it out carefully.
2. Fill the Icematic with water.
3. Place Icematic in place. About two hours later, the
ice is ready.
4. To obtain ice, turn the knobs on the ice reservoirs
clockwise by 90˚ degrees. Ice cubes in the reservoirs
will fall down into the ice storage container below.

serve the ice cubes.
CDo not remove the Icematic from its
seating to obtain ice.
CIf you wish, you may keep the ice
cubes in the ice storage container.
The ice storage container is just for
accumulating ice cubes. Do not put
water in it. Otherwise, it will break.
5.5. Ice tray
(This feature is optional)
Ice tray allows you to obtain ice from the product
easily.
Using the ice tray
1. Remove the ice tray from the freezer
compartment.
2. Fill the ice tray with water.
3. Place the ice tray in the freezer compartment.
About two hours later, the ice is ready.
4. Remove the ice tray from the freezer
compartment and bend it over the service plate. Ice
cubes will easily fall down to the service plate.

Operating the product
17 /25EN
Refrigerator / User Manual
5.6. Blue light/HarvestFresh
*May not be available in all models
For the blue light,
Fruits and vegetables stored in the crispers that are
illuminated with a blue light continue their photo-
synthesis by means of the wavelength effect of blue
light and thus preserve their vitamin content.
ForHarvestFresh,
Fruits and vegetables stored in crispers illuminated
with the HarvestFresh technology preserve their vita-
mins for a longer time thanks to the blue, green, red
lights and dark cycles, which simulate a day cycle.
If you open the door of the refrigerator during the
dark period of the HarvestFresh technology, the
refrigerator will automatically detect this and enable
the blue-green or red light to illuminate the crisper
for your convenience. After you have closed the door
of the refrigerator, the dark period will continue,
representing the night time in a day cycle.
5.7. Deodoriser Module
(FreshGuard)
(This feature is optional)
The deodoriser module quickly eliminates the bad
smells in your refrigerator before they permeate the
surfaces. Thanks to this module, which is placed
on the ceiling of the fresh food compartment, the
bad odours dissolve while the air is actively being
passed on the odour filter, then the air that has
been cleaned by the filter is re-emitted to the fresh
food compartment. This way, the unwanted odours
that may emerge during the storage of foods in the
refrigerator are eliminated before they permeate the
surfaces.
This is achieved thanks to the fan, LED and
the odour filter integrated into the module. The
deodoriser module will get activated automatically
on a periodical basis. The sound you will hear
during periodical activation of the module is normal;
it is emitted by the integrated fan. If you open
the door of the fresh food compartment while the
module is active, the fan will pause temporarily and
resume where it has left off when the door is closed
again. In case of a power failure, the deodoriser
module will get activated when the power is back.
Info: It is recommended to store aromatic foods
(such as cheese, olives and delicatessen foods) in
their packaging and sealed to avoid bad odours that
may result when smells of various foods get mixed.
Besides, it is recommended to take spoiled foods
out of the refrigerator quickly to prevent the other
foods from getting spoiled and avoid bad odours.

Operating the product
18 / 25EN Refrigerator / User Manual
5.8. Chiller compartment
(This feature is optional)
Use this compartment to store delicatessen that shall
be stored in a lower temperature or meat products
that you will consume in a short time. Do not store
your vegetables or fruits in this compartment.

removing any of the chiller compartments:
To remove, just pull forwards until it stops and then lift
it and pull towards yourself.
5.9. Crisper
Crisper of the refrigerator is designed specially
to keep the vegetables fresh without loosing their
humidity. For this purpose, cool air circulation is
intensified around the crisper in general. Store your
fruits and vegetables in this compartment. Do not
place leafy greens next to fruits to prolong their life.

Operating the product
19 /25EN
Refrigerator / User Manual
5.10. Using the water dispenser
(This feature is optional)
CIt is normal for the first few glasses
of water taken from the dispenser to
be warm.
CIf the water dispenser is not used for
a long period of time, dispose of first
few glasses of water to obtain fresh
water.
1. Push in the lever of the water dispenser with your
glass. If you are using a soft plastic cup, pushing
the lever with your hand will be easier.
2. After filling the cup up to the level you want,
release the lever.
CPlease note, how much water flows
from the dispenser depends on how far
you depress the lever. As the level of
water in your cup / glass rises, gently
reduce the amount of pressure on the
lever to avoid overflow. If you slightly
press the arm, the water will drip; this
is quite normal and not a failure.
5.11. Filling the water dispenser's tank
Water tank filling reservoir is located inside the door
rack.
1. Open the cover of the tank.
2. Fill the tank with fresh drinking water.
3. Close the cover.
CDo not fill the water tank with
any other liquid except for water
such as fruit juices, carbonated
beverages or alcoholic drinks which
are not suitable to use in the water
dispenser. Water dispenser will be
irreparably damaged if these kinds of
liquids are used. Warranty does not
cover such usages. Some chemical
substances and additives contained
in these kinds of drinks/liquids may
damage the water tank.
CUse clean drinking water only.
CCapacity of the water tank is 3 liters;
do not overfill.

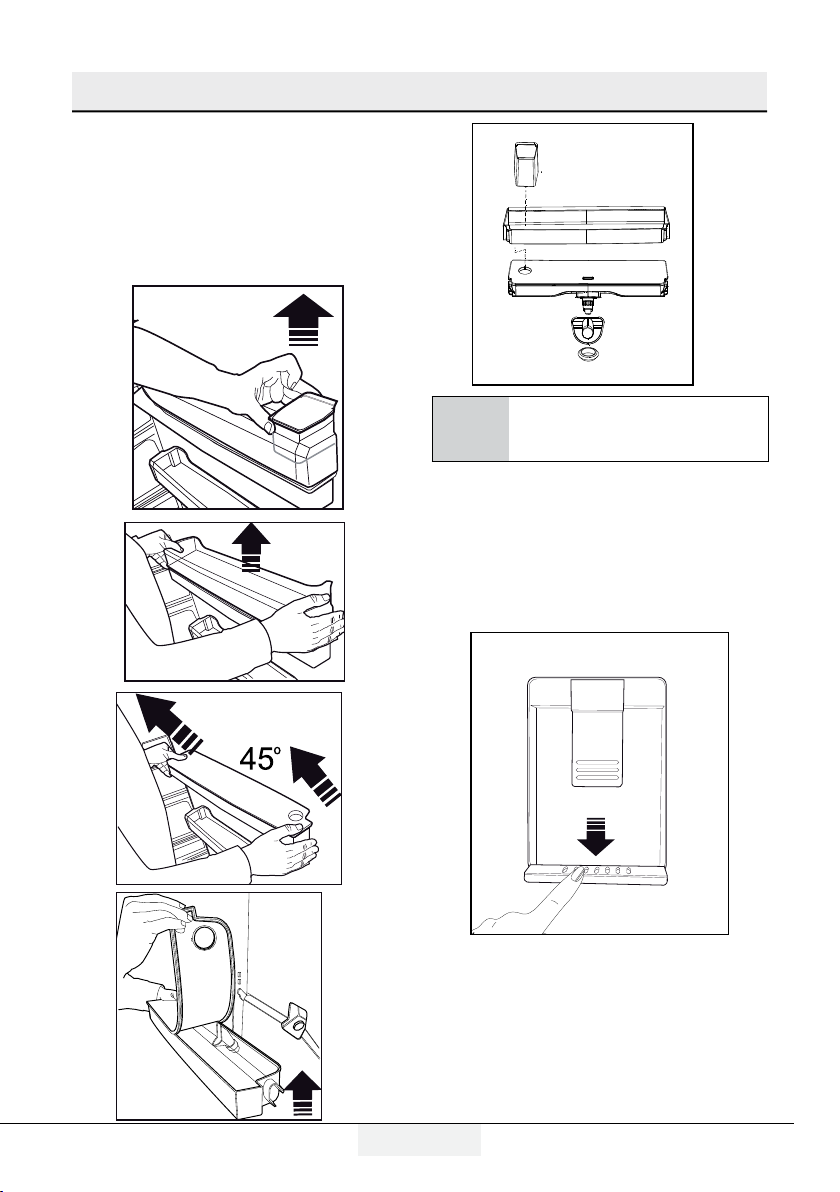

5.12. Cleaning the water tank
1. Remove the water filling reservoir inside the door
rack.

Operating the product
20 / 25EN Refrigerator / User Manual
2. Remove the door rack by holding from both sides.
3. Grab the water tank from both sides and remove it
with an angle of 45°C.
4. Remove the cover of the water tank and clean the
tank.
CComponents of the water tank and
water dispenser should not be washed
in dishwasher.
5.13. Drip tray
Water that dripped while using the water dispenser
accumulates in the spillage tray.
Remove the plastic filter as shown in the figure.
With a clean and dry cloth, remove the water that
has accumulated.
