Beko RDNE18C2E21W User manual

www.beko.com.trwww.beko.com
DN163123
DN163223
DN163233
DN163233S
DN161620
DN161602W
DN153720DX
RDNE18C2E21W
RDNE18C2E21S
RDNE630K2VXP
DN161602W
EN AR

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and checked
under the most meticulous quality control procedures, will provide you an effective service.
For this, we recommend you to carefully read the entire manual of your product before
using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
A Warning against dangerous conditions for life and property.
B Warning against electric voltage.

EN
2
CONTENTS
1 The refrigerator 3
2 Important Safety
Warnings 4
Intended use .....................................4
General safety ..................................4
For products with a ..........................7
water dispenser;................................7
Child safety........................................7
Compliance with WEEE Directive and
Disposing of the Waste Product: .......7
Package information..........................7
HC warning .......................................8
Things to be done for energy saving ..8
Reccomendations for freshfood
compartment.....................................8
3 Installation 9
Points to be considered when re-
transporting your refrigerator .............9
Before operating your refrigerator ......9
Changing the illumination lamp .........9
Adjusting the legs ............................10
Electric connection ..........................10
Disposing of the packaging .............10
Disposing of your old refrigerator .....10
Placing and Installation ....................10
4 Preparation 11
5 Using your refrigerator 12
Indicator Panel.................................12
Door Open Warning.........................15
Freezing fresh food ..........................16
Recommendations for preservation of
frozen food ......................................17
Placing the food ..............................17
Deep-freeze information ..................18
Moisture controlled vegetable bin ...18
Description and cleaning of odor
filter: ................................................19
Egg holder.......................................19
Water Dispenser ..............................20
Rotary storage container .................22
Blue light .........................................23
Auto Icematic .................................23
Icematic and ice storage container ..24
6 Maintenance and
cleaning 25
Protection of plastic surfaces ..........25
7.
Troubleshooting 26

EN
3
1The refrigerator
1. Freezer compartment shelf
2. Auto Icematic
3. Ice storage container
4. Auto Icematic water tank
5. Temperature setting indicator
6. Adjustable glass shelves
7. Odor filter
8. Illumination lens
9. Bottle shelf
10. Snack compartment
11. Crisper cover
12. Crisper
C Figures that take place in this instruction manual are schematic and may not correspond
exactly with your product. If the subject parts are not included in the product you have
purchased, then it is valid for other models.
1
3*
5*
4*
6
9*
7
8
*10
12
11
13
14
16*
15
17*
18
*19
*20
*20
21
22
2*
13. Adjustable legs
14. Freezer compartment door racks
15. Egg holder
16. Water dispenser filling container
17. Water dispenser tank
18. Fridge compartment door shelves
19. Sliding and rotary storage containers
20. Key
21. Freezer compartment
22. Fridge compartment
*OPTIONAL

EN
4
2Important Safety Warnings
Please review the following
information. Failure to observe
this information may cause
injuries or material damage.
Otherwise, all warranty and
reliability commitments will
become invalid.
Original spare parts will be
provided for 10 years, following
the product purchasing date.
Intended use
This product is intended to be
used
• indoors and in closed areas
such as homes;
• in closed working environments
such as stores and offices;
• in closed accommodation
areas such as farm houses,
hotels, pensions.
• It should not be used outdoors.
General safety
• When you want to dispose/
scrap the product, we
recommend you to consult the
authorized service in order to
learn the required information
and authorized bodies.
• Consult your authorized
service for all your questions
and problems related to the
refrigerator. Do not intervene or
let someone intervene to the
refrigerator without notifying the
authorised services.
• For products with a freezer
compartment; Do not eat
cone ice cream and ice cubes
immediately after you take them
out of the freezer compartment!
(This may cause frostbite in
your mouth.)
• For products with a freezer
compartment; Do not put
bottled and canned liquid
beverages in the freezer
compartment. Otherwise, these
may burst.
• Do not touch frozen food by
hand; they may stick to your
hand.
• Unplug your refrigerator before
cleaning or defrosting.
• Vapor and vaporized cleaning
materials should never be
used in cleaning and defrosting
processes of your refrigerator.
In such cases, the vapor may
get in contact with the electrical
parts and cause short circuit or
electric shock.
• Never use the parts on your
refrigerator such as the door as
a means of support or step.
• Do not use electrical devices
inside the refrigerator.
• Do not damage the parts,
where the refrigerant is
circulating, with drilling or
cutting tools. The refrigerant
that might blow out when the
gas channels of the evaporator,
pipe extensions or surface
coatings are punctured causes
skin irritations and eye injuries.
• Do not cover or block the
ventilation holes on your
refrigerator with any material.

EN
5
• Electrical devices must be
repaired by only authorised
persons. Repairs performed by
incompetent persons create a
risk for the user.
• In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s
mains supply by either
turning off the relevant fuse or
unplugging your appliance.
• Do not pull by the cable when
pulling off the plug.
• Ensure highly alcoholic
beverages are stored securely
with the lid fastened and placed
upright.
• Never store spray cans
containing flammable and
explosive substances in the
refrigerator.
• Do not use mechanical devices
or other means to accelerate
the defrosting process, other
than those recommended by
the manufacturer.
• This product is not intended
to be used by persons with
physical, sensory or mental
disorders or unlearned or
inexperienced people (including
children) unless they are
attended by a person who
will be responsible for their
safety or who will instruct them
accordingly for use of the
product
• Do not operate a damaged
refrigerator. Consult with the
service agent if you have any
concerns.
• Electrical safety of your
refrigerator shall be guaranteed
only if the earth system in your
house complies with standards.
• Exposing the product to
rain, snow, sun and wind is
dangerous with respect to
electrical safety.
• Contact authorized service
when there is a power cable
damage to avoid danger.
• Never plug the refrigerator
into the wall outlet during
installation. Otherwise, risk of
death or serious injury may
arise.
• This refrigerator is intended
for only storing food items. It
must not be used for any other
purpose.
• Label of technical specifications
is located on the left wall inside
the refrigerator.
• Never connect your refrigerator
to electricity-saving systems;
they may damage the
refrigerator.
• If there is a blue light on the
refrigerator, do not look at the
blue light with optical tools.
• For manually controlled
refrigerators, wait for at least 5
minutes to start the refrigerator
after power failure.
• This operation manual should
be handed in to the new owner
of the product when it is given
to others.

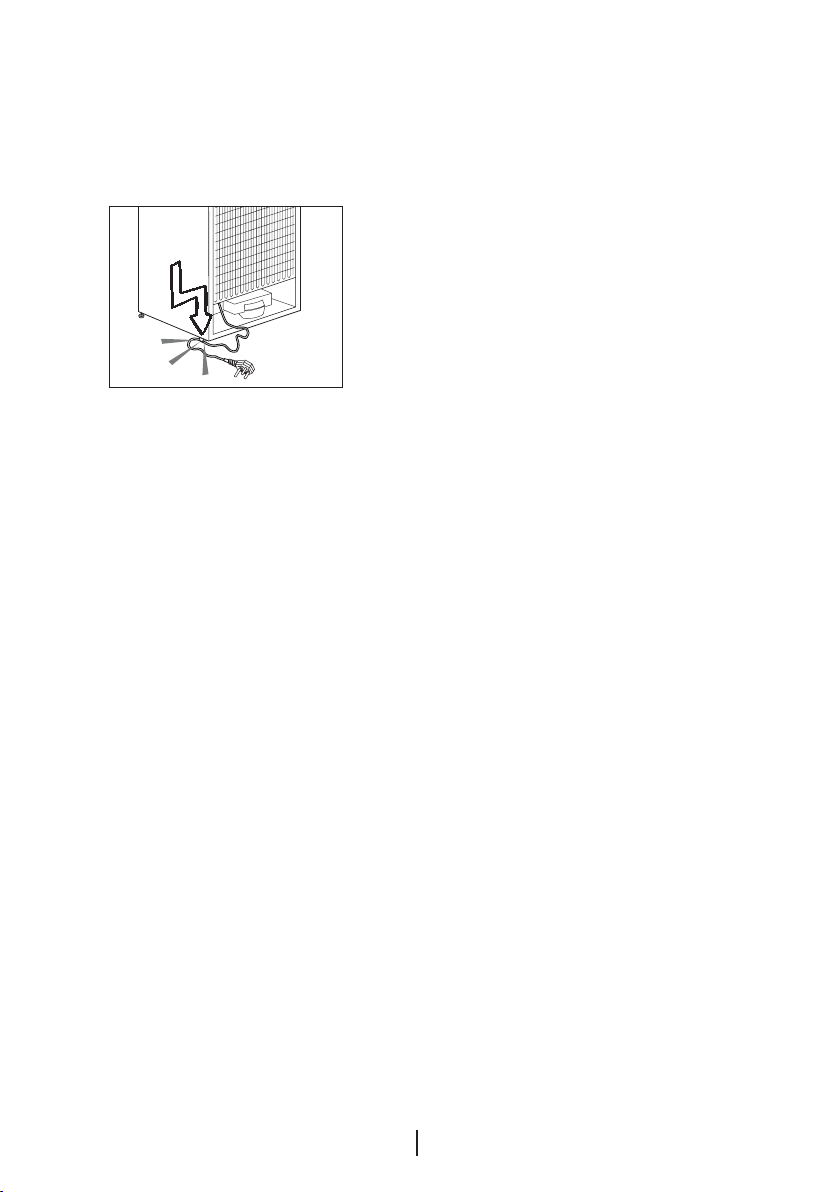

• Avoid causing damage on
power cable when transporting
the refrigerator. Bending cable

EN
6
may cause fire. Never place
heavy objects on power cable.
Do not touch the plug with
wet hands when plugging the
product
• Do not plug the refrigerator if
the wall outlet is loose.
• Water should not be sprayed
on inner or outer parts of the
product for safety purposes.
• Do not spray substances
containing inflammable gases
such as propane gas near the
refrigerator to avoid fire and
explosion risk.
• Never place containers filled
with water on top of the
refrigerator; in the event of
spillages, this may cause
electric shock or fire.
• Do not overload the refrigerator
with food. If overloaded, the
food items may fall down
and hurt you and damage
refrigerator when you open the
door.
• Never place objects on top
of the refrigerator; otherwise,
these objects may fall down
when you open or close the
refrigerator’s door.
• As they require a precise
temperature, vaccines, heat-
sensitive medicine and scientific
materials and etc. should not
be kept in the refrigerator.
• If not to be used for a long
time, refrigerator should be
unplugged. A possible problem
in power cable may cause fire.
• The plug’s tip should be
cleaned regularly with a dry
cloth; otherwise, it may cause
fire.
• Refrigerator may move if
adjustable legs are not properly
secured on the floor. Properly
securing adjustable legs on the
floor can prevent the refrigerator
to move.
• When carrying the refrigerator,
do not hold it from door handle.
Otherwise, it may be snapped.
• When you have to place
your product next to another
refrigerator or freezer, the
distance between devices
should be at least 8cm.
Otherwise, adjacent side walls
may be humidified.
• The product shall never be
used while the compartment
which is located at the top or
back of your product and in
which electronic boards are
available (electronic board box
cover) (1) is open.

EN
7
1
1
interval shall be 33°F (0.6°C)
minimum and 100°F (38°C)
maximum.
• Use only potable water.
Child safety
• If the door has a lock, the key
should be kept away from
reach of children.
• Children must be supervised to
prevent them from tampering
with the product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies with
EU WEEE Directive (2012/19/
EU). This product bears a
classification symbol for
waste electrical and electronic
equipment (WEEE).
This product has been
manufactured with high quality parts and
materials which can be reused and are
suitable for recycling. Therefore, do not
dispose the product with normal domestic
waste at the end of its service life. Take
it to a collection point for the recycling of
electrical and electronic equipment. Please
consult your local authorities to learn the
nearest collection point. Help protect the
environment and natural resources by
recycling used products. For children’s
safety, cut the power cable and break the
locking mechanism of the door, if any, so
that it will be non-functional before disposing
of the product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our National
Environment Regulations. Do not dispose
For products with a
water dispenser;
• Pressure for cold water inlet
shall be maximum 90 psi (6.2
bar). If your water pressure
exceeds 80 psi (5.5 bar), use a
pressure limiting valve in your
mains system. If you do not
know how to check your water
pressure, ask for the help of a
professional plumber.
• If there is risk of water
hammer effect in your
installation, always use a
water hammer prevention
equipment in your installation.
Consult Professional
plumbers is you are not
sure that there is no water
hammer effect in your
installation.
• Do not install on the hot
water inlet. Take precautions
against of the risk of
freezing of the hoses. Water
temperature operating

EN
8
of the packaging materials together with
the domestic or other wastes. Take them
to the packaging material collection points
designated by the local authorities.
Do not forget...
Any recycled substance is an indispensable
matter for nature and our national asset
wealth.
If you want to contribute to the re-evaluation
of the packaging materials, you can consult
to your environmentalist organizations or the
municipalities where you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling system
and piping during usage and transportation.
In the event of damage, keep your product
away from potential fire sources that can
cause the product catch a fire and ventilate
the room in which the unit is placed.
Ignore this warning if your product's
cooling system contains R134a.
Type of gas used in the product is stated in
the type label which is on the left wall inside
the refrigerator.
Never throw the product in fire for disposal.
Things to be done for energy
saving
• Do not leave the doors of your refrigerator
open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so that the
air circulation inside of it is not prevented.
• Do not install your refrigerator under direct
sunlight or near heat emitting appliances
such as ovens, dishwashers or radiators.
Keep your refrigerator at least 30cm away
from heat emitting sources and at least
5cm from electrical ovens.
• Pay attention to keep your food in closed
containers.
• For products with a freezer compartment;
You can store maximum amount of food
items in the freezer when you remove
the shelf or drawer of the freezer. Energy
consumption value stated for your refrigerator
has been determined by removing freezer
shelf or drawer and under maximum load.
There is no harm to use a shelf or drawer
according to the shapes and size of food to
be frozen.
• Thawing frozen food in fridge compartment
will both provide energy saving and preserve
the food quality.
Reccomendations for
freshfood compartment
* OPTIONAL
• Please do not let any foodstuff to come
to contact with the temperature sensor in
freshfood compartment.In order to maintain
freshfood compartment at ideal storage
temperature, the sensor must not be
blocked by fodstuffs.
• Do not place hot foodstuff in your
appliance.
temperature
sensor
food
MILK
juice
etc.
temperature
sensor
temperature
sensor
food
MILK
juice
etc.
temperature
sensor

EN
9
3Installation
BPlease remember that the manufacturer
shall not be held liable if the information
given in the instruction manual is not
observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be emptied and
cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in
your refrigerator must be fastened securely
by adhesive tape against any jolt before
repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the rules of
transportation printed on the package
must be followed.
Please do not forget…
Every recycled material is an indispensable
source for the nature and for our national
resources.
If you wish to contribute to recycling the
packaging materials, you can get further
information from the environmental bodies
or local authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry and
can the air circulate freely in the rear of it?
2. Please install the 2 plastic wedges as
illustrated in the figure. Plastic wedges will
provide the required distance between
your refrigerator and the wall in order to
allow the air circulation. (The illustrated
figure is only an example and does not
match exactly with your product.)
3. Clean the interior of the refrigerator as
recommended in the “Maintenance and
cleaning” section.
4. Plug the refrigerator into the wall outlet.
When the fridge door is open, the fridge
compartment interior light will come on.
5. You will hear a noise as the compressor
starts up. The liquid and gases sealed
within the refrigeration system may also
give rise to noise, even if the compressor
is not running and this is quite normal.
6. Front edges of the refrigerator may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call your
AuthorisedService.
The lamp(s) used in this appliance is not
suitable for household room illumination.
The intended purpose of this lamp is to
assist the user to place foodstuffs in the
refrigerator/freezer in a safe and comfortable
way.The lamps used in this appliance have
to withstand extreme physical conditions
such as temperatures below -20 °C.
(only chest and upright freezer)

EN
10
Electric connection
Connect your product to a grounded
socket which is being protected by a fuse
with the appropriate capacity.
Important:
• The connection must be in compliance
with national regulations.
• The power cable plug must be easily
accessible after installation.
• The specified voltage must be equal to
your mains voltage.
• Extension cables and multiway plugs must
not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before it is
repaired! There is danger of electric shock!
Disposing of the packaging
The packing materials may be dangerous
for children. Keep the packing materials out
of the reach of children or dispose them of
by classifying them in accordance with the
waste instructions. Do not dispose them of
along with the normal household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorised dealer
or waste collection center of your
municipality about the disposal of your
refrigerator.
Before disposing of your refrigerator, cut
out the electric plug and, if there are any
locks on the door, make them inoperable in
order to protect children against any danger.
Placing and Installation
AIf the entrance door of the room where
the refrigerator will be installed is not wide
enough for the refrigerator to pass through,
then call the authorised service to have
them remove the doors of your refrigerator
and pass it sideways through the door.
1. Install your refrigerator to a place that
allows ease of use.
2. Keep your refrigerator away from heat
sources, humid places and direct sunlight.
3. There must be appropriate air ventilation
around your refrigerator in order to achieve
an efficient operation. If the refrigerator is to
be placed in a recess in the wall, there must
be at least 5 cm distance with the ceiling
and at least 5 cm with the wall. If the floor
is covered with a carpet, your product must
be elevated 2.5 cm from the floor.
4. Place your refrigerator on an even floor
surface to prevent jolts.
5. Do not keep your refrigerator in ambient
temperatures under 10°C.

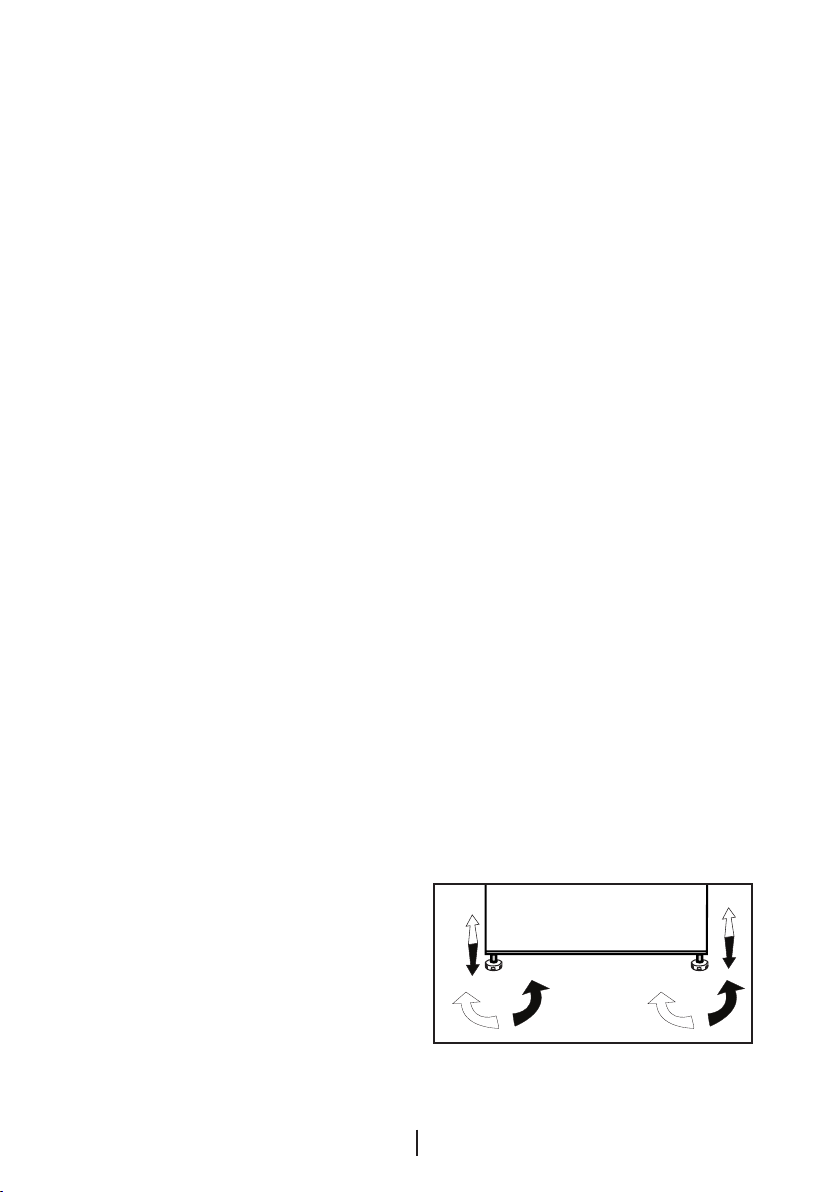

Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning the front legs of it as illustrated in
the figure. The corner where the leg exists
is lowered when you turn in the direction
of black arrow and raised when you turn
in the opposite direction. Taking help from
someone to slightly lift the refrigerator will
facilitate this process.

EN
11
4Preparation
• Your refrigerator should be installed at
least 30 cm away from heat sources such
as hobs, ovens, central heater and stoves
and at least 5 cm away from electrical
ovens and should not be located under
direct sunlight.
• The ambient temperature of the room
where you install your refrigerator
should at least be 10°C. Operating your
refrigerator under cooler conditions is not
recommended with regard to its efficiency.
• Please make sure that the interior of your
refrigerator is cleaned thoroughly.
• If two refrigerators are to be installed side
by side, there should be at least 2 cm
distance between them.
• When you operate your refrigerator for
the first time, please observe the following
instructions during the initial six hours.
• The door should not be opened
frequently.
• It must be operated empty without any
food in it.
• Do not unplug your refrigerator. If a power
failure occurs out of your control, please
see the warnings in the “Recommended
solutions for the problems” section.
• Original packaging and foam materials
should be kept for future transportations
or moving.
• The baskets/drawers that are provided
with the chill compartment must always
be in use for low energy consumption and
for better storage conditions.
• Food contact with the temperature sensor
in the freezer compartment may increase
energy consumption of the appliance.
Thus any contact with the sensor(s) must
be avoided.
• In some models, the instrument panel
automatically turns off 5 minutes after
the door has closed. It will be reactivated
when the door has opened or pressed on
any key.
• Due to temperature change as a result of
opening/closing the product door during
operation, condensation on the door/body
shelves and the glass containers is normal

EN
12
1 7 3
45*62
Indicator Panel
Indicator panel aids in using your refrigerator with its audio and visual functions.
1. Freezer Compartment Temperature
Indicator
2. Error Status Indicator
3. Fridge Compartment Temperature Indicator
4. Fridge Compartment Temperature Setting
Button
5. Economy Mode Indicator
6. Ioniser Indicator
7. Freezer Compartment Temperature Setting
Button
1. Freezer Compartment Temperature
Indicator
It indicates the temperature set for Freezer
compartment.
2. Error Status Indicator
If your refrigerator does not cool adequately
or if there is a sensor failure, this indicator will
be activated. When this indicator is active,
Freezer Compartment Temperature indicator
will display "e" and Fridge Compartment
Temperature Indicator will display numbers
such as "1,2,3…". These numbers on the
indicator provides information about the
error to the service personnel.
3. Fridge Compartment Temperature
Indicator
Indicates the temperature set for Fridge
compartment.
4. Fridge Compartment Temperature
Setting Button
Press this button to set the temperature
of the fridge compartment to 8, 6, 4, 2,
8... respectively. Press this button to set
the desired temperature for the fridge
compartment.
5. Economy Mode Indicator
Indicates that the refrigerator is running in
energy-efficient mode.
6. Ioniser Indicator
Indicator light lights up continuously.
This light indicates that your refrigerator is
protected against the bacteria.
7. Freezer Compartment Temperature
Setting Button
Press this button to set the temperature of
the freezer compartment to -18, -20, -22,
-24, -18... respectively. Press this button to
set the desired temperature for the freezer
compartment.
5Using your refrigerator
Indicator panels may vary depending on your product's model.

EN
13
1. Freezer compartment setting / Icematic
on-off button
2. Fridge compartment setting button
3. Error status indicator
4. Key lock indicator
5. Eco Extra Function indicator
6. Eco Extra/Vacation Button
7. Vacation function indicator
8. Icematic off indicator (*in some models)
9. Economic usage indicator
15
14
1
2
3
4
5
13
12
11
10
9
8*
*
7
6
10. Quick fridge function indicator
11. Quick fridge function button
12. Fridge compartment temperature setting
indicator
13. Quick freeze function button
14. Freezer compartment temperature setting
indicator
15. Quick freeze function indicator
C Figures that take place in this instruction manual are schematic and may not correspond
exactly with your product. If the subject parts are not included in the product you have
purchased, then it is valid for other models.

EN
14
1. Freezer Compartment Setting /
Icematic On-Off Button
This function allows you to make the
freezer compartment temperature setting.
Press this button to set the temperature of
the freezer compartment to -18, -20, -22
and -24 respectively.
To stop ice formation, press Icematic on-
off button for 3 seconds. Water flow from
water tank will stop when this function is
selected. However, ice made previously can
be taken from the Icematic. To restart ice
formation, press Icematic on-off button for
3 seconds.
2. Fridge Compartment Setting Button
This function allows you to make the
fridge compartment temperature setting.
Press this button to set the temperature
of the fridge compartment to 8, 6, 4, 2
respectively.
3. Error Status Indicator
If your refrigerator does not cool
adequately or if there is a sensor failure,
this indicator will be activated. When this
indicator is active, Freezer Compartment
Temperature indicator will display "E" and
Fridge Compartment Temperature Indicator
will display numbers such as "1,2,3…".
These numbers on the indicator provides
information about the error to the service
personnel.
When you place hot food into the freezer
compartment or if you leave the door open
for a long time, exclamation mark can
illuminate for some time. This is not a failure;
this warning will disappear when the food
cools down.
4. Key Lock Indicator
Use this function if you do not want your
refrigerator temperature setting changed.
Press Fridge compartment setting button
and Freezer compartment setting button
simultaneously for a long time (3 sec) to
activate this function.
5. Eco Extra Function Indicator
It indicates that the Eco-Extra function is
active.
If this function is active, your refrigerator
will automatically detect the least usage
periods and energy-efficient cooling will be
performed during those times. Economy
indicator will be active while energy-efficient
cooling is performed.
Press the relevant button again to
deactivate this function.
6. Eco Extra/Vacation Button
Press this button briefly to activate the Eco
Extra function. Press and hold this button
for 3 sec. to activate the Vacation function.
Press this button again to deactivate the
selected function.
7. Vacation Function Indicator
Indicates that the vacation function is
active. If this function is active, "- -" appears
on the indicator of the fridge compartment
and no cooling is performed in the fridge
compartment. Other compartments will be
cooled in accordance with the temperature
set for them.
Press the relevant button again to
deactivate this function.

EN
15
8. Ice Off indicator
Icematic will not run when the indicator of
this function is active. See Item 1 to enable
the Icematic.
9. Economy Mode Indicator
Indicates that the refrigerator is running
in energy-efficient mode. Freezer
Compartment temperature
This indicator will be active if the function
is set to -18 or the energy efficient cooling is
being performed due to Eco-Extra function.
10. Quick Fridge Indicator
This icon flashes in an animated style
when the Quick Fridge function is active.
11. Quick Fridge Function
When you press the Quick Fridge button,
the temperature of the compartment will be
colder than the adjusted values.
This function can be used for food placed
in the fridge compartment and required to
be cooled down rapidly.
If you want to cool large amounts of
fresh food, it is recommended to active
this feature before putting the food into the
fridge.
Quick Fridge indicator turns on when the
Quick Fridge function is on. To cancel this
function press Quick Fridge button again.
If you do not cancel it, Quick Fridge will
cancel itself automatically after 4 hours or
when the fridge compartment reaches to
the required temperature.
This function is not recalled when power
restores after a power failure.
12. Fridge Compartment Temperature
Setting Indicator
Indicates the temperature set for the
Fridge Compartment.
13. Freezer Compartment Temperature
Setting Indicator
Indicates the temperature set for the
Freezer Compartment.
14. Quick Freeze Function
Quick Freeze indicator turns on when the
Quick Freeze function is active. To cancel
this function press Quick Freeze button
again. Quick Freeze indicator will turn off
and return to its normal settings. If you
do not cancel it, Quick Freeze will cancel
itself automatically after 8 hours or when
the freezer compartment reaches to the
required temperature.
If you want to freeze large amounts of
fresh food, press the Quick Freeze button
before putting the food into the freezer
compartment.
If you press the Quick Freeze button
repeatedly with short intervals, the electronic
circuit protection will be activated and the
compressor will not start up immediately.
This function is not recalled when power
restores after a power failure.
15. Quick Freeze Indicator
This icon flashes in an animated style
when the Quick Freeze function is active.
Door Open Warning
(This feature may vary depending
on the door of the product and may
not exist in some models.)
A audio warning signal will be given when
the door of your product is left open for at
least 1 minute. This warning will be muted
when the door is closed or any of the display
buttons (if any) are pressed.

EN
16
Freezing fresh food
• Wrap or cover the food before placing
them in the refrigerator.
• Hot food must cool down to the room
temperature before putting them in the
refrigerator.
• The foodstuff that you want to freeze must
be fresh and in good quality.
• Foodstuff must be divided into portions
according to the family’s daily or meal
based consumption needs.
• The foodstuff must be packaged in an
airtight manner to prevent them from
drying even if they are going to be kept for
a short time.
• Materials to be used for packaging
must be tear-proof and resistant to cold,
humidity, odor, oils and acids and they
must also be airtight. Moreover, they
must be well closed and they must be
made from easy-to-use materials that are
suitable for deep freeze usage.
• Frozen food must be used immediately
after they are thawed and they should
never be re-frozen.
• Please observe the following instructions
to obtain the best results.
1. Do not freeze too large quantities of food
at one time. The quality of the food is best
preserved when it is frozen right through
to the core as quickly as possible.
2. Placing warm food into the freezer
compartment causes the cooling system
to operate continuously until the food is
frozen solid.
3. Take special care not to mix already frozen
food and fresh food.
Freezer
Compartment
Setting
Fridge
Compartment
Setting
Explanations
-18°C 4°C This is the normal recommended setting.
-20,-22 or -24°C 4°C These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze 4°C Use when you wish to freeze your food in a short time. Your refrigerator will return to its
previous mode when the process is over.
-18°C or colder 2°C If you think that your fridge compartment is not cold enough because of the hot conditions
or frequent opening and closing of the door.
-18°C or colder Quick Fridge
You can use it when your fridge compartment is overloaded or if you wish to cool down
your food rapidly. It is recommended that you activate quick fridge function 4-8 hours
before placing the food.

EN
17
Recommendations for
preservation of frozen food
• Prepacked commercially frozen food
should be stored in accordance with the
frozen food manufacturer's instructions
for a ( 4 star) frozen food storage
compartment.
• To ensure that the high quality achieved by
the frozen food manufacturer and the food
retailer is maintained, the following should
be remembered:
1. Put packages in the freezer as quickly as
possible after purchase.
2. Ensure that contents are labeled and
dated.
3. Do not exceed "Use By", "Best Before"
dates on the packaging.
Defrosting
The freezer compartment defrosts
automatically.
Placing the food
Freezer compartment
shelves
Various frozen food such
as meat, fish, ice cream,
vegetables and etc.
Egg holder Egg
Fridge compartment
shelves
Food in pans, covered plates
and closed containers
Fridge compartment door
shelves
Small and packaged food or
drinks (such as milk, fruit juice
and beer)
Crisper Vegetables and fruits
Freshzone compartment Delicatessen products (cheese,
butter, salami and etc.)

EN
18
Deep-freeze information
Food must be frozen as rapidly as possible
when they are put in a refrigerator in order to
keep them in good quality.
It is possible to keep the food for a long
time only at -18°C or lower temperatures.
You can keep the freshness of food
for many months (at -18°C or lower
temperatures in the deep freeze).
WARNING! A
• Foodstuff must be divided into portions
according to the family’s daily or meal based
consumption needs.
• Foodstuff must be packaged in an
airtight manner to prevent them from drying
even if they are going to be kept for a short
time.
Materials necessary for packaging:
• Cold resistant adhesive tape
• Self adhesive label
• Rubber rings
• Pen
Materials to be used for packaging the
foodstuff must be tear-proof and resistant
to cold, humidity, odor, oils and acids.
Foodstuff to be frozen should not be
allowed to come in contact with the
previously frozen items to prevent their
partial thawing.
Frozen food must be used immediately
after they are thawed and they should never
be re-frozen.
Moisture controlled
vegetable bin
*optional
With moisture control feature, moisture
rates of vegetables and fruits are kept under
control and ensures a longer freshness
period for foods.
It is recommended to store leafed
vegetables such as lettuce and spinach and
similar vegetables prone to moisture loss
not on their roots but in horizontal position
into the vegetable bin as much as possible.
When placing the vegetables, place heavy
and hard vegetables at the bottom and
light and soft ones on the top, taking into
account the specific weights of vegetables.
Do not leave vegetables in the vegetable
bin in plastic bags. Leaving them in plastic
bags causes vegetables to rot in a short
time. In situations where contact with other
vegetables is not preferred, use packaging
materials such as paper that has a certain
porosity in terms of hygiene.
Do not put fruits that have a high ethylene
gas production such as pear, apricot,
peach and particularly apple in the same
vegetable bin with other vegetables and
fruits. The ethylene gas coming out of these
fruits might cause other vegetables and
fruits to mature faster and rot in a shorter
period of time.

EN
19
Description and cleaning of
odor filter:
Odor filter prevents unpleasant odor build-
up in your refrigerator.
Pull the cover, into which the odor filter
is installed, downwards and remove as
illustrated. Leave the filter under sunlight
for one day. Filter will be cleaned during this
time. Install the filter back to its place.
Odor filter must be cleaned once in a year.
Snack compartments
Use these compartments for your food
which you want store at a temperature a
few degrees below the fridge compartment.
You can increase the inner volume of your
refrigerator by removing any of the snack
compartments.
1. Pull the compartment towards yourself
until it rests and stops against the stopper.
2. Lift the front section and pull towards
yourself to remove the compartment from
its seating.
CYou can place the food, that you want to
freeze, in these compartments in order to
prepare them for freezing.
Egg holder
You can install the egg holder to the
desired door or body shelf.
Never store the egg holder in the freezer
compartment
