Beko WTG821B2W User manual

2302061196
Washing Machine
User Manual
WTG821B2W
EN
Document Number=

This product was manufactured using the latest technology in environmentally friendly conditions.

1 General safety instructions
This section includes security instructions which may help prevent
the injuries and material damage risks. All kinds of warranties shall
be invalid if these instructions are not observed.
1.1 Lfe and property safety
u
Never place the product on a carpet-covered floor. Electrical parts
will get overheated since air cannot circulate from under the device.
This will cause problems with your product.
u
Unplug the product if it is not in use.
u
Always have the installation and repairing procedures carried out
by the Authorized Service Agent. Manufacturer shall not be held
liable for damages that may arise from procedures carried out by
unauthorized persons.
u
The water supply and draining hoses must be securely fastened and
remain undamaged. Otherwise, water leak may occur.
u
While there is still water inside the product, never open the loading
door or remove the filter. Otherwise, risk of flooding and injury from
hot water will occur.
u
Do not force open the locked loading door. Door can be opened a few
minutes after the washing cycle ends. In case of forcing the loading
door to open, the door and the lock mechanism may get damaged.
u
Use detergents, softeners and supplements suitable for automatic
washing machines only.
u
Follow the instructions on the label of textiles and the detergent
package.
1.2 Chldren's safety
u
This product can be used by the children who are at the age of 8 and
over and the people whose physical, sensory or mental skills are not
fully developed or who do not have necessary required experience
and knowledge as long as they are supervised or trained about the
safe use of the product and its risks. Children should not play with the
device. Cleaning and maintenance works should not be performed
by children unless they are supervised by someone. Children of less
than 3 years should be kept away unless continuously supervised.
u
Packaging materials may be dangerous for the children. Keep
packaging materials in a safe place away from reach of the children.
3 / EN
Washing Machine / User’s Manual

4 / EN
u
Electrical products are dangerous for the children. Keep the children
away from the product when it is in use. Do not allow them to play
with the product. Use child lock to prevent children from intervening
with the product.
u
Do not forget to close the loading door when leaving the room where
the product is located.
u
store all detergents and additives in a safe place away from the
reach of the children by closing the cover of the detergent container
or sealing the detergent package.
1.3 Electrical safety
u If the product has a failure, it should not be operated unless it is
repaired by the Authorized Service Agent. Risk of electric shock!
u This product is designed to resume operating in the event of
powering on after a power interruption. If you wish to cancel the
programme, see "Cancelling the programme" section.

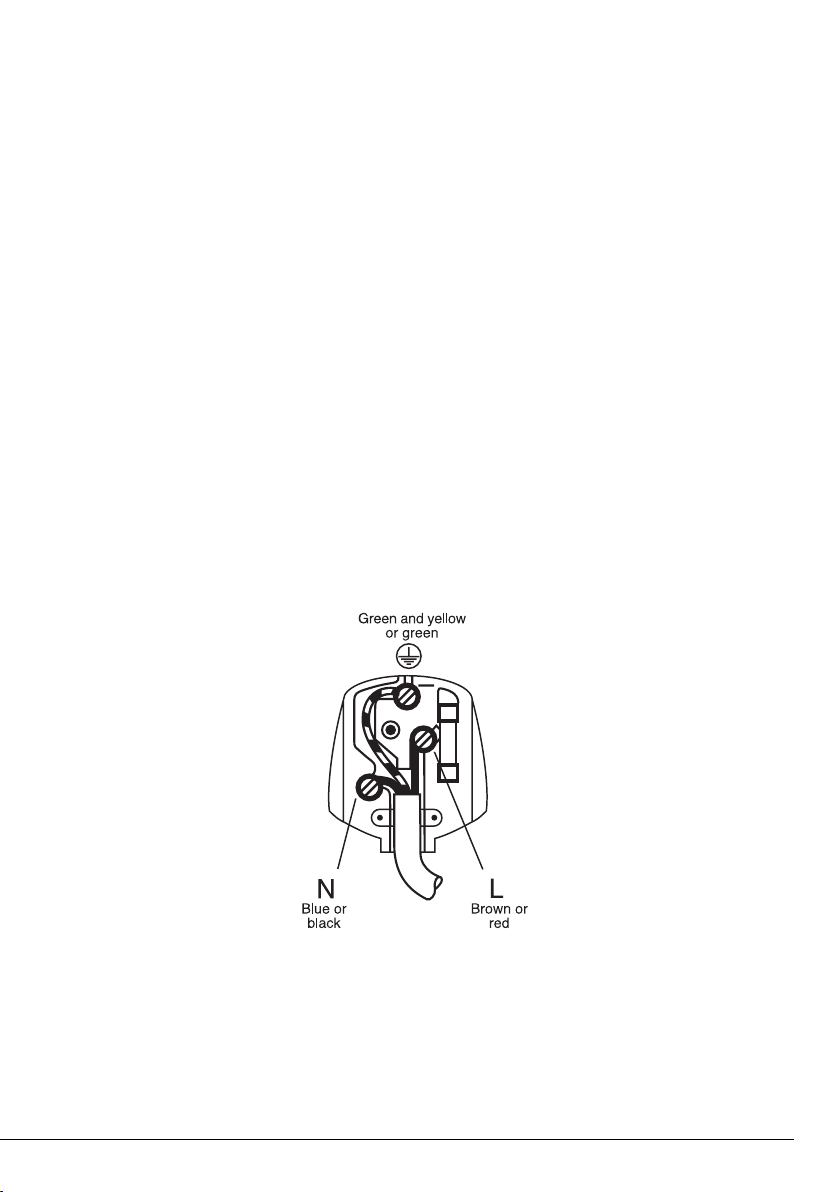

u Plug the product into a grounded outlet protected by a 13 A fuse. Do
not neglect to have the grounding installation made by a qualified
electrician. Our company shall not be liable for any damages that
will arise when the product is used without grounding in accordance
with the local regulations.
u Do not wash the product by spraying or pouring water onto it! Risk of
electric shock!
u Never touch the power cable plug with wet hands! Do not grab the
power cord to unplug the machine, always unplug it by holding the
socket with one hand, and pulling the plug with the other hand.
u Product should be unplugged during installation, maintenance,
cleaning and repair procedures.
u If the power cable is damaged, it must be replaced by the
manufacturer, after sales service or a similarly qualified person
(preferably an electrician) or someone designated by the importer in
order to avoid possible risks.
1.4 Hot surface safety
While washing the laundry at high
temperatures, the loading door glass
will get hot. Considering this fact, during
washing operation keep the children away
from the loading door of the product to
prevent them touching it.

2 Important instructions for environment
2.1 Compliance with WEEE Directive
This product complies with EU WEEE Directive (2012/19/EU). This product bears a
classification symbol for waste electrical and electronic equipment (WEEE).
This product has been manufactured with high quality parts and materials which
can be reused and are suitable for recycling. Do not dispose of the waste product
with normal domestic and other wastes at the end of its service life. Take it to the
collection center for the recycling of electrical and electronic equipment. Please
consult your local authorities to learn about these collection centers.
Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not
contain harmful and prohibited materials specified in the Directive.
2.2 Package information
Packaging materials of the product are manufactured from recyclable materials in accordance
with our National Environment Regulations. Do not dispose of the packaging materials together
with the domestic or other wastes. Take them to the packaging material collection points
designated by the local authorities.
3 Intended use
• Thisproducthasbeendesignedfordomesticuse.Itisnotforcommercial
purposes or it should not be used out of its intended use.
• Theproductmustonlybeusedforwashingandrinsingoflaundrythatare
marked accordingly.
• Themanufacturerwaivesanyresponsibilityarisenfromincorrectusageor
transportation.
• Theservicelifeofyourproductis10years.Duringthisperiod,originalspare
parts will be available to operate the appliance properly.
5/ EN
Washing Machine / User’s Manual

6 / EN
4
Complying Commission Delegated Regulation (EU) No 1061/2010
Supplier name or trademark
Model name
Rated capacity (kg)
Energy efficiency class / Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency)
Annual Energy Consumption (kWh) (1)
Energy consumption of the standard 60°C cotton programme at full load (kWh)
Energy consumption of the standard 60°C cotton programme at partial load (kWh)
Energy consumption of the standard 40°C cotton programme at partial load (kWh)
Power consumption in ‘off-mode’ (W)
Power consumption in ‘left-on mode’ (W)
Annual Water Consumption (l) (2)
Spin-drying efficiency class / Scale from A (Highest Efficiency) to G (Lowest Efficiency)
Maximum spin speed (rpm)
Remaining moisture Content (%)
Standard cotton programme (3)
Programme time of the standard 60°C cotton programme at full load (min)
Programme time of the standard 60°C cotton programme at partial load (min)
Programme time of the standard 40°C cotton programme at partial load (min)
Duration of the left-on mode (min)
Airborne acoustical noise emissions washing/spinning (dB)
Built-in
Height (cm)
Width (cm)
Depth (cm)
Net weight (±4 kg.)
Beko
WTG821B2W
8
A++
195
1.1
0.70
0.665
0.250
Single Water inlet / Double Water inlet
Available
Electrical input (V/Hz)
Total current (A)
Total power (W)
Main model code
(1) Energy Consumption based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption
of the low-power modes. Actual energy consumption will depend on how the appliance is used.
(2) Water consumption based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water
consumption will depend on how the appliance is used.
(3) “Standard 60°C cotton programme” and the “standard 40°C cotton programme” are the standard washing programmes to which the information
in the label and the fiche relates and these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient
programmes in terms of combined energy and water consumption.
Technical specifications may be changed without prior notice to improve the quality of the product.
1.000
10559
1200
53
Cotton Eco 60°C and 40°C
200
179
179
N/A
61/74
No
84
60
54
70
230V~/50Hz
10
2200
9211

4.1 Installation
• Applytothenearestauthorizedserviceagentfortheinstallationofyourproduct.
• Preparationofthelocationandelectrical,tapwaterandwastewaterinstallationsattheplaceof
installation is under customer's responsibility.
• Makesurethatthewaterinletanddischargehosesaswellasthepowercablearenotfolded,
pinched or crushed while pushing the product into its place after installation or cleaning
procedures.
• Makesurethattheinstallationandelectricalconnectionsoftheproductareperformedby
authorized service. Manufacturer shall not be held liable for damages that may arise from
procedures carried out by unauthorized persons.
• Priortoinstallation,visuallycheckiftheproducthasanydefectsonit.Ifso,donothaveitinstalled.
Damaged products cause risks for your safety.
4.1.1 Approprate nstallaton locaton
• Placetheproductonahardandlevelfloor.Donotputitontoacarpetwithhighpileorother
similar surfaces.
• Whenthewashingmachineanddryerareplacedontopofeachother,theirtotalweight–when
loaded–amountsto180kilograms.Placetheproductonasolidandflatfloorthathassufficient
load carrying capacity!
• Donotplacetheproductonthepowercable.
• Donotinstalltheproductintheenvironmentswherethetemperaturefallsbelow0ºC.
• Leaveaminimumspaceof1cmbetweenthemachineandthefurniture.
• Onagraduatedfloor,donotplacetheproductnexttotheedgeoronaplatform.
• DonotplaceheatsourcessuchasHobs,Irons,Ovens,etc.onthewashingmachineanddonotuse
them on the product.
4.1.2 Removng packagng renforcement
Tilt the machine backwards to remove the packaging
reinforcement. Remove the packaging reinforcement by pulling the
ribbon. Do not make this operation alone by yourself.
4.1.3 Removng the transportaton locks
1 Loosenallboltswithanappropriatewrenchuntiltheyturnfreely.
2 Remove the transport safety bolts by turning them slightly.
3 Insert the plastic covers in the bag containing the user manual to the openings on the rear
panel.
A
CAUTION: Remove the transportation safety bolts before operating the washing machine! Otherwise, the
product will be damaged.
C
Keep the transportation safety bolts in a safe place to reuse when the washing machine needs to be moved again
in the future.
Install the transport safety bolts in reverse order of the disassembly procedure.
Never move the product without the transportation safety bolts properly fixed in place!
7/ EN
Washing Machine / User’s Manual

8 / EN
4.1.4 Connectng water supply
C
Thewatersupplypressurerequiredtoruntheproductisbetween1to10bars(0.1–1MPa).Itisnecessarytohave
10–80litersofwaterflowingfromthefullyopentapinoneminutetohaveyourmachinerunsmoothly.Attacha
pressure reducing valve if water pressure is higher.
A
CAUTION: Models with a single water inlet should not be connected to the hot water tap. In such a case the
laundry will get damaged or the product will switch to protection mode and will not operate.
CAUTION: Do not use old or used water inlet hoses on the new product. It may cause stains on your laundry.
1 Tighten the nuts of the hose by hand. Never use a tool when
tightening the nuts.
2 When hose connection is completed, check whether there is
leak problems at the connection points by opening the taps
fully. If any leaks occur, turn off the tap and remove the nut.
Retighten the nut carefully after checking the seal. In order to
prevent the water leaks and resultant damages, keep the taps
closed when you do not use the product.
4.1.5 Connecting the drain hose to the drain
• Attachtheendofthedrainhosedirectlytowastewaterdrain,lavatoryorbathtub.
A
CAUTION: Your drain house will be flooded if the hose comes out of its housing during water discharge.
Moreover, there is risk of scalding due to high washing temperatures! In order to prevent such situations and
make sure that the machine performs water intake and discharge processes without any problem, fix the drain
hose securely.
•Connectthedrainhosetoaminimumheightof40
cm and a maximum height of 100 cm.
•Incasethedrainhoseiselevatedafterlayingiton
the floor level or close to the ground (less than 40 cm
above the ground), water discharge becomes more
difficult and the laundry may come out excessively
wet. Therefore, follow the heights described in the
figure.
• Topreventthewastewatertogobackintothemachineagainandtoensureeasydrainage,donot
immerse the end of the hose into the waste water or do not insert it into the drain for more than
15 cm. If it is too long, cut it short.
• Theendofthehoseshouldnotbebent,itshouldnotbesteppedonandthehosemustnotbe
pinched between the drain and the machine.
• Ifthelengthofthehoseistooshort,useitbyaddinganoriginalextensionhose.Lengthofthe
hose may not be longer than 3.2 m. To avoid water leak failures, the connection between the
extension hose and the drain hose of the product must be fitted well with an appropriate clamp as
not to come off and leak.

9 / EN
4.1.6 Adjusting the feet
A
CAUTION: In order to ensure that the product operates more silently and vibration-free, it must stand level
and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its
place and cause crushing and vibration problems.
CAUTION: Do not use any tools to loosen the lock nuts. Otherwise, they will get damaged.
1 Loosenthelocknutsonthefeetbyhand.
2 Adjust the feet until the product stands in a stable and balanced way.
3. Tighten all lock nuts by hand again.
4.1.7 Electrical connection
Connect the product to a grounded outlet protected by a 13 A fuse. Our company shall not be liable
for any damages that will arise when the product is used without grounding in accordance with
the local regulations.
• Connection must comply with national regulations.
• Power cable plug must be within easy reach after installation.
• If the current value of the fuse or breaker in the house is less than 13 Amps, have a qualified
electrician install a 13 Amp fuse.
• The voltage specified in the "Technical specifications" section must be equal to your mains
voltage.
• Do not make connections via extension cables or multi-plugs.
B
CAUTION: Damaged power cables must be replaced by the Authorized Service Agents.
Washing Machine / User’s Manual
Electrical requirements
Before you insert the plug into the wall socket make sure that the voltage and the
frequency shown in the rating label corresponds to your electricity supply.
We recommend that this appliance be connected to the mains supply via a suitable switched
and fused socket in a readily accessible position.
Should the mains lead of the appliance become damaged or need replacing at any time, it
must be replaced by a special purpose made mains lead which can only be obtained from a
Authorised Service Agent.
B
WARNING: This appliance must be earthed.

If the fitted moulded plug is not suitable for your socket, then the plug should be cut off
and an appropriate plug fitted.
Destroy the old plug, which is cut off as a plug with a bared cord could cause a shock
hazard if inserted into a socket elsewhere in the house. The moulded plug on this
appliance incorporates a 13A fuse. Should the fuse need to be replaced an ASTA approved
BS1362 fuse of the same rating must be used. Do not forget to refit the fuse cover. In the
event of losing the fuse cover, the plug must not be used until a replacement fuse cover
has been fitted. Colour of the replacement fuse cover must be the same colour as that
visible on the pin face of the plug. Fuse covers are available from any good electrical store.
Important
Fitting a different plug
As the colours of the wires in the mains lead of this appliance may not correspond with
the coloured markings identifying the terminals on your plug, proceed as follows:
1 Connect the green - yellow or green (earth) wire to the terminal in the plug marked ‘E’
or with the symbol f or coloured green and yellow or green.
2 Connect the blue (neutral) wire to the terminal in the plug marked ‘N’ or coloured black.
3 Connect the brown (live) wire to the terminal in the plug marked ‘L’ or coloured red.
With the alternative plugs a 13A fuse must be fitted either in the plug or adaptor or in the
main fuse box. If in doubt contact a qualified electrician.
10 / EN Washing Machine / User’s Manual
