INSTRUCTIONS FOR USE - UBEFLEX®STORAGE SYSTEM
Version 5.0

2
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
Version Date Code Remark
5.0 12/09/2019 00003 00029 -
This edition supersedes all previous editions.
The specifications in this document may be updated without notice. Reproduction or disclosure of the contents of this document is not
permitted without the specific consent of Belintra.
REVIEW HISTORY
TABLE OF CONTENTS
Definitions .......................................................................................................................................... 3
General safety instructions .................................................................................................................... 3
Introduction ........................................................................................................................................ 5
Product .............................................................................................................................................. 6
Optionally available ............................................................................................................................. 15
Mounting open frame on telescopic runners ............................................................................................ 18
Mounting closed frame on telescopic runners for containers....................................................................... 19
Installation instructions ....................................................................................................................... 20
Maintenance and inspection ................................................................................................................ 30
Warranty and service.......................................................................................................................... 30
Waste processing ............................................................................................................................... 30

3
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
1. Definitions
HAZARD
Indicates an immediate hazardous situation that, if not prevented, will result in serious injury or death.
WARNING
Indicates a possible hazardous situation that, if not prevented, could result in serious injury or death.
CAUTION
Indicates a possible hazardous situation that, if not prevented, could result in slight or moderate injury.
This can also be used to indicate unsafe use.
2. General safety instructions
In the interest of your safety and to ensure correct use, it is important that you read these instructions carefully, including any tips and
warnings, before using the product. Keep these instructions and ensure that users are properly informed as regards the use and safety of
the product.
 Belintra is not liable for:
• Damage caused by a failure to follow the instructions or by improper use.
• Consequences of modifications made to the product by the user.
• Damage incurred by use other than as described in the intended use.
 Instructions for stability
• Place the UBeFlex®storage system on as smooth as possible surface. Minor differences in height (max. 0,5 cm per metre) can be
absorbed by the height-adjustable feet. During assembly, make sure the rack is level.
• Do not stand or climb on the UBeFlex®storage system.
• In the case of a column set-up, do not remove more than 1 basket at a time from the runners.
• Make sure shelves are correctly loaded. Heavy loads at bottom, light loads at top.
• Make sure the weight is distributed as evenly as possible between the shelves.
• Place the load gently on the shelves or in the runners.
• The stationary unit must not under any circumstances be moved while loaded.
• Please follow closely the instructions on weight capacity as described in this manual.
• Make sure the spacers clamp properly. Always use a rubber hammer to ensure the spacer/shelf profiles clamp onto the hooks.
When doing so, follow the mounting instructions closely.
• Only use the components supplied by Belintra to assemble the UBeFlex®shelving system.
• Permissible operating temperatures -10 °C / +40 °C.
WARNING
• Failure to follow the stability instructions can lead to injury or damage to property / environment.
• The movable version (with wheels) can only be used stationary with limited mobility on a level surface in connection
with floor cleaning. The movable version may not be used as a cart within a logistics system. For this, use the open
transport carts.

4
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
 Maximum load capacity:
• Follow the load specifications per below overview
• Make sure that the spacer sets are fixed and firmly tapped in as specified in the drawing on page 23
• The maximum capacities are based on evenly distributed loading. Make sure to distribute the weight accordingly.
• The maximum load capacity per pair of runners is 15 kg
• The maximum load capacity per shelf is 15 kg
Shelving - stationary application
• Max 15 kg per shelf component (Q1, Q2 & R)
• Max 300 kg per section
• Miniumum 4 shelving levels per section
Shelving - mobile application
• Max 15 kg per shelf component (Q1, Q2 & R)
• Max 250 kg per section
• Miniumum 4 shelving levels per section
• Maximum length of 2,3m
DIN or ISO stationary application
1 section 2 sections 3 sections 4 sections 5 sections x sections
load in kg
150 300
300 400 500 +100
load in kg heavy duty 450 600 750 +150
DIN or ISO mobile application
1 section 2 sections 3 sections 4 sections 5 sections
(max.)
load in kg
150 300
300 350 400
load in kg heavy duty 400 450 500
• Max. 15 kg per pair of runners
• Max. 5 sections in total for DIN and ISO D-type
• Max. 3 sections in total for W-type
Legend
no additional reïnforcement
spacer blocks
spacer blocks and back reïnforcement
WARNING
Failure to follow the maximum load capacity instructions
can lead to injury or damage to property / environment.

5
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
 Inspection and maintenance:
• Inspect the UBeFlex®set-up regularly. Check the screws and spacer sets. Increase the clamping if necessary.
Worn parts must be replaced by Belintra-approved parts.
• Inspections and maintenance must be carried out by qualified staff.
CAUTION
UBeFlex®is not suitable for cart-wash applications.
Never use aggressive cleaning agents for cleaning the UBeFlex®.
 Packaging and transport:
• Remove packaging materials carefully on first use.
• Belintra is not responsible for damage incurred during transport. Open the packages immediately on receipt to inspect the contents.
All visible damage must be reported to the transport company concerned within 48 hours of receipt.
• In case of damage, retain all packaging materials for inspectors.
3. Introduction
This manual describes the correct use, installation and safety instructions of the UBeFlex®Belintra shelving system.
The UBeFlex®storage system is used in the medical sector, and can be used on a highly versatile basis, thanks to the modular set-up
with D-type, DIN-type or W-type columns, possibly in combination with shelves, in various departments of healthcare facilities. It can
be used in both sterile (storage of sterile sets) and non-sterile environments. From CSSD/SPD via the pharmacy to the kitchen and cold
storage. The shelving system was developed with quick assembly, ergonomics, design, hygiene and modularity in mind. The set-up is
accessible from both sides.

6
Reinforcement kit
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
4. Product
 Product architecture
The UBeFlex®shelving system consists of posts and a spacer set. A spacer set consists of 4 connecting elements that join the posts
together. You need 2 posts and 1 spacer set to build 1 column. In addition, possibly also spacer locks and a back reinforcement kit are
added (see maximum capacities p. 4).
Spacer locks Spacer locks for bottom/roof panel
Back reinforcement kit

7
1 2 3
600 (!)
600 (!)
600 (!)
600 (!)
max 560
max 560
max 360
max 360
400 (!)
400 (!)
600 (!)
600 (!)
600 (!)
600 (!)
400 (!)
300 (!)
400 (!)
300 (!)
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
The UBeFlex®shelving system is available in different versions.
 A. UBeFlex®columns for storage of modular trays, baskets or shelves (modules) in/on runners
1. D-type column: for modules 400 x 600 mm that are slid onto the runners in a downwards direction (600).
2. W-type column: for modules 400 x 600 mm that are slid onto the runners widthways (400).
3. DIN-type column: for modules 300 x 600 mm that are slid onto the runners in a downwards direction (600).
REMARK
The UBeFlex®columns may only be used in combination with the designated modules. In the case of a D-type and W-type column,
400 x 600 mm dimensions (see specification). In the case of a DIN-type column, 300 x 600 mm dimensions (see specification).
The height of the module is not important here.
 Specification of module for D-type and W-type column
Shelf: Basket/tray:
 Specification of module for DIN-type column
Shelf: Basket/tray:

8
600 400
300 300
600
300
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019

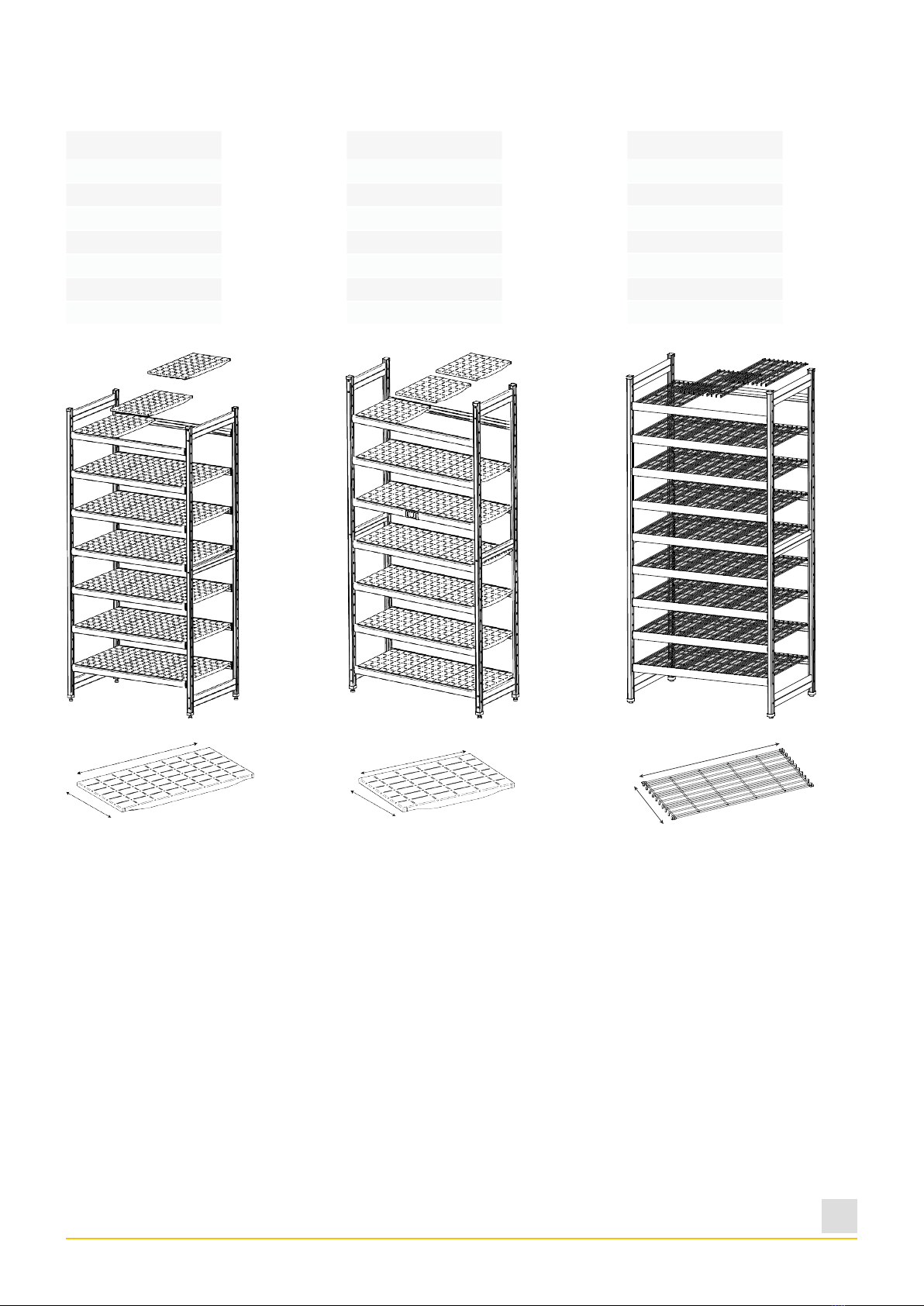

 B. UBeFlex®shelving
A shelving consists of 2 shelf profiles onto which plastic shelves with a width of 300 mm are placed. The length of the profiles
determines the number of shelves. In each case, the available lengths of a complete shelving are a multiple of 300 mm, up to a
maximum of 1800 mm. A shelving with a length of 900 mm (as in the above illustration) has 3 shelves. The shelves are made from
plastic (polypropylene).
Synthetic (closed) - D-type
Depth Length
600 300
600 600
600 900
600 1200
600 1500
600 1800
Synthetic (closed) -W-type
Depth Length
400 300
400 600
400 900
400 1200
400 1500
400 1800
Chromed steel (open) - D-type
Depth Length
600 300
600 600
600 900
600 1200
600 1500
600 1800

9
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
 Stationary or movable
The stationary posts are fitted with height-adjustable feet. This is to absorb
minor differences in height in the floor surface. They make sure the rack can be
placed completely level by being slid in and out.
Height 2040 mm
26 usable runner positions
The movable posts have double Tente castors Ø 50 mm, 1 with a brake. The fork
and the wheel centre are made of polyamide, the tread of polyurethane and they
have a wheel hub on precision ball bearings.
Height 1960 mm (including wheels)
24 usable runner positions
WARNING
The limited mobility is in connection with floor cleaning and
not intended for use as a cart.
WARNING
Respect the maximum loading capacities as indicated on p. 4.
If needed, use the spacer locks and back reinforcement kit as indicated on p. 4.
The UBeFlex®posts are available both stationary and movable, in connection with floor cleaning.

10
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019

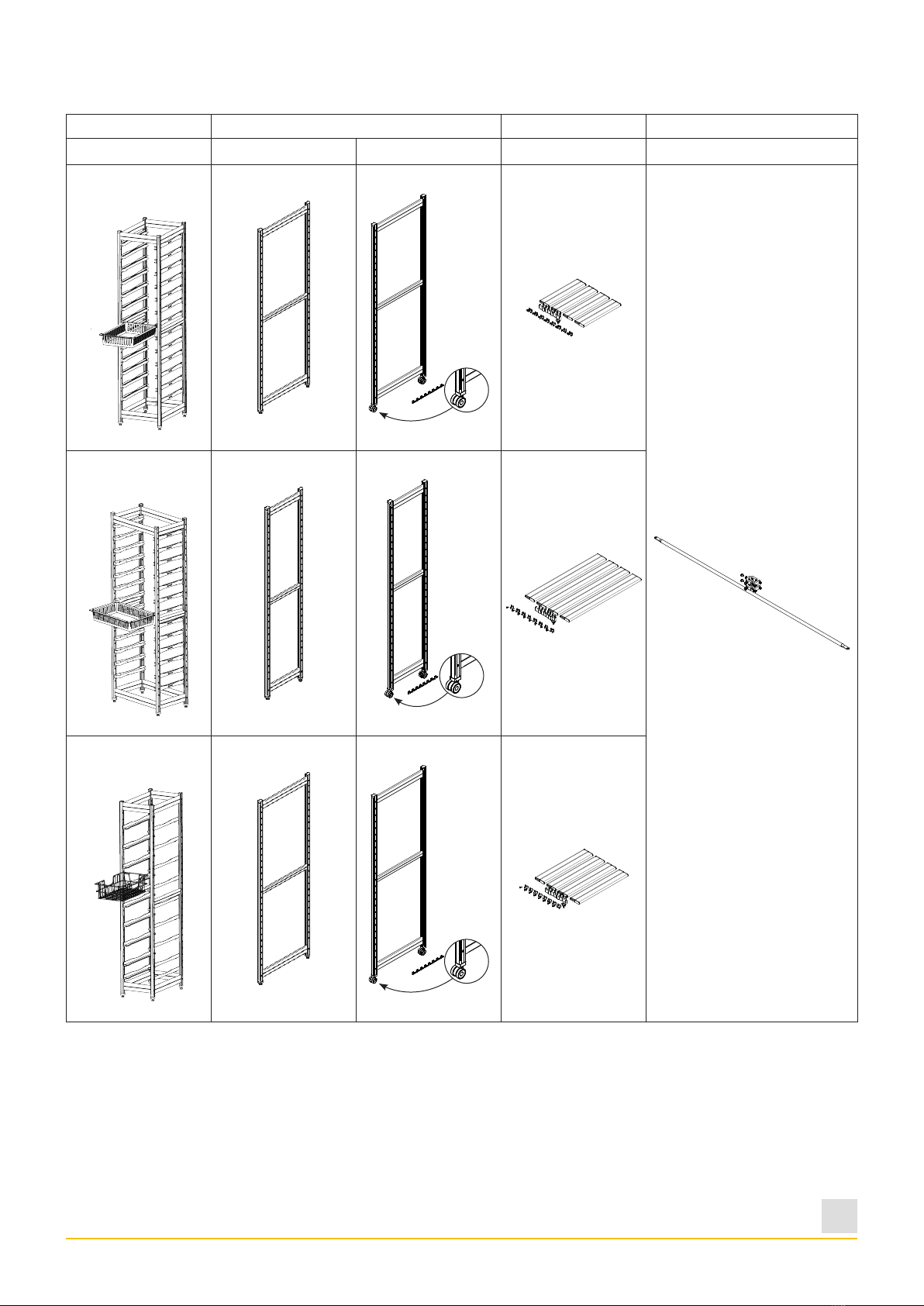

 Matrix of structure – column
Column Post Connecting element Back reinforcement kit
Stationary Movable
D-type
Reinforcement kit
W-type
DIN-type

11
16010 00043
16010 00044
16010 00045
16010 00046
16010 00047
16010 00048
16010 00049
16010 00050
16010 00051
16010 00052
16010 00053
16010 00056
16010 00091 16010 00002
16010 00038 16010 00039
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019

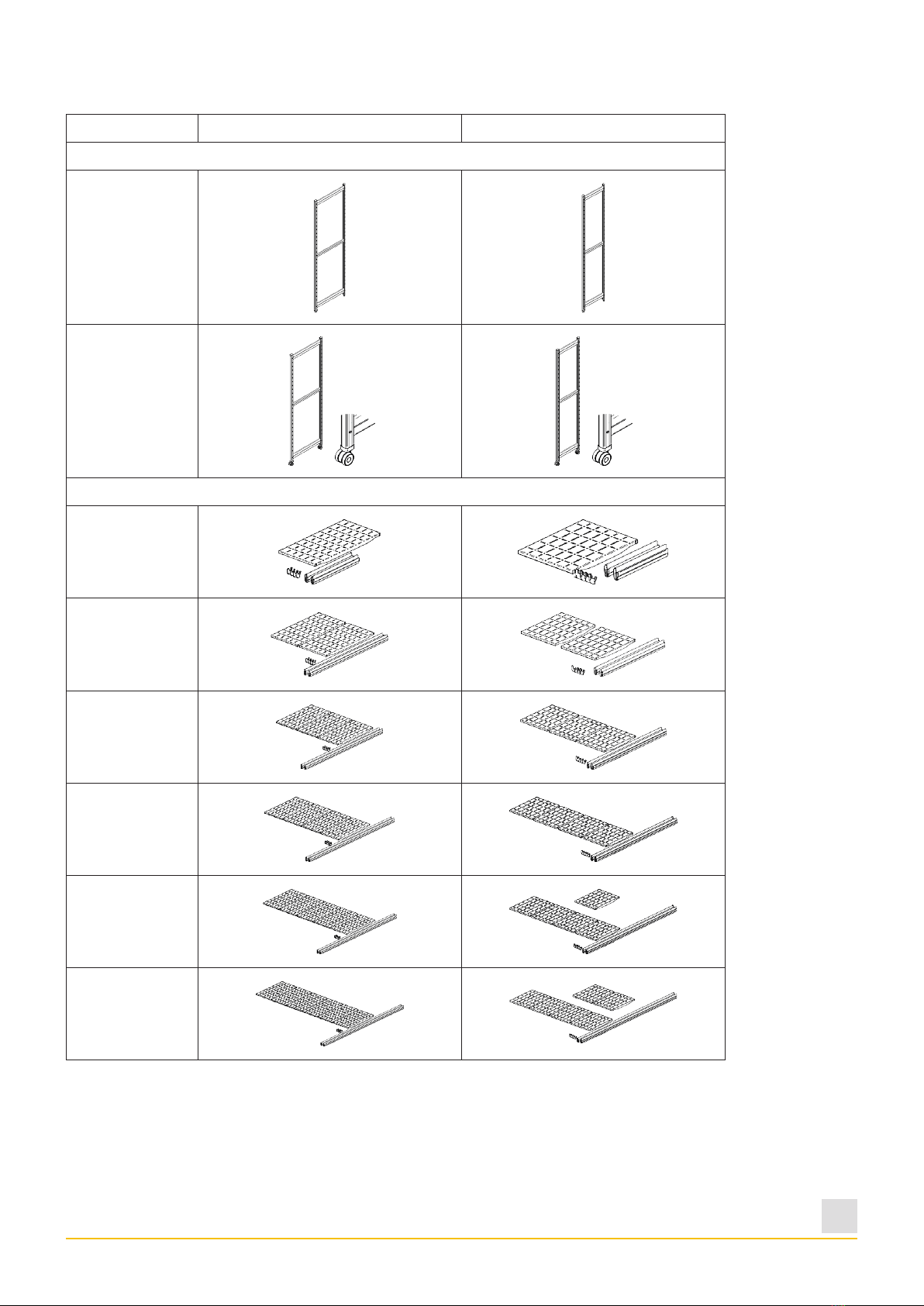

 Matrix of structure – full synthetic shelves
D-type W-type
Post
Stationary
Movable
Connecting elements + shelves
Length 300
Length 600
Length 900
Length 1200
Length 1500
Length 1800

12
1x
+
16010 00071
16010 00085
+
2x
16010 00071
16010 00086
+
3x
16010 00071
16010 00087
+
4x
16010 00071
16010 00088
+
5x
16010 00071
16010 00089
+
6x
16010 00071
16010 00090
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
 Matrix of structure – chromed steel shelves

13
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019

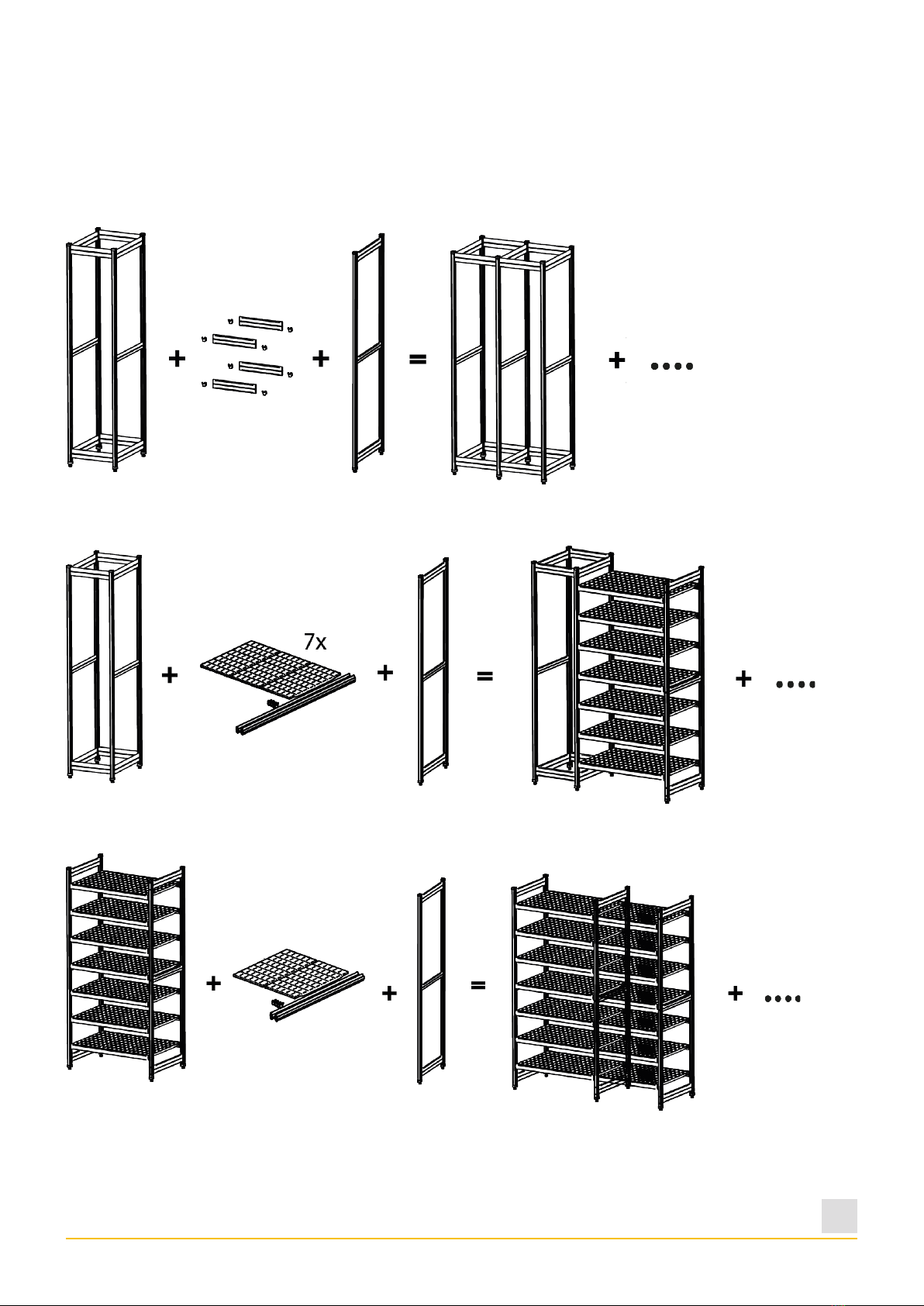

 Combinations
The UBeFlex®storage system is modular in structure, allowing various different combinations. You can extend endlessly, possibly in
combination with shelves. To extend a column you need 1 post and connecting elements. Examples in illustration below.
In the case of movable configurations, the extension is limited (see page 4).

14
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
WARNING
Movable configurations:
- Max. length shelving 2,3 meter
- Max. 5 sections of DIN- and D-type
- Max. 3 sections of W-type
WARNING
Do not create configurations other than those described in this manual.
Bear in mind the following 3 rules:
1. D-type columns, DIN-type columns and D-type shelves can be combined.
2. W-type columns and W-type shelves can be combined.
3. W-type CANNOT be combined with DIN- or D-type
Always combine columns or shelf set-ups of the same depth.
The following set-up is an example of a combination of 2 D-type columns with D-type shelf, length 900 mm.

15
A
E
C
G
DB
F
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
5. Optionally available
 1. Roof & bottom panels
 2. Floor mounting
Floor mounting, set of 2 (16010 00095)
Type of mounting bolt
depending on the surface
hole Ø 12 mm / ± ½ inch
D-type (16010 00060) W-type (16010 00031) DIN-type (16010 00069)

16
A C
C
ED
Ø7
B
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
 3. Wall mount
 4. Label holders
Label holder for on posts - portrait (16008 00029)
Label holder shelving – landscape (16010 00015)
Insert 60 x 40 mm (15008 00021) for both label holders
Wall mount (16010 00066)

17
B
A
16010 00069 300 mm
(16010 00085)
600 mm
(16010 00086)
900 mm
(16010 00087)
1200 mm
(16010 00088)
1500 mm
(16010 00089)
1800 mm
(16010 00090)
99010 00020
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
 5. Cap for covering unused positions
 6. Divider & closing profile
Divider
Closing profile

18
11
2
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019

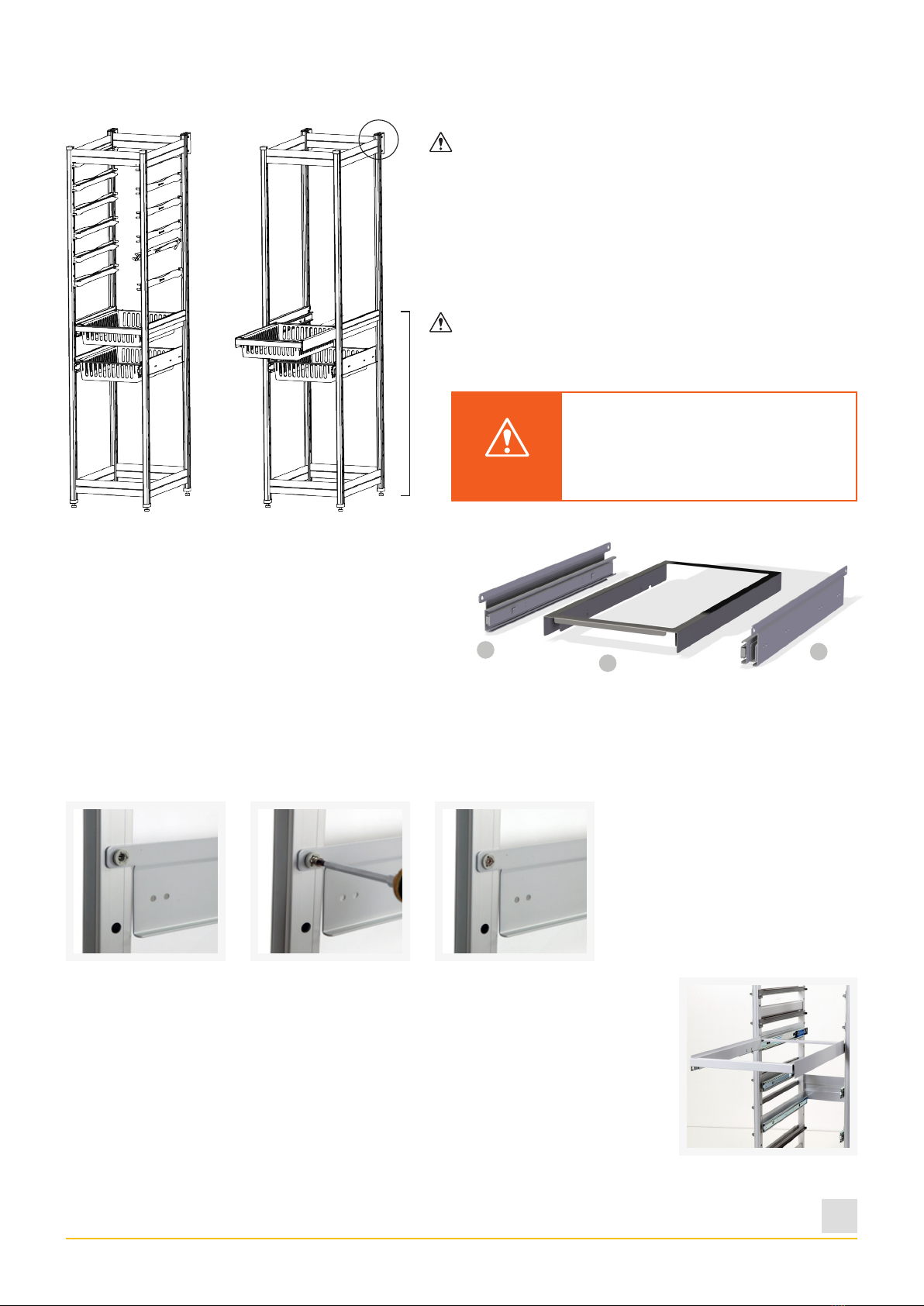

6. Mounting open frame on telescopic runners
Wall mount
WARNING
• Frame on telescopic runners up to maximum
height of 1 m.
• Always in UBeFlex®set-up in combination
with wall mount.
• Max. load: 25 kg.
• Only extract one frame at a time.
1m max.
 Preparation
The frame on telescopic runners consists of 3 parts:
2 telescopic runners on mounting plates (1), and the frame (2).
 Mounting the runners
Mount the telescopic runners (1) on the UBeFlex®posts and make sure to check if the left and right runners are mounted on the correct
side. Use the caps and turn-pins to secure the runners on the posts. First plug in the cap and use the turn-pin to secure the plate. Make
sure both plates are on the same height in the UBeFlex®column.
 Securing the frame
Once the telescopic runners are in place, secure the frame (2) by simply clicking it onto the
runners. Slide open both the left and right runner and place the frame on top. Each runner has
2 clips which hold the frame, align the clips of the runners with the gaps on the outside of the
frame and push down. You will hear the frame click into place.

19
11
2
3
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019
7. Mounting closed frame on telescopic runners for containers
WARNING
• Frame on telescopic runners up to maximum height of 1 m.
• Always in UBeFlex®set-up in combination with wall mount.
• Max. load: 25 kg.
• Only extract one frame at a time.
 Preparation
The frame on telescopic runners consists of 4 parts:
2 telescopic runners on mounting plates (1),
the frame (2) and the upper shelf (3).
 Mounting the runners
Mount the telescopic runners (1) on the UBeFlex®posts and make sure to check if the left and right runners are mounted on the correct
side. Use the caps and turn-pins to secure the runners on the posts. First plug in the cap and use the turn-pin to secure the plate. Make
sure both plates are on the same height in the UBeFlex®column.
 Securing the frame
Once the telescopic runners are in place, secure the frame (2) by simply clicking it onto the runners.
Slide open both the left and right runner and place the frame on top. Each runner has 2 clips which
hold the frame, align the clips of the runners with the gaps on the outside of the frame and push down.
You will hear the frame click into place.
 Mounting the upper shelf
After placing the frame you can mount the upper shelf (3). The shelf has 4 screws on the bottom which
fit into the frame. Place the upper shelf on top of the frame and align the screws with the holes in the
shelf. Secure the screws with the nuts.

20
A B C D
E F G
H I
J K
L M
N P Q1 R
S T U V2
Q2
V1
V2
W3
W1 W2
W1 W2
© BELINTRA, NV - UBFL/HL/EN/0005 - 09/2019

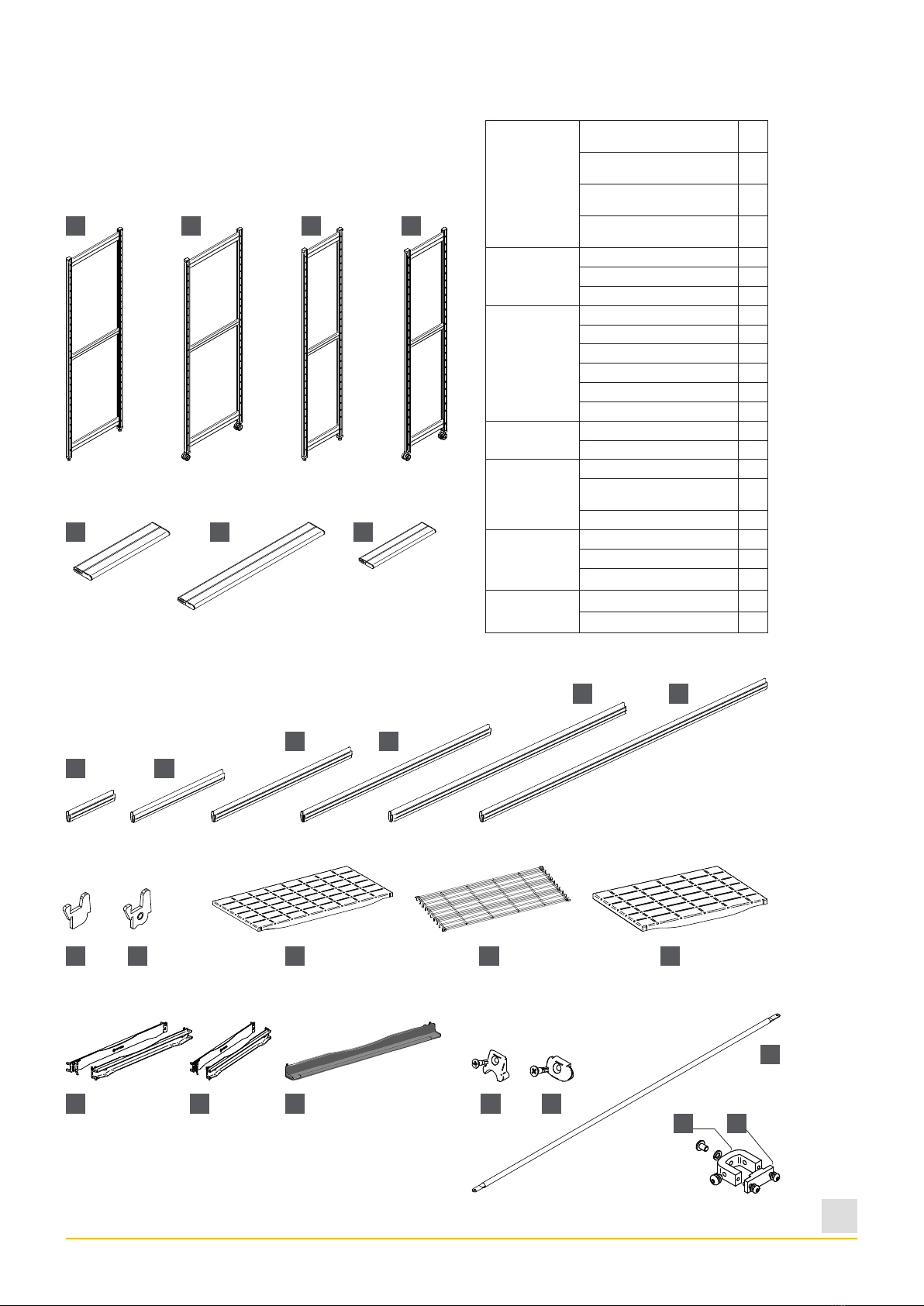

8. Installation instructions
Mount the UBeFlex®set-up with at least 2 people.
 Parts
Posts
D-type post
stationary (ditto DIN) A
D-type post
movable (ditto DIN) B
W-type post
stationary C
W-type post
movable D
Profiles -
columns
connection
D-type connection E
W-type connection F
DIN-type connection G
Connecting
profiles for
shelves
300 mm connection H
600 mm connection I
900 mm connection J
1200 mm connection K
1500 mm connection L
1800 mm connection M
Hooks Hooks for shelves N
Hooks for columns P
Shelves
D-type shelf (synthetic) Q1
D-type shelf (chromed
steel) Q2
W-type shelf R
Runners
D-type runner S
W-type runner T
DIN-type runner U
Reinforcement Spacer locks V
Back reinforcement kit W
