BELL HELICOPTER BELL 430 Operation manual

Product Data

2
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
DISCLAIMER
THIS INFORMATION CONTAINED HEREIN WAS PREPARED AND INTENDED, ONLY,
AS A MARKETING AID. IT CANNOT BE USED AS A SUBSTITUTE FOR THE
ROTORCRAFT FLIGHT MANUAL, MAINTENANCE MANUAL, ILLUSTRATED PARTS
BREAKDOWN OR OTHER PUBLICATIONS APPROVED BY AIR REGULATORY
AUTHORITIES FOR THE OPERATION, AND/OR MAINTENANCE OF ANY BELL
AIRCRAFT.
PUBLISHERS NOTICE
The data presented herein is general in nature and is intended for the use of BHTI
Sales Personnel and International Sales Representatives as an aid in describing
the features and benefits of Bell Helicopters to prospective customers.
This data includes proprietary material of BHTI. Disclosure, reproduction, or use of
anyofthematerialhereinbypersonsotherthanBHTIemployees,andBHTIIndependent
Representatives [International Dealers] is forbidden without written permission from
BHTI.
ThePHOTOGRAPHSandDRAWINGS appearing herein arefor illustrationonly,and
maydifferfromtheactualaircraft,astheBHTIcontinuingproductimprovementprocess
causessome components, specifications,and procedures tobe changed orreplaced.
THEWEIGHTS, DIMENSIONS, AND PERFORMANCE DATA SHOWN MAY NOT BE
CURRENT. For the most current tabular data, and performance and fuel flow charts
refer to the current year’s Technical Information Booklets.
©Copyright, Bell Helicopter Textron, Inc., 2003 ®™, Bell Helicopter, Bell Helicopter Textron Inc., Bell
206B3, 206L-4, 407, 427, 430, 412, 609, JetRanger and
LongRanger are registered trademarks of Bell
Helicopter Textron Inc.

3
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
BELL 430
PRODUCT DATA
CONTENTS
SECTION ONE GENERAL DESCRIPTION OF
THE STANDARD CONFIGURATION
SECTIONTWO OPTIONAL EQUIPMENT
FACTORY INSTALLED
BHTC &VENDOR STC KITS
SECTIONTHREE DIMENSIONS,
DESIGN SPECIFICATIONS
AND WEIGHTS
ALPHABETICAL INDEX

4
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
GLOSSARY
INTERNATIONALLY APPROVED ABBREVIATIONS
Atmosphere
Rate of Climb
Speed and Distance
Weights
Performance
Definitions
C
ISA
ISA+20 C
ISA+30 C
SL
R/C
ft/min
m/s
h
km
km/h
M
mph
nm
sm
kg
lb
IGE
OGE
max
Maximum Endurance
Speed
Long Range Cruise
Speed
Pressure Altitude
Service Ceiling
Degrees Celsius (° is not required if meaning is clear.)
International standard atmosphere. (Standard temperature is defined
as 15°C at sea level, with a lapse rate of -1 °C for each 150 meters (500
feet) increase in pressure altitude.)
International standard temperatures increased at each altitude by a
constant 20 C or 30 C.
Sea level.
Rate of climb.
Feet per minute.
Meters per second. (One meter per second is 3.28 ft/s )
Hour/hours.
Kilometer/kilometers.
Kilometers per hour. (One kilometer per hour equals 0.54
knots or 0.62 statute miles per hour.)
Knots. (Nautical miles per hour.)
Meter/meters. (One meter equals 3.28 feet.)
Statute miles per hour. (One mile per hour equals 0.87
knots. )
Nautical miles.
Statute miles.
Kilogram/kilograms.
Pound/pounds. (One pound equals 0.45 kilograms.)
In ground effect. (Hovering near the ground creates a
cushion of air that increases the weight carrying capability
of the helicopter (the ground effect). This effect generally
is present up to one rotor diameter above the ground.)
Out of ground effect. (Since the ground effect extends up to
one rotor diameter out of ground effect refers to flight that is
higher than this height above the ground.)
Maximum.
The speed at which power required to fly is a minimum.
The higher of the two speeds at which 99% of maximum
range occurs. Cruising at this speed is a tradeoff of one
percent in maximum range for 20 to 30 kilometers per hour
(10 to 15 knots), higher speed.
The altitude indicated on an altimeter or barometer when
the sea level standard pressure reading is the reference
(1013 millibars (29.92 inches) of mercury).
The altitude at which the maximum rate of climb capability
is 0.5 meters per second, 100 feet per minute.

5
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
SECTION ONE
GENERAL DESCRIPTION OF
THE STANDARD CONFIGURATION

6
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003

7
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003

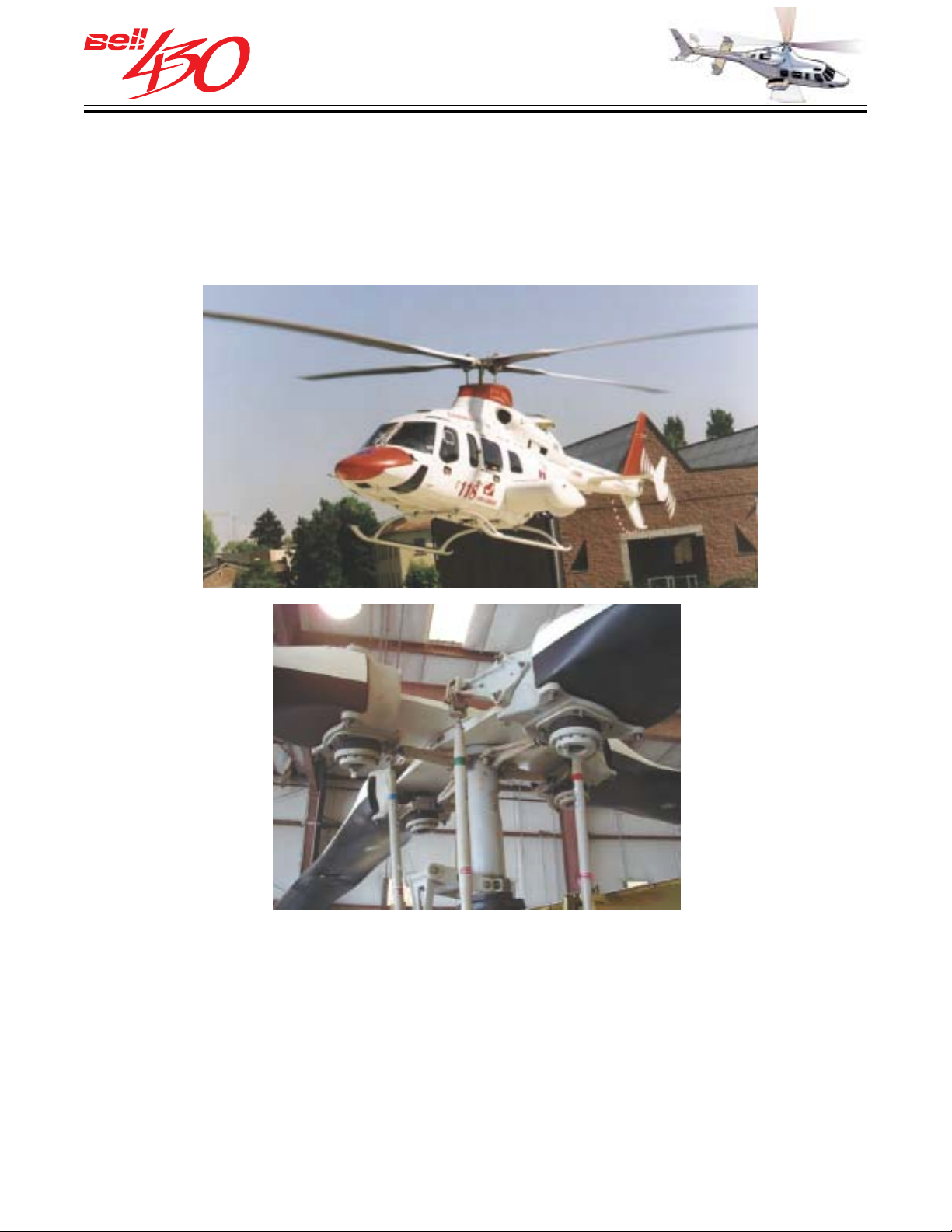

ADVANCED
FOUR-BLADED
MAIN ROTOR
The Bell 430, a 9 to 11 place twin turbine powered helicopter, is the latest version of
Bells' well proven INTERMEDIATE TWIN helicopter series whose heritage reaches
back almost 20 years. This latest model in the series blends the attractive lines of the
222/230 family with Bells' advanced Model 680 Rotor Design.
SYSTEMS OVERVIEW
Introduction
The Bell 430 FOUR-BLADED bearingless rotor system features primary structural
elementsconstructedofcompositematerialstoavoidcorrosionandtoprovidebenign,
easilydetectablefailuremodes,alongwith"on-condition"(noretirementlife)operation.
Main rotor blade pitch change as well as flapping and lead/lag motions occur through
flexing and bending the two composite yokes (with fluid filled dampers and shear
restraints), rather than by means of the customary hinges and lubricated bearings.
The four blades of the main rotor are of all composite construction with a replaceable
metal leading edge abrasion strip. They are designed for on-condition replacement
and are fully interchangeable. A simplified pylon support system attaches the rotor
and transmission systems to the fuselage.

8
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003

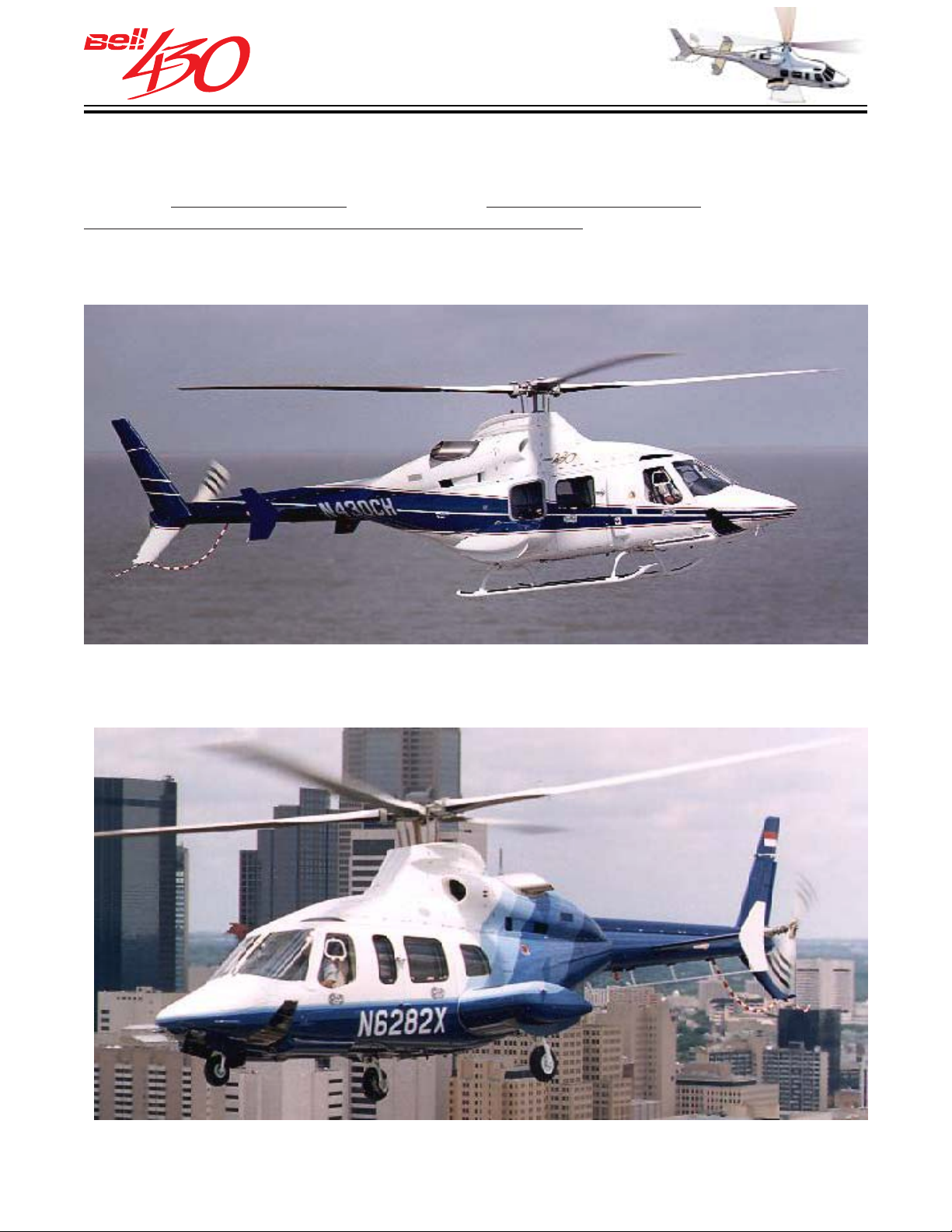

The passenger cabin is longer than that of the Bell 222/230 to give each of the three
main cabin seat rows more pitch, making the accommodations more comfortable and
theridemorepleasant.Anoptionalhingedpaneldoorkit isavailabletoprovidegreater
easeof accessforcargoor litters.Locatedbetweentheleft crewandpassengerdoors
it is attached by hinges to the fuselage and the passenger door in a manner similar to
the Litter Door of the Bell LongRanger & 407 series.
CABIN STRETCH WITH OPTIONAL LITTER DOOR
OPTIONAL LITTER DOOR
BAGGAGE DOOR
MAIN PASSENGER DOOR
COMFORT FEATURES
The spacious cabin is easily entered
through the wide (nearly 180°) opening
passengerdoors,andprovidescomfortable
seating for seven (standard seats), with
ample room for baggage. The 1.05 cubic
meter (37.2 cubic feet) aft baggage
compartmentisaccessiblethroughit'sown
door, or through the rear cabin partition.
Cabinfurnishingsincludethehighbacked
non-folding seats with three-point lap /
shoulder restraints, and the standard
deluxe interior trim, headliner /
soundproofing, hard thermoplastic wall
covering,andvinylfloorcovering. TheSIX
large cabin windows afford each
passenger a panoramic view. The cabin
ventilation system directs fresh outside
air toeach seat from individual overhead
outlets. In flight, the cabin's occupants
receive a smooth vibration-free ride,
courtesy of the LIVE®suspension.
STRETCHED FUSELAGEWITH OPTIONAL PANEL DOOR

9
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003

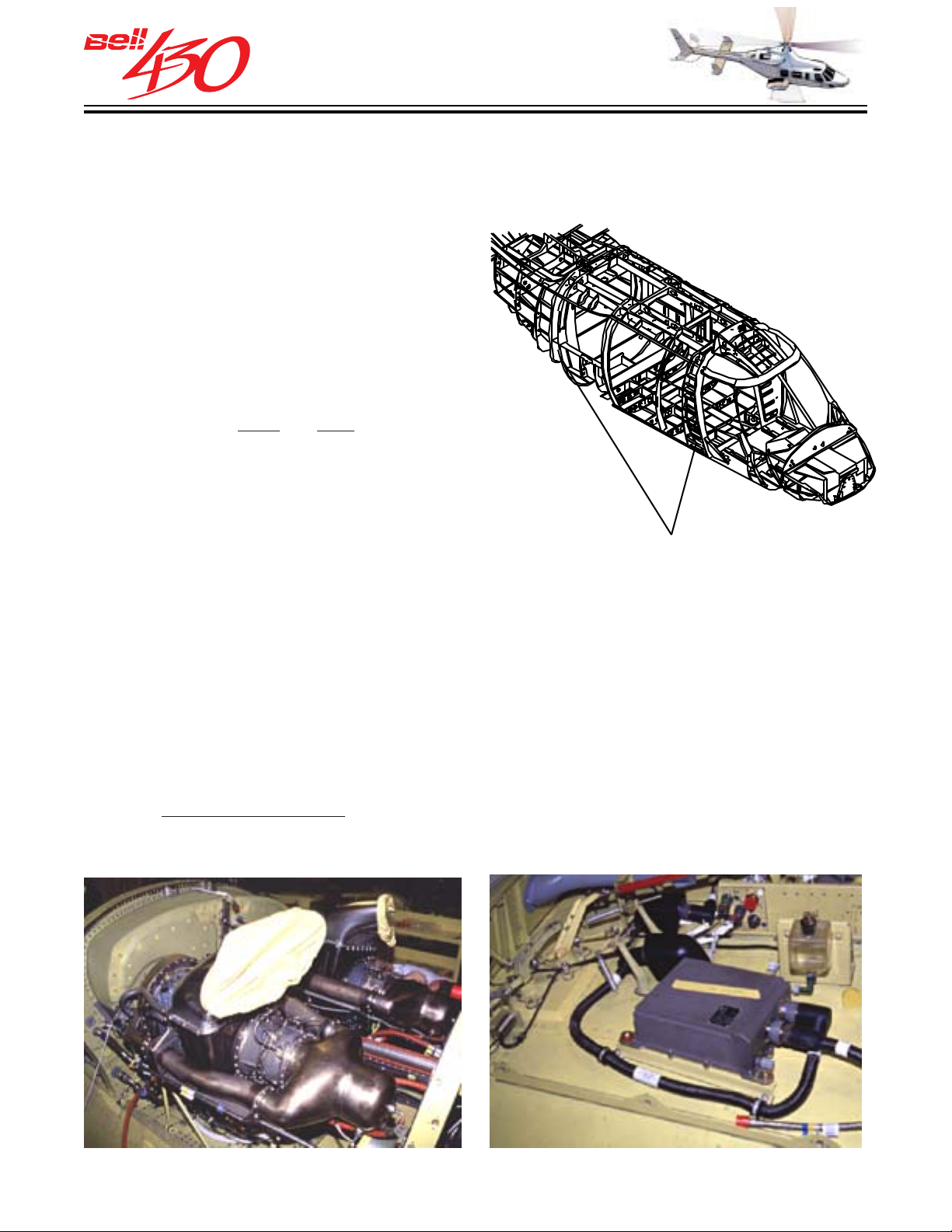

ROLLS-ROYCE 250-C40B ENGINES FADEC ELECTRONIC CONTROL UNIT
TheprimarydesignparametersoftheBell
430 emphasize safety in every aspect of
the aircraft. All critical flight systems are
either duplicated or isolated / separated
tomeet/exceedthespecificationsofFAR
Part29CategoryA. Redundantloadpaths
areincorporatedthroughoutallsafety-of-
flightcomponents,suchasthemainrotor
blades,transmissionattachment,andflight
control linkage. Fuselage integrity is
ensured through two integral roll-over
bulkheadsatthefrontandrearofthecabin.
The fuel supply is contained in rupture-
resistantfabricandrubbercellswhichhave
been drop-tested when75% full from 15
meters(50feet) withoutspillage,andare
interconnected with break-away self-
sealing fittings.
The engines selected for the Bell 430 are the Rolls-Royce 250-C40B. These are a
growth version of the well - proven 250-C30 engine series from Rolls-Royce which
providereliablepowerundertheextremesofclimaticconditions.TheRolls-Royce250
engine series has accumulated over 100 million hours of flight time, with deliveries
totaling over 30,000 engines. Controlling each engine is a Full Authority Digital
Electronic Control (FADEC). The FADEC provides automatic starting, is able to
maintainrotor speed and engine matchingwithinclosertolerances,and to offera 30-
second single engine rating to enhance Category A operations. Additionally, as in all
BellHelicopters,MANUALpowermanagementofeachengineisimmediatelyavailable
to the pilot through the collective-mounted twist grip throttles.
ROLLOVER BULKHEADS
OCCUPANT PROTECTION BY REDUNDANT
FUSELAGE LOAD PATHS
ROLLS-ROYCE 250-C40B ENGINESWITH FADEC
SAFETY FEATURES

10
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
Another new feature of the Bell 430 is the Integrated Instrument Display System
(IIDS) which reduces the size of the instrument panel and gives the flight crew more
forward field of view. The Dual Displays help the flight crew to track, as well as to
control,essentialparametersofcriticalhelicoptersystems.TheIIDSalsocontrolsthe
ChipDetector/FuzzBurnerFunctionsforbothengines(2each)andthetransmission
/ tail rotor (6/1). Additionally, the IIDS has new maintenance and power assurance
functions. As a bonus, the IIDS is a valuable tool which also helps to increase the
helicopter's reliability and maintainability.
INTEGRATED INSTRUMENT DISPLAY SYSTEM (IIDS) - SHOWN WITH OPTIONAL EQUIPMENT
MAINTAINABILITY FEATURES
The Bell 430 is engineered for reliability and ease of maintenance. Built in steps and
work platforms, along with plentiful access panels, doors, and inspection windows
provide for quick and thorough preflight checks and servicing. Primary components
andsystemsaredesignedforroutineservicingwhileremaininginstalledontheaircraft.
Major service intervals are among the longest in the rotorcraft industry due to Bell's
traditionallylongTimeBetweenOverhaul/RetirementLifecomponents.Somethings
have not, and will not change ; Bell Helicopter'scommitment tosafety, low cost of
operation, and reliable, responsive helicopters that are supportable and economic
through their lifetimes.
INTEGRATED INSTRUMENT DISPLAY SYSTEM (IIDS)

11
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
Thebasic airframe oftheBell430isprovidedwithcompleteprovisionsfor delivery in
either of two configurations;the standard SKID LANDING GEAR , or the optional
RETRACTABLE TRICYCLE WHEEL LANDING GEAR.
LANDING GEAR CHOICE

12
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
The Bell 430 received its Canadian Type Approval Certificate [H-88] on February 23,
1996.TheBell430wasalsocertificatedbytheFAAinaccordancewithprovisionsof14
CFR Section 21.29 on April 11, 1996. Initial deliveries of the new Bell 430 began in
February 1996.
TheBell430isassembledatBellHelicopterTextronCanada,Ltd.Themanufacturing
facilities are situated in Mirabel, Quebec, 19 miles (30 kilometers) North of Montreal.
TheplantisashortdrivefromDorval InternationalAirport.The152-acresiteinMirabel
includesa 529,000squarefootfacilitythathouses manufacturing,fabricating,processing,
assembly,engineeringdesign,researchanddevelopment,productsupportengineering,
marketing and administration.
The Bell 430 is certified under FAR Part 29, Category B requirements. Additionally,
theBell430isapprovedunderCanadianAirworthinessManualChapters529,Sections
529.1301.1, 529.1557(c), 529.1518 (e), and 529.1093 (b) (1) (ii).
BASIS OF CERTIFICATION
INTERNATIONAL CERTIFICATION
A new Bell 430 is delivered with a Canadian Certificate of Airworthiness for Export,
which may be readily exchanged for a Certificate of Airworthiness in the destination
country.
BELL HELICOPTERTEXTRON CANADA,LTD.
MANUFACTURING AUTHORITY

13
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
The overall eye appeal of the Bell 430 is aided by the sparkling Polyurethane paint.
Not only is it durable and easy to keep clean, but it maintains and, in fact, exemplifies
the high standard of Bell quality and dependability. The standard Bell 430 comes in
THREE basic color scheme designs illustrated below, each in THREE colors. The
colors are selected from the many shown in the IMRON paint chip chart available
from the Bell representative.
A
Special company colors, paint design, logos, etc., can be negotiated.
C
B
EXTERIOR PAINT SCHEMES

14
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
GENERAL DESCRIPTION
OF THE STANDARD CONFIGURATION
SERIAL NO. 49001 AND SUBSEQUENT
TheBell430isthenewestoftheBellintermediatetwinenginehelicoptersandisdesigned
to carry nine to ten adults comfortably, including the pilot. The Bell 430 is approved
forsinglepilotoperation(standard
nineplaceseating)andiscertifiedforlandoperation
underday ornight VFRnon-icingconditionsasaTransportCategoryRotorcraft(FAR
Part29,Category B). ThestandardBell 430 incorporates allofthe redundant systems
necessary for Category A certification.
The pilot must occupy the right front seat. A passenger seat is provided on the left,
which may also carry a copilot with the addition of the optional dual flight control kit
[provisionsforthiskitarestandard].Sevenadditionalpassengerscanbeaccommodated
in thespacious main cabin.Passengers canenter the cabinfrom either orboth sides.
Two rows of two seats, centrally located, face forward. The remaining three seats are
inarow,facingforward,onabenchattherearofthecompartment.ThisistheSTANDARD
nine place interior. Headliners, soundproofing, carpet and upholstered seats add to
thecomfort.Conversionfrom passengertocargoconfigurationiseasilyaccomplished
by removing the cabin seats.
FORWARD
PASSENGER
OR COPILOT SEAT
PILOT'S
SEAT
SEVEN STANDARD CABIN
PASSENGER SEATS IN
THREE ROWS [ 2 X 2 X 3 ]

15
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003

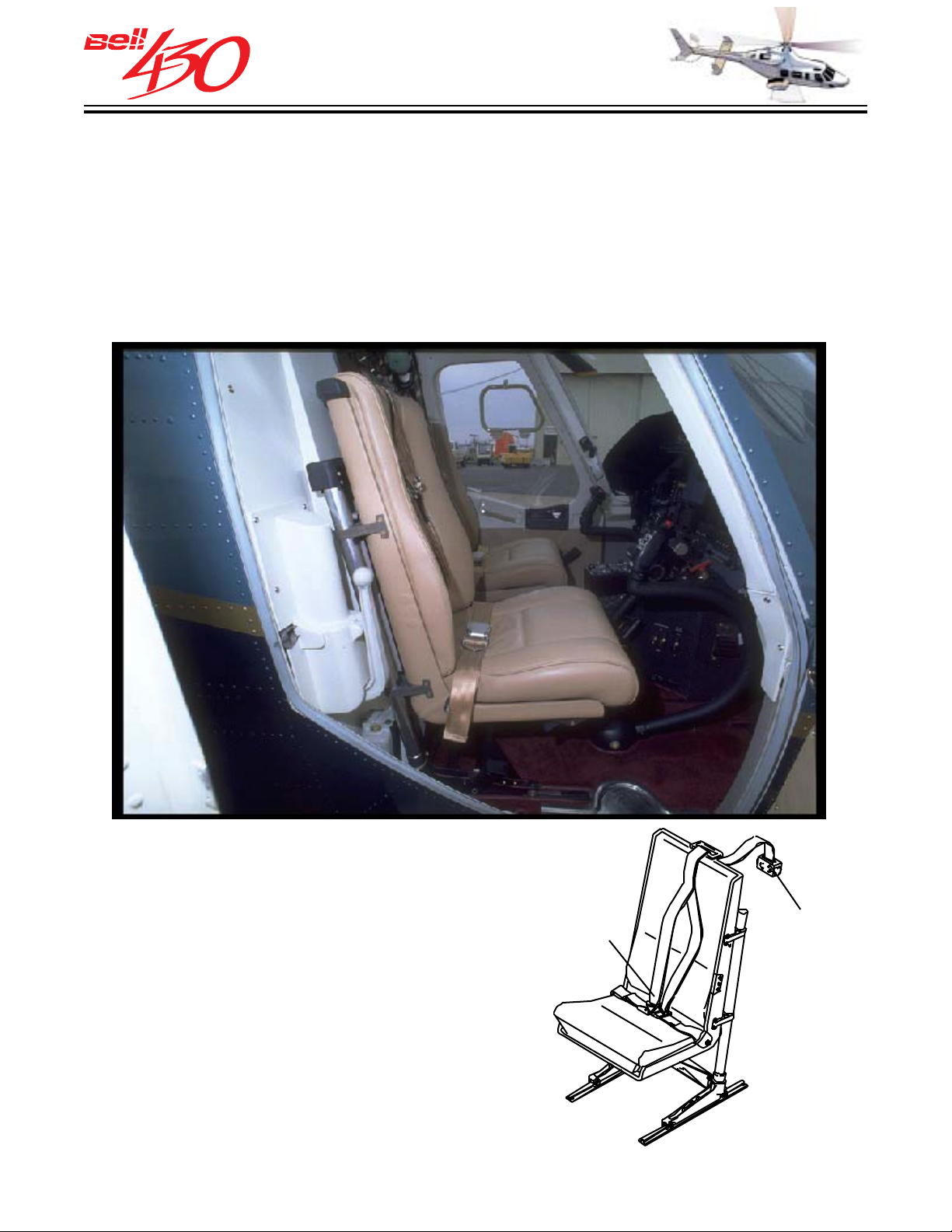

430 SEATING
PILOT AND FORWARD PASSENGER SEATING
Twoindividualergonomicallydesignedenergy-attenuatingbucketseatswithadjustable
lumbarsupport,eachequippedwithseatbelt,doublestrap[fourpoint]shoulderharness
andinertiareel,with"QuickRelease"mechanism,arelocatedinthecockpit.Thecolor
and upholstery material for the seats, and interior trim of the cockpit match that which
is selected for the cabin.
Eachcrewandpassengerseatisequipped
with a restraint assembly that consists of
aninertiareel,ashoulderharness[pilot&
left front seat have double straps / the
passenger cabin has single straps], and
anadjustable seatbelt. The inertiareel is
providedwithananti-reboundlockfeature
andiscapableofretracting56centimeters
(22 inches) of web belt.
OCCUPANT RESTRAINT
CREW SEAT
FOUR POINT
RESTRAINT
HARNESS
INERTIA
REEL

16
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
StandardSeating -Sevenfabriccoveredhigh-backednon-foldingseatswithindividual
seat belts and single strap shoulder harness and inertia reel, arranged with two rows
oftwo,andonerowofthreeforwardfacingseats.AvailableinDARKRED,BLUE,BROWN,
or GRAY fabric covered cushions. (108.6 lbs. [49.3 Kg.] included in the standard
configurationweight.)Allleatherorvinyl isavailableasanoption.Thisconfigurations
alsoavailablewithoptional
energyattenuating(eitherwithorwithoutfoldingseatbacks)
passenger seats.
CABIN SEATING & INTERIOR CHOICES
CorporateInterior- Thisoptionalhigherlevelofinteriortrimcomplementstheexecutive
seating,butmayalsobespecifiedwiththestandardseating,andincludes:Floorcovered
withtightlywovenwoolcarpet;Sidewallarmrestscoveredincolorcoordinatedleather,
withfinehardwoodaccenttrim;Colorcoordinatedseatbelts;Colorcoordinatedleather
coveringforthecrewandpassengerseatbacks;Decorativeaccentfabriccoveringfor
theaftcabinbulkheadandsmallcontrolcolumnbulkhead.(Wheninstalledanetincrease
of 10.3 lbs. [4.7 Kg.]).

17
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
8-PlaceCorporateSeating -Sixdeepbolsteredfinewoolfabriccoveredhigh-backed
seats with individual seat belts and single strap shoulder harness and inertia reel, in
thetraditional CLUBarrangement,withonerow ofthreefacingrearward,andonerow
ofthreefacingforward.Availablein eight colorcoordinated choicesoffabriccovered
cushions.(88.0lbs.[39.9Kg.]-wheninstalledanetdecreaseof-3.7lbs.[-1.7Kg.]).All
leather is available as an option.
Additional Corporate Seating Arrangements - Cabin seating options with four or
fivepassengerseatsinthecabin,andoneortworefreshment/entertainmentcabinets
are also available;
7-PlaceCorporateSeatingw/onecabinet-[67.5lbs.(30.6Kg.),net-22.1lbs.(-10.0
Kg.)]
6-PlaceCorporate Seating w/two cabinets-[Customized, net +35to 50 lbs.(+16 to
25 Kg.)]

18
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
Customized 10-Place Forward Facing Seating - Nine fabric covered high-backed
energyattenuatingseatswithindividualseatbeltsand singlestrapshoulderharness
and inertia reel, arranged with one row of two, and two rows of three forward facing
seats. Theoutboard two seats in the middle row fold forwardto provide access to the
rear row. Available in DARK RED, BLUE, BROWN, or GRAY fabric covered cushions.
(134.0 lbs. [60.8 Kg.]-when installed a net increase of 48.3 lbs. [21.9 Kg.]). All leather
or vinyl is available as an option.
ADDITIONAL CABIN SEATING & INTERIOR CHOICES

19
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
CustomizedEMS-SinglePivotingLitter[illustratedbelow]- CustomizedEMSinteriors
areavailabletomeetabroadrangeofHospitalBasedorPublicAgencymedicaltransport
and critical care requirements. The Bell 430 cabin offers ample space for either single
or dual pivoting litter installations. The 158 cubic foot (4.5 M3)cabin volume provides
an unmatched work area for multiple medical attendants, with care provided at the
headofthepatient,alongwithacompletecomplementoffixedandportablelifesupport
equipment[Anadditional37cubicfeet(1.1M3) ofspacelocatedinthecabinaccessible
baggage compartment].

20
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
When cargo is transported, it may be secured against shifting by attachment of straps
and tie-down rings to the 16 recessed studsfound in the cabin floor.
Thestudsareall stressedformaximumloadsof1134kilograms(2500pounds)force,
from perpendicular to 30° in any direction.
CARGO
