Bellco Pachislo User manual

Pachislo
Owner’s Manual
Bellco
This manual is printed in black and white and includes only the basic information. To
obtain a full-colored copy of this manual, please visit our www.stealthhomeamusement.com
website and download from our manuals section.
Stealth Home Amusement
Version 1
REVIEW THIS MANUAL BEFORE OPENING PACHISLO
Copyright © 2005 Stealth Home Amusement all rights reserved.

Copyright © 2005 Stealth Home Amusement all rights reserved.
Index
Important Safeguards.................................................................... 3
Things in the package ................................................................... 3
Getting Started .............................................................................. 3
Outside Description ....................................................................... 4
Changing Payout Rates/Full Reset Procedure ............................. 5
Basic Description........................................................................... 5
Power box ................................................................................. 7
Odds changing button and Odds level credit counter............... 8
Volume controller...................................................................... 8
Additional Information.................................................................... 9
Refilling the Hopper .................................................................. 9
Replacing Light Bulbs ............................................................... 9
Reset......................................................................................... 9
Approximate Payout Odds Rate ............................................... 9
Error Messages ........................................................................... 10
Whoops! I locked my keys in the machine ................................. 11
FAQ ............................................................................................. 12
Parts and Accessories................................................................. 13
Contact Information ..................................................................... 13

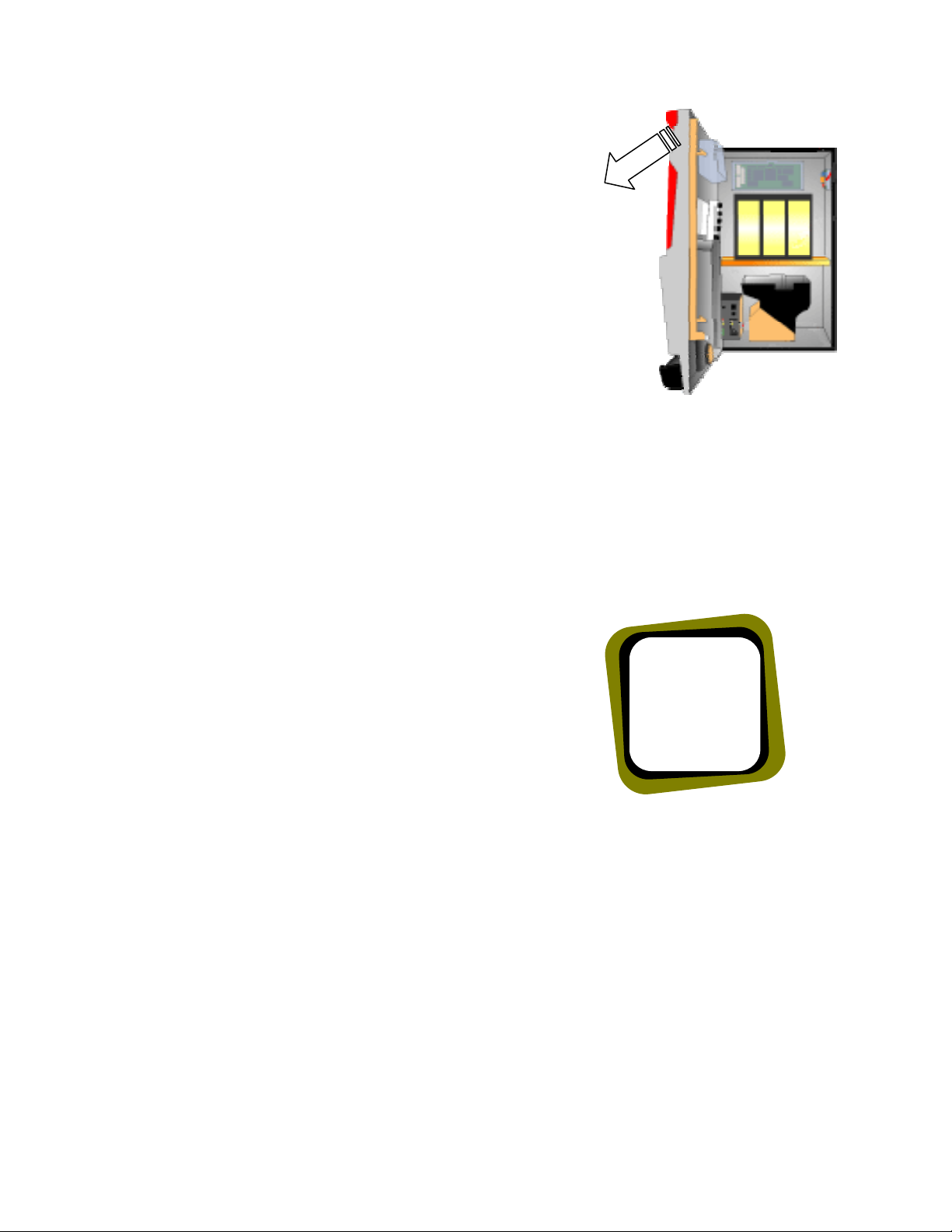

Important Safeguards
To prevent the pachislo from falling forward when you open the front
panel, we recommend attaching it with nails or screws to both a stable
base and back wall.
3
Copyright © 2005 Stealth Home Amusement all rights reserved.
When using an electrical product basic safety precautions should
always be followed, including the following:
Warning: to reduce the risk of fire and electric shock:
▸close supervision is necessary when any product is used by or near
children.
▸ do not open the operating console or uncover the computer
motherboards.
▸ do not use the pachislo near any other electric devices, water, or heat
sources.
▸do not attempt to operate the pachislo if it is damaged.
Things in the package
Unpack the pachislo from the carton and confirm the following items are included:
1. A pachislo machine
The pachislo
weighs about
85 lbs. Please
pick it up
carefully!
2. Tokens
3. Door and reset keys
4. Extra light bulbs (If required, many new machines are LED only)
5. Coil key chain
6. Owner’s manual
Getting Started
1. Open the front door with a door key by turning the key to the right. Take out the power cable
through the hole in the back and plug it in a wall socket.
2. Push the hopper all the way to the back. Put half a bag of tokens into the hopper.
3. Turn the power switch on Close the front door. Insert tokens into the Token Slot. Make sure the
Credit Counter starts counting from the fourth token you put in. Note: Many of the newer machines
require 3 tokens to be inserted for game play.
4. The machine is ready to play. Press the reel spin knob. The reels will start spinning.
5. Press the skill stop buttons to stop the reels.

Outside Description
1. Spin knob
2. Cash- out / Cancel button
3. 1 or 2 Bet button
4. Max bet button
5. Reels
6. Token slot
7. Door key hole
8. Skill stop buttons
9. Digislo Game Counter
2
1
1
2
3
3
4
5
5
6
7
6
7
8
8
9
4
9
Model #1
Model #2
4
Copyright © 2005 Stealth Home Amusement all rights reserved.

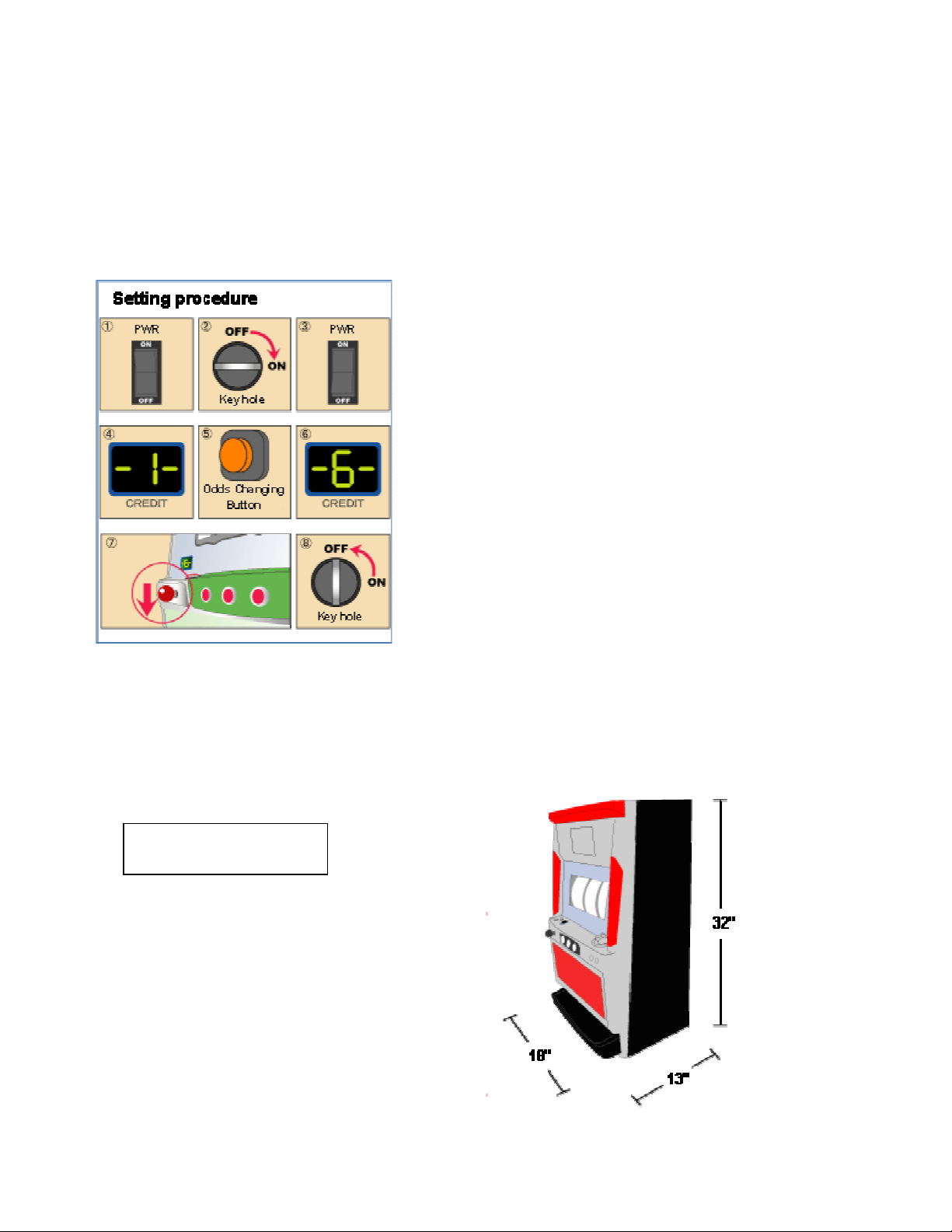

Changing Payout Rates/Full Reset Procedure
Game odds are adjustable to 6 different levels and the odds will vary slightly depending on the machine.
Your Pachislo machine is set at Level 6 which is programmed at the highest payout rate (the easiest
level). If you want to change your odds, follow the steps below.
1. Turn the power switch OFF.
2. Put the setting key into the key hole on the
power supply.
3. Turn the setting key to the right to the “ON”
position.
4. Turn the power switch ON.
5. Make sure the credit counter inside of the
front door indicates <1>--<6> *
6. Push the odds rate changing button on the
power box OR next to the credit counter
inside of the door.
7. Set the payout level.
8. Pull down the spin knob.
9. Turn the key back to the “OFF" (left)
position.
*The above picture shows an example of how to change the odd’s level from 1 to 6.
Basic Description
Size & Weight
The machines are
approximately 32" high,
18" wide, and 13" deep.
The dimensions may vary
by an inch or so, it depends
on which company made
the model. They weigh
anywhere from 70 to 90 lbs,
depending on the model.
5
Copyright © 2005 Stealth Home Amusement all rights reserved.

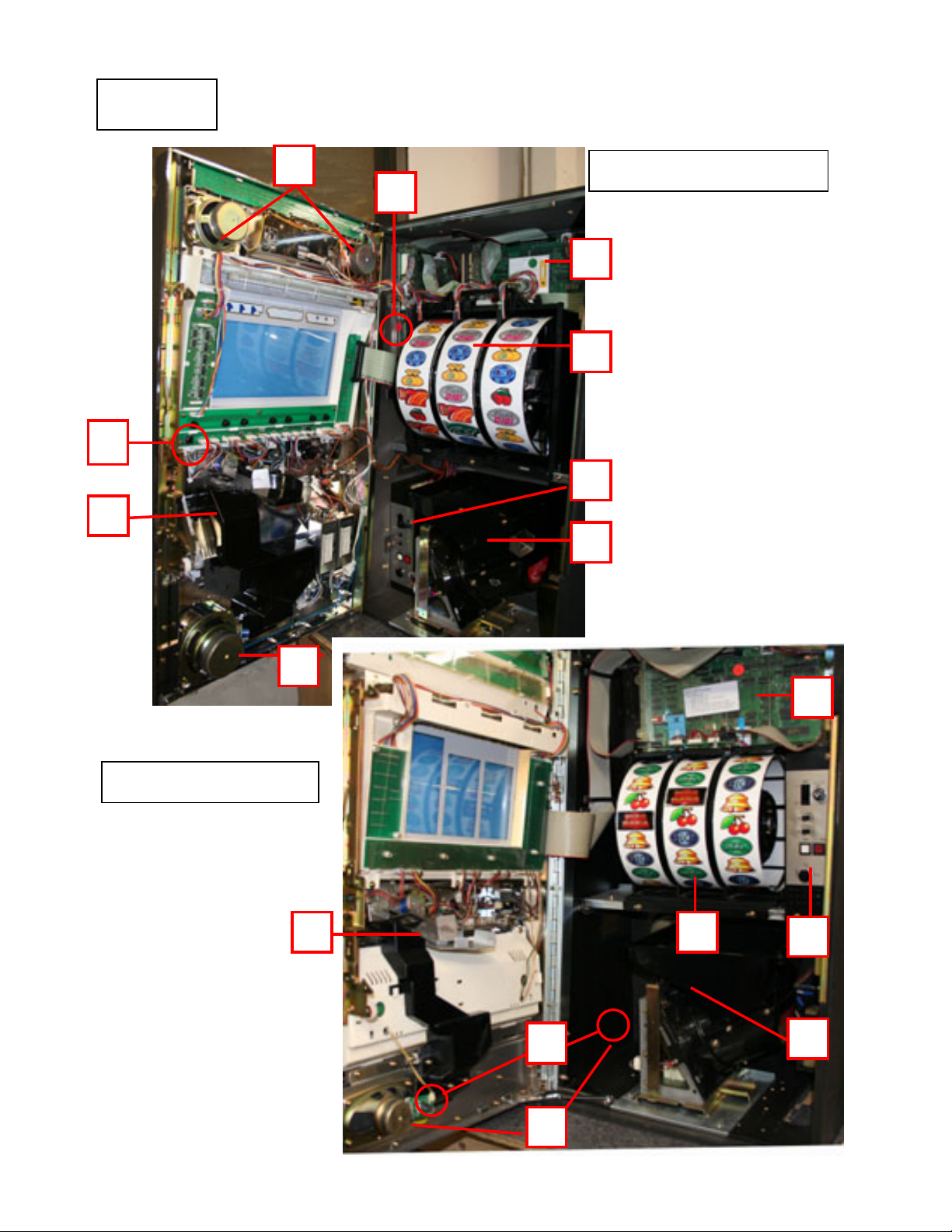

Inside Inside of the Pachislo machine varies by the model.
6
Copyright © 2005 Stealth Home Amusement all rights reserved.
1. Speaker
2. Reset button
3. Token
mechanism
4. Motherboard
5. Reel
6. Power box
7. Hopper
8. Volume
controlle
r
1
3
4
5
6
7
2
Model #1
1
1
3
4
5 6
7
8
8
Model #2

The location of the Power box, Reset button, and Volume controller inside of the pachislo
machine varies by the model.

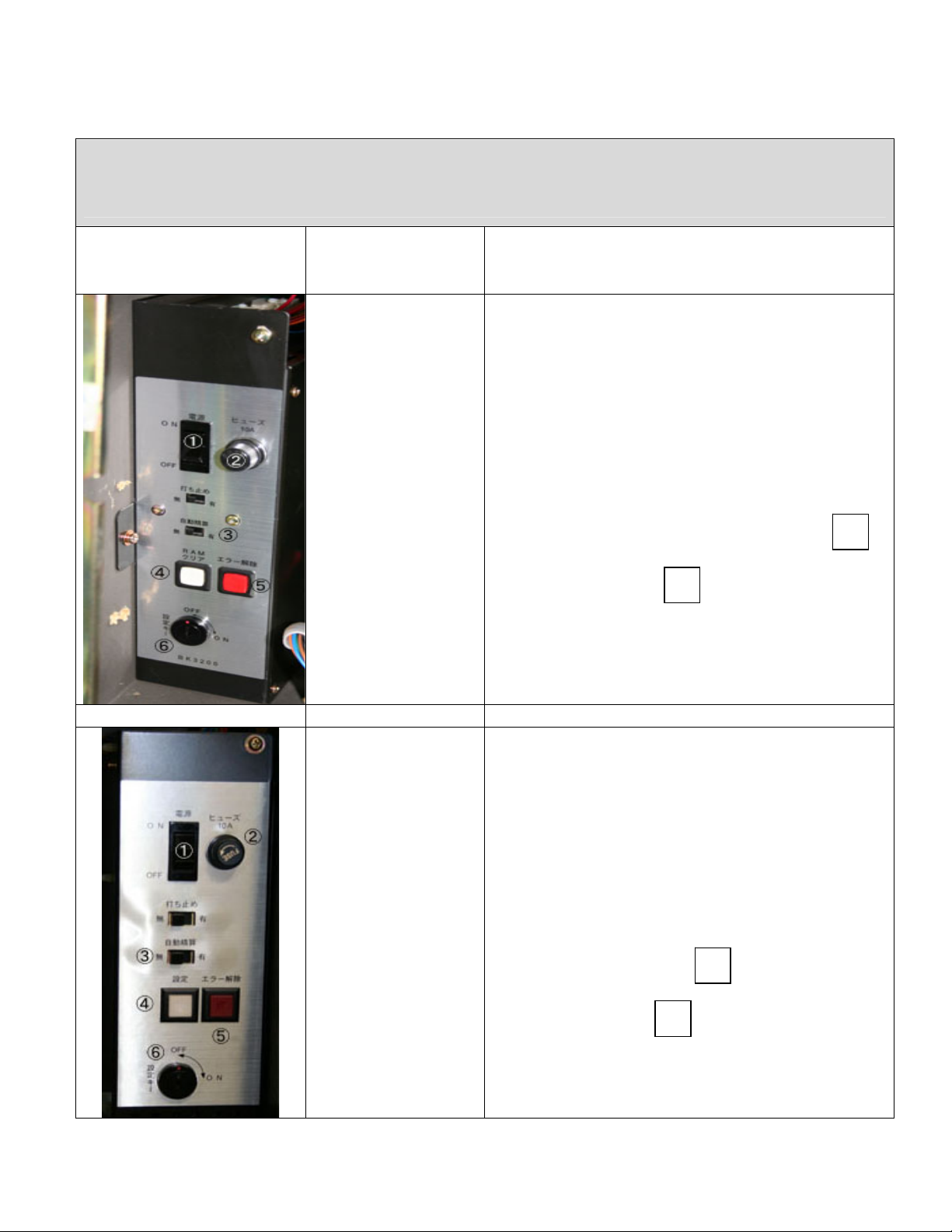

Power box
Samples Models Basic Description
Number 1
The Power box is located in the bottom left
corner of your machine.
① Power switch
② Fuse holder
③Auto reset switch (Always-OFF)
④ Memory clear button (Credit clear button)
⑤ Error reset button
⑥Setting key hole
Number 2
The Power box is located in the right side of
your machine, next to the reels.
① Power switch
② Fuse holder
③Auto reset switch (Always-OFF)
④ Odds changing button
⑤ Error reset button
⑥Setting key hole
R
W
R
W
7
Copyright © 2005 Stealth Home Amusement all rights reserved.

Odds changing button and Odds level credit counter
Model #1
The Odds changing button is a small black button. It
is located at the bottom left corner of the reel
window, inside the machine’s front door.
Model #2
The Odds changing button is a small white square
shape button. It is located in the power box of your
machine.
Volume controller
Model #1
The volume controller is located on the left
side of the machine, next to the reels.
Model #2
This Model has two volume controllers on each speaker.
One is located in the machine’s left side, behind the
Hopper. The second one is located at the bottom left
corner of the machine’s front door.
① ②
8
Copyright © 2005 Stealth Home Amusement all rights reserved.

Additional Information
Refilling the Hopper
1. Open the front cover.
2. Put tokens in the hopper.
3. Push the reset button. (Be ready for the tokens to come out!)
4. Close the front cover.
Replacing Light Bulbs
1. Turn off the power switch. Need more
light bulbs?
Call us!
2. Twist the plastic base off the board.
3. Pull the light bulb off the plastic base．
4. Insert a new bulb into the base.
5. Put the plastic base back on the board.
Reset
During the course of play, you may be required to reset the machine. For minor resets such as coin
acceptor / hopper malfunctions or a stop after the completion of a bonus game, insert the door key into
the door key hole and turn to the LEFT. It will reset the game or clear the error code, but not open the
door. For major resets such as RAM crash, power surge / outage, or big bonus game interruption, push
the reset button inside of the machine or follow the Changing Payout Rates/Full Reset Procedure
process.
Approximate Payout Odds Rate
Rates for 1000 tokens invested
LEVEL BIG BONUS REG BONUS PAYOUT
1 1/298 1/607 93.9 - 98.5%
2 1/298 1/607 93.9 - 98.5%
3 1/282 1/512 98.3 - 102.8%
4 1/269 1/443 102.6 - 106.4%
5 1/256 1/390 106.4 - 110.9%
6 1/241 1/364 111.9 – 116.8 %
9
Copyright © 2005 Stealth Home Amusement all rights reserved.

10
Copyright © 2005 Stealth Home Amusement all rights reserved.
Error Messages
When your machine has a problem, it indicates it with an error message. Error codes are the
following:
E-0/ (CE/CJ) A token slot is
jammed.
Push the button at the token slot.
E-1/ (HE/ HJ) A hopper is
jammed.
Turn off your machine, remove the hopper and take
out all the tokens.
E-2/ (HE/ HJ) Hopper
dysfunction.
Check the hopper.
E-3/ (HE/ HJ) A hopper is
empty.
Refill the hopper.
E-4/ (RR) RAM error. Push the reset button.
E-5 Reel error. Restart the machine and push the reset button.
E-6/ (CO) Prize error. Push the reset button.
E-7 Hopper
Overload.
Check the hopper.
E-8 Hopper
disconnected.
Check the cable.
CE/ CJ/ C2 A token slot is
jammed.
Need to be cleared and clean with alcohol. Then,
press the reset button.
Note 1: The reels on most Bellco models have a high pitch noise while they are spinning. This
is normal for this model machine.

Whoops! I locked my keys in the machine
Sometimes, we all lock our keys in the machine or for some reason the locks do not turn
all the way to the right so the door does not open. Here is a way to enter your machine.
1) Tip your machine in its left side.
2) In the lower right bottom of the machine, there is a hole.
3) Reach in the hole, and with your index finger, you will feel the bottom latch of the
door towards the front of the machine.
4) Pull down on the latch (in some cases you may need to pull up on the latch and
the door will open up!
11
Copyright © 2005 Stealth Home Amusement all rights reserved.

12
Copyright © 2005 Stealth Home Amusement all rights reserved.
FAQ
My machine does not power up.
Answer Make sure that your machine is plugged into a 120V AC outlet and the power
switch is in the ON position. You may have to check fuses as well.
My machine does not accept tokens and "GAME OVER” is indicated.
Answer Jackpot condition may have occurred. Reset the machine.
Machine keeps paying in BONUS GAME.
Answer This may be normal. Keep playing until the bonus game is complete which is
up to 500 tokens OR MORE payout. If you want to end the game
immediately, follow the full reset process.
Reels don’t spin.
Answer Make sure that wire harness to reel bundle is plugged in and secure. Also
make sure reels spin freely. Nothing should obstruct the reels from spinning
freely. Reset machine by depressing reset switch if necessary.
Reels don’t stop after pressing stop buttons.
Answer Very common with IGT models after shipping. Check the fuse located on the
3x5 computer card which is on the back or sidewall of inside of your machine.
Fuse may have to be replaced.
If this is not the problem, please check the ribbon cable connections. You
may need to disconnect each cable starting at the reels and reconnect them
so the connections “snap” in place.
Machine doesn’t switch from “CREDIT” play to “REGULAR” play mode.
Answer On most machines, there is a credit/cancel button on the left front of the
machine. Press the button for up to 10 seconds as there is a delay on the
circuit.
Note: All plays go directly into the credit meter on some Yamasa brand
machines.
Music is too loud or too soft.
Answer Adjust volume control. This switch is located on the inside of the door near the
speakers. (Please check Inside part of Basic Description in this manual.)
Volume control kit is also available at our website,
www.stealthhomeamusement.com.

TOKENS
Pachislo Slot machine tokens for all
regular pachislo slots that take .984 size
tokens. .984 size is a little larger than a
quarter
PACHINKO BALLS
Various quantities are available. Please
contact us.
VOLUME CONTROL KIT
Dial volume control kits for your Pachislo
slot machine.
LIGHT BULBS
Valious sizes are available. Please
contact us.
TRANSFORMER
This transformer has been designed and
manufactured specifically for Stealth
Home Amusement. These transformers
have a push button thermal circuit
breaker built in for safety. These
transformers are UL recognized. The
primary specification is 120v - 50/60 Hz
and the secondary is 24v @ 144 VA.
AUTO STOP CHIPS
An auto stop chip makes your pachislo
reels stop automatically. Please contact
us for more detailed information.
Available for limited models.
Parts and Accessories
To order:
Visit us on the Website at
http://www.stealthhomeamusement.com
Call us at 1-585-271-3844 (MON-FRI: 10am-6pm Est.)
Contact Information
We provide support for our customers. When you have any problems, please contact us via
phone or e-mail.
[email protected]
Tel: [phone] (MON-FRI: 10am-6pm Est.)
13
Copyright © 2005 Stealth Home Amusement all rights reserved.

Stealth Home
Amusement
1150 University Ave
Rochester, NY 14607
Phone [phone]
Fax [phone]
www.stealthhomeamusement.com
Important: All images and texts in this manual are the sole property of Stealth Home Amusement Inc. You
may not use them for commercial use without our written permission. Trademarks and images used on the
actual Pachislo machines are owned by their respective companies.
14
Copyright © 2005 Stealth Home Amusement all rights reserved.
