Bay Tek Games Arctic Chomp User manual

1

3
TABLE OF CONTENTS
FACTORY CONTACT INFORMATION ..............................2
WELCOME TO: Arctic Chomp! ....................................4
HOW TO PLAY ................................................5
SPECIFICATIONS..............................................6
SAFETY PRECAUTIONS ........................................6
DIP SWITCH SETTINGS ........................................7
MAIN MENU FUNCTIONS .......................................8
CREDITS PER PLAY.......................................9
GAME VOLUME ..........................................9
ATTRACT MODE VOLUME .................................9
ATTRACT MODE TIMING...................................9
TICKET PATTERNS ......................................10
MERCY TICKETS ........................................10
DIVIDE BY TWO TICKET DISPENSE.........................10
FIXED TICKET PAYOUT...................................11
STORED CREDITS/TICKETS OWED.........................11
DOUBLE SCORING ......................................11
GAME START DELAY.....................................12
GAME LENGTH..........................................12
TICKET BUCKET STATISITCS..............................12
TICKET BUCKET STATS CLEAR ............................13
DIAGNOSTICS ..........................................13
RESET FACTORY DEFAULTS ..............................13

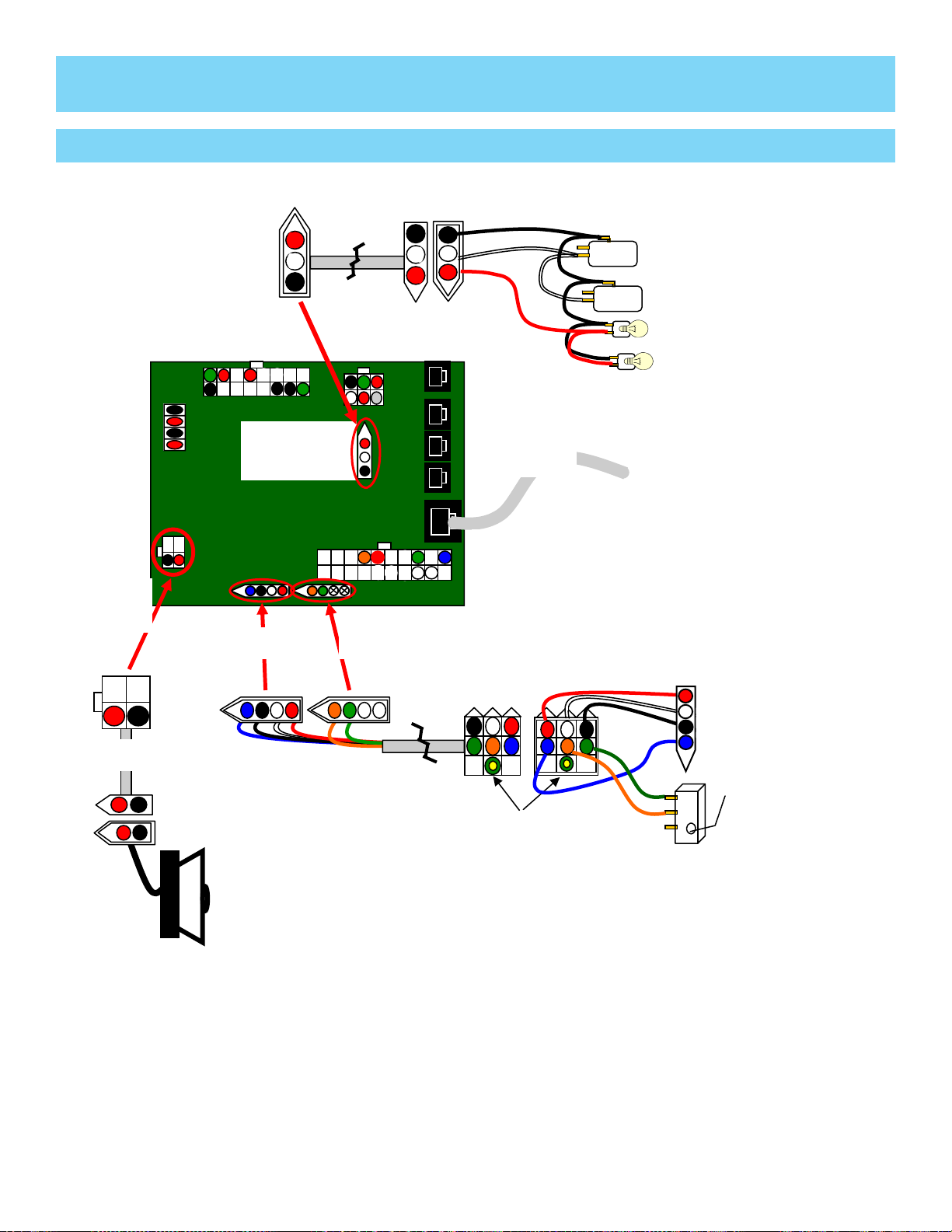

WIRING DIAGRAMS........................................14-17
TROUBLESHOOTING GUIDE ................................18-21
ERROR CODES ..............................................22
POWER SUPPLY DIAGNOSTICS ................................23
HOW TO: ACCESS POWER SUPPLY .............................24
HOW TO: ACCESS BALL COUNTER & BLOWER....................25
HOW TO: ALIGN MOUTH MOTOR & SENSOR......................26
HOW TO: REPLACE MOUTH SENSOR............................26
HANDLE & MOTOR PART NUMBERS.............................27
PARTS IDENTIFICATION ....................................28-30
DECAL IDENTIFICATION .......................................31
CIRCUIT BOARD PINOUTS..................................32-34
MAINTENANCE LOG ..........................................35
TECHNICAL SUPPORT ........................................36
WARRANTY .................................................37
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +561.391.7200

4
WELCOME TO: Arctic Chomp!
Congratulations on your Arctic Chomp purchase!
Shovel food at the adorable polar bear, trying to get them in his mouth. The more he
eats, the more tickets you win!
With lots of motion, color and cute polar bear graphics, Arctic Chomp makes a great
addition to any game room. Simple game play is great for little kids, but the added chal-
lenge of a big score ticket value makes it fun for big kids too!
Please take a moment to read through this manual and be sure to contact our factory if
you have any questions, or would like some more information.
Thank you for your purchase! Your business is important to us and we hope you enjoy
this game as much as we do!
Your Friends at Bay Tek Games
GAME INSPECTION
Inspect the game for any damaged, loose, or missing parts.
If damage is found, please contact your freight carrier rst.
Then, contact Bay Tek Games’ Service Department at 920.822.3951
or e-mail them at [email protected] for further assistance.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +561.391.7200

5
HOW TO PLAY
Look out! He’s gonna getchya!
Move the handle up and down to shovel food at the
playful polar bear, trying to get it in his mouth.
Hurry! Food eaten in the last 10 seconds of the
game are worth double points!
The more food you shovel in the polar bear’s mouth,
the more tickets you win!
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +561.391.7200

6
GAME SPECIFICATIONS
SAFETY PRECAUTIONS
WEIGHT
NET WEIGHT 350 LBS.
SHIP WEIGHT 440 LBS.
DIMENSIONS
WIDTH 26.5”
DEPTH 47”
HEIGHT 77.5”
OPERATING TEMPERATURE
FAHRENHEIT 80-100
CELSIUS 26.7-37.8
POWER REQUIREMENTS
INPUT VOLTAGE
RANGE 100 to 120 VAC /220 to 240 VAC
INPUT FREQUENCY
RANGE 50 HZ / 60 HZ
MAX START UP
CURRENT OPERATING CURRENT
1AMPS @ 115 VAC 3.5 AMPS @ 115 VAC
.5 AMPS @ 230 VAC 1.75 AMPS @ 230 VAC
DANGER
DO NOT perform repairs or maintenance on this game with the power ON.
Unplug the unit from the wall outlet or shut off the power strip located inside the cabinet.
!!
NOTICE
Modications to the mechanical, electrical and structural components of this game
may void its compliance certications.
!!
WARNING
Use of ammable subtances can cause sever burns or serious injury.
Always use NON-FLAMMABLE solvents for cleaning. DO NOT use gasoline kerosene or thinners.
!!
CAUTION
Lifting heavy objects can cause back, neck or other injuries. Be sure adequate lifting and moving
devices are available when unloading, unpacking and moving this game.
!!
ATTENTION
Be sure the electrical power matches the game requirements. See the serial number located on the
back of the game cabinet. Always plug into a grounded circuit. If the supply cord is damaged, it must
be replaced by an approved cord or assembly provided by the manufacturer.
!!
IN CASE OF EMERGENCY
UNPLUG THE POWER CORD.
The power cord must be accessible at all times in case of an emergency.
!!
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +561.391.7200

7
DIP SWITCH SETTINGS
The dip switch bank is located on the mainboard,
inside the front door of the game.
*factory default settings are highlighted below
SWITCH DESCRIPTION OFF ON
1 Defaults FEC/CEC
2Jersey: Stored Credits/DBA lockout
Credits/Tickets owed
3 not used
4 not used
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +561.391.7200

8
MAIN MENU FUNCTIONS
MENU DESCRIPTION
N1 Coins Per Play
N2 Game Volume
N3 Attract Volume
N4 Attract Timing
N5 Ticket Patterns
N6 Mercy Tickets
N7 Divide By Two Ticket Dispense
N8 FIxed Ticket Payout
N9 Stored Credits/Tickets Owed
N10 Double Scoring (last 10 sec.)
N11 Game Start Delay
N12 Game Length
N13 Ticket Bucket Statistics
N14 Reset Ticket Bucket Statistics
N15 Diagnostics
N16 Restore Factory Settings
Press and hold the “MENU” button for
3 seconds to enter the menu.
Press the “MENU” button to scroll through
the sub-menus.
Press “SELECT’” to choose settings. MENU SELECT
* Pressing both buttons together and holding for one second
will clear credits and display software version
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +561.391.7200

9
N1- COINS/CREDITS PER PLAY
N2- GAME VOLUME
N3- ATTRACT VOLUME
012345678
Scroll through the N1 menu with the “MENU” button.
Make your selection with the “SELECT” button.
The factory FEC settings are highlighted in BLUE below.
CEC defaults are highlighted in YELLOW.
Scroll through the N2 menu with the “MENU” button.
Make your selection with the “SELECT” button.
The factory settings are highlighted in below.
Scroll through the N3 menu with the “MENU” button.
Make your selection with the “SELECT” button.
The factory FEC settings are highlighted in BLUE below.
CEC defaults are highlighted in YELLOW.
01234567
01234567
N4- ATTRACT TIMING
30
sec 1 min 5 min 10 min 15 min 0 (off)
Scroll through the N4 menu with the “MENU” button.
Make your selection with the “SELECT” button.
The factory FEC settings are highlighted in BLUE below.
CEC defaults are highlighted in YELLOW.
This setting determines how often the attract loop audio is played.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +561.391.7200

10
N5- TICKET PATTERNS
N6- MERCY TICKETS
N7- DIVIDE BY TWO TICKET DISPENSE
TICKET
PATTERN
SCORE RANGE BUCKET (balls “eaten”)
0-19 20-49 50-74 75-99 100-129 130+
TICKETS
0TICKETS OFF
12345620
22 4 5 8 10 20
34 6 8 10 12 30
46 8 10 12 14 30
510 12 14 16 18 40
614 16 18 20 25 50
720 25 30 35 40 75
830 35 40 45 50 100
Scroll through the N5 menu with the “MENU” button.
Make your selection with the “SELECT” button.
The factory settings are highlighted below.
Scroll through the N6 menu with the “MENU” button.
Make your selection with the “SELECT” button.
The factory settings are highlighted below.
This setting adjusts how many tickets are dispensed if a player scores 0 points.
Scroll through the N7 menu with the “MENU” button.
Make your selection with the “SELECT” button.
The factory settings are highlighted below.
Turning N7 to on will cause the game to dispense 1 physical ticket for every 2 tickets won.
This setting truncates ticket values to the lower number (5 tickets won = 2 physical tickets).
0123456789
0
(off) 1 (on)
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +561.391.7200

11
N10- DOUBLE SCORING
N8- FIXED TICKET PAYOUT
N9- STORED CREDITS/TICKETS OWED
Scroll through the N10 menu with the “MENU” button.
Make your selection with the “SELECT” button.
The factory settings are highlighted below.
This setting will allow each ball “eaten” in the last seconds of game play to be worth double points.
Adjustable in 1-second intervals.
Scroll through the N8 menu with the “MENU” button.
Make your selection with the “SELECT” button.
The factory settings are highlighted below.
Enabling this setting will cause the game to give a specied amount of tickets, no matter the score.
If not set to 0, this setting overrides N5 and N6.
Scroll through the N9 menu with the “MENU” button.
Make your selection with the “SELECT” button.
The factory settings are highlighted below.
This setting allows the game to remember any credits in or tickets owed in case of a power failure.
Turning DIP 2 to ON overrides this setting.
0- OFF 10 SEC 15 SEC
0- OFF 15 TIX
0
(off) 1 (on)
