Contents
Safety and warning information…........2
Installing your new appliance………....
Description of the appliance….......….11
Display controls…………………...…..12
Using your appliance……………........14
Helpful hints and tips……………… 17
Cleaning and care……………………18
Troubleshooting……………………… 
Disposal of the appliance……………21
2
For your safety and correct usage before installing and first
using the appliance, read this user manual carefully, including
its hints and warnings. To avoid unnecessary mistakes and
accidents, it is important to make sure that all people using the
appliance are thoroughly familiar with its
operation and safety features. Save these instructions and be
sure that they remain with the appliance if it is moved or sold,
so that anyone using it throughout its life, will be properly
informed on its usage and safety notices.
For the safety of life and property, keep the precautions of
these user's instructions as the manufacturer is not
,
responsible for damages caused by omission.
Safety for children and otherswho are vulnerable people
According to EN standard
According to IEC standard
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
19
9

3
Keep all packaging away from children as there is risk of
suffocation.
If you are discarding the appliance, pull the plug out of the
socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent children playing
from suffering an electric shock or from closing themselves
inside it.
General safety
WARNING —This appliance is intended to be used in
household and similar applications such as
-staff kitchen areas in shops, offices and other working
environments;
-farm houses and by clients in hotels, motels and other
residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
WARNING — Do not store explosive substances such as
aerosol cans with a flammable propellant in this appliance.
WARNING — If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING — Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING — Do not use mechanical devices or other
means to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING — Do not damage the refrigerant circuit.
WARNING — Do not use electrical appliances inside the
food storage compartments of the appliance, unless they are
of the type recommended by the manufacturer.

4
WARNING — The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so only at
an authorized waste disposal centre. Do not expose to
flame.
WARNING —When positioning the appliance, ensure the
supply cord is not trapped or damaged.
WARNING —Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Refrigerant
The refrigerant isobutene (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a high
level of environmental compatibility, which is nevertheless
flammable. During transportation and installation of the
appliance, ensure that none of the components of the
refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
WARNING:risk of fire
If the refrigerant circuit should be damaged:
-Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is
situated.
WARNING — Refrigerators contain refrigerant andgases in
the insulation. Refrigerant and gases must be disposed of
professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage
prior to proper disposal.
Replacing the illuminating lamps
WARNING—The illuminating lamps must not be replaced by
the user! If the illuminating lamps is damaged, contact the
customer helpline for assistance.
This warning is only for refrigerators that contain illuminating
lamps.

5
Daily use
Do not store flammable gass or liquids in the appliance,
There is a risk of an explosion.
Do not operate any electrical appliances in the appliance
(e.g.electric ice cream makers,mixers etc.).
When unplugging always pull the plug from the mains
socket,do not pull on the cable.
Do not place hot items near the plastic components of this
appliance.
Electrical safety
1.The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged.
A crushed or damaged power plug may overheat and cause a
fire.
3. Make sure that you can access the main plug of the
appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power
plug. There is a risk of electric shock or fire.
6.You must not operate the appliance without the interior
lighting lamp cover.
7.The fridge is only applied with power supply of single phase
alternating current of 220~240V/50Hz. If fluctuation of voltage
in the district of user is so large that the voltage exceeds the
above scope, for safety sake, be sure to apply A.C. Automatic
voltage regulator of more than 350W to the fridge. The fridge
must employ a special power socket instead of common one
with other electric appliances. Its plug must match the socket
with ground wire.
It is dangerous to alter the specifications or modify this
product in any way.
Any damage to the cord may cause a shortcircuit, fire, and/or
electric shock.

6
Do not place food products directly against the air outlet on
the rear wall.
Store pre-packed frozen food in accordance with the frozen
food manufacture’s instructions.
The appliances manufactures storage recommendations
should be strictly adhered to.Refer to relevant instructions
for storage.
Do not place carbonated or fizzy drinks in the freezer
compartment as it creates pressure on the container,which
may cause it to explode,resulting in damage to the
appliance.
Frozen food can cause frost burns if consumed straight from
the freezer compartment.
Do not place the appliance in direct sunlight.
Keep buring candles,lamps and other items with naked
flames away from the appliance so that do not set the
appliance on fire.
The appliance is intended for keeping food stuff and/or
beverages in normal household as explained in this
instruction booklet The appliance is heavy.Care should be
taken when moving it.
Do not remove nor touch items from the freezer
compartment if your hands are damp/wet,as this could cause
skin abrasions or frost/freezer burns.
Never use the base,drawers, doors etc. to stand on or as
supports.
Frozen food must not be refrozen once it has been thawed
out.
Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth
and lips.
To avoid items falling and causing injury or damage to
the appliance, do not overload the door racks or put too
much food in the crisper drawers.
caution!
Care and cleaning

7
Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be too
close to a wall to avoid touching or catching warm parts
(compressor, condenser) to prevent the risk of a fire, follow
the instructions relevant to installation.
The appliance must not be locate close to radiators or
cookers.
Make sure that the mains plug is accessible after the
installation of the appliance.
Service
Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician or
competent person.
This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
1)If the appliance is Frost Free.
2)If the appliance contains freezer compartment.
Installation Important!
For electrical connection carefully, follow the instructions
given in this manual.
Unpack the appliance and check if there are damages on it.
Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought it. In
this case retain packing.
It is advisable to wait at least four hours before connecting
the appliance to allow the oil to flow back in the compressor.
Before maintenance, switch off the appliance and disconnect
the mains plug from the mains socket.
Do not clean the appliance with metal objects, steam
cleaner, ethereal oils, organic solvents or abrasive
cleansers.
Do not use sharp objects to remove frost from the appliance.
Use a plastic scraper.

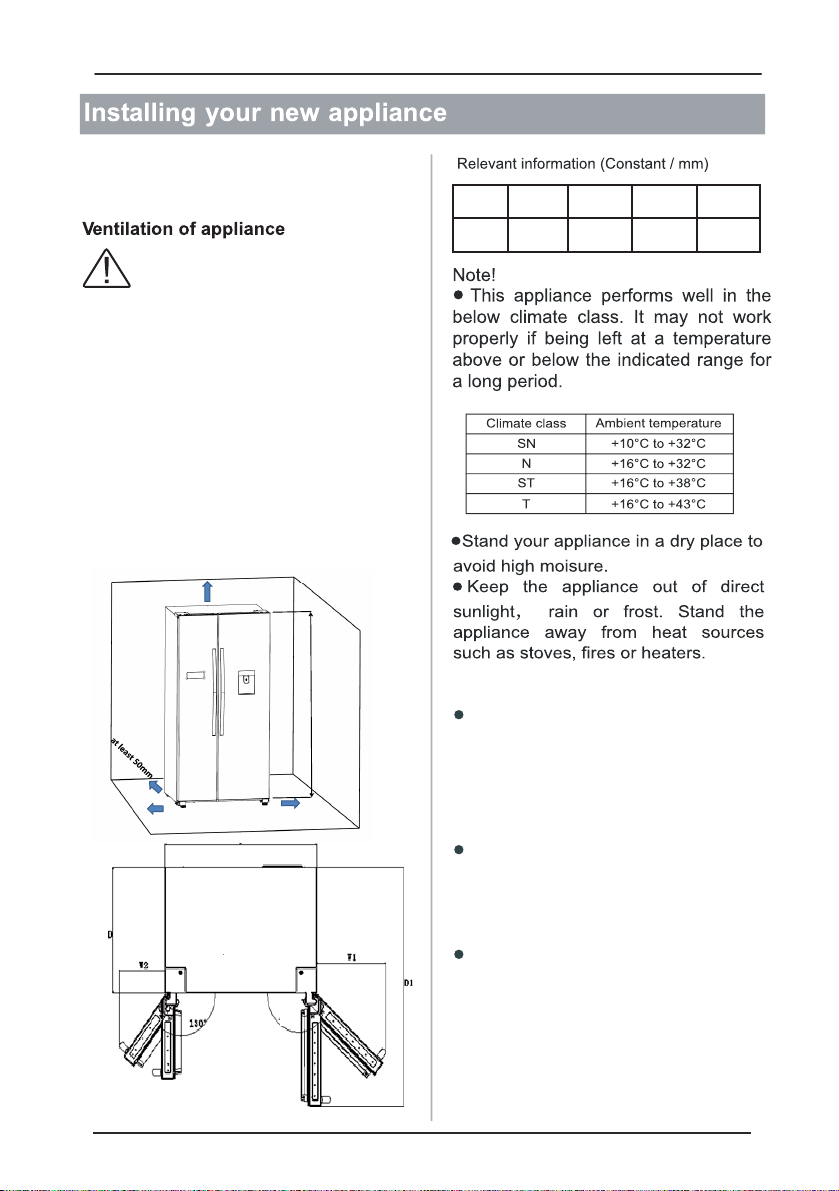

upfront to allow the doors to open 130°
dissipation of heat. For this reason,
energy, it is necessary to maintain good
See in follow diagrams. Please refer to
and the refrigerator door to open 135°.

WW1 W2 DD1
908 417.5 277 600 1142.5
diagrams below.
135°
Leveling of appliance
For sufficient leveling and air
circulating in the lower rear section of
the appliance, the bottom feet may
need to be adjusted. Please use a
suitable spanner.
To allow the doors to self-close, tilt
back the top backwards at about
15mm or 0.5 by turning the°
adjustable feet.
Whenever you want to move the
appliance, remember to turn the feet
back up, so that the appliance can roll
freely. Reinstall the appliance when
relocating.
recommended to leave 50mm of space
from the back of the unit to the wall, at
available around the refrigerator. It is
sufficient, clear space should be
ventilation around the appliance for the
least 100mm from its top, at least 50mm
from its side to the wall and a clear space
at least 100mm
1787mm
at least 50mm at least 50mm
1787mm
In order to improve the efficiency
of the cooling system and save
Before using the appliance for the first
time, your should consider the following
guidance.
9

10
Before you use the product, please
check the handle of the refrigerator. If
the handle is loose, you should fix it
with the hexangular screwdriver in the
clockwise direction, then it can be
used normally.
Warning!
For proper installation, this refrigerator
must be placed on a solid and flat floor.
This surface should be strong enough
to support a fully loaded refrigerator.
The rollers, which are not castors,
should be only used for forward or
backward movement. Moving the
refrigerator sideways may damage
your floor and the rollers.
adjusta e bottom f etbl e

(optional)
ce-maker (optional)i
Description
of
the appliance
View
of
the appliance
Freezer zone LED light Fresh zone LED light
Freezer door Basket
two-
star
zone
Wind channel cover in fresh
Note Due to unceasing modification
of
our products your refrigerator may be slightly
dif
ferent from this Instruction Manual but its functions and using methods remain
Wind channel cover in freezer
Water tank
Freezer
shelf
Fresh
shelf
Freezer door gasket
Freezer drawer
Fresh door gasket
Freezer door
Fresh door
6
Fruit and vegetables Crisper
10
Adjustable feet
11
the same
Freezer
18.Bottle holder
Bottle Rack
13
Moveable twist
Basket
Basket
(optional)

12
control guidelines. Your
appliance
Ab
5
3
Fridge
Freezer
Unlock 3s
fridge
super coolsuper freeze
holiday
And the
control panel will display corresponding mode
according to the following sequence.
appliance
button for 3 seconds to
you can press the
lock all the buttons when you finish
temperature setting.
period.
is on, the
You can switch off super cool function by
pressing " "or " " button and
the refrigerator temperature setting will
revert back to it's previous setting.
Fridge
Freezer
different modes and 4 control buttons.
2 display
areas showing temperatures, 5 icons for
Fridge Freezer
Unlock 3s
Unlock 3s
Unlock 3s Unlock 3s

case of alarm,
minutes
When the super freeze function is on,
the " " icon will be illuminated.
When cooling a full freezer of unfrozen
food the superfreezer function will take
around 24 hours to fully freeze all food
items completely.
" "or " "
button and the freezer temperature
setting will revert back to it's previous
setting.
When the holiday function is on, the
" " icon will be illuminated.
" "or " "
button and the freezer temperature
setting will revert back to it's previous
setting.
When the holiday function is on
55 5
5
2
26
holiday
Fridge Freezer
Fridge Freezer
13

14

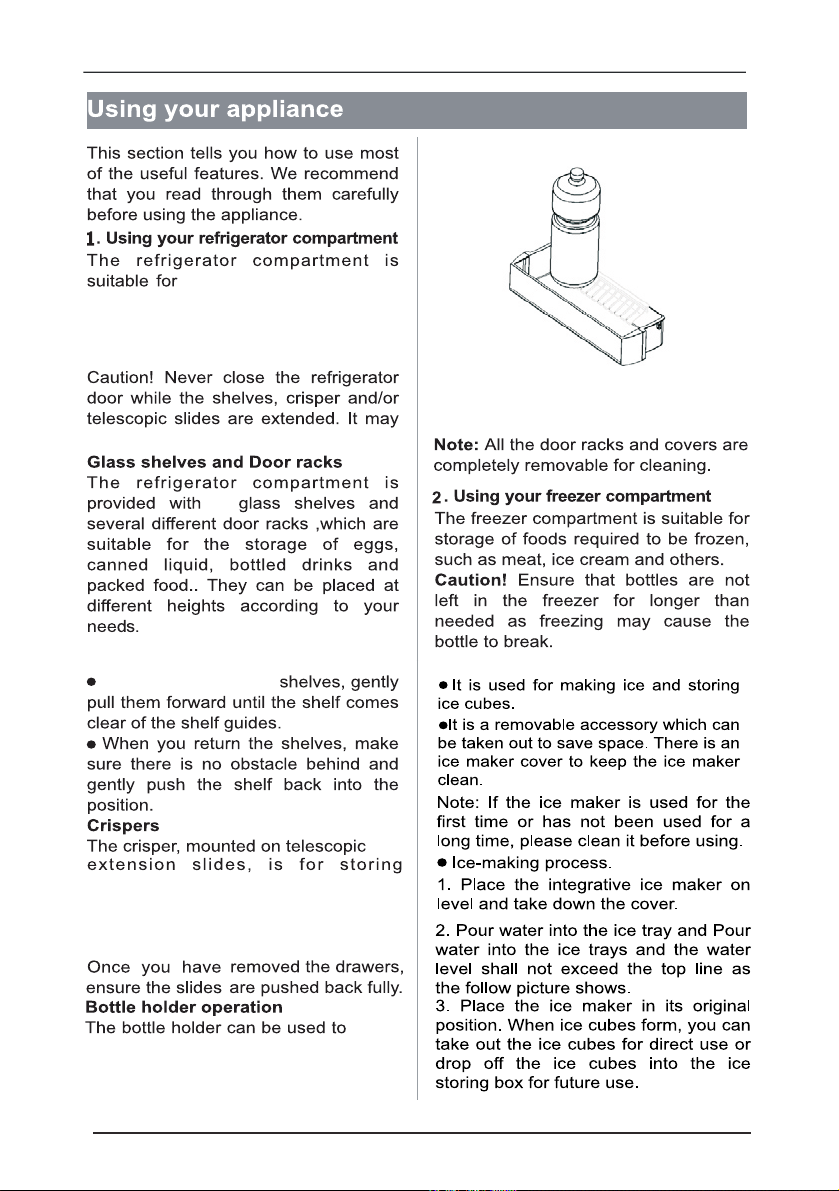

storing meat, vegetables
and fruit. It is recommended that food is
packed in sealed containers or wrapped
in polythene food wrap to avoid loosing
moisture or allowing flavours to mix.
Before removing the door shelves
,
please remove all food items to avoid
spillage.
When you remove the crisper pull it
forwards and lift off the sliders.
Remember to remove all food first.
hold
bottles, cans and tall containers in place.
it can be used on the middle and lower
door racks and can be moved side to side
as required.
vegetables and fruit.
When you remove the
5
1
.Using your ice box
3
cause damage to the fridge.

The water dispenser located in the fridge
door, is for storing drinking water. With this
appliance you can obtain chilled water
easily without opening the refrigerator. You
should be informed of following tips.
Before using
Before using this appliance for the first time,
you should use it as follows.
1.
Hold the two sides of the water tank
tightly, lift up and put out of the water tank.
2. Unscrew the head, then clean head ,lids
and the water tank.
Caution!
Drain the water tank befor you take it down!
Assembling
After cleaning, please assemble the parts
including the head, water tank and lids as
follows:
1. Put the seal ring in order first ( the seal
2. Hold the two sides of the water tank
tightly, fit the water tank along the guides
4. When you hear clicks by both sides and
the same time the both sides of the waterat
is closed to the door liner, It means thetank
installation is completed.
3. Push the two sides of the water tank
downward as the picture shows.
seal ring
ring can not turn up), then insert the head
into the hole.
guide
slot
head
on the door.
Filling water
Before you fill the drinking water into the
water tank, ensure that the water tank is
steady and in a correct position.
15
large quantities of frozen food.
The method of removal of the
e
3.

Warning!
Don’t touch the other parts of the
appliance when filling water, it may
cause the water leakage.
Dispensing water
1.Make sure the cover of the water tank
is fitted on.
2.Close the fridge door and check the
dispenser.
appliance, you should dry it fully.
Also clear the receiving tank toregularly
Cleaning
1.Put the water tank out of the door
carefully and then wash the tank, lid, and
head lightly in water.
2.After you have successfully cleaned the
avoid slillage .
16
Caution!
Fill with water up to 4L ( which is
suggested) and not above the level.
Otherwise, it may overflow when the lids
We recommend that you fill the water by
the following ways.
1.Remove the small lid and fill water from
the inlet of the larger lid.
2.Remove the cover of the rank, and then
fill water inside directly.
is closed.
Receiving Water
You should use the correct cups to receive
water underneath the water dispenser.
Warning!
Don’t push the dispenser lever forward
without cup, it may cause water leakage
from the dispenser.

17
Helpful hints and tips
Energy saving tips
We recommend that you follow the tips
below to save energy.
Try to avoid keeping the door open
for long periods in order to conserve
energy.
Ensure the appliance is away from
any sources of heat. (Direct sunlight,
electric oven or cooker etc.)
Don't set the temperature colder than
necessary.
Don't store warm food or evaporative
liquid in the appliance.
Place the appliance in a well
ventilated, humidity free, room. Please
refer to Installing your new appliance
chapter.
The diagram shows the correct
combination for the drawers, crisper
and shelves. Do not adjust the
combination as this is designed to be
the most energy efficient configuration.
●
●
●
●
●
●
Hints for fresh food refrigeration
Do not place hot food directly into
t h e r e f r i g e r a t o r, t h e i n t e r n a l
temperature will increase resulting
in the compressor having to work
harder and w ill consume m ore
energy.
Do cover or wrap the food，
particularly if it has a strong flavor.
Place food properly so that air can
circulate freely around it.
●
●
●
Hints for refrigeration
Storage time and expiration date for
meat wrapped in polythene and food
wrapped or put on the glass shelf above
the vegetable drawer should follow the
suggestion of their manufacturers.
Cooked food, cold dishes, etc.:
They should be covered and may be
placed on any shelf.
Fruit and vegetables: They should
be stored in the special drawer
provided.
●
●
●
Hints for freezing
When first starting-up or after a
period out of use, let the appliance run
at least 2 hours on the higher settings
before putting food in the compartment.
Prepare food in small portions to
enable it to be rapidly and completely
frozen and to make it possible to
subsequently thaw only the quantity
required.
Wrap up the food in aluminum foil or
polyethylene food wraps which are
airtight.
Do not allow fresh，unfrozen food to
touch the food which is already frozen
to avoid partially thawing the frozen
food.
Iced produ c ts，if co nsum e d
immediately after removal from the
freezer compartment, will probably
cause frost burns to the skin.
●
●
●
●
Butter and cheese: Should be
wrapped inairtight foil or plastic film
wrap.
Milk bottles:
Should have a lid and be stored in
the door racks.
●
It is recommended to label and date
each frozen package in order to keep
track of the storage time.
Hints for the storage of frozen food
Ensure that frozen food has been
stored correctly by the food retailer.
Once defrosted，food will deteriorate
rapidly and should not be re-frozen. Do
not exceed the storage period indicated
by the food manufacturer.
●
●

18
Switching off your appliance
If the appliance needs to be switched
off for an extended period, the following
steps should be taken prevent mould
on the appliance.
1. Remove all food.
2. Remove the power plug from the
mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged
open slightly to allow air to circulate.
Cleaning and care
For hygienic reasons the appliance
(includ i n g exteri o r and inter i o r
accessories) should be cleaned
regularly at least every two months.
Caution! The appliance must not be
connected to the mains during
cleaning. Danger of electrical shock!
Before cleaning switch the appliance off
and remove the plug from the mains
socket.
Exterior cleaning
-Wipe the digital panel and display
panel with a clean, soft cloth.
-Spray water onto the cleaning cloth
instead of spraying directly on the
surface of the appliance. This helps
ensure an even distribution of moisture
to the surface.
-Clean the doors, handles and cabinet
surfaces with a mild detergent and
then wiped dry with a soft cloth.
To maintain good appearance of your
appliance, you should clean it regularly.
Caution!
-Don't use sharp objects as they are
likely to scratch the surface.
-Don't use Thinner, Car detergent,
Clorox, ethereal oil, abrasive cleansers
or organic solvent such as Benzene for
cleaning. They may damage the
surface of the appliance and may
cause fire.
Interior cleaning
You should clean the appliance interior
regularly. It will be easier to clean when
food stocks are low.
-Wipe the inside of the fridge freezer
with a weak solution of bicarbonate of
soda, and then rinse with warm water
using a wrung-out sponge or cloth.
-Wipe completely dry before replacing
the shelves and baskets. Thoroughly
dry all surfaces and removable parts.
Although this appliance automatically
defrosts, a layer of frost may occur on
the refrigerator's interior walls if the
door is opened frequently or kept
opentoo long. If the frost is too thick
wait until food stocks are low and
proceed as follows:
1 . R e m o v e e x i s t i n g f o o d a n d
accessories baskets, unplug the
appliance from the mains power and
leave the doors open. Ventilate the
room thoroughly to accelerate the
thawing process.
2.When defrosting is completed, clean
your freezer as described above.
Take care to keep door seals clean.
Sticky food and drinks can cause seals
Door seal cleaning
Caution! Don't use sharp objects to
remove frost from the refrigerator. Only
after the interior is completely dry
should the appliance be switched back
on and plugged back into the mains
socket.
to stick to the cabinet and tear when

19
Troubleshooting
If you experience a problem with your appliance or are concerned that the
appliance is not functioning correctly, you can carry out some easy checks
before calling for service, please see below. You can carry out some easy
checks according to this section before calling for service.
Warning! Don't try to repair the appliance yourself. If the problem persists
after you have made the checks mentioned below, contact a qualified
electrician, authorized service engineer or the shop where you purchased the
product.
you open the door. Wash seal with a
mild detergent and warm water. Rinse
and dry it thoroughly after cleaning.
Caution! Only after the door seals are
completely dry should the appliance be
powered on.
Warning: The LED light should not
customer
helpline for assistance. To replac
t he LED light, the followin s teps
an be used:
1.Unplug your appliance.
2 .Remove light cover by pushing up
and out.
3.Hold the LED cover with one hand
and pull it with the other hand while
pressing the connector latch.
4.Replace LED light and snap it
correctly in to place.
Replacing the LED light
be replaced by the user. If the LED
light is faulty, contact the
ge
c

20
Appliance is not
working correctly
●
●
●
●
●
●
●
●
●
●
●
●
●
Problem
Odours from the
compartments
Noise from the
appliance
The motor runs
continuously
A layer of frost
occurs in the
compartment
Temperature inside
is too warm
Possible cause & Solution
The interior may need to be cleaned.
The sounds below are quite normal:
Compressor running noises.
Air movement noise from the small fan motor in the fridge
compartment or other compartments.
Gurgling sound similar to water boiling.
Popping noise during automatic defrosting.
Clicking noise before the compressor starts.
Other unusual noises are due to the reasons below and may
need you to check and take action:
The cabinet is not level.
The back of appliance touches the wall.
Bottles or containers fallen or rolling.
It is normal to frequently hear the sound of the motor, it will
need to run more when in following circumstances:
Temperature setting is set colder than necessary
A large quantity of warm food has recently been stored
within the appliance.
The temperature outside the appliance is too high.
Doors are kept open too long or too often.
After your installing the appliance or it has been switched
off for a long time.
Check that the air outlets are not blocked by food and
ensure food is placed within the appliance to allow sufficient
ventilation. Ensure that door is fully closed. To remove the
frost, please refer to cleaning and care chapter.
You may have left the doors open too long or too frequently;
or the doors are kept open by some obstacle; or the
appliance is located with insufficient clearance at the sides,
back or top.
Check whether the power cord is plugged into the power
outlet properly.
Check the fuse or circuit of your power supply, replace if
necessary.
The ambient temperature is too low. Try setting the chamber
temperature to a colder level to solve this problem.
It is normal that the refrigerator is not operating during the
automatic defrost cycle, or for a short time after the
appliance is switched on to protect the compressor.
Some food, containers or wrapping cause odours.

21
Disposal of the appliance
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the
packaging into a suitable waste collection container to recycle it.
Before disposal of the appliance
1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug.
Warning! Refrigerators contain refrigerant and gases in the insulation.
Refrigerant and gases must be disposed of professionally as they may cause
eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not
damage prior to proper disposal.
Correct Disposal of this product
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or
contact the retailer where the product was purchased. They
can take this product for environmental safe recycling.
