Bellini BGM604 Installation instructions

GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aus Or 0800 764 912 NZ www.belliniappliances.com.au
Model No. BGM604, BGM604-F Only In Builders Pack BP370EG FINELINE: 5103600 Aus 60cm 4 Burner Gas Cooktop
INSTALLATION & OPERATION
INSTRUCTIONS
60cm 4Burner Gas Cooktop
Model No.
BGM604
BGM604-F
Only In Builders Pack BP370EG FINELINE: 5103600 Aus Only
V.15 Jan21

Thank you
Thank you for choosing Bellini Appliances.
Bellini prides itself on ‘affordable living’ making sure there is
no compromise in your favourite room … The Kitchen
All Bellini appliances carry a 3 year In Home warranty,
be sure to retain your installation and user manual and
receipt.
For all warranty and technical queries please contact
1300 373 199
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aus Or 0800 764 912 NZ www.belliniappliances.com.au
Model No. BGM604, BGM604-F Only In Builders Pack BP370EG FINELINE: 5103600 Aus 60cm 4 Burner Gas Cooktop

Content
Safety instructions----------------------------- 3
Installation----------------------------------------4
Product description-----------------------------9
Start using your appliance--------------------11
Maintenance ------------------------------------13
Warranty------------------------------------------24
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aus Or 0800 764 912 NZ www.belliniappliances.com.au
Model No. BGM604, BGM604-F Only In Builders Pack BP370EG FINELINE: 5103600 Aus 60cm 4 Burner Gas Cooktop

safety instructions
■ This instruction booklet must be kept with the appliance for any future reference.
If the appliance is sold or transferred to another person, ensure the booklet is passed on to
the new user.
■ The manufacturer declines any liability should these safety measures not be observed.
■ The following marks are made to be easily understood so that you can prevent any
accident caused by misuse in advance, and use the appliance more conveniently.
■
Danger/Warning Neglect of this mark may result in severe personal injury or
death.
Caution Neglect of this mark may result in minor personal injury or
property damage.
ʄ7KHIROORZLQJPDUNV DVIROORZ 
Caution No Access
No Fire Tool Must Do
Danger
ʄ,IJDVVHHPVWROHDNWDNHWKHDFWLRQVDVIROORZ
- Do not turn on the light.
- Do not switch on/off any electrical appliance and do not touch any electric plug.
- Do not use a telephone.
1 Stop using the product and close the middle valve.
2 Open the window to ventilate.
3 Contact our service centre by using a phone outside.
* The fuel gas contains mercaptan, so that you can smell the gas leak (smell of rotten garlic
or egg) even where only 1/1000 of the gas is in the air.
are u in the Instruction Manual
Please take the time to read this Instruction Manual before installing or
using the appliance.
■ Read the following contents thoroughly and ensure you understand them
sed
V
.
***All Bellini Appliances are for domestic use only**
3

installation
Warning
■ This appliance shall be installed in
accordance with regulations in force
and only used in a well ventilated
space.
■ Prior to installation, ensure that the
gas and electrical supply complies
with the type stated on the rating
plate.
■ Where this appliance is installed in
marine craft or in caravans, it should not
be used as a space heater.
■ The gas pipe and electrical cable
must be installed in such a way that
they do not touch any parts or the
appliance.
■ This appliance should be installed by a qualified technician or installer.
■ The adjustment conditions for this appliance are stated on the label or data plate.
■ Remove all packaging before using the appliance.
■ After unpacking the appliance, make sure the product is not damaged and that the
connection cord is in perfect condition. Otherwise, contact the dealer before installing
the appliance.
■ The adjacent and all materials used in the installation must be able to
withstand a minimum temperature of 95˚C above the ambient temperature of the
room it is located in, whilst in use.
■ In the event of burner flames being accidentally extinguished, turn off the burner
control and do not attempt to re-ignite the burner for at least one minute.
■
The use of a gas cooking appliance results in the production of heat and moisture in the
room in which it is installed. Ensure that the kitchen is well ventilated: keep natural
ventilation holes open or install a
■ Prolonged intensive use of the appliance may call for additional ventilation, for
example opening of a window, or more effective ventilation, for example increasing
the level of mechanical ventilation where present.
Caution
cabinetry
range hood above the gas cook top.
-
4

child and people safety
■ Do not allow children to play near or with the appliance.
The appliance gets hot when it is in use.
Children should be kept away until it has cooled.
■ This appliance is designed to be operated by adults.
■ Children can also injure themselves by pulling pans or pots off the appliance.
■ This appliance is not intended for use by children or other persons whose physical,
sensory or mental capabilities or lack of experience and knowledge prevents them
from using the appliance safety without supervision or instruction by a responsible
person to ensure that they can use the appliance safety.
Warning
Caution
5

during use
■ Only use the appliance for preparing
food.
Warning
■ The use of a gas cooking appliance results
in the production of heat and moisture in
the room in which it is installed. Ensure
that the kitchen is well ventilated : keep
natural ventilation holes open or install
■ The heating and cooking surfaces of
the appliance become hot when they
are in use, take all due precautions.
■ Never leave the appliance unattended
when cooking.
■ Do not modify this appliance.
■ Do not use this appliance if it
in contact with water. Do not operate
this appliance with wet hands.
■ Do not use large cloths, tea towels or
similar as the ends could touch the
flames and catch fire.
■ Unstable or misshapen pans should
not be used on the appliance as they
can cause an accident by tipping or
spillage.
comes
Burner
panel is not designed to operate
from an external timer or separate
remote control system.
range hood.
6

during use
■ Do not use or store flammable
materials in the storage drawer
near this appliance.
■ Do not spray aerosols in the vicinity of
this appliance while it is in operaiton.
■ This appliance is intended for domestic cooking only. It is not designed for commercial or
industrial purposes.
■
Prolonged intensive use of the appliance may call for additional ventilation, for example
opening of a window, or increasing the level of mechanical ventilation where present.
■ Use heat-resistant pot holders or gloves when handling hot pots and pans.
■ Do not let pot holders come near open flames when lifting cookware.
■ Take care not to let pot holders or gloves get damp or wet, as this causes heat to transfer
through the material quicker with the risk of burning yourself.
■ Only ever use the burners after placing pots and pans on them. Do not heat up any empty
pots or pans.
■ Never use plastic or aluminium foil dishes on the appliance.
■ When using other electrical appliances, ensure the cable does not come into contact with
the appliance surfaces of the cooking appliance.
■ If you have any mechanical parts eg. an artifical heart in your body, consult a doctor before
using the appliance.
■ . Such cloths can catch fire
on a hot burner.
■ When using glass cookware, make sure it is designed for top plate cooking.
■ To minimise the possibility of burns, ignition of flammable materials and spillage, turn
cookware handles toward the side or center of the top plate without extending over
adjacent burners.
■ Always turn burner controls off before removing cookware.
■ Carefully watch foods being fried at a high flame setting.
■ Always heat fat slowly and watch as it heats.
■ Foods for frying should be as dry as possible. Frost on frozen foods or moisture on fresh
foods can cause hot fat to bubble up and over the sides of the pan.
■
Never try to move a pan of hot fat, especially a deep fat fryer. Wait until the fat is
cool.

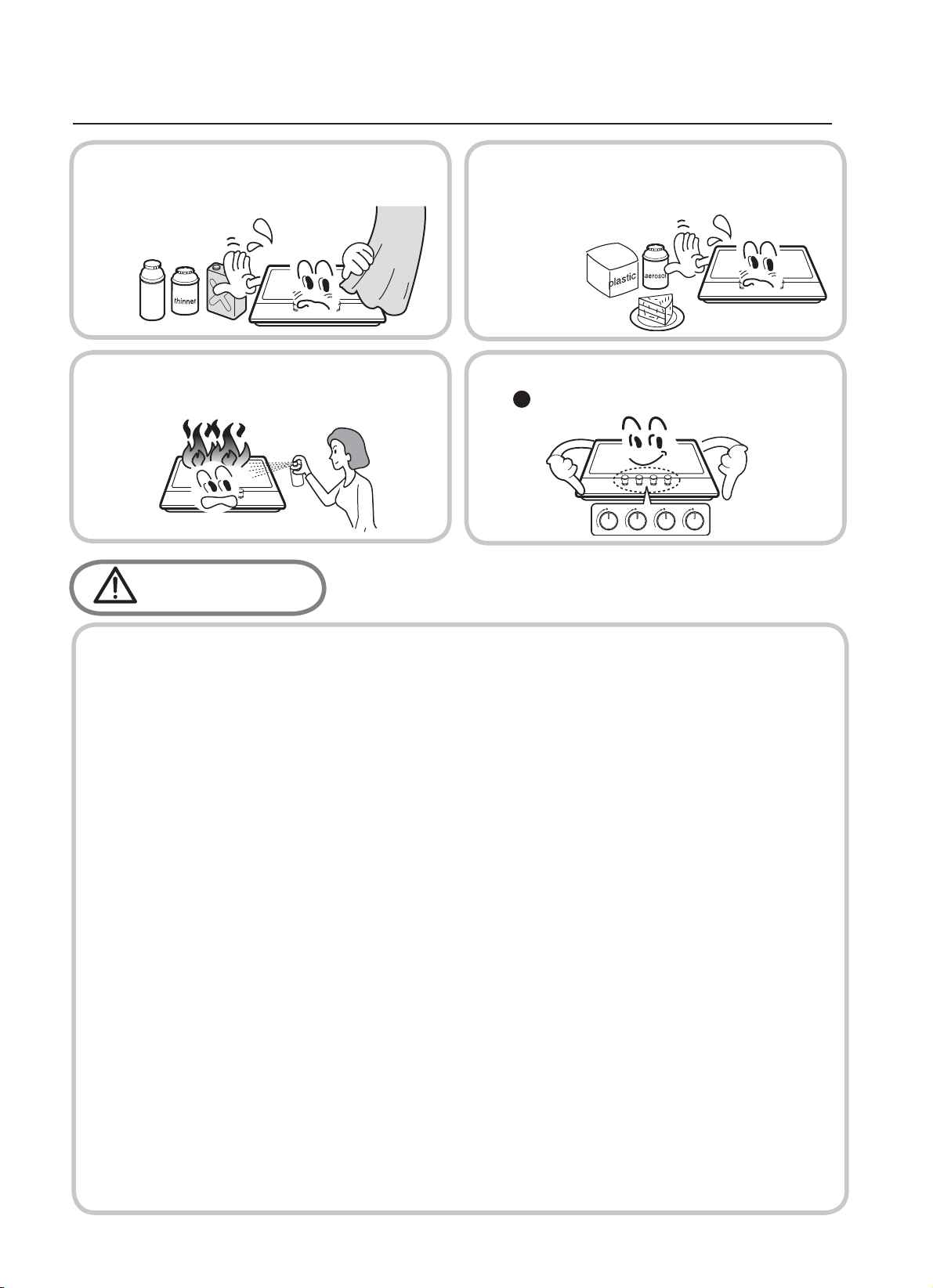

■ Perishable food, plastic items and
aerosols may be affected by heat and
should not stored above or below the
appliance.
■ Ensure the control knobs are in the
‘ ’ position when not in use.
Caution
Do not use a tea towel or similar materials in place of a pot holder
completely
Do not use a tea towel or similar materials in place of a pot holder
■
If the surface
is made of glass-cracked, switch off the appliance to avoid defeat electr cutiono.
7

cleaning and service
environmental information
■ After installation, please dispose of the packaging
with due regard to safety and the environment.
■ When disposing of an old appliance, make it
unusable, by cutting off the cable.
&RUUHFW'LVSRVDORI7KLV3URGXFW
:DVWH(OHFWULFDO(OHFWURQLF(TXLSPHQW
■ This marking shown on the product or its literature, indicates that it should not be
disposed with other household wastes at the end of its working life. To prevent
possible harm to the environment or human health from uncontrolled waste disposal,
please separate this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources.
■ Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take this item
for environmentally safe recycling.
■ Business users should contact their supplier and check the terms and conditions of
the purchase contract. This product should not be mixed with other commercial
wastes for disposal.
■ Never use abrasive or caustic
cleaning agents.
Warning
■ Before attempting to clean the appliance, it should be disconnected from the mains
and cooled.
■ You should not use a steam jet or any other high pressure cleaning equipment to
clean the appliance.
■ This appliance should only be
repaired or serviced by an authorised
Service and only genuine
approved spare parts should
be used.
Caution
technician
8

description of the appliance
Di
m
Model
Pan Support
Wok pan Suppo
r
Top Plate
m
ension(W*D*H
)
Ignition device
Gas Connectio
n
Electric supply
Burner Feature
ΣQn
rt
)
n
, Se
m
m
i-rapid (2), Au
x
S
Conti
n
24
0
x
iliary (1)
N/A
S
tainless Steel
590*500*95
n
uous Ignition T
y
G1/2 thread
0
Vac,50Hz-60Hz
,
p
e
2W
Cast Iron
BGM604/BGM604-F
WO K
30.4 MJ/h
220-
9

how to use the appliance
Accessories
description of the appliance
■ The minimum setting is at the end of the anti-clockwise rotation of the control
■ All operation positions must be selected between the maximum and minimum position.
■ The symbol on the control panel, next to the control will indicate which burner it operates.
Black circle: gas off
Large flame: maximum setting
Small flame: minimum setting
Automatic ignition with flame failure safety device
The appliance is fitted with a flame failure safety device on each burner, which is
designed to stop the flow of gas to the burner head in the event of the flame
going out.
Bracket(4 ) Self Adhesive Strip Screw
I nj ector
(4 ) (4 )
(4 )
NG Regulator(1)
Bellini Instruction Manual(1)
Test Point Adaptor(1)
The following symbols show on the control panel, next to each control knob:
knob.
knob
Gas-pipe bend (1)
Cast iron trivet
INSTALLATION & OPERATION
INSTRUCTIONS
60cm 4Burner Gas Cooktop
Model No.
BGM604
BGM604-F
Only In Builders Pack BP370EG FINELINE: 5103600 Aus Only
10

how to use the appliance
Automatic ignition with flame failure safety device
To ignite a burner:
oPress in the control knob of the burner that you wish to light and turn it
anti-clockwise to the maximum position.
oIf you keep the control knob depressed, the automatic ignition for the
burner will operate.
oYou should hold down the control knob for 15 seconds after the flame on
the burner has lit. If after 15s the burner has not lit, stop operating the
device or wait at least 1 min before
attempting a further ignition of the burner.
oAfter this 15-second interval, to regulate the flame you should continue
turning the control knob anti-clockwise until the flame is at a suitable level.
The operating position MUST be at a position between the maximum and
minimum position.
oTo switch the burner off, turn the control knob fully clockwise to the gas off
position.
oIn the event of a power failure the electronic ignition will not function , but you
can light the gas burners in this instance with a match or separate gas ignition
device.
11

safety and energy saving advice
- The diameter of the bottom of the pan should correspond to that of the burner.
BURNERS PANS
min. max.
Semi-Rapid 160mm mm
Auxiliary
NO YES
Do not use small diameter cookware on
large burners.
The flame should never come up the
sides of the cookware.
Always use cookware that
suitable for each burner,
to
avoid wasting gas and
discolouring the cookware.
Avoid cooking without a lid or with the
lid half off
- as this wastes energy
lace lid on the cookware.
Do not use a pan with a convex or
concave bottom.
Only use pots, saucepans and
frying pans with a thick, flat
bottom.
Do not place cookware on one side of a
burner, as it could tip over. Always place the cookware
right over the burners, not to
one side.
Do not use cookware with a large diameter
on the burners near the controls, which
when placed on the middle of the burner
may touch the controls or be so close to
them that they increase the temperature in
this area and may cause damage.
Never place cookware directly on top of
the burner.
Place the cookware on top of
the trivet.
Do not place anything, eg. flame tamer,
between pan and pan
support as serious damage to the
appliance may result.
Do not use excessive weight and do not
hit the with heavy objects.
Handle cookware carefully
when they are on the burner.
■ Do not use cookware
that
overlaps the edge
is
Pa
cooktop
■ It is not to use roasting pans, frying pans or grill stones
heated
simultaneously several burners because the resulting heat
build-up may damage the appliance.
■
■ As soon as a liquid starts boiling, turn down the flame so that it will
barely keep the liquid simmering.
recommended
on
Do not touch the top plate and trivet whilst in use for a certain period after
use.
of the
burner.
120mm 160mm
180
WOK 200mm 240mm
12

cleaning and maintenance
■ Take off the Pan support.
■ Clean these and the control with a damp cloth, washing up liquid and warm
water. For stubbon soiling, soak beforehand.
■ Dry everything with a clean soft cloth.
■ Cleaning operations must only be carried out when the appliance
is cool.
■ The appliance should be disconnected from your mains supply before
commencing any cleaning process.
■ Clean the appliance regularly, preferably after each use.
■ Abrasive cleaners or sharp objects will damage the appliance surface;
you should clean it using water and a little washing up liquid.
3DQVXSSRUW&RQWURO
■ Regularly wipe over the top plate using a soft cloth well in warm water to
which a little washing up liquid has been added.
■ Dry the top plate thoroughly after cleaning.
■ Thoroughly remove salty foods or liquids from the hob as soon as possible to avoid
the risk of corrosion.
■ Stainless steel parts of the appliance may become discoloured over time. This is
normal because of the high temperatures. Each time the appliance is used these
parts should be cleaned with a product that is suitable for stainless steel.
7RSSODWH
Usable Unusable
Metal Brush
Edible Oil Acidic/Alkali
Detergent
Abrasive Thinner/Benzene
Th
M
rasive
Soft cloth
Neutral Detergent
Nylon Brush
wrung-out
completely
knobs
knobs
13

cleaning and maintenance
ʄ5HDVVHPEOHWKH$X[LOLDU\6HPL5DSLGWokDQG
EXUQHUVDVIROORZV
1. Place the flame spreader ( ) on to the burner cup ( ) so that the ignition device and the flame
supervision device extend through their respective holes in the flame spreader.
The flame spreader must click into place correctly.
2. Position the burner lid ( ,,) onto the flame ( ) so that the retaining pins fit into
their respective recesses.
■ Remove the burner lids and Flame Spreaders by pulling them upwards and away
from the top plate.
■ Soak them in hot water and a little .
■ After cleaning and washing them, wipe and dry them carefully. Make sure that the
flame holes are clean and completely dry.
■ Wipe the fixed parts of the burner cup with a damp cloth and dry afterwards.
■ Gently wipe the gnition device and flame supervision device with a well wrung-out
cloth and wipe dry with a clean cloth.
■ Before placing the burners back on the top plate, make sure that the injector is not
blocked.
%851(56
Replace parts in the correct order after cleaning.
- Do not mix up the top and bottom.
- The locating pins must fit exactly into the notches.
i
45
1234
1
2
3
4
5
6
7
washing up liquiddetergent or
spreader
14

Warnings
using instructions
■ Do not modify this appliance.
■ This appliance must be installed by an authorised technician or
installer.
■ Prior to installation, ensure that the local distribution conditions
(nature of the gas and gas pressure) and the adjustment of the
appliance are compatible.
■ The adjustment conditions for this appliance are stated on the label
(or data plate).
■ This appliance is not connected to a combustion products evacuation
device. It
be installed and connected in accordance with current
installation regulations. Particular attention be given to the
relevant requirements regarding ventilaton.
■ Before installing, turn off the gas and electricity supply to the
appliance.
■ All appliances containing any electrical components must be earthed.
■ Ensure that the gas pipe and electrical cable are installed in such a
way that they do not touch any parts of the appliacne which
become hot.
■ Gas pipe or connector shouldn’t be bent or blocked by any other
appliances.
■ Check the dimensions of the appliance as well as the dimensions of
the gap to be cut in the kitchen unit.
■ The panels located above the work surface, directly next to the
appliance, must be made of non-flammable material. Both the strati-
fied surfacing and the glue used to secure it should be heat resistant,
to prevent deterioration.
■ Turn on appliance tap and light each burners.
Check for a clear blue flame without yellow tipping.
If burners shows any abnormal ties check the following :
- Burner lid on correctly
- Flame spreader positioned correctly
- Burner vertically aligned with injector nipple
■ A full operational test and a test for possible leakages must be carried
out by the fitter after installaion.
■ The flexible hose shall be fitted in such a way that it cannot come into
contact with a moveable part of the housing unit and does not pass
through any space susceptible of becoming congested.
should
should
may
i
Grease cranes produced at the factory to meet the requirement of all
life hob.
■
15

positioning
■ This appliance is to be built into a kitchen unit or mm worktop, providing the
following minimum distances are allowed ;
600
- An oven must have forced ventilation to install a hob above it.
- Check the dimensions of the oven in the installation manual.
- The cut out size must obey the indication.
oThe edges of the hob must be a minimum distance of mm from a side or
rear wall.
o650 mm between the highest point of the hob surface (including the burners)
and the underside of any horizontal surface directly above it.
o400 mm between the hob surfaces, providing that the underside of the
horizontal surface is in line with the outer edge of the hob. If the underside of
the horizontal surface is lower than 400 mm, then it must be at least 50 mm
away from the outer edges of the hob.
o50 mm clearance around the appliance and between the hob surface and any
combustible materials.
45 mm
60
oYou must have a gap of at least 25 mm and at most 74 mm between the
underneath of the appliance and any surface that is below it.
FO 0813
400mm
4
80
mm
400mm
650mm
0mm
Min.
CLEARANCES REQUIRED
WHEN FITTING THE HOB
WITH A COOKER HOOD ABOVE
60mm
20
5
60
mm
600mm
BGM604/BGM604-F
16

installing the appliance
Bottom view
The thickness of the Self Adhesive strip is mm.
The width of the Self Adhesive strip is 10 mm.
Do not use a silicon sealant to seal the
appliance against the
This will make it difficult to remove the
appliance from the aperture in future,
particularly if it needs to be serviced.
1. Place the bracket(B) over the holes that match the size
of the screws.There are one set of screw holes in each
corner of the hob(H).
Slightly tighten a screw(C) through the bracket(B) so
that the bracket is attached to the hob, but so that you
can still adjust the position
.
2. Carefully turn the hob back over and then gently lower it
into the aperture hole that you have cut out.
3. On the underneath of the hob, adjust the brackets into a
position that is suitable for your worktop.
Then fully tighten the screws(C) to secure the hob into
position.
(A) SEALING STRIP
(C) SCREW (B) BRACKET
1. Remove the pan supports, the burner lid and flame spreader and carefully turn the
appliance upside down and place it on a cushioned mat.
Take care that the Ignition devices and flame supervision devices are not damaged
2. Apply the Self Adhesive strip provided around
3. Do not leave a gap in the Self Adhesive strip
the edge of the appliance.
or overlap the thickness.
590
500
in this operation.
BGM604/BGM604-F
1.5
bench top.
17

gas connection
■ This appliance must be installed and connected in accordance with installa-
tion regulations in force in the country in which the appliance is to be used.
■ This appliance is supplied to run on natural gas only and cannot be used on
any other type of gas without modification. Conversion for use on LPG and
other gases must only be undertaken by a qualified person.
Most of the tools that you might need are shown below. Some are optional.
Turn off power for safety and appliance protection.
Close middle valve to prevent gas leakage.
K eep away from inflammable materials around appliance.
Before work, put on gloves.
CAUTION
Cool off the appliance for a while right after using appliance for your safety because you can get
burners by high temperature from the appliances.
Replacement of gas-type fitting
Tool: Open-end wrench
Steps for operation:
A: Disassemble with a wrench the gas-type fittings from main gas tube.
When you disassemble/assemble gas connection, use 2 spanners. One for fixing gas connection
elbow, the other for tightening gas hose.
B: Look tightly a replaceable gas-type fitting onto the main gas tube.
18
1
2

gas
Ensure tha
dishwasher
to the hotp
permanent
length with
hose fitting
supply con
WARNING
contact with
t the hose doe
r or any other
late. The hos
deformation a
the cooktop i
s must be us
nection point s
: Ensure that
the flue outle
s not contact
appliance that
e should not
nd should be
n the installed
ed and all co
hall be access
the hose ass
t of an underb
the hot surface
may be instal
be subjected t
able to be ins
position. Unio
onnections tes
sible with the ap
embly is restr
ench oven.
s of the hotpla
led underneat
o abrasion, k
pected along
ns compatible
ted for gas le
pliance install
ained from a
te, oven,
h or next
inking or
its entire
with the
aks.The
ed.
ccidental
■
■
■
connection
Bef
o
o
re Leaving-
Statutory requirements
This installation must conform with the following:
■ Manufacturer’s Installation instructions
■ Local Gas Fitting Regulations
■ Municipal Building Codes
■ Refer to AS/NZS 5601.1 for Gas Installations
■ S.A.A. Wiring Code
■ Local Electrical Regulations
■ Any other statutory regulations
Preparing to install
Refer to AS/NZS 5601.1 for piping size details. These built-in cooktops are intended to
be inserted in a benchtop cutout. Only an officially authorised technician should connect
the appliance. Before you begin, turn off the gas and electricity supply.
Natural gas connection LPG gas connection
19
Flexible Hose: If installing with a hose assembly, it must comply with AS/
NZS 1869, 10mm ID, Class B or D, no more than 1.2m long and installed in
accordance with AS/NZS 5601.1.
