Goldmedal 4110BG User manual

© 2022 Gold Medal Products Co.
Part No. 32006
Instruction Manual
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
Candy Apple Stoves
Model No. 4110BG, 4110HD

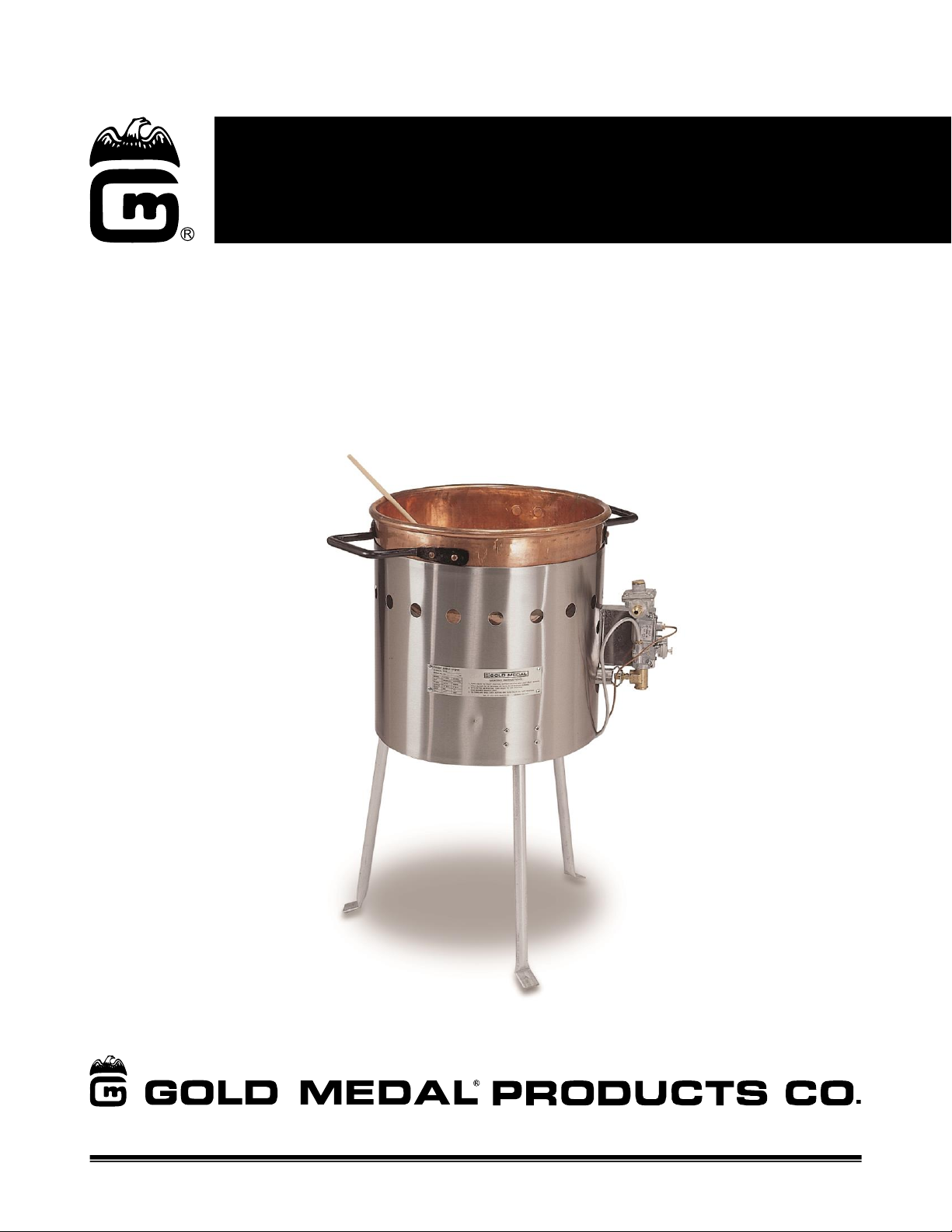

Stove shown with Kettle
Item No. 4111 (sold separately).

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 2
gmpopcorn.com
SAFETY PRECAUTIONS
DANGER
Gas is safe when used properly, but can be very dangerous when used
improperly. We suggest that installation be carefully made by qualified
personnel only. Gas companies have competent service personnel to
provide safe installation.
001_010914
DANGER
DO NOT use a match or flame to check for gas leaks –you may cause a fire
or explosion!
003_010914
DANGER
Never add water to hot oil. When water is added to hot oil a stream explosion
may ensue spattering hot oil resulting in serious burns or more seriously hot
oil in someone’s eyes.
024_010914
DANGER
Hot oil is dangerous –severe burns can result when hot oil contacts the skin.
Hot oil is flammable –keep open flames away from hot oil and its vapors.
Keep a fire extinguisher near this unit.
Instruct personnel on what to do if there is a grease fire. DO NOT USE
WATER ON A GREASE FIRE! Use only fire extinguishers approved for
grease, oil, and electric fire.
002_102214
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
DO NOT store or use gasoline, or other flammable vapors and liquids, in the
vicinity of this equipment.
004_010914
WARNING
Instructions on what to do when a user smells gas can be obtained from the
local gas supplier. These instructions must be posted in a prominent location
where the unit is to be operated.
005_010914

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 3
gmpopcorn.com
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
Note: Improvements are always being made to Gold Medal’s equipment. This information
may not be the latest available for your purposes. It is critical that you call Gold Medal’s
Technical Service Department at 1-800-543-0862 for any questions about your
machine operations, replacement parts, or any service questions. (Gold Medal
Products Co. does not assume any liability for injury due to careless handling and/or
reckless operation of this equipment.) General images may be used in manual for
reference only.

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 4
gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this
equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold
Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.
Model Description
4110BG: Candy Apple Stove
4110HD: Heavy Duty Candy Apple Stove

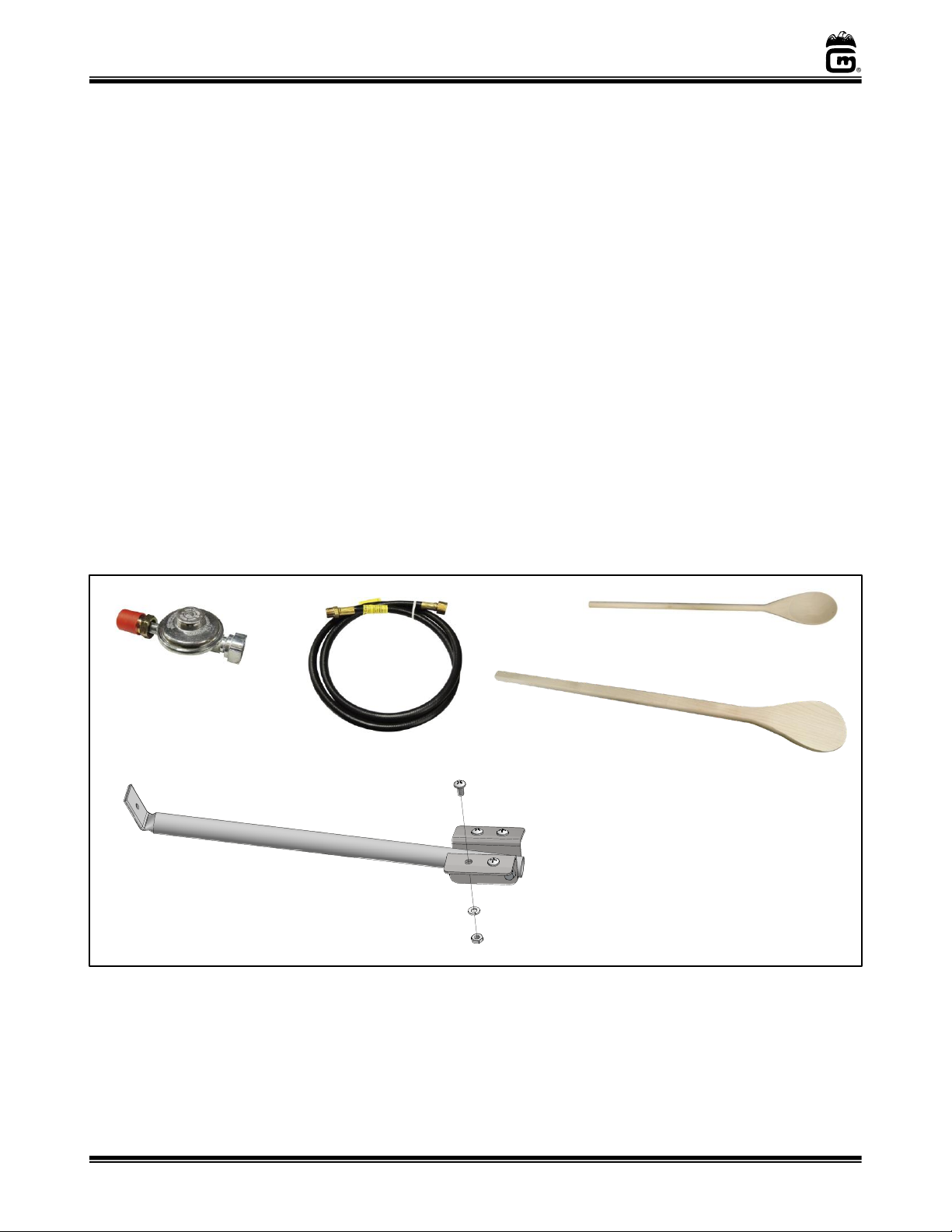

Items Included with this Unit
Tank Regulator
(PN 89920)
Tank Hose
(PN 109000)
Wood Paddle (PN 2093)
(included with Model 4110HD only)
Wood Spoon (PN 46207)
(included with Model 4110BG only)
1/4 -20 Screw (x4)
Lock Washer (x4)
1/4-20 Hex Nut (x4)
25” Leg Assembly (PN 120453) (x3)
•Brackets preassembled on leg.
•Includes mounting hardware listed.
General images shown
for reference only.

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 5
gmpopcorn.com
Setup
1. Remove all packaging and tape prior to operation.
2. This unit is for outdoor use only.
3. Place unit in a level position on a surface strong enough to support it when in use. The
unit must be placed in a non-combustible location with no trip hazards.
•DO NOT locate stove under a combustible roof or cover.
•DO NOT locate the stove in an area subject to high winds.
4. Observe the following clearances to ensure proper air supply and maintenance:
•Minimum of 30 inches clearance on all sides of unit.
5. Attach the three (3) support legs to the burner wrapper assembly as shown below.
•DO NOT operate the stove without the legs.
6. Secure unit to ground to avoid tipping.
7. After setup, the unit should be cleaned prior to use (see Care and Cleaning section).
Leg Assembly
(mounting brackets
are preinstalled)
Lock
Washer
1/4-20 Screw
(fasteners used
4 places per leg)
1/4-20
Hex Nut

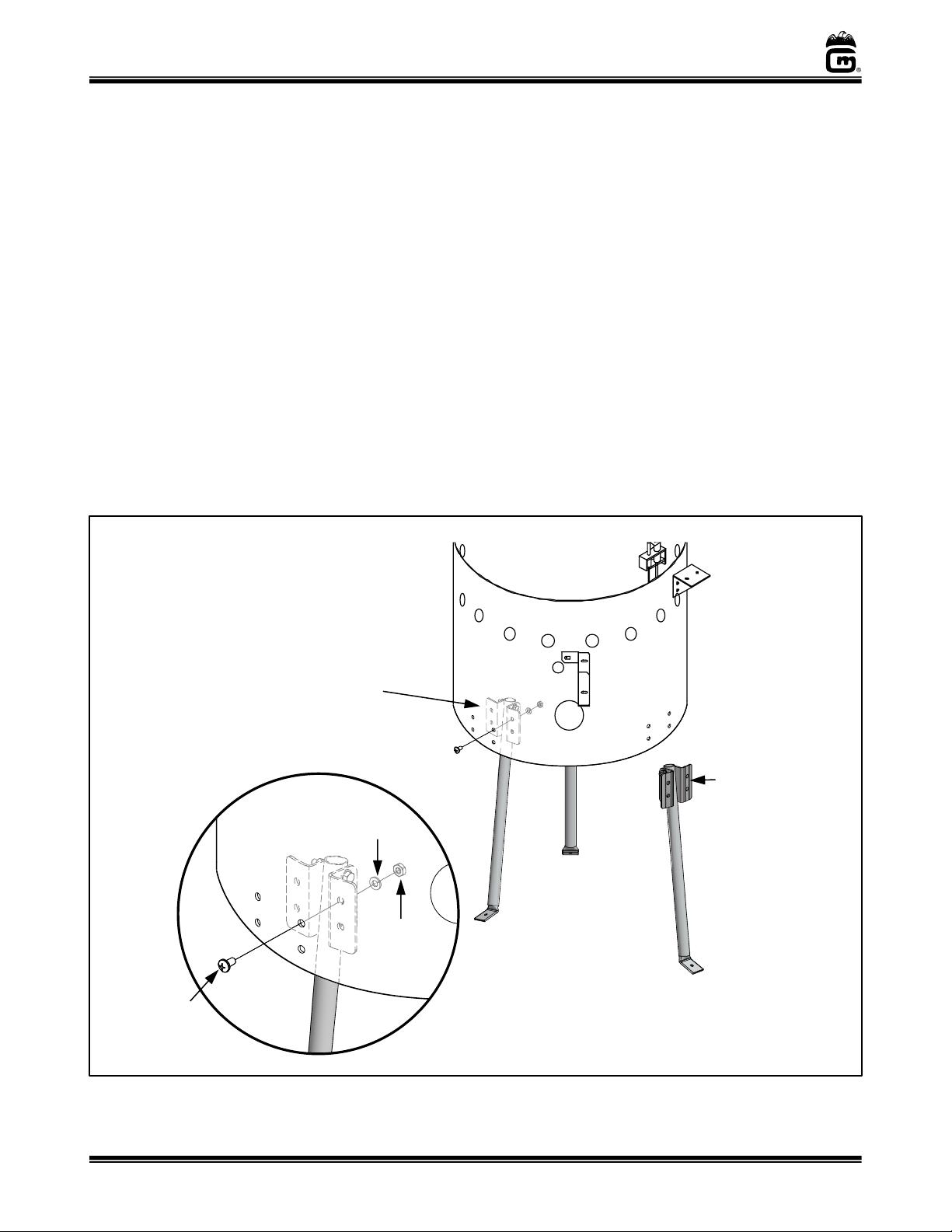

Leg Assembly Installation
1. Use a Philips head screwdriver and
7/16” socket (tools not included).
2. Remove unit fasteners from mounting
brackets (DO NOT remove brackets
from leg).
3. Position leg on interior of unit.
4. Securely fasten each leg assembly
using the (4) screws, lock washers,
and nuts provided, see image below.
General images shown for reference only.

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 6
gmpopcorn.com
Gas Installation Instructions
Gas Requirements
The 4110BG and 4110HD are designed for Propane only. Converting the unit to an alternate fuel
source will void the warranty and may cause a dangerous condition.
4110BG: Propane Gas, 34,557 BTU/HR
4110HD: Propane Gas, 52,000 BTU/HR
NOTE:The unit must be attached to a minimum of 40 pound LPG cylinder. For outdoor
use only.
Gas Installation
DANGER
Gas is safe when used properly, but can be very dangerous when used
improperly. We suggest that installation be carefully made by qualified
personnel only. Gas companies have competent service personnel to
provide safe installation.
001_010914
When installing this gas unit in the United States, you must conform with local codes, or in the
absence of local codes, with National Fuel Gas Code, ANSI Z223.1 (latest edition).
NOTE: Some local codes may require ventilation hoods or automatic fire systems. During
any pressure testing of the gas supply piping system at pressure equal to or less
than 1/2 psig (3.45 kPa), the appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve.
After installation, all gas connections must be checked for leaks with a soap
solution (see Checking for Gas Leaks section of this manual).
CAUTION
Be sure to observe all clearances for this unit. Refer to the Setup Section of
this manual to ensure proper air supply and adequate clearance for servicing
and installation of this gas unit.
033_042814

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 7
gmpopcorn.com
Important Fire Safety Notice
Consult your local fire protection agency for your area’s requirements. Check local fire protection
requirements regularly to ensure compliance with local codes and proper operation. Have a fire
extinguisher near the unit. (Use only fire extinguishers approved for grease, oil, and electrical fires.)
DANGER
Hot oil is dangerous –severe burns can result when hot oil contacts the skin.
Hot oil is flammable –keep open flames away from hot oil and its vapors.
Keep a fire extinguisher near this unit.
Instruct personnel on what to do if there is a grease fire. DO NOT USE
WATER ON A GREASE FIRE! Use only fire extinguishers approved for
grease, oil, and electric fire.
002_102214
Checking For Gas Leaks
After making any gas connection, or after performing any work on the gas train, ALWAYS check
ALL gas connections for leaks with a soap solution.
DANGER
DO NOT use a match or flame to check for gas leaks –you may cause a fire
or explosion! When gas connections are complete, have a qualified
professional wire the unit to a power source which will carry the current
specified on the unit’s data plate.
034_042814
1. Apply SOAP BUBBLES to all connections and pressurize the gas line to check for leaks.
Perform this test outdoors away from any flames or sparks.
DO NOT use a flame to check for gas leaks.
2. It is recommended to check your flexible gas lines and gas fittings for wear and tear on
a frequent basis. Stop using the appliance immediately if damage is found, and contact
a qualified professional to inspect and correct any issue.
3. Securely route all gas lines away from flames and high temperature areas.
4. Contact Gold Medal Technical Support, or a qualified Gas Service Technician with any
questions.
Gas Pressure
We have determined that optimum cooking occurs when the gas pressure is adequate. The
pressure is measured at the appliance when the main burner is ignited. For propane gas, we
recommend a manifold pressure setting of: Model 4110BG: 10 inches of water column
Model 4110HD: 11 inches of water column
Lighting and Shutdown Instructions
For pilot and burner lighting and shutdown instructions, refer to the Operating Instruction
section of this manual.

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 8
gmpopcorn.com

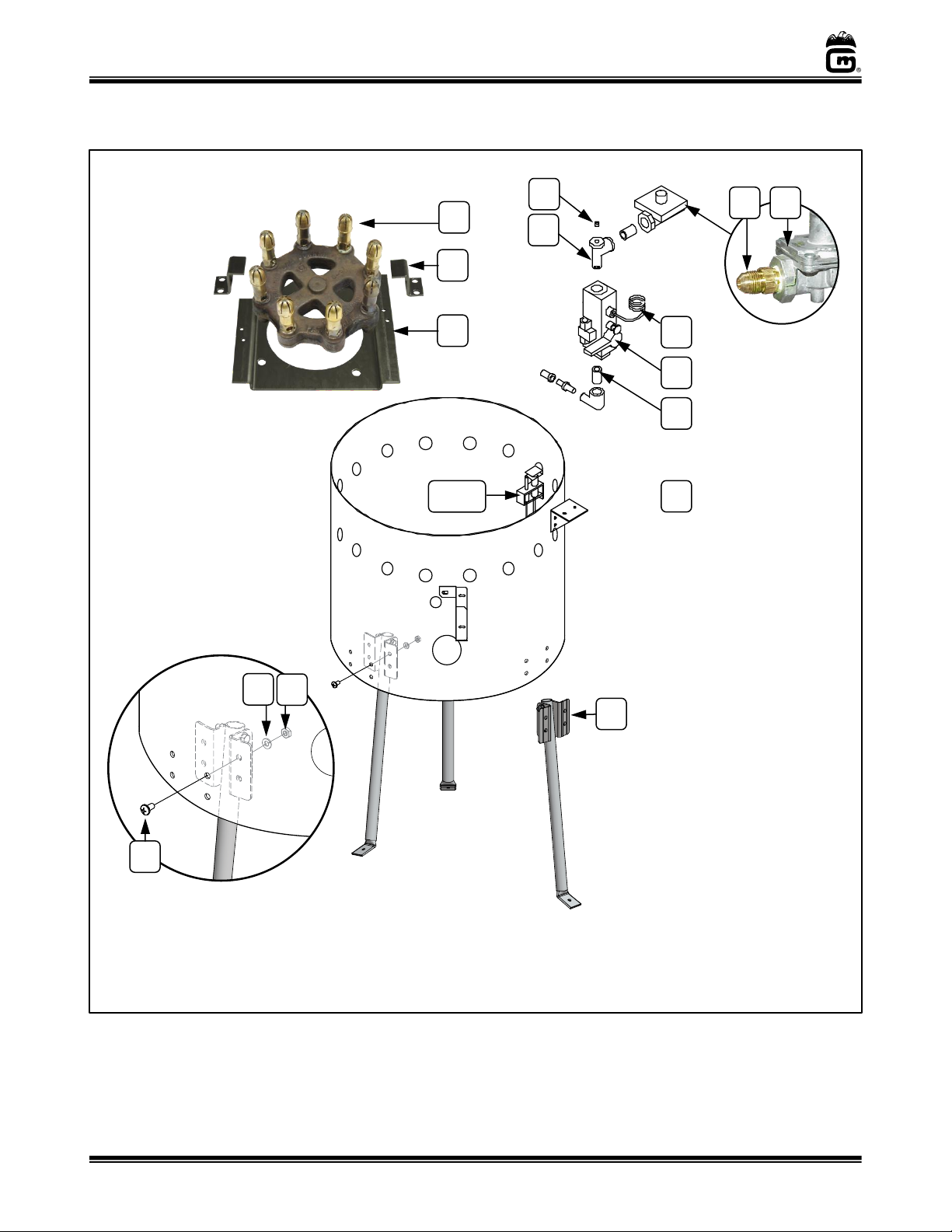

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 9
gmpopcorn.com

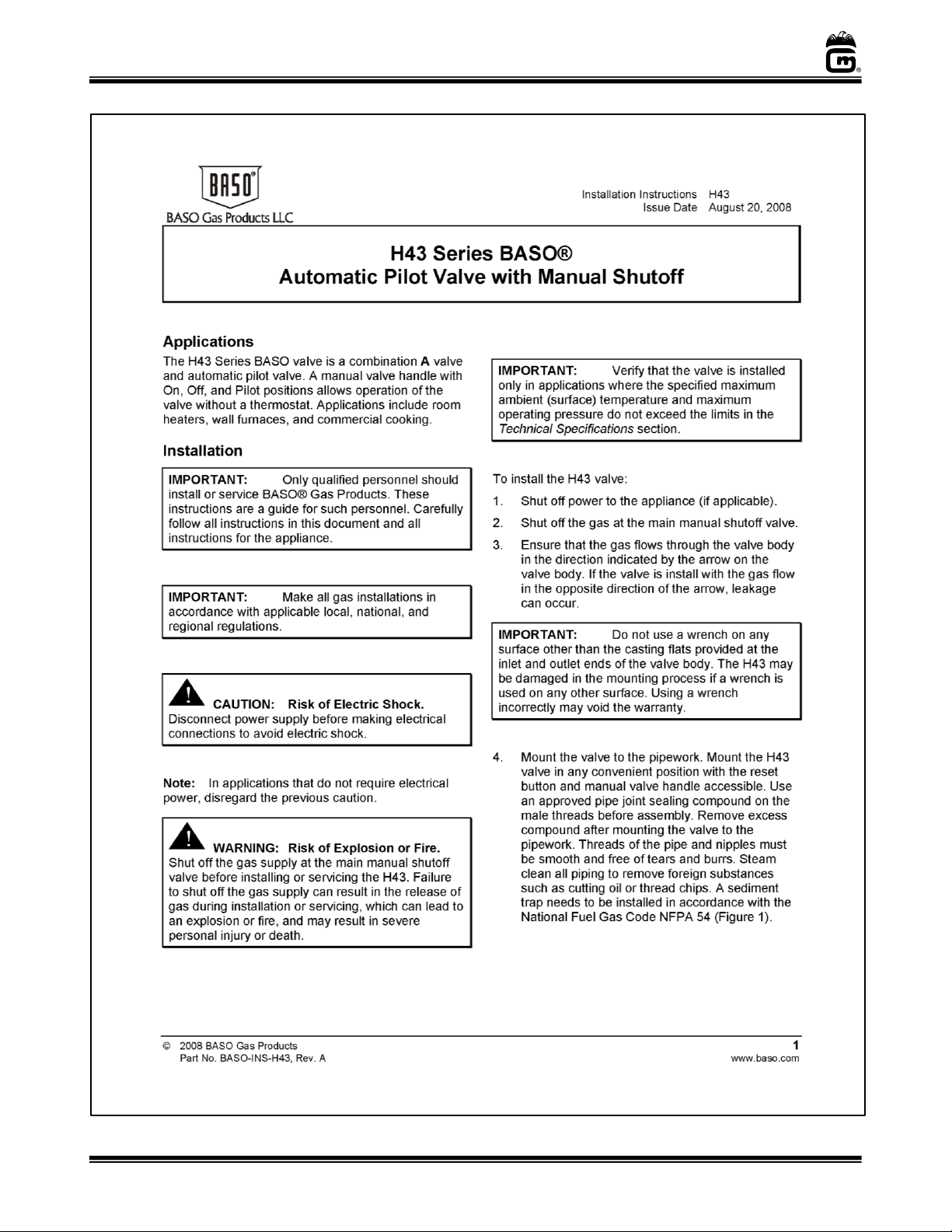

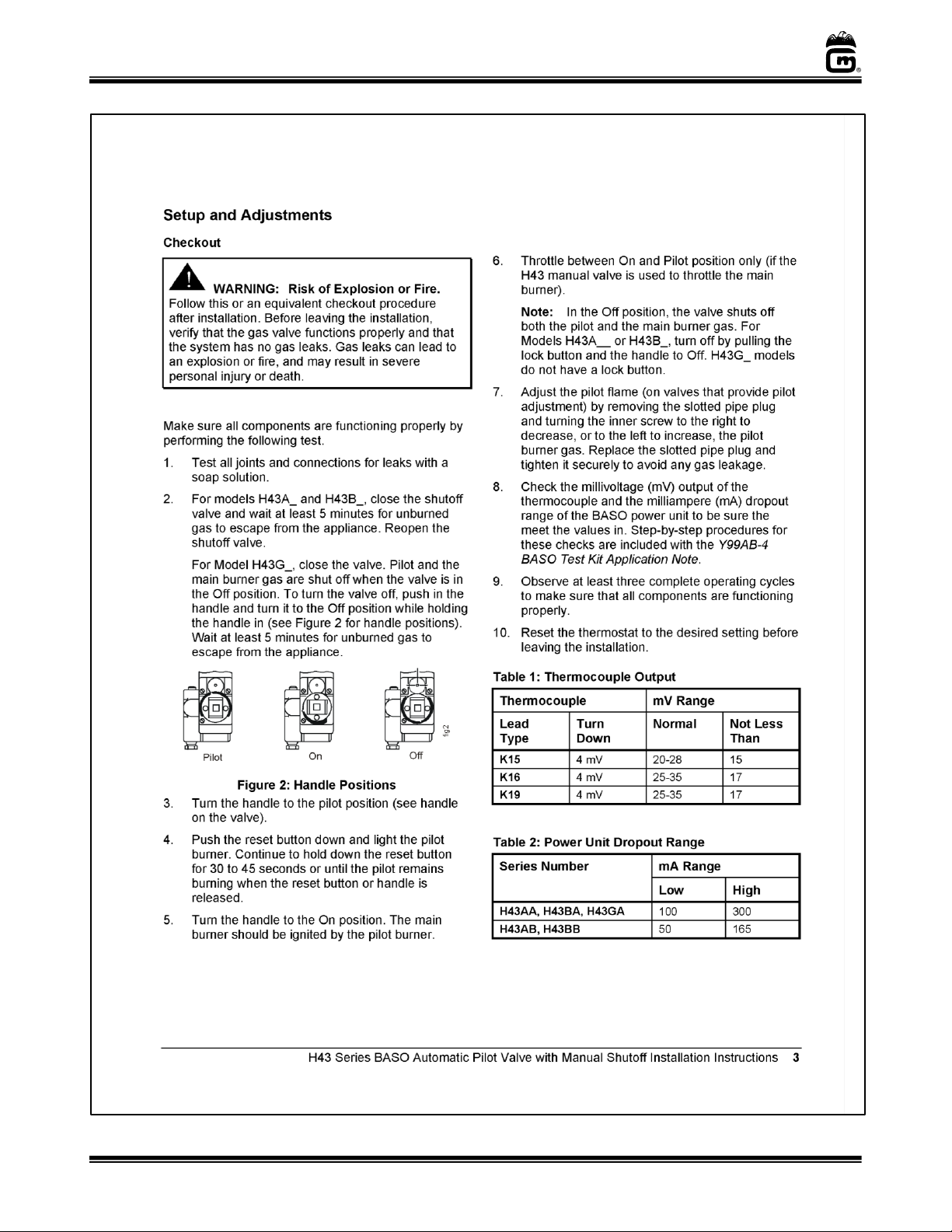

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 10
gmpopcorn.com

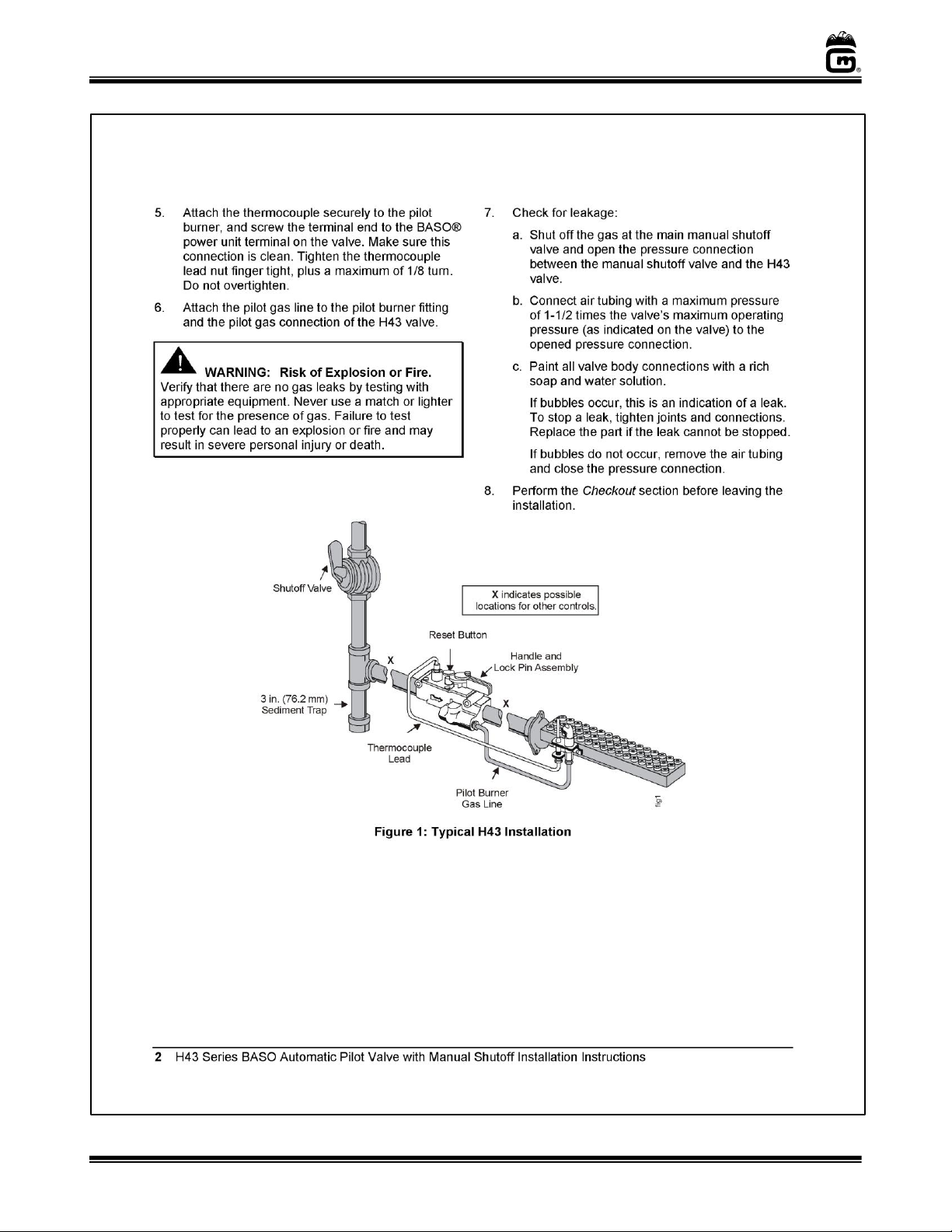

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 11
gmpopcorn.com

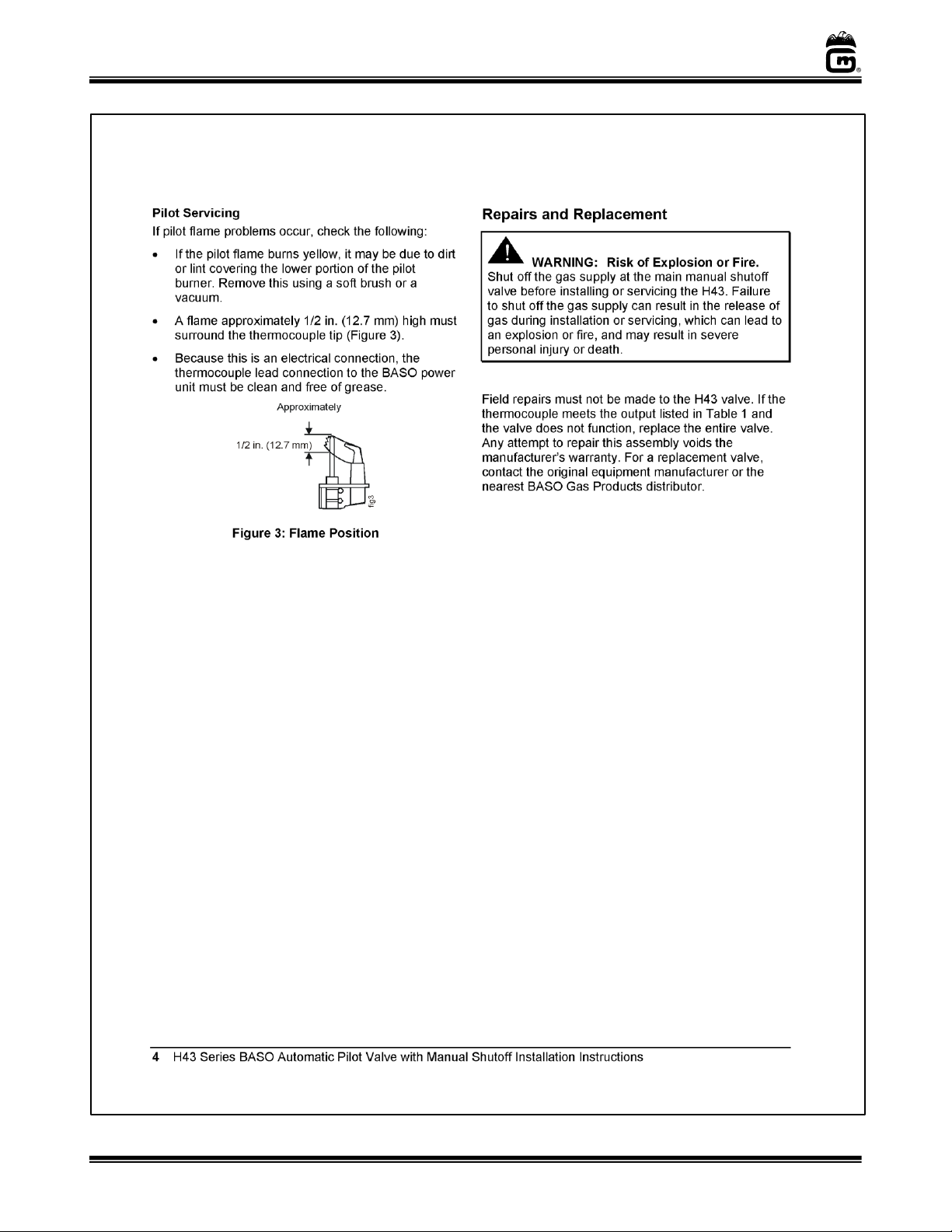

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 12
gmpopcorn.com

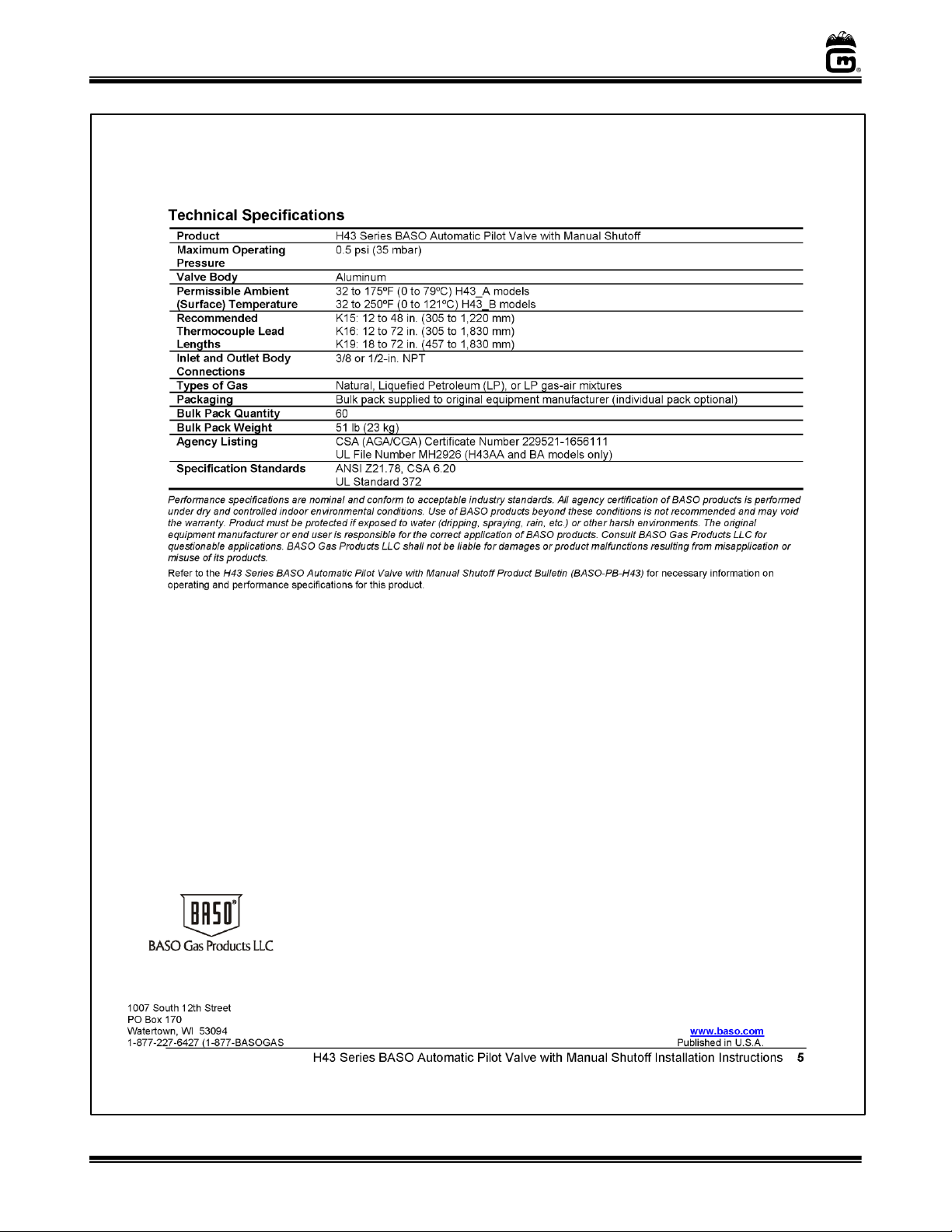

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 13
gmpopcorn.com
OPERATING INSTRUCTIONS
Controls and Their Functions
GAS SAFETY VALVE
The Gas Safety Valve has three settings used to control gas flow; PILOT, ON, and OFF
positions. (Reference the Lighting and Shutdown Instructions in the Operating Instruction
section of this manual.)
PILOT position - When the Gas Safety Valve is in the PILOT position, the Safety Valve
Button may be pressed to provide gas for lighting the pilot.
ON position - Once the pilot is lit, turn the Gas Safety Valve to the ON position to ignite the
main burner for use.
OFF position –The Lock Button on the Gas Safety Valve handle must be pulled out to
rotate the valve into the OFF position.
Gas Safety Valve - handle
shown in PILOT position.
Lock Button on the
Gas Safety Valve.
Safety Valve Button
Press to provide gas
for the pilot.
Gas Safety Valve
handle shown in
ON position.
Gas Safety Valve
handle shown in
OFF position.
Pull out the Lock Button on
the Gas Safety Valve to rotate
valve into OFF position.
General gas valve image shown for reference only.

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 14
gmpopcorn.com
Lighting and Shutdown Instructions
Steps to Light the Pilot and Burner:
1. Turn the Gas Safety Valve to the PILOT position.
2. Depress the Safety Valve Button next to the safety valve handle. Hold this button down
for 30-45 seconds.
3. Light the pilot burner with a household match. Continue to hold the Safety Valve
Button for approximately 20 seconds. Release the Safety Valve Button and the pilot
burner will remain lit.
4. Turn the Gas Safety Valve Handle to the ON position. The main burner will ignite.
Steps to Shut Down the Pilot and Burner:
1. To extinguish both the pilot and the main burner flames, pull the Lock Button on the
Gas Safety Valve, and turn the Safety Valve Handle to the OFF position.
2. Should the burner become extinguished because of the high-limit tripping, shut off the
gas supply until the unit cools down, then re-light.
CAUTION
If pilot is turned off, a five minute shutdown period is required before
attempting to re-light.
035_042814
If the Flame Goes Out
If the flame goes out, a five minute shutdown period is required before attempting to re-light.
1. Check to see if you are out of gas.
2. Check to see if the thermocouple is in the proper position.

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 15
gmpopcorn.com
Making Candy Apples
Candy Apple Coating
Candy apple coating is a mix of various sugars: sucrose, glucose, and dextrose. Hard candies have
traditionally given chefs trouble. However, using fully prepared mixes such as our APPL-EZ
eliminates most chances of a bad batch.
Follow the instructions on the APPL-EZ bag for the proper amount of sugar and water.
In APPL-EZ, or any other dextrose-based mix, the stated quantity of water is very important.
•Too much water results in a longer cooking time and thicker batch.
•Not enough water results in crystallization and “raw” candy.
•Make sure there is ample gas for the unit.
Apple Sticks
The large 5½" long, round Northern wood stick is preferred. The length makes small apples
seem larger. Gold Medal also sells the smaller 4½" lengths for economy. The round geometry
makes spinning the apple in the pot easier than flat or square sticks.
Amount of Water
Sufficient water must be used to allow for the correct cooking time. Cooking time is the most
important aspect of candy making.
•Too short of cook time leads to crystallization and no set-up.
•Too much time causes a brownish color, a burnt taste, and too thick a batch.
•Optimum cooking time is between 15 and 20 minutes.
Types of Apples
Pick a hard apple, (in either color). Dipping an apple in hot candy actually cooks the “meat” of the
apple just under the skin. The juices in this “meat” make the skin become sticky.
Never use cold refrigerated apples. Allow refrigerated apples to warm up to room temperature,
otherwise, the candy may not stick to the apple skin.
Temperature
Optimum cooking temperature is 275°F.
Remember: The cooking process actually means melting the sugar crystals. Sugar burns
at 330°F; to be on the safe side, never allow temperature to exceed 300°F.

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 16
gmpopcorn.com
Dipping the Apples
Make sure apples are cleaned and sticks are inserted. When temperature is 275°F, turn heat OFF.
1. Pick up apple by stick, with thumb and index finger, insert into candy apple coating
(immersing entire apple).
2. Remove from candy and carefully scrap off excess candy.
3. Place on greased cooling rack.
Ground Peanut Coatings
Rolling candy apples in ground peanuts makes them very attractive. You must roll apples
immediately after dipping, otherwise nuts may not stick. Shredded coconut may also be used.
Cellophane Wrapping
Cellophane wrappers keep apples good for several days. They are a must in high humidity areas.
Wrap apples as soon as they cool.

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 17
gmpopcorn.com
Care and Cleaning
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
Good sanitation practice demands that all food preparation equipment be cleaned regularly (only
use non-toxic, food grade cleaners).
For surfaces needing further cleaning or degreasing, Watchdog Stainless Cleaner (Item No. 2088)
is available for use accordingly. For any cleaning products used, follow the manufacturer’s
instructions on the product. DO NOT use oven cleaners or abrasive materials as they will
damage parts of machine.
Follow the directions below to clean the unit each day after use.
1. Follow burner shutdown instructions to turn the unit OFF, then allow it to cool before
attempting to clean.
2. Do not leave water in pans overnight. Clean all pans/accessories after each use—
remove the insert and take it to sink to clean.
3. Wipe unit clean with a soft cloth, SLIGHTLY dampened with soap and hot water, then
wipe again to remove any remaining cleaner.
4. Thoroughly dry entire unit after cleaning.

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 18
gmpopcorn.com
THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY
MAINTENANCE INSTRUCTIONS
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
Hot surface and hot oil inside unit. DO NOT touch! Always allow unit to cool
before cleaning, servicing, or draining oil.
026_031914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH GAS
EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR.
027b_051514

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 19
gmpopcorn.com
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or
parts list. (General images may be used in manual for reference only.)
2. Use only approved replacement parts when servicing this unit.
3. When ordering, please include part number, part name, and quantity needed.
4. Please include your model number, serial number, and date of manufacture (located
on the machine nameplate/data plate) with your order.
5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700
Medallion Drive, Cincinnati, Ohio 45241-4807
or place orders by phone or online:
Phone: [phone]
[phone]
Fax: [phone]
[phone]
E-mail: [email protected]
Web Page: gmpopcorn.com

Candy Apple Stoves Model No. 4110BG, 4110HD
Page 20
gmpopcorn.com
Stove Unit - Parts Breakdown
7
1
2
3
5
4
8
9
10
6
11, 12
14
16
17
15
Leg Assembly (mounting
brackets are preinstalled)
To replace an old-style leg,
replace all three as a set to
make sure unit sits correctly.
General images shown for parts reference only.
13
Aluminum Tubing
(not shown)
