BENETEAU First 31.7 User manual

FIRST 31.7
MAJ ANG 14/09/98
OWNER’S MANUAL
FIRST 31.7
FR-BEY_________
BENETEAU REF :
SUMMARY:
I) INTRODUCTION................................................................................................................................................3
II) IDENTITY CARD OF THE BOAT....................................................................................................................4
III) ACCOMMODATION .......................................................................................................................................6
IV) DECK (Location of the life raft)........................................................................................................................8
V) SAILS AND RIGGING ......................................................................................................................................9
VI) FRESH WATER SYSTEM.............................................................................................................................12
VII)BILGE PUMP SYSTEM.................................................................................................................................14
VIII)SEACOCKS AND SKIN FITTINGS ............................................................................................................16
IX) ELECTRIC SYSTEMS ...................................................................................................................................18
X) GAS SYSTEM..................................................................................................................................................24
XI) EMERGENCY SYSTEM OF THE STEERING SYSTEM ...........................................................................26
XII) MOTORIZATION .........................................................................................................................................27
XIII) HANDLING..................................................................................................................................................29
XIV) MAINTENANCE .........................................................................................................................................30
XV) ENVIRONMENT...........................................................................................................................................33
EXPLANATION OF THE TYPOGRAPHY USED:
DANGER
WARNING
TAKE CARE
RECEIPT

FIRST 31.7
MAJ ANG 05/09/01 2/35
OWNER’S NAME …………………………………………………………………………..
ADDRESS …………………………………………………………………………..
…………………………………………………………………………..
…………………………………………………………………………..
Owner of the FIRST 31.7 n° ……………………………………………………………………………….
Do certify that I have accepted delivery and read the information in the owner’s manual delivered with the boat.
On …………………………………………
Signature
Please keep this copy for your records
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
RECEIPT
OWNER’S NAME : …………………………………………………………………………..
ADDRESS : …………………………………………………………………………..
…………………………………………………………………………..
…………………………………………………………………………..
Owner of the FIRST 31.7 n° ……………………………………………………………………………….
Do certify that I have taken delivery and read the information in the owner’s manual delivered with the boat.
On …………………………………………
Signature
Please send back this copy to BENETEAU S.A
ZI des Mares BP66
85270 Saint Hilaire de Riez
FRANCE

FIRST 31.7
MAJ ANG 05/09/01 3/35
I) INTRODUCTION
Dear Madam, Dear Sir,
You have just taken delivery of your new BENETEAU boat and we would like to congratulate you first
of all for the confidence you showed to us in choosing a product of our mark.
A BENETEAU boat is built to last : each boat is subject to particular care in the slightest details, as
early as when she is designed, when she leaves the factory and she is launched ; this way, she will come up to
your expectations for many years.
This manual was meant to help you to enjoy your boat safely. You will find in it the details of your
boat , her fittings and information about the use and maintenance. Read it carefully and get to know her before
you put out to sea.
If this is your first boat, or if you change to a new type of boat (to which you are not used) get some
training to control and sail her , to ensure your safety and comfort. Then you will be able to assume the command
of the boat. Your dealer, your national sailing association or your Yacht club will be very happy to recommend
you local sailing schools or professional instructors.
Have fine and safe sailing time.
(1) Throughout their lives, our boats are regularly improved and benefit from our experience and our
customers’ experience ; therefore the specifications given in this owner’s manual are not contractual and may be
modified without prior notice and up dating obligation.
In the same way, this manual has a general purpose and it may sometimes list some equipments or refer
to some points which are not relevant to your own boat. In case of doubt, you shall always refer to the inventory
list.
KEEP THIS MANUAL IN A SAFE PLACE AND HAND IT OVER TO THE NEW OWNER IF YOU SELL
THE BOAT.

FIRST 31.7
MAJ ANG 05/09/01 4/35
II) IDENTITY CARD OF THE BOAT
Type........................................................ FIRST 31.7
Name of Builder .................................... BENETEAU SA
Design Category..................................... Afor deep keel and Bfor shoal keel
N° of acknowledged body ...................... CE 0607
Hull Length : 9.50 m
Hull Beam : 3.23 m
Draught: Deep keel 1.90 m
Shoal keel 1.45 m
Head Room 14.10 m
Maxi Authorized Engine Power : 15 kW
Fuel Capacity 30 Litres
Fresh Water Capacity 170 Litres
Battery Capacity 2x70 Amp
Category Height of Waves
(m) Wind Force (Beaufort)
A>4 >8
B<4 <8
C<2 <6
D<0.5 <4
For additional information concerning the fitted equipments, please refer to their manuals enclosed in
the boat literature.
Maximum recommended number of persons on board by design category:
Category Number of
persons
Shoal keel
Number of
persons
Deep keel
A06
B66
C88
D1010
The equipments of the C.E. Certified boat are : The fuel tanks, the parts of the steering system, the parts of the
gas system and the hatches and portholes.
(1)

FIRST 31.7
MAJ ANG 05/09/01 5/35
WEIGHT ESTIMATION
SAILING CATEGORIES A B C D
Light Boat : 3660 3660 3660 3660
Safety Equipment : 50 50 50 50
Sail : 40 40 40 40
Light Displacement : 3750 3750 3750 3750
Minimum Crew :
150 150 150 150
Life Raft : 33 33 33 33
Rest of Crew : 300 300 450 600
Water : 170 170 170 70
Fuel : 57 57 57 57
Personal Equipment : 150 150 150 150
Optional Equipment
105 105 105 105
Including Holding Tank : 40 40 40 40
Auto Pilot Gear : 10 10 10 10
Spinnaker Rigging : 10 10 10 10
Micro-Wave Oven : 5 5 5 5
Roof Sprayhood : 10 10 10 10
Bimini Top : 10 10 10 10
Heating: 20 20 20 20
Margin for Extra Equipment : 200 200 50 0
MAXIMUM LOAD DISPLACEMENT
(Kg) 4915 4915 4915 4915
MAXIMUM LOAD (Kg) 1165 1165 1165 1165
MAXIMUM LOAD = MAXIMUM LOAD DISPLACEMENT – LIGHT DISPLACEMENT
ANY OVERLOADING CARRIES A RISK OF FLOODING OR LOSS OF
STABILITY

FIRST 31.7
MAJ ANG 05/09/01 6/35

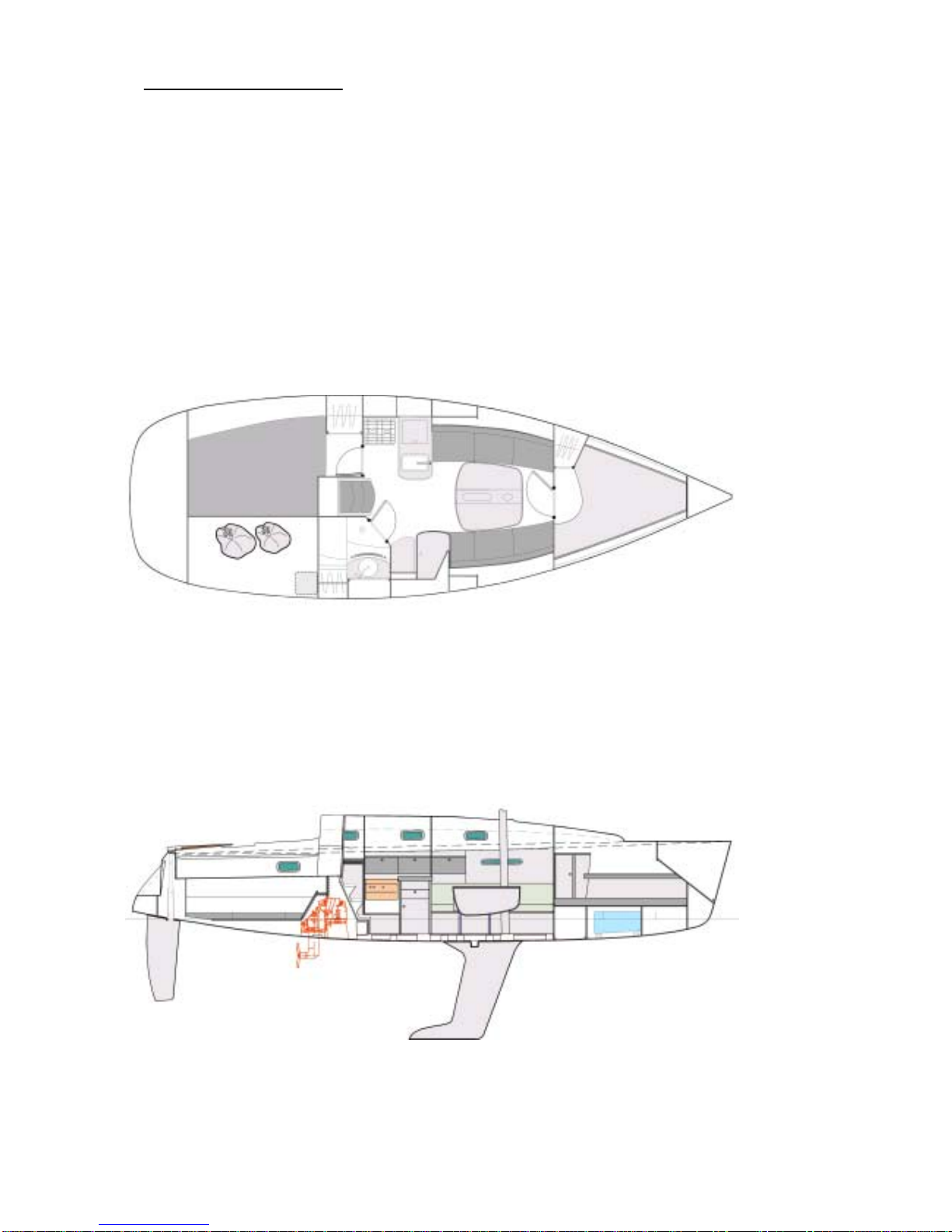

III) ACCOMMODATION

FIRST 31.7
MAJ ANG 05/09/01 7/35
EXIT IN CASE OF FIRE
= Recommended Exits

FIRST 31.7
MAJ ANG 05/09/01 8/35
IV) DECK
- The safe lines can be fastened either on the mooring cleats or on the toe rail.
Some boats are fitted with a foldaway swimming ladder. The swimming ladder shall be in its
usual place on the transom as soon as you are on board.
Make sure that the hatches and portholes are closed before you put out to sea.
In case of rough sea, close the boat with her door and washboard so that no water may come into
the boatCheck that nothing blocks up the draining holes ; never seal them.

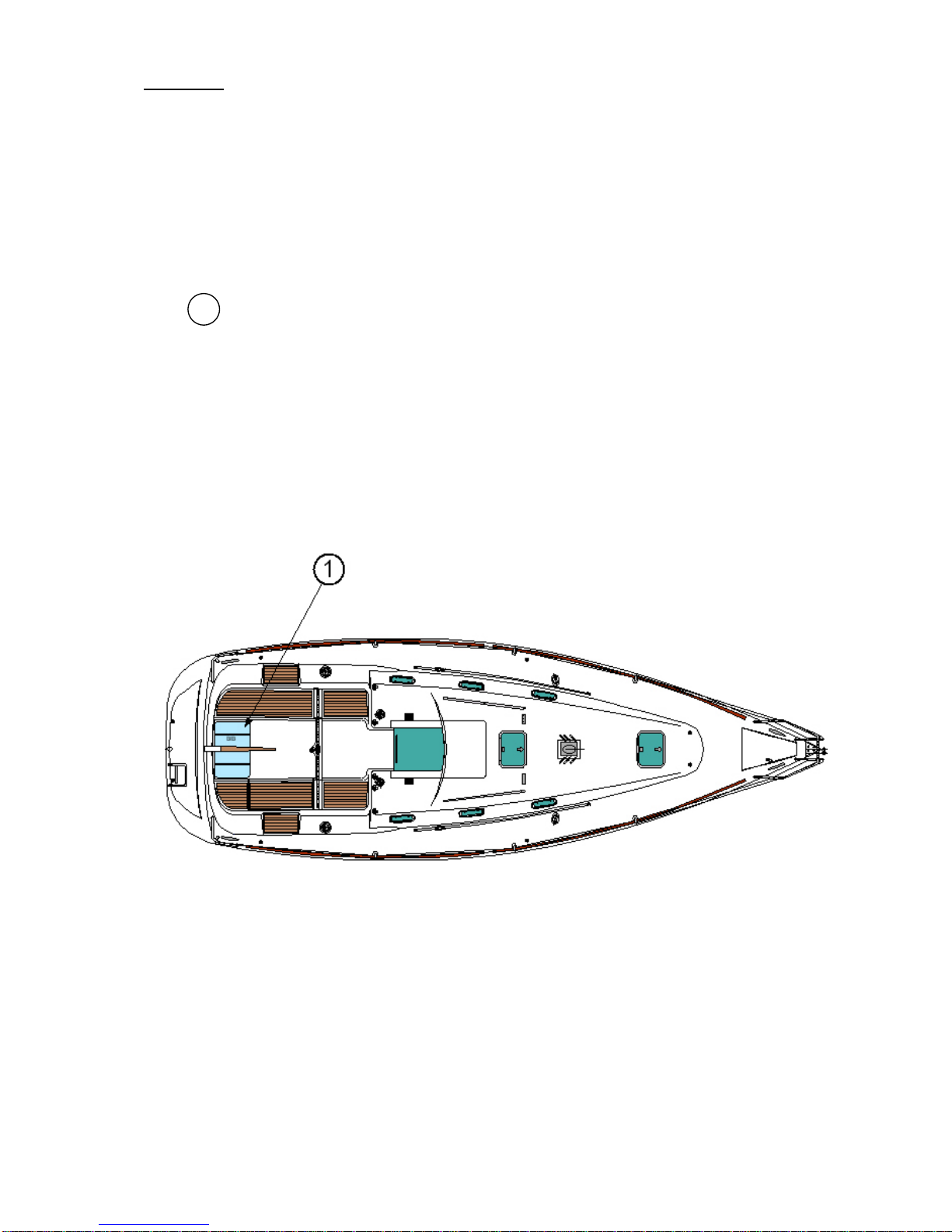

1Location of the life-raft

FIRST 31.7
MAJ ANG 05/09/01 9/35
V) SAILS AND RIGGING

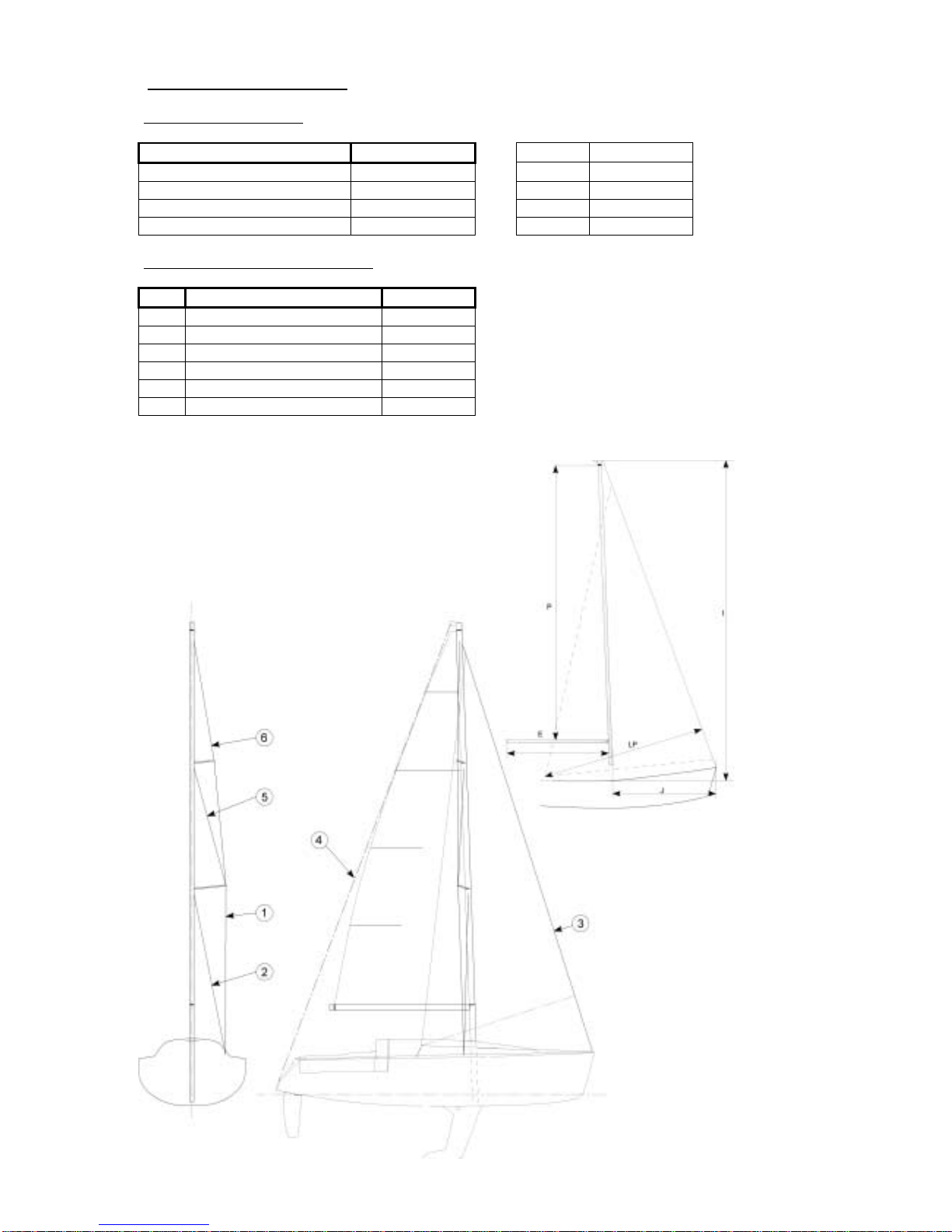

Specifications of the Sails :
SAIL AREA m² I 11.87 m
Total 53 m² J 3.50 m
Main Sail 24.4 m² P 10.80 m
Genoa (maxi) 28.6 m² E 3.90 m
Spinnaker 70 m² LP 140% 4.84 m
Specifications of the Standing Rigging:
V : Vertical D : Diagonal
REF CABLE Ø mm
1V1 7
2D1 7
3Forestay 6
4 Preventer Backstay 6
5D2 5
6V2/D3 6

FIRST 31.7
MAJ ANG 05/09/01 10/35
DECK FITTING LAY OUT
REF. STANDARD MAST REF. STANDARD MAST
1 Spinnaker Boom Downhaul 6 Boom Downhaul
2 Genoa Halyard 7 Mainsail Foot Tuning Line
3 Mainsail Halyard 8 Reef N° 2
4 Reef n°1 9 Spinnaker Halyard
5 Boom Downhaul 10 Spinnaker Boom Topping Lift (option)
11 Spinnaker Boom Downhaul
Boom Topping Lift on the Mast (Turning Cleat)

FIRST 31.7
MAJ ANG 05/09/01 11/35
MAINSAIL TACKLE, BOOM DOWNHAUL AND PREVENTER BACKSTAY

FIRST 31.7
MAJ ANG 05/09/01 12/35
VI) FRESH WATER SYSTEM
REF DESCRIPTION
1 Water Tank 170 l
4 Filler – Fresh Water Tank
5 Vent Hole – Fresh Water Tank
7 Filter – Fresh Water System
8 Water Pump
10 Boiler (capacity : 22 l)
13 Galley Sink
14 Washbasin/Shower
15 Icebox – capacity : 70 l
The fresh water system supplies the sink in the galley and the washbasins. This supply is made
depending on the models, either by a manual pump, or by an electric pump ; before this pump there is a filter it is
necessary to clean regularly.
Never run an electric pump when the tank is empty otherwise it might be irreparably damaged.
Never force the filling nozzle deep down the filler pipe in order to prevent any over pressure in the
systems and keep an eye on the vent hole(s) through which the water in excess will be discharged.
When the system has not been used for a long period of time, the tanks and pipes shall be cleansed with
an acetic acid solution (white vinegar)
The water flows out from the sink and wash basins through their own skin fitting seacocks ; Close them when the
water system is not used.

FIRST 31.7
MAJ ANG 05/09/01 13/35
LAY OUT OF THE FRESH WATER SYSTEM

FIRST 31.7
MAJ ANG 05/09/01 14/35
VII) BILGE PUMP SYSTEM
REF DESCRIPTION
1 Electric Bilge Pump 17 l/mn
2 Filter of the Electric Bilge Pump
3Sump
4 Manual Bilge Pump 0.75 l/each time
5 Electric Bilge Pump Intake
6 Manual Bilge Pump Intake
7 Electric Bilge Pump Delivery
8 Manual Bilge Pump Delivery
9 Seacock to Choose Either Bilge Pump or Shower Pump
10 Shower Pump Intake
Make sure the bilge pump system is in good working order before you put out to sea.
Make yourself acquainted with the way the bilge pump system of your boat works :
- Locate the manual bilge pump and the handle which enables you to make it work.
- Locate the on switch of the electric bilge pump and get to know how the seacocks work
(for the boats fitted with an electric bilge pump).
(See the lay out drawing of the system in the owner’s handbook)
Make sure that the bilge pump intake strum box is not blocked with dirts.
Regularly clean the intake strum box on the sump and the filter of the system in case of an electric pump.

FIRST 31.7
MAJ ANG 05/09/01 15/35

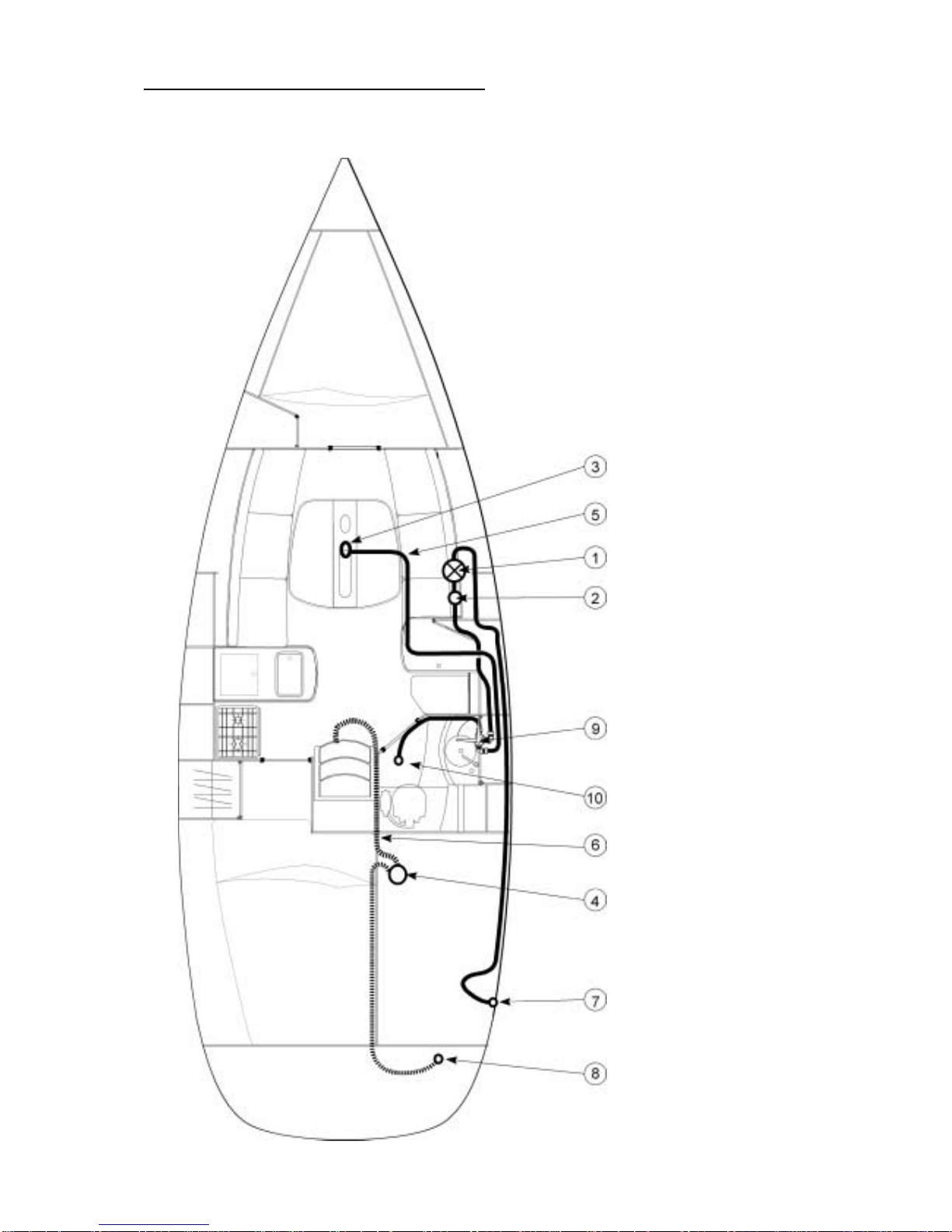

LAY OUT OF THE BILGE PUMP SYSTEM

FIRST 31.7
MAJ ANG 05/09/01 16/35
VIII) SEACOCKS AND SKIN FITTINGS
Close all the seacocks when you leave the boat.
The flushing toilets may be situated below the waterline ; get into the habit of systematically
closing the seacocks after each use.
Make sure that all the seacocks which are not used are closed before you put out to sea. (in the owner’s
manual, see the drawing where the lay out of the skin fittings is shown).
Opening and closing of the seacocks
Open
Closed
REF DESCRIPTION
1 Heads Outlet
2 Heads Intake
3 Washbasin Outlet
5 Sink Outlet
9 Log / Sounder Skin Fitting

FIRST 31.7
MAJ ANG 05/09/01 17/35
SEACOCK AND SKIN FITTING LAY OUT

FIRST 31.7
MAJ ANG 05/09/01 18/35
IX) ELECTRIC SYSTEMS
When the voltage is not specified, all the functions or panels are in 12 Volts.
12V Electric System
Neverworkonaliveelectricfitting.
Never tamper with an electric fitting. Call in a technician qualified in marine electricity.
The batteries must be carefully and safely stowed.
In order to prevent a short circuit between the battery terminals, do not store conductive objects near the
batteries (e.g. metal tools, ...)
Never alter the specifications of the devices which protect against overstrength.
Never fit or replace the electric materials or appliances by components which exceed the system
amperage.
110V-220V Electric System
Some boats are fitted with a 110V or a 220 V system (some as standard, others as an option, depending
on the models). We advise you to follow the below mentioned steps in order to avoid the risks of electric shocks
and of fire.
Do not work on a live fitting.
Connect the boat / shore supply cable in the boat before you plug it into the shore supply socket
itself.
Do not immerse the boat / shore cable sockets.
Switch off the shore supply with the switch on board before you plug in or unplug the boat / shore
supply cable.
Do not tamper with the connections of the Boat / shore supply cable. Use only compatible connections.

FIRST 31.7
MAJ ANG 05/09/01 19/35
ELECTRICITY LAY OUT
12V Electric Panel

FIRST 31.7
MAJ ANG 05/09/01 20/35
LAY OUT OF THE 12V LIGHTS AND APPLIANCES
REF DESCRIPTION FUNCTION ON PANEL
1 Bicolour Navigation Bow Light Navigation Lights
10 White Stern Navigation Light Navigation Lights
91 Compass Lights (Tiller Version) Navigation Lights
92 Compass Lights (Steering Wheel Version) Navigation Lights
5 Mooring Light Mooring Light
271 Portside Loud Speaker Navigation
272 Starboard Loud Speaker Navigation
14 Bilge pump Bilge pump
13 Water Pump Water Pump
30 Ceiling Light Cabin Lights
33 Ceiling Light Cabin Lights
34 Ceiling Light Cabin Lights
35 Reading Light Cabin Lights
36 Reading Light Cabin Lights
37 Reading Light Cabin Lights
40 Reading Light Cabin Lights
41 Galley Light Cabin Lights
43 Ceiling Light Cabin Lights
44 Ceiling Light Cabin Lights
98 Boom Light Cabin Lights
96 Navigation Instruments Navigation Instruments
97 Navigation Instruments Navigation Instruments
11 Fridge Spare
Int Switch
12V FUNCTIONS
REF FUNCTION
AMPERAGE
(A)
A Navigation Light 10
B Mooring Light 10
C Navigation 10
D Bilge Pump 10
E Water Pump 10
F Cabin Lights 10
G Comfort 10
H Navigation Instruments 10
I Spare 10
