OPERATOR MANUAL
CUSTOMER SERVICE:
[phone]
BNLB-24360
24V BATTERY / 120V AC HYBRID
360° LED WORK LIGHT
Before using this product, read this Operator Manual for
instructions and safety practices for the use of this LED Work Light
product, including the Lithium-Ion Battery and Battery Charger.
3450 N. Sabin Brown Road Toll-Free: [phone]
Wickenburg, AZ 85390
Fax: [phone] www.BNProducts.com
BN Products-USA™

Page | 2 All Rights Reserved.
© 2023 BN Products-USA, LLC.
OPERATOR MANUAL
CUSTOMER SERVICE:
[phone]
Thank you for trusting the BN Products-USA™ brand name.
We work hard to provide you with high-quality, aordable products,
and providing each of our customers with superior service.
TABLE OF CONTENTS
1. GENERAL SAFETY PRECAUTIONS 3
2. CHARGING AND USE OF LITHIUM-ION BATTERY 3
3. PRODUCT LABELS - DEFINITIONS 4
4. INTENDED USE OF PRODUCT 4
5. PACKAGE CONTENTS 5
6. TECHNICAL DATA / SPECIFICATIONS 6
7. PREPARATION FOR USE 7
8. OPERATING INSTRUCTIONS 10
9. BASIC MAINTENANCE 11
10. RECYCLING & DISPOSAL 11
11. TROUBLESHOOTING 11
12. ONE-YEAR LIMITED MANUFACTURER WARRANTY 12
BNLB-24360 / HYBRID 360° LED WORK LIGHTBNLB-24360 / HYBRID 360° LED WORK LIGHT
www.BNProducts.com

Page | 3 All Rights Reserved.
© 2023 BN Products-USA, LLC.
OPERATOR MANUAL
CUSTOMER SERVICE:
[phone]
This product should not be used by young children, or by persons with
limited physical, sensory, or mental abilities, or with insucient
supervision by a responsible adult.
Cleaning and maintenace should be performed by a responsible adult.
This product is not a toy and not intended for play. Bright lighting may
be harmful to the eyes and/or impair vision if misused.
1. GENERAL SAFETY PRECAUTIONS
– Never direct lighting toward the eyes.
LED lights may cause long-term or
temporary blindness or images of the
light source, especially under low light
conditions.
– Do not point the lights at the glass,
mirrors, or other similar reective
surfaces. Lights can reect
into the eyes of yourself or others.
– Always turn o the spotlight if
it is not used.
– When not using the light, remove
the battery from the light housing for
storage.
– Only clean the light housing using a
damp fabric cloth. Only use water to
dampen a cleaning cloth.
-Never use detergents or solvents to
clean the light, which may cause damage
to the housing or electronic components
of the product.
– Due to the risk of electric shock,
NEVER immerse the light in water or
other liquids.
– Always store the light in cool, dry
places. Keep out of the reach of
children.
– Flammable materials should never
be applied to the product and should
not be stored near where the lights are
in-use.
– Contact BN Products-USA™ Customer
Service for warranty or repair. Do not
attempt repairs on your own.
2. CHARGING AND USE OF LITHIUM-ION BATTERY
This product should not be used in
extreme temperatures. The operating
temperature of the light and its battery
is between 14°F (-20 °C) and 104°F
(40°C).
Fully charge the battery using the
included battery charger prior to using
the battery to power the light. Lithium
batteries are shipped at a state of charge
that does not exceed 30% of their rated
capacity and will NOT be fully charged at
the time of purchase or shipping.
Do not use a battery that is not
designed for use with this product under
any circumstance.
The battery will turn o automatically
when the charge level reaches a
minimum threshold. When this occurs,
the battery must be recharged or
replaced with a charged battery. Do
not press the power button once a
battery has powered-down, as this could
cause damage to battery components.
Batteries that fail after being charged
should be replaced and properly
disposed of.

Page | 4 All Rights Reserved.
© 2023 BN Products-USA, LLC.
OPERATOR MANUAL
CUSTOMER SERVICE:
[phone]
3. PRODUCT LABELS - DEFINITIONS
Warning or Caution
(Risk to user;
explained with
additonal information)
Indicates degree of
impact protection
See instructions from
operator manual
Indicates electrical current
protection class
Indicates Direct Current
(DC)
Indicates recycling
requirement related to
product disposal
Indicates Lithium-Ion
battery type in-use
Indicates requirement
for special disposal and
necessity to separate this
product from ordinary
waste
Indicates degree of
protection against
exposure to dust and/or
moisture
Indicates product has met
valid certcation
corresponding to “EU”
requirements and
standards
4. INTENDED USE OF PRODUCT
The BNLB-24360 is a rechargeable LED oodlight which uses a 24V Lithium-Ion
battery (included), and a 120V AC/60 Hz auxilliary power supply. The compatible
24V Li-Ion battery is charged using its companion battery charger (included in the
BNLB-24360 product kit).
OPERATING THIS LIGHT UNDER 120V AC POWER WILL NOT CHARGE THE 24V
LITHIUM-ION BATTERY.
The battery may only be charged using the accompanying charger.
This product is designed for construction sites and shop areas for indoor/outdoor
use, and may be used safely for recreational activities such as camping, photography,
and other outdoor activities requiring the use of a small-area oodlight.

Page | 5 All Rights Reserved.
© 2023 BN Products-USA, LLC.
OPERATOR MANUAL
CUSTOMER SERVICE:
[phone]
5. PACKAGE CONTENTS
1Retractable LED lamp
2Carrying Handle
3Lamp Position Lock Button
4Lamp Brightness Control Switch (Battery Power Only)
5Power Cord Holder
6Folding Tripod
7Battery Housing
83-Position Power Switch / Battery-AC Toggle
A24V 4.0Ah Battery (BNCE-24VLI-4C)
B120V AC Battery Charger (BNCE-24VCHGR-120C)
*BN Products-USA, LLC. reserves the right to introduce modications in design, equipment,
operating manual and its contents, or related products and materials at any time, with
or without notice.

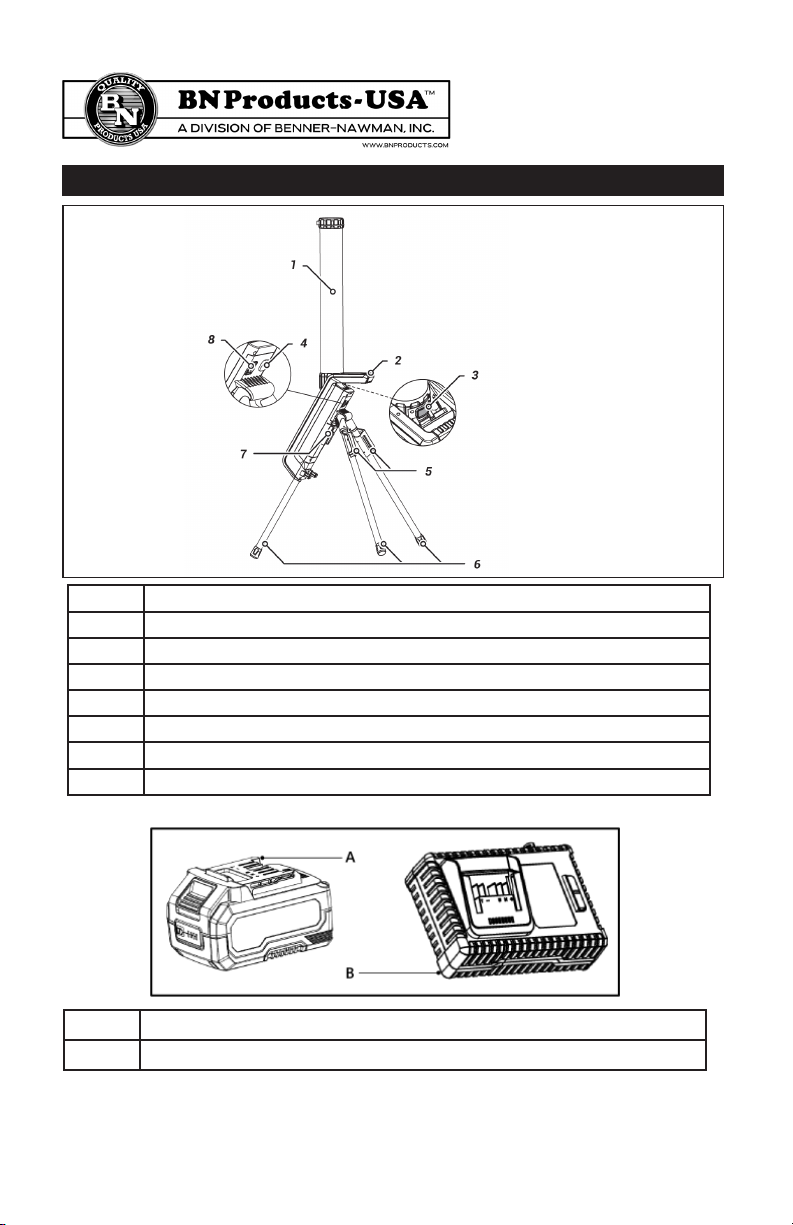

Figure 1
Figure 2
BNL/BNLB-24360
(Expanded View) 360° LED Work Light
Product Overview
(Included in BNLB-24360 Work Light Kit (with Battery & Charger) Only)

Page | 6 All Rights Reserved.
© 2023 BN Products-USA, LLC.
OPERATOR MANUAL
CUSTOMER SERVICE:
[phone]
6. TECHNICAL DATA / SPECIFICATIONS
Product ID BNL-24360 (Light Only)
BNLB-24360 (with Battery/Charger Included)
Description 360° Hybrid 24V DC/120V AC LED Work Light
Power Battery: 24V - 30 Watts
AC: 120V - 50 Watts
Battery Voltage Nominal (Rated): 21.6V
Peak (Maximum): 24V
Net Lumens (Battery) 3300 (Maximum)
(AC) 5000
Brightness Settings Four (4) - Battery Mode Only
(25% - 50% - 75% - 100%)
Color Rendering CRI Ra>80
Light Color Cool White (6500K)
Protection Classes IP54 and IK-07
Operating Temperature 14°F to 104°F / -10°C to 40°C
Dimensions
(Expanded)
31.6” x 25.0” x 53.2”
(80.5 x 63.6 x 135.1 cm)
Weight
(with Battery)
8.9 lbs. / 4.06 kg
Replacement Battery
Model #
BNCE-24VLI-4C
Replacement Battery
Charger Model #
BNCE-24VCHGR-120C
Power Cord Length 78.7” (200 cm)

Page | 7 All Rights Reserved.
© 2023 BN Products-USA, LLC.
OPERATOR MANUAL
CUSTOMER SERVICE:
[phone]
7. PREPARATION FOR USE
• Unpack the Work Light package
contents, and inspect all parts and
contents for damage or missing
components. Contact Customer
Service if any parts are missing or
damaged.
• Ensure that no condensation or
moisture is present on or inside the
product. Allow the product and
all components to completely dry
before use.
• This product may only be used with
the 24V battery intended for use
with this product.
• Refer to the following instructions
for use with the rechargeable
battery.
• This product includes a 120V AC
auxilliary power supply and cord.
BATTERY CHARGING
• The battery ships with only a very
small charge. It is necessary to
charge the battery fully before rst-
time use.
• Plug the battery charger into a
proper AC voltage source. The
charging light will start blinking
green.
• Insert the battery cartridge into
charger.
• When the battery cartridge is
inserted, the red charging light will
light up to indicate that the battery
is actively charging.
• When the battery is charged, the
charging light will change from red
to green.
• After charging, remove the battery
cartridge from charger, and unplug
the charger. Store the charger in a
cool, dry place away from moisture.
BATTERY CHARGE INDICATORS
• Use the table on Page 9 (Figure 5)
to determine the battery charging
status while inserted into the
charger.
• If the battery is not charging (Red/
Green lights ashing), and the
battery unit is within operating
temperature (cf. Figure 5), check
the connection of the power cord
to the outlet, and make sure that
the terminals and connection to the
battery are clean.
• If necessary, contact Customer
Service if basic troubleshooting fails
to correct problems charging the
battery.
The Battery Charger included in this
product is intended only for charging
the accompanying Battery product.
The Charger should never be
used to charge battery products or
devices from another manufacturer.
Do not attempt to charge a battery that
is hot to the touch from being exposed
to the sun or from use for an extended
period. Allow time for the battery to
cool prior to charging.
If a battery has been exposed to very
cold or freezing temperatures, allow for
the battery to warm to within operating
range and is free of condensation or
moisture prior to charging.
IMPORTANT!

Page | 8 All Rights Reserved.
© 2023 BN Products-USA, LLC.
OPERATOR MANUAL
CUSTOMER SERVICE:
[phone]
BATTERY CHARGE INDICATORS (Continued)

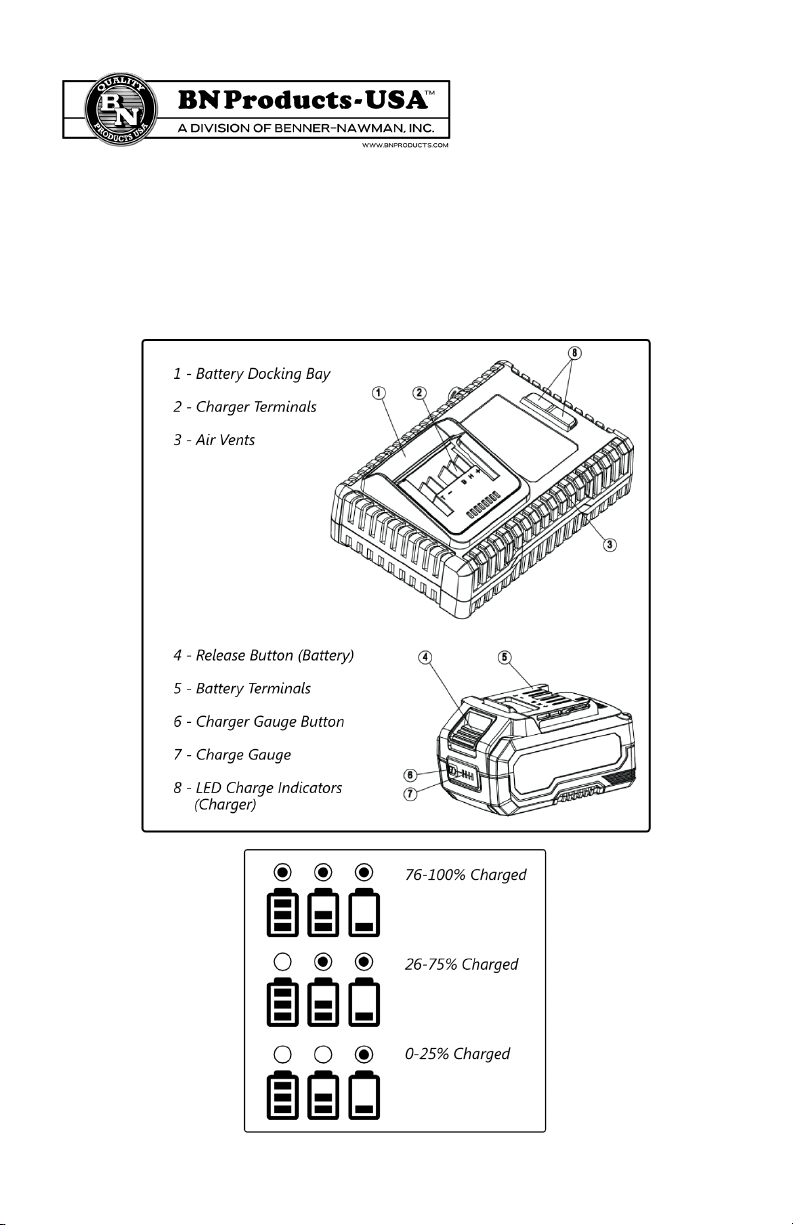

• The battery is equipped with the ability to indicate its current charge level. Press
the Charge Gauge Button on the front of the battery housing (hold for 1 second;
see Figure 3, #6).
• The LED gauge to the right of the button will display the current charge level of
the battery.
Figure 3
Figure 4

Page | 9 All Rights Reserved.
© 2023 BN Products-USA, LLC.
OPERATOR MANUAL
CUSTOMER SERVICE:
[phone]
• The light is ready to turn on using
battery power.
Figure 5
INSTALLATION AND REMOVAL OF
BATTERY
• Expand the tripod of the LED light
to an upright position.
• Make sure that the battery guides
are free of debris or packaging
materials before attempting to
install the battery.
• Install the battery into the light on
the underside of the lamp housing
(See Figure 6 to refer to the location
of the battery socket):
• Align the tabs on the battery
with the guides on the bottom
of the light (Figure 6), and
slide the the battery unit into
place in the direction of Arrow
B (Figure 7) until the battery
clicks into place. (Note: You will
be inserting the battery upward
toward the handle.
• Do NOT apply excessive force to
insert the battery into the light; if
the battery does not freely slide
into place, check the battery
socket for any obstruction.
• Make sure the Battery latch (Figure
7) has “clicked” in to place.
• To remove the battery from the
unit, press the Battery Release and
remove the battery in the direction
of Arrow A in Figure 7.
Before turning on - make sure you are not
looking directly at the lamp. LED lights are
extremely bright, with potential to cause harm.
LED LIGHTING - WARNING
Figure 6
Figure 7

Page | 10 All Rights Reserved.
© 2023 BN Products-USA, LLC.
OPERATOR MANUAL
CUSTOMER SERVICE:
[phone]
OPERATING TEMPERATURE WARNING
Only operate this LED Work Light within the operating temperature range of 14°F to 104°F
(-10°C to 40°C). Using this product outside of the acceptable range may cause permanent
damage to the light product and/or the Li-Ion battery, and may cause the risk of hazardous
conditions.
OPERATING THE LAMP
POWER MODES
• The BNLB-24360 has a three-
position switch that sets the light
to turn ON using AC Power, turn
ON using Battery power, and turn
to the OFF position. (Figure 8)
• The center or middle position of the
switch turns the light OFF.
AC POWER
• To use the light on AC/corded pow-
er, plug the light into a grounded,
3-prong socket. Do not alter the
grounded plug in any way to use
an outlet that it is not intended
for.
• Press the three-position switch to
the top of the unit (-) to turn the
lamp ON under AC/corded power;
move the switch back to the center
position to turn the lamp OFF.
8. OPERATING INSTRUCTIONS
BATTERY POWER
Press the three-position power
switch toward the bottom of the
unit (=) to activate Battery power.
Use the Brightness Setting switch to
adjust brightness (Figure 8).
• There are four (4) lighting levels
programmed into the work light.
• When the light is rst turned ON,
the brightness level will be at the
lowest light level (25%).
• See Power Switch Modes below,
which indicate brightness levels.
POWER SWITCH MODES
(From OFF position)
• 1 Click - Light ON at 25% Brightness
• 2 Clicks - Light ON at 50% Brightness
• 3 Clicks - Light ON at 75% Brightness
• 4 Clicks - Light ON at 100% Brightness
• 5 Clicks - Light OFF
NOTE: Using the lamp on AC Power does
NOT charge the 24V battery.
Figure 8

Page | 11 All Rights Reserved.
© 2023 BN Products-USA, LLC.
OPERATOR MANUAL
CUSTOMER SERVICE:
[phone]
9. BASIC MAINTENANCE
CLEANING
• When necessary, wipe the housing
of the work light clean with a soft
cloth.
Do NOT to use solvents such as
alcohol, detergents, or petroleum
solvents (i.e. gasoline). Cleaning
solutions will damage the plastic
parts of the light.
• Always protect the light against
exposure to moisture, dirt, and the
risk of impact damage.
MAINTENANCE AND REPAIR
• The work light product does not
contain user-serviceable parts.
If repairs are necessary, please
contact BN Products-USA™
Customer Service for assistance
with repairs or if you believe the
product is defective in any way.
10. RECYCLING & DISPOSAL
REMEMBER TO RECYCLE!
This product should not be disposed with household or general waste. When the
light kit is old or no longer put to use, please recycle in accordance with your local
recycling policies and/or proper disposal practices.
11. TROUBLESHOOTING
The table below includes common
user scenarios and solutions while
operating the LED Work Light. If you
have a problem with the product that
you are unable to resolve, please contact
Customer Service for further assistance.
Problem Possible Cause Recommended Action
Device does not turn ON with
Battery connected to the lamp
(When using Battery mode)
Battery is not charged
adequately
Charge Battery
Damage to Battery Inspect battery for signs of
damage or moisture; Replace
Battery
Power switch or circuit
defective or damaged
Contact Customer Service
Battery not fully inserted in
socket
Install Battery into socket until
it “clicks” into place
COMMON USER SCENARIOS

Page | 12 All Rights Reserved.
© 2023 BN Products-USA, LLC.
OPERATOR MANUAL
CUSTOMER SERVICE:
[phone]
Problem Possible Cause Recommended Action
Battery not charging; Does not
charge fully; Rapid discharge
of Battery power
Battery not fully inserted into
charger
Red LED may be solid and
Green LED may be ashing;
Remove Battery from Charger
and re-insert fully along
guides
Charger Power Cord not con-
nected to live outlet
Ensure power to outlet is live;
ensure Charger is plugged in
securely
Contacts dirty on Charger or
Battery
Inspect for dirt; If dirty, unplug
Charger and remove battery;
clean with dry rag or soft
brush
Battery damaged or defective Replace Battery; Contact
Customer Service
Charger damaged or defective Replace Charger; Contact
Customer Service
Battery capacity reduced due
to age/use
Replace Battery; Contact
Customer Service if necessary
Battery discharges rapidly or is
“dead” after minimal use after
fully charging
Battery life has expired Replace Battery; Contact
Customer Service if necessary
12. ONE-YEAR LIMITED MANUFACTURER WARRANTY
BN Products-USA™ warrants our tools to the original purchaser to be free of defects
in materials and workmanship under everyday and appropriate use and service for
one year. Use the applicable QR code or web URL below to access our full One-Year
Warranty policy and procedure, or to complete a Warranty Service Request for this
product.
If you are requesting Warranty Service, it is recommended that you have your orig-
inal purchase order available to upload or scan using a mobile device. Questions
with regard to our One-Year Limited Manufacturer Warranty may be directed to
BN Products-USA™ Customer Service at [phone].
