Bennett Read OUTDOOR MISTING FAN User manual

YTS-40-A
OUTDOOR MISTING FAN
M O DERN EFFECTIVE COOLING
USER MANUAL

CONGRATULATIONS ON YOUR PURCHASE
Thank you for purchasing a
BENNETT READ OUTDOOR MISTING FAN.
Your BENNETTT READ OUTDOOR MISTING FAN incorporates the latest
technological advances and imitates the most powerful forces of nature
in a sleek, elegant design to ensure that your home is effectively cooled.
Your new BENNETTT READ OUTDOOR MISTING FAN is manufactured
to a high standard of quality and is backed up by a 12 month
guarantee by Tevo.
Should you need any support from us, please visit www.tevo.co.za or
call 0861 77 88 88.
PLEASE KEEP THIS USER GUIDE IN A SAFE PLACE
AND READ IT CAREFULLY BEFORE USING YOUR
BENNETTT READ INDOOR MISTING FAN FOR THE FIRST TIME.

WARNINGS
When using electrical appliances, in
order to reduce the risk of fire, electric
shock and/or injury, these basic safety precau-
tions should always be followed:
INSTRUCTIONS
Read all instructions carefully, even if
you are familiar with the
appliance.
• To protect against the risk of electric shock,
DO NOT IMMERSE power cord or plug in
water or any other liquid
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory and mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the appliance by a person responsible
for their safety
• Children should be supervised to ensure
that they do not play with the appliance
• Always unplug the unit when not in use
• Do not operate unit with a damaged
power cord or plug, or after a
malfunction, has been dropped or is
damaged in any manner. Return the unit
to an authorised service facility for
examination
• Do not run the power cord under
carpeting or cover the power cord with
throw rugs, runners or the like. Arrange
the power cord away from traffic areas
and where it will not be tripped over
• Do not place the power cord over any
part of the unit
• To disconnect the unit set main switch to
OFF then remove the plug from the outlet
• This unit has hot electrical parts inside
DO NOT use it in areas where gasoline,
paint or flammable liquids are used or
stored
• Do not insert or allow foreign objects to
enter any ventilation or exhaust opening
as this may cause an electric shock, fire or
could damage the unit
• Use the unit only as described in this booklet
Any other use not recommended by the
manufacturer may cause fire, electric shock
or injury to persons
• Always uncoil the power cord before
applying power
• This product must always be used AND
STORED in the upright position
• Do not use this unit with a programmer,
timer or any other device that switches
the unit on automatically, since a fire risk
exists if the unit is covered or positioned
incorrectly
• If it is necessary to move the unit after the
water has been added, move gently to the
required position
• Do not move the machine when it is in use
• Always ensure that there is water in the tank
when in use for cooling
• Do not block air circulation
• Do not use hot water
• Place the machine on a level surface
• Unplug the appliance during filling and
cleaning
WARNING
If the supply power cord is damaged it must
be replaced by a Tevo Service Centre to avoid
hazards.
This product has not been designed for any
uses other than those specified in this booklet.
SAVE THESE INSTRUCTIONS

ASSEMBLY INSTRUCTIONS
1. Mist Outlet Cover
2. Front Grille
3. Mist Outlet Cover Screws
4. Fan Blade Screw
5. Grille Clamp
6. Blades
7. Back Grille
8. On/Off Switch
9. Oscillating Switch
10. Motor Body
11. Upper Power Cable
12. Upper Power Cable Protective Cover
13. Stem
14. Lower Power Cable Cover
15. Water Tank
16. Water Release Plug
17. Mist Generator Body
18. Mist On/Off Switch
19. Mist Tube
17
14
3
4
6
2
1
5
10
11
12
13
14
19
15
16
17
18
9
8
7

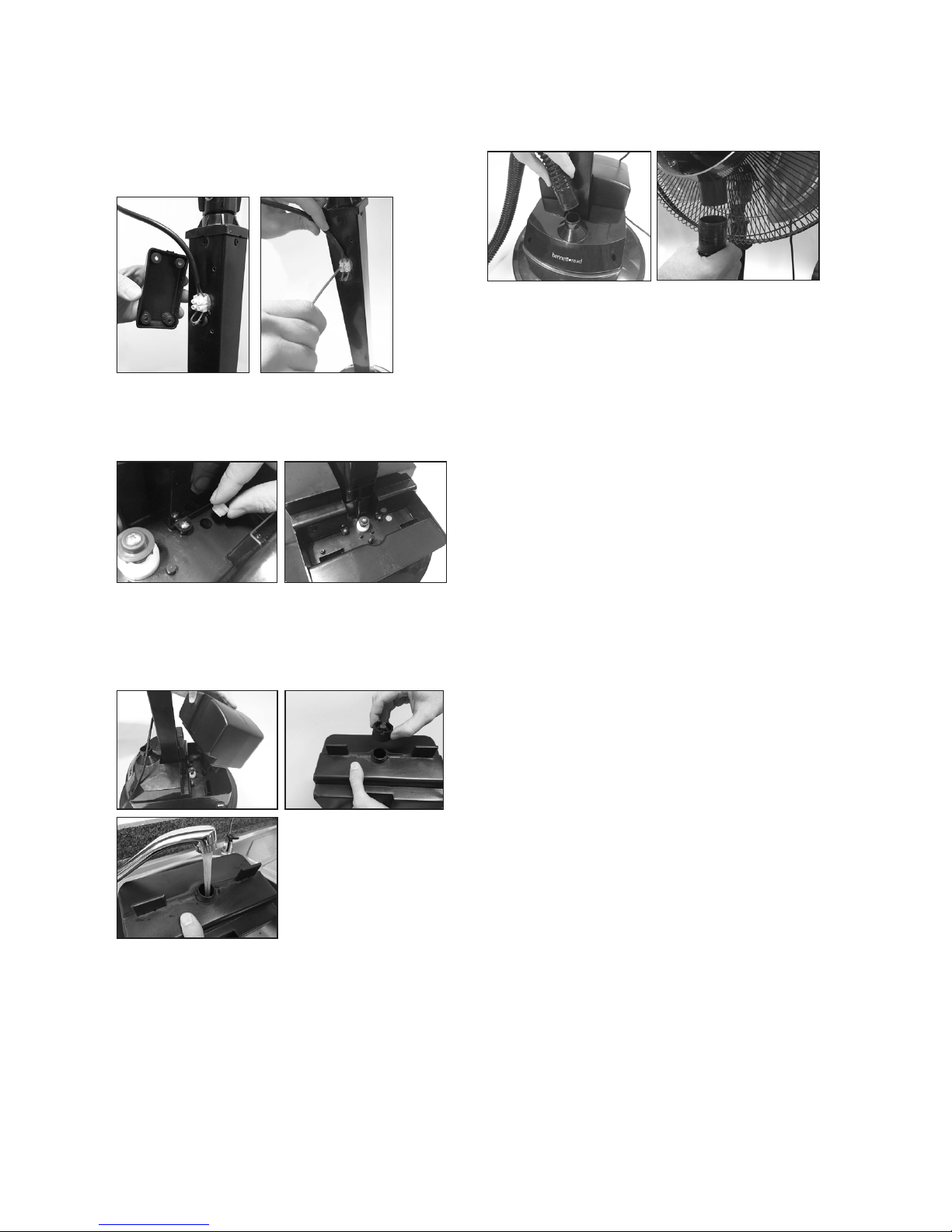

STEP 1:
Insert Stem into Mist Generator Body and fas-
ten with size19 lock screw. Do not over-tight-
en the lock screw.
STEP 2:
Remove Lower Power Cable Cover and attach
cable. Match correct cable colours (blue+blue
and brown+brown). Place Lower Power Cable
Cover back into position.
STEP 3:
Attach Back Grille to the Motor Body using
4 x supplied screws. Ensure handle is correct.
Do not over-tighten screws.
ASSEMBLY INSTRUCTIONS
STEP 4:
Secure Blades to rotating rod. Do not bend
blades. Hold centre of blades when
tightening screw.
STEP 5:
Attach Misting Outlet Cover to Front Grille
with the 4 x supplied screws.
STEP 6:
Loosen the Grille Clamp to its widest. Place
over edge of Back Grille and insert Front
Grille. Tighten clamp over both grilles. Place
cover over the screws.
STEP 7:
Place Motor Body onto Stem. Fasten with
supplied screw.

TURNING ON THE FAN
• Plug the power cord into the mains power
supply (see rating label on unit for details)
• Turn switch on Motor Body to desired speed.
• Turn on misting function by flipping on switch
located on Mist Generator Body.
SPEED CONTROL
• Select 1,2 or 3 to select speed.
SWING CONTROL
• Press the Oscillating Switch for swing control
found on Mist Generator Body.
FILLING THE WATER TANK
• Make sure that the fan is OFF and unplugged
• Remove Water Tank from fan base.
• Turn the Water Tank over and open the Valve
Body Cover
• Fill the Water Tank with water
• Close the Valve Body Cover Tightly
• Replace the Water Tank in the Mist Generator
Body
STEP 8:
Remove Upper Power Cable Cover and attach
cable. Match correct cable colours (blue+blue
and brown+brown). Place Upper Power Cable
Cover back into position.
STEP 9:
Ensure that the Water Release Plug is in place.
STEP 10:
Remove water tank. Fill up with water until full.
Place water tank back into position.
STEP 11:
Fasten Mist Tube to Mist Generator Body and
the Mist Outlet Cover.

CARE AND CLEANING
To clean your Misting Fan, first disconnect the power cord from the mains. Remove the Front Guard
and the blades, taking care not to drop the blades. First use a soft cloth with a mild detergent to
clean off oil stains, then wipe thoroughly with a dry cloth. Never use polish or any corrosive liquid
that will damage the paint, metal or plastic. Replace the blades and lock the guard securely before
use.
Never spray with liquids or submerge the Misting Fan in water or any other liquid.
Do not fill the water tank with water over 45°C, to avoid discoloration or deformation.
For regular maintenance, remove Mist Generator Body cover (as shown below) by unscrewing the
4 screws and gently clean the white mist release ports (as shown below) every 60 days (based on
heavy use) with a wet cloth.
When ambient temperature is near or below 0°C, remove all water from in and around the tank to
prevent ice forming, which could damage components.
Do not fill water anywhere other than the water tank. Mop up any spills immediately.
WARNING: Unplug from electrical supply source before cleaning or filling / emptying the water
tank. After servicing, any safety device (including grilles and blades) must be reinstalled or remount-
ed as previously installed.
USING THE COOL MIST FUNCTION
The Cool Mist function may only be used with the fan blades in operation.
Before using the Cool Mist function check that there is sufficient water in the Water Tank. Turn the
fan blades on first. Then turn on the misting function. When the water runs out, the self-protect
mechanism engages and the mist generator will switch off. The lights on the Mist Generator Body
will turn red.

CONSUMER GUARANTEE
The Bennet Read Outdoor Misting Fan has a 12 month product guarantee from Tevo (PTY) ltd.
Tevo will replace or repair, at Tevo’s option, any defective or malfunctioning part due to
manufacturing defect, free of charge from the date of purchase by the original purchaser for 12
months.
This guarantee applies to product used for personal or domestic use only, and specifically excludes
any malfunction or defect arising from commercial use.
This guarantee does not apply to routine maintenance components. Damage or malfunction caused
by negligence, abuse, neglect, unauthorized repair, or use not in accordance with the user guide is
not covered.
Tevo is not liable for incidental or consequential damages of any nature associated with the use of
this product. Tevo’s liability will not exceed the purchase price of this product.
Guarantee and service enquiries can be made by contacting:
Tevo (Pty) ltd
Gauteng 086 111 8386 or 012 740 5000
Durban 031 570 5900
Cape Town 021 380 0038/9
Customer Service Help Line 0861 77 88 88
www.tevo.co.za
