USE AND CARE GUIDE
WINDHAVEN 20 IN. CEILING FAN
Item #1003 236 526
#1003 236 524
#1003 236 525
Model #
YG658-BN
# YG658-EB
# YG658-NI
THANK YOU
THANK YOU
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.

Operation ......................................................................
Preparing the Transmitter ......................................................
Learning Process ...................................................................
Operating Your Fan and Remote Control ...............................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
16
16
16
17
18
19
20
Table of Contents
2
READ AND SAVE THESE INSTRUCTIONS
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-Installation ..............................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Dual Mounting Instructions ......................................................
Installation .....................................................................
Assembly ........................................................................
Standard Ceiling Mounting .....................................................
Close-to-Ceiling Mounting ......................................................
Hanging the Fan .....................................................................
2
3
4
4
4
4
5
6
7
8
9
9
10
11
12
Attaching the Fan Blades .........................................................

Safety Information
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
NOTE: Suitable for use in damp locations.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of fire, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. Suitable for use with solid-state speed control (RH787NRE
only).
11. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.

Warranty
4
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
SPECIFICATIONS
SPECIFICATIONS
TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Electrical
tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Pre-InstallationPre-Installation
20 in.
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Amps
Amps
1.93 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.06
0.22
0.45
3.51
12.89
34.18
98
183
260
143
293
411
7.8 kg
(17.16 lbs.)
9.06 kg
(19.93 lbs.)
Low (Speed 1)
Medium (Speed 5)
High (Speed 9)
120
Speed
Speed
Volts
Volts

Pre-Installation (continued)

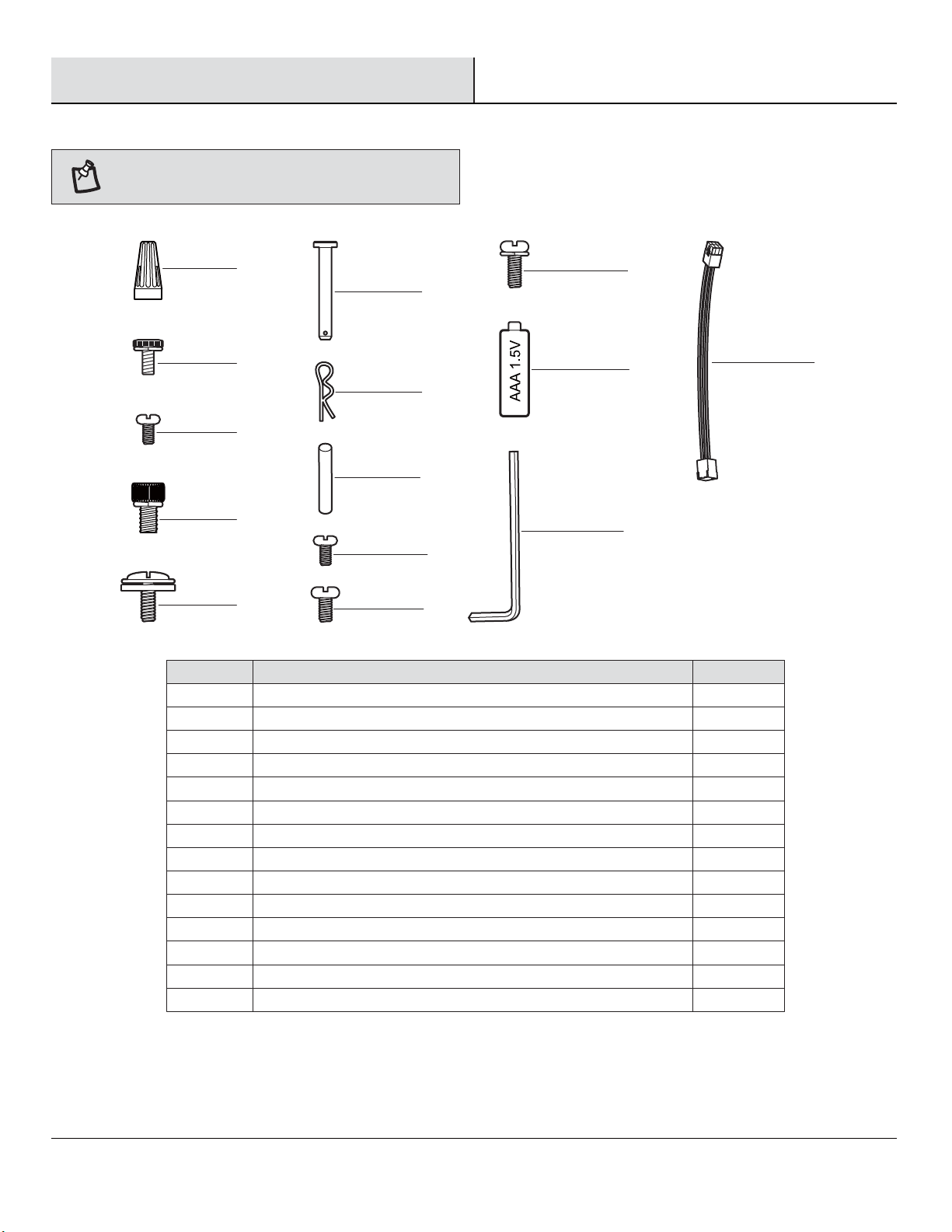

HARDWARE INCLUDED
HARDWARE INCLUDED
NOTE: Hardware shown to actual size unless noted
otherwise in the table below.
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
Plastic wire nut
Canopy mounting screw with lock washer (preassembled)
Decorative cover screw (preassembled)
Blade arm screw with lock washer
Blade attachment screw and fiber washer
Clevis pin (preassembled)
Cotter pin (preassembled)
Cross pin (preassembled)
Setscrew (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
1.5V AAA battery (not to scale)
Hex wrench (not to scale)
18” Extension cord (not to scale)
Part
Part
Description
Description
3
4
2
13
19
1
1
1
1
2
6
2
1
1
Quantity
Quantity
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
AA
BB
CC
DD
EE
GG
FF
HH
II
JJ
LL
KK
NN
MM

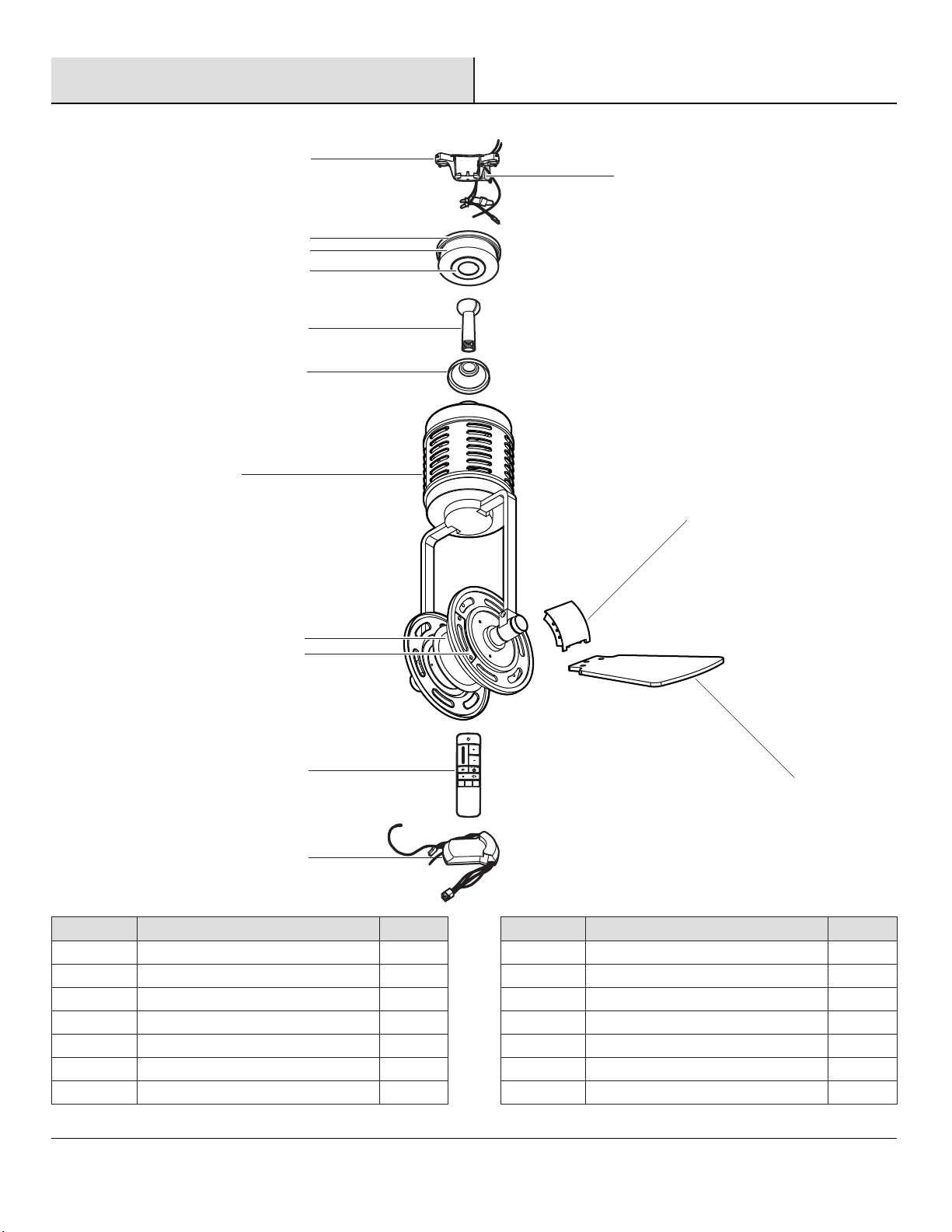

PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
K
H
L
A
F
G
M
N
Part
Part
H
I
J
K
L
M
N
Description
Description
Fan rotation motor assembly
Fan motor assembly
Decorative cover
Blade arm
Blade
Remote control
Receiver
Quantity
Quantity
1
1
1
6
6
1
1
Part
Part
A
B
C
D
E
F
G
Quantity
Quantity
1
1
1
1
1
1
1
Description
Description
Mounting bracket (preassembled)
Filter (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover
Hanger ball/downrod assembly
Coupling cover
I
J
C
D
E
B

Pre-Installation (continued)
DUAL MOUNTING INSTRUCTIONS
DUAL MOUNTING INSTRUCTIONS

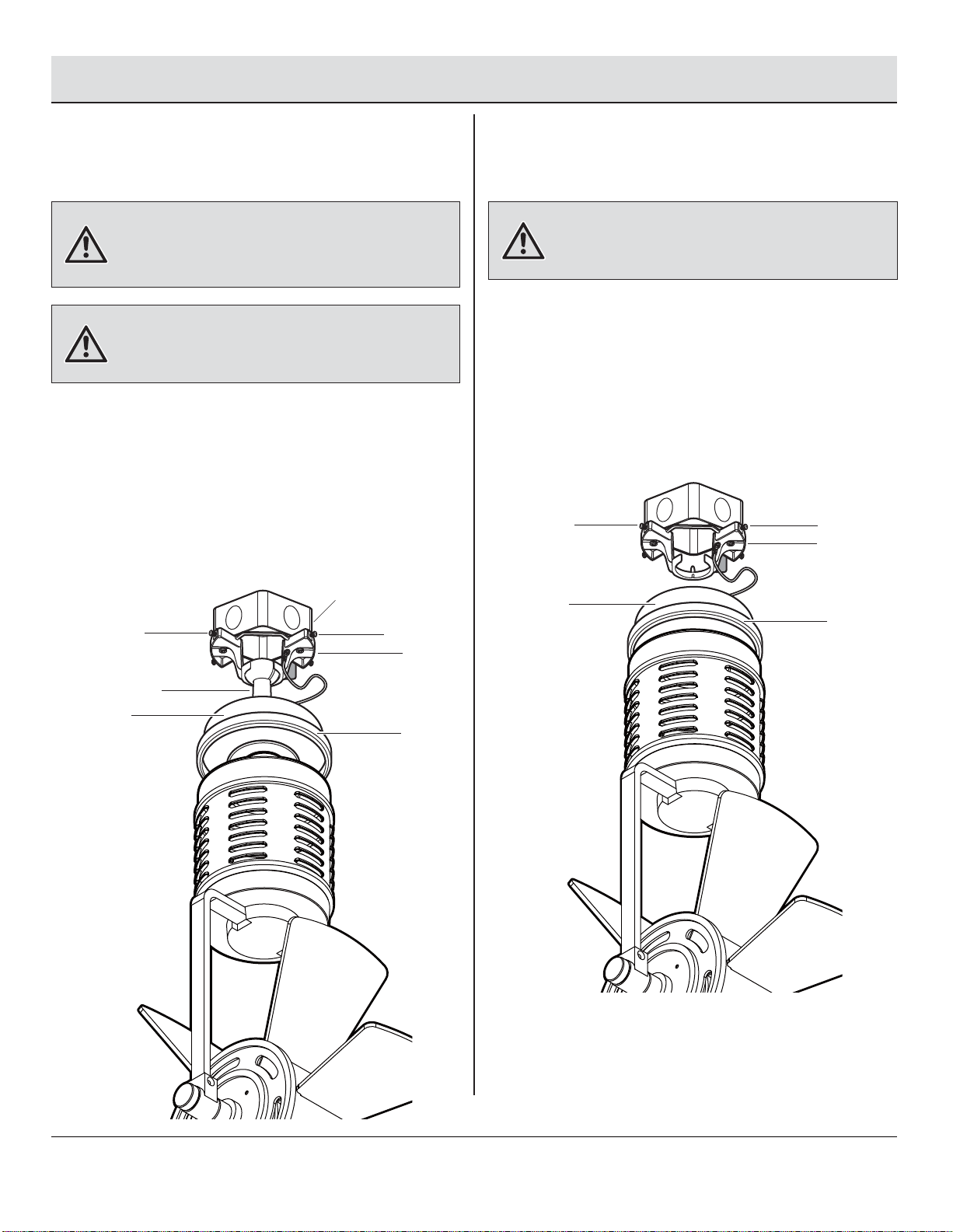

This ceiling fan is supplied with two types of hanging assemblies: the
standard ceiling installation using the downrod with ball and socket
mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling"
mounting is recommended in rooms with less than 8 ft. ceilings or in
areas where additional space is desired from the floor to the fan blades.
Once you have decided which ceiling installation you will use, refer to the
corresponding sections and procedures during the assembly period.
Where necessary, each section of the instructions will note the different
procedures to follow for the two types of installation.
Standard Ceiling Mounting
Close-to-Ceiling Mounting
7 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

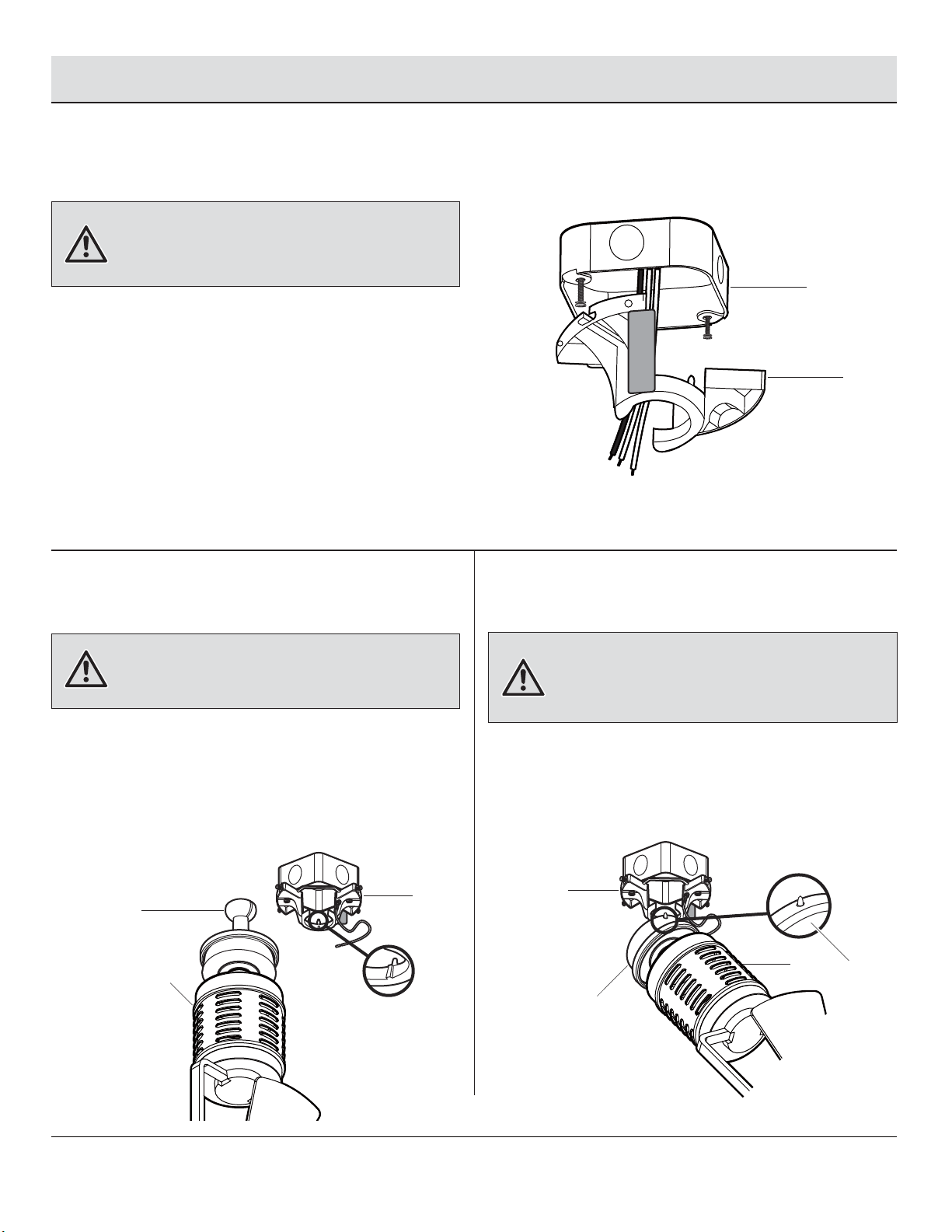

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (PP) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (OO) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (OO) (not included).
OO
OO
PP
OO
OO
A
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (D) touches the hanger ball/downrod assembly (F),
then remove the decorative canopy bottom cover (E) and turn
the canopy (D) 180° before attaching the canopy (D) to the
mounting bracket (A).
8

Assembly — Attaching the Fan Blades
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

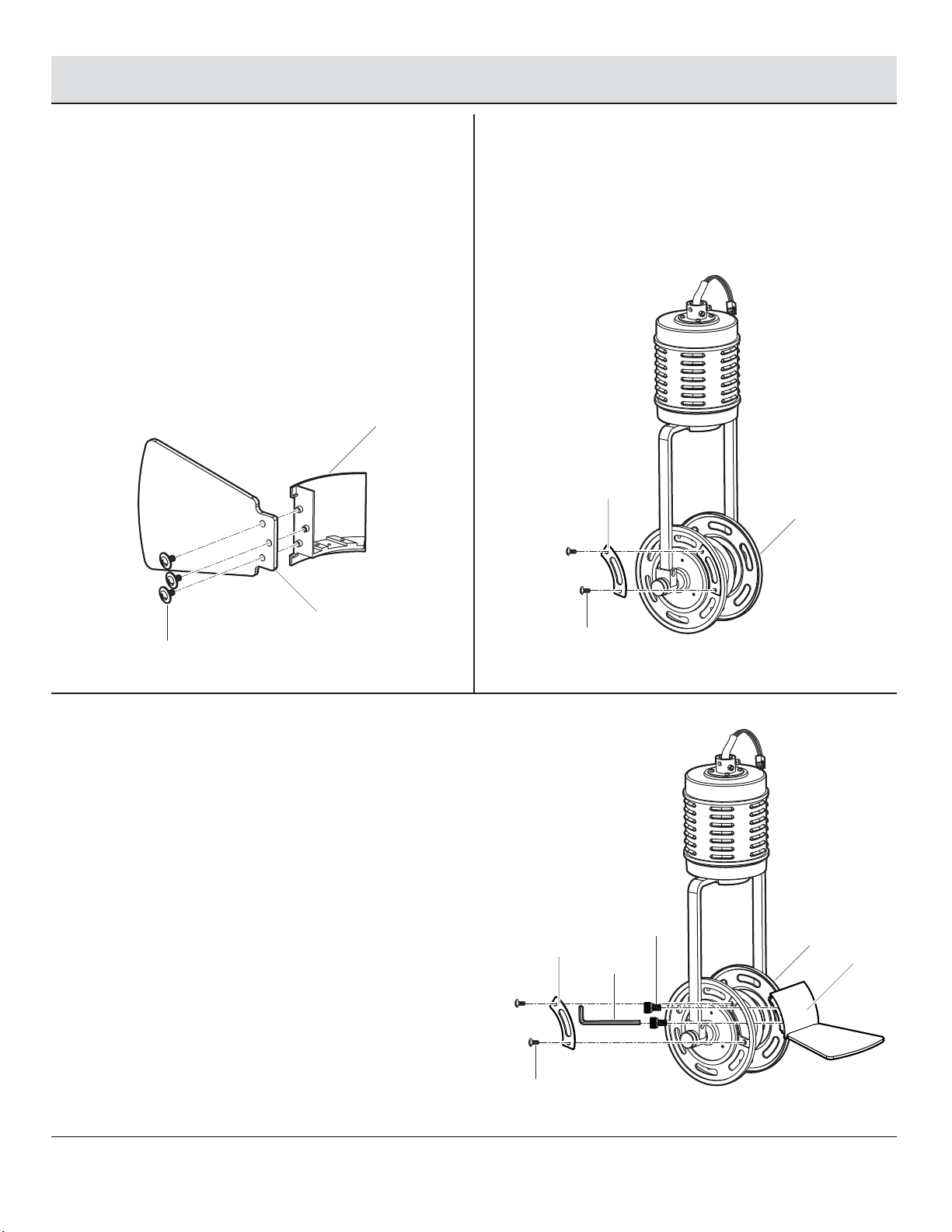

Attaching the blades to
the blade arms
12
Remove the decorative
cover from the motor
□Attach the blades (L) to the blade arms (K) using the
three blade attachment screws and fiber washers (EE).
Start a screw with fiber washer (EE) into the blade
arms (K), but do not tighten.
□Repeat for the two remaining blade attachment
screws and fiber washers (EE).
□Tighten each screw securely starting with the center
screw. Make sure the blade (L) is straight.
□Repeat these steps for the remaining blades (L).
□Remove the decorative cover (J) from the fan motor
(I) by remove the two decorative cover screws (CC) on
the motor (I).
K
EE
L
J
CC
I
3Fastening the blade
assemblies to the motor
□Align the holes from the blade arm (K) to the holes
from the motor assembly (I), and secure the blade
arm in place with blade arm screw with lock washer
(DD) by useing the hex wrench (MM) provided.
□Repeat this process to attach the other blade
assemblies.
□Re-install the decorative cover (J) back to the fan
motor assembly (I) by useing the two decorative
cover screws (CC) previously removed.
I
MM
DD
CC
K
J

1Preparing the canopy 2Preparing the motor

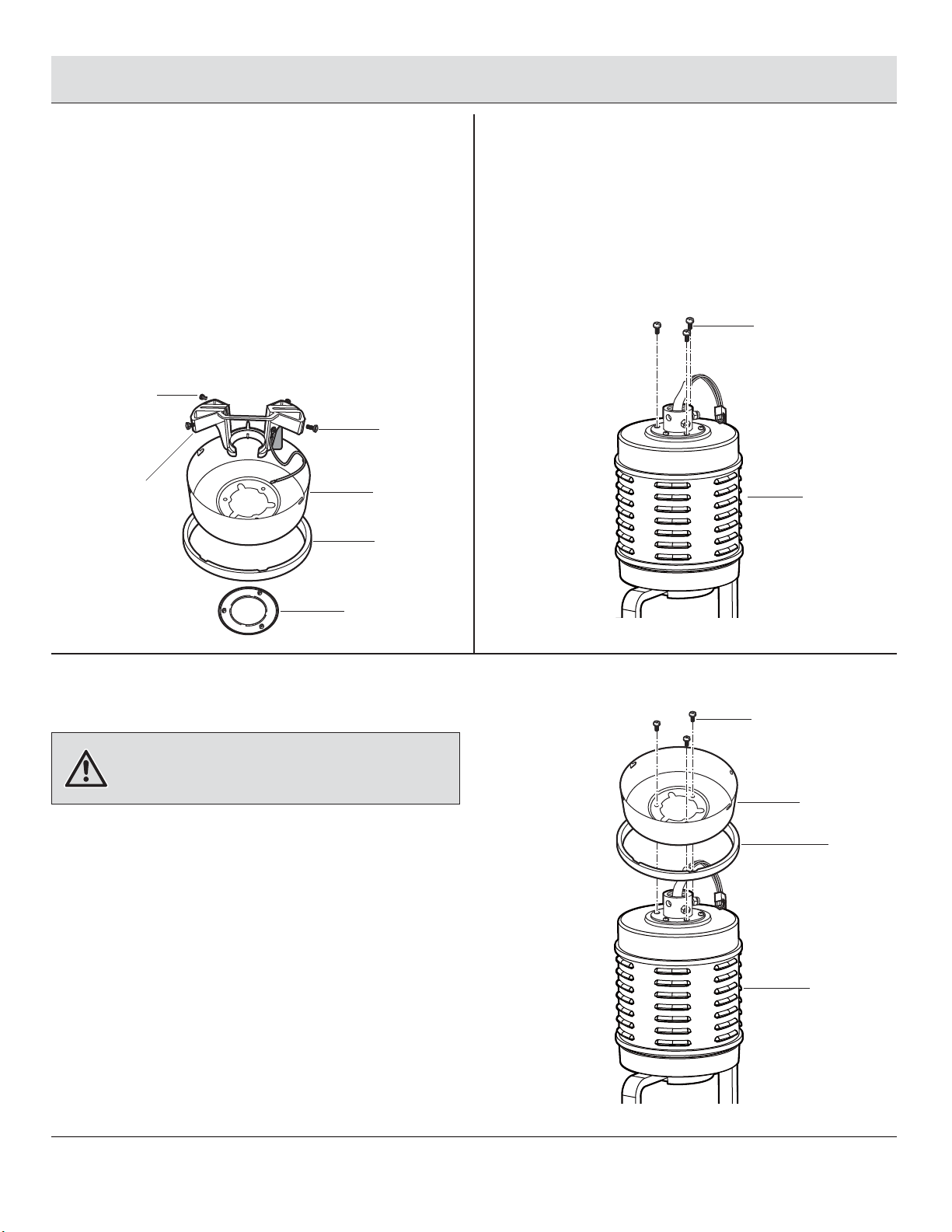

□Remove the canopy ring (C) from the canopy (D).
□Remove the two non-slotted canopy mounting screw
(BB) from the canopy (D), and loosen the slotted
canopy mounting screw (BB) on the canopy (D).
□Remove the canopy (D) from the mounting bracket (A)
by turning the canopy (D) counterclockwise.

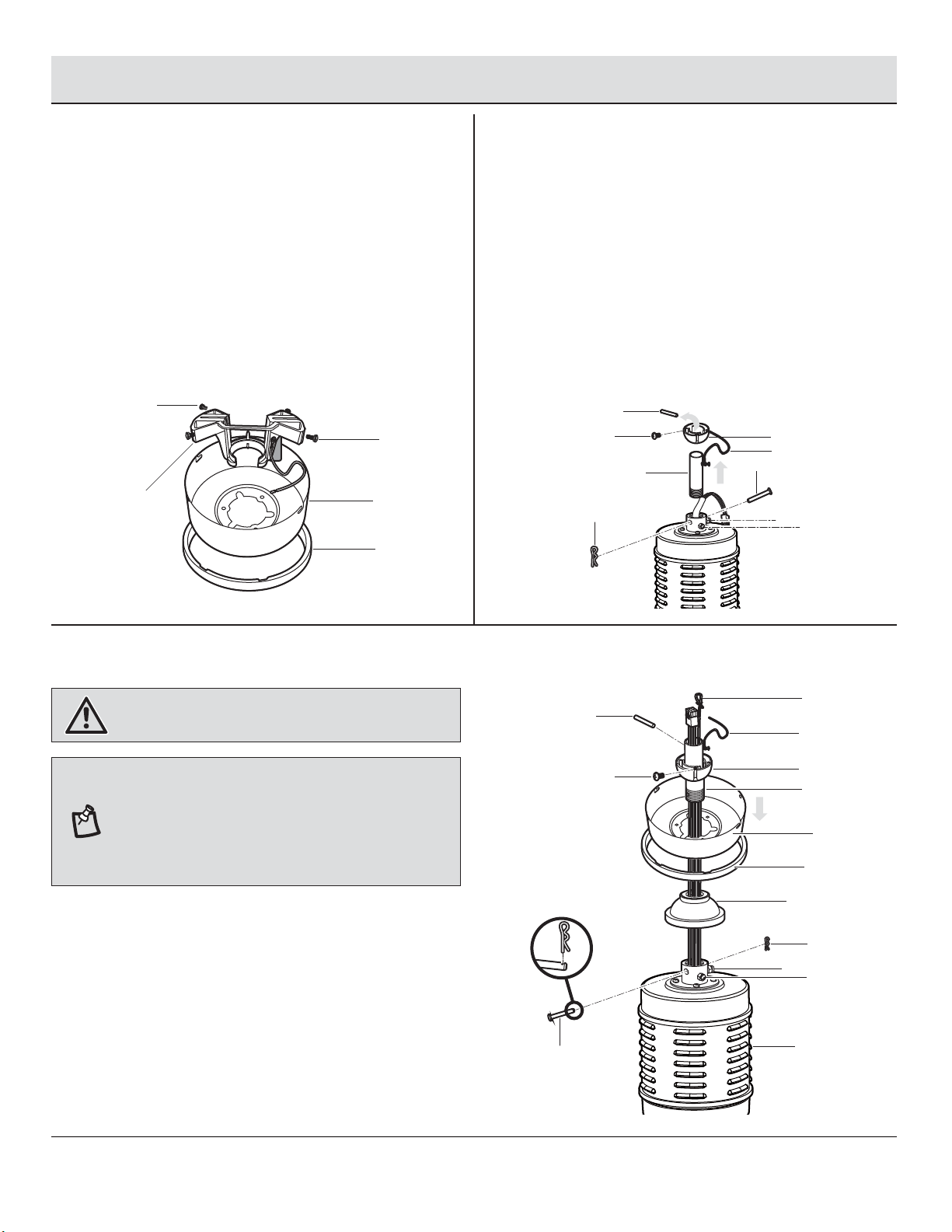

3Assembling the fan
□Remove the cotter pin (GG) and clevis pin (FF), and
loosen the two collar setscrews (JJ) from the motor
collar.
□Take out the setscrew (II) located in the hanger ball
(QQ), lower the hanger ball (QQ) and remove the
cross pin (HH). Remove the hanger ball (QQ) from the
hanger ball/downrod assembly (F).
□Remove the ground lead (RR) from the downrod
assembly (F).
Assembly — Standard Ceiling Mounting
WARNING: Failure to properly install the cotter pin (GG)
could result in the fan loosening and possibly falling.
□Carefully feed the motor wires and safety cable (TT)
up through the downrod (SS). Thread the downrod
(SS) into the collar.
□Align the holes and replace the clevis pin (FF) and
cotter pin (GG). Tighten the two collar setscrews (JJ).
□Slip the coupling cover (G), canopy ring (C), and
canopy (D) onto the downrod (SS).
□Carefully reinstall the hanger ball (QQ) onto the
downrod (SS) and reinstall the ground lead (RR) onto
the downrod (SS), being sure that the cross pin (HH)
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (QQ), lower the hanger
ball (QQ) and remove the pin (HH). Remove all three pieces
from the downrod and assemble them onto the new longer
downrod before proceeding to the downrod installation, and
use the 18” extension cord (NN/ included) to connect with
motor wires.
GG
FF
JJ JJ
II
F
HH
QQ
RR
A
BB
BB
D
C
10
C
H
G
QQ
D
RR
SS
JJ
JJ
FF
GG
HH
TT
II
is in the correct position, the setscrew (II) is tightened
and wires are not twisted.

Assembly — Close-to-Ceiling Mounting
12
3Assembling the fan
Preparing the motorPreparing the canopy
□Remove three of the six collar mounting screws with
lock washers (KK) (every other one) from the collar on
top of the fan rotation motor assembly (H).
WARNING: Failure to completely tighten the three collar
mounting screws (KK) could result in the fan becoming loose
and possibly falling.
KK
H
□Remove the canopy ring (C) from the canopy (D).
□Remove the mounting bracket (A) from the canopy (D)
by loosening the four canopy mounting screws (BB)
on the top of the canopy (D). Remove the two
non-slotted canopy mounting screws (BB) and loosen
the slotted canopy mounting screws (BB).
□Remove the canopy bottom cover (E) from the canopy
(D).
□Make sure the slot openings of the canopy ring (C)
are on top, and then proceed to place the canopy ring
(C) and canopy (D) over the collar at the top of the fan
rotation motor assembly (H).
□Align the mounting holes on the bottom of the canopy
(D) with the holes on the top of the fan rotation motor
assembly (H). Fasten using the three collar mounting
screws with lock washers (KK) previously removed.
□Tighten the collar mounting screws (KK) securely.
E
A
BB
BB
D
C
D
C
H
KK
11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Assembly — Hanging the Fan
4Attaching the fan to the
electrical box
5b5a Hanging instructions for
standard mounting
Hanging instructions for
close-to-ceiling mounting
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□Attach the mounting bracket (A) on the outlet box
(OO) by sliding the mounting bracket (A) over the
screws provided with the outlet box. When using
“close-to-ceiling” mounting, it is important that the
mounting bracket (A) be level. If necessary, use
leveling washers (not included) between the mount-
ing bracket (A) and the outlet box (OO). Note that the
flat side of the mounting bracket (A) is toward the
outlet box (OO).
□Securely tighten the two mounting screws.
WARNING: To reduce the risk of fire, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (F). Failure to properly
seat the tab in the groove could cause damage to the wiring.
WARNING: The hook is only to hold the fan while attaching
wiring. Failure to hang as instructed may result in the tab
breaking causing the fan to fall. The hook must pass from the
inside to the outside of the canopy.
□Carefully lift the fan rotation motor assembly (H) up to
the mounting bracket (A) and seat the hanger
ball/downrod assembly (F) in the mounting bracket
(A) socket. Make sure the tab on the mounting
bracket (A) socket is properly seated in the groove on
the hanger ball/downrod assembly (F). This will help
to balance the ceiling fan.
□Carefully lift the fan rotation motor assembly (H) up to
the mounting bracket (A) and hang the fan on the
hook provided using one of the holes at the outer rim
of the canopy (D).
A
OO
A
HD
D
12
A
F
H

Assembly — Hanging the Fan (continued)
6Installing the safety cable
□Secure the safety cable (TT) to the building structure
using a wood screw (not included).
TT TT
13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Making the electrical
connections
Assembly — Hanging the Fan (continued)
7
Green
White
Black
Ground
conductor
White
AA
OO
Black
A
B
VV
M
UU
H
WW
Green
Green
Green

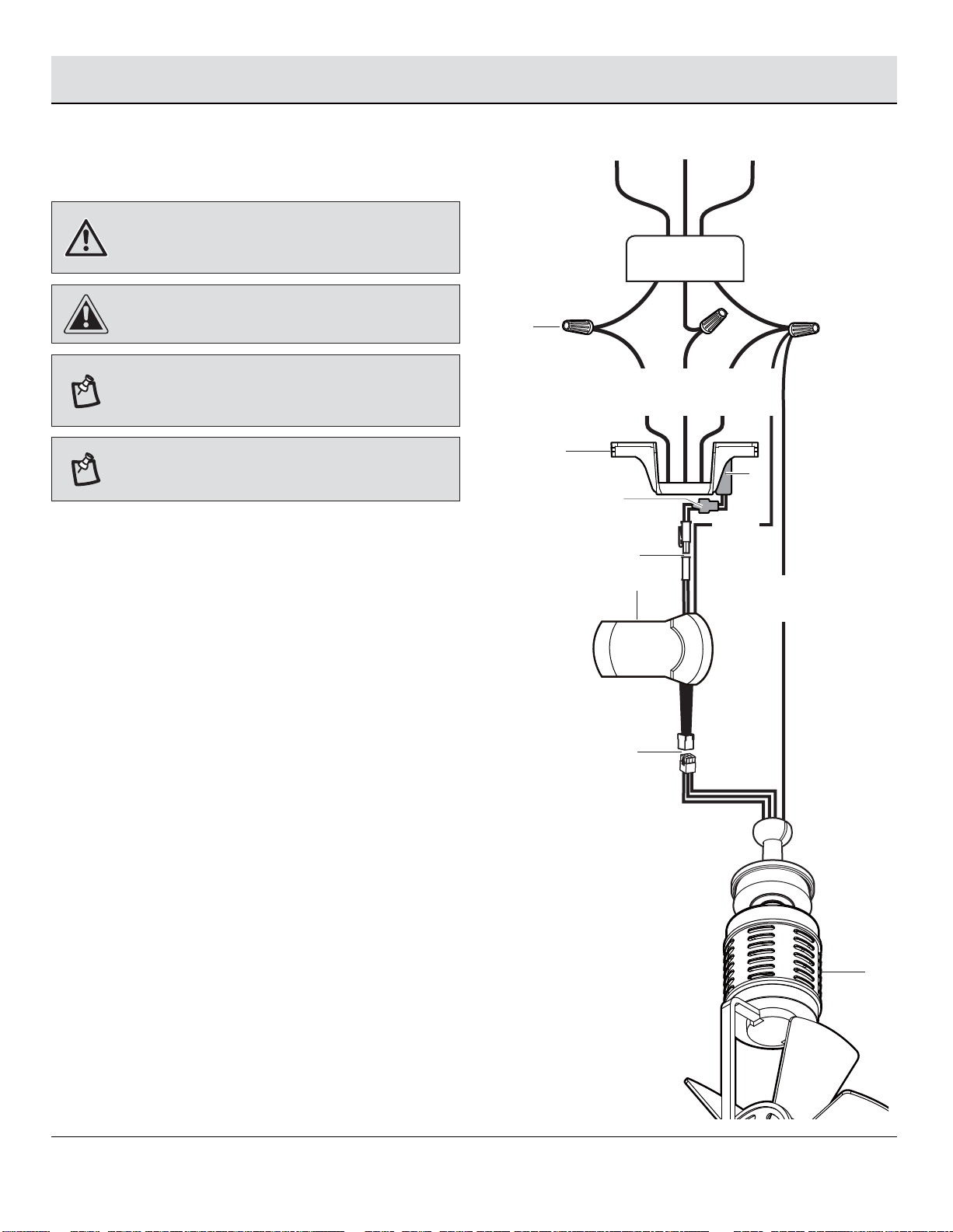

Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts (AA) with your
fan. Secure the plastic wire nuts (AA) with electrical tape.
Make sure there are no loose strands or connections.
Motor to receiver electrical connections:
□If your outlet box (OO) has a ground wire (green or
bare copper) connect it to the fan ground wires;
otherwise connect the hanger ball/downrod
assembly (F) ground wire to the mounting bracket
(A).
□Snap together the 6-pin wire connection plugs (UU)
from the fan (H) and receiver (M).
Receiver to mounting bracket electrical connections:
□Snap together the 2-pin wire connection plugs (VV)
from the receiver (M) and resister (WW).
Mounting bracket to house supply wires electrical
connections:
□Connect the black (hot) wire from the ceiling to
the black wire marked "AC in L" from the filter (B).
□Connect the white (neutral) wire from the
ceiling to the white wire marked "AC in N" from the
from the filter (B).
□Secure each wire connection with a plastic wire nut
provided with the electrical hardware.
□After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (OO) and the black wires are on the other
side. Carefully tuck the wire connections up into the
outlet box (OO).
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
NOTE: If a longer downrod (not included) is needed, use the
18” extension cord (NN) to connect with the motor wires and
receiver.
CAUTION: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
14

Assembly — Hanging the Fan (continued)
8a Standard ceiling mounting 8b Close-to-ceiling mounting
WARNING: The locking slots of the canopy (D) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws (BB) are
engaged and firmly tightened.
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball/downrod
assembly (F) before attaching the canopy (D) to the mounting
bracket (A) by turning the canopy (D) until it drops into place.
WARNING: Locking slots of the canopy (D) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screw (BB) are
engaged and firmly tightened.
□Slide the canopy (D) up to the ceiling. Make sure you
have placed the wires and resister (VV) safely into
the outlet box (OO).
□ Secure the canopy (D) to the mounting bracket (A)
with the four canopy mounting screws with lock
washers (BB) included with your fan.
□Slide the canopy ring (C) over the canopy (D) and
tighten by turning the ring (C).
□Remove the fan from the hook on the mounting
bracket (A).
□Secure the canopy (D) to the mounting bracket (A)
with the four canopy mounting screw with lock
washers (BB) provided.
□Slide the canopy ring (C) over the canopy (D) and
tighten by turning the ring (C).
BB
OO
A
BB
F
BB
A
BB
C
D
C
D
15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Operation
PREPARING THE TRANSMITTER
PREPARING THE TRANSMITTER
16
□Remove the battery cover by pressing firmly on the arrow and
sliding the cover off.
□Install two 1.5V AAA batteries (LL) (included).
□Replace the battery cover on the remote control (M).
NOTE: Batteries will weaken with age and should be
replaced before leaking takes place as this will damage
the remote control. Dispose of used batteries properly
and keep them out of the reach of children.
M
LL
Timer
Fan on/off
LED bar
Scale indicating
fan speed
Rotation on
Rotation off
Decreases fan speed
Increases fan speed
Comfort Breeze™
The learning process causes any installed fan within range to
memorize a remote control. Fans can learn five remotes.
To add a remote to your fan’s memory, use the steps below:
□Ensure AC power to the fan is OFF to begin the learning
process.
□Slide the dip switch in the battery compartment to the "1"
position.
□Turn the fan’s AC power ON.
□Within 60 seconds of turning AC power on, press and release the
" Pairing" button located in the remote's battery compartment
to enter the learning function. Once the fan has detected the
remote controls's frequency, the down light of your fan, if
applicable, will blink, and the fan blades will start to spin.
□The fan will now accept commands from the added remote.
To clear all other remotes from your fan’s memory, use the steps
below:
□Ensure AC power to the fan is OFF to begin the learning
process.
□Slide the dip switch in the battery compartment to the "0"
position.
□Turn the fan’s AC power ON.
□Within 60 seconds of turning AC power ON, press and release
the “Pairing” button located in the remote’s battery
compartment, and your fan will restore to the original setting
and dismiss the other remotes.
LEARNING PROCESS
NOTE: If installing multiple fans on separate remotes,
only the fan being programmed should have AC power
turned ON. All other fans, even if they have already
been programmed, should have AC power OFF so they
do not memorize other remotes during the learning
process. Separate the fan power switches by
approximately 2 meters.
NOTE: The dip switch in the battery compartment has
been set on “0” position as an universal code for your
convenience. If you have two or more fans, please
follow steps below to control each fan independently.

2. Speed functions
+button, increases the fan speed
□Pressing and releasing the + button one time will increase the speed of the fan. Each setting increase will cause the LED bar to
illuminate slightly more, until the fan has reached the maximum speed setting, at that time the LED bar will be fully illuminated.
□Pressing and holding the + button will increase the fan speed automatically through the speed settings and the increments will be
denoted on the LED bar. When the LED bar is fully illuminated, the fan has reached maximum speed setting.
□Pressing the + button while in Comfort BreezeTM mode will automatically cancel the Comfort BreezeTM mode and resume normal fan
operation.
–button, decreases fan speed
□Pressing and releasing the - button one time will decrease the speed of the fan. Each setting decrease will cause the LED bar to dim
slightly more, until the fan has reached the minimum speed setting. At that time the LED bar will be approximately 25% illuminated.
□Pressing and holding the - button will decrease the fan speed automatically through the speed settings and the reductions will be
denoted on the LED bar. When the LED bar is 25% illuminated, the fan has reached the minimum speed setting.
□Pressing the - button while in Comfort BreezeTM mode will automatically cancel the Comfort BreezeTM mode and resume normal fan
operation.
3. Comfort BreezeTM
There are three Comfort BreezeTM settings. Pressing the button will activate the Comfort BreezeTM mode and the LED bar will illuminate
slowly from bottom to top to display the current setting.
□Setting 1: Alternates through speeds 1 – 3, the LED bar should fill approximately 33%.
□Setting 2: Alternates through speeds 1 – 6, the LED bar should fill approximately 66%.
□Setting 3: Alternates through speeds 1 – 9, the LED bar should be fully illuminated.
Operation (continued)
1. Fan button. - Press and release the button to turn the fan on or off.
□When turned on, the fan will begin spinning using its last speed settings. The remote control’s LED bar will display the speed setting
for 5 seconds.
□When turned off, the fan will stop spinning and the light from the remote control’s LED bar will quickly darken from top to bottom.
Off Setting 1 Setting 2 Setting 3 Disable Comfort BreezeTM
OPERATING YOUR FAN AND REMOTE CONTROL
NOTE: The fan will store the last used speed setting for the next time it is turned on.
NOTE: You must turn the fan on prior to using the speed or time functions.
NOTE: If you are using Comfort BreezeTM mode, pressing the button or the fan speed buttons will cancel Comfort BreezeTM mode and
resume normal fan operation.
17 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Operation (continued)
4. Timer
□Pressing the timer buttons will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer
mode, the LED to the left of the time above the clock will illuminate.
Off 2H 4H 8H Disables timer
6. Rotation off
□Turns the rotation operation off.
5. Rotation on
□This button is used for rotation operation. Press “ ” to rotate the fan. The fan will stay at the same direction where the rotation is
turned off.
Care and Cleaning
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
18

Troubleshooting
□Do not connect the fan with wall mounted variable speed control(s).
□Make sure the learning process is successful.
The fan wobbles.
The remote control is
not working.
Problem
Problem
Solution
Solution
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade to the motor hub are tight.
□Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 7
“Making the electrical connections” on page 14.
□Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and
measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-800-986-3460) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-800-986-3460) to order
complimentary replacements of your brackets.
19 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Part
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
Description
Description
Plastic wire nut
Canopy mounting screw with lock washer (preassembled)
Decorative cover screw (preassembled)
Blade arm screw with lock washer
Blade attachment screw and fiber washer
Clevis pin (preassembled)
Cotter pin (preassembled)
Cross pin (preassembled)
Setscrew (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
1.5V AAA battery
Hex wrench
18” Extension cord
Service Parts
A
F
G
H
AA
BB
CC
DD
EE
FF
GG
HH
KK
II
JJ
LL
MM
NN
C
B
D
E
J
I
Part
Part
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Description
Description
Mounting bracket (preassembled)
Filter (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover
Hanger ball/downrod assembly
Coupling cover
Fan rotation motor assembly
Fan motor assembly
Decorative cover
Blade arm
Blade
Remote control
Receiver
20
K
L
M
N
