BenQ GL950A User manual

1
Applicable Country & Regions: Globe
Service Manual for BenQ:
GL950A: D-SUB
P/N: 9H.L6RLA.T8X
GL950AM: D-SUB + AUDIO
P/N:9H.L6SLA.T8X
G950A: D-SUB
P/N: 9H.L6TLA.T8X
G950AM: D-SUB + AUDIO
P/N:9H.L7DLA.T8X
Glossy Black Chassis Colors
Product Service Manual – Level 1~2
Version: 1st
Date:07-04-2011
Notice:
For RO to input specific “Legal Requirement” in specific NS regarding to responsibility and
liability statements.
Please check BenQ’s eSupport web site, http://esupport.benq.com, to ensure that you have the
most recent version of this manual.
First Edition (Jul. 2011)
©Copyright BenQ Corporation 2011. All Right Reserved.

2
Content Index
Abbreviations & Acronyms........................................................................................................................................3
1. About this Manual...................................................................................................................................................5
1.1 Important ............................................................................................................................................................5
1.2 Trademark ..........................................................................................................................................................5
2. Introduction.............................................................................................................................................................6
2.1 RoHS (2002/95/EC) Requirements – Applied to all countries require RoHS.....................................................6
2.2 Safety Warning and Notice.................................................................................................................................6
2.3 Compliance Statement .......................................................................................................................................7
3. General Description................................................................................................................................................8
4. Related service information...................................................................................................................................8
5. Product Overview ...................................................................................................................................................9
5.1 Monitor Specifications ........................................................................................................................................9
5.2 Panel Inspection Specification..........................................................................................................................17
Level 1 Cosmetic / Appearance / Alignment Service ............................................................................................23
Visual Inspection & Cleaning..................................................................................................................................23
F/W Upgrade SOP..................................................................................................................................................23
Adjustment / Alignment Procedure.........................................................................................................................32
Level 2 Circuit Board and Standard Parts Replacement ......................................................................................46
Product Exploded View ..........................................................................................................................................46
Six Angles’ View .....................................................................................................................................................48
Product Disassembly/Assembly .............................................................................................................................49
Block Diagram ........................................................................................................................................................60
Schematic Diagram ................................................................................................................................................63
Troubleshooting......................................................................................................................................................75
PCB LAYOUT.............................................................................................................................................................81
Appendix 1 – Screw List / Torque ...........................................................................................................................90

3
Abbreviations & Acronyms
A
ADC Analog to Digital Converter
AFC Automatic Frequency Control: control signal used to tune to the correct frequency
B
BenQ BenQ Corporation
BTSC Broadcast Television System Committee
C
CPU Central Process Unit
CVBS Composite Video Blanking and Synchronization
D
DLP Digital Light Processing / Texas Instruments®
DMD Digital Micro mirror Device
DRAM Dynamic RAM
DVI Digital Visual Interface
DVI-D Digital Visual Interface-digital
DVI-I Digital Visual Interface-Integrated
E
EEPROM Electrically Erasable and Programmable Read Only Memory
F
FLASH FLASH memory
G
G-TXT Green Teletext
H
HDMI High Definition Multimedia Interface, digital audio and video interface
HP Head Phone
I
I2C Integrated IC bus
L
LED Light Emitting Diode
LVDS Low Voltage Differential Signal, data transmission system for high
M
MOSFET Metal Oxide Semiconductor Field Effect Transistor
N

4
NC Not Connected
NVM Non Volatile Memory: IC containing TV related data (for example, options)
O
OSD On Screen Display
P
PC Personal Computer
PCB Printed Circuit Board (or PWB)
R
RC Remote Control transmitter
RGB Red, Green and Blue. The primary color signals for TV. By mixing levels of R, G
and B, all colors (Y/C) are
ROM Read Only Memory
S
SDA Data signal on I2C bus
SDRAM Synchronous DRAM
SW Sub Woofer / Software
T
THD Total Harmonic Distortion
V
VGA Video Graphics Array
Y
YPbPr Component video (Y= Luminance, Pb / Pr= Color difference signals B-Y and R-Y,
other amplitudes w.r.t. to YUV)
Y/C Video related signals: Y consists of luminance signal, blanking level and sync; C
consists of color signal.

5
1. About this Manual
The purpose of Service Manual is to provide a guide line to engineers to repair different models. The appearance
and capability is introduced in this Service Manual. It is better for repair engineer to have a rough idea of this model
through reading the Service Manual. Please do pay attention to the item part of the disassembly when repair the
machine and also do the protection of panel any time. When repairing the circuit board, please follow the
requirement of RoHS and refer to the circuit diagram and repairing process that attached in the Service Manual.
The method of firmware updated, the way of using the menu and some information that may be used when
repairing are also attached in the Service Manual that provide repair engineer various choice.
1.1 Important
Only trained service personnel who are familiar with this BenQ Product shall perform service or maintenance to it.
Before performing any maintenance or service, the engineer MUST read the “Important Safety Information”.
1.2 Trademark

6
2. Introduction
This section contains general service information, please read through carefully. It should be stored for easy
access place.
2.1 RoHS (2002/95/EC) Requirements – Applied to all countries require RoHS.
The RoHS (Restriction of Hazardous Substance in Electrical and Electronic Equipment Directive) is a legal
requirement by EU (European Union) for the global electronics industry which sold in EU and some counties also
require this requirement. Any electrical and electronics products launched in the market after June 2006 should
meet this RoHS requirements. Products launched in the market before June 2006 are not required to compliant
with RoHS parts. If the original parts are not RoHS complaints, the replacement parts can be non ROHS
complaints, but if the original parts are RoHS compliant, the replacement parts MUST be RoHS complaints.
If the product service or maintenance require replacing any parts, please confirming the RoHS requirement before
replace them.
2.2 Safety Warning and Notice
Installation
1. Do not use your monitor under any of the following environmental conditions:
Extremely high or low temperature, or in direct sunlight
Dusty places
Highly humid, exposed to rain, or close to water
Exposed to vibrations or impacts in places such as cars, buses, trains, and other rail vehicles
Near heating appliances such as radiators, heaters, fuel stoves, and other heat-generating items (including
audio amplifiers)
An enclosed place (such as a closet or bookcase) without appropriate ventilation
An uneven or sloping surface
Exposed to chemical substances or smoke
2. Do not block vents and openings by clothes or curtains.
3. Carry the monitor carefully.
4. Do not place the monitor face down on the floor or a desk surface directly. Otherwise, scratches on the panel
surface may occur.
5. Do not place heavy loads on the monitor to avoid possible personal injury or damage to the monitor.
6. Ensure that children do not hang or climb onto the monitor.
7. Keep all packing bags out of reach of children.

7
Operation
1. To protect your eyesight, please refer to the user manual to set the optimal screen resolution and the viewing
distance.
2. To reduce eye fatigue, take a break on a regular basis while using the monitor.
Avoid taking either one of the following actions for a long time. Otherwise, burn marks may occur.
Use the monitor in the aspect ratio of 16:9.
Place a still image (such as an OSD menu, fixed text or image) on the screen.
3. To avoid possible damage to the monitor, do not touch the monitor panel by hand, pen, or any other sharp
objects.
4. Excessively frequent plug and unplug of video connectors (D-sub) may cause damage to the monitor.
5. This monitor is designed mainly for personal use. If you want to use the monitor in a public place or a harsh
environment, contact your nearest BenQ service center for assistance.
6. To avoid possible electric shock, do not dissemble or repair the monitor.
7. If a bad smell or an abnormal sound appears to come from the monitor, contact your nearest BenQ service
center for assistance immediately.
Cleaning
1. Ensure that the power is unplugged before cleaning your monitor
2. Use a monitor cleaner and a soft cloth to clean your monitor.
3. Do not use solvents such as alcohol to clean your monitor.
Power
1. To avoid possible damage to the monitor, do not use it in a region where power supply is unstable.
2. Ensure that the power cord is connected to a grounded power outlet before turning on the monitor.
3. Use only the power cord provided by BenQ.
4. Never use a power cord that appears to be damaged or frayed.
5. To avoid possible danger, observe the total electric load when using the monitor with a (multi-outlet) extension
cord.
6. Always turn off the monitor before unplugging the power cord.
2.3 Compliance Statement
Caution: This Optical Storage Product contains a Laser device. Refer to the product specifications and your local
Laser Safety Compliance Requirements.

8
3. General Description
This new LCD (Liquid Crystal Display) monitor BenQ GL950A/GL950AM/G950A/G950AM offers numerous features
and functions, for example:
Panel Type: TN + LED (GL950A/GL950AM)
Panel Type: TN + CCFL (G950A/G950AM)
Minimal space requirements thanks to slim casing
Contrast ratio 12 million:1 (DCR), brightness 250nits (GL950A/GL950AM)
Contrast ratio 50000:1 (DCR), brightness 200nits (G950A/G950AM)
MAX. resolution: 1366X768
Viewing Angle (H/V), CR≧10: 170/160 (GL950A/GL950AM)
Viewing Angle (H/V), CR≧10: 90/65 (G950A/G950AM)
Presentation of up to 16.7 M colors (in conjunction with an appropriate graphics card)
Automatic scanning of horizontal frequencies from 30 to 83 kHz and refresh rates (vertical frequencies) from 50
to 76 Hz (absolutely flicker-free)
Digital screen controller with microprocessor for storing 15 different display modes
Freely adjustable color alignment for matching the screen colors to the colors of various input and output devices
Convenient operation via integrated OSD (On-Screen-Display) menu
VESA-DDC compatibility
Plug & play capability
Power management for reducing power consumption when the computer is not in use
This operating manual contains important information you require to start up and run your LCD monitor.
This specification defines the requirements for the 18.5″MICROPROCESSOR based Multi-mode supported high
resolution color LCD monitor. This monitor can be directly connected to general 15-pin VGA connector and supports
VESA DPMS power management and plug & play function.
Additional information
Due to the nature of liquid crystal display (LCD) technology, the picture resolution is always fixed. For the best
display performance, please set the display resolution to 1366X768 pixels with an aspect ratio of 16:9. This is called
“Native Resolution” or maximal resolution - that is, the clearest picture. Lower resolutions are displayed on a full
screen through an interpolation circuit. Image blurring across pixel boundaries can occur with the interpolated
resolution depending upon the image type and its initial resolution.
4. Related service information
This Service Manual contains general information. There are 2 levels of service:
Level 1: Cosmetic / Appearance / Alignment Service
Level 2: Circuit Board or Standard Parts Replacement
Service Web Site
eSupport URL: http://esupport.benq.com

9
5. Product Overview
5.1 Monitor Specifications
GL950A GL950AM G950A G950AM
Conf. 1
D-sub (include
component source)
Conf. 2
D-sub (include
component source)
+ speaker
Conf. 3
D-sub (include
component source)
Conf. 4
D-sub (include
component source)
+ speaker
Panel /
Display
Panel Type (TN / VA
/ IPS) TN + LED TN + LED TN + CCFL TN +CCFL
Panel Size 18.5"W(16:9) 18.5"W(16:9) 18.5"W(16:9) 18.5"W(16:9)
Display Area 409.8x230.4 409.8x230.4 409.8x230.4 409.8x230.4
Max. Resolution 1366X768 1366X768 1366X768 1366X768
Pixel Pitch 0.3 0.3 0.3 0.3
Brightness (Typ.) 250 cd/㎡250 cd/㎡200 cd/㎡200 cd/㎡
Contrast Ratio
(Typ.) / DCR (Min.)
1000:1(Panel)/
12M:1 (DCR)
1000:1(Panel)/
12M:1 (DCR)
700:1(Panel)/
50000:1 (DCR)
700:1(Panel)/
50000:1 (DCR)
Viewing Angle
(H/V), CR≧10 170/160 170/160 90/65 90/65
Display Colors 16.7M 16.7M 16.7M 16.7M
Response Time 5ms (Tr+Tf) 5ms (Tr+Tf) 5ms (Tr+Tf) 5ms (Tr+Tf)
GtG response Time N/A N/A N/A N/A
MPRT N/A N/A N/A N/A
NTSC ratio 68~72% 68~72% 65% 65%
Video
BenQ SenseyeTM
Technology Senseye 3 Senseye 3 Senseye 3 Senseye 3
BenQ SenseyeTM
Preset Modes
6 Modes (by
hotkey) : Standard /
Movie / Game /
Photo / s-RGB / ECO
6 Modes (by
hotkey) : Standard /
Movie / Game /
Photo / s-RGB /
ECO
6 Modes (by hotkey) :
Standard / Movie /
Game / Photo /
s-RGB / ECO
6 Modes (by
hotkey) : Standard /
Movie / Game /
Photo / s-RGB /
ECO
Color Temperature
Selection
Normal (6500°K) /
Reddish (5800°K) /
Bluish (9300°K) /
User Mode
Normal (6500°K) /
Reddish (5800°K) /
Bluish (9300°K) /
User Mode
Normal (6500°K) /
Reddish (5800°K) /
Bluish (9300°K) /
User Mode
Normal (6500°K) /
Reddish (5800°K) /
Bluish (9300°K) /
User Mode
AMA (Over Drive ) No No No No
Hor. Frequency
(kHz) 30-83 30-83 30-83 30-83

10
Ver. Frequency (Hz) 50-76 50-76 50-76 50-76
Video Bandwidth
(MHz) 110 110 110 110
Audio Speakers (built-in) No 1W x 2 No 1W x 2
Input/Output
PC Video Input D-sub D-sub D-sub D-sub
Audio line in No Yes No Yes
Earphone Jack No Yes No Yes
Power Supply
Voltage Rating AC: 100~240V
(Built-in)
AC: 100~240V
(Built-in)
AC: 100~240V
(Built-in)
AC: 100~240V
(Built-in)
Power-On Mode <20W (max) <20W (max) <20W (max) <20W (max)
Standby Mode <0.3W (max) <0.3W (max) <0.3W (max) <0.3W (max)
Power Off Mode <0.3W (max) <0.3W (max) <0.3W (max) <0.3W (max)
Mechanical
Design
Chassis Colors
(proposal A)
Glossy black, detail
refer to artwork
Glossy black, detail
refer to artwork
Glossy black, detail
refer to artwork
Glossy black, detail
refer to artwork
Carton
Brown Carton with at
least C flute (BE flute
CTN for BQjp
shipments)
Brown Carton with
at least C flute (BE
flute CTN for BQjp
shipments)
Brown Carton with at
least C flute (BE flute
CTN for BQjp
shipments)
Brown Carton with
at least C flute (BE
flute CTN for BQjp
shipments)
Power LED Green (ON)/ Amber
(Standby)
Green (ON)/ Amber
(Standby)
Green (ON)/
A
mber
(Standby)
Green (ON)/ Amber
(Standby)
Tilt (Up / Down) 15° ~ -5° 15° ~ -5° 15° ~ -5° 15° ~ -5°
VESA Wall Mount 100 x 100 mm 100 x 100 mm 100 x 100 mm 100 x 100 mm
Kensington Lock Yes Yes Yes Yes
Container Loading
(foam cushion 40') >2000 >2000 >2000 >2000
Container Loading
(foam cushion 20') >1000 >1000 >1000 >1000
Multi-language
Support OSD
17 Languages
(English / Francais /
Deutsch / Italiano /
Espanol / Polish /
Czech / Hungarian /
Serbo-croatian /
Romanian /
Netherlands /
Russian / Swedish /
Portuguese /
Japanese / Chinese /
17 Languages
(English / Francais /
Deutsch / Italiano /
Espanol / Polish /
Czech / Hungarian /
Serbo-croatian /
Romanian /
Netherlands /
Russian / Swedish /
Portuguese /
Japanese / Chinese
17 Languages
(English / Francais /
Deutsch / Italiano /
Espanol / Polish /
Czech / Hungarian /
Serbo-croatian /
Romanian /
Netherlands /
Russian / Swedish /
Portuguese /
Japanese / Chinese /
17 Languages
(English / Francais /
Deutsch / Italiano /
Espanol / Polish /
Czech / Hungarian /
Serbo-croatian /
Romanian /
Netherlands /
Russian / Swedish /
Portuguese /
Japanese / Chinese

11
S-Chinese) / S-Chinese) S-Chinese) / S-Chinese)
Other feature
Vista Basic Basic Basic Basic
Win 7 NA NA NA NA
Dynamic Power
Saving (DPS) Yes Yes Yes Yes
Accessories Refer to SKU list Refer to SKU list Refer to SKU list Refer to SKU list
Regulation
Approvals
Refer to the
worksheet
"RFQ-Regulatory"
Refer to the
worksheet
"RFQ-Regulatory"
Refer to the
worksheet
"RFQ-Regulatory"
Refer to the
worksheet
"RFQ-Regulatory"

12
5.1.1 Certification
Region
Shipment
Country
(Pls
select)
Country
Certification / Requirement
Remark
Request for
Certification
(Pls select)
Certification
(Black is
mandatory
and blue is
voluntary)
Regulatory
Type
(safety/safety
&
EMC/EMC/GP
)
Applied
by vendor
Applied
by
BenQ
BenQ
Sample
Reguest
Asia-Pacific
V
A
ustralia,
New
Zealand
V C-Tick EMC V
Must
include
radiation
test result
for
frequency
above
1GHz
V China
V CCC Safety & EMC V
Including
CCC
certificate,
CCC report
and CCC
label
printing
permission
Eff(Minimun)
Level =
1 2
Energy Label GP V
V China RoHS GP
Vender
provide
relevant
information
and report
V China WEEE GP See Remark
Recycling
notice in
User
Manual is
required.
V CECP GP V 1 set.
One
sample of
DVT is
required for

13
the
assigned
third-party
test.
V Japan
V VCCI EMI V
V J-Moss GP
Vender
provide
relevant
information
and report
Class Level:
★★★
★★★
PC3R GP
Vender
provide
relevant
information
and report
V
If VOC
test is
requeste
d, please
provide 1
sample
for
testing.
Meet the
PC3R
requirement
of 2009
version.
V Korea
KCC EMC V
V KC Safety & EMC V
V e-Standby GP
Vender
provide
relevant
information
and
formal test
report
(Korean)
V 1 set.
One
sample of
DVT
is required
for the
assigned
third-party
test.
V Korea RoHS GP
Vender
provide
relevant
information
and report
V Singapore V PSB Safety V

14
V Taiwan V BSMI Safety & EMC V
Including
BSMI
certificate,
BSMI report
and BSMI
authorizatio
n letter for
BENQ if the
applicant of
BSMI
certificate is
vendor and
vendor will
perform the
clearance
for BenQ.
V Saudi
Arabia V SASO Safety V
V Turkey
V EEE
Directive GP
Vender
provide
relevant
information
and report
V TR RoHS
V CE Safety & EMC V
Same as
the CE of
EU.
America
V
A
rgentina V S Mark Safety V TUV-S,
IRAM-S…etc
V Canada V USA-Canada
Certification Safety V
Applicable
safety
certification
(such as
cULus,
cCSAus…etc
.)
V IC EMC V
V United
States V USA-Canada
Certification Safety V
Applicable
safety
certification
(such as
cULus,

15
cCSAus…etc
.)
V FCC EMC V
Class Level:
gold silver
cuprum
EPEAT GP
Vender
provide
relevant
information
and report
V
V Mexico V NOM Safety V
European
Union
V
Member
countries
of EU
V CE Safety & EMC V
V EuP GP
Vender
provide
relevant
information
and report
V WEEE GP
Vender
provide
relevant
information
and report
V REACH GP
Vender
provide
relevant
information
and report
V Germany
GS Safety V
V Bauart Safety V
V ISO9241-307 Safety V
V MPR II Safety V
Eastern
Europe
V Russia V GOST Safety & EMC V
V Ukraine V UkrSEPRO Safety V
V EMC DoC EMC V
International V CB
Scheme V CB Safety V
for CE DOC
or PSE DOC
or
international
certification
International V Internation
al V RoHS GP
Vender
provide
relevant

16
information
and report
International V Internation
al V BenQ
ecoFACTS GP
Vender
provide
relevant
information
and report
Follow
ecoFACTS
Checklist in
RFQ
International V All V Energy Star GP V
Including
Test Report
by EPA
recognition
of
Accreditation
Laboratory
and
Certificate by
EPA
recognition
of
Certification
Body (CB).
Effective
date:
2011-1-1.
BenQ phase
in date:
2010-12-6.
Below just for GL950A/GL950AM
International V Internation
al
TCO'03 Safety & GP V
V TCO
Displays 5.0 Safety & GP V

17
5.2 Panel Inspection Specification
1 Scope:
1.1 The incoming inspection standards shall be applied to TFT-LCD Modules (hereinafter called "Modules") that
supplied by AU Optronics Corporation (hereinafter called "seller").
1.2 Specifications contains
_ Electrical inspection specification
_ Appearance specification
_ Outside dimension specification
2 Incoming inspections:
The buyer (customer) shall inspect the modules within twenty calendar days of the delivery date (the "inspection
period”) at its own cost. The results of the inspection (acceptance or rejection) shall be recorded in writing, and a
copy of this writing will be promptly sent to the seller.
The buyer may, under commercially reasonable reject procedures, reject an entire lot in the delivery involved if,
within the inspection period, such samples of modules within such lot show an unacceptable number of defects in
accordance with this incoming inspection standards, provided however that the buyer must notify the seller in writing
of any such rejection promptly, and not later than within three business days of the end of the inspection period.
Should the buyer fail to notify the seller within the inspection period, the buyer's right to reject the modules shall be
lapsed and the modules shall be deemed to have been accepted by the buyer.
3 Inspection sampling method:
Unless otherwise agree in writing, the method of incoming inspection shall be based on MIL-STD-105E.
3.1 Lot size: Quantity per shipment lot per model.
3.2 Sampling type: Normal inspection, single sampling.
3.3 Sampling level: Level II.
3.4 Acceptable quality level (AQL):
Major defect: AQL=1.0%
Minor defect: AQL=2.5%
4 Inspection instruments:
4.1 Pattern generator: LD-2000 or equivalent model.
4.2 Video board: AUO video board or equivalent. The output of the signal should comply with the specification
provided by AUO.
4.3 Luminance colorimeter: Topcon BM-7 or equivalent model.
5 Inspection environment conditions:
5.1 Room temperature: 20 ~ 25℃.
5.2 Humidity: 65±5% RH.
5.3 Illumination: Fluorescent light (Day-Light Type) display surface illumination to be 300 ~ 700 Lux. (standard
500Lux.)
5.4 To be a distance about 35±5 cm in front of LCD unit, viewing line should be perpendicular to the surface of the
module judge the visual appearance with human’s eyes (±30° viewing edge will be allowed).
5.5 Take off the protector of polarizer while judging the display area.
5.6 If there is any question while judging, check the panel again while operating.
6 Classification of defects:
Defects are classified as major defects and minor defects according to the degree of defectiveness defined herein.

18
Major defects: A major defect is a defect that is likely to result in failure, or to reduce materially the usability of the
product for its intended purpose.
Minor defects: A minor defect either is a defect that is not likely to reduce materially the usability of the product for its
intended purpose, or is a departure from an established having little bearing on the effective use or operation of the
product.
6.1 Electrical inspection specification
Inspection Item Specification
1 Line / Block defect Can’t be seen.
2 Bright dots 2 dots (Note1, 4)≦
3 Dark dots 3 dots≦
4 Total dots defect 5 dots≦
5 Adjacent dot defect
(Note 1, 2, 3)
Two continuous bright dots (vertical, horizontal,
oblique): 1 pairs≦
Three or more continuous bright dots (vertical,
horizontal, oblique): NA
Two continuous dark dots (vertical, horizontal,
oblique): 1 pairs≦
Three or more continuous dark dots (vertical,
horizontal, oblique): NA
Distance between 2 Bright dots: 15 mm≧
Distance between 2 Dark dots: 15 mm≧
Distance between Bright and Dark dot: 15 mm≧
6 Image
Sticking / Retention
Short time (retention):
Can’t be visible by ND 8%, after changing pattern, the previous
pattern shall be invisible (disappear) within 5 seconds.
Long time (sticking):
Turn on the panel and display with the test pattern (4X4 black &
white, Figure 1) for 8 hours. After 8 hr, change display pattern to 50%
gray pattern. After 5 min, use 8% ND
Filter at 50% Gray Pattern, under 0° viewing angle, the Image
Sticking Symptom must be invisible.
Figure 1 Figure 2
7 Display Non-uniformity Not noticeable by using of ND filter or judged by equivalent limit
sample (Note 5, 6)
8 Newton ring Not noticeable
9 Rubbing mark Not noticeable
10 Dim line Not noticeable

19
Note 1: For bright dot defect, bright area should be larger than 1/2 area of a sub-pixel to be count as 1 dot defect. A
dot defect that is smaller than the defined dot defect will be treated as small bright dot.
The drawing of 1/2 area sub-pixel definition: The 1/2 area sub-pixel can be defined as below one or more of specific
shapes (Fig.1).
Fig.1 Fig.2
All bright dot defects should not be noticeable by observer under specified inspection environment (Please refer to
item 5).
Note 2: (Fig.2) Adjacent-dot defect (refer to picture, dot 1,2,..,8 around A are all A’s adjacent dots) should be
inspected under the same display pattern in any one of White /Black /Red /Green /Blue /Monotone Gray pattern.
Note 3: Adjacent-dot defect should be observed under any one of White /Black /Red /Green /Blue pattern. 1 pair of
bright dots equals 2 dots. Inspection patterns: Standard inspection patterns of dot defect are listed below. AUO uses
these patterns as standard criteria for judging dot defect. Please inform AUO if any other pattern is to be used to
examine dot defect.
Test Pattern Defect
Full Black For bright dot(s)
Full White For dark dot(s)
Monotone Red /Green /Blue For bright and dark dot(s)
Note 4: The judgment criteria of particle occurred bright dot is the same as bright dot judgment criteria.
Note 5: The display uniformity (general more) symptoms will use 8% ND Filter. That is, the definition of Not
Noticeable means the symptom can be covered by 8% ND Filter.
Note 6: The inspection method of ND Filter - holding ND filter in front of the panel around 1 cm and examine the
panel from 35±5 cm in the front view for 3 seconds.

20
6.2 Appearance inspection specification
Note 1: When L>=2W, defect count as liner defect.
Note 2: D=1/2(W+L)
Note 3: To verify the responsibility of following defects was caused by supplier, the IQC checks as requested on
above items before mass production such as the Polarizer Scratch, Gap Mura, TFT Glass broken…etc.
Other manuals for GL950A
2
This manual suits for next models
7
Table of contents
Other BenQ Monitor manuals

BenQ
BenQ AQCOLOR DesignVue PD Series User manual

BenQ
BenQ G Series User manual

BenQ
BenQ FP71e - 17" LCD Monitor User manual

BenQ

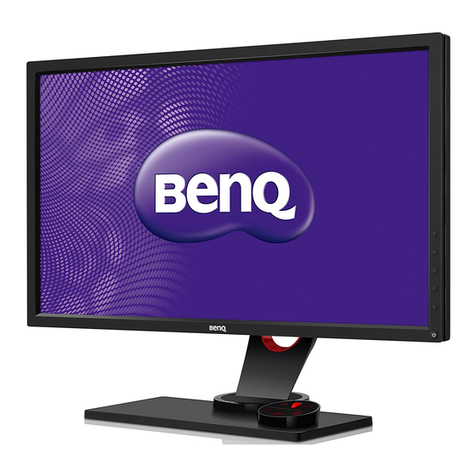

BenQ XL Series User manual

BenQ
BenQ FP202W V3 User manual

BenQ

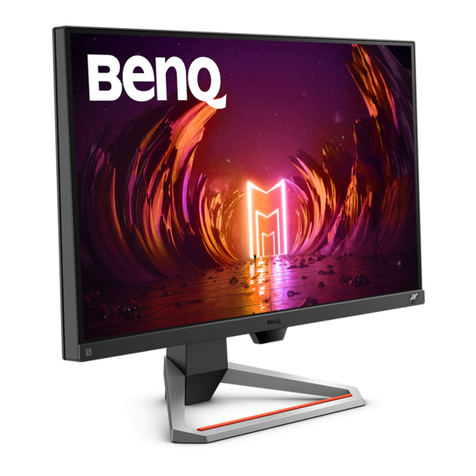

BenQ MOBIUZ EX Series User manual

BenQ
BenQ FP2081 User manual

BenQ
BenQ FP72E User manual

BenQ

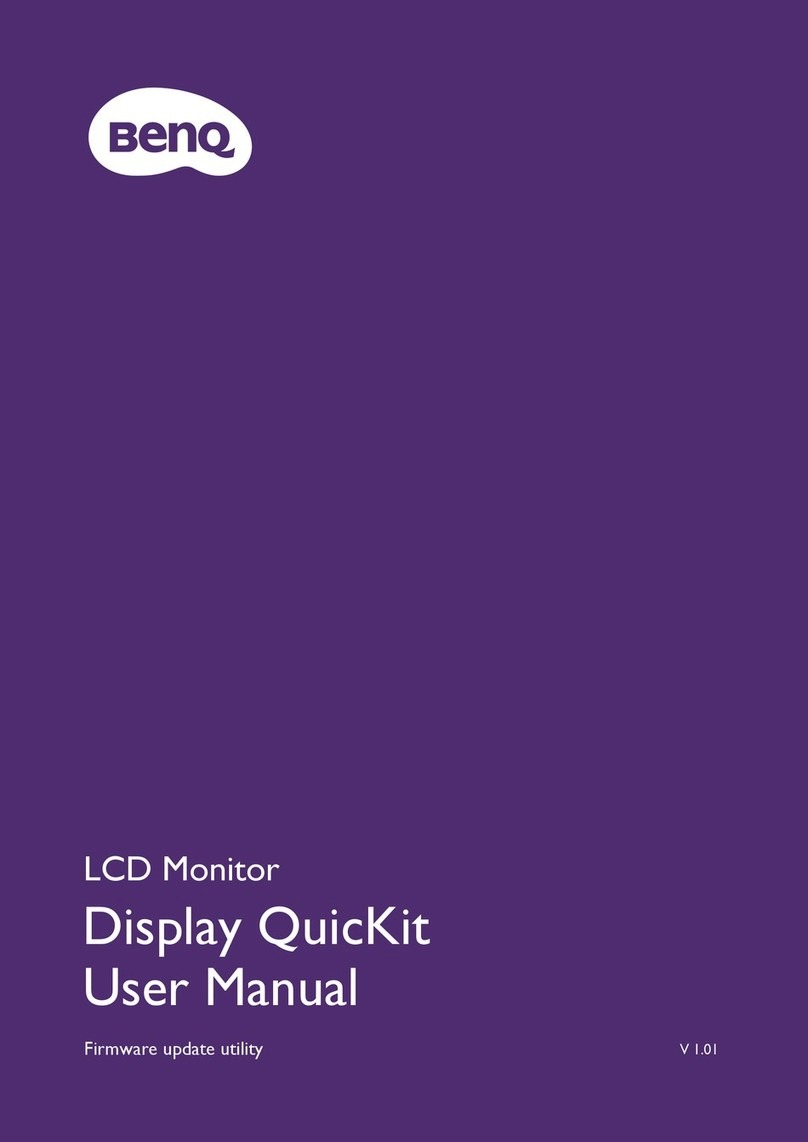

BenQ QuicKit User manual

BenQ
BenQ Q74A User manual
