Bentone BG 300 M-J/K-IP40 Technical specifications

Providing sustainable energy solutions worldwide
CR00078 178 086 72-1 2020-05-06
Installation- and maintenance instruction
BG 300M
Burner Pro
J/K MB-VEF 407-412 IP40
Original translation of Installation- and maintenance instruction

2Bentone
example Beispielexempel
Manuels dans d'autres langues.
www.bentone.com\download
ou scannez le code QR
Saisir le numéro d'article du brûleur
sur votre plaque signalétique (consultez l'illustration)
et sélectionnez la langue.
352011030141
Designation
Type
Model
Serial no.
Motor supply
Main supply
MADE IN SWEDEN BY
LIGHT OIL 35-90kW 1,25-6,0 cSt 7-14bar
BF 1 KS 76-24
BF 1
BF 1 KS 76-24
1234567
1~230V 1,0A 50Hz IP 20
Man.Year 2019
Cap. Min-Max
Manualer på övriga språk
www.bentone.com\download
or scan QR-code
Enter the burner`s article number on your data plate
(see picture) and select language.
Manuals in other languages
www.bentone.com\nedladdning
eller scanna QR-koden
Skriv in brännarens artikelnummer som finns på din
typskylt (se bild) och välj ditt språk
www.bentone.com\download
oder scannen Sie den QR-Code
Geben Sie die Artikelnummer des Brenners auf Ihrem Typenschild ein
(siehe Bild) und wählen Sie die Sprache aus.
Gebrauchsanweisungen in anderen Sprachen.

3Bentone
General
Table of contents
1. General Information __________________________________ 4
2. Technical data BG 300 M-J/K-IP40_____________________ 7
2.1 The burner is intended for use with: __________________ 7
2.2 Dimensions ______________________________________ 7
2.3 Description BG 300 ______________________________ 10
3. General instructions _________________________________ 12
3.1 General instructions ______________________________ 12
3.2 Installation and maintenance instructions ____________ 12
3.3 Instructions _____________________________________ 12
3.4 Inspection and maintenance _______________________ 12
3.5 Start up ________________________________________ 12
3.6 Commissioning of installation ______________________ 12
4. Installation _________________________________________ 13
4.1 Delivery check ___________________________________ 13
4.2 Preparations for installation ________________________ 13
4.3 Gas supply______________________________________ 13
4.4 Electric connection _______________________________ 13
4.5 Piping diagram __________________________________ 14
4.6 Mounting on the boiler ____________________________ 15
4.7 Inspection of gas nozzle before commissioning _______ 16
4.8 Gas nozzle ______________________________________ 17
4.9 Setting Air damper _______________________________ 18
4.10 Damper motor, air volume _________________________ 18
4.11 Adjustment of gas flow____________________________ 18
5. Setting the burner ___________________________________ 19
5.1 Setting the brake plate ____________________________ 19
5.2 Checking the combustion head ____________________ 19
5.3 Setting the air pressure switch _____________________ 21
5.4 Setting the min. gas pressure switch ________________ 22
5.5 Setting the max. gas pressure switch _______________ 23
6. Multibloc MB-VEF B01, 407-412 ______________________ 24
7. Calculating the aeration time: ________________________ 27
7.1 Recommended excess air when using default setting __ 28
7.2 Determining the gas quantity for the system __________ 28
7.3 Example of how to calculate the gas quantity (natural gas G20):
29
7.4 Calculating the quantity of gas supplied _____________ 30
8. Service_____________________________________________ 31
8.1 Servicing the combustion assembly _________________ 31
8.2 Replacement of damper motor, air __________________ 32
8.3 Flame monitoring and ionisation current check________ 33
8.4 UV5 33
9. Handing over of the installation _______________________ 34
10. Fault location, functional troubles __________________ 34
11. Electric equipment ________________________________ 35
11.1 Safety system ___________________________________ 35
11.2 Wiring diagram BG300 BP JK IP 40_________________ 36
11.3 Component list wiring diagram _____________________ 37
12. Control __________________________________________ 38
12.1 Technical data ___________________________________ 38
12.2 LED indicator lamps ______________________________ 38
12.3 Explanation of the different sequence modes _________ 39
12.4 BurnerPro LED fault/lock code table ________________ 40
13. Troubleshooting __________________________________ 43
14. EU Declaration of conformity ______________________ 46
15. General instructions for gasburners_________________ 47

4Bentone
1. General Information
This Installation and Maintenance manual:
• is to be regarded as part of the burner and must always be kept near
the installation site
• is intended for use by authorised personnel
• must be read prior to installation
• must be observed by all who work with the burner and associated
system components
• work with the burner may only be carried out by certified installers/
personnel
Enertech AB is not liable for any typographical errors and reserves the right
to make design changes without prior notice.
Safety instructions
• The burner may only be used for its intended purpose in accordance
with the product’s technical data.
• The burner may only be installed and operated by authorised
personnel.
• The product is packaged to prevent damage from occurring during
handling. Handle the product with care. Lifting equipment must be
used to lift larger packages.
• The products must be transported/stored on a level surface in a dry
environment, max. 80% relative humidity, no condensation.
Temperature -20 to +60 °C.
• Check that the burner is compatible with the boiler’s output range.
• All components must be installed without being bent, twisted or
subjected to mechanical or thermal forces which can affect the
components.
• The burner must be installed so that it complies with local regulations
for fire safety, electrical safety, and fuel distribution.
• The gas outlet from the pressure regulator shall be configured in
accordance with applicable regulations and lead to a safe area.
• Make sure when installing the equipment that there is enough space to
service the burner.
• Permitted temperature during operation -10 to +60 °C. Max 80%
relative humidity, no condensation.
• The installer must ensure that the room has adequate air supply.
• The room must comply with local regulations pertaining to its intended
use.
• The installation site must be free of chemicals.
• Burner pipes, fan wheels and air dampers may contain sharp edges.
• The surface temperature of the burner’s components can exceed 60
°C.
• Caution: The burner has moving parts, and there is risk of crushing
injuries.
172 515 01 2018-01-02

5Bentone
• The electrical installation must be professionally carried out in
accordance with applicable high voltage regulations, as per Enertech’s
recommendations.
• Before servicing, shut off the fuel supply and turn off the power to the
burner.
• Seal inspections must be performed during installation and servicing to
prevent gas leakage.
• Care should be taken by the installer to ensure that no electrical cables
or fuel lines are crushed or otherwise damaged during installation or
servicing.
• If the boiler is equipped with an access hatch, this must be equipped
with a hatch opening switch connected to the burner's safety system.
• When in operation, the burner’s noise level can exceed 85 dBA.
Use hearing protection.
• The burner must not be put into operation without proper safety and
protection devices.
• A Class BE fire extinguisher is recommended.
• It is forbidden to alter thedesign or use accessories which have not
been approved by Enertech in writing.
• Prior to operation, the following points must be checked:
-fitting and installation work has been completed and approved
-electrical installation has been correctly performed
-flue gas ducts and combustion air ducts are not blocked
-all actuators and control and safety devices are in working order and
correctly set
Actions to take if you smell gas
Turn off the equipment and the boiler. Open windows and doors. Prevent
open flames or sparking, e.g. do not turn lights on or off, do not use any
electrical appliances, do not use mobile phones. Open windows and doors.
Close the gas ball valve. Warn residents; do not use doorbells. Evacuate
the building. Notify the installer or gas supplier once the building has been
evacuated.

6Bentone
Control system 10 years 250,000 starts
Valve control system 10 years 250,000 starts
Pressure switch 10 years 250,000 starts
Ignition system with flame guard 10 years 250,000 starts
UV flame sensor 10000 hrs N/A
Gas pressure regulators 15 years N/A
Gas valve without seal testing 10 years 250,000 starts
Gas valve with seal testing Replacement upon fault detection N/A
Gas pressure switch 10 years 250,000 starts
Safety blow-off system 10 years N/A
Damper motor N/A 500,000 starts
Contactor 10 years 500,000 starts
Burner 1 year 3000 hrs
Inspection of electrical installation 1 year 3000 hrs
Leakage check 1 year 3000 hrs
Filter 1 year replacement at Δp>10 mbar 3000 hrs replacement at Δp>10
mbar
Electrodes Replacement/Cleaning 1 year Replacement/Cleaning 3000 hrs
Brake disc Replacement/Cleaning 1 year Replacement/Cleaning 3000 hrs
Motor 1 year 3000 hrs
Fan wheel 1 Year
Replacement when cleaning
needed/ imbalance
3000 h
Replacement when cleaning
needed/ imbalance
The burner and its components must be recycled according to applicable regulations.
Burner servicing schedule
Servicing must be carried out once a year or after 3000 hours of operation
Component replacement intervals
Delivery check
• Make sure everything is delivered and the goods have not been
damaged during transit.
• If something is wrong with a delivery, report it to the supplier.
• Transport damage must be reported to the shipping company.

7Bentone

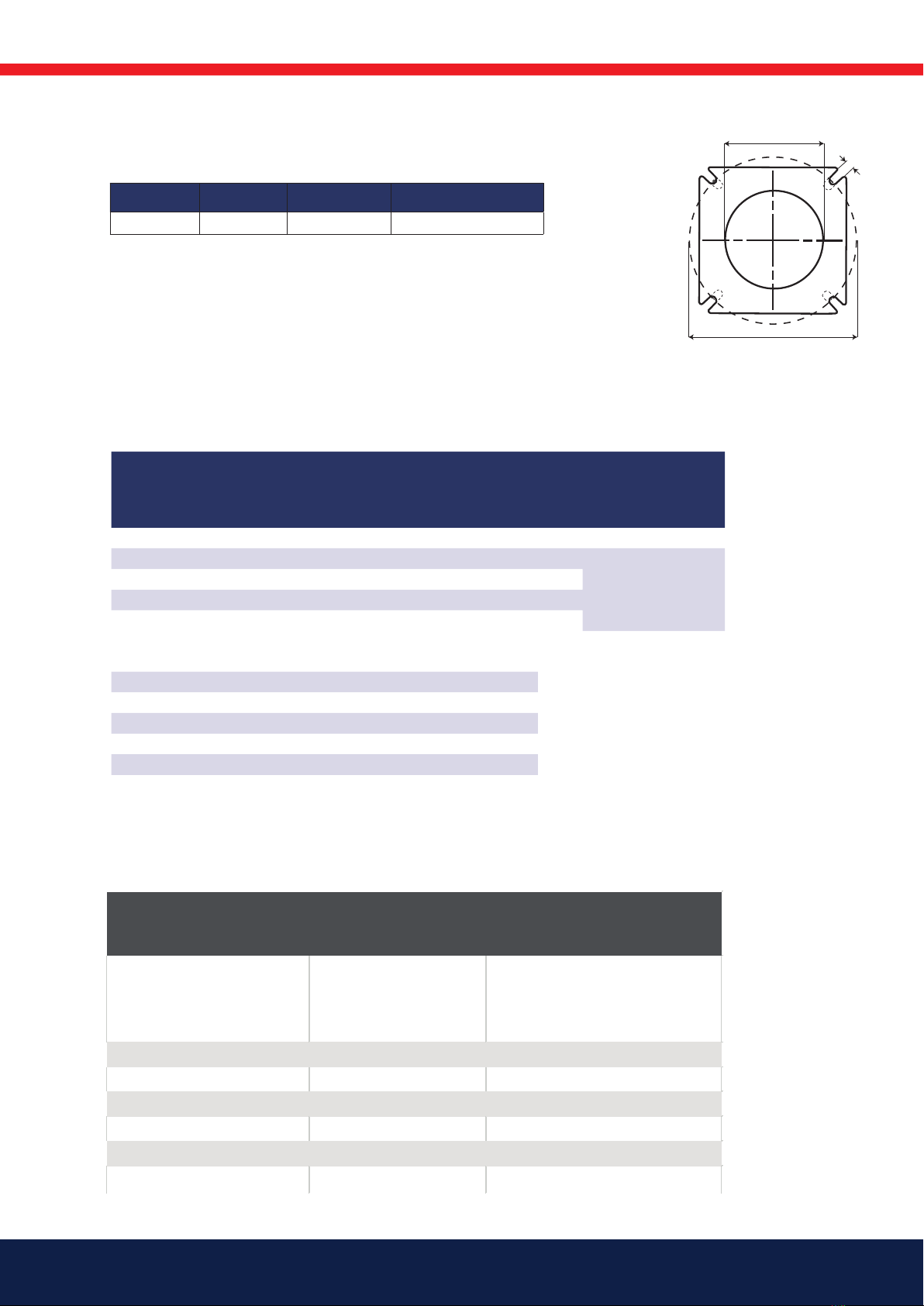

2. Technical data BG 300 M-J/K-IP40
Type
Burner tube
length
Flange
measurement
A
Burner tube
measurement
B
Burner pipe
measurement
C
BG 300 Standard 1 145 128 ø120 ø110
Standard 2 245 228 ø120 ø110
D E F G H I J O P S
BG 300 330 225 130 *340 585 175 **200 300 35 380
172 525 08
Dimensions specified in mm
2.1 The burner is intended for use with:
• Hot water boilers in intermittent operation
2.2 Dimensions
• Gas connection ¾-2"
I
HA F D
J
EG
B
C
O
SP
*The above measurements are maximum measurements. The measurements
may vary depending on which components are used.
**Minimum recommended measurements to the floor.

8Bentone
1.1.1 Capacity range
Capacity kW Gas quantity
at min. power
Nm3/h 1)
Gas quantity
at max. power
Nm3/h 1)
Max.
connection
pressure
mbar
Min connection
pressure mbar
See data plate
1) Lower heat value Hu at normal state 15°C and 1013.25 mbar EN676
Grade of gas
Natural gas
Natural gas
Butane
Propane
Gas quantity and capacity vary according to grade of gas and connection
pressure.
BG 300
G20 50-200 5.2 21 360
G25 50-170 6,1 20,7 360
G30 65-200 2,0 6,1 360
G31 50-200 2,0 8,1 360
kWh/Nm3MJ/Nm3kcal/Nm3
G20 9.5 34.02 8126
G25 8.2 29.25 6986
G30 32.5 116.09 27728
G31 24.6 88.00 21019
Gerätekategorien
Appliance categories
Versorgungsdrücke
Supply pressures
Besmmungsländer
Countries of desnaon
II
2R/3R
20-360mBar
BG, CZ, DE, EE, ES, FR, GR, HU, IS,
IT, LU, LV, NO, PT, SI,
All countries
II
2H3B/P
20-360mBar AT, CH, CY, DK, FI, LT, RO, SE,
SK
II
2H3P
20-360mBar GB, IE,
II
2L3B/P
20-360mBar NL, RO
II
2E3B/P
20-360mBar PL
I
2E(R)B
20-360mBar BE
I
3P
20-360mBar BE
1.1.1 Measurements for connection to the boiler
K L M
BG 300 10 ø175-240 ø125 (***115)
K
L
M
1.1.2 Gas categories approved gases
Only the use of dry gas is permitted
***Measurements when installing burner tubes from inside the boiler

9Bentone
1.1.1 Electrical specification EN 60335-2-102
The burner meets Electrical enclosure class IP20
Type BG 300
Motor 180W 230V 1.3A 50Hz
Recommended main fuse
motor C10A
Operating supply 230V 2.1A 50Hz
Sound 82 dBA ± 0.5 dBA
1.1.1 Working area
BG 300
G20,G31 50-200 kW
BG 300
G30 65-200 kW
G25 50-180 kW
-1
0
1
2
3
4
40 60 80 100 120 140 160 180 200 220 kW
G20, G31
mbar
-1
0
1
2
3
4
40 60 80 100 120 140 160 180 200 220 kW
G30, G25
mbar
!Do not exceed the
working area
Measures according to EN 3746:2010
Option 1 The burner’s noise level can be reduced by equipping a sound
damper. Installation must not affect the air supply to the burner.
Option 2 The burner’s noise level can be reduced by connecting the burner’s
air intake to an air duct with a suitable purge point. Installation must
not affect the air supply to the burner.

10 Bentone
2.3 Description BG 300
Components
1. Inspection cover
2. Air pressure monitor
3. Damper motor
4. Nozzle control (not town gas)
5. Flame cone
6. Connection gas fixture
7. Air damper
8. Air intake
9. Ignition electrode
10. Electrical panel 2
11. Electrical panel 1
12. (Optional accessory)
13. Fan wheel
14. Motor
15. Ionisation electrode
16. Transformer
17. Insert
18. Nozzle
19. Brake disc
20. VPS
21. Gas pressure switch, min/
leakage control
22. Solenoid, gas pressure switch,
min/leakage control
23. MultiBloc
4 5
1 2 6 21 22 24 20
25 26
12
3
67 8
10
23

11Bentone
9
15
13
16 141819 17
10
11
29
28
30 31 32 33
24. Solenoid, MultiBloc
25. Solenoid, gas pressure switch
max
26. Max. gas pressure switch
27. Electrical panel 1
28. Main switch
29. Indicator light triggered relay /
reset relay
30. Indicator lamp operation
31. Operating switch
32. Automatic/manual mode
33. Increase/decrease

12 Bentone
172 515 03 2018-01-02
3. General instructions
3.1 General instructions
The installation of the gas burner must be carried out in accordance with
current regulations and standards. The installers of gas burners should
therefore be acquainted with all regulations and ensure that the installation
complies with the requirements. The installation, mounting and adjustment
should be made with the greatest care and only the correct gas should be
used.
3.2 Installation and maintenance
instructions
The maintenance instructions supplied with the burner must be kept at an
easily accessible location in the boiler room.
3.3 Instructions
The user should be thoroughly in-structed in the function of the gas burner
and the whole installation. The supplier must instruct the user.
3.4 Inspection and maintenance
See service schedule.
3.5 Start up
After the burner has been fitted to the boiler and the electric connection, the
leakage control, the venting and the electric function test have been carried
out, the burner will be ready for start-up.
Howerer, study the sections dealing with adjustments of multi-bloc,
combustion air and combustion head. Open the ball valve and switch on the
main switch. If the burner starts the actual adjustment can be made.
3.6 Commissioning of installation
Control of the combustion. The combustion quality is checked by means of a
flue gas analysis device. Adjust the burner to appr. 20%
excess air in accordance with the table. Check the flue gas temperature.
Calculate the efficiency. Check also the actual gas volume on the gas meter
so that the correct input is achieved.

13Bentone
172 515 03 2018-01-02
4. Installation
4.1 Delivery check
Check that all has been delivered and that the goods have not been
damaged during transport. If that is not the case, please notify the delivery
company. Transport damages should be reported to the forwarding agency.
4.2 Preparations for installation
Check that the measurements and capacity range of the burner are
compatible with the boiler. The power ratings on the type plate refer to the
min. and max. power of the burner.
4.3 Gas supply
For good operating safety, it is important that the gas supply system is
installed correctly.
Consider the following:
1. Check that the burner is approved for the gas quality of the installation.
If not, please contact the supplier.
2. Check that the gas components of the burner are approved for
indicated gas pressure.
3. The gas supply system should be installed in accordance with current
standards.
4. Pipe lines should be run so that service on boiler and burner is
facilitated.
5. Pipe lines should be run so that eventual contaminants cannot come
into contact with the gas components.
6. Gas discharge system must be installed prior to local regulations.
4.4 Electric connection
Before starting the electric installation, the main switch must be turned off.
If the boiler has a 7-pole and a 4-pole Eurostecker connector, these usually
fit directly to the burner. If not, use the connectors included.
(Refer to connection under Electric equipment)
!If an electric connection other than the one recommended by Enertech is used, a risk of damage and
injury can arise.

14 Bentone
172 525 10
4.5 Piping diagram
1. Ball valve
2. Filter
3. Pressure regulator
4. Pressure gauge with stop cock (optional extra)
5a. Min. gas pressure switch
5b. Max. gas pressure switch
6a. Main valve, 2-way. For modulating operation, this valve is equipped for
ratio control.
6b. Safety valve
7. Tightness check *
8. Control motor
9. Air pressure switch
10. Ventilation pipe for releasing gas
Pos. 5b, 7: Components not required as per EN 676.
* Required for over 1200 kW as per EN 676.
Multi Block
10

15Bentone
4.6 Mounting on the boiler
Remove the combustion unit from the burner. Fit the enclosed flange and
gasket to the boiler. If new fixing holes must be drilled, use the fixing flange
as a pattern.
Removal of valve unit from burner
Remove the plug-in contact from the multi-bloc. Loosen the union nut.
Removal of fan house unit from burner.
Remove the screws (A). Swing out the fan housing. Remove the ionisation
and ignition wires from the electrodes. Remove the bolt (B) on the spectacle
flange. Lift away the fan housing.
Installation example
Connect the gas to the burner by means of the ball valve. Ensure that
the union nut, ball valve and tubing make it easy to remove the burner for
inspection and service.
B
A
!Check the gas tightness.
172 515 06 2018-01-02

16 Bentone
172 515 08 2018-01-02

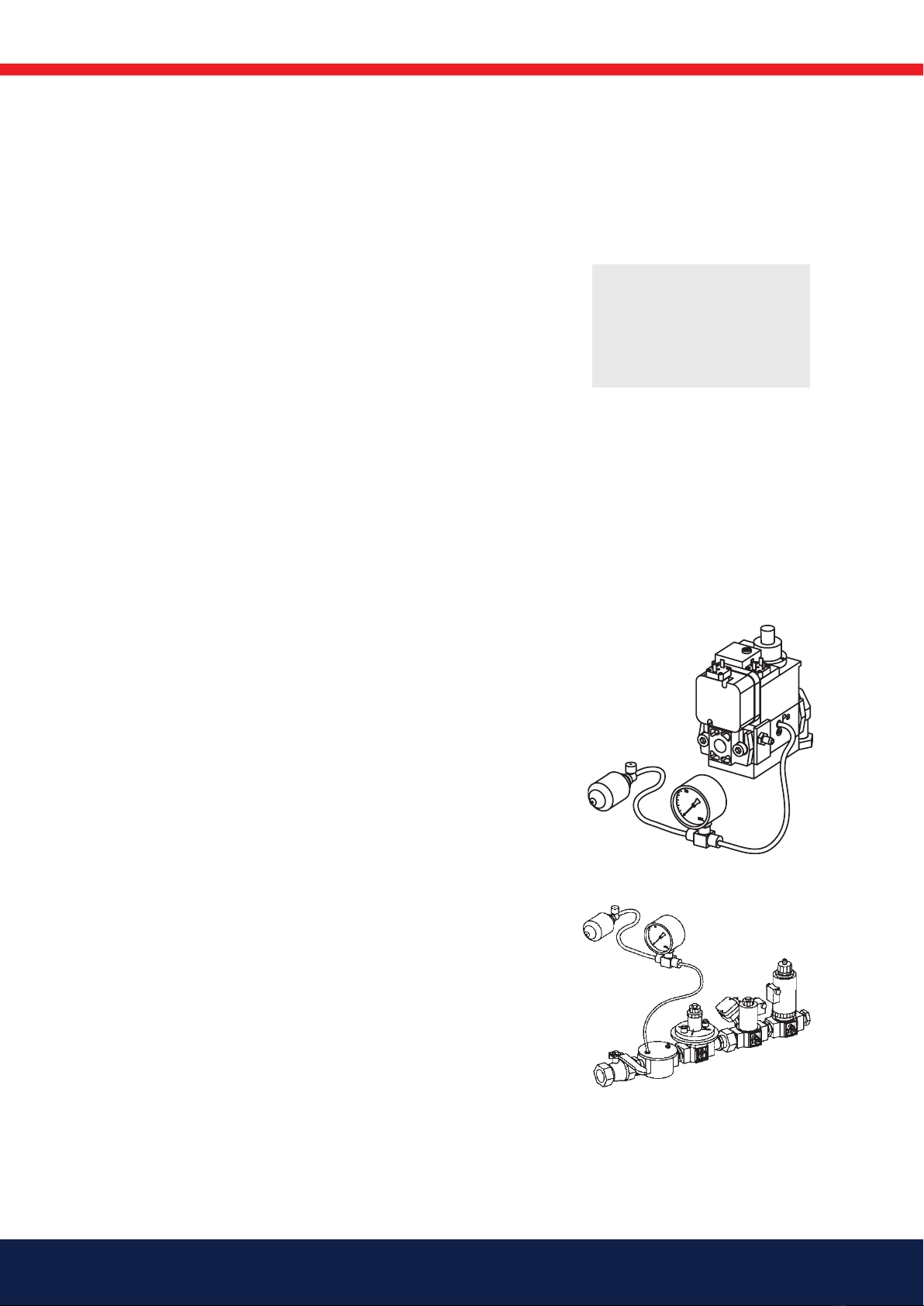

4.7 Inspection of gas nozzle before
commissioning
General rules
Care should be taken by the installer to ensure that no electrical cables
or fuel/gas pipes are trapped or damaged during installation or service/
maintenance.
Gas nozzle
Check that the ignition and ionisation electrodes are correctly set. In
the figure (see the gas nozzle chapter), the dimensions are specified for
adjustment of the ignition and ionisation electrodes.
Gas quality
Ensure that the burner head is meant for the gas quality to be used (see
capter gas nozzle).
De-aerating
De-aerating of the gas line is conducted, for example, by unscrewing
the screw on the measuring nipple for the connection pressure. Connect
a plastic hose and release the gas in a safe place. Once de-aerating is
completed, be sure to refit the screw on the measuring nipple.
Leakage control
When making a leakage control of the gas supply system the solenoid valve
should be closed. Connect a pressure gauge to the test nipple Pa, see fig.
The test pressure in the system should be 1,5x max. inlet pressure or min.
150 mbar. If any leakage, locate the source by means of soapy water or a
leak location spray. After tightening repeat the test.
Electric function test:
Ensure that phase and neutral are not reversed. The gas shut-off cock
should be closed.To prevent the gas pressure switch from locking out it
should be linked temporarily.
After the main switch has been switched on and the thermostats have been
adjusted the pre-purging period begins (30-35sec.). At the end of this period
the pre-ignition period starts (0,5-2,5 sec. dependent on the design of the
gas control). The gas valve is energized and opens and flame is established.
At the end of the safety time (2-3 sec.) the gas control locks out. The
solenoid valve and the motor will be "dead". Remove the link from the gas
pressure switch after the test is finished.
Note on 2-stage and modulating burners that during the pre-purging period
the damper opens to the set value for air on stage 2 and just before the
end of the pre-purging period it goes down to the air setting for stage 1. On
some burners under 350kW the pre-purging mainly takes place with the air
damper set for stage 1.
!If the burner is directly
connected, ensure
that all components on
the burner are without
power.

17Bentone
172 515 08 2018-01-02
4.8 Gas nozzle
Natural gas
Propan
Biogas (UV detector)
2,5
8,0

18 Bentone
172 515 15
4.9 Setting Air damper
4.10 Damper motor, air volume
Adjust the orange cam for min. load (about 5-10 on scale)
Adjust the red cam for max. load (90° )
The blue cam is factory set for closed position during standstill
The black cam has no function at modulating operation
4.11 Adjustment of gas flow
-Before the burner starts vent the lines to make sure that there is gas
available at the multibloc
-Use an allen key size 2,5 mm for adjusting N and V.
-Connect a pressure gauge for measuring PBr, (advisable to find out if
the valves are open)
-Set the switch in position MAN.
-Set the gas pressure switch min. and air pressure switch on min.
adjustment. Set the gas pressure switch max, if any, on max. adjust-
ment.
-Start the burner, observe the pressure gauge, if no flame is esta-
blished and the pressure gauge needle does not flicker, increase N.
When the flame is established adjust the gas flow by means of the
screw N. Use a flue gas instrument.
-Change over to max. load, press the switch “increase”
-Adjust the gas flow with V and check at the same time the combusti-
on values.
-Go back to min. load and check the combustion value. Adjust if
necessary.
-If necessary repeat the controls of the adjustment made on min. (N)
and max. load(V).
-Increased power on minimum and maximum have now been adjusted
by changing the orange cam and red cam. Check the gas flow on the
gas meter available on the installation.
-Note! Do not forget to set the air and gas pressure switches after the
adjustment, see special instructions.
-Releasing button
By pressing the button and snapping it down, the motor will be released and
the damper can easily be turned. This function facilitates an exchange of
damper motor.
Releasing button
N.B! The upper position is
the standard positiont
High capacity (red)
Low capacity (orange)
Closed damper (blue)
Solenoid valve
High capacity (black)
Releasing button

19Bentone
172 525 09
5. Setting the burner
5.1 Setting the brake plate
- Loosen the screw on the lever
- Small column: turn the knob left
- Large column: turn the knob right
Setting the brake plate position affects airflow.
Therefore, it is always necessary to fine-tune
airflow using the burner’s airflow regulator.
5.2 Checking the
combustion head
Check the combustion head, brake plate and
electrodes as follows:
Loosen the nuts (a). Swing the burner out.
Remove the screw (b) and knob for setting the
combustion head. Loosen the fixing screw (c)
until the burner insert is released.
Pull out the insert from the gas manifold.
Setting the brake plate
Combustion head

20 Bentone
General instructions
The gas firing system must be installed in accordance
with applicable regulations and directives. The supplier/
installer of such systems therefore has a duty to
understand all applicable regulations in order to ensure
that the installation complies with national requirements.
The installation, mounting and initial adjustments must
be carried out with the utmost care, and only gas
intended for the gas burner may be used.
User manual
The installation and maintenance instructions supplied
with the burner must be kept at an easily accessible
location in the boiler room.
Instructions
The user must be comprehensively instructed in the
operation of the gas burner and entire system. It is the
responsibility of the supplier to instruct the user.
Inspection and maintenance
Inspection as needed, preferably daily. Maintenance per
service schedule.
Start-up
Once the burner is mounted to the boiler, the electrical
connection is complete, the gas piping is seal-tested and
vented, and the electrical function test has been carried
out, the burner is ready for start-up.
However, read through the sections on setting the gas
piping, combustion air and combustion heads.
Open the ball valve and close the main switch. If the
burner starts, initial adjustments can be carried out.
Setting the combustion head
The burner is equipped with a lever that changes the
position of the brake plate in the combustion head.
This is used to set the correct pressure drop across
the combustion assembly and thereby obtain good
combustion without pulsation.
The position to be used depends on, among other
things, the firing output and overpressure in the boiler.
A general rule of thumb is that the smaller the capacity,
the smaller the column should be between the brake
plate and the combustion assembly.
Fine-tuning the system
Checking the combustion. Checking the quality of
the combustion is done using a flue gas analyser.
Set the burner to about 20% excess air according to
the adjacent table. Check the flue gas temperature.
Calculate the combustion efficiency. Also check the
current volume of gas on the gas meter to ensure that
the correct firing output is achieved.
Servicing
The person/company carrying out service and
maintenance on the burner must be authorised to do so.
If components need to be replaced, the replacements
must be of the same make and type and be approved
according to national regulations. If the burner is to be
used for a different grade of gas, readjustment must be
carried out.
Gas quality CO2%
lambda 1,2
02% max. CO2%
Natural gas 10,0 4±1 11,9
Propane/
LPG
11,5 4±1 13,9
