Bentone B45-2 MF Technical specifications

Providing sustainable energy solutions worldwide
CR00349 178 140 56-3 2021-08-06
Installation- and maintenance instruction
B 45-2 MF
LMO24.255C2E
E4NC-1069 7P
Translation of the original instructions.

2Bentone
example Beispielexempel
352011030141
Designation
Type
Model
Serial no.
Motor supply
Main supply
MADE IN SWEDEN BY
LIGHT OIL 35-90kW 1,25-6,0 cSt 7-14bar
BF 1 KS 76-24
BF 1
BF 1 KS 76-24
1234567
1~230V 1,0A 50Hz IP 20
Man.Year 2019
Cap. Min-Max
3
?
1
-sv
1. Manualer på övriga språk
2. www.bentone.com\
nedladdning
eller scanna QR-koden.
3. Skriv in brännarens
artikelnummer som finns på din
typskylt (se bild) och välj ditt
språk.
Detaljerad ecodesign information
kan laddas ner på:
www.bentone.com/ecodesign.
-en
1. Manuals in other languages
2. www.bentone.com\download
or scan QR-code.
3. Enter the burner`s article
number on your data plate (see
picture) and select language.
Detailed ecodesign information
can be downloaded at:
www.bentone.com/ecodesign.
-da
1. Manualer på andre sprog
2. www.bentone.com\download
eller scan QR-koden.
3. Indtast brænderens
artikelnummer, der findes på
typeskiltet (se billede), og vælg
dit sprog.
Detaljerede oplysninger om
ecodesign kan downloades på:
www.bentone.com/ecodesign.
-fr
1. Manuels dans d’autres
langues
2. www.bentone.com\download
ou scannez le code QR.
3. Saisir le numéro d’article
du brûleur sur votre plaque
signalétique (consultez
l’illustration) et sélectionnez la
langue.
Des informations détaillées
sur l’écodesign peuvent être
téléchargées à l’adresse:
www.bentone.com/ecodesign.
-de
1. Gebrauchsanweisungen in
anderen Sprachen
2. www.bentone.com\download
oder scannen Sie den QR-Code.
3. Geben Sie die Artikelnummer
des Brenners auf Ihrem
Typenschild ein, (siehe Bild) und
wählen Sie die Sprache aus.
Detaillierte Informationen zum
Ecodesign können unter
www.bentone.com/ecodesign
heruntergeladen werden.
2

3Bentone
Table of contents
1. Safety Information____________________________________ 4
2. Technical data _______________________________________ 8
2.1 Dimensions B 45-2 MF ____________________________ 8

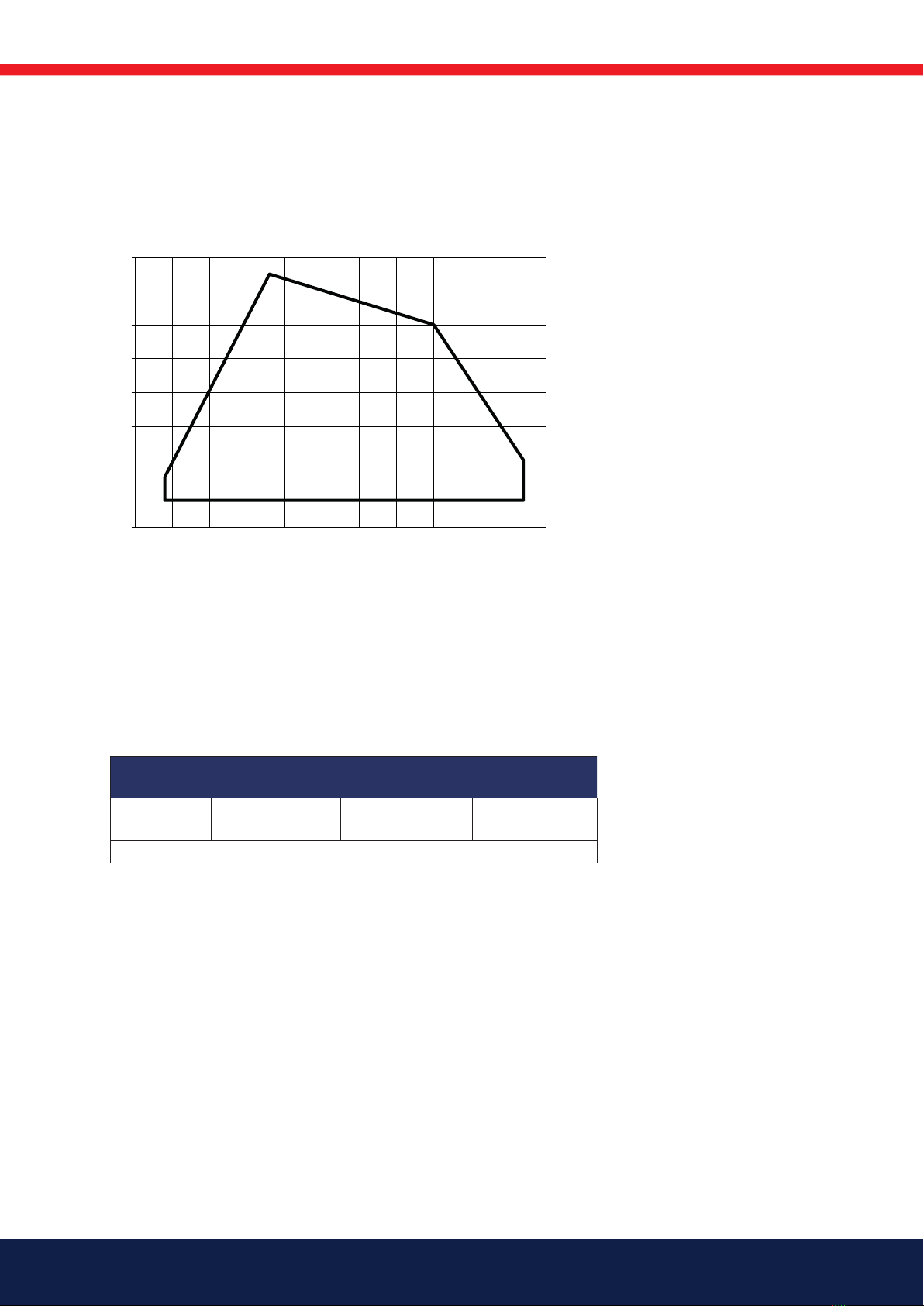

2.2 Working field _____________________________________ 9
2.3 Electric Specification ______________________________ 9
2.5 Recommended nozzle and pressure ________________ 10
2.6 Burner installation ________________________________ 10
2.4 Setting of brake plate and air flow __________________ 10
2.7 Oil grades_______________________________________ 11
2.8 Nozzle for bio oils, 20-28 bar ______________________ 12
2.9 Nozzle for fossil oils, 22-28 bar _____________________ 13

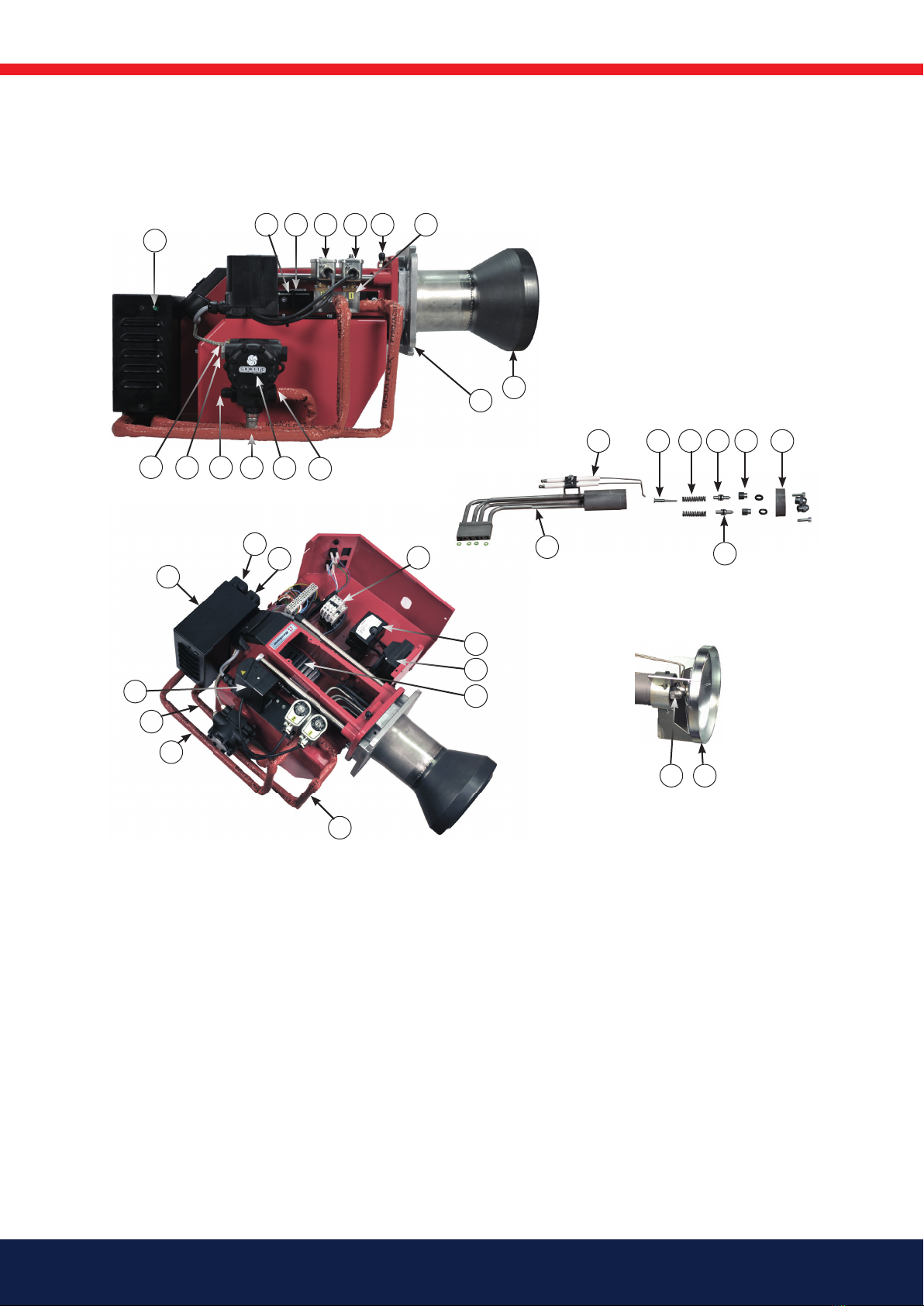

2.10 Description _____________________________________ 14
3. Installation _________________________________________ 16
3.1 Acceptance inspection____________________________ 16
3.2 Preparations for installation ________________________ 16
3.3 Distribution of oil _________________________________ 16
3.4 Electrical connection______________________________ 17
3.5 Nozzle selection _________________________________ 18
3.6 Setting of brake plate and air flow __________________ 18
3.7 Burner installation ________________________________ 19
3.8 Check oil line seals _______________________________ 19
4. Funktionsbeskrivning ________________________________ 20
4.1 B45-2 MF 2-stage burner _________________________ 20
5. Basic settings ______________________________________ 21
5.1 Examples of basic setting B 45-2 MF _______________ 21
5.3 Nozzle assembly control, brake plate________________ 22
5.2 Setting values for nozzle and air damper _____________ 22
6. Burner servicing ____________________________________ 23
6.1 Servicing the combustion assembly ________________ 23
6.2 Servicing air dampers ____________________________ 24
6.3 Replacement of damper motor _____________________ 25
6.4 Replacement of oil pump__________________________ 26
6.5 Replacement of preheaters ________________________ 27
6.6 Replacement of electrical components ______________ 28
6.7 Replacement of preheater overheating protector ______ 28
6.8 Check oil line seals _______________________________ 29
6.9 Check pressure piston nozzle holder seals ___________ 29
6.10 Replacement of pressure piston and seat ____________ 30
6.11 Immersion heaters for extra preheating ______________ 31
6.12 Replacement of pump filter ________________________ 33
6.13 Check/service oil pre-filter _________________________ 33
6.14 Setting Damper motor 2-stage ____________________ 34
7. Preheater___________________________________________ 35
7.1 Technical data ___________________________________ 35
7.2 Adjustment of preheater operating thermostat ________ 36
7.3 Return Oil Pressure Switch ________________________ 37
8. Pump instruction E4NC-1069 7P______________________ 38
8.1 Technical data ___________________________________ 38
8.2 Components ____________________________________ 38
8.3 Oil connection ___________________________________ 38
8.4 Changing the filter________________________________ 38
8.5 Function ________________________________________ 39
8.6 Preheating pump ________________________________ 39
9. Electrical equipment ________________________________ 40
9.1 Wiring diagram __________________________________ 40
9.2 Function LMO14/24 ______________________________ 41
9.3 Colour codes LMO14/24 __________________________ 42
9.4 Fault codes LMO14/24 ___________________________ 42
10. Fault Location ____________________________________ 43
10.1 Burner will not start_______________________________ 43
10.2 Burner will not start after normal use ________________ 43
10.3 Delayed ignition__________________________________ 44
10.4 Noise in pump ___________________________________ 44
10.5 Pump pressure __________________________________ 45
11. Log of flue gas analysis____________________________ 46
12. Oil burners maintenance instructions _______________ 47

4Bentone
1. Safety Information
This Installation and Maintenance manual:
• is to be regarded as part of the burner and must always be kept near
the installation site
• is intended for use by authorised personnel
• must be read prior to installation
• must be observed by all who work with the burner and associated
system components
• work with the burner may only be carried out by certified installers/
personnel
• Enertech AB is not liable for any typographical errors and reserves the
right to make design changes without prior notice.
• The burner may only be used for its intended purpose in accordance
with the product’s technical data.
• The burner may only be installed and operated by authorised
personnel.
• The product is packaged to prevent damage from occurring during
handling. Handle the product with care. Lifting equipment must be
used to lift larger packages.
• The products must be transported/stored on a level surface in a dry
environment, max. 80% relative humidity, no condensation.
Temperature -20 to +60 °C.
• Check that the burner is compatible with the boiler’s output range.
• The label information on the rating plate refers to the burner’s minimum
and maximum power.
• All components must be installed without being bent, twisted or
subjected to mechanical or thermal forces which can affect the
components.
• The burner must be installed so that it complies with local regulations
for fire safety, electrical safety, and fuel distribution.
• Make sure when installing the equipment that there is enough space to
service the burner.
• Permitted ambient temperature during operation 0 to +60°C. Max
80% relative humidity, no condensation.
• The installer must ensure that the room has adequate air supply.
• The room must comply with local regulations pertaining to its intended
use.
• The installation site must be free of chemicals.
• Burner tubes, fan wheels and air dampers may contain sharp edges.
• The surface temperature of the burner’s components can exceed
60°C.
• Caution: The burner has moving parts, and there is risk of crushing
injuries.
• The electrical installation must be professionally carried out in
accordance with applicable high voltage regulations, as per Enertech’s
recommendations.
165 105 85

5Bentone
• Before service, shut off the fuel supply and turn off the power to the
burner.
• Leak checks must be performed during installation and service to
prevent fuel leakage.
• Care should be taken by the installer to ensure that no electrical cables
or fuel lines are crushed or otherwise damaged during installation or
service.
• If the boiler is equipped with an access hatch, this must be equipped
with a hatch opening switch connected to the burner's safety system.
• When in operation, the burner’s noise level can exceed 85 dBA.
Use hearing protection.
• The burner must not be put into operation without proper safety and
protection devices.
• Fire extinguisher with Class BE recommended.
• Modifying the design or using accessories that have not been
approved by Enertech in writing is strictly prohibited.
• Prior to operation, the following points must be checked:
-fitting and installation work has been completed and approved
-electrical installation has been correctly performed
-flue gas ducts and combustion air ducts are not blocked
-all actuators and control and safety devices are in working order and
correctly set
• After commissioning
-If the gas burner control has a solid red light, contact your installer.

6Bentone
General requirements RME
This is a burner designed for FAME, B-100 (RME) fuel. The fuel must meet
the requirements of standard EN 14214 for FAME.
The fuel must be stored and used according to the manufacturer’s
instructions. It should typically be used within 6 months of manufacture. Fuel
that is allowed to age loses its oxidation stability and produces aggressive
constituents. These cause oxidation damage to components in the oil
system. The fuel should be stored in a cool area to minimise these problems.
The RME cistern must be made of metal or dark coloured plastics approved
for the fuel.
The design of the equipment on the burner permits the use of EO1 type
oil without modification, although with appropriate adjustments to the
combustion after changing the fuel type.
Oil burners must be installed in accordance with local regulations. The
installer must therefore be knowledgeable of the regulations pertaining to oil
and combustion.

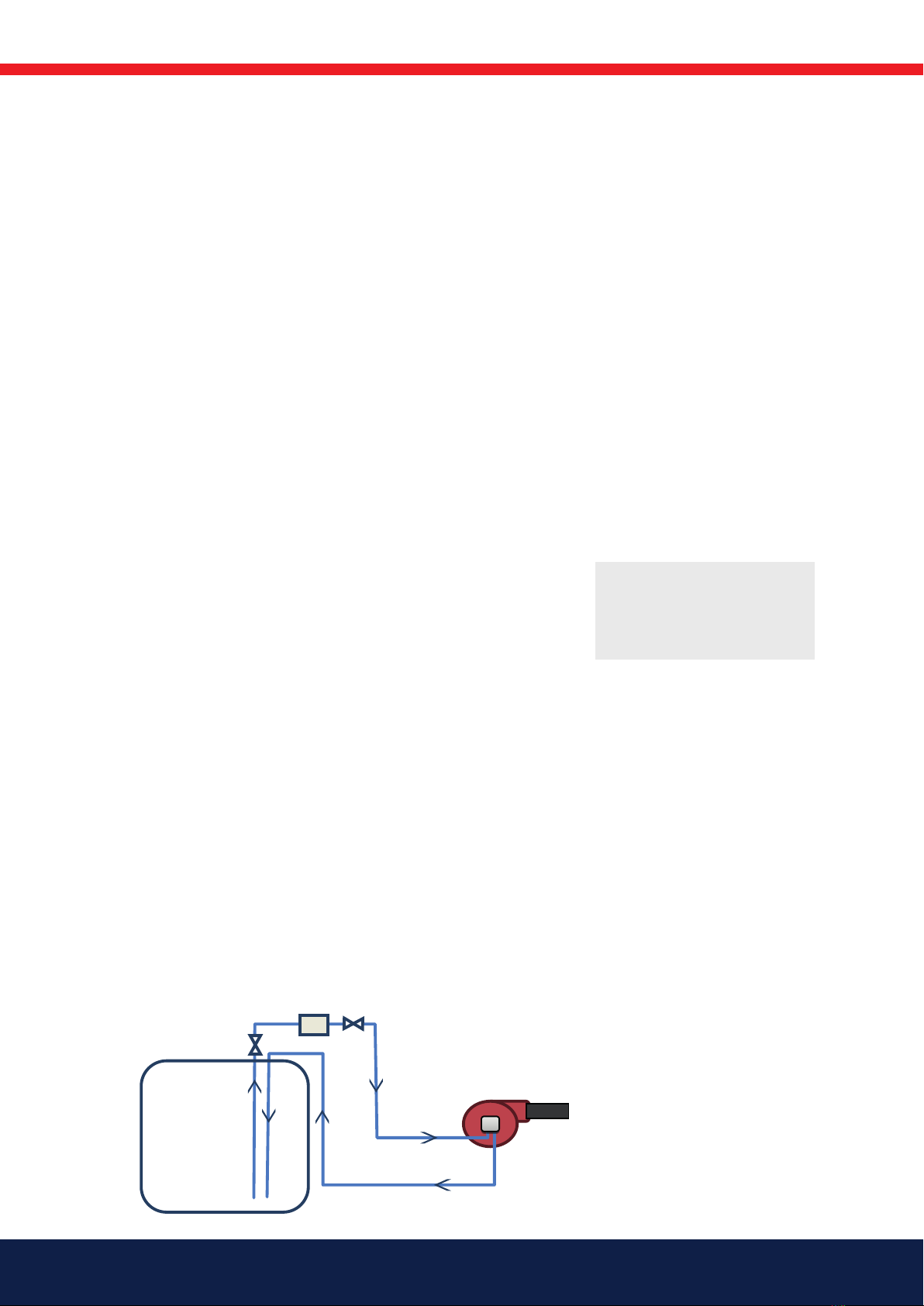

Installation should be carried out as a one-pipe system and used together
with the bleeder to vent the system, and an appropriate filter must also be
in place. Copper should be avoided in RME fuel systems since the fuel and
copper have an oxidising effect on each other.
Only oil suitable for the burner must be used and then in combination with
a suitable oil filter designed for FAME, B-100 (RME) and installed before the
burner’s oil pump.
The tank should be cleaned and the water should be checked regularly to
prevent problems related to corrosion and microorganisms. This should be
done once a year.
If the burner is replacing an existing burner, ensure that the oil filter is
changed to a filter designed for FAME, B-100 (RME). Installation may only be
performed by qualified personnel.
Care should be taken by the installer to ensure that no electrical cables or oil/
gas pipelines are crushed or damaged during installation or service.
Burners that run on FAME, B-100 (RME) fuel are and must be equipped with
parts designed for this fuel. This applies in particular to oil-related parts such
as the pump, solenoid valve, oil filter and hoses with fire-retardant sleeves. It
is very important when carrying out a service to replace old parts with new
parts of the same quality.
Maintenance
The boiler/burner must be checked regularly for faults or leakage. Any boiler/
burner that uses FAME (RME) fuel must be serviced at least twice a year. It is
very important that worn parts are replaced at the time of servicing with new
parts of the same quality.
Oil hoses must be of high-quality fluoride rubber or PTFE intended for FAME,
B-100 (RME).
The hoses must be fitted with fire-retardant sleeves in order to satisfy
requirements according to EN-ISO 6806.

7Bentone
Components Service life – Recommended
replacement
Service life – Recommended
replacement Operating cycles
Control system 10 years 250,000 cycles
Pressure switch 10 years 250,000 cycles
Ignition system with flame guard 10 years 250,000 cycles
UV flame sensor 10,000 h N/A
Damper motor 500,000 cycles
Contactor 10 years 500,000 cycles
Burner Twice a year 3,000 h
Filter Twice yearly replacement 3,000 h replacement
Oil hose Once yearly replacement
Nozzle Twice yearly replacement 3,000 h replacement
Electrodes Replace/Clean twice a year Replace/Clean 3,000 h
Brake disc Replace/Clean twice a year Replace/Clean 3,000 h
Motor Twice a year 3,000 h
Drive shaft Check/replace in the event of
damage
Check/replace in the event of
damage
Fan wheel Twice a year
Replace if
need for cleaning/imbalance
3,000h
Replace if
need for cleaning/imbalance
Tank Check for water once a year
Clean tank once a year
Oil filter Twice a year 3,000 h replacement
Oil valve Tightness check twice a year Replace if leaky
The burner and its components must be recycled according to applicable regulations.
Burner service schedule
Servicing must be carried out twice a year or after 3,000 hours of operation.
Component replacement intervals
Delivery check
• Make sure everything is delivered and the goods have not been damaged during transit.
• If something is wrong with a delivery, report it to the supplier.
• Transport damage must be reported to the shipping company.

8Bentone
165 205 88-2
2. Technical data
The burner is intended for:
• Light oil, B10 heating oil/biofuel blend, FAME, B-100 (RME) (as defined in DIN V51603-6)
rapeseed DIN 51605:2010-10.
and is used for:
• Water heating generators.
• Hot air generators (these require LMO 24 255 C2E).
2.1 Dimensions B 45-2 MF
* Min. recommended distance to floor.
A Ø B Ø C D E F G H I * J
B 45-2 MF 246 220 134 585 375 347 265 248 513 200
B
C
I
H
G
F
E
D A

9Bentone
Type Motor Complete
burner
Sound
B 45-2 MF 550W 230V
50/60Hz 25µF
230V 3,8A 400V
8,5A 50Hz 84 dBA ± 0,5 dBA
Max operating current, see data plate.
2.2 Working field
2.3 Electric Specification
Burner correspond to IP 20
* Used lower calorific value of 10.00 kWh/
kg for rapeseed oil in accordance with DIN
51605:2010-10.
-1,0
0,0
1,0
2,0
3,0
4,0
5,0
6,0
7,0
50 100 150 200 250 300 350 400 450 500 550 600
mbar
kW
9.0-55.0 kg/h
90-570 kW
160303-226

10 Bentone
2.5 Recommended nozzle and pressure
Nozzle: 45° Solid/semisolid
60° Solid/semisolid
80° Solid/semisolid
Pump pressure 10 bar (8-25 bar) depending on pump model
2.6 Burner installation
2.6.1 Hole patten
Make sure the hole pattern on the boiler is designed for burner flange.
Because of the various boiler types with varying furnace geometries and
furnace loads, it is impossible to commit to a certain scattering angle or a
specific distribution pattern.
It should be noted that the scattering angle and distribution pattern changes
with pump pressure.
d1
d2
d3
Combustion
device
d1d2d3
B 45-2 MF (135) 225 M14 ø (200) 224-270
2.4 Setting of brake plate and air flow
!*NB It is important
that the spark
does not strike
against the brake
plate or nozzle
!The burner pump is factory set at 24 bar and test
operated using Roadway 80.
a
b
c
de
a b c d e
B 45-2 MF 2,5-3,0 2,0 6,5-7,0 2,0 6,0

11Bentone
!Altered structure of the oil can give rise to altered viscosity, pumpabilty and
ignitability. This can cause the pump, valves and nozzles to get blocked.
2.7 Oil grades
The burner is tested and approved for pure rapeseed oil that complies with
standard DIN 51605:2010-10.
The burner is designed to be able to burn oils with a higher viscosity, both
of biological and fossil origin. The maximum viscosity with which the burner
is tested is 75 mm²/s, 0–130°c. Another way of defining which kind of oil
the burner can handle is that the oil must be of such a nature that it can be
pumped by the burner pump at the temperature the oil has at the point of
access to the pump.
The burner, without the pump, is designed to withstand the more corrosive
environment often created by oils of biological origin.
The Suntec E1069 pump is NOT designed for aggressive oils.
The burner pump has a service life of approx. 3–5 years if the oil is of a grade
that complies with standard DIN 51605:2010-10. If oil of a different grade
is used, especially if the oil contains contaminants such as particles, press
residue, metal swarf etc., or has chemical aggression, the pump may be
expected to have a significantly shorter service life.
The pump is considered to be a wearing part and is not covered by the
warranty.
Pressure at the pump inlet must be -0.30 to max 2.0 bar. If there is a noise
from the pump, the oil is not pumpable at the current temperature or flow.
A transport oil pump combined with preheater is then needed to supply the
burner’s pump with oil for trouble-free operation.
The oil distribution system must be designed with the required equipment
such as filters, transport oil pump, preheater and reduction valve to provide
trouble -free operation. Max filter size is 120 µm and the oil may need to be
filtered in several steps.
In the case of a standstill in which the oil can be expected to change
structure, for example aging or phase transitions due to temperature and
storage, the burner must be flushed with fuel oil after the standstill. This
procedure ensures a good start after standstill.

12 Bentone
2.8 Nozzle for bio oils, 20-28 bar
Pump pressure bar
Rapeseed oil compliant with DIN 51605:2010-10 Viscosity: 36.0 mm2/ s, at 40 °C preheater 160 °C
Gph 20 22 24 26 28
kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW
1,00 4,9 49 5,2 51 5,4 53 5,6 56 5,8 58
1,50 7,4 73 7,7 77 8,1 80 8,4 84 8,7 87
2,00 9,8 98 10,3 103 10,8 107 11,2 112 11,6 116
2,50 12,3 122 12,9 128 13,5 134 14,0 140 14,5 145
3,00 14,8 147 15,5 154 16,2 161 16,8 168 17,5 174
3,50 17,2 172 18,0 180 18,9 188 19,6 196 20,4 203
4,00 19,7 196 20,6 206 21,5 215 22,4 224 23,3 232
4,50 22,1 221 23,2 232 24,2 242 25,2 252 26,2 261
5,00 24,6 245 25,8 257 26,9 269 28,0 280 29,1 290
5,50 27,0 270 28,4 283 29,6 296 30,8 308 32,0 320
6,00 29,5 295 30,9 309 32,3 323 33,6 336 34,9 349
6,50 32,0 319 33,5 335 35,0 350 36,4 364 37,8 378
7,00 34,4 344 36,1 361 37,7 377 39,2 392 40,7 407
7,50 36,9 368 38,7 386 40,4 404 42,0 420 43,6 436
8,00 39,3 393 41,3 412 43,1 430 44,9 448 46,5 465
8,50 41,8 418 43,8 438 45,8 457 47,7 476 49,5 494
9,00 44,3 442 46,4 464 48,5 484 50,5 504 52,4 523
9,50 46,7 467 49,0 489 51,2 511 53,3 532 55,3 552
10,00 49,2 491 51,6 515 53,9 538 56,1 560 58,2 581
10,50 51,6 516 54,1 541 56,6 565 58,9 588 61,1 610
11,00 54,1 540 56,7 567 59,3 592 61,7 616 64,0 640
11,50 56,5 565 59,3 593 61,9 619 64,5 644 66,9 669
12,00 59,0 590 61,9 618 64,6 646 67,3 672 69,8 698

13Bentone
2.9 Nozzle for fossil oils, 22-28 bar
Pump pressure bar
The table applies to oil with a viscosity of 4.4 mm 2/s at a density of 830 kg/m 3.
Gph 22 24 26 28
kg/h kW kg/h kW kg/h kW kg/h kW
1,00 5,52 65,44 5,76 68,35 6 71,14 6,22 73,83
1,50 8,66 102,73 9,05 107,3 9,42 111,68 9,77 115,9
2,00 11,01 130,53 11,5 136,33 11,96 141,9 12,42 147,25
2,50 13,78 163,42 14,39 170,69 14,98 117,66 15,55 184,37
3,00 17,21 204,06 17,97 213,13 18,7 221,83 19,41 230,21
3,50 19,13 226,93 19,89 237,02 20,8 246,7 21,59 256,01
4,00 21,06 249,8 22 260,9 22,9 271,56 23,76 281,81
4,50 23,88 283,22 24,94 295,81 25,96 307,89 26,94 319,51
5,00 27,44 325,44 28,66 339,91 29,83 353,79 30,96 367,14
5,50 31 367,66 32,38 384 33,7 399,68 34,97 414,77
6,00 34,71 411,63 36,25 429,94 37,73 447,49 39,16 464,39
6,50 38,71 459,13 40,43 479,55 42,08 499,13 43,67 517,97
7,00 41,38 490,8 43,22 512,62 44,99 533,55 46,69 553,69
7,50 44,2 524,22 46,17 547,53 48,05 569,89 49,86 591,4
8,00 46,72 554,12 48,8 578,76 50,79 602,4 52,71 625,14
8,50 49,1 582,27 51,28 608,16 53,37 632,99 55,39 656,89
9,00 52,51 622,73 54,84 650,42 57,08 676,98 59,24 702,53
10,00 55,92 663,19 58,4 692,68 60,79 720,96 63,08 748,18
11,00 63,04 747,63 65,84 780,87 68,53 812,76 71,12 843,44
12,00 70,75 839,1 73,9 876,41 76,91 912,2 79,82 946,63

14 Bentone
2.10 Description
8
32
36
11
2425
31
15 14 13 12 10
9
72 3 654
1
34
33
35
29
30
16
26
2120
22
1917 18
28
27 23
2.10.1 Components
1. Indicator lamp, preheater ON
2. Nozzle assembly control
3. Scale, nozzle assembly control
4. Solenoid valve NC max. load
5. Solenoid valve NO min. load
6. Measuring nipple, fan pressure
7. Valve block
8. Burner tube
9. Burner flange
10. Pressure outlet pump
11. Pump
12. Return pump
13. Pressure control pump
14. Inlet pump
15. Immersion heater, pump
16. Ignition electrodes
17. Valve needle
18. Spring pressure piston
19. Pressure piston max. load
20. Valve seat
21. Front nozzle holder
22. Pressure piston min. load
23. Air intake
24. Brake plate
25. Nozzle
26. Preheater

15Bentone
4039
38
37 41
43 42
4544 46
48 47
23
27. 5-pole Euro plug (feed preheater)
28. 4-pole Euro plug (control signal preheater)
29. Contactor for motor
30. Relay box
31. Ignition transformer
32. Fan wheel
33. Connecting pipe, valve block return
34. Connecting pipe, preheater valve block
35. Connecting pipe, pump preheater
36. Damper motor
37. Switch 0-I
38. Indicator, min. load
39. Switch I-II
40. Indicator lamp, maximum load
41. Inspection glass
42. 4-pole Euro plug (max. load)
43. 7-pole Euro plug (min. load feed)
44. Air damper
45. Air intake
46. Capacitor
47. Motor
48. Fan housing

16 Bentone
165 205 89
1
3. Installation
3.1 Acceptance inspection
Make sure everything is delivered and the goods have not been damaged
during transit. If something is wrong with the delivery, report it to the supplier.
Transport damage must be reported to the shipping company.
3.2 Preparations for installation
Check that the burner's dimensions and capacity range are suitable for the
boiler in question. The power data on the type sign refers to the burner's
min. and max. power.
3.3 Distribution of oil
In order to achieve good reliability, it is important that the oil distribution
system is designed correctly.
Take the following into account:
• Selection of pipe diameter, pipe length and height difference; see
Pump instruction.
• Pipelines are to be laid with a minimal number of glands.
• The pipes are to be laid so that the oil supply hoses are not subjected
to tensile stresses or are excessively bent when the burner is swung
out or removed for service.
• The ½ " oil filter should be installed so that the filter cartridge can easily
be replaced or cleaned. Self-cleaning filters are recommended for oils
of a higher viscosity or oils that contain significant impurities.
• Oil-affected parts shall be selected in materials that are capable of
withstanding the medium's physical properties.
• When installing oil hoses, check that the inlet and return hoses are
fitted to the appropriate connection on the oil pump. The hoses shall
be located so that they do not bend or become subject to tensile load.
To the suction line on the pump (see paragraph 7.2 pos. 3) should the
supplied oil hose with 90° bend be connected.
• Bleed the oil system. The oil pump/oil preheater may be damaged
if run dry. The vacuum should not fall below 0 bar in the suction line
during start-up.
3.3.1 Proposed pipe routing for oil distribution
systems without transport pump
This type of connection should be used only when the oil has a viscosity less
than 30 mm²/s
1. Self-cleaning filter
!Be sure to fill the
burner oil system
before starting it for
the first time.

17Bentone
1. Transport oil filter
2. Basket filter
3. Overflow valve 0.5 – 2.0 bar
4. Seal filter
5. Pressure gauge 1
6. Pressure gauge 2
3
2
1 Transport oil pump / Transportoljepump
4
5
6
1
!If any electrical connection is used other than that recommended by Bentone,
there may be a danger of damage to property and personal injury.
3.3.2 Proposed pipe routing for oil distribution systems with transport
pump, basket filter and seal filter
3.4 Electrical connection
Before electrical installation begins, the main power switch must be turned off.
If the boiler has a 7-pole and a 4-pole Euro plug connector, they will usually
connect directly to the burner. Otherwise, use the supplied connectors. The
5-pole connector supplies the burner preheater with a separate 3-phase
supply. See connection under Electrical equipment.
1. Switch off the main switch.
2. Connect the Euro plugs. (See Electrical equipment)
3. Make sure the burner operations switch (S1) is off.
4. Turn on the main switch.

18 Bentone
3.5 Nozzle selection
See under Technical data: Recommended nozzle and Nozzle table.
If, after selecting the nozzle, burner type B45-2 MF has difficulty starting, this
may in some cases be due to the selection of nozzle made for the first stage.
Selecting a nozzle with a smaller effect in the first stage may solve the
problem.
3.6 Setting of brake plate and air flow
Prior to commissioning, the basic settings of the burner can be set in
accordance with the diagram. See under Basic settings. Note that it is simply
a matter of a basic setting that should be adjusted retrospectively once the
burner has started. You should then conduct a flue gas analysis and soot
quantity measurement.

19Bentone
A
A
3.7 Burner installation
1. Separate the burner body and the flange.
2. Remove the brake plate from the oil pipe.
3. Install the selected nozzle. (See Technical data)
4. Install the brake plate on the oil pipe
5. Remove the burner tube from the flange.
6. Install the flange with gasket on the boiler.
7. Install the burner tube on the flange. Make sure that the hole in the
front of the burner tube pipe is pointing down. This allows any drops of
oil to flow out.
8. Insulate between the burner and boiler door to reduce radiated heat.
9. Slide the burner body on the guides.
10. Lock the burner body using with the nut/nuts.
11. Connect the oil hoses to the pump, see paragraph 2.3.
12. Connect burner electrically, see paragraph 2.4.
3.8 Check oil line seals
Once the burner has been installed and commissioned, the seals of the
various coupling elements should be checked (A). These may, due to
temperature fluctuations or transportation, start to leak.
Temperature fluctuations arise from the process of heating oil used in these
burners.
When a leak is detected, it is usually sufficient to tighten the coupling
element that is leaking.
!Because the burner tube must be installed from the inside the
boiler, it must be possible to open the boiler or have a hinged
flange that is designed so that it can be reconnected with the
burner tube installed.

20 Bentone
165 205 90
4. Funktionsbeskrivning
E1P
Y1
Y2
Y1
Y2
I
N
N
2
1
L
V1
V2
P Oil pump
E1 Preheater
I Nozzle assembly
L Leak pipe
N1 Nozzle 1
N2 Nozzle 2
Y1 Solenoid valve 1 NO
Y2 Solenoid valve 2 NC
V1 Cut valve 1
V2 Cut valve 2
4.1 B45-2 MF 2-stage burner
When the installation calls for heat, the burner's preheater starts to heat the
oil. Once the oil reaches the set temperature, the burner receives the signal
to start. Hot oil is flushed throughout the burner's oil system.
After the end of the blow period, the min. load solenoid valve (Y1) receives
voltage and closes. The oil pressure builds up in the nozzle holder and the
cut valve (V1) for min. load opens. The oil is atomised in the nozzle (N1) and
ignited. A small amount of oil and the nozzle assembly compressed air flow
is channelled back to the return side of the pump through the leak oil line (L).
Solenoid valve (Y2) for maximum load opens when the installation calls for
maximum load. The pressure difference created over the cut valve (V2) for
maximum load makes this valve open. The oil is atomised in the nozzle and
ignited.
When the heat in the installation reaches break temperature, solenoid valve
(Y2) for maximum load closes to reduce to minimum load. The pressure
equalisation which then takes place over the max. load cut valve (V2) gets
this to close and the flame is reduced to min. load.
Once the installation has reached the desired temperature, a solenoid valve
(Y1) is rendered without power and then opened; cut valve (V1) is then
subsequently closed. This process extinguishes the burner flame. In the
same process, oil heating is also interrupted.
