Riello RLS 310/E O2 MX Quick start guide

Installation, use and maintenance instructions
20182649 (2) - 11/2021
Dual fuel gas oil/ gas burners
Modulating operation
CODE MODEL TYPE
20182632 RLS 310/E O2 MX 1161T1
20182634 RLS 410/E O2 MX 1162T1
20182635 RLS 510/E O2 MX 1163T1
20182636 RLS 610/E O2 MX 1164T1
GB

Translation of the original instructions

1 20182649
GB
Contents
1 Declarations................................................................................................................................................................................ 3
2 Information and general warnings............................................................................................................................................ 4
2.1 Information about the instruction manual .................................................................................................................... 4
2.2 Guarantee and responsibility....................................................................................................................................... 5
3 Safety and prevention................................................................................................................................................................ 6
3.1 Introduction.................................................................................................................................................................. 6
3.2 Personnel training ....................................................................................................................................................... 6
4 Technical description of the burner ......................................................................................................................................... 7
4.1 Burner designation ...................................................................................................................................................... 7
4.2 Models available.......................................................................................................................................................... 8
4.3 Burner categories - Countries of destination ............................................................................................................... 8
4.4 Technical data ............................................................................................................................................................. 8
4.5 Electrical data.............................................................................................................................................................. 9
4.6 Burner weight ............................................................................................................................................................ 10
4.7 Maximum dimensions................................................................................................................................................ 10
4.8 Firing rates ................................................................................................................................................................ 11
4.9 Test boiler.................................................................................................................................................................. 12
4.10 Burner equipment...................................................................................................................................................... 12
4.11 Burner description ..................................................................................................................................................... 13
4.12 Electrical panel description........................................................................................................................................ 14

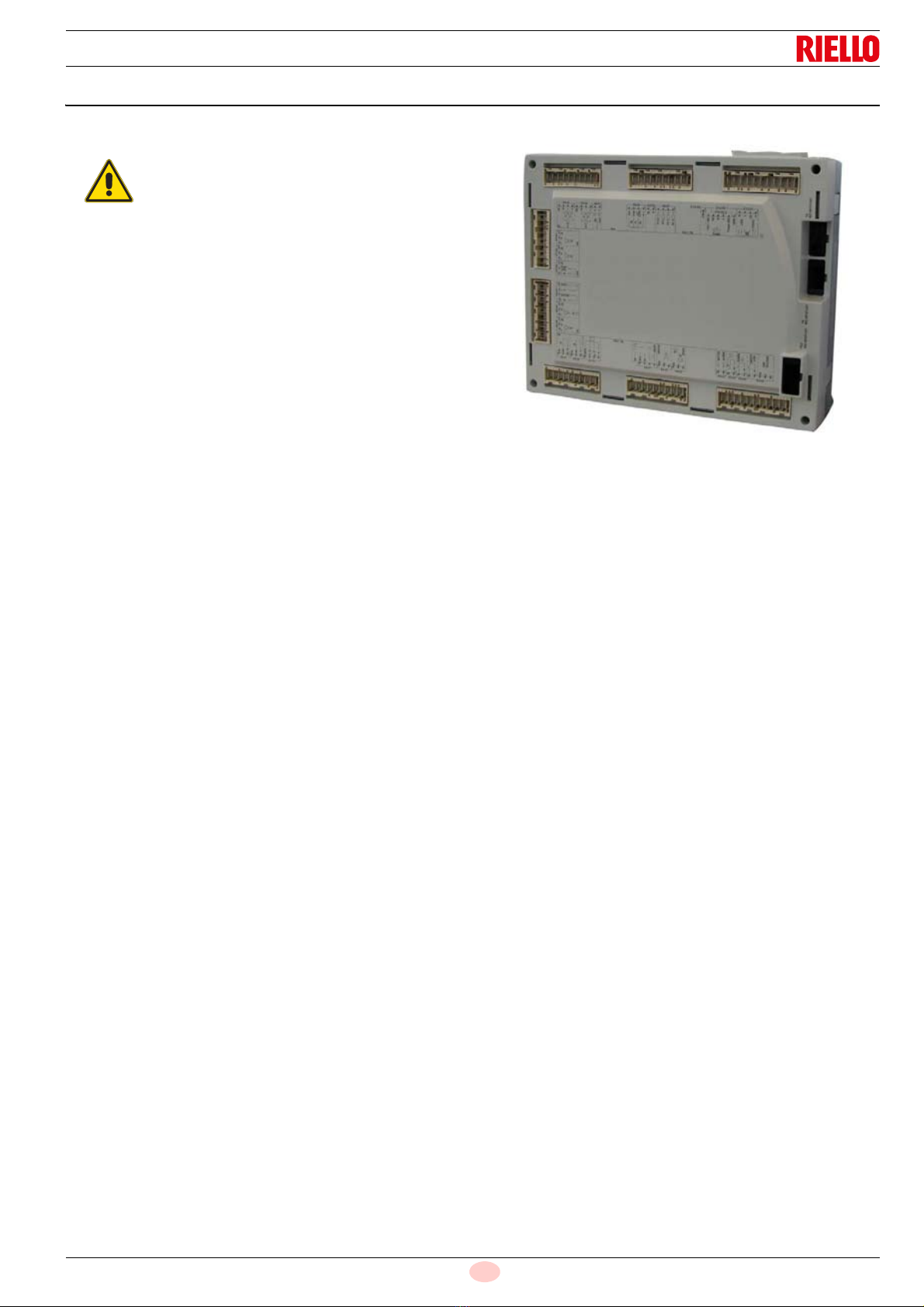

4.13 Control box for the air/fuel ratio (LMV52...) ............................................................................................................... 15
4.14 Servomotor................................................................................................................................................................ 17
4.15 PLL52... module (optional) ........................................................................................................................................ 18
4.16 Oxygen sensor QGO20 ... (optional)........................................................................................................................ 19
4.17 Calibration of the thermal relay ................................................................................................................................. 21
5 Installation ................................................................................................................................................................................ 22
5.1 Notes on safety for the installation ............................................................................................................................ 22
5.2 Handling .................................................................................................................................................................... 22
5.3 Preliminary checks .................................................................................................................................................... 22
5.4 Operating position ..................................................................................................................................................... 23
5.5 Preparing the boiler ................................................................................................................................................... 23
5.6 Securing the burner to the boiler............................................................................................................................... 23
5.7 Access to head internal part...................................................................................................................................... 24
5.8 Position of the electrodes and central gas nozzles ................................................................................................... 24
5.9 Gas butterfly valve..................................................................................................................................................... 25
5.10 Combustion head adjustment.................................................................................................................................... 25
5.11 Nozzle installation ..................................................................................................................................................... 26
5.12 Light oil supply........................................................................................................................................................... 27
5.13 Gas pressures ........................................................................................................................................................... 30
5.14 Electrical wiring ......................................................................................................................................................... 33
6 Start-up, calibration and operation of the burner ................................................................................................................. 35
6.1 Notes on safety for the first start-up .......................................................................................................................... 35
6.2 Adjustments prior to ignition (light oil) ....................................................................................................................... 35
6.3 Burner ignition (light oil)............................................................................................................................................. 35
6.4 Adjustments prior to ignition (gas)............................................................................................................................. 36
6.5 Burner start-up (gas) ................................................................................................................................................. 36
6.6 Burner ignition ........................................................................................................................................................... 36
6.7 Change of fuel ........................................................................................................................................................... 36

20182649 2
GB
Contents
6.8 Air / fuel adjustment ...................................................................................................................................................37
6.9 Final adjustment of the pressure switches.................................................................................................................38
6.10 Pressure switch adjustment .......................................................................................................................................39
6.11 Operation ...................................................................................................................................................................40
6.12 Ignition failure.............................................................................................................................................................40
6.13 Burner flame goes out during operation.....................................................................................................................40
6.14 Stopping of the burner ...............................................................................................................................................40
6.15 Final checks ...............................................................................................................................................................41
6.16 Pump motor lock-out..................................................................................................................................................41
6.17 Description of O2 trim control (optional) ...................................................................................................................42
7 Maintenance ..............................................................................................................................................................................43
7.1 Notes on safety for the maintenance .........................................................................................................................43
7.2 Maintenance programme ...........................................................................................................................................43
7.3 Opening the burner ....................................................................................................................................................45
7.4 Closing the burner......................................................................................................................................................45
8 Faults - Possible causes - Solutions.......................................................................................................................................46
A Appendix - Accessories ...........................................................................................................................................................47
B Appendix - Electrical panel layout...........................................................................................................................................48

3 20182649
GB
Declarations
1 Declarations
Declaration of Conformity in accordance with ISO / IEC 17050-1
Manufacturer: RIELLO S.p.A.
Address: Via Pilade Riello, 7
37045 Legnago (VR)
Product: Dual fuel light oil/ gas burners
Model and type: RLS 310/E O2 MX
RLS 410/E O2 MX
RLS 510/E O2 MX
RLS 610/E O2 MX
1161T1
1162T1
1163T1
1164T1
These products are in compliance with the following Technical Standards:
EN 676
EN 12100
and according to the European Directives:
GAR 2016/426/EU Gas Appliances Regulation
MD 2006/42/CE Machine Directive
LVD 2014/35/EU Low Voltage Directive
EMC 2014/30/EU Electromagnetic Compatibility
The products are marked as follows:
RLS 310/E O2 MX (Class 2 EN 267 - Class 3 EN676)
RLS 410/E O2 MX (Class 2 EN 267 - Class 3 EN676)
RLS 510/E O2 MX (Class 2 EN 267 - Class 3 EN676)
RLS 610/E O2 MX (Class 2 EN 267 - Class 3 EN676)
The quality is guaranteed by a quality and management system certified in accordance with ISO 9001:2015.
Legnago, 03.05.2021 Research & Development Director
RIELLO S.p.A. - Burner Department
Mr. F. Maltempi
Manufacturer's Declaration
RIELLO S.p.A. declares that the following products comply with the NOx emission limits specified by German standard “1. BIm-
SchV revision 26.01.2010”.
Product Type Model Output
Forced draught gas burners 1161T1 RLS 310/E O2 MX 600 - 3600 kW
1162T1 RLS 410/E O2 MX 640 - 4200 kW
1163T1 RLS 510/E O2 MX 660 - 5170 kW
1164T1 RLS 610/E O2 MX 1000 - 6155 kW
0085CQ0196

20182649 4
GB
Information and general warnings
2.1 Information about the instruction manual
2.1.1 Introduction
The instruction manual supplied with the burner:
is an integral and essential part of the product and must not
be separated from it; it must therefore be kept carefully for
any necessary consultation and must accompany the burner
even if it is transferred to another owner or user, or to
another system. If the manual is lost or damaged, another
copy must be requested from the Technical Assistance Ser-
vice of the area;
is designed for use by qualified personnel;
offers important indications and instructions relating to the
installation safety, start-up, use and maintenance of the
burner.
Symbols used in the manual
In some parts of the manual you will see triangular DANGER
signs. Pay great attention to these, as they indicate a situation of
potential danger.
2.1.2 General dangers
The dangers can be of 3 levels, as indicated below.
2.1.3 Other symbols
Abbreviations used
Ch. Chapter
Fig. Figure
Page Page
Sec. Section
Tab. Table
2 Information and general warnings
DANGER
Maximum danger level!
This symbol indicates operations which, if not car-
ried out correctly, cause serious injury, death or
long-term health risks.
WARNING
This symbol indicates operations which, if not car-
ried out correctly, may cause serious injury, death
or long-term health risks.
CAUTION
This symbol indicates operations which, if not car-
ried out correctly, may cause damage to the ma-
chine and/or injury to people.
DANGER
DANGER: LIVE COMPONENTS
This symbol indicates operations which, if not car-
ried out correctly, lead to electric shocks with le-
thal consequences.
DANGER: FLAMMABLE MATERIAL
This symbol indicates the presence of flammable
materials.
DANGER: BURNING
This symbol indicates the risks of burns due to
high temperatures.
DANGER: CRUSHING OF LIMBS
This symbol indicates the presence of moving
parts: danger of crushing of limbs.
WARNING: MOVING PARTS
This symbol indicates that you must keep limbs
away from moving mechanical parts; danger of
crushing.
DANGER: EXPLOSION
This symbol signals places where an explosive at-
mosphere may be present. An explosive atmos-
phere is defined as a mixture - under atmospheric
conditions - of air and flammable substances in
the form of gases, vapours, mist or dust in which,
after ignition has occurred, combustion spreads to
the entire unburned mixture.
PERSONAL PROTECTION EQUIPMENT
These symbols indicate the equipment that must
be worn and kept by the operator for protection
against threats against safety and/or health while
at work.
OBLIGATION TO ASSEMBLE THE COVER AND
ALL THE SAFETY AND PROTECTION DEVICES
This symbol signals the obligation to reassemble
the cover and all the safety and protection devices
of the burner after any maintenance, cleaning or
checking operations.
ENVIRONMENTAL PROTECTION
This symbol gives indications for the use of the
machine with respect for the environment.
IMPORTANT INFORMATION
This symbol indicates important information that
you must bear in mind.
This symbol indicates a list.

5 20182649
GB
Information and general warnings
2.1.4 Delivery of the system and the instruction
manual
When the system is delivered, it is important that:
the instruction manual is delivered to the user by the system
manufacturer, with the recommendation to keep it in the
room where the heat generator is to be installed.
The instruction manual shows:
– the serial number of the burner;
– the address and telephone number of the nearest Assis-
tance Centre;
The system supplier must carefully inform the user about:
– the use of the system;
– any further tests that may be required before activating the
system;
– maintenance, and the need to have the system checked at
least once a year by a representative of the manufacturer
or another specialised technician.
To ensure a periodic check, the manufacturer recom-
mends the drawing up of a Maintenance Contract.
2.2 Guarantee and responsibility
The manufacturer guarantees its new products from the date of
installation, in accordance with the regulations in force and/or the
sales contract. At the moment of the first start-up, check that the
burner is integral and complete.
In particular, the rights to the guarantee and the responsibility will
no longer be valid, in the event of damage to things or injury to
people, if such damage/injury was due to any of the following
causes:
incorrect installation, start-up, use and maintenance of the
burner;
improper, incorrect or unreasonable use of the burner;
intervention of unqualified personnel;
carrying out of unauthorised modifications on the equipment;
use of the burner with safety devices that are faulty, incor-
rectly applied and/or not working;
installation of untested supplementary components on the
burner;
powering of the burner with unsuitable fuels;
faults in the fuel supply system;
continuation of use of the burner when a fault has occurred;
repairs and/or overhauls incorrectly carried out;
modification of the combustion chamber with inserts that
prevent the regular development of the structurally estab-
lished flame;
insufficient and inappropriate surveillance and care of those
burner components most likely to be subject to wear and
tear;
use of non-original components, including spare parts, kits,
accessories and optional;
force majeure.
The manufacturer furthermore declines any and every re-
sponsibility for the failure to observe the contents of this
manual.
.........................................................................................
.........................................................................................
.........................................................................................
.........................................................................................
WARNING
Failure to observe the information given in this
manual, operating negligence, incorrect installa-
tion and carrying out of non authorised modifica-
tions will result in the annulment by the
manufacturer of the guarantee that it supplies with
the burner.

20182649 6
GB
Safety and prevention
3.1 Introduction
The burners have been designed and built in compliance with
current regulations and directives, applying the known technical
rules of safety and envisaging all the potential danger situations.
It is necessary, however, to bear in mind that the imprudent and
clumsy use of the equipment may lead to situations of death risk
for the user or third parties, as well as the damaging of the burner
or other items. Inattention, thoughtlessness and excessive confi-
dence often cause accidents; the same applies to tiredness and
sleepiness.
It is a good idea to remember the following:
The burner must only be used as expressly described. Any
other use should be considered improper and therefore dan-
gerous.
In particular:
it can be applied to boilers operating with water, steam, diather-
mic oil, and to other uses expressly foreseen by the manufactur-
er;
the type and pressure of the fuel, the voltage and frequency of the
electrical power supply, the minimum and maximum deliveries for
which the burner has been regulated, the pressurisation of the
combustion chamber, the dimensions of the combustion cham-
ber and the room temperature must all be within the values indi-
cated in the instruction manual.
Modification of the burner to alter its performance and desti-
nations is not allowed.
The burner must be used in exemplary technical safety con-
ditions. Any disturbances that could compromise safety must
be quickly eliminated.
Opening or tampering with the burner components is not
allowed, apart from the parts requiring maintenance.
Only those parts envisaged by the manufacturer can be
replaced.
3.2 Personnel training
The user is the person, body or company that has acquired the
machine and intends to use it for the specific purpose. He is re-
sponsible for the machine and for the training of the people work-
ing around it.
The user:
undertakes to entrust the machine exclusively to suitably
trained and qualified personnel;
undertakes to inform his personnel in a suitable way about
the application and observance of the safety instructions.
With that aim, the user undertakes to ensure that everyone
knows the use and safety instructions for his own duties.
Personnel must follow all the danger and caution indications
shown on the machine.
Personnel must not carry out, on their own initiative, opera-
tions or interventions that are not within their province.
Personnel are obliged to inform their superiors of every
problem or dangerous situation that may arise.
The assembly of parts of other makes, or any modifications,
can alter the characteristics of the machine and hence com-
promise operating safety. The manufacturing company
therefore accepts no responsibility whatsoever for any which
may result from the use of non-original parts.
In addition:
3 Safety and prevention
WARNING
The manufacturer guarantees safety and proper
functioning only if all burner components are intact
and positioned correctly.
must take all the measures necessary to pre-
vent unauthorised people gaining access to
the machine;
the user must inform the manufacturer if
faults or malfunctioning of the accident pre-
vention systems are noticed, along with any
presumed danger situation;
personnel must always use the personal pro-
tective equipment envisaged by legislation
and follow the indications given in this man-
ual.

7 20182649
GB
Technical description of the burner
4.1 Burner designation
4 Technical description of the burner
Range: R
Size
Fuel: Natural gas
Light oil
Gas oil / Methane
Flame control system:
FS1
FS2
Standard (1 stop every 24 h)
Continuous working (1 stop every 72 h)
Electrical supply of the system:
3/400/50
3/230/50
Voltage of auxiliaries:
230/50/60
110/50/60
RLS 310 TC FS1/FS2* 3/400/50 230/50/60
BASIC DESIGNATION
EXTENDED DESIGNATION
MX
3N / 400V / 50Hz
3 / 230V / 50Hz
230V / 50-60Hz
110V / 50-60Hz
Heavy oil
S
L
LS
N
Head : TC Standard head
TL Long head
Emission: C11 o ... ...
C22 o MZ
C33 - BLU
C23 - MX
Class 1 EN 267 - EN676
Class 2 EN 267 - EN676
Class 3 EN 267 - EN676
Class 2 EN 267 - Class 3 EN676
Adjustment : E Electronic cam
EV Electronic cam and variable speed (with Inverter)
M Mechanical cam
P Proportional air/gas valve
E O2Electronic cam and suitable for Oxygen Control (O2)
EV O2Electronic cam and variable speed (with Inverter) and suitable for Oxygen Control O2
E O2
WARNING
*The burner leaves the factory set up for FS1 op-
eration. If FS2 operation is required, refer the spe-
cific manual to LMV 5...

20182649 8
GB
Technical description of the burner
4.2 Models available
Tab. A
4.3 Burner categories - Countries of destination
Tab. B
4.4 Technical data
Tab. C
(1) Reference conditions: Ambient temperature 20°C - Gas temperature 15°C - Barometric pressure 1013 mbar - Altitude 0 m a.s.l.
(2) Pressure at the test point of the pressure switch 5)(Fig. 5) with zero pressure in the combustion chamber and at maximum burner output.
(3) Sound pressure measured in manufacturer's combustion laboratory, with burner operating on test boiler and at maximum rated output. The sound
power is measured with the “Free Field” method, as per EN 15036, and according to an accurate “Accuracy: Category 3”, as described by EN ISO
3746”.
Designation Voltage Start-up Code
RLS 310/E O2 MX 3/400/50 Direct 20182632
RLS 410/E O2 MX 3/400/50 Direct 20182634
RLS 510/E O2 MX 3/400/50 Star/Triangle 20182635
RLS 610/E O2 MX 3/400/50 Star/Triangle 20182636
Gas category Destination country
I2H AT, BG, CH, CZ, DK, EE, ES, FI, GB, GR, HU, IE, IS, IT, LT, LV, NO, PT,
RO, SE, SI, SK, TR
I2ELL DE
I2EK NL
I2Er FR
I2E(R) BE
I2E LU - PL
Model RLS 310/E O2 MX RLS 410/E O2 MX RLS 510/E O2 MX RLS 610/E O2 MX
Type 1161T1 1162T1 1163T1 1164T1
Power(1)
Delivery (1)
min - max kW
Kg/h
600/1200 - 3600
50/100 - 305
640/ 1500 - 4200
55/126 - 352
660/1800 - 5170
56/195 - 435
1000/2200 - 6155
110/185 - 516
Fuels Natural gas: G20 (methane gas) - G21 - G22 - G23 - G25
Light oil, max. viscosity at 20 °C: 6 mm2/s (1.5°E - 6 cSt)
Gas pressure at max. output (2)
Gas: G20/G25 mbar 31.8/47.4 47.3/70.6 47.8/71.3 68.2/101.8
Operation
FS1: Intermittent (min. 1 stop in 24 hours)
FS2: Continuous (min. 1 stop in 72 hours)
The burner leaves the factory set for the intermittent operation.
Pump
Minimum output at 16.5 bar
Pressure range
kg/h
bar
TA 3
700
7/40
TA 4
930
7/40
TA 5
1270
7/30
Fuel temperature °c max 140
Nozzles number 1
Standard applications Boilers: water, steam, diathermic oil
Ambient temperature °C 0 - 50
Combustion air temperature °C max 60
Noise level (3) Sound pressure
Sound power dB(A) 78 89
80
91
82.5
93,5
85
96
