Bergeron By Design Height Right Kids Chair User manual

Parts
Left SideRight Side Foot Rest (8 pcs.) (4 pcs.)(4 pcs.)(8 pcs.)
ab
c d
e
(6 pcs.) Right + Left Cap Right + Left Clip
* optional with tray
and grab rail.
Seat
2 Back Supports Front Support 2 Metal Cross Bars Allen KeyBack
• SHORTER THAN
BACK SUPPORTS
Slide in the Seat and Foot Plate with the curved
edge facing forward. Make sure that the Seat
and Foot Rest are at the appropriate height for
the occupant. See the Sizing section for proper
placement of the Seat and Foot Rest.
* As the child grows,
the TOP metal cross
bar CAN be removed.
• Always secure child in the restraint
• Never leave child unattended
• Always keep child in view
• Secure straps tightly
• Never use as a stepping stool
• The front edge of the footrest should never
extend beyond the bottom edge of the front
supports at floor level
WARNING:
!
Height Right Kids Chair
WARNING:Optional infant insert required when
using tray or grabrail for children up to 3 years of age.
!
!
3 a.
b.
4
a
e
d
Insert a Wooden Dowel (e) into the larger hole in each of the Back Supports
and Front Support. Insert a Wood Nut (a), as shown into the inner holes of
the 3 Supports. Attach the 3 Wooden Supports as shown and insert Long
Screws (d). Loosely tighten the Long Screws into Wood Nuts through the Left
Side with the Allen Key. Labeling on the Rear Supports should be visible.
Attach the 2 Metal Cross Bars as shown and
insert Screws (c) . Loosely tighten the
Screws (c) into the Metal Cross Bars through
Both sides with the Allen Key.
Insert the rest of the Dowels, Wood Nuts, and
Screws as needed to attach the Right Side of
the chair. Do Not fully tighten screws.
Insert a Wood Nut (a), as shown into the inner holes of the Back. Attach the
Back as shown and insert a Long Screw (d). Loosely tighten the Long Screw
into Wood Nut through the Left Side with the Allen Key.
FRONT
SUPPORT IS
SHORTER
HARDWARE a(3pcs.)
d(3pcs.)
e(3pcs.)
HARDWARE a (4pcs.)
d (4pcs.)
e (3pcs.)
HARDWARE c (4pcs.)
HARDWARE a (1pcs.)
d (1pcs.)
ad
d
dd
c
c
d
c
c
Logos this side
1 2
WARNING:The child should be secured in the high chair at all times by the restraining
system. The tray is not designed to hold the child in the chair. It is recommended that the chair be
used only by children capable of sitting upright unassisted.
!
WARNING:Prevent serious injury or
death from falls or sliding out.
(Tray & Grabrail sold separately)

* optional with tray
and grab rail.
• Place child in seat. Crotch strap comes up between child’s legs. Both
Lap Straps come around child from center of back and “CLICK” into
Crotch Strap. Adjust length of Lap straps to secure child in seat.
• Press center button on Crotch Strap buckle to release child from belt.
3 Point Belt Installation
Lap
Straps
Crotch
Strap
3 Point Belt Operation
Lap Strap “CLICK”
Crotch
Strap
Bottom of
Seat Plate

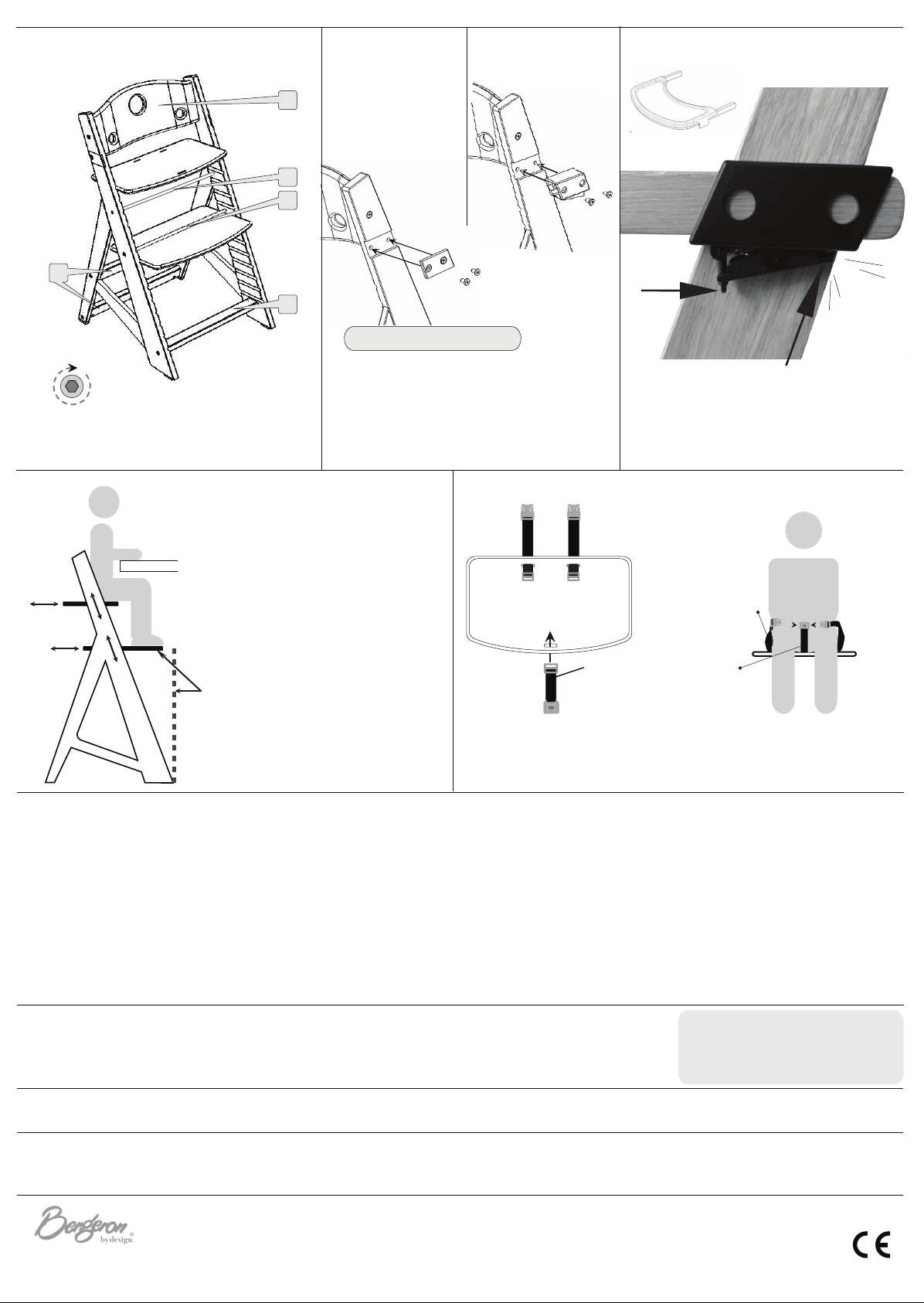

5TIGHTEN ALL SCREWS (BOTH SIDES) IN
ORDER 1-5 _DO NOT OVER TIGHTEN!
• IF TOP METAL CROSS BAR
IS NOT NECESSARY-
START WITH # 2
Top Metal
Cross Bar
Bottom
Metal
Cross Bar
Front
Support
Back Rest
Back Leg
Supports
5
4
3
2
1
Bergeron By Design • 15 South Second St. Dolgeville, NY 13329 • 1.866.529.8407
Height Right Kids Chair - Natural
Model # 0050002KR-0002
Height Right Kids Chair - Mahogany
Model # 0050003KR-0001
Product Care
Clean chair with damp cloth; then wipe dry. With normal use, over time screws may loosen. Please maintain tight screws. Use chair on level surface.
Notice
When restraint system is used properly this high chair meets U.S. ASTM F-404 safety standard. Use only Height Right Chair accessories and parts. Height
Right Chair parts are not interchangable with other manufacturers’ products. Replace any worn parts immediately for safety. © 2009 Bergeron By Design.
Customer Service
Toll Free: 1.866.529.8407
International: 1.315.429.8407
Fax: [phone]
5 Year Limited Warranty
Bergeron by Design warrants to the original retail purchaser of the Height Right Chair product, that if any part or component
proves defective in material or workmanship within five years of the purchase date, the defective part will be repaired or
replaced (at Bergeron by Design’s discretion) free of charge. Warranty service may be performed by an authorized service
center or at Bergeron by Design’s discretion.
This warranty does not cover normal wear and tear, or damage caused by accident or misuse.
To exercise this limited warranty, the user should first obtain a Return Authorization Number from Bergeron By Design.
The product must be delivered charges pre-paid (UPS recommended) to the factory
or to an authorized service center, together with a copy of the original invoice, the Return Authorization Number and a
written description of the problem.
67b
7a
If the Tray or Grab accessories ARE used;
Attach the Right Clip as shown in upper picture
with 2 Small Screws (b). Repeat for Left. If Tray
or Grab accessories ARE not used; Attach
Black Caps with 2 small Screws (b). as shown in
lower picture. Repeat for Left.
Seat and Footrest Adjustment
Height
• The seat is placed at optimal height when
the child’s elbows are level with the top
of the table.
• The foot plate is placed at optimal height
when the child’s foot can rest flat
on it’s surface.
Depth
• For optimal depth of the seat, position
child’s back against backrest with seat
supporting 3/4 of thigh.
• For safety, the footrest should not exceed
the front legs of the chair.
Teen / Adult Use
• Remove Seat Plate & Top metal cross bar.
• Use the Foot Rest as the Seat Plate for a
larger seating surface.
• Tighten all screws.
HARDWARE_ b (4pcs.)
When Tray is properly installed an
audible “click” will be heard from primary lock.
Engage the second safety Latch Lever by
pushing it forward into the primary spring lock.
“CLICK”
Second
Safety Latch
Engaged. Primary
Spring Lock
7b
7a
Tray/Grab Rail Installation with Clips
Tray Caps Tray Clips
* optional equipment

Infant Insert for Height Right Chair
Installation Guide
WARNING: Prevent serious injury
or death from falls or sliding out
• Never leave child unattended
• Always keep child in view
• Secure straps tightly
• Never use as a stepping stool
• Use for children 6 months and up
or when child can sit independently
• The front edge of the footrest should
never extend beyond the bottom
edge of the front supports at floor level
!
4
• Always secure child in the restraint
• The child should be secured in the high
chair at all times by the restraining
system. The tray is not designed to hold
the child in the chair. It is recommended
that the chair be used only by children
capable of sitting upright unassisted.
1
56
7
2Remove seat plate
Front lip of Insert
will overhang and mate to
front edge of seat plate.
Keeping the Insert centered
on the seat plate, lift front
edge of insert.
“Click”
Loosen Screws 3
Thread restraint straps
up through infant insert
Fasten Clips
Center Infant Insert on Seat Plate.
Place seat plate flat on table.
Peel off paper to
expose adhesive.

Bergeron By Design • 15 South Second St. Dolgeville, NY 13329 • 1.866.529.8407
Product Care
Clean chair with damp cloth. With normal use, over time screws may loosen. Please check regularly. Use chair on level surface.
Notice
When restraint system is used properly this high chair meets U.S. ASTM F-404 safety standard. Use only Height Right Chair accessories and parts. Height
Right Chair parts are not interchangeable with other manufacturers’ products. Replace any worn parts immediately for safety. © 2008 Bergeron By Design.
Customer Service
Toll Free: 1.866.529.8407
International: 1.315.429.8407
Fax: [phone]
5 Year Limited Warranty
Bergeron by Design warrants to the original retail purchaser of the Height Right Chair product, that if any part or component
proves defective in material or workmanship within one year of the purchase date, the defective part will be repaired or
replaced (at Bergeron by Design’s discretion) free of charge. Warranty service may be performed by an authorized service
center or at Bergeron by Design’s discretion.
This warranty does not cover normal wear and tear, or damage caused by accident or misuse.
To exercise this limited warranty, the user should first obtain a Return Authorization Number from Bergeron By Design.
The product must be delivered charges pre-paid (UPS recommended) to the factory
or to an authorized service center, together with a copy of the original invoice, the Return Authorization Number and a
written description of the problem.
8
10 11 12
9
Attach the Right Cap as shown with 2
Supplied Screws. Repeat for Left.
TIGHTEN ALL SCREWS (BOTH SIDES) IN
ORDER 1-5 _DO NOT OVER TIGHTEN!
Top Metal
Cross Bar
Bottom
Metal
Cross Bar
Front
Support
Back Rest
Back Leg
Supports
5
4
3
2
1
Front edge of seat plate and
infant insert will mate.
Lower front edge back onto seat plate. Adhesive patches
will contact wooden seat plate. Do not reposition the
cushion for 24 hours to allow adhesive to bond.
FYI- Flip seat plate when use of infant insert is discontinued.
Do not attempt to remove adhesive patch.
From the rear of the chair : Slide seat plate and insert in
3rd rung down until insert mates with back rest.
Install Tray Clips Install Tray
Wood back & Insert “mate”
Audible Click will be heard (both sides).
Engage secondary tray locks to
insure tray clips are secure.
