Bergstrom G724 User manual

Portable DVD Player
G724 v01: 08/06/20
Please read and retain these instructions for future reference
270 degree rotating design, MTK solution, SANYO 870A lens
High definition 9” TFT-LCD Screen 16:9 A grade new digital screen resolution 800*480
Headphone jack
Compatible with DVD/DVD+R/DVD+RW/VCD/MP3/MP4/CD=R/CD+RW/JPEG/DIVX/RM/RMVB
1400mah Built in rechargeable li-ion battery 120mins
MP3 CD copy function
USB port red SD/MMC card
AV input/output and copy function
Power supply AC100-240V DC12V 1A
Accessories 1 BS adaptor 1.5m 1 remote control, user manual, 1 AV cable
SAFETY INSTRUCTIONS:
WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED:
WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED:
READ ALL INSTRUCTIONS BEFORE USE.
FOR DOMESTIC INDOOR USE ONLY.
DO NOT USE OUTDOORS OR FOR COMMERCIAL USE.
BEFORE USE, CHECK THOROUGHLY FOR ANY DEFECTS AND DO NOT USE IF DEFECTS ARE FOUND.
TAKE CARE NOT TO DROP THE APPLIANCE AS HEAVY IMPACTS MAY CAUSE INTERNAL DAMAGE.
BEFORE CONNECTING THE APPLIANCE, CHECK IF THE VOLTAGE INDICATED ON THE BOTTOM OF THE
APPLIANCE IS IN ACCORDANCE WITH THE MAINS VOLTAGE IN YOUR HOME.
ONLY USE WITH THE MAINS ADAPTOR PROVIDED. DO NOT USE ANY OTHER ADAPTOR.
CHECK THE APPLIANCE AND POWER CABLE CAREFULLY FOR DAMAGE BEFORE EACH USE.
THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH
REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE
IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN
A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE
APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT
SUPERVISION.
CHILDREN OF LESS THAN 3 YEARS SHOULD BE KEPT AWAY UNLESS CONTINUOUSLY SUPERVISED.
Specification
Compatible disc DVD, VCD, MP3, MPEG4
Frequency response 20Hz to 20Khz
Video output 1 Vp-p75 Ohm unbalanced
Audio output 1.4 Vrms/10 kohm
Dynamic range Better than 85dB
Laser Semiconductor laser
Waver length: 650
Power source DC9-12V adapter:
Input: 100-240VAC; 50/60Hz, 0.5A
Output: 12V DC; 1A
Operation temperature: 5-40 °C
Battery type Li-ion 7.4VDC; 1200mAh

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 2
SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND CAUSE BURNS. PARTICULAR
ATTENTION HAS TO BE GIVEN WHERE CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.
THE USE OF ANY ACCESSORY ATTACHMENTS NOT RECOMMENDED BY COOPERS OF STORTFORD
MAY CAUSE INJURIES AND INVALIDATE ANY WARRANTY YOU MAY HAVE.
DO NOT LET THE POWER CABLE HANG OVER THE EDGE OF A TABLE OR COUNTER, OR TOUCH HOT
SURFACES.
DO NOT PLACE ON OR NEAR HEAT SOURCES.
USE ON A LEVEL, STABLE SURFACE.
DO NOT COVER THE ITEM IN ANY WAY WHEN IN USE AS THIS MAY CAUSE OVERHEATING.
DO NOT USE THIS APPLIANCE FOR ANY OTHER USE THAN THE INTENDED USE IT IS DESIGNED FOR.
ENSURE THERE IS SUFFICIENT DISTANCE BETWEEN THIS APPLIANCE AND OTHER ITEMS ON THE
WORK SURFACE OR WORK STATION, OR SUFFICIENT DISTANCE BETWEEN THE APPLIANCE AND THE
CONFINES OF THE AREA IN WHICH IT IS SITUATED. WE RECOMMEND A MINIMUM CLEARANCE
AROUND ALL FACES OF AT LEAST 10CM.
TO PROTECT AGAINST ELECTRIC SHOCK, DO NOT IMMERSE POWER CABLE, PLUG OR APPLIANCE, IN
WATER OR ANY OTHER LIQUID.
UNPLUG FROM OUTLET WHEN NOT IN USE AND BEFORE CLEANING.
•DO NOT OPERATE ANY APPLIANCE WITH A DAMAGED POWER CABLE OR PLUG OR AFTER THE
APPLIANCE MALFUNCTIONS, OR HAS BEEN DAMAGED IN ANY MANNER. WE RECOMMEND THAT THE
POWER CABLE IS NOT KINKED OR STORED IN A TWISTED MANNER, AND THAT YOU REGULARLY
CHECK ITS CONDITION.
•ANY REPAIRS MUST BE CONDUCTED BY A QUALIFIED ELECTRICIAN OR ELECTRICAL SERVICE AGENT.
MAY CAUSE INTERNAL DAMAGE.
Do not allow children to use the unit without supervision.
Liquids and foodstuffs must not be spilled or dropped into the unit.
Never leave the product unsupervised. Switch off the product when it is not in use, even if this is
only for a short while.
The unit must be free-standing. It must not be placed in a cabinet.
Water and moisture: Do not use this product near water (e.g. near a bath tub, washbowl, kitchen
sink, laundry tub, wet basements, or near a swimming pool and the like).
Ventilation: Slots and openings in the cabinet are provided for ventilation to ensure reliable
operation of the product and to protect it from overheating. These openings should never be
blocked by placing the product on a bed, sofa, rug, or similar surfaces. This product should not be
placed in a built-in installation such as bookcase or rack unless proper ventilation is provided.
This unit must not be exposed to dripping or splashing and objects filled with liquids such as vases,
must not be placed on the apparatus.
When the adapter is used as the disconnect device, the disconnect device must remain readily
operable. To completely disconnect the power input, the AC/DC adapter must be completely
disconnected from the mains.

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 3
Contents
Precautions and Warnings....................................................................................................................................3
Package contents..................................................................................................................................................4
Parts......................................................................................................................................................................5
Panel Keys.............................................................................................................................................................6
Key Functions........................................................................................................................................................7
General Setup.......................................................................................................................................................9
Playback............................................................................................................................................................. 12
Troubleshooting ................................................................................................................................................ 13
Precautions and Warnings
1. Placement
To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
Do not expose this appliance to direct sunlight.
Keep this appliance away from strong magnets, heat sources and excessive dust.
Do not place this appliance on an unstable surface.
If the unit is brought directly from a cold place to a warm one, moisture may condense inside the
unit and cause a malfunction. If this occurs, leave the unit turned on for a few hours until the
moisture evaporates.
2. Installation
Ensure the portable DVD player is installed according to the instructions and illustrations provided in this
manual.
3. Caution
Do not drop any objects into the unit through the openings.
Do not spill or spray liquid of any kind on or in the unit (this may result in a fire or electric shock).
Do not place anything heavy on the unit.
To ensure proper ventilation and proper operation, never cover or block the slots and openings with
a cloth or other materials.
Keep the unit away from open flame such as fire, candle, etc.
Install the batteries correctly as incorrect replacement is hazardous.
The maximum working temperature is 35 °C.
Never attempt to disassemble the unit as this is very dangerous and may cause an electric shock
and/or harm from exposure to the laser beam. Please refer all servicing and maintenance to an
authorised service centre.
4. Cleaning unit
1. When cleaning, please make sure the unit is unplugged from the power source.
2. Do not use chemicals or detergents when cleaning.

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 4
3. Use a soft cloth lightly dampened with water to clean the exterior of the unit only and immediately wipe
dry.
5. Disc handling
Do not leave discs near heat sources, in direct sunlight, or in high humidity.
Store discs in their cases when they are not being used.
Stacking discs or standing them at an angle without putting them in the case can cause the disc to
warp.
Do not touch the disc surface when handling a disc; hold it by the edges.
Fingerprints, dust, dirt or scratches on the disc can distort the picture or reduce sound quality.
Always handle carefully and make sure discs are clean before use.
Do not stick paper or tape onto the disc.
Do not write on the disc with a marker, etc. Clean discs using a soft cloth, lightly wiping from the
centre outwards.
Do not use solvents such as benzene, commercially available cleaners not intended for CDs or anti-
static spray intended for vinyl LPs as these may damage your disc.
Package contents
1. AC Adaptor
2. Remote control (requires 2x AA batteries –not included)
3. AV Cable
4. Car adaptor
5. Instruction manual

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 5

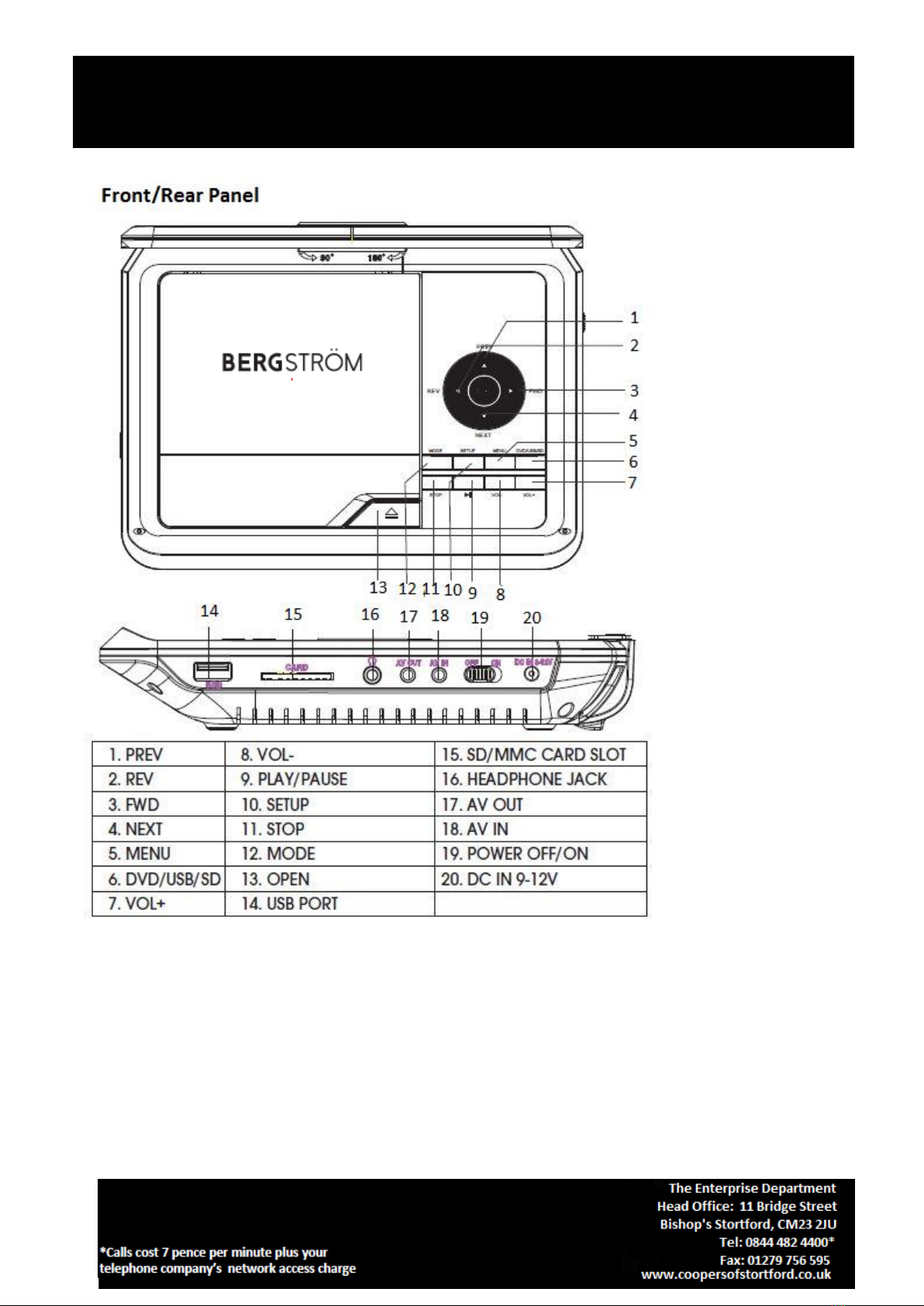

Parts

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 6
Panel Keys
Common keys functions on the panel:
Key
Function
Menu
Press to return to the main menu for DVD
Stop
Press to suspend current broadcast.
Play/Pause
Press once to pause the playing. Press again to resume.

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 7
Setup
Press to enter the setup menu, then use the direction keys and OK to set the
system menu.
USB/CARD
Press repeatedly to switch among the input of the disc, SD card, USB source.
Direction keys
Use direction keys for: previous/next, fast forward/fast rewind
OK
Press to enter the selected item or the choice
Open
Press to open the door.
Battery installation and replacement
Unscrew battery cover and remove it.
Insert 2 new AAA batteries (not included).
Ensure positive (+) and negative (-) ends of the
batteries are facing in the correct direction.
Replace the battery cover.

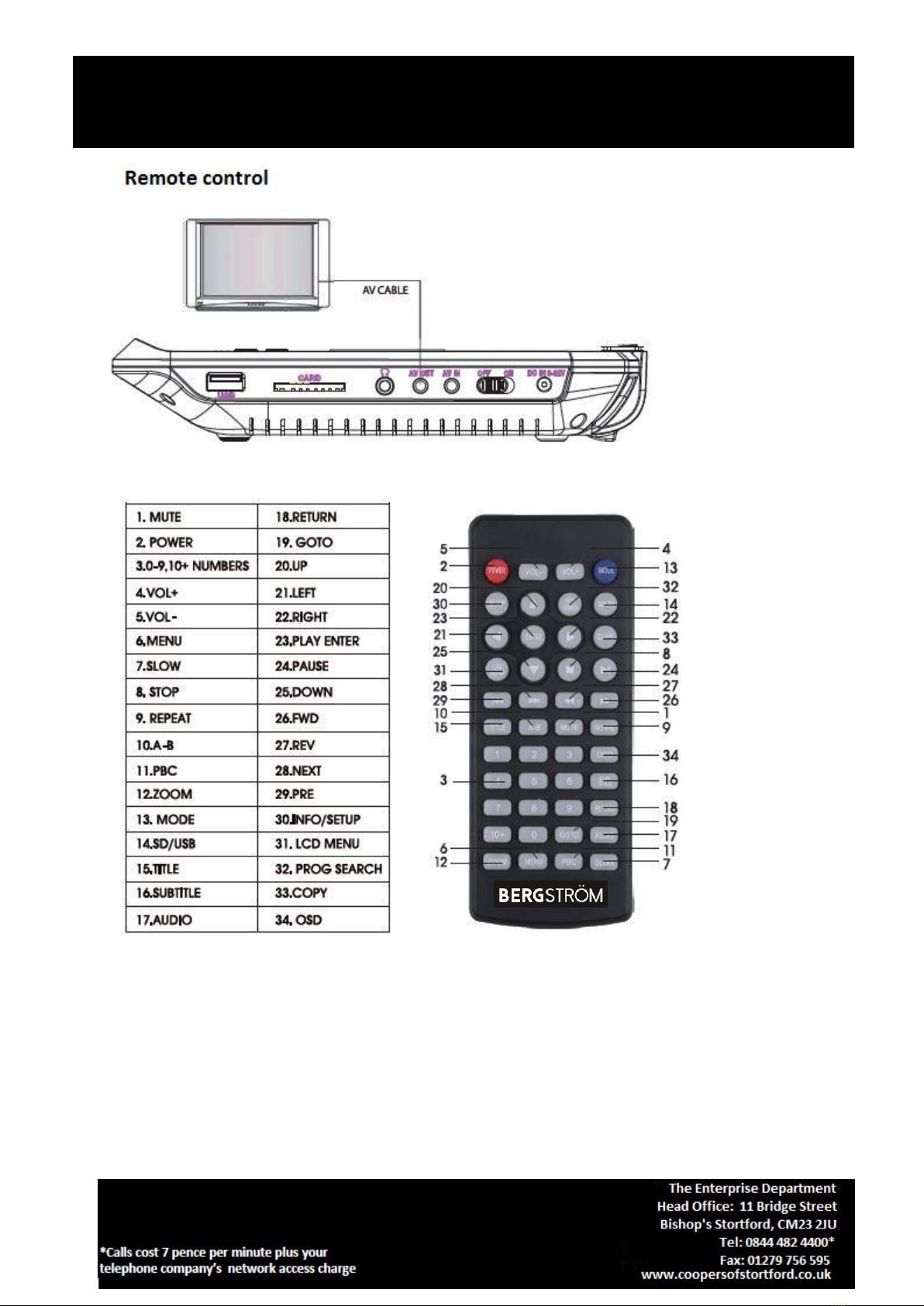

Key Functions
Note: Some of the following buttons are only on the remote, some are only on the unit and some are on
both.
Switch on/off the unit.
Press repeatedly to switch between disc, SD card, USB source input.
Press to enter/exit the setup menu.
The digit keys can be used to input the numbers or to select a track or a chapter number.
Press to enter an item in the menu or to confirm and execute a selection.
The direction keys can be used to move the highlight in the menu.

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 8
Press button to switch to DVD or AV INPUT
Press to switch the repeat modes. (Note: This function is invalid when the PBC function is
activated).
Use to repeat specific sections of a disc. Press this button to mark the starting point (A)
and press it again to mark the ending point (B) and the unit will play the selected section
over and over again. Press a third time to cancel A-B repeat and resume normal playback.
(Note: points A and B must be in the same title/track).
Skip to the previous chapter/track.
Skip to the next chapter/track.
Press to start a playback or resume normal playback from fast forward, fast reverse, slow-
motion, frame-by-frame playback etc.
Press to temporarily pause a playback; press again or press to resume the playback.
Press once to pause a playback, then press to continue the playback; press twice to
stop a playback and the disc will be reset to the starting point.
Fast forward playback. Available speed: 2x, 4x, 8x 16x, 32x and normal speed.
Fast reverse playback. Available speed: 2x, 4x, 8x, 16x, 32x and normal speed.
Press to enter the TIME menu. Use the digit keys to select a title, chapter, track, track
time or disc time to play. Press again to exit the TIME menu.
Press this button to temporarily switch off the sound. Press it again to switch it on.
Press VOLUME+ to turn up the volume. Press VOLUME- to turn down the volume.
Press repeatedly to select the available audio languages provided by the disc (for DVD).
Press repeatedly to switch the available audio channels provided by the disc (for VCD).

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 9
Press to return to the main menu when playing DVD.
Press repeatedly to switch/show the subtitles or turn off the subtitle function. (Note: this
function only works if the disc is encoded with subtitles.)
Press repeatedly to switch or hide the relative information of the playing disc.
Press this button to zoom in the scene. The available zoom ratios are: 2x, 3x and 4x in
zoomed-in mode, the direction kays can be used to move the zooming centre. (Note:
Applies to DVD, VCD, MPEG4, etc)
Press “REV” to search backward, “FWD” to search forward.
General Setup
Charging the unit
This player is powered by a lithium-polymer battery. It features a high ratio of energy to weight. It has no
memory effect and it can be recharged at any time regardless of whether it is fully or partially discharged. It
takes about 6 hours to fully charge the battery and a fully charged battery can be used for about 4-5 hours.
Connect the attached AC/DC adaptor to the DC INPUT jack on the unit, then plug the adaptor into a 240V AC
outlet.
Note: Make sure to switch off the unit before charging. The charging indicator LED will change from RED to
GREEN to indicate that the battery has been fully charged.
Usage and Maintenance of the rechargeable battery
1. The working temperature of the rechargeable battery ranges from 0 °C to 45 °.
2. Always unplug the unit when it is not being used unless it is being charged.
3. Heat is inevitably produced during playback, this is normal. However switch off and allow it to cool
down.
4. Avoid banging the battery and keep it away from heat and moisture.
Connection to TV
This unit can be connected to a TV in order to enjoy high quality music, movies etc with a TV.
Use an AV cable to connect the AV OUT jack on the unit to the AV IN jack of a TV.
DVD player has sound and video input jacks for connecting external audio and video inputs.
Menu Operation
1. Press (SETUP) on the remote control or on the unit to show the setup menu.
2. Press (LEFT)(RIGHT) to select an item. The submenu of the selected item will be instantly shown.

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 10
3. Press (UP)/(DOWN) to select an item in the submenu, then press (OK)(ENTER)(RIGHT) to enter. Use
(UP)/(DOWN) to select an option, then press (OK)/(ENTER) to confirm it or press (LEFT) to cancel.
4. Press (UP)/(DOWN) to continue to set other items in the submenu.
5. Press (LEFT) to go back to the superior menu of the current one.
6. Press (SETUP) again and press (ENTER)/(OK) to exit the setup menu.
1. General Setup Page
There are six items in the GENERAL SETUP PAGE. They are TV DISPLAY, ANGLE MARK, OSD LANGUAGE,
CAPTIONS, SCREEN SAVER and LAST MEMORY.
When setting up the portable DVD Player the set up is done for you . Press set up twice this will get to audio
set up page then keep pressing to your right to get on other pages.
1.1. TV Display
4:3 Panscan
If the unit is connected to a conventional TV set, the wide-screen image will be displayed on the screen in its
native aspect ratio with some part on the left and right cut off.
4:3 Letterbox
If the unit is connected to a conventional TV set, the wide-screen image will be displayed in its native aspect
ratio with black borders on the top and the bottom side.
16:9 wide:
Select this option if the unit is connected to a wide-screen TV set. The wide-screen image will be displayed in
full screen in its native aspect ratio while the 4:3 image will be stretched out horizontally to fit in the screen.
1.2 Angle Mark
Set this item to ON. When a disc encoded with multiple camera angles is playing, the angle mark will display
on the screen. Then you can view the video of different camera angles by pressing (ANGLE) on the remote
control.
Set this item to OFF to disable this function.
NOTE: This function only works with those discs encoded with multiple camera angles.
1.3 OSD (On Screen Display) language
Set this on-screen display language in this item.1.4 Captions
Set this item to ON. When a disc encoded with
closed captions, the closed captions will be shown
on the screen. Set this item to OFF to hide it.
You can also press (SUBTITLE) on the remote control
to show or hide the closed captions.
NOTE: This function only works with those discs
encoded with closed captions.
1.5 Screen saver
ON: If the image remains motionless on the screen,
for example the disc is paused, stopped etc. for
several minutes, a screen saver will appear on the

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 11
screen. You can press any key or button to wake it up.
OFF Disable the screen saver function.
1.6. Last Memory
ON: Each time you turn off the unit or stop the disc, it will memorize the last play time. Next time you turn
on the unit and play the same disc, the unit will play from that memorized point.
OFF: Disable the last memory function.
2. Audio Setup Page
This menu is used to setup the Audio.
2.1. Speaker Setup
2.1.1 Downmix (LT/RT, Stereo)
Used for speaker settings, include left/right channel
and Stereo.
3. Panel Quality Setup
3.1. Sharpness
There are three options (High, Medium, Low) for you
to choose in this item.
3.2. Brightness, Contrast, Hue, Saturation
Enter these items respectively, use direction key
(LEFT) (RIGHT) to adjust the value, then press OK to
confirm it.
4. Preference Page
If there is no disc in the disc tray, the disc tray is open or the disc tray is stopped, this item is available.
4.1. TV Type (PAL, AUTO, NTSC)
Use to select the TV types, include PAL/AUTO/NTSC.
4.2. Audio/Subtitle/Disc Menu
Select a preferred audio language, subtitle language and disc menu language in these items.
You can also change the audio language by pressing (AUDIO) and the subtitle language by pressing
(SUBTITLE) on the remote control.

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 12
NOTE: if the selected languages in these items are not available for the currently playing disc, the disc will be
operated on default setting.
4.3. Default
Restore the default settings.
Playback
After all the connections are made correctly, switch the unit on.
Loading and Playing a disc
1. After connecting power to the unit, set the power switch to the ON position.
2. Push (OPEN) the disc tray. Place a disc in it with the label side facing up.
3. Close the disc tray. The unit will load the disc and start playing.
MP3/MPEG4 Disc Playback
After the unit loads a MP3/MPEG4 disc, a menu showing the contents of the disc will display on the screen.
1. Press the direction key (UP)/(DOWN) to select a file or a folder.
2. Press (OK) to enter the selected folder. The file or/and folder in it will be listed instantly.
3. Press (OK) to begin to play the selected file.
4. When the disc is stopped press (LEFT) to return to the superior menu.
Kodak Picture CD Playback
Place a Kodak picture CD in the disc tray, then the unit will load the disc automatically.
Press (MENU) to display the menu showing the contents of the disc.
In the menu, use the direction keys (UP)/(DOWN) to select a picture, then press (ENTER ) to start the
playback from the selected picture.
(GOTO): Press this button, then use the digit keys to select a picture. Then the playback from the selected
picture begins.
( ) Press to pause the playback; press it again or to resume the playback.
( ) Press it to begin a playback or resume a playback.
(REPEAT): Press repeatedly to switch the repeat modes (Single-Repeat One –Repeat Folder –Folder –Cancel
repeat).
Press to skip to the previous/next picture during playback.

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 13
(Left)/(Right) (on the remote control): Press to rotate the picture counter clockwise/clockwise during the
playback.
(ZOOM): during the playback, press (ZOOM) repeatedly to zoom in/out the picture or return to the original
size. When the picture is zoomed in, the direction keys can be used to move the picture.
U Drive & SD/MMC Card Playback
Insert a U drive or a card reader into the USB port. Press (SOURCE SELECT) to select USB mode to play the
readable files in it. Insert a SD/MMC card into the SD/MMC card port. Press (SOURCE SELECT) to select MCR
mode to play the readable files in it.
DIVX Playback
DIVX is a video (movies and video) recording format, which is commonly known as AVL.
DIVX disc features high quality that is comparable with the DVDs and larger capacity. For example:
1.5 movie
In MPEG-1/2 format
In DIVX
DVD(MPEG-2)
About 1.5-2GB
About 600-800MB
VCD (MPEG-1)
About 800MB-1G
About 600-800MB
Difference among MPEG 1, MPEG 2 and MPEG 4
MPEG1
MPEG2
MPEG4
Speed (kb/s)
1380kb/s(352*288)
6500kb/s
8800kb/s(720*576)
Quality
Good
Excellent
Perfect
Hardware
Low
Medium
High
Troubleshooting
Problem
Solution
No sound or distorted sound
Make sure your DVD is connected properly and all cables are securely
inserted into the appropriate jack.
Cannot advance through a movie
You cannot advance through the opening credits and warning
information that appear at the beginning of movies because the disc is
programmed to prohibit that action.
The icon appears on screen
The feature or action cannot be completed at this time because:
1. The disc software restrict it
2. the disc software does not support the feature
3. the feature is not available at the moment
Picture is distorted
The disc might be damaged. Try another disc.
It is normal for some distortion to appear during forward or reverse
scan.
No forward or reverse action
Some discs have sections that prohibit rapid scanning or title and
chapter skip.
If you try to skip through the warning information and credits at
beginning of a movie it is often programmed to prohibit skipping
through it.

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 14
The player breaks down when a
U drive or memory card is
inserted into the player
The connected U drive or the memory card is probably not of an original
version one.
The player cannot play any U drive and memory card of non-original
version in case the player breaks down, turn it off and unplug it from the
power supply. Then connect it to the power supply and switch it on
again. The player will resume the normal status.
PLUG WIRING (UK & IRELAND)
This appliance is supplied with a mains adaptor/charger with BS1363 plug pins.
DO NOT use If the socket outlets in your home or office are not suitable for this product’s mains adaptor/
charger plug pins. Attempts to insert the mains adaptor/charger into the wrong socket is likely to cause
electric hazard or damage.
DO NOT use with any other mains transformer/charger than the one that is supplied with this product.
BATTERIES
•Keep batteries away from children and pets.
•Do not mix used and new batteries.
•Remove the batteries if left for long periods.
•Never dispose of batteries in a fire.
•Battery disposal, spent or expired batteries must be properly disposed of and recycled in compliance
with local regulations. For detailed information, contact your local authority.
•Follow the battery manufacturer’s safety, usage, and disposal instructions.

Portable DVD Player G724 Instructions for Use
Please read and retain these instructions for future reference v001: 12/03/20
Page No. 15
DISPOSAL
•Dispose of all packaging, paper, cartons, plastic and plastic bags in accordance with your local
recycling regulations.
Code &
Symbol
Type of
Plastic
Polyethylene
Terephthalate
High-Density
Polyethylene
Polyvinyl
Chloride
Low Density
Polyethylene
Polypropylene
Polystyrene
Please
Specify
(includes
ABS,
Nylon)
Notes
Commonly
recycled and
collected
from
household
recyclign bins.
Check with
your local
authority
Commonly
recycled and
collected
from
household
recycling
bins. Check
with your
local
authority
Not usually
colellected
from
household
recycling
bins,
Sometimes
recycled at
local waste
management
centres.
Usually
recyclable
supermarket
deposit
points. Check
other plastic
films as any
non-
polythene
film e.g. cling
film, crisp
packets film
lids
Commonly
recycled and
collected from
household
recycling bins
(packaging
tape itself not
recyclable but
does not
interfere with
cardboard)
Not
commonly
recycled but
waste
management
centres will
recycle it.
Not often
or widely
recucled
•At the end of the product’s lifespan please dispose of it at an authorised household WEEE waste
recycling centre.
