Service Manual
FILE NO.
REFERENCE No. SM5810758
PRODUCT CODE No.
137 130 02
Portable DVD Player DVD-HP62 (XE)
CONTENTS
Laser beam safety precaution .......................................... 1
Exploded View (Packing & Accessories) ......................... 2
Exploded View (Cabinet & Chassis) ................................ 3
Parts List .......................................................................... 4
Schematic Diagram .......................................................... 6
Wiring Diagram ............................................................... 22
Wiring Connection ........................................................... 30

- 1 -
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
LASER OUTPUT................ 0.6 mW Max. (CW)
WAVE LENGTH ................. 790 nm
• Pickup that emits a laser beam is used on this CD section.
LASER BEAM SAFETY PRECAUTION
CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE
FOR STRÅLING.
VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.
VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

- 2 -
1
2
10
11
12
13
14
3
4
5
6
5
8
5
9
EXPLODED VIEW (PACKING & ACCESSORIES)

- 3 -
EXPLODED VIEW(CABINET & CHASSIS)

- 4 -
PARTS LIST
CAUTION : Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50V and less than 1000µF of Ceramic type and Electrolytic type.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH
THE IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY
CAN OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED , USE ONLY THE REPLACEMENT
PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE
DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST
BE MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE PRODUCT TO THE CUSTOMER.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
1645 081 9674 EPE BAG,FOR DISPLAY
2645 080 1631 POLYBAG,UNIT
3645 081 9162 EAR PHONE
4645 081 9025 AV CORD
5645 080 1617 POLYBAG,AV CORD,
AC ADAPTOR,CAR CORD
6645 080 0900 REMOTE CONTROL
8!
!! 645 080 0887 AC ADAPTOR,PSE
9645 079 9716 CAR ADAPTOR
10 645 081 9278 TRAVELLING
11 645 081 9667 POLYBAG,FOR TRAVELLING
12 645 080 1624 POLYBAG,IB
13 645 081 9629 INSTRUCTION MANUAL
14 645 081 9636 GIFT BOX
645 081 9650 CARTON OUTER
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1645 081 9483 MONITOR BACK CABINET
2645 080 1075 SPONGE
4645 081 8783 LCD PANEL
6645 081 9476 MONITOR FRONT CABINET
7645 080 1426 DECORATION PLATE
9645 081 9353 SCREW 1.7X4,
MONITOR FRONT CAB.
10 645 081 9285 RUBBER FOOT
11 645 081 9513 DVD DOOR
12 645 081 9469 BUTTON POWER ON/OFF
13 645 081 9490 DVD TOP PANEL
14 645 081 9452 BUTTON OPEN,DVD DOOR
15 645 081 9520 IR LENS
17 645 080 1013 DVD DOOR SHAFT
18 645 081 9223 DVD DOOR SPRING
19 645 081 9377 SCREW 1.7X3,DVD MAIN PCB
21 645 080 0863 DVD DECK
22 645 081 9506 DVD BOTTOM CABINET
23 645 081 9438 SUPPORT PLATE
24 645 080 1242 SCREW 2.0X8,
SUPPORT PLATE TO DVD BOT
25 645 081 9346 SCREW 2.6X6,
MONITOR FRONT CAB.
26 645 081 9391 SCREW 2.6X6,
MONITOR FRONT CAB.
27 645 081 9292 RUBBER FOOT
28 645 081 9414 HINGE
29 645 081 9339 SCREW 2.6X7,HINGE
30 645 081 9322 RUBBER FOOT
31 645 081 9421 DVD DOOR SPRING PLATE
32 645 081 9568 KEY STOP PLATE
33 645 081 9407 SCREW 1.7X4,DVD KEY PCB
34 645 081 9353 SCREW 1.7X4,
DVD DOOR SPRING PLATE
35 645 081 9544 BUTTON FUNCTION KEY
36 645 081 9537 BUTTON SELECT KEY
38 645 080 1242 SCREW 2.0X8,
SUPPORT PLATE TO DVD BOT
39 645 081 9308 RUBBER FOOT
40 645 081 9315 RUBBER FOOT
ELECTRICAL-PARTS
REF.NO. PART NO. DESCRIPTION
5645 081 9179 SPEAKER 16OHM 0.3W
645 081 9049 HOUSING 7P,TO MAIN DVD PCB
645 081 9056 HOUSING 8P,
MONITOR PCB TO MAIN DVD
645 081 9117 BACK LIGHT 6.2"
645 081 9032 HOUSING 4P,FOR SPEAKER WIRE
BATTERY CHARGE P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
16 614 334 7972 ASSY,PWB,BATTERY CHARGE
CON01 645 081 8998 3P WAFER,FOR DVD MAIN PCB
CON02 645 081 8981 3P WAFER,FOR BATTERY
D0001 645 079 9945 DIODE RLS4148
D0002 645 081 8820 DIODE BAS85
D0003 645 079 9938 DIODE ZENER 9.1V
MONITOR MAIN P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
3614 334 7958 ASSY,PWB,MONITOR MAIN
AQ001 645 079 9839 TRANSISTOR FDN337N
CA001 645 081 8912 CERAMIC 10U 16V
CON01 645 081 9001 7P WAFER,FOR DVD MAIN PCB J6
CON02 645 081 9018 30P WAFER,FOR PANEL 6.2
D0001 645 079 9938 DIODE ZENER 9.1V
D0002 645 079 9891 DIODE ISV215
DA001 645 079 9952 DIODE DA204UT106
DA003 645 081 8820 DIODE BAS85
DA004 645 079 9952 DIODE DA204UT106
DA006 645 079 9952 DIODE DA204UT106
DH003 645 079 9952 DIODE DA204UT106
IC002 645 079 9785 IC NJM2107F
IC003 645 081 8738 IC NJM3414AM
IC01A 645 079 9761 IC 8D02
IC201 645 079 9792 IC IR3Y31M,VIDEO PROCESSING IC
ICA01 645 081 8745 IC RT9266B
ICH05 645 081 8752 IC MP1010B
L0000 645 080 0429 CHOKE 18UH 10%
L0011 645 081 8943 CHOKE 0.82UH 10%
L0202 645 080 0450 CHOKE 100UH 10%
LA001 645 080 0429 CHOKE 18UH 10%
LA002 645 080 0429 CHOKE 18UH 10%
LA003 645 080 0429 CHOKE 18UH 10%
LA004 645 081 8950 CHOKE 22UH 10%
LA005 645 081 8950 CHOKE 22UH 10%
LH008 645 081 8950 CHOKE 22UH 10%
Q0002 645 079 9860 TRANSISTOR DTC144EKA
R0061 645 080 0412 CHIP BEAD 600OHM
S0201 645 080 0474 CHIP SEMI VR 50K OHM B
S0202 645 080 0474 CHIP SEMI VR 50K OHM B
TC005 645 080 0764 ELECT 10U 16V
TH001 645 081 9186 TRANSFORMER
VR001 645 080 0474 CHIP SEMI VR 50K OHM B
VR002 645 080 0474 CHIP SEMI VR 50K OHM B
VR003 645 081 8967 VR B10K F-1001N
VR004 645 080 0467 CHIP SEMI VR 10K OHM B
VR005 645 080 0474 CHIP SEMI VR 50K OHM B
X0201 645 079 9822 CRYSTAL 3.579545MHZ

- 5 -
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
DVD KEY P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
37 614 334 7965 ASSY,PWB,DVD KEY
SW001 645 081 8974 SWITCH TACT,MENU
SW002 645 081 8974 SWITCH TACT,OK
SW003 645 081 8974 SWITCH TACT,RIGHT
SW005 645 081 8974 SWITCH TACT,LEFT
SW006 645 081 8974 SWITCH TACT,DOWN
SW007 645 081 8974 SWITCH TACT,WIDE
SW009 645 081 8974 SWITCH TACT,PLAY
SW010 645 081 8974 SWITCH TACT,STOP
SW011 645 081 8974 SWITCH TACT,FF
SW012 645 081 8974 SWITCH TACT,REW
D0004 645 081 8813 DIODE SK34
F0001 645 081 9063 FUSE
IC004 645 081 8806 TRANSISTOR SI9435A
IC005 645 081 8806 TRANSISTOR SI9435A
Q0001 645 079 9860 TRANSISTOR DTC144EKA
Q0002 645 079 9860 TRANSISTOR DTC144EKA
U0002 645 081 8769 IC BQ2057C
U0003 645 081 8790 TRANSISTOR FDS9926F
U0005 645 081 8776 IC S8232B
Z0001 645 079 9938 DIODE ZENER 9.1V
645 081 9100 LED
645 081 9445 LED SUPPORT,FOR LED
DVD MAIN P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
20 614 334 7941 ASSY,PWB,DVD MAIN
CON01 645 075 8805 SOCKET 24P
CON02 645 075 8799 SOCKET 13P
CON03 645 076 9252 SOCKET 8P
D0001 645 075 8508 DIODE IN5819
D0002 645 068 5262 DIODE 1N4148
D0003 645 068 5262 DIODE 1N4148
D0004 645 068 5262 DIODE 1N4148
D0005 645 068 5248 DIODE ZENER 4.3V
D0006 645 075 8508 DIODE IN5819
D0007 645 075 8508 DIODE IN5819
D0008 645 075 8508 DIODE IN5819
D0011 645 076 9115 DIODE SK34
D0012 645 068 5262 DIODE 1N4148
D0013 645 068 5231 DIODE ZENER 15V
D0014 645 068 5262 DIODE 1N4148
F0001 645 076 9122 FUSE
J0004 645 068 5446 DC INPUT JACK
J0005 645 076 9283 SOCKET 18P
J0006 645 076 9245 SOCKET 7P,
FOR MONITOR MAIN PCB
J0007 645 068 5453 9P CONNECTOR,
FOR SPEAKER LEFT & RIGHT
J0012 645 075 8768 DIGITAL OUT JACK
J0015 645 076 9276 VIDEO IN OUT JACK
J0022 645 073 2164 HEADPHONE JACK
L0001 645 068 4869 MAGNET BEAD
L0002 645 075 8492 COIL 47UH
L0003 645 068 4913 MAGNET BEAD 33OHM
L0004 645 076 9092 COIL 100UH
L0005 645 068 4913 MAGNET BEAD 33OHM
L0006 645 068 4913 MAGNET BEAD 33OHM
L0007 645 076 9061 MAGNET BEAD 33 OHM
L0008 645 076 9085 COIL 47UH
L0009 645 068 4913 MAGNET BEAD 33OHM
L0011 645 068 4913 MAGNET BEAD 33OHM
L0012 645 068 4913 MAGNET BEAD 33OHM
L0013 645 075 8324 CHIP CHOKE 1.8 UH
L0014 645 075 8492 COIL 47UH
L0015 645 068 4913 MAGNET BEAD 33OHM
L0017 645 068 4913 MAGNET BEAD 33OHM
L0018 645 068 4913 MAGNET BEAD 33OHM
L0019 645 075 8324 CHIP CHOKE 1.8 UH
L0020 645 076 9061 MAGNET BEAD 33 OHM
L0021 645 076 9108 COIL 47UH
L0022 645 068 4913 MAGNET BEAD 33OHM
L0023 645 075 8324 CHIP CHOKE 1.8 UH
L0024 645 068 4913 MAGNET BEAD 33OHM
L0025 645 068 4913 MAGNET BEAD 33OHM
L0026 645 075 8324 CHIP CHOKE 1.8 UH
L0029 645 068 4913 MAGNET BEAD 33OHM
L0031 645 068 4913 MAGNET BEAD 33OHM
L0035 645 076 9054 CHOKE 10UH
L0036 645 076 9054 CHOKE 10UH
L0045 645 068 4913 MAGNET BEAD 33OHM
L0046 645 068 4913 MAGNET BEAD 33OHM
L0047 645 068 4913 MAGNET BEAD 33OHM
L0048 645 068 4890 MAGNET BEAD CHIP 3.3
L0049 645 076 9054 CHOKE 10UH
LED01 645 068 5163 LED
Q0002 645 068 5125 TRANSISTOR 3906
Q0003 645 075 8461 TRANSISTOR AO3407
Q0004 645 075 8478 TRANSISTOR 8550
Q0005 645 068 5118 TRANSISTOR 3904
Q0006 645 068 5118 TRANSISTOR 3904
Q0007 645 068 5118 TRANSISTOR 3904
Q0008 645 068 5118 TRANSISTOR 3904
Q0009 645 075 8478 TRANSISTOR 8550
Q0010 645 068 5125 TRANSISTOR 3906
Q0011 645 068 5125 TRANSISTOR 3906
Q0012 645 075 8461 TRANSISTOR AO3407
Q0013 645 068 5118 TRANSISTOR 3904
Q0014 645 075 8447 TRANSISTOR 2907
Q0015 645 068 5118 TRANSISTOR 3904
Q0016 645 068 5125 TRANSISTOR 3906
Q0019 645 068 5118 TRANSISTOR 3904
Q0020 645 068 5095 TRANSISTOR 2SB1182
Q0021 645 075 8454 TRANSISTOR 2SK3018
Q0022 645 068 5118 TRANSISTOR 3904
Q0023 645 075 8454 TRANSISTOR 2SK3018
Q0024 645 068 5118 TRANSISTOR 3904
Q0025 645 075 8461 TRANSISTOR AO3407
Q0026 645 068 5118 TRANSISTOR 3904
Q0027 645 068 5118 TRANSISTOR 3904
Q0028 645 075 8461 TRANSISTOR AO3407
Q0029 645 068 5118 TRANSISTOR 3904
Q0030 645 068 5118 TRANSISTOR 3904
Q0031 645 068 5125 TRANSISTOR 3906
Q0032 645 068 5118 TRANSISTOR 3904
Q0034 645 068 5095 TRANSISTOR 2SB1182
RN001 645 068 4678 CHIP RES 33OHM X4 +-5%
RN002 645 068 4678 CHIP RES 33OHM X4 +-5%
RN003 645 068 4678 CHIP RES 33OHM X4 +-5%
RN004 645 068 4678 CHIP RES 33OHM X4 +-5%
RP002 645 076 8903 SVR WHE 1022-C10K,VOLUME
SW001 645 068 5347 SWITCH TACT
SW002 645 068 5347 SWITCH TACT
SW004 645 076 9191 SWITCH TACT
SW016 645 076 9191 SWITCH TACT
U0001 645 075 8430 IC WM8714ED
U0002 645 068 4968 IC TDA2822
U0003 645 068 5019 IC BA5954
U0004 645 075 8423 IC 6849
U0005 645 075 8362 IC K4S641632H
U0006 645 075 8409 IC 4052
U0007 645 068 4999 IC C4558
U0008 645 075 8379 IC AAT1343
U0010 645 075 8393 IC AT24C02N
U0011 645 068 4975 IC ZA3020LV,DC-DC REGULATOR
U0012 645 075 8348 IC A29800
U0014 645 068 4999 IC C4558
U0015 645 075 8409 IC 4052
U0016 645 076 9078 IC MT1389QE
Y0001 645 068 5330 CRYSTAL 27MHZ
645 076 9344 LED SUPPORT,FOR LED01
645 068 5316 FUSE CHIP,FOR F1
645 076 9139 REMOTE VRM-5052,FOR REMOTE1

- 7 -- 6 -

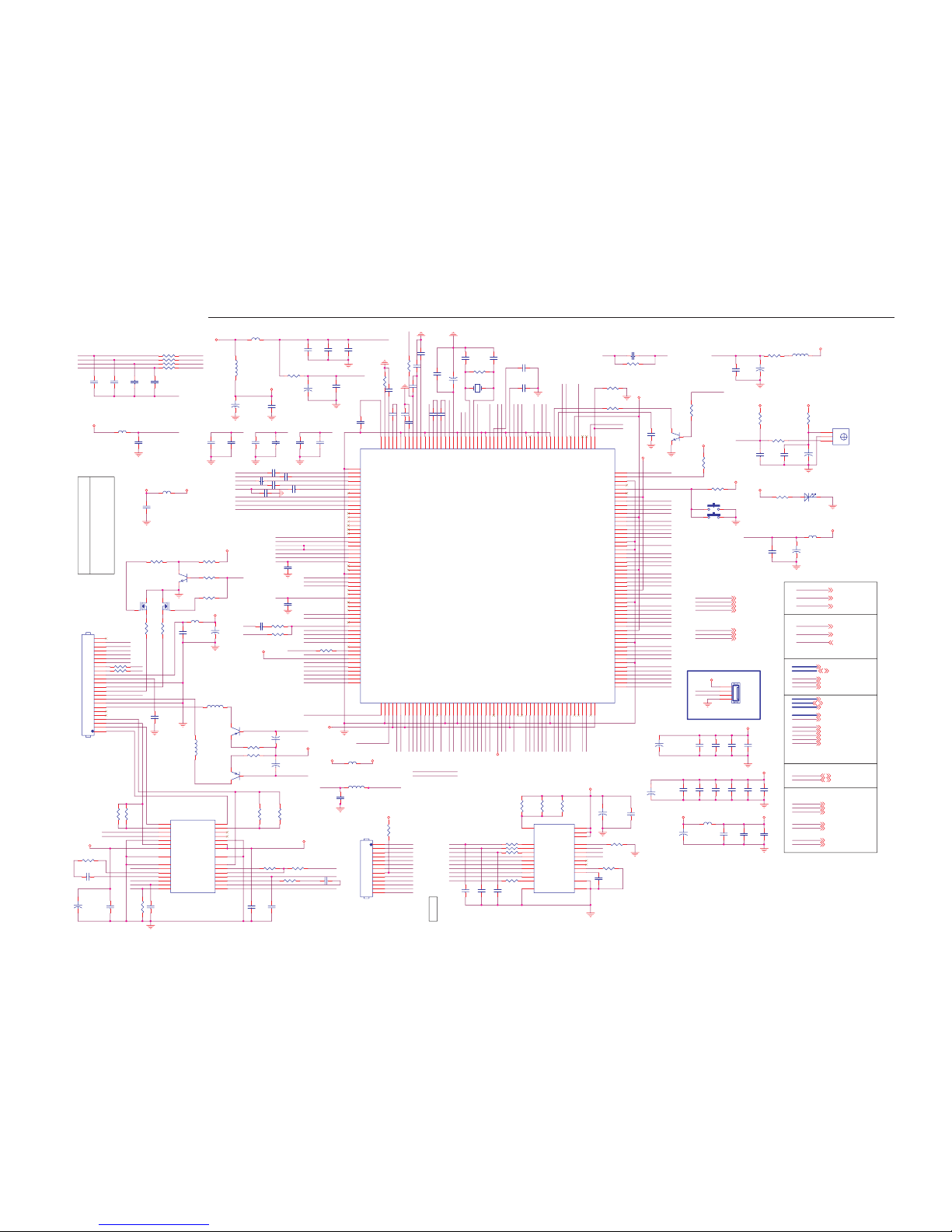

SCHEMATIC DIAGRAM (MAIN-1)
This is a basic schematic diagram.
TO MONITOR
BOARD(1)CON1
VIDEO OUT
IN
OUT
TFT-C
TFT_W/N
ON/OFF_DCIN
WIDE/NOR
D4
KY1
KX4
KY3
KX1
KY1
KY3
KX2
KX4
KY2
KX3
WIDE/NOR
ON-DCIN
KX2
KX1
KX3
Y1_SY
Y2_SC
+5V
Y3_CVBS
Y2_SC
AVIN/OUT_SW
Y1_SY
TFTDC
ON-DCIN
TFT_W/N
SY
DVD_CVBSY3_CVBS
KY2
D2
I3
I2
D3
D1
I1
Y_OUT MONITOR_Y(VIDEO)
AVIN/OUT_SW
SY
VIDEO_IN
TV_SW
IN/OUT_DET
AVIN/OUT_SW
AVIN/OUT_SW
VIDEO_IN
VIDEO_JACK
DVD_CVBS
VIDEO_JACK
MONITOR_Y(VIDEO)
TFT_+5V
TFT_+5V
TFT_+9V
TFT_+9V
T+5V
WIDE/NOR[ 2 ]
ON-DCIN[ 1 ]
Y2_SC[ 2 ]
+5V[ 1,2,3 ]
AVIN/OUT_SW
[ 2 ]
Y1_SY[ 2 ]
Y3_CVBS[ 2 ]
KX1[ 2 ]
KX2[ 2 ]
KX3[ 2 ]
KX4[ 2 ]
KY1[ 2 ]
KY2[ 2 ]
KY3[ 2 ]
DC IN
ON/OFF_DCIN
VIDEO_+5V
+5V VIDEO_+5V
+5V
VIDEO_+5V
ON/OFF_DCIN
VIDEO_+5V
VIDEO_+5V
ON/OFF_DCIN
T_+5V
Q6
3904
CB53
220pF
R98
1k
C96
47pF
+
C33
47uF/6.3V-SMD
C88
47pF
R202
1k
R118
330
Q11
3906
Q35
M5237
2
1
3
R93
10k
R169
10k
CB51
220pF
Q34
2SB1182
R170
1k
R84
10
R168
100
CB47
220pF
CB60
0.1uF
L8
47uF-0.8A
+
C71
220uF/6.3V-SMD
R67
75
CB46
220pF
RN4
33x4
1
2
3
4
5
6
7
8
CB106
0.1uF
RN1
33x4
1
2
3
4
5
6
7
8
C66
OPEN
+
C169
10uF/16V-1206
R132 220
CB45
220pF
+
C9
10uF/16V-1206
R133 470
C70
0.1uF
R167
10k
SW1
TC-0030
1
3
4
2
CB107
47pF
CB16
220pF
SW16
1
3
4
2
5
6
CB13
0.1uF
R134
5.6k
R97
75
R135
1.8k
R12
1K
CB7
0.1uF
CB5
220pF
CB12
1uF
J30
1
3
2
4
C26
0.1uF
L23
1.8uH/0805
L26
1.8uH/0805
C98
47pF
R103
10k
C65
47pF
C87
47pF
+
CE9
10uF/10V-0805
Q20
B1182
L19
1.8uH/0805
Q22
3904
L18
FB/0805
+
C25
10uF/16V-1206
R166
47k
Q14
2907
L13
1.8uH/0805
1
2
3
4
5
6
7
J6
CON7-1.25mm
U6
4052
12
14
15
1
2
5
7
4
6
11
3
8
10
13
16
9
X0
X1
X2
Y0
Y2
Y1
VEE
Y3
INH
X3
Y
VSS
A
X
VCC
B
R34
OPEN
R85
39
L14
47uH-0.8A
R161
75
Q30
3904
R203
4.7k
R104
10k
R82
1k
D12
1N4148
12
1
2
3
4
5
6
7
8
CON3
CON8-1.25mm
D14
1N4148
12

- 9 -- 8 -

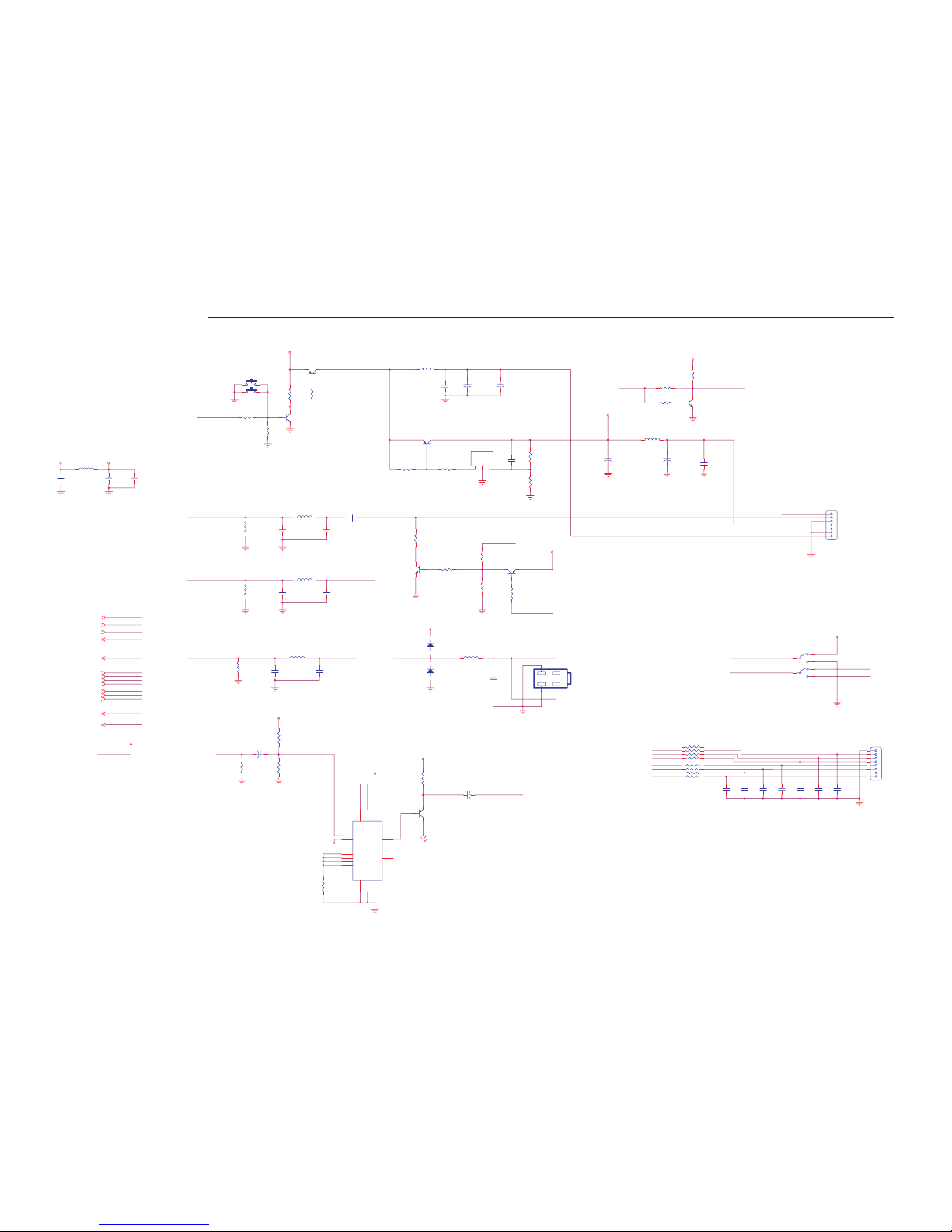

SCHEMATIC DIAGRAM (MAIN-2)
AUDIO IN/OUT
COAXIAL OUT
AOUT_R
AOUT_L
ASPDIF
DAC_R
DAC_L
SPL
VOLIN_L
SPR
SP_L
HEAD_LL'
SP_R
HEAD_RR' VOLIN_R
MUTE_ON
ASPDIF
IR
CVBS-TV
MUTE_ON
IN/OUT_MUTE
ON/OFF_DC
HEAD_RR
HEAD_RR'
TV_AL
AVIN/OUT_SW
AVCM
TV_SW
AOUT_L
TV_AR
HEAD_LL'
AOUT_R
HEAD_LL
AVCM
HEAD_L
AVCM
ADCIN
DAC_L
AVCM
HEAD_LL
DAC_R
HEAD_RR
ADCIN
HEAD_R
HEAD_R
HEAD_L
TV_SW
ASPDIF[ 2 ]
DAC_L[ 4 ]
DAC_R[ 4 ]
IR[ 2,6 ]
CVBS-TV[ 6 ]
MUTE_ON[ 4 ]
IN/OUT_MUTE[ 2 ]
ON/OFF_DCIN
ON/OFF_DCIN
ON/OFF_DC
ON/OFF_DCIN
R99
100k
R120
1.5k
R92
330
R96
100k
R122
1.5k
R50
4.7
+
CE6
10uF/10V-0805
-
+
+
-
TDA2822/DIP
U2
1
2
4
3
6
7
8
5
J22
1
3
4
2
567
8
910
11
R52
330
R56
100
+
C90
47uF/6.3V-SMD
R11
100k
R14
100k
R163
2.2-0805
+
-
U14B
C4558
5
6
7
84
CB59
0.1uF
R70
12k
RP2
WHE1022-C10k-3-14*1.0
+
CE7
10uF/10V-0805
C73
150pF
C93
0.1uF
C84
0.1uF
R60
6.8k
R72
6.8k
C85
0.1uF
C60
150pF
+
C82
10uF/10V-0805
R66
330
R73
1.5k
CB64
0.1uF
+
-
U14A
C4558
3
2
1
84
J15
1
3
2
4
5
6
J12
JACK1
1
2
4
3
R40
10k
C80
2200pF
+
C8
47uF/16V-SMD
R44
10k
C64
2200pF
CE16 10uF/10V-0805
U15
4052
12
14
15
1
2
5
7
4
6
11
3
8
10
13
16
9
X0
X1
X2
Y0
Y2
Y1
VEE
Y3
INH
X3
Y
VSS
A
X
VCC
B
R110
10k
R125
10k
R123 10k
+
C62
10uF/10V-0805
R111
10k
R124
100k
R51
10
C59
330pF
L9
FB/0805
+
C4
10uF/10V-0805
+
CE8
10uF/10V-0805
R45
100k
+
C51
100uF/16V
CE17 10uF/10V-0805
1
2
3
4
J7
CON4-1.25mm
R198
100
+
C75
10uF/10V-0805
R43
330
R61
1.5k
+
-
U7B
C4558
5
6
7
8
4
C99
OPEN
+
C53
100uF/16V
Q8
3904
C74
0.1uF
+
C3
10uF/10V-0805
+
-
U7A
C4558
3
2
1
8
4
+
C72
47uF/6.3V-SMD
C100
OPEN
+
CE5
10uF/10V-0805
Q13
3904
CB3
0.1uF
R154
10k
Q5
3904
R77
330
R126
100k
R91
10
R55
12k
R62
1k
C68
2200pF
+
C86
47uF/6.3V-SMD R49
4.7
C81
2200pF
R90
330
R80
33k
R74
1k
C57
NC
R58
33k
R46
100k
Q7
3904
R57
75
+
C89
10uF/10V-0805
C43
1uF
+
C91
10uF/10V-0805
COAXIAL
This is a basic schematic diagram.

- 11 -- 10 -
SCHEMATIC DIAGRAM (MAIN-3)
MUTE_ON
SLRCK
SLRCK
ASDAT0
SDAT0
ABCK
SBCLK
ALRCK
ACLK
DAC_L
SACLK
ASDAT0 SDAT0
SBCLKABCK
SACLKACLK
ALRCK
DV33
DAC_R
DAC_L
AVIN/OUT_SW
TV_SW MUTE
M-REST
DAC_R ALAR
MUTE_ON [ 5 ]
ACLK[ 2 ]
ASDAT0[ 2 ]
ALRCK[ 2 ]
ABCK[ 2 ]
DV33[ 1,2,3 ]
DAC_R[ 5 ]
DAC_L[ 5 ]
ON/OFF_DCIN
+5V
ON/OFF_DCIN
ON/OFF_DCIN
+
C48
10uF/16V
CE11
2.2uF-0805
CE13
10uF-16V-1206
R41
1M
Q27
3904
R71
10k
Q29
3904
L22
FB
Q31
3906
+
C16
10uF/10V-0805
CB44
0.1uF
R78
10k
D5
4.3V
R129
330
D3
1N4148
12
+
C31
47uF/6.3V-0805
CB43
0.1uF
CE15
10uF-16V-1206
CE1
2.2uF-0805
U1
WM8714
1
2
3
4
5
6
78
9
10
11
12
13
14
LRCIN
DIN
BCKIN
NC1
CAP
VOUTR
GND VDD
VOUTL
MUTE
NC2
D-EMP
FMT
SCKI
R112
10k
R37
43K
R121 OPEN
D10
1N4148
1
2
R156 0
R164
470/0805
R117
OPEN
Q16
3906
R157 0
Q10
3906
R47
10K
R116
10K
R114
10k
D4
1N4148
1 2
R36
10k
Q2
3906
RN3
33x4
1
2
3
4
5
6
7
8
+
C49
100uF/16V
This is a basic schematic diagram.

- 13 -- 12 -
SCHEMATIC DIAGRAM (MAIN-4)
FLASH
DRAM
PCE#
MA5
DQM0
SDA
DQ15
MA10
MA11
MA2
DQ8
AD[0..7]
DBA0
WE#
A[0..20]
DQ6
DQ10
MA4
MA6
RAS#
DCAS#
SCL
DQ9
DCLKSDCLK
CS#
MA0
DRAS#
DRAS#
DCKE
DWE#
RAS#
DQ3
DQ11
SDCLK
DQ0
WE#
DQ12
MA3
DBA1
MA8
DCLK
DQ2
MA1
DCKE
DQ5
SDCKE
DQ4
SDCKE
CAS#
CAS#
DCAS#
DQ13
DCS#
MA7
DQ1
PWR#
DCS#
BA1
PRD#
MA[0..11]
DQ7
DQ[0..15]
DWE#
BA[0..1]
CS#
BA0
MA9
DQ14
DQM[0..1]
SDA
SCL
SD33
DQM1
A18
A14
A9
A7
A3
A19
A2
A16
AD4
A17
A11
A6
AA20
A5 PRD#
A8
AD6
AD0
AD5
PWR#
A15
A1
PCE#
AD1
A13
AD7
A4
A12
A0
A10
AD3
AD2
AA20 A20
DBA0
DBA1
CAS#[2]
SCL[2]
PRD#[2]
SDA[2]
DCKE[2]
CS#[2]
DQM[0..1][2]
MA[0..11][2]
RAS#[2]
PCE#[2]
BA[0..1][2]
AD[0..7][2]
A[0..20][2]
DCLK[2]
WE#[2]
DQ[0..15][2]
PWR#[2]
DV33
DV33
SD33
SD33
SD33
FLASH_VCC
FLASH_VCC
FLASH_VCC
+5V
FLASH_VCC
DV33
L11
FB/0805
CB49
0.1uF
L24
FB / 0805
CB115
0.1uF
L10
NC
CB52
1uF
R232 33
R31 33
R119 NC
R33
10k
U5
K4S641632H
TSOP(II)-54/SMD
1
2
4
12
5
7
9
8
10
46
11
13
15
16
17
18
19
35
22
23
24
25
26
14
41
29
30
31
32
33
34
36
37
38
39
40
43
42
44
52
45
47
49
48
50
51
53
54
20
21
3
6
27
28
VCC
DQ0
DQ1
VSSQ
DQ2
DQ3
VCCQ
DQ4
DQ5
VSSQ
DQ6
DQ7
DQML
WE
CAS
RAS
CS
A11
A10/AP
A0
A1
A2
A3
VCC
VSS
A4
A5
A6
A7
A8
A9
NC
CKE
CLK
DQMH
NC
VCCQ
DQ8
DQ9
VSSQ
DQ10
DQ11
VCCQ
DQ12
DQ13
DQ14
DQ15
VSS
BA0/A13
BA1/A12
VCCQ
VSSQ
VCC
VSS
R155
NC
CB40
0.1uF
U10
24C02
SOP8/SMD
1
2
3
45
6
7
8
NC
NC
NC
GND SDA
SCL
WP
VCC
RN2
33x4
1
2
3
4
5
6
7
8
R25
1k
C42
1uF
R32 33
R24
1k
U12
A29800 FLASH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
A15
A14
A13
A12
A11
A10
A9
A8
NC1
NC2
WE
RESET
NC3
NC4
RYBY
A18
A17
A7
A6
A5
A4
A3
A2
A1 A0
CE
VSS1
OE
DQ0
DQ8
DQ1
DQ9
DQ2
DQ10
DQ3
DQ11
VCC
DQ4
DQ12
DQ5
DQ13
DQ6
DQ14
DQ7
DQ15/A-1
VSS2
BYTE
A16
R231 33 CB37
0.1uF
This is a basic schematic diagram.

- 15 -- 14 -

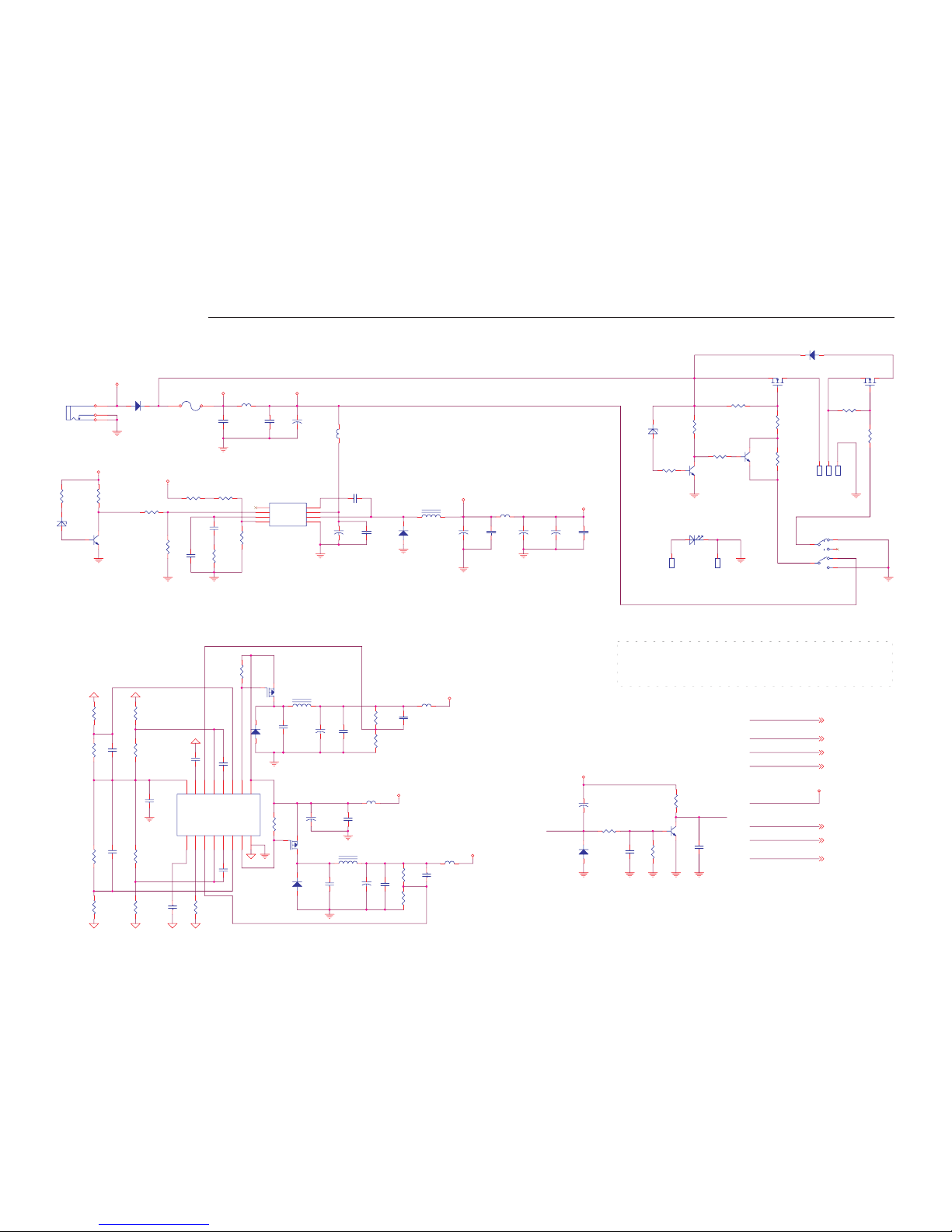

SCHEMATIC DIAGRAM (MAIN-5)
ON
OFF
1,DC IN ( 5 TO 6
2 TO 3,POWER ON;5 T O 4
2 TO 1,BATTARY
CHARGE)
2,NO DC IN (5 TO 6
2 TO 3,BATTA RY DIS CHARGE;5 TO
4
2 TO 1,POWE R OFF)
1k
10k
10V
3904
10k
EJS5628S
MP1410
ON/OFF_DCIN
ON/OFF_DCIN
DV33
URST#
ON-DCIN
URST#
+5V
NON2
NON2
V18
5V
M-REST
ON-DCIN
M-REST
+5V [ 2,3,6 ]
V18 [ 2 ]
DV33 [2,3,4 ]
URST# [ 2 ]
ON-DCIN [ 6 ]
5V [ 2 ]
M-REST [ 4 ]
5V
+5V
DC DC-IN
DCIN
ON/OFF_DCIN
+5V
ON/OFF_DCIN
+5V
DV33
V18
5V
C7
0.01uF
R89
12k
L5
FB/0805
CB22 1000pF
R18
10k
+
C15
10uF/10V-0805
D7
1N5819(SMD)
12
CB19
0.47uF
R87
1k
R21
33k
R81
10k
C24
0.022uF
R65
10k
R86
20k
D8
1N5819(SMD)
12
F1
P200/1812
CB9
470pF
R113
0(0603)
R88
1k
Q15
3904
R64
1k
C29
47uF/16V
CB24
0.1uF
CB10
1000pF
+
C151
47uF/16V
R42
47k
L7
FB/1206
L12
FB/0805
+
C5
47uF/16V
R94
1k
R30
33k
L4
100uH-0.8A
R38
10k
CB30
0.1uF
OPEN
D2
1N4148
12
R63
10k
U11
1
2
3
4
5
6
7
8BS
VIN
VSW
GNDFB
COMP
EN
SYNC
R6
10k
CB32
220pF
J10
PAD
1
Q25
AO3407
R1
27k
Q28
AO3407
L1
FB(DIP)
CB39
0.1uF
+
C168
10uF/16-SMD
Q3
AO3407
D6
1N5819-SMD
12
R59
OPEN
CB57
0.01uF
R54
1.2K
CB55
0.1uF
R22
47k
C28
100uF/16V
CB54
0.1uF
Q17
OPEN
R39
200k
D1
1N5819(SMD)
12
L21
47uH-2A
SW4
1
3
4
2
5
6
Q18
OPEN
CB34
220pF
J11
PAD
1
R2
3k
CB102
0.1uF
R29
47k
CB35
0.1uF
J13
PAD
1
L6
FB/0805
R35
200k
CB33
100pF
C30
10uF/10V-0805
R76
OPEN
CB27
100pF
CB20
1uF
R26
47k
CB14
0.47uF
R79
1k
J9
PAD
1
+
C2
100uF/16V
R105
5.1K
D9
OPEN
J4
DC-INPUT
1
2
3R75
OPEN
R19
47k
J1
PAD
1
R5
10k
CB31
0.1uF
U8
AAT1343
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
CT
RT
NON1
INV1
FB1
DT1
OUT1
GND
VREF
SCP
NON2
INV2
FB2
DT2
OUT2
VCC
+
C1
100uF/16V
L2
47uH-1A
R102
1.2K
R107
10K
CB23
0.22uF
R20
47k
Q12
AO3407
Q19
3904
C22
0.022uF
L20
FB/1206
C23
100pF
D13
15V
D11
SK34
1
2
This is a basic schematic diagram.

- 17 -- 16 -
SCHEMATIC DIAGRAM (MAIN-6)
C/c
TopRay
TOP1100S
9LD-CD
VR-CD
MEMORY
NC
16
21
3
22
6
7
RF
11
VC-PD
5
17
12
20
NC
MD
NC
10
F+
A/a
T+
TOP1100S
FLASH
B/b
GND-LD
GND-PD
1
F
F-
15
18
19
14
23
4
SW-CD/DVD
RS-232
2
IIC
D/d
VR-DVD
POWER
CONTRL
T-
VCC-PD
13
V1.7
24
8
LD-DVD
E
TopRay TOP1100S
-->
PIN1
DCKE
KY1
LD-CD
AD2
MA7
V1P4
A[0..18]
HU+
WE#
SDA
A2
URST#
MDI1
DQ10
AD1
DMSO
WE#
VR-CD
DQ15
BA1
DQ8
DQ14
D
D
F+
JITFN
V20
DQ1
B
DQ[0..15]
A5
MA10
FS
V1P4
RFV33
SL+
V1P4
A12
AR
AV-IN/OUT_SW
BA[0..1]
A16
DQ9
MA3
V2P8
A14
V20
DQ4
RFVDD3
FMO
V1P4
RFO
MA9
H-
HW+
JITFO
SCL
AD[0..7]
HU-
A15
T-
DCKE
RAS#
W
Y3_CVBS
MUTE
APLLVDD3
A11
PUH5V
DMSO
MA11
V
WIDE/NOR
AR
A8
TEZISLV
V1P4
DQM0
A7
APLLVDD3
F
DQ0
FOSO
LDO1
LDO1
FMO
T+
KX3
IOA
PLLVDD3
DQ7
CAS#
XI
F-
AD3
AD5
PWR#
DQM[0..1]
PLLVDD3
V1P4
C
RFV18
Y5_SC
MA8
SL-
A
FOO
A
KX1
MA5
DQ2
STBY
MA0
A18
RFVDD3
DCLK
V1P4
DACVDD3
DQ11
WIDE/NOR
ADACVDD3
CS#
RFVDD3
TXD
DACVDD3
A13
ADIN
LD-DVD
T-
PCE#
AL
KX4
PCE#
MDI2
RFO
ASPDIF
STBY
A1
HV+
DQ12
A17
PWR#
V20
SDA
DCLK
BA0
RFVDD3
AD6
FOO
VR-DVD
A
DQ3
AD0
C
JITFO
JITFN
AL
LDO2
DQ6
HW-
E
DMO
V2P8
A3
MA2
FOSO
CAS#
A6
URST#
MA[0..11]
KX2
KY3
DACVDD3
IR
TRSO
B
DQM1
Y6_SY
B
RFVDD3
MDI1
LDO_V33
TxD
F
RAS#
FMSO
LDO2
STBY
RFV33
KY2
V1P4
C
MA4
HV-
PRD#
DQ5
E
FMSO
RxD
AD4
T+
ADACVDD3
F-
FGADIN
XO
DMO
TRO
ENDMSTBY
TRSO
IOA
AD7
PRD#
MA1
TRO
F+
DQ13
SCL
RXD
MA6
U
D
A9
A0
DMSO
A4
COVER_SW
IOA
A10
CS#
DACVDD3
IR REMOTE
RFV18
GND
KX1
KX3
KY3
KX2
KY2
KX4
KY1
ASPDIF
Y5_SC
Y3_CVBS
Y6_SY
DV33
+5V
V18
V18
V18
HU-
H-
V
SL-
HW+
HW-
HV-
W
HU+
HV+
H+
U
SL+
A19
ADIN
IN/OUT_DET
AC-IN/OUT_SW
VREF
ASDATA0
ALRCK
ACLK
ABCK
ADIN
DCLK [ 3 ]
URST# [ 1 ]
DQ[0..15] [ 3 ]
CS# [ 3 ]
WE# [ 3 ]
MA[0..11] [ 3 ]
PWR# [ 3 ]
PRD# [ 3 ]
BA[0..1] [ 3 ]
SDA [ 3 ]
AR [ 5 ]
PCE# [ 3 ]
A[0..18] [ 3 ]
DCKE [ 3 ]
DQM[0..1] [ 3 ]
SCL [ 3 ]
AL [ 5 ]
CAS# [ 3 ]
RAS# [ 3 ]
AD[0..7] [ 3 ]
KY1 [ 7 ]
KY2 [ 7 ]
KX2 [ 7 ]
KX4 [ 7 ]
KY3 [ 7 ]
KX1 [ 7 ]
KX3 [ 7 ]
AV-IN/OUT_SW [ 5,6 ]
MUTE [ 4 ]
WIDE/NOR [ 6 ]
ASPDIF [ 5 ]
Y3_CVBS [ 5 ]
Y5_SC [ 5 ]
Y6_SY [ 5 ]
+5V [ 5,6 ]
DV33 [2,3 ]
V18 [ 3 ]
V18
DV33
V18
AVCC
V18
ADACVDD3
DV33
DV33
RFV33
+5V MO_VCC
AVCC
LDO_V33
MO_VCC
MO_VCC
DV33
V18
DV33
V18
DV33
MO_VCC
DV33
5V
DV33
5V
RFV33
DV33
MO_VCC
+5V AVCC
DV33
CB69
0.1uF
L36
10uH
LED 5*2mm RED
R16
560
CB85
1uF
C127
C
CB65
0.1uF
C146 150pF
L48
3.3uH/0805
R3
10k
+
CE12
10uF/10V-0805
C19
0.1uF
Y1
27.0000MHz
12
BOTTOM
CON1
HEADER 24 SMD0.5 BOTTOM
H24S/P0.5/A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CB95
0.1uF
R95 15k
CB128
0.1uF
+
C20
10uF/10V-0805
R138
10k
+
CE3
47uF/6.3V-SMD
CB2
0.1uF
R160 4.7
+
CE31
47uF/6.3V-SMD
+
C128
10uF/10V-0805
CB26
0.1uF
+
C11 10uF/10V-0805
R142
10k
CB63
0.1uF
C179
20pF
R7
1/0805
CB131
0.1uF
R150
10k
R220
10k
C125
0.1uF
Q9
8550
1
3
2
C111 0.047uF
L35
10uH
R144 0
R285 0
L29
FB/0805
CB38
0.1uF
C21
0.1uF
Q4
8550
1
32
C123 C
C120 1uF
R146 0
R158
1k
C112 0.047uF
CB11
0.1uF
L49
10uH/0805
C116
1500pF
R13 100k
+
CE25
10uF/10V-0805
R215 18k
R101 0
CB75
0.1uF
C14
27pF
C38 0.1uF
Q23
2SK3018
2
3
1
TOP
CON2
H13S/P1.0
HEADER 13 SMD1.0 TOP
1
2
3
4
5
6
7
8
9
10
11
12
13
C114
0.1uF
R210
R
+
CE22
10uF/10V-0805
R10 R
CB97
0.1uF
SW2
TC-0030
1
3
4
2
L46 FB/0805
CB91
0.1uF
R219 20k
R214 20k
C137
0.01uF
CB87
1uF
R137
100k
C13
27pF
C110 0.033uF
R246 750k
L31 FB/0805
C18
0.1uF
Q24
3904
CB88
0.1uF
R27
1k
C134
330pF
R283
0
CB101
0.1uF
CB132
0.1uF
R23
20K
C119 1uF
+
C140
10uF/10V-0805
CB1
0.1uF
U3
CD5954/A5954
1
9
10
12
3
2
15
7
14
13
21
19
20
24
27
6
4
5
28
8
11
17
18
16
23
22
25
26
29
30
VINFC
PVCC1
PGND
VOSL+
CF2
CF1
VOTK+
VNFFC
VOFC+
VOFC-
PVCC2
PGND
VNFTK
CTK2
BIAS
VOSL
VINSL+
VINSL-
STBY
VCC
VOSL-
VOLD+
VOLD-
VOTK-
VINLD
PREGND
CTK1
VINTK
G1G2
C32
1000pF
R8
R
C187
6800pF
R83
1/0805
C122 1uF
C17
0.1uF
CB66
0.1uF
C118 1uF
L3
FB/0805
CB28
0.1uF
C126 0.1uF
R28
100
CB8
0.1uF
VRM-5052
1
2
3
O
G
V
CB4
0.1uF
+
C10
10uF/10V-0805
CB18
0.1uF
R128
1k
C131
330pF
R145 0
C41
0.1uF
C121 1uF
CB21
0.1uF
R140
0
R68
1k
R109
10
CB109
0.1uF
R151
47
R143 47
L45
FB/0805
C12 0.47uF-0805
R217 10k
C173
0.1uF
R141
100k
C150
0.1uF
R221
OPEN
C162
0.01uF
+
C136
10uF/10V-0805
R216 15k
CB62
0.1uF
C124
0.1uF
L15
FB/0805
C186
10uF/10V-0805
MT1389QE
U16
MT1389D
LQFP216/SMD
2
210
3
4
5
1
212
213
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
216
28
27
30
29
32
31
43
26
25
33
34
35
36
42
41
45
39
40
46
38
37
65
64
62
61
60
59 58
52
81
77
76
55
74
73 72
71
63
83
53
54
70
57
82
75
66
68
80
69
56
67
84 85
86
87 88
89 90
91
92 93
94
95
106
96 97
204
205
98
99
100
101 102
103
104 105
107
108
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
137
138
136
135
134
133
132
131
130
129
128
126
127
125
124
123
122
121
120
118
119
117
116
115
114
113
111
112
110
109
209
215
24
214
191
190
198
197
208 207
196
211
206
203
201
202
200 199
194
195
192
184
185
182
181
180
179
186
178
177
175
173
174
164
171 170
169
168
172
167 166
165
163
193
44
47
48
49
50
51
78
79
176
183
188
189
187
DVDA
CRTPLP
DVDB
DVDC
DVDD
AGND
OSP
OSN
DVDRFIP
DVDRFIN
MA
MB
MC
MD
SA
SB
SC
SD
CDFON
CDFOP
TNI
TPI
MDI1
MDI2
LDO2
LDO1
AVDD3
V2REFO
SGND
VREFO
V20
TEO
FEO
FG/ADIN1
RFLVL/RFON
CSO/RFOP
TEZISLV
OP_OUT
OP_INN
OP_INP
FOO
TRO
GPIO1
TROPENPWM
PWMOUT1/ADIN0
GPIO2
FMO
DMO
HIGHA4
HIGHA5
HIGHA7
DVDD3
A16
IOWR#
DVDD3
IOA6
AD6
AD2
AD1
IOA18
DVSS
IOOE#
IOA1
DVSS
HIGHA6
ALE
IOA7
HIGHA0
IOCS#
IOA19
IOA21
AD0
HIGHA3
HIGHA1
AD5
IOA20
DVSS
HIGHA2
DVDD18
AD7
A17
DVDD3
IOA0
UWR#
URD#
UP1_2
UP1_3
GPIO6
UP1_4
UP1_5
IR
UP1_6
DVSS
ADCVDD3
ADCVSS
UP1_7
UP3_0
UP3_1
UP3_4
UP3_5
GPIO7
ICE
PRST#
INT0#
DVDD3
ACLK
ABCK
DVSS
GPIO5
GPIO4
GPIO3
DVDD18
RA4
RA5
RA6
RA7
DVDD3
RA8
RA9
RA11
CKE
RCLK
DVSS
RA3
DVSS
RA2
RA1
RA0
RA10
BA1
DVDD3
BA0
RCS#
RAS#
DVDD18
CAS#
RWE#
DVSS
DQM1
RD8
RD10
RD9
RD11
RD12
DVDD3
RD13
RD14
DVSS
RD0
RD15
RD1
RD2
DVSS
RD3
RD4
RD6
RD5
RD7
DQM0
HRFZC
IREF
SVDD3
RFGC
RFGND18
ADACGND
IDACEXLP
PLLVSS
RFRPAC
RFRPDC
JITFN
RFGND
RFVDD3
LPFOP
LPFIP
LPFIN
LPFON
PLLVDD3
XTALI
JITFO
RFVDD18
APLLCAP
APLLVSS
R
B
DACVSSA
G
ADACVDD3
DACVDDA
DACVSSB
CVBS
FS
DACVSSC
ASDATA0
DACVDDC
SPDIF
MC_DATA
DVDD3
VREF
ASDATA3
ASDATA2
ASDATA1
ALRCK
XTALO
GPIO0
IOA2
DVDD18
IOA3
IOA4
IOA5
AD3
AD4
DACVDDB
APLLVDD3
VCM
AL
AR
U4
D6849/BA6849
HSOP28/SMD
2
4
7
28
9
10
11
12
13
14
15
24
23
22
21
8
17
25
27
20
18
16
26
29
30
A3
A2
A1
RNF
H1+
H1-
H2+
H2-
H3+
H3-
VH
FG
PS
EC
ECR
GND
CNF
VCC
VM1
FR
SB
BR
VM2
G1G2
R139
0
CB125
0.1uF
C113
2200pF
Q26
3904
L17
FB/0805
R4 100k
R223 20k
R159 4.7
R209
R
R9
1/0805
R286
6.8
R53
1/0805
R115
4.7k
+
CE24
10uF/10V-0805
CB80
0.1uF
R69
1/0805
CB122
0.1uF
R48
1/0805
J2
4x1 W/HOUSING
1
2
3
4
C139
0.015uF
Q21
2SK3018
2
3
1
C6 390pF
C141 150pF
L47
FB/0805
CB81
0.1uF
+
CE14
10uF/10V-0805
C138
0.1uF
+
CE32
10uF/10V-0805
C109 0.1uF
CE18
1uF
R100 0
CB29
0.1uF
This is a basic schematic diagram.

- 19 -- 18 -
SCHEMATIC DIAGRAM (DVD KEY)
This is a basic schematic diagram.
SW1
MENU
SW2
UP
SW3
RIGHT
SW4
ENTER
SW5
LEFT
SW6
DOWN
SW7
WIDE/NOR
SW8
PA U S E
SW9
PLAY
SW10
PREV
SW11
NEXT
SW12
STOP
1
2
3
4
5
6
7
8
CON8
PIN8
KEYSCANX1
KEYSCANX2
KEYSCANX3
KEYSCANX4
KEYSCAN Y1
KEYSCAN Y2
KEYSCAN Y3
SCHEMATIC DIAGRAM (BATTERY CHARGE)
C10 0.1
R7 1K
8
7
6
5
1
2
3
4
U2 QB2057C
R8
1K
R12
1M
R13
1M
D1
BAS85
Z1
9V1
R14
100K
Q1
DTC144
8
7
6
5
1
2
3
4
U5 S8232B
8
7
6
5
1
2
3
4
IC4
SI9435A
8
7
6
5
1
2
3
4
IC5
SI9435A
8
7
6
5
1
2
3
4
U3
SI9926
D4
SK34
R5
150K
R4
0
R6
1K
R9
150K
LED
.
Battary
C2
0.1uF
R15
1K
C3
0.22uF
C1
0.22uF
R19
1K
R17
1K
R2
1K
R1
4M7
R16
100
R3
1K
Battary
.
C8
0.1uF
D2
BAS85
D3
9V1
R10
100K
R11
1K
Q2
DTC144
F1
FUSE 1.25A
C11
10uF/25V
R18
4K7
B-
C5
0.01uF
C4
0.01uF
1
2 3
CON1
5 PIN
1
2
3
CON2
3pin
This is a basic schematic diagram.

- 21 -- 20 -
SCHEMATIC DIAGRAM (MONITOR MAIN)
C0
22P
C203
0.01uF
C232
1000P
R242
1M
C201 10uF/16V
R237 18K
R240
18K
R233
560
C233
0.01uF
R231
1K
C214 1uF
C216
1uF
C218
1uF
R224
560
C223
0.01uF
C222
0.01
R221 27K
R227
56K
C207
0.01uF
C224
0.01uF
R226 18K
R210 27K
R220
82K
R222
82K
R223 27K
C208 0.1uF
R211 1M
C213 0.01uF
R215
5K6
C202 680
R208
22K
R207
33K
C230
0.01uF C206
0.01uF
C220 47uF/16V
R236 680K
R245
56K
L0
18uH
2 1 6
45 47 46 48 38 37 36 19 20 21 22
3
44
5
11
15
14
16
13
4
18
17 43 25 8 12 7 41 40 39 33 35 34 9 42
30
31
10
27
28
32
29
26
24
23
IC201
IR3Y31M
R238
330K
S202
50K
S201
50K
R225
56K
C205 0.047uF
C221
0.1uF
R206
330
R217 10
R253 15K
R252 10K
R271 27K
R272 18K
R228 22K
R579 33K R577 33K R578 33K
R576 18K R575 18K
R574 18K
R232 1K
C215 1uF
C217 1uF
C219 1uF
C234
1uF
X202
4.43MHz
8 7 6 5
1 2 3 4
IC3
NJM3414AM
R45
10K
R46
2K2
R26 10K
R34
10K
C15
10uF/16V
R40
390
R38
560
VR2
50K
VR1
50KB
C54
0.1uF
VCOM
L202
100uH
L9
18uH
C41
0.01uF
TC5
10uF/16V
C48
0.01uF
R250 560
C254
0.1uF
R251
560
C46
47uF/16V C44
0.1uF
C209
0.01uF
R202
10M
C5
0.1uF
C231
100uF/10V
C250 0.1uF
C212 1uF
R216
8K2
C227 1uF
R6
0
LH8
22uH CH41
47uF/16V
CH4
10uF/16V
RH65
100K
CH27
1uF
CH26
0.01uF
CH3
0.1uF
RHX1
1K
RH67
180K
RH68
100K
CH30
0.1uF
CH29
1000PF
RH66
150K
CH81
1800
CH80
6800PF
RH111
330K
CH15
1uF
TH1
X'FORMRE
CH84
0.1uF
RH113
330K
RH115
4K7 CH85
0.047uF
DH3
DA204UT
PH2
PH1
C82
10P/3KV
2
4
7
6
CH40
0.01uF
RH70
56K
RH71
82K
RH69
4K7
RH106
33K
RH110
220
CH37
0.1uF
CH42
0.uF
CH45
0.1uF
CH69
0.01uF
CH36
0.01uF
CH32 0.01uF
CH35 1800
HV BOARD
CH2 1K
1 2 3 4 5 6 7 8 9 10
20 19 18 17 16 15 14 13 12 11
ICH5 MP1010A
1
2
3
4
5
6
7
CON7
PIN7
1 2 3
6 5 4
ICA1
RT9266
DA3
BAS85
LA2
18uH
LA4
22uH
CA4
10u/16V
CA16
10uF/16V
CA3
10uF/16V
CA10
1u
CA11
1u
CA12
1u
RA1
100
RA4
10K
RA3
51K CA9
1uF
CA8
1uF
CA7
1uF
R15
0
VGH
DA1
DA204
DA4
DA204
DA6
DA204
Y
C
GND
WIDE
+5V
GND
+9V
R13
22K
VR3
10K
R11 20K
R5
3K3
R249
10K
R3
22K
LA5
22uH
CA5
10uF/16V
LA3
18uH
LA1
18uH
CA1
10uF/16V R4
10K
R17
33K
F1
500mA
R2
8K2
QA1
FND337
CA2
0.1U
CA15
0.01
C60
10uF/16V
C61
0.1U
C64
10uH
R65
2K2
1
4
3
2 5
IC2
NJM2107F
R16 68K
R15 1M
C11 0.1uF
C12 380PF
R13
39K
R11
2K
R10
3K9
R12
47K R14
68K
C10
0.1uF
R18
220
R19
220
R20
3K3
D1
9.1V
VR1
4K7 C14
0.1uF
D2
ISV215
C13
0.1uF
R17
10K
C18
0.1uF
R46 39
R45 39
R51 39
R9
39 VR2
4K7
IC-1C
ZENER
C65
1uF
POD
49
NC3
50
NPC
51
NC4
52
G24
53
3OE
54
NC5
55
VSY
56
HSY
57
BLK
58
ESY
59
COM
60
FRP
61
NC6
62
VIY
63
VCC1
1
CSY
2
RS4
3
RS3
4
RS2
5
RS1
6
DM4
7
DM3
8
DM2
9
SDC
11 DM1 10
DLT
12
HPO
13
HPI
14
PDA
15
CKC
16
OSO 17
OSI 18
FDS 19
NC1 20
ZMI 21
ZMO 22
CBG 23
SAM 24
RLC 25
OEH 26
SH2 27
SH1 28
CP3 29
CP2 30
CP1 31
VCC2 33
Q1H 34
RST 35
CPV 36
OE1 37
PE2 38
OE3 39 SV 1 41
NC2 40
SV 2 42
UDC 43
VP2 45 VP1 44 VP3 46 VP4 47
POI 48
GND2 32
GND1
64
IC1
8D02
C66
0.1uF
C67
680P
R24 39
R25 39
R32 open
R33 open
R35 open
R36 51K
Q2
DTC144
R43 560
R41 560
R62 39
R47 39
R26 10K
CC4
1000
C1
OPEN
C15
100PF
L11 0.82uH R8
39
R23 39K
RR1
10K
R42 39
C7
1000P
R22
1K
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
CON1
PIN30
R60 39
R68
open
R67
0
R63
OPEN
R64
OPEN
C62
0.1uF
C63
10uF/16V
R38
560
R66
10K
R4 560
C4
5PF
R37
4K7
R61 39
R62 39
This is a basic schematic diagram.

- 23 -- 22 -

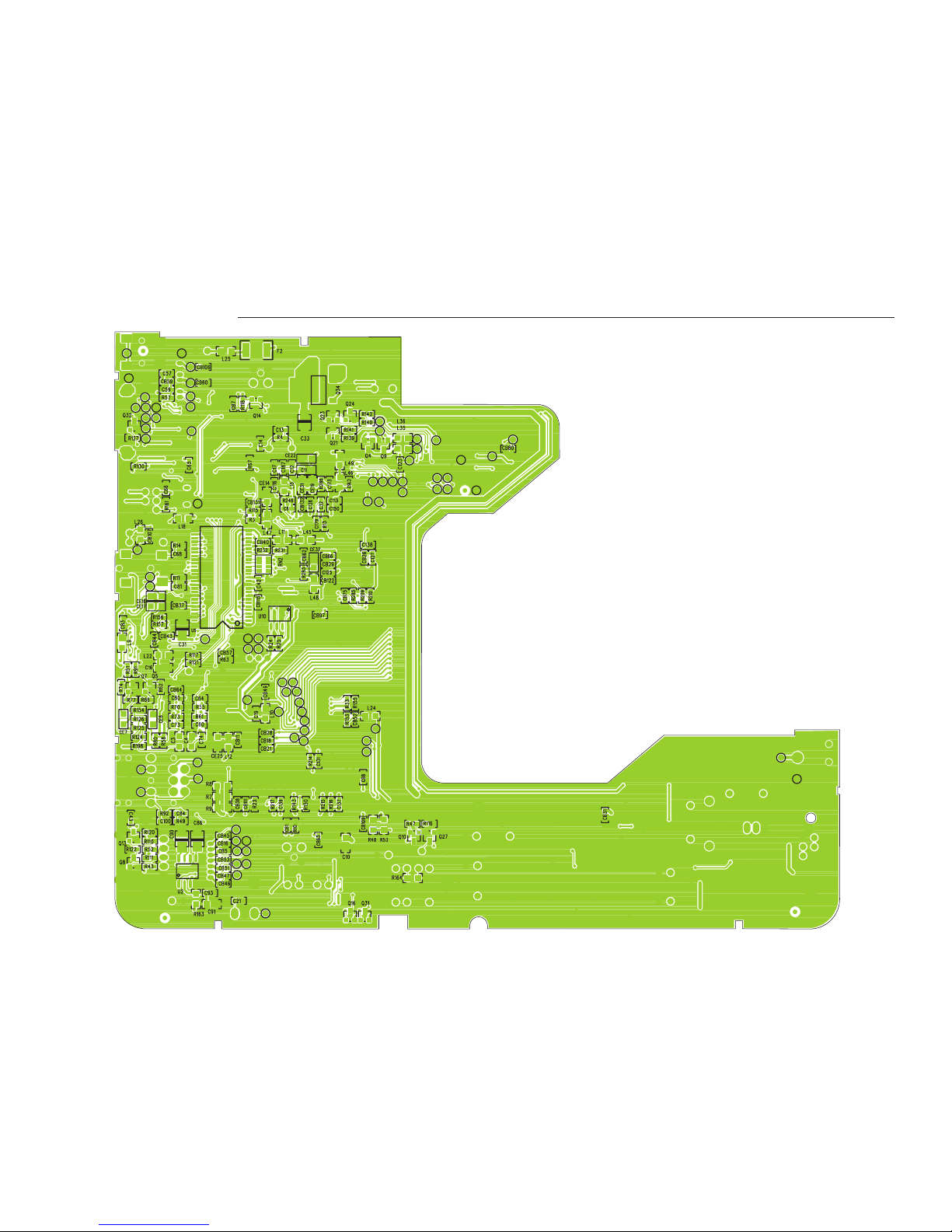

WIRING DIAGRAM (DVD MAIN A SIDE)

- 25 -- 24 -
WIRING DIAGRAM (DVD MAIN B SIDE)

- 27 -- 26 -
WIRING DIAGRAM (BATTERY CHARGE) WIRING DIAGRAM (DVD KEY)

- 29 -- 28 -
WIRING DIAGRAM (MONITOR MAIN)

- 30 -
WIRING CONNECTION
(85-TI-6001) 02TI6001
DVD KEY PCB
CON8
82-TI-0201
DVD MAIN PCB
CON2
8 PIN
CON3
13 PIN
4PIN J7
SPEAKER 2 PIN
2 PIN
RIGHT
SPEAKER
SPEAKER
LEFT
CON1
BATTERY CHARGE BOARD PCB
DVD LOADER
(85-TI-7001)
02TI1103
3PIN
CON2
BATTERY Li -ION
24 PIN
CON1
3 PIN
7 PIN
J6
7 PIN
GND
MONITOR MAIN PCB
PH2 PH1
7 PIN
CON1
02TI1101
(85-TI-1301)
30 PIN
CON3 HIGH VOLTAGE
6.2" PANEL
30 PIN

SANYO Electric Co., Ltd.
Osaka, Japan
Jun / '05 BB Printed in Japan
