Congratulations on the purchase of your new
TV Adapter 2 wireless accessory. Your TV Adapter 2
is intended to be used together with Bernafon
SoundGate devices and Bernafon wireless hearing
instruments.
Great care and attention has been paid to ensure
that your device has the highest quality and is easy
to use and maintain.
Please read the entire contents of this booklet
before using your TV Adapter 2. It contains
instructions and important information about its use
and handling.

6
General Warnings
Familiarize yourself with the following general
warnings before using your TV Adapter 2.
Products to be connected to external
equipment
The safety of the use of the TV Adapter 2
with the auxiliary input cable is determined
by the external signal source. When the input
cable is connected to mains-operated
equipment, this equipment must comply with
IEC-60065, IEC-60601 or equivalent safety
standards.
The TV Adapter 2 is designed to comply with
the most stringent Standards of International
Electromagnetic Compatibility. However, the
TV Adapter 2 may cause interference with
other medical devices. Please contact
relevant personnel to obtain permission
before using the TV Adapter 2 in hospitals or
similar venues.

7
The TV Adapter 2 is not a toy and therefore
should be kept out of the reach of children
and anyone else who might swallow parts or
otherwise cause injury to themselves.
Special attention should be paid to smaller
components in order to prevent children from
swallowing them and choking. If a part is
swallowed, see a doctor immediately.
The TV Adapter 2 must never be washed
or immersed in water or other liquids.

8
Introduction

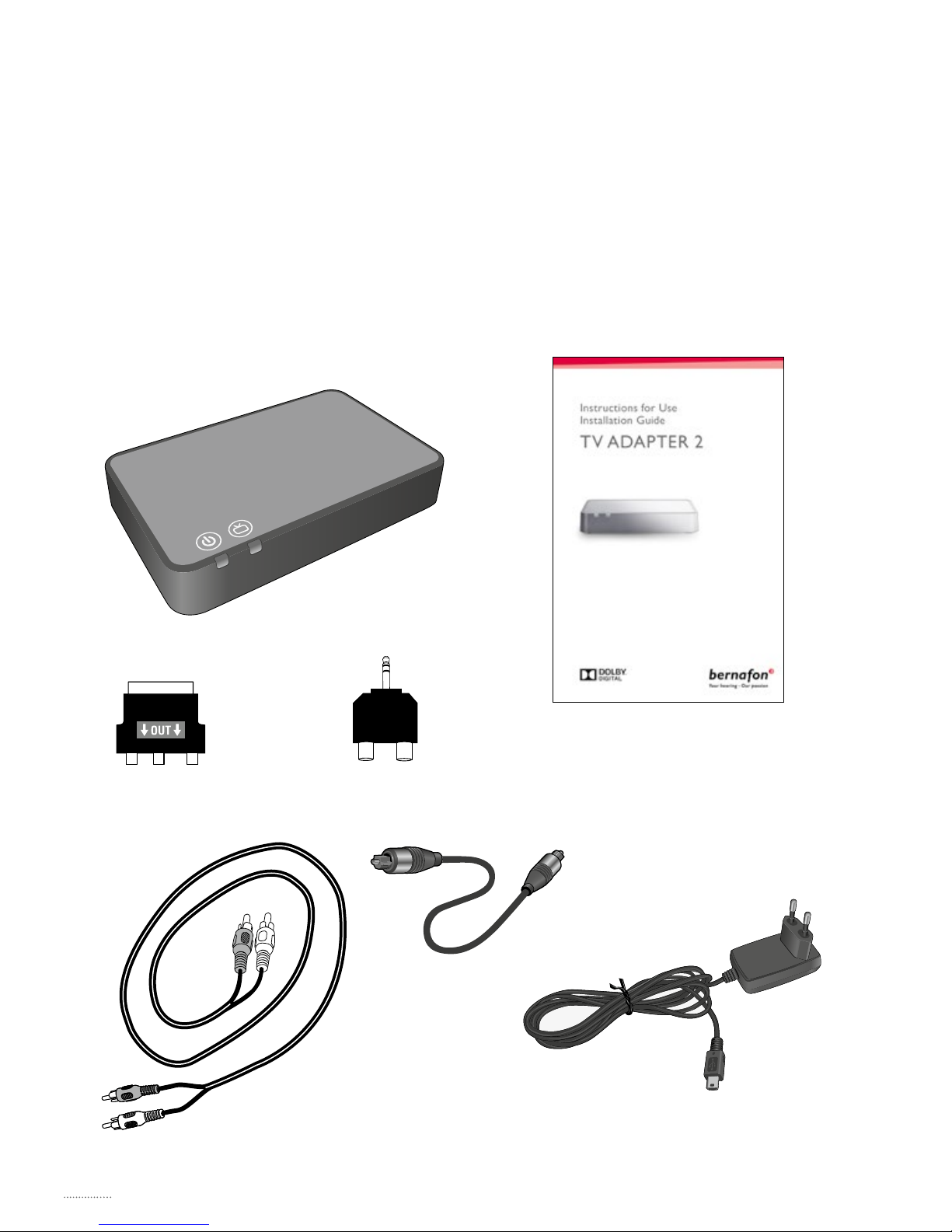

The following items are included within your
TV Adapter 2 package and will be covered within
this instruction guide:
SN2_ILLU_SoundgateTopOfTelevisionAdapter_HI
47
RCA cable
SN2_ILLU_Charger_HI
5
Power adapter
Installation Guide and
Instructions for Use
TV Adapter 2
Model: BS-F200
TOSLINK
cable
SCART adapter Mini jack adapter

9
TV Adapter 2 Overview
Power indicator TV indicator
Front View
SN2_ILLU_SoundgateTopOfTelevisionAdapter_HI
47

10
SelectMe

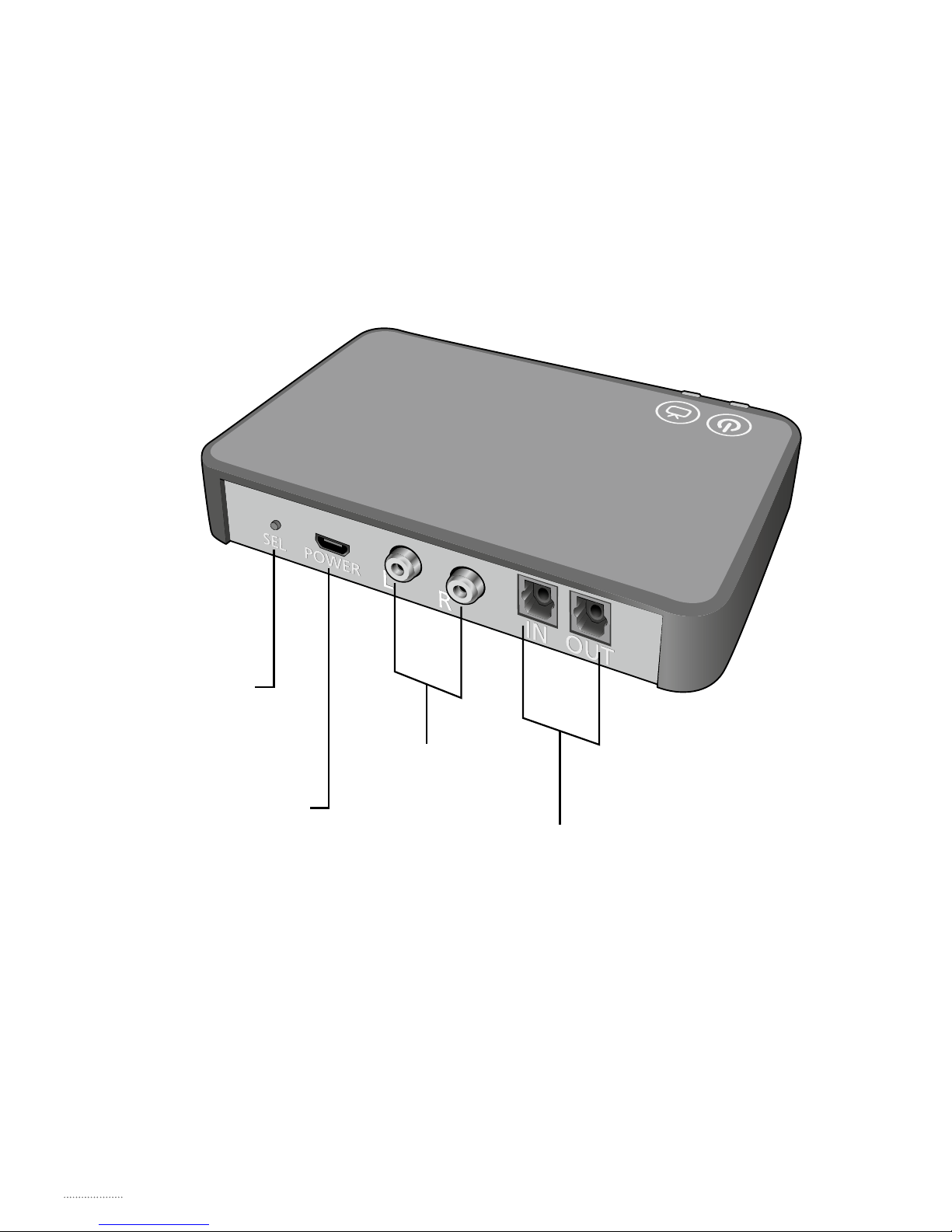

Back View
SN2_ILLU_AudioCableTelevisionAdapterToTelevision_HI
45
Power input
RCA connector
port left and right
TOSLINK
“IN” and “OUT”

11
INSTALLATION

12
Activating the TV Adapter 2
for the First Time
The following pages offer easy step-by-step
instructions on how to install and operate your
TV Adapter 2 device.
Before you can use the TV solution together with
your hearing instruments, the TV Adapter 2 must
be connected to a power outlet and to the TV.
All needed parts for the installation are included
in the package.

13
Connecting the TV Adapter 2
to a Power Outlet

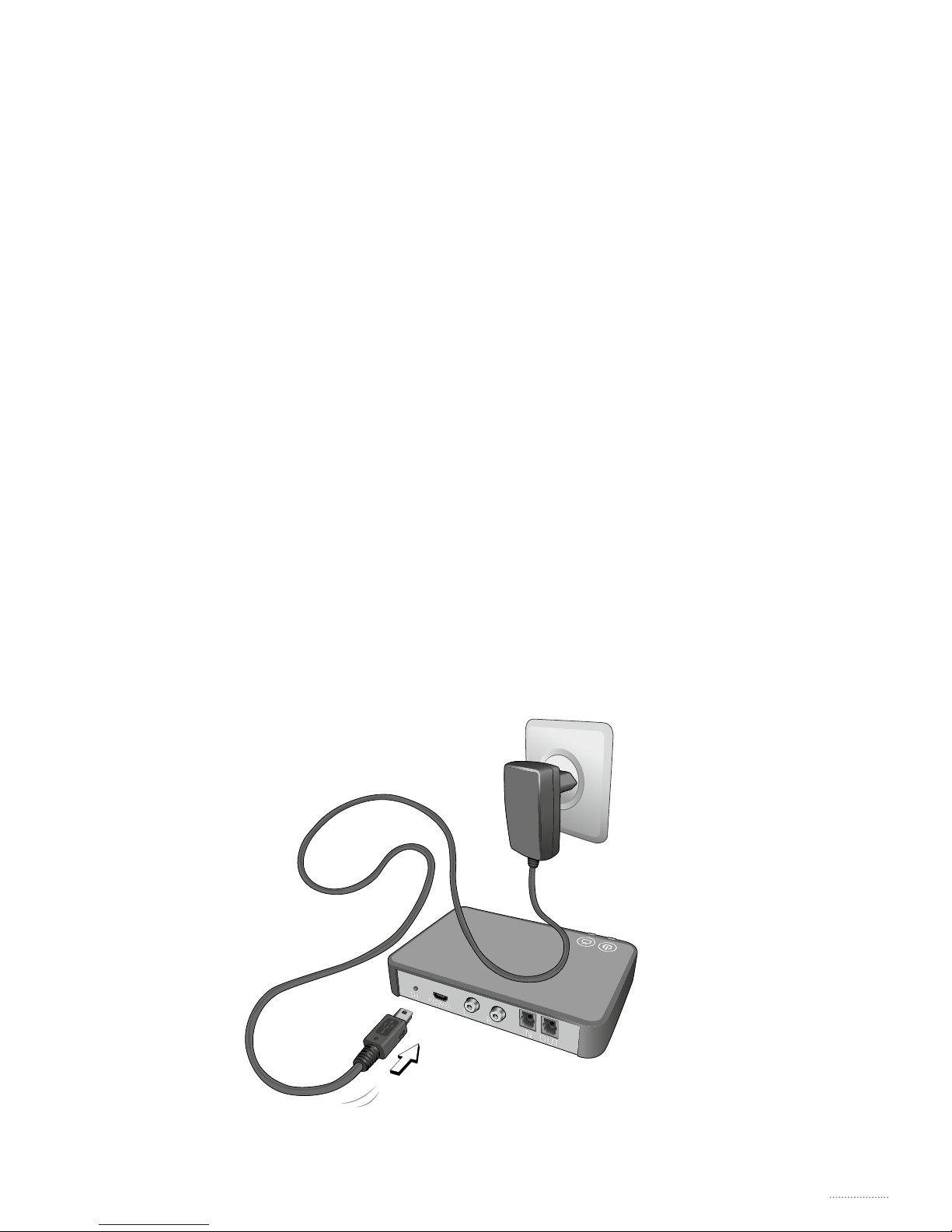

Start by connecting the TV Adapter 2 to a power
outlet. Use the power adapter included within the
TV Adapter 2 packaging.
1 Plug the power cord into the power input jack
on the TV Adapter 2.
2 Plug the power supply into the mains wall
socket.
3 Check that the power is turned on. After a few
seconds the power indicator on the front of the
TV Adapter 2 will illuminate green.
SN2_ILLU_TelevisionAdapterToWallPower_BW_HI
44

14
Connecting the TV Adapter 2
to the TV
You can connect the TV Adapter 2 in four different
ways.
Connection Page
TOSLINK (either digital stereo
PCM or Dolby®Digital*)
16
RCA audio output (L + R) 18
Mini jack output
(typically headphone output)
20
SCART audio output (L + R) 22
* Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are registered trademarks of
Dolby Laboratories.
Please see the following pages for a solution
which ts your TV.

15
1 3
2
L
TUO
IN
R
TUO
IN
LR
POWER
SEL
L
R
Audio
Out
1 2
TUO
IN
LR
TOSLINK, p. 16 RCA, p. 18
Mini jack, p. 20 SCART, p. 22
TUO
IN
LR
POWER
SEL

16
Connecting Using TOSLINK
Place the TV Adapter 2 in a suitable spot near
your T V.
1 Remove the plastic cap from the TOSLINK
cable.
2 Connect the TOSLINK cable to the TOSLINK
output on your TV/home theatre system.
3 Connect the TOSLINK cable to the TOSLINK
input on the TV Adapter 2.
4 The TOSLINK output on the TV Adapter 2 may
be used to connect other TOSLINK devices
such as external Dolby®Decoders and surround
sound systems. An additional TOSLINK cable is
then needed.
5 Refer to page 24 for pairing of the
TV Adapter 2 with your SoundGate device.
It may be necessary to congure your TV
so that the correct audio output is available
on the TOSLINK output.

17
SN2_ILLU_ToslinkCableFromTelevisionToAdapterInAndAdapterOutToStereoReceiver_BW_HI
46

18
Connecting Using RCA
Place the TV Adapter 2 in a suitable spot near
your T V.
1 Connect the RCA cable to the RCA output on
your TV or home theatre system. (Typically
marked “L – R AUDIO OUT“ and found on the
TV back or bottom panel.)
2 Connect the RCA cable to the RCA connector
ports on the back of the TV Adapter 2.
3 Refer to page 24 for pairing of the
TV Adapter 2 with your SoundGate device.
It may be necessary to congure your TV
so that the correct audio output is available
on the RCA output.

19
SN2_ILLU_AudioCableTelevisionAdapterToTelevision_HI
45

20
Connecting Using Mini Jack Adapter
Place the TV Adapter 2 in a suitable spot near
your T V.
1 Connect the RCA cable to the mini jack adapter.
2 Connect the mini jack to the TV
(typically, it is the headphone output).
3 Connect the RCA connectors to the TV Adapter 2
RCA connector ports.
4 Refer to page 24 for pairing the TV Adapter 2
with your SoundGate device.
The TV speakers may be muted when
connecting to the headphone output,
and sound will only be heard through your
hearing instruments.
