BEST Range Hoods PIK33 User manual

MODELS PIK33 AND PIK45
INTENDED FOR DOMESTIC COOKING ONLY
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 12 AND 13.
BEST; Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770
REGISTER YOUR PRODUCT ON LINE AT: www.BestRangeHoods.com/register
For additional information - visit www.BestRangeHoods.com
SV05862 rev. N
HB0030
INSTALLATION INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
!
!

WARNING WARNING
- 2 -
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number
listed in the warranty.
2. Before servicing or cleaning unit, switch power off
at service panel and lock service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done
by qualified personnel in accordance with all
applicable codes and standards, including fire-rated
construction codes and standards.
4. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer’s
guidelines and safety standards such as those
published by the National Fire Protection
Association (NFPA) and the American Society for
Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE) and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the
outdoors.
7. Do not use this unit with any solid-state speed
control device other than WCPI optional wall
mounted control.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
10. When applicable local regulations comprise more
restrictive installation and/or certification
requirements, the aforementioned requirements
prevail on those of this document and the installer
agrees to conform to these at his own expenses.
TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or
medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food (i. e.: Crêpes Suzette, Cherries
Jubilee, Peppercorn Beef Flambé.
c) Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware
appropriate for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid,
cookie sheet or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS.
IF THE FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN—You may be
burned.
3. DO NOT USE WATER, including wet dishcloths or
towels—This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you
know how to operate it.
B. The fire is small and contained in the area
where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or
unbalanced impellers, keep drywall spray, construction
dust, etc. off power unit.
4. Your insert motor has a thermal overload which will
automatically shut off the motor if it becomes
overheated. The motor will restart when it cools down.
If the motor continues to shut off and restart, have the
insert serviced.
5. The minimum hood distance above cooktop must not be
less than 24”. A maximum of 30” above cooktop is highly
recommended for best capture of cooking impurities.
6. Two installers are recommended because of the large
size and weight of this unit.
7. To reduce the risk of fire and to properly exhaust air,
be sure to duct air outside—Do not exhaust air into
spaces within walls or ceiling or into attics, crawl
space or garage.
8. This product is equipped with a thermostat which may
start blower automatically. To reduce the risk of injury
and to prevent power from being switched on
accidentally, switch power off at service panel and
lock or tag service panel.
9. Because of the high exhausting capacity of this unit,
you should make sure enough air is entering the
house to replace exhausted air by opening a window
close to or in the kitchen.
10. To reduce the risk of fire and electrical shock, the Best
models PIK33 and PIK45 must be installed only with
Best interior blower models P5 or P8; Best exterior
models EB6, EB9, EB12 or EB15; Best in-line blowers
models ILB3, ILB6, ILB9 or ILB11. Other blowers
cannot be substituted. (Blowers sold separately).
11. Use with approved cord-connection kit only.
12. Please read specification label on product for further
information and requirements.
!
!

HL0065
- 3 -

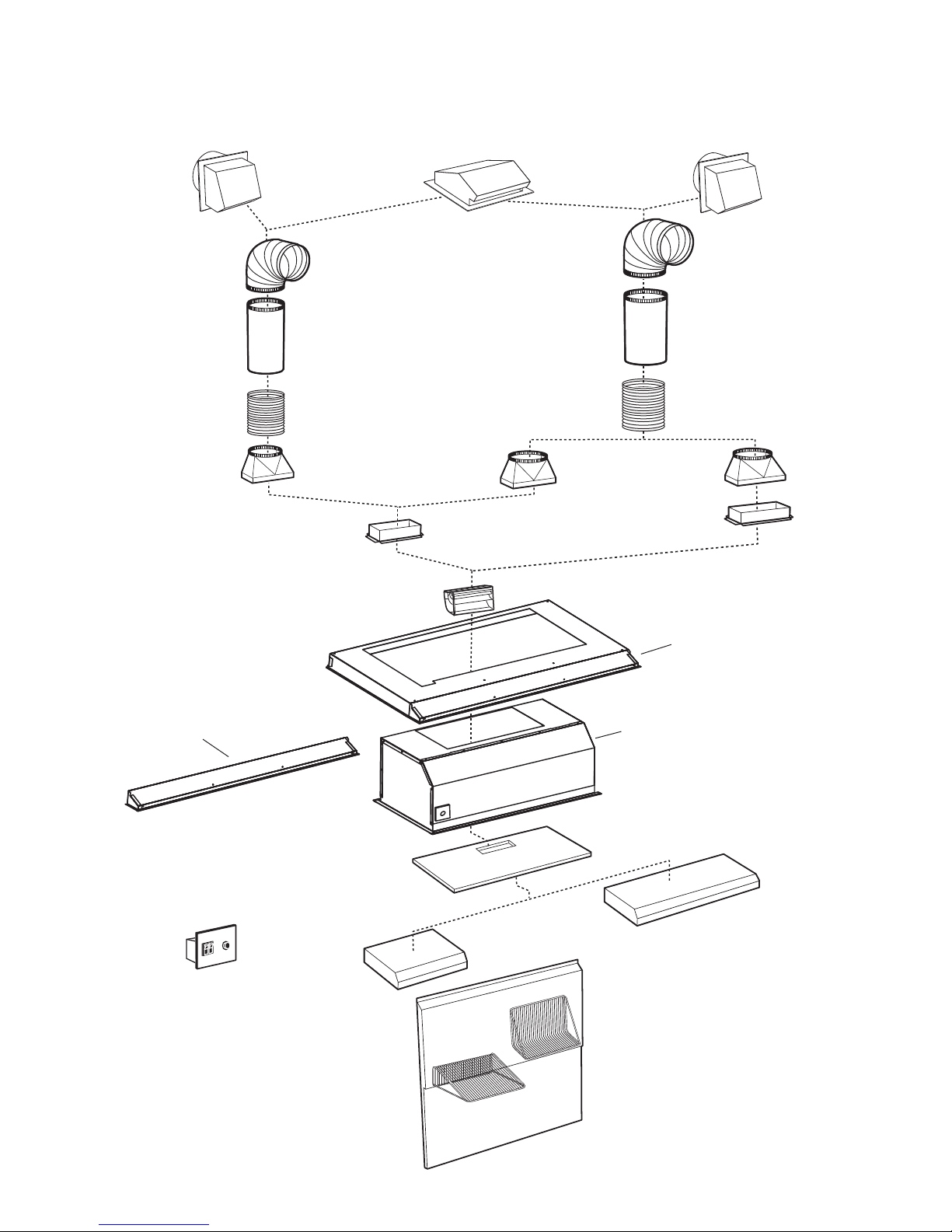

RMP Series Backsplash
(Stainless Steel wall
covering with warming
shelves. Optional)
L3336S, L3342S, L4548S
L4554S or L4560S
Custom Hood Liner (optional)
Model 415
(7” Round adjustable
elbow, optional)
8” Round
adjustable elbow
(optional)
Model 412
Transition
(3¼” x 10” to 7”)
Adapter and damper 3¼” x 10”
(supplied with P5 and P8 blowers)
Adapter and damper 3¼” x 14”
(supplied with P8 blower)
Model P5
Single-blower
(500 cfm)
PIK33 OR PIK45
INSERT
- PIK33 AND PIK45 INSERT SYSTEM -
INTERIOR BLOWERS
Flow deviator
(supplied with P5 and P8 blowers)
Model 647
(7” Round
wall cap)
Model 634 or 644
(roof cap)
Model 643
(8” Round
wall cap)
8” Round
standard
duct
Model 407
(7” Round x 24” section)
7” Round
metal flexible
duct (optional)
8” Round
metal flexible duct
(optional)
Model 413
Transition
(3¼” x 10” to 8”)
Model 459
Transition
(3¼” x 14” to 8”)
Model P8
Dual-blower (900 cfm)
NOTE : The dual blower P8 must be
installed with 8”round duct. If it is
impossible to connect the dual
blower P8 to a 8”round duct, use
a7”round duct. In that case, the
blower performance will be
decreased by 25%.
Rough-in kit
(supplied with P5 and P8 blowers)
ALP36, ALP42,
ALP48, ALP54 or ALP60
Ambient light panel (optional)
WCPI Wall control
(Optional)

- 4 -
HL0066
RMP Series Backsplash
(Stainless Steel wall
covering with warming
shelves. Optional)
L3336S, L3342S, L4548S
L4554S or L4560S
Custom Hood Liner (optional)
Model 418
(10” Round
adjustable elbow,
optional)
Model ILB3 (280 cfm)
In-line blower
(includes one 8” to 10”
round transition)
PIK33 OR PIK45
INSERT
- PIK33 AND PIK45 INSERT SYSTEM -
IN-LINE AND EXTERIOR BLOWERS
Model EB6 (600 cfm)
or EB9 (900 cfm)
Exterior blower
Model EB12 (1200 cfm)
or EB15 (1500 cfm)
Exterior blower
Model 441
(10” Round
wall cap)
Model 437
(High capacity roof cap)
Model 441
(10” Round wall cap)
Model 421
(10” Round vert.
In-line damper)
Recommended
for use with
exterior blowers
Model 410
(10” Rd duct
- 2 ft. sections)
10” Round
metal flexible duct
(optional)
In-line and exterior blower
rough-in kit (included with ILB3,
ILB6, ILB9, ILB11, EB6, EB9,
EB12 and EB15 blowers)
ALP36, ALP42,
ALP48, ALP54 or ALP60
Ambient light panel (optional)
WCPI Wall control
(optional)
Model ILB6 (600 cfm)
In-line blower
(includes two 4½” x 18½”
to 10” round transitions)
Model ILB9 (800 cfm)
or ILB11 (1100 cfm)
In-line blower
(includes two 8” x 12” to
10” round transitions)
Model 643
(8” Round
wall cap)

- 5 -

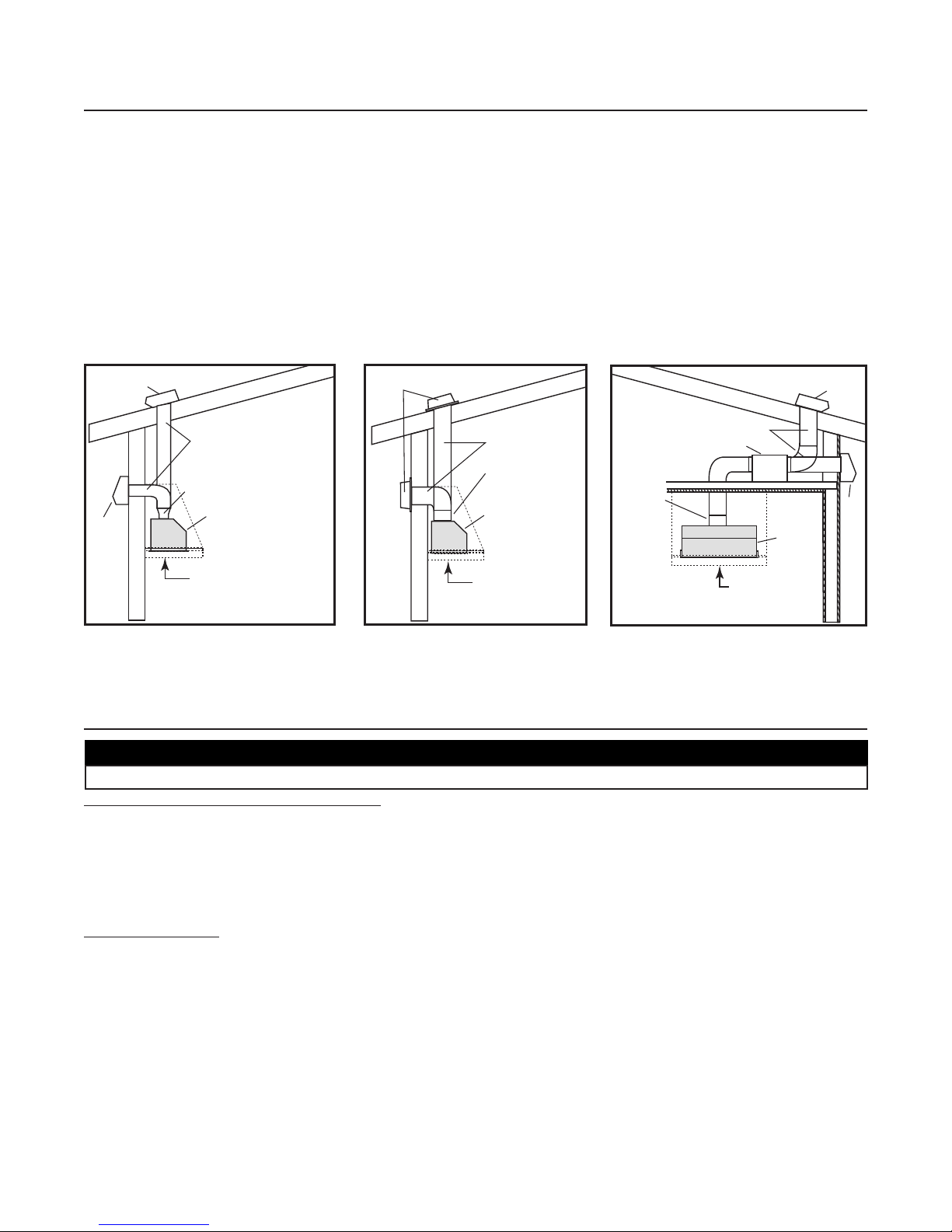

1. SELECT BLOWER OPTION AND INSTALL DUCTWORK
Either an interior or exterior blower or in-line blower may be used with this insert. The insert model PIK33 or PIK45 must be
installed with blower models P5, P8, ILB3, ILB6, ILB9, ILB11, EB6, EB9, EB12 or EB15 only. Other blowers cannot be substituted.
(Blowers sold separately).
Plan where and how the ductwork will be installed. Access to the top of the hood is preferred for connection of ductwork. As an
alternative, flexible metal ductwork may be used.
If installing in-line blower, refer to instructions packed with in-line blower and follow steps 1 up to 8, 13, 14, 16, 17, 19
and up of this manual.
Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. Use round ductwork, with a
short section (about 4’ expanded) of flexible metal duct (optional) for attachment to the transition. Use screws to attach flexible
metal duct to the rigid duct. Use 2” duct tape to seal duct joints.
The minimum hood distance above cooktop must not be less than 24”. A maximum of 30” above cooktop is highly
recommended for best capture of cooking impurities.
Distances over 30” are at the installer and users discretion.
Insert with
interior blower
Roof cap
Wall
cap
HH0038A
7”or 8” round ducts
with 7”or 8” round
metal flex. duct (optional)
31/4”x 10”to 7”or 8” transition
or 31/4”x 14”to 8” transition
24”minimum
above cookingsurface
MODEL P5 (SINGLE) OR
P8 (DOUBLE)INTERIOR BLOWER
TYPICAL DUCTWORK
MODEL EB6, EB9, EB12 OR EB15
EXTERIOR BLOWER
TYPICAL DUCTWORK
MODEL ILB3, ILB6, ILB9 OR ILB11
IN-LINE BLOWER
TYPICAL DUCTWORK
Insert with
exterior blower
10”round duct
Exterior blower
HH0039A
24”minimum
above
cookingsurface
10”round metal
flex. duct
(optional)
In-line blower
10”round duct
HH0058A
24”minimum
above
cookingsurface
10”round metal
flex. duct
(optional)
Roof cap
Wall
cap
Insert
2. PREPARE THE INSTALLATION
Make sure that the following items are included:
- Insert
- Accessories: • Baffle filters (3 for PIK33 model, 4 for PIK45 model)
• Shielded halogen lamps (120 V, 50 W, MR16 or PAR16 with GU10 base)
• Bag of parts including: (4) lock nuts, (1) wire clamp, (8) no. 8 x 3/4” standard screws,
(2) wire connectors, (2) no. 6 x 1/2” standard screws, (8) no. 8 x 3/8” screws.
Discard items not used.
Parts sold separately:
- Interior blower Model P5 includes blower, rough-in kit, flow deviator and 3¼” x 10” adapter
- Interior blower Model P8 includes blower, rough-in kit, flow deviator and 3¼” x 10” adapter and 3¼” x 14” adapter
- In-line blower assembly ILB3, ILB6, ILB9 or ILB11 (all include rough-in plate and transition)
- Exterior blower assembly EB6, EB9, EB12 or EB15 (all include rough-in plate)
- Custom hood liner Model L3336S, L3342S, L4548S, L4554S or L4560S (optional)
- Ambient light panel Model ALP36, ALP42, ALP48, ALP54 or ALP60 (optional)
- Backsplash RMP Series (optional)
- WCPI Remote control (optional)
- Transitions, ducts (rigid and flexible), elbows, dampers, wall and roof caps. Refer to page 3 and 4 for a complete list of
venting options and model numbers.
NOTE: During installation, protect countertop and/or cooktop.
CAUTION
When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.

- 6 -
4. CUSTOM HOOD PREPARATION
WARNING
When building a custom hood, always follow all applicable construction codes and standards.
!
The custom hood frame must be sized to the shape and total weight of the insert assembly. Refer to the table below for total
weight of the insert, according to the type of blower choosen.
INSERT MODEL WITH P5 INTERIOR BLOWER WITH P8 INTERIOR BLOWER WITH IN-LINE OR EXT. BLOWERS (ROUGH-IN PLATE ONLY)
PIK33 45 LB 53 LB 31 LB
PIK45 56 LB 64 LB 42 LB
Start with the custom hood base, because its position will determine the
height of the insert.We recommend the base of the custom hood should be
3/4-inch thick plywood. If an optional custom hood liner will be installed, we
recommend the sides and front of the custom hood to be 3/4-inch thick,
assuming standard cabinet widths. If the optional custom hood liner will not
be installed, the custom hood side and front thickness is at the installer’s
discretion.
Run power cable to installation location. Stub out a 4-foot length of electrical
cable below the custom hood.
If the WCPI optional remote control will be installed, run electrical cable
from the insert to the remote control location. Stub out a 6-inch length from
the remote control wall location. Refer to the remote control installation
instruction.
Standard 36”h.
cooktop
Backsplash
(Optional)
HH0037A
24”to 30”above
cookingsurface
Plywood base
thickness: 3/4”
4”for liner
installation
5. SUGGESTED CUSTOM HOOD INTERNAL FRAMEWORK
The mounting holes for the 2 top stud supports are located at 119⁄16” up
from the insert base. The on center distance between the 2 studs is
30¼” for the PIK33 insert model and 42¼” for the PIK45 insert model.
The mounting holes for the rear stud support are located at 1½” up from
the insert base. See illustration beside.
Once the custom hood base and frame are done, finalize the custom
hood.
HH0040A
1 1/2”
3. INSTALL BACKSPLASH (OPTIONAL)
It is recommended to install the backsplash before the custom hood insert. The custom hood will cover the backsplash top
mounting screws. In order to be able to install the backsplash, make sure you have at least 18” clearance between bottom of
custom hood and range control panel or cooktop. (See instructions packed with backsplash.)

INSERT MODEL NUMBER A
PIK33 32½”
PIK45 44½”
- 7 -
8. CUT THE HOLE IN CUSTOM HOOD BASE
If it is not done yet, cut a hole in the bottom of the cabinet, using the
dimensions shown beside.
NOTES: 1. The notch shown in the inset must be cut only if the WCPI
optional remote control will be installed.
2. The recommended distance from the back to the rearmost
cutout edge is 2¼” minimum.
A
17 1/16''
HD0084A
31/2''
16 3/8''
2 1/4''
min.
6. INSTALL CUSTOM HOOD LINER (OPTIONAL)
The liners are specially designed to protect the exterior base of the custom hood. To order, refer to the table below to find the
right liner model number for your insert and width of custom hood. To view specific model information, including depths for each
liner models, visit www.BestRangeHoods.com or contact Technical support (phone number listed on page 14, in warranty text).
To install, see instruction packed with custom hood liner.
The liner must be installed before the insert.
NOTE: On some liners models, front liner piece may overlap front insert flange. If so, remove the front liner piece, assemble
insert, and reassemble front liner piece.
LINER MODEL INSERT MODEL CUSTOM HOOD
NOMINAL WIDTH
L3336S PIK33 36”
L3342S PIK33 42”
L4548S PIK45 48”
L4554S PIK45 54”
L4560S PIK45 60”
HA0038A
The electrical connection for the remote control is located in front of the
insert. Perform this connection before the insert installation.
For installation details, see installation instructions included with the
WCPI remote control.
7. INSTALL THE WCPI REMOTE CONTROL (OPTIONAL)
HL0044
9. INSTALL BLOWER (INTERIOR OR EXTERIOR BLOWER)
INTERIOR BLOWER : Follow all subsequent steps of this manual.
EXTERIOR BLOWER : Refer to instructions packed with exterior blower and follow steps 13, 14, 16, 17, 19 and up of this
manual.

- 8 -
11. INSTALL THE DEVIATOR (INTERIOR BLOWER)
Install the deviator as shown.
NOTE: To prevent the deviator from sliding out of the rough-in plate, put some
tape on the deviator base after sliding it into the rough-in plate
(provided with the P5 and P8 blower) opening. If installed correctly, the
deviator will protrude about 1/8” above the rough-in plate.
HD0087
12. INSTALL THE ADAPTER (INTERIOR BLOWER)
Using two (2) no. 6 x 1/2” screws provided with insert, secure the adapter to the top of the rough-in plate. Remove tape from
damper flap. Seal the adapter to the rough-in plate by using duct tape.
NOTE : Make sure that the damper pivot is located towards the front of the hood.
HD0005 HD0006

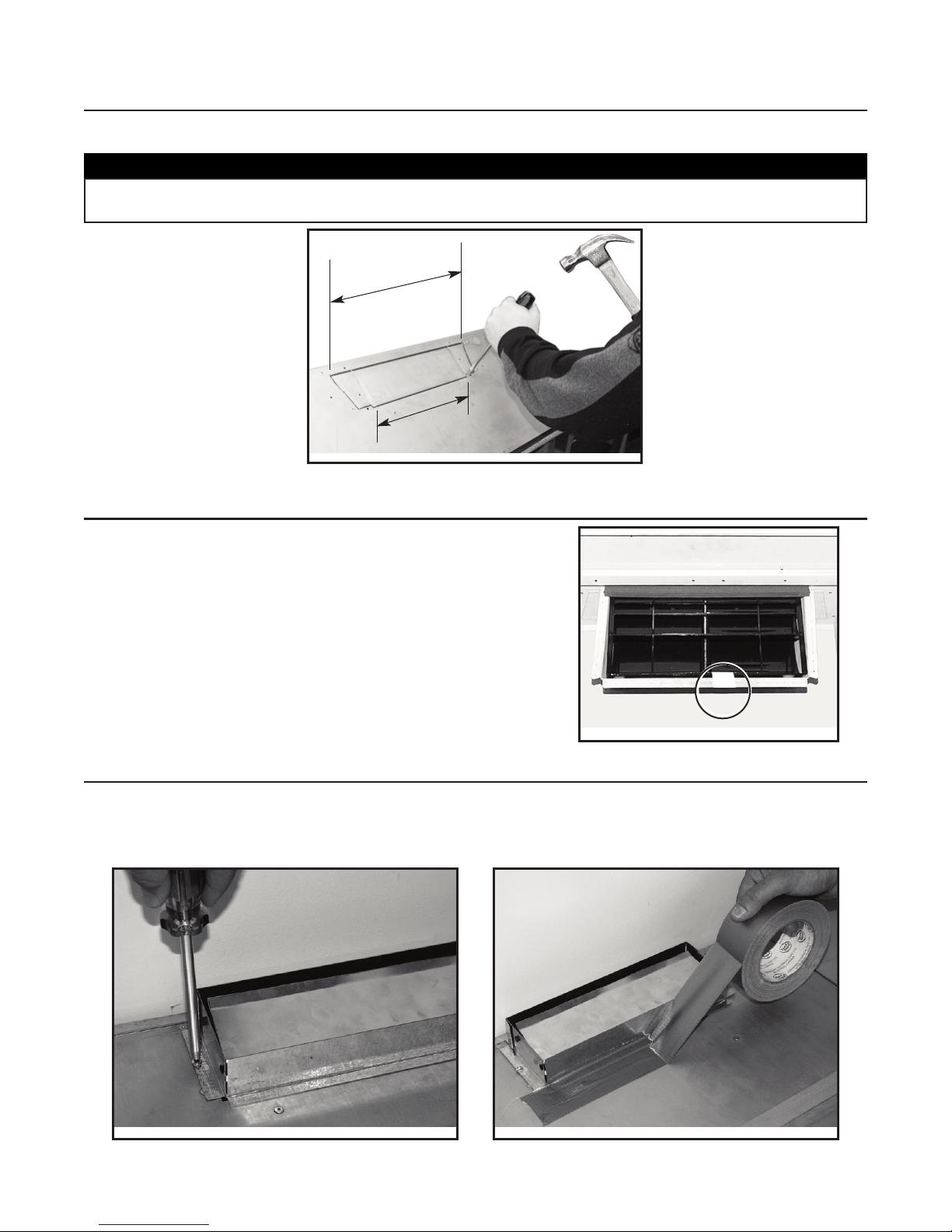

10. REMOVE THE KNOCK-OUT OPENING (INTERIOR BLOWER)
Remove the knockout on rough-in plate. See picture below.
CAUTION
When using P5 blower, remove the 10”wide knockout (smaller part). If using P8 blower, remove the knockout
corresponding to the ducting installed (10”or 14”adapter/damper).
Removing vertical knockout opening on rough-in plate
HD0077
14”
KNOCKOUT
10”
KNOCKOUT

- 9 -

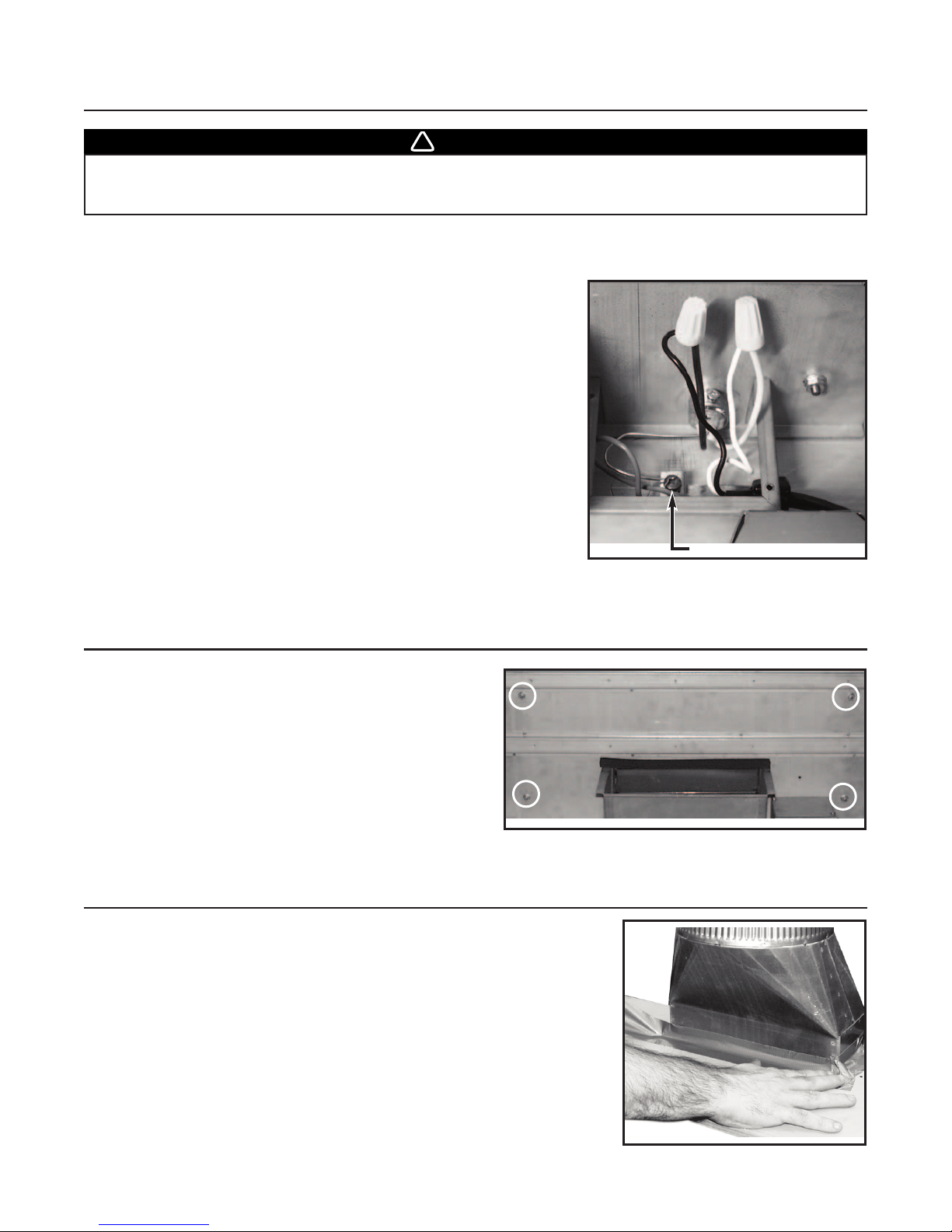

13. CONNECT WIRING (ALL BLOWERS)
Connect cable into wiring box using provided wire connectors.
Connect wires as follow: BLACK to BLACK, WHITE to WHITE and GREEN or
BARE wire under ground screw. DO NOT FORGET TO CONNECT THE
GROUND. Reinstall wiring cover.
WARNING
Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with all
applicable codes and standards. Before connecting wires, switch power off at service panel and lock
service disconnecting means to prevent power from being switched on accidentally.
!
1
HD0007
1) Ground screw
INTERIOR BLOWER: Remove the cable knock-out on the top of the rough-in plate. Remove rough-in plate wiring cover. Place
the wire clamp in the knock-out hole, insert the cable through the wire clamp in the rough-in plate wiring box. Tighten the wire
clamp to secure the cable.
Position insert below the installed custom hood. Pull cable through hole in top of insert.
IN-LINE OR EXTERIOR BLOWER : Remove rough-in plate wiring cover and connect wiring (see instructions included with
in-line or exterior blower).
14. INSTALL THE ROUGH-IN PLATE (ALL BLOWERS)
INTERIOR BLOWER: Carefully install the rough-in plate inside
the top of the insert with four (4) lock nuts.
See picture beside.
IN-LINE OR EXTERIOR BLOWER : Refer to instructions included with ILB3, ILB6, ILB9, ILB11, EB6, EB9, EB12 or EB15
rough-in kit. Secure the rough-in plate inside the top of the insert with (4) lock nuts.
HD0042

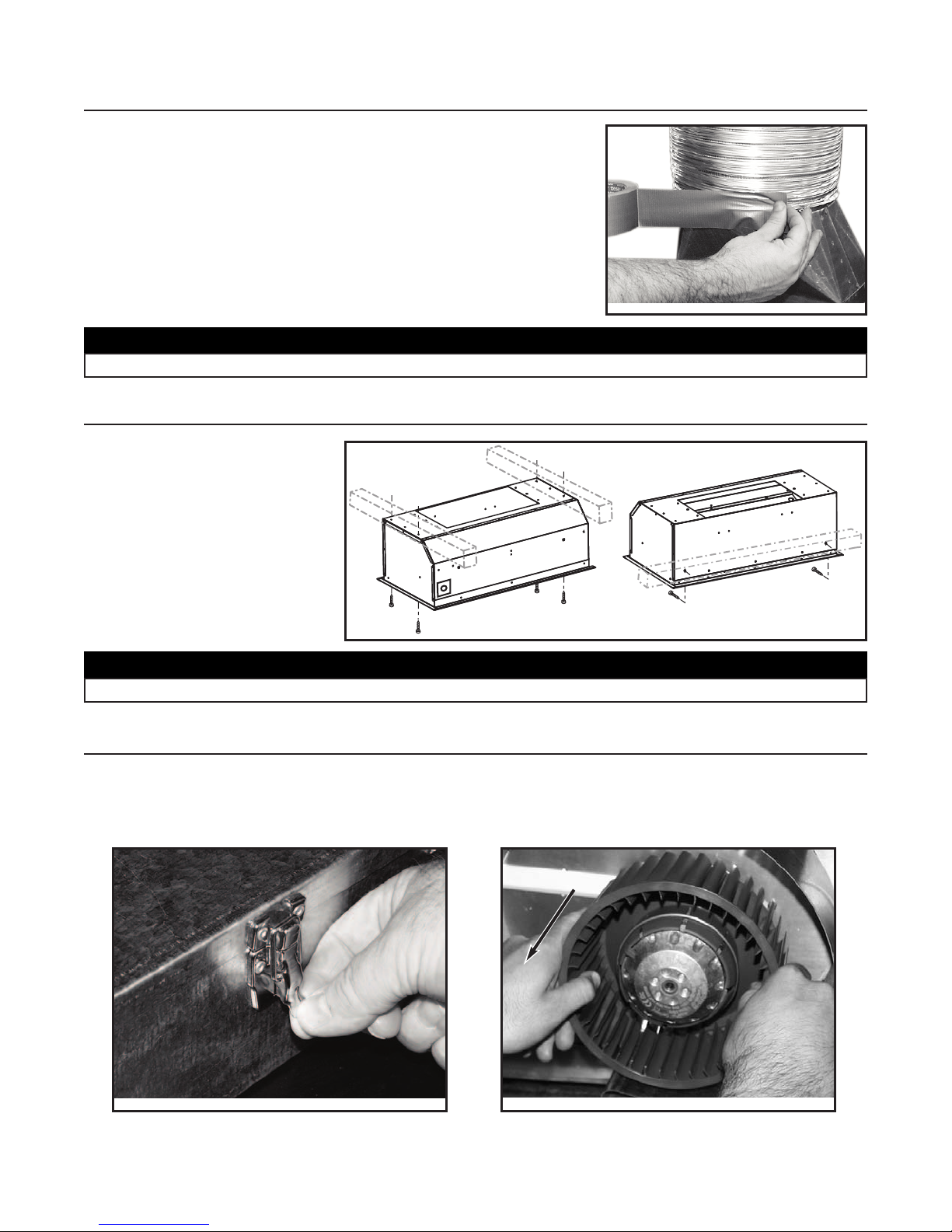

15. INSTALL THE TRANSITION (INTERIOR BLOWER)
Slide the transition over the adapter/damper. Seal the transition to the adapter/damper
by using duct tape.
HD0091

- 10 -
16. DUCTING CONNECTION (ALL BLOWERS)
A. When there is access to the top of the hood, connect ductwork and seal
connections with duct tape after Step 17
Install the insert.
B. When there is no access to the top of the hood, carefully pull down the metal
duct through the custom hood base hole. Slide this duct over the transition
(interior blower) or over the flange of the rough-in plate (in-line or exterior
blower). Make sure the adapter/damper assembly enters the ducting. Seal the
connection with duct tape.
HD0092
17. INSTALL THE INSERT
If an optional wall control will be installed,
refer to its installation instructions now.
When done, continue the insert installation.
Install the insert inside the custom hood
and secure to the frame by using the
no. 8 x 3/4” mounting screws provided.
Start with 4 screws on top and finish with
2 on rear side. (See figure beside for
mounting screw specific locations.)

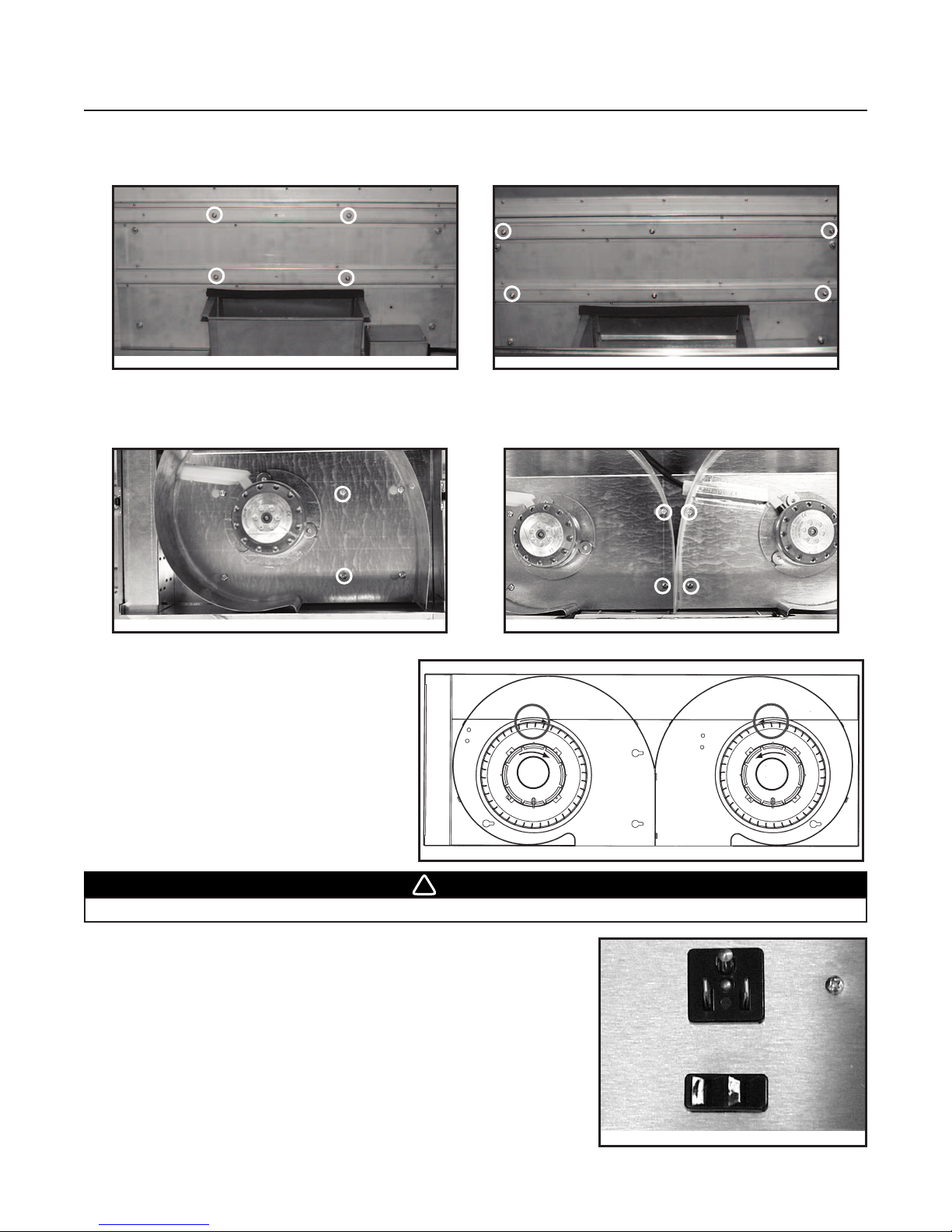

18. INSTALL THE BLOWER (INTERIOR BLOWER)
The blower must be installed to the rough-in plate using (6) no. 8 x 3/8” screws for the single blower unit and (8) no. 8 x 3/8”
screws for the dual blower unit. Remove the cover from the blower assembly. Remove the impeller(s) by pulling them out gently
(see pictures below).
HD0021 HD0022
HD0085
TOP REAR
CAUTION
Take care not to kink ducting when installing insert (step 17).
CAUTION
Take care not to kink ducting when installing insert.

FOR DUAL BLOWER UNIT, MAKE SURE THE
IMPELLERS ARE CORRECTLY INSTALLED, THE
INSERT WILL NOT WORK PROPERLY IF
REVERSED.
Both impellers are different in the dual blower, one
rotates clockwise and the other counterclockwise.
Each wheel and motor have an arrow and a number
on them, you have to match them correctly (see
drawing beside).
- 11 -
Secure the blower by installing 2 more no. 8 x 3/8” screws for the P5 blower and 4 more no. 8 x 3/8” screws for P8 into the locations
shown in the pictures below (single blower or dual blower). Reinstall impeller(s) and cover.
HD0080 HD0081
Single blower (P5)
18. INSTALL THE BLOWER (INTERIOR BLOWER) (CONT’D)
Install (4) no. 8 x 3/8” screws into the location as shown in the pictures below (single blower or dual blower). Do not tighten
screws down fully, leave a 1/8” gap. Hang blower unit onto blower plate (screws through the large part of the keyhole). Slide the
blower to its position (screws in the small part of the keyhole). Tighten the (4) screws.
HD0044 HD0045
Single blower (P5) Dual blower (P8)
WARNING
Never plug the 2-prong blower cord to the 3-prong power supply cord.
!
Plug the power supply to the 3-prong male connector (A) and the blower unit into
the 2-prong female receptacle (B) inside the insert.
HE0022
A
B
Dual blower (P8)
21
HD0023
FRONT
HD0023
12

- 12 -
Baffle filters and impeller(s).
The baffle filters, impeller(s) and grease rail should be cleaned frequently. Use a warm detergent solution. Baffle filters and
impeller(s) are dishwasher safe.
Remove baffle filters by pushing them towards the back of hood and rotating downward.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergent
or as a result of local water conditions—but this will not affect filter performance. This discoloration is not covered by the warranty.
It is recommended to install side filters first and finish with center one(s).
NOTE: For PIK45 model, side filters are smaller than center ones.
A vertical arrow can be found on the filters border. Make sure to install the
baffle filters with the arrow pointing towards the inside of the hood insert.
See figure beside.
1Insert upper end of baffle filter into the insert.
2Raise lower end of baffle filter to position inside of unit and push to insert the
filter spring inside the grease rail.
3While pushing the baffle filter, slide it under the inner front retaining piece.
Make sure the baffle filters are positioned as shown beside in order to allow the
grease to reach the grease rail easily.
HO0126
CAUTION
Remove protective plastic film covering the baffle filters before
installing them.
Stainless steel cleaning: How to maintain its “BRIGHT LOOK”
HD0334
3
2
1
21. USE AND CARE
19. LIGHT BULBS
This insert must use shielded halogen lamps (120 V, 50 W, MR16 or PAR16 with GU10 base), included.
1. Install the lamps by placing the bulb leads into their grooves in the socket.
2. Gently push upwards and turn clockwise until secure.
To remove lamps, gently push upwards and turn counterclockwise to disengage bulb leads from their grooves.
NOTE: If need be, use a rubber dishwashing glove to add grip when removing the bulb.

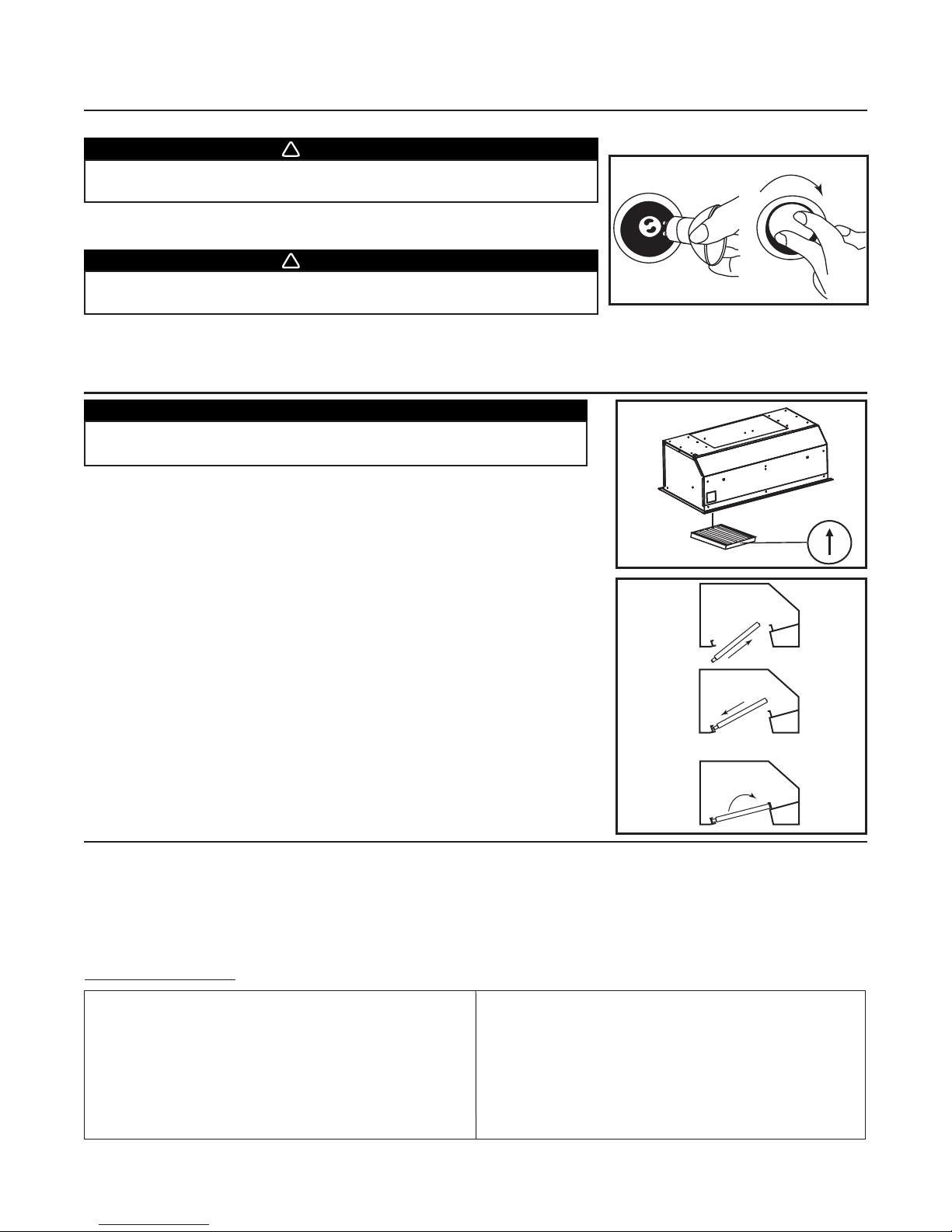

20. INSTALL BAFFLE FILTERS
WARNING
In order to prevent the risk of personal injury, do not install a lamp
identified for use only in enclosed fixtures.
!
WARNING
In order to prevent the risk of personal injury, the halogen lamps must
be cooled down before removing them.
!
12
HO0090
Do:
• Regularly wash with clean cloth or rag soaked with warm
water and mild soap or liquid dish detergent.
• Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after
cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel
cleaner.
Don’t:
• Do not use any steel or stainless steel wool or any other
scrapers to remove stubborn dirt.
• Do not use any harsh or abrasive cleansers.
• Do not allow dirt to accumulate.
• Do not let plaster dust or any other construction residues
reach the hood. During construction/renovation, cover the
hood to make sure no dust sticks to stainless steel surface.

22. OPERATION
COOKTOP LIGHTING (HALOGEN)
The light switch turns the halogen lights ON and OFF.
Use shielded halogen lamps (120 V, 50 W, MR16 or PAR16 with GU10 base), included.
BLOWER
The blower is operated using two (2) controls.
Use the blower speed control to increase or decrease cooktop ventilation. Slide the control to the left to increase the blower
speed—to the right to decrease the blower speed.
The blower ON/OFF switch turns the blower ON to the speed preset by the speed control. The blower must be turned ON and
OFF using this switch.
1) Light switch 2) Blower speed control 3) Blower ON/OFF switch
1 2 3
Always turn your blower on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes
to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and brighter.
The insert is operated using the (3) slide controls located beneath the front edge of the insert or the WCPI optional wall control.
HEAT SENTRY™
This unit is equipped with a Heat Sentry thermostat. This thermostat is a device that will turn on or speed up the blower if it senses
excessive heat above the cooking surface.
1) If blower is OFF—it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting—it turns the blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original setting.
Test all insert switches. If a WCPI remote control is installed, test all its switches.
WARNING
The HEAT SENTRY can start the blower even if the insert is turned OFF. In this case, it is impossible to
turn the blower OFF with blower switch. If you must stop the blower, do it from the main electrical panel.
!
21. USE AND CARE (CONT’D)
Avoid: when choosing a detergent
- Any cleaners that contain bleach will attack stainless steel.
- Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
-Anycombustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should
never be used close to a range.
WCPI REMOTE CONTROL (OPTIONAL)
An optional remote control is also available to operate your hood insert. For installation
details, see installation instructions included with the WCPI remote control.
NOTE: When the WCP1 remote control is connected to the insert, the control
switches on the insert are no longer operational.
HC0006
123
1) Light switch
2) Blower ON/OFF switch
3) Blower speed control
- 13 -
HC0009

BEST LOGO
SPACER
THERMOSTAT
BOARD ASSEMBLY
SCREW NO. 6-1/2”, T/A
MALE CONNECTOR
FEMALE CONNECTOR
LAMP SHELL, SOCKET & TRIM ASS’Y
SHIELDED HALOGEN BULBS 50 W GU10
BAFFLE FILTERS 8.4” X12.5”
BAFFLE FILTERS 12” X12.5”
SWITCH ASSEMBLY, BLACK
FILTER SPRING (SET OF 6)
INSTALLATION MANUAL
HARNESS
SPLITTING HARNESS
PARTS BAG (4) lock nut no.10-32,
(1) wire clamp LP16-AP,
(2) wire connectors no. 74B,
(8) no. 8 x 3/4” screws,
(8) no. 8 x 3/8” screws,
(2) no. 6 x 1/2” screws)
- 14 -
HL0121
SERVICE PARTS
PIK33 AND PIK45 MODELS
1
2
6
7
5
4
3
11
8
9
10
12
WARRANTY
1
2
3
4
5
6
7
8
9
10
11
12
SV05869
SV12515
SV03435
SV03255
*
SV02773
SV02772
SV16569
SV05921
SV18264
SV18267
SV12969
SV08337
SV05862
SV07399
SV07400
SV03888
11
22
11
11
33
11
11
23
23
22
12
11
11
11
11
-1
11
*PURCHASE LOCALLY.
KEY PART MODEL
NO. NUMBER DESCRIPTION 33 45
ONE-YEAR LIMITED WARRANTY FOR BEST PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products will be
free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR
MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is
found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT
BULBS, FUSES, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This
warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to
misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation
contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states or
provinces do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE
LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH
PRODUCT USE OR PERFORMANCE. Some states or provinces do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province
to another. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated
below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At
the time of requesting warranty service, you must present evidence of the original purchase date.
In USA - Best®,926 W. State Street, Hartford, WI 53027 (800-558-1711)
In Canada - Best®,550 Lemire Blvd., Drummondville, QC, Canada, J2C 7W9 (866-737-7770)
www.BestRangeHoods.com

KEY NO. PART NUMBER DESCRIPTION QTY.
- 15 -

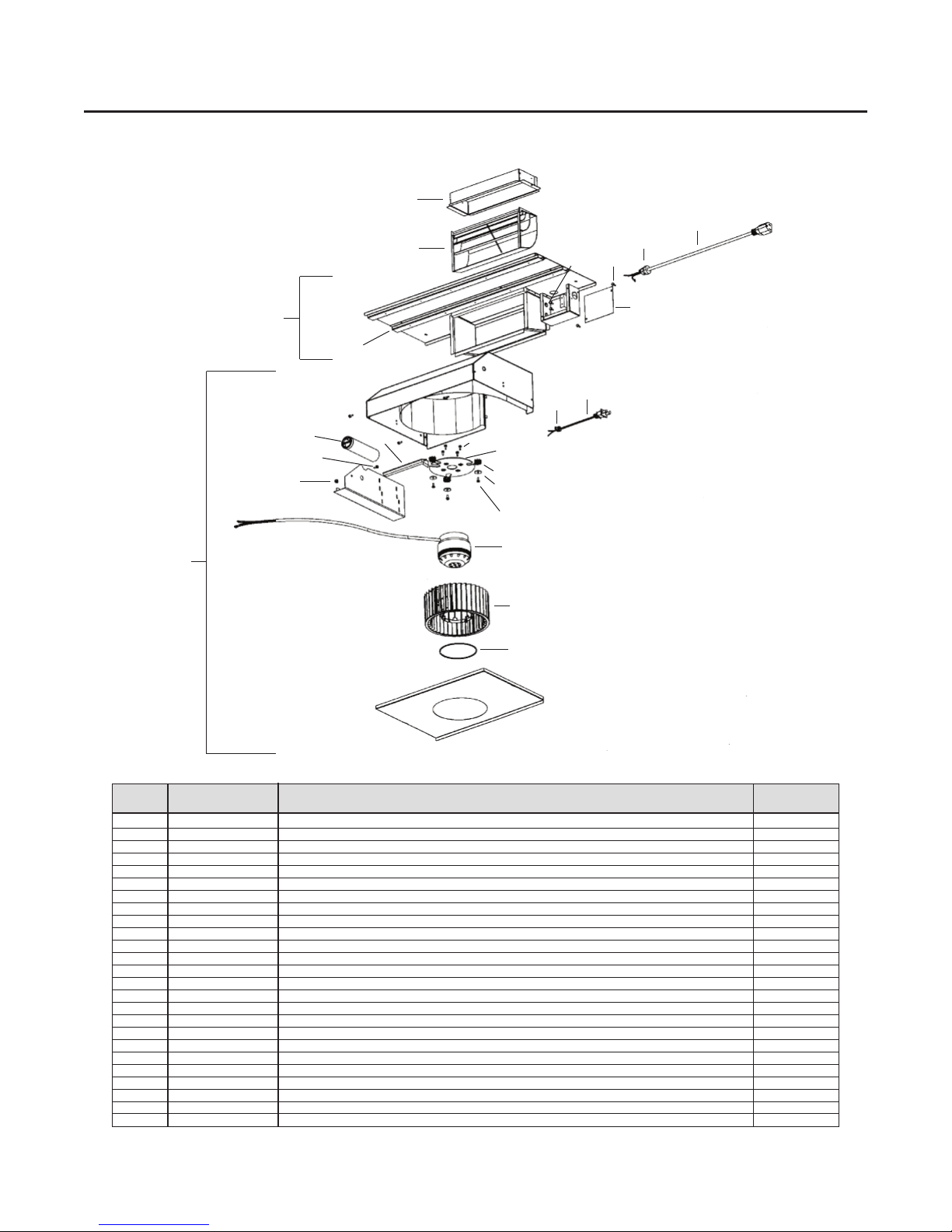

SERVICE PARTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
SV13296
SV03500
SV12997
SV03577
SV02160
*
SV01857
*
SV14973
SV01810
SV03400
SV01766
*
SV02001
SV01831
SV11705
SV11614
SV01927
SV03495
SV03494
SV13230
SV03496
SV00660
*
*
1
1
1
1
1
4
1
1
1
1
1
1
3
3
2
1
1
4
1
1
1
1
1
2
2
ADAPTER AND DAMPER 3¼” x 10”
AIR DEFLECTOR
SINGLE BLOWER ROUGH-IN PLATE ASSEMBLY
FOAM 1/2” x 1/2” x 12”
CAPACITOR 15 µF
MACHINE SCREW NO. 6-32 x 1/4”
WIRE COVER
LOCK NUT NO. 6-32
SINGLE BLOWER ASSEMBLY
IMPELLER RING
BLOWER IMPELLER 7.094” x 3.375” CW
MOTOR 165 W CW
WASHER 3/16” ID x 3/4” OD
MOTOR GROMMET G-431-1
8” TIE WRAP
MOTOR MOUNT
WIRE NO. 18 TEW BROWN x 10”
METRIC SCREW M4 x 6 MM PAN QDRX
STRAIN RELIEF FOR BLOWER POWER CORD
36” BLOWER POWER CORD
OUTLET BOX COVER
POWER CORD, 120 VOLTS
STRAIN RELIEF FOR POWER CORD
SCREW NO. 8 x 3/8”, T/B, NO. 8 HEAD
SCREW NO. 10-32 x 3/8”, TF, GREEN
SINGLE BLOWER/ROUGH-IN
(Model P5)
HL0021
19
21
18
17
20
22
2
3
23
4
1
9
6
8
515
14
13
6
16
12
7
11
10
*PURCHASE LOCALLY.

21
22
23
2
3
20
24
25
1
19
18
17
16
15
13
6
9
10
11
12
14
4
5
KEY PART NUMBER DESCRIPTION QTY.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
SV14971
SV13296
SV03500
SV14975
SV03577
*
SV02160
SV01857
SV01766
SV03400
SV14974
SV01810
SV03399
SV03457
*
SV01831
SV11705
SV11614
SV02001
SV01927
SV03495
SV03494
SV14960
SV00660
SV03496
*
*
1
1
1
1
1
1
2
2
1
1
1
2
1
1
6
4
2
2
6
8
1
1
1
1
1
4
2
ADAPTER AND DAMPER 3¼” x 14”
ADAPTER AND DAMPER 3¼”x 10”
AIR DEFLECTOR
DUAL BLOWER ROUGH-IN PLATE ASSEMBLY
FOAM 1/2” x1/2” x 12”
LOCK NUT NO. 6-32
CAPACITOR 15 µF
WIRE COVER
MOTOR 165 W CW
BLOWER IMPELLER, HOOD 7.094” x 3.375” CW
DUAL BLOWER ASSEMBLY
IMPELLER RING
BLOWER IMPELLER, HOOD 7.094” x 3.375” CCW
MOTOR 165 W CCW
WASHER 3/16” ID x 3/4” OD
8” TIE WRAP
MOTOR MOUNT
WIRE 18 TEW BROWN x 10”
MOTOR GROMMET G-431-1
METRIC SCREW M4 x 6 MM PAN QDRX
STRAIN RELIEF FOR BLOWER POWER CORD
36” BLOWER POWER CORD
OUTLET BOX COVER
STRAIN RELIEF FOR POWER CORD
POWER CORD, 120 VOLTS
SCREW NO. 8 x 3/8”, T/B, NO. 8 HEAD
SCREW NO. 10-32 x 3/8”, TF, GREEN
- 16 -
SERVICE PARTS
DUAL BLOWER/ROUGH-IN
(Model P8)
7
8
HL0022
*PURCHASE LOCALLY.

GUIDE D’INSTALLATION
CONÇUS POUR USAGE DOMESTIQUE SEULEMENT
INSTALLATEUR : LAISSER CE GUIDE AU PROPRIÉTAIRE.
PROPRIÉTAIRE : DIRECTIVES D’UTILISATION ET D’ENTRETIEN EN PAGES 28 ET 29.
BEST; Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866 737-7770
ENREGISTREZ VOTRE PRODUIT EN LIGNE À : www.BestRangeHoods.com/register
Pour obtenir plus d’information, consultez notre site www.BestRangeHoods.com
SV05862 rév. N
LIRE ET CONSERVER CES INSTRUCTIONS
!
!
MODÈLES PIK33 ET PIK45
HB0030

- 18 -
AVERTISSEMENT AVERTISSEMENT
AFIN DE RÉDUIRE LES RISQUES D’INCENDIE,
D’ÉLECTROCUTION OU DE BLESSURES CORPORELLES,
SUIVEZ LES INSTRUCTIONS SUIVANTES :
1. N’utilisez cet appareil que de la façon prévue par le
manufacturier. Si vous avez des questions, contactez
le manufacturier à l’adresse et au numéro de
téléphone indiqués sur la garantie.
2. Avant de réparer ou de nettoyer l’appareil, couper
l’alimentation électrique en verrouillant le panneau de
service afin d’éviter sa remise en marche accidentelle.
Si le panneau de service ne peut être verrouillé,
y fixer un avertissement en évidence.
3. Les travaux d’installation et de raccordement
électrique doivent être effectués par une personne
qualifiée, conformément aux codes et aux standards
de construction, incluant ceux concernant les incendies.
4. Une quantité d’air adéquate est requise afin d’assurer
une bonne combustion et l’évacuation des gaz par la
cheminée dans le cas des équipements alimentés au
gaz afin de prévenir les retours de cheminée.
Conformez-vous aux instructions et aux standards
de sécurité des manufacturiers d’équipement de
chauffage, tel qu’ils sont publiés par la
National Fire
Protection Association (NFPA) et l’ American Society
for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE) ainsi que les responsables des
codes locaux.
5. Lorsque vous coupez ou perforez un mur ou un
plafond, prenez garde de ne pas endommager
les fils électriques ou autre installation qui pourraient
y être dissimulés.
6. L’évacuation des ventilateurs avec conduits doit
toujours se faire à l’extérieur.
7. Ne pas utiliser cet appareil avec une commande
de vitesse à semi-conducteur autre que la commande
murale optionnelle WCPI.
8. Afin de réduire les risques d’incendie, n’utilisez que
des conduits de métal.
9. Cet appareil doit être mis à la terre.
10. Lorsqu’une réglementation est en vigueur localement
et comporte des exigences d’installation et/ou de
certification plus restrictives, lesdites exigences
prévalent sur celles de ce document et l’installateur
entend s’y conformer à ses frais.
AFIN DE RÉDUIRE LES RISQUES DE FEU
DE CUISINIÈRE :
a) Ne jamais laisser les appareils de cuisson sans
surveillance lorsqu’ils sont réglés à feu vif.
Les débordements engendrent de la fumée et des
déversements graisseux pouvant s’enflammer.
Chauffez l’huile lentement, à feu doux ou moyen.
b) Toujours mettre la hotte en marche lorsque vous
cuisinez à feu vif ou que vous cuisinez des mets
flambés (par ex. : crêpes Suzette, cerises jubilé, steak
au poivre flambé).
c) Nettoyez régulièrement la (les) roue(s) du ventilateur.
Ne laissez pas la graisse s’accumuler sur le ventilateur
ou les filtres.
d) Utilisez le bon format de casserole. Servez-vous
toujours de casseroles et d’ustensiles appropriés à
la dimension de la surface chauffante.
AFIN D’ÉVITER TOUT RISQUE DE BLESSURES LORS
D’UN FEU DE CUISINIÈRE, SUIVEZ CES INSTRUCTIONS* :
1. Étouffez les flammes avec un couvercle hermétique,
une tôle à biscuits ou un plateau métallique et
ensuite, éteindre le brûleur. PRENEZ SOIN
D’ÉVITER DE VOUS BRÛLER. SI LES FLAMMES
NE S’ÉTEIGNENT PAS IMMÉDIATEMENT, ÉVACUEZ
LES LIEUX ET APPELEZ LES POMPIERS.
2. NE PRENEZ JAMAIS UNE CASSEROLE EN
FLAMMES DANS VOS MAINS – Vous pourriez subir
des brûlures.
3. N’UTILISEZ PAS D’EAU, incluant un linge à vaisselle
ou une serviette mouillée, cela pourrait occasionner
une violente explosion de vapeur.
4. N’utilisez un extincteur QUE DANS LE CAS OÙ :
A. Vous savez qu’il s’agit d’un extincteur de classe
ABC et que vous en connaissez le fonctionnement.
B. L’incendie est petit et limité à l’endroit où il a débuté.
C. Les pompiers ont été avisés.
D. Vous pouvez combattre l’incendie en ayant accès
à une sortie de secours.
*Tirées du
Kitchen Fire Safety Tips publié par la NFPA.
ATTENTION
1. Pour une utilisation à l’intérieur seulement.
2. Pour usage domestique seulement. Ne pas utiliser pour
évacuer des vapeurs ou des matières dangereuses
ou explosives.
3. Afin d’éviter tout dommage au moteur et de débalancer
ou de rendre bruyante la roue du moteur, garder votre
appareil à l’abri des poussières de gypse et de
construction/rénovation, etc.
4. Le moteur de votre module de hotte encastrable
possède une protection thermique qui éteindra
automatiquement le moteur s’il devient surchauffé. Le
moteur repartira automatiquement une fois refroidi. Si le
moteur continue à arrêter et à repartir, faites-le vérifier.
5. La distance minimale entre le bas de votre hotte et la
surface de cuisson ne doit pas être inférieure à 24 po.
Un maximum de 30 po au-dessus de la surface de
cuisson est fortement recommandé pour une
meilleure évacuation des odeurs de cuisson.
6. Deux installateurs sont recommandés lors de l’installation
vu la grande dimension et le poids de cet appareil.
7. Afin de réduire les risques d’incendie, assurez-vous
d’évacuer l’air à l’extérieur – Ne pas évacuer l’air dans
des espaces restreints comme l’intérieur des murs ou
plafond ou dans le grenier, faux plafond ou garage.
8. Cet appareil est équipé d’un thermostat pouvant faire
démarrer le ventilateur automatiquement. Afin de
réduire le risque de blessure, couper le courant à partir
du panneau électrique et verrouiller ou apposer un
avertissement sur le panneau afin de prévenir que la
hotte soit mise en marche automatiquement.
9. À cause de la grande capacité d’évacuation de cet
appareil, il est recommandé d’ouvrir une fenêtre dans
ou près de la cuisine afin de remplacer l’air évacué.
10. Afin de réduire les risques d’incendie et d’électrocution,
les modèles PIK33 et PIK45 doivent être installés uniquement
avec l’un des ventilateurs intérieurs Best suivants : P5 ou
P8; l’un des ventilateurs extérieurs Best suivants : EB6,
EB9, EB12 ou EB15; l’un des ventilateurs en ligne Best
suivants : ILB3, ILB6, ILB9 ou ILB11 (vendus
séparément). Aucun autre ventilateur ne doit être utilisé.
11. Ce module de hotte encastrable ne doit être
utilisé seulement qu’avec un ensemble de cordon
d’alimentation approuvé.
12. Veuillez consulter l’autocollant apposé à l’intérieur du
produit pour plus d’information ou autres exigences.
!
!

HL0065
- 19 -
Dosseret – Série RMP
(Recouvrement de mur
en acier inoxydable
avec support assiettes.)
Adaptateur et volet
3¼ po x 10 po (fourni avec
ventilateurs P5 et P8)
Adaptateur et volet 3¼ po x 14 po
(fourni avec ventilateur P8)
Modèle P5
ventilateur simple
(500 pcm)
Commande murale
WCPI (optionnelle)
Modèle P8
Ventilateur double (900 pcm)
NOTE : Le ventilateur double P8 doit être
installé avec des conduits ronds
de 8 po. S’il est impossible de
relier le ventilateur double P8 à
un conduit de 8 po rond, utiliser
un conduit de 7 po rond. Dans
un tel cas, la performance du
ventilateur sera réduite de 25 %.
Plaque ventilateur fournie
avec ventilateurs P5 et P8
MODULE DE HOTTE
ENCASTRABLE
PIK33 ou PIK45
MODÈLES PIK33 ET PIK45 - SYSTÈME DE MODULE
DE HOTTE ENCASTRABLE - VENTILATEURS INTÉRIEURS
Modèle 407
(Conduit de 7 po rond
section de 2 pi)
Modèle 412
Transition
(3¼ po x 10 po à 7 po)
Modèle 643
(Capuchon de
mur de 8 po
rond)
Déviateur d’air
(fourni avec ventilateurs P5 et P8) Revêtement d’armoire (optionnel)
L3336S, L3342S, L4548S,
L4554S ou L4560S
Panneau d’éclairage
d’ambiance (optionnel)
ALP36, ALP42, ALP48, ALP54
ou ALP60
Modèle 647
(Capuchon de mur
de 7 po rond)
Modèle 634 ou 644
(Capuchon de toit)
Conduit
standard de
8 po rond
Modèle 413
Transition
(3¼ po x 10 po à 8 po)
Modèle 415
(Coude ajustable
de 7 po, optionnel)
Coude ajustable
de 8 po (optionnel)
Conduit de métal
flexible de 7 po
rond (optionnel)
Conduit de
métal flexible
de 8 po rond
(optionnel)
Modèle 459
Transition
(3¼ po x 14 po à 8 po)

Modèle 421
(Volet intérieur
10 po rond vert.)
Recommandé pour
utilisation avec
ventilateurs extérieurs
Modèle 410
(Conduit de 10 po rond
standard, section de 2 pi)
Conduit de
métal flexible
de 10 po rond
(optionnel)
- 20 -
HL0066
Revêtement d’armoire
(optionnel)
L3336S, L3342S, L4548S,
L4554S ou L4560S
Modèle 418
(Coude ajustable
de 10 po, optionnel)
Ventilateur en ligne
Modèle ILB3 (280 pcm)
(incluant une transition
ronde de 8 po à 10 po)
MODULE DE HOTTE
ENCASTRABLE
PIK33 ou PIK45
MODÈLES PIK33 ET PIK45
- SYSTÈME DE MODULE DE HOTTE ENCASTRABLE -
VENTILATEURS EN LIGNE ET EXTÉRIEURS
Ventilateur extérieur
Modèle EB6 (600 pcm)
ou EB9 (900 pcm)
Ventilateur extérieur
Modèle EB12
(1200 pcm)
ou EB15
(1500 pcm)
Modèle 441
(Capuchon de
mur de 10 po
rond)
Modèle 437
(Capuchon de toit à haut rendement) Modèle 441
(Capuchon de mur
de 10 po rond)
Plaque ventilateur extérieur
(incluse avec ventilateurs ILB3,
ILB6, ILB9, ILB11, EB6, EB9,
EB12 et EB15)
Panneau d’éclairage
d’ambiance (optionnel)
ALP36, ALP42, ALP48, ALP54
ou ALP60
Ventilateur en ligne
Modèle ILB6 (600 pcm)
(incluant 2 transitions rondes
de 4½ po x 18½ po à 10 po)
Ventilateur en ligne
Modèle ILB9 (800 pcm)
ou ILB11 (1100 pcm)
(incluant deux transitions
rondes de 8 po x 12 po
à 10 po)
Dosseret – Série RMP
(Recouvrement de mur
en acier inoxydable
avec support assiettes.)
Commande murale
WCPI (optionnelle)
Modèle 643
(Capuchon
de mur de
8 po rond)
