BESTWAY AG TS-300 User manual

BEFORE RETURNING THIS PRODUCT FOR
ANY REASON, PLEASE CALL
INVERNESS, MS | 800-392-7440
GREENWOOD, MS | 662-886-8550
OLIVE BRANCH, MS | 866-776-8265
HIAWATHA, KS | 877-390-4480
HOPKINSVILLE, KY | 270-887-8550
FOR HELP WITH QUESTIONS OR CONCERNS ABOUT YOUR
BESTWAY AG TRAILER SPRAYER, PLEASE CALL.
BEFORE CALLING, PLEASE HAVE SALES RECEIPT
AND MODEL NUMBER ON HAND.
GENERAL INFORMATION
Thank you for purchasing a Bestway Ag Trailer
Sprayer. This manual will assist you in the use and
maintenance of your product. Please keep it in a
safe place for future reference.
WARRANTY & SERVICE
All Trailer Sprayers are under warranty by Bestway
Ag for a one-year period based on the purchase date
and extends to the original purchaser only.
The warranty covers defects in workmanship, or
manufacturer defects in their components. This
warranty does not cover any misuse, abuse, or parts
that have broken due to freezing. Owners are solely
responsible for these issues.
Parts proven defective before the one-year period
has expired will be replaced at no charge.
Bestway Ag must be notified immediately of any
defects or broken parts on the sprayer before the
one-year period expires. Waiting until after this
time, whether the sprayer has been ran or not, will
void the warranty. No product will be accepted for
return without authorization.
All returned goods must be packaged securely and
shipped with transportation charges prepaid.
For further information, please contact Bestway Ag.
TSM001 | Bestway Ag Trailer Sprayer Manual Rev. 1, March 2021. Printed in the U.S.A.
WARNING
DO NOT USE SPRAYER IN AN EXPLOSIVE ENVIRONMENT.
DO NOT USE TO PUMP FLAMMABLE FLUIDS, INCLUDING
GASOLINE, KEROSENE, OIL, ETC.
SAFETY PRECAUTIONS
Before operating your new Bestway Ag Trailer
Sprayer, please take a few minutes to review these
important safety reminders. Bestway Ag cannot be
held liable for injury to persons or property, up to
and including death, as a result of negligence or
other improper use of this sprayer.
WARNING
CANCER AND REPRODUCTIVE HARM
www.p65Warnings.ca.gov
• Be aware of all safety guidelines, warnings and
cautions, including those for your tractor
• Read and understand chemical labels, warnings
and instructions
• Know and comply with all state pesticide licens-
ing requirements
• Familiarize yourself, and other operators, with
sprayer components and operation
GENERAL SAFETY
• Do not operate sprayer under the influence of
alcohol or drugs
• If your sprayer is equipped with a PTO drive
shaft, keep body parts and clothing clear.
• Never step over, or work near, the PTO shaft
during operation
• When transporting on public roads, follow state
and local regulations
BEFORE OPERATION
• Wear proper Personal Protective Equipment
(PPE) to avoid injury from chemical hazards
• Visually inspect sprayer for worn parts, loose
bolts or other visible problems
• Never exceed your tractor’s load rating
• Make sure area to be sprayed is clear of people
or obstructions
• Never wear loose fitting clothing that may catch
in moving parts

• READ and follow all chemical label instructions
• AVOID inhaling, ingesting or contacting any
chemical. Use of proper PPE is a must
• KNOW licensing and regulatory requirements
• KNOW proper chemical energy procedures
• EXERCISE caution around children and pets as
many chemical are especially toxic to them
• DO NOT MIX or pour chemicals in an enclosed
or unvented area
• DO NOT USE flammable materials in the
sprayer.
• FLUSH the sprayer with clean water after each
use and before switching chemicals
• STORE all pesticides and chemicals properly in
a secure location with appropriate labels
OPERATION OF NEW SPRAYER
Your Bestway Ag Trailer Sprayer is optimized for
trouble free spraying and ease-of-use.
First, back your tractor up to the sprayer hitch and
use a hitch pin to connect. Then, connect the PTO
coupler on the pump to the shaft by depressing the
coupler and sliding it on the shaft, letting go of the
coupler to allow lock pins to fall into the grooves on
the shaft. Wrap chain around draw bar to keep the
pump from turning.
Next, fill the tank at least 1/4 - 1/2 full of plain water
with no chemicals. Make sure the suction line shut
off valve is open. Screw the pressure regulator part
of the way out and make sure agitation valve is half
open (if equipped). This ensures you do not peg the
gauge and break it. Ensure the tank valve is on.
You are now ready to operate your new sprayer for
the first time. Engage the PTO lever and pull the
throttle to the 540 RPM mark. Turn the boom, or
boomless, valve on and adjust the desired pressure
you will need to operate at. Agitation valve may
need to be closed down to achieve desired pressure.
BEFORE SEASONAL USE
• Test sprayer with water for leaks before using
chemicals. Injury could result from leaks
• Inspect for and replace any worn hoses
• Inspect pressure gauge for proper function
PUMP SAFETY PRECAUTIONS
• In addition to flammable materials, never pump
corrosive or acidic materials
• For acid fertilizer, teflon roller equipped pumps
are recommended
• Never run the pump dry or exceed maximum
recommended speed and pressure
• Before pump service, disconnect the power and
release pressure. Drain all liquids
OPERATING SAFETY
• Be aware of other people in work area
• Look before moving spraying, or engaging the
PTO
• Never leaving running unattended
• Keep hands and body parts clear of all moving
parts, especially the PTO
• Be aware of potentially dangerous terrain, such
as holes, slopes, banks, drop-offs, rocks, etc
• Always operate tractor up and down slopes and
never across
• Do not allow passengers on tractor or sprayer
• Allow proper clearance for spray boom (if your
unit is equipped) during turns
CHEMICAL SAFETY
• After use, completely rinse the sprayer and all
components to clear chemical residue
• After use, stop the tractor, set the brakes and
disengage the PTO shaft, shut off engine and
remove ignition key
• Always park sprayer on hard, level surface
• Store sprayer away from human/livestock
FOLLOWING USE

MAINTENANCE INSTRUCTIONS
Your Bestway Ag Trailer Sprayer is engineered to be
amongst the most durable, reliable sprayers on the
market. By following these routine maintenance
procedures, you will ensure your sprayer operates
at peak eciency through its lifetime.
1. Always perform a visual inspection for worn
parts, bolt issues, or other visible problems.
Make all necessary repairs before beginning
spray operations. Contact Bestway Ag to order
parts or to seek technical assistance.
2. Run a tank cleaner (tank neutralizer) through
the system after each use. If no tank cleaner
is available, you may substitute a quality dish
soap for this step. Turn the pump on and circu-
late the solution for 15 minutes and then spray
through the nozzles and handgun. Partially re-
fill the sprayer with fresh water and repeat the
process.
3. The screen on the in-line filter on the suction
line should be taken out and rinsed. Do not lose
the gasket in the filter bowl as the filter will leak
without it.
4. Tip strainers (if applicable) should be also be
rinsed after each use. Tip strainers are small
screens located behind each spray nozzle.
5. Periodically inspect tank straps and re-torque
bolts as necessary
Not the only way...the BESTWAY!
PUMP MAINTENANCE/CARE
By following these procedures, you ensure years of
trouble-free pump operation.
1. After each use, flush the pump as directed under
the routine maintenance section of this manual
2. If you notice a decrease in pump performance, or
leaks, you may need to replace seals and rollers
WINTERIZATION PROCEDURES
Properly winterizing your sprayer is essential to
avoiding damage and ensuring peak performance
year after year. The process should be undertaken
before freezing conditions. Failure to follow these
procedures can result in catastrophic failure and
will void the manufacturer’s warranty.
1. Empty the tank and rinse following previously
outlined procedure.
2. Pour 1-2 gallons of RV non-toxic antifreeze into
the tank. It is essential to use RV antifreeze as
engine antifreeze can be toxic
3. Engage the pump and spray with all nozzles, as
well as the spray gun. Be sure the antifreeze has
been pumped through the entire unit
4. Before spraying for the first time in the spring,
flush the sprayer with fresh water to cleanse
SPRAYER MODEL IS:
DATE OF PURCHASE:

300 GALLON UNIT
PART # DESCRIPTION
PK8RC 8 Roller Pump Assembly
HG43AL Hand Gun Assembly
TP110-300AGT Tank Agitator Assembly
HO12 1/2” AP Hose, 200 PSI, Black
HC5203 5203, 3/8” Narrow Hose Clamp
FGHT3412 3/4” FGHT x 1/2” HB, Flat Stem, BR
LN38 3/8 Center Locknut - Nylon
LW38 3/8 Lock Washer
HO34 3/4” AP Hose, 200 PSI, Black
HO34PVCB 3/4” PVC Hose, Black
HC5212 3/4” Wide Hose Clamp
WS-300/500 LP Frame 300/500 - Frame Only
WT11L15-Grey 11L-15 8 Ply Tire & Wheel Assembly
BJLST075-50 Strainer, 3/4” - Poly
3EL11434 1-1/4” MPT x 3/4” Hose Barb
BJUV075FP 3/4” FPT, 3/4” Port Union Valve
110-300SK 110-300 Strap Kit, Bands, Buckles
PHM110-300 Pressure Head
TA300SLY 300 Gallon Side Load Poly Tank
WS-300EL SADDLE Single Saddle, 300EL
500 GALLON UNIT
PART # DESCRIPTION
PK8RC 8 Roller Pump Assembly
HG43AL Hand Gun Assembly
TP110-300AGT Tank Agitator Assembly
HO12 1/2” AP Hose, 200 PSI, Black
HC5203 5203, 3/8” Narrow Hose Clamp
FGHT3412 3/4” FGHT x 1/2” HB, Flat Stem, BR
LN38 3/8 Center Locknut - Nylon
LW38 3/8 Lock Washer
HO34 3/4” AP Hose, 200 PSI, Black
HO34PVCB 3/4” PVC Hose, Black
HC5212 3/4” Wide Hose Clamp
WS-300/500 LP Frame 300/500 - Frame Only
WT11L15-Grey 11L-15 8 Ply Tire & Wheel Assembly
BJLST075-50 Strainer, 3/4” - Poly
3EL11434 1-1/4” MPT x 3/4” Hose Barb
BJUV075FP 3/4” FPT, 3/4” Port Union Valve
500SK 500 Strap Kit, Bands, Buckles
PHM110-300 Pressure Head
TA500SLY 500 Gallon Side Load Poly Tank
WS-500EL SADDLE Single Saddle, 500EL
STANDARD PARTS LIST NOTE: This list includes parts for base TS-300 and TS-500 units only. For assistance
with boom/boomless parts, or custom unit parts, please contact Bestway Ag.
TEEJET 340 SERIES MANUAL
SHUTOFF BALL VALVE
AA(B)344M-NYB
• Maximum pressure of 300 PSI
(20 bar)
• Quarter turn of handle from
shutoff to full flow
TEEJET MODEL 23120 MANUAL
PRESSURE VALVE
Adjustable to maintain control of
line pressure at any pressure within
the valve’s operating range. Selected
pressure setting firmly held in place by
locknut. Extra large valve passage to
handle large flows.

TEEJET AA43 GUNJET PARTS
See facing page for complete parts list
AA43L - Brass, complete- 200 PSI
AA43L-AL - Aluminum, complete - 200 PSI
AA43H - Brass complete - 200 to 800 PSI
AA43H-AL -Aluminum, complete - 200 to 800 PSI
PK-AB43-KIT Spare parts kit (includes all items
marked with *)
PK-AB43-AL-KIT Spare parts kit (includes all items
marked with *)
TEEJET 530 VALVE SPECS
• 10 GPM Flow capacity at 5PSI (0.34 bar)
pressure drop
• 14 GPM Flow capacity at 10 PSI (0.68 bar)
pressure drop
• 290 PSI (20 bar) pressure rating for large
quick connect, threaded and 50-series
flanged connection, 215 PSI (15 bar) for
75-series flanged connections
• Nylon, polypropylene and stainless steel
construction ensures durability
TEEJET 530 MANUAL VALVE/MANIFOLD SPECIFICATIONS
Bestway Ag makes use of TeeJet 530 manifolds/
valves in the construction of our trailer sprayers.
The use of this modern valve system allows
for not only a cleaner overall appearance, but
increased user functionality and eciency.
Boom sections, or boomless nozzles, can easily be
controlled independent of each other.

ITEM # PART # DESCRIPTION
BRASS ALUMINUM
1 CP1325 CP1325-AL Cap, brass or aluminum
2 D-** D-** Orifice disc, hardened stainless steel
3* CP4743-NY CP4743-NY Gasket, Nylon
4 CP10566 CP10566-AL Nozzle housing, brass or aluminum
5* 10565-1-NY 10565-1-NY-AL Seat plug, seat plate, washer & core sub-assembly
5A 10565 10565-AL Seat plug, seat plate, washer & core sub-assembly (special order)
6 CP10571-2-NYB CP10571-2-NYB Guide vane, nylon
7 CP45195-NYB CP45195-NYB Gasket, nylon (black) two required
8 CP19238-416SS CP19238-416SS Stem, type 416 stainless steel
9 CP6604 CP6604-AL Tubing, brass or aluminum
10 CP6492 CP6492-AL Inlet body, brass or aluminum
11* CP6601-302SS CP6601-302SS Packing washer, type 302 stainless steel
12* CP6602-LEA CP6602-LEA Packing, leather (three required) standard
CP6602-TEF CP6602-TEF Packing, teflon (three required) optional
13 CP19237 CP19237-AL Packing screw brass or aluminum
14 CP6599 CP6599-NP Locknut, brass, nickel plated
15 CP9641-INP CP9641-INP Stem nut, steel, nickel plated
16 CP6595-SS CP6595-SS Trigger stop spring, stainless steel
17 CP7991-SS CP7991-SS Washer, stainless steel
18 CP6597-INP CP6597-INP Trigger guide, steel, nickel plated
19 CP6591-SS CP6591-SS Spring stud, stainless steel
20 CP6589-IZP CP-6589-IZP Stop adjustment nut, steel, zinc plated
21 CP6594-SS CP6594-SS Spring for stop adjustment nut, stainless steel
22 CP6588-IZP CP6588-IZP Spring screw, steel, zinc plated
23 CP6592-302SS CP6592-302SS Spring guide washer, type 302 stainless steel
24 CP6593-1-SS CP6593-1-SS Main spring, stainless steel (for Model #43L-)
CP6593-2-SS CP6593-2-SS Main spring, stainless steel (for Model #43H-)
25 CP14477-1-AL CP14477-1-AL GunJet Body, aluminum
26 CP7623-IZP CP7623-IZP Rivet, steel, zinc plated (two required)
27 CP6509-INP CP6509-INP Trigger, steel, nickel plated
28 CP6510-INP CP6510-INP Trigger stop, steel, nickel plated
29 CP11757-SS CP11757-SS Screw, stainless steel
30 CP13798-INP CP13798-INP Trigger guard, steel, nickel plated

ROLLER PUMP SPECIFICATIONS
TYPE:
MATERIAL:
FLOW RATE:
MAX PRESSURE:
MAX REC. TEMP:
ROLLERS:
BEARINGS:
PORT SIZE:
PTO:
SHAFT:
SHAFT SEALS:
WEIGHT:
8 Roller
Cast Iron
24 GPM
300 PSI
140° F
3/4” Ultra
Permanently lubricated,
heavy-duty sealed
1” FNPT
Use torque bar and chain
15/16” Solid shaft
Viton cartridge type lip seals
14 lbs
PSI 540 RPM 850 RPM 1000 RPM
0 13.0 20.2 24.0
20 12.4 19.8 23.2
40 11.6 19.1 22.4
100 10.6 18.6 21.8
200 8.9 15.7 18.0
300 7.0 14.0 17.1
ROLLER PUMP REPAIR KIT
PART # RK-8900 Complete kit of all parts for re-
pair of all 8-RollerPRO Pump models. Kit includes:
PART # DESCRIPTION QTY/KIT
35801 Ultra Rollers - 3/4” Diameter 8
37801 Shaft Seal 1
47927 Lip Seal 1
24829 Seal Ring 1
31811 Pill Key, Shaft 1
38801 Needle Bearing 1
Ref #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Part #
33801
33804
33805
33806
34804
34805
34820
34825
31810
36851
35801
37801
16228
38801
24829
31811
15341
40802
15334
-
47927
38802
Description
Body - 8900C
Body - 8900-R
Body-8900DSS
Body-8900DSS-R
End Plate - 8900C
End Plate - 8900-R
End Plate - 8900DSS
End Plate - 8900DSS-R
Shaft
8-Roller Rotor Overmold
Ultra Roller 3/4” Diameter
Shaft Seal
Ball Bearing
Needle Bearing
Seal Ring
Pill Key, Shaft
Hex Head - All ‘C’ Models
Hex Head - All ‘DSS’ Models
Snap Ring
Name Plate
Lip Seal
Needle Bearing, Inner Ring
QTY
1
1
1
1
8
1
1
1
1
1
4
2
1
1
1

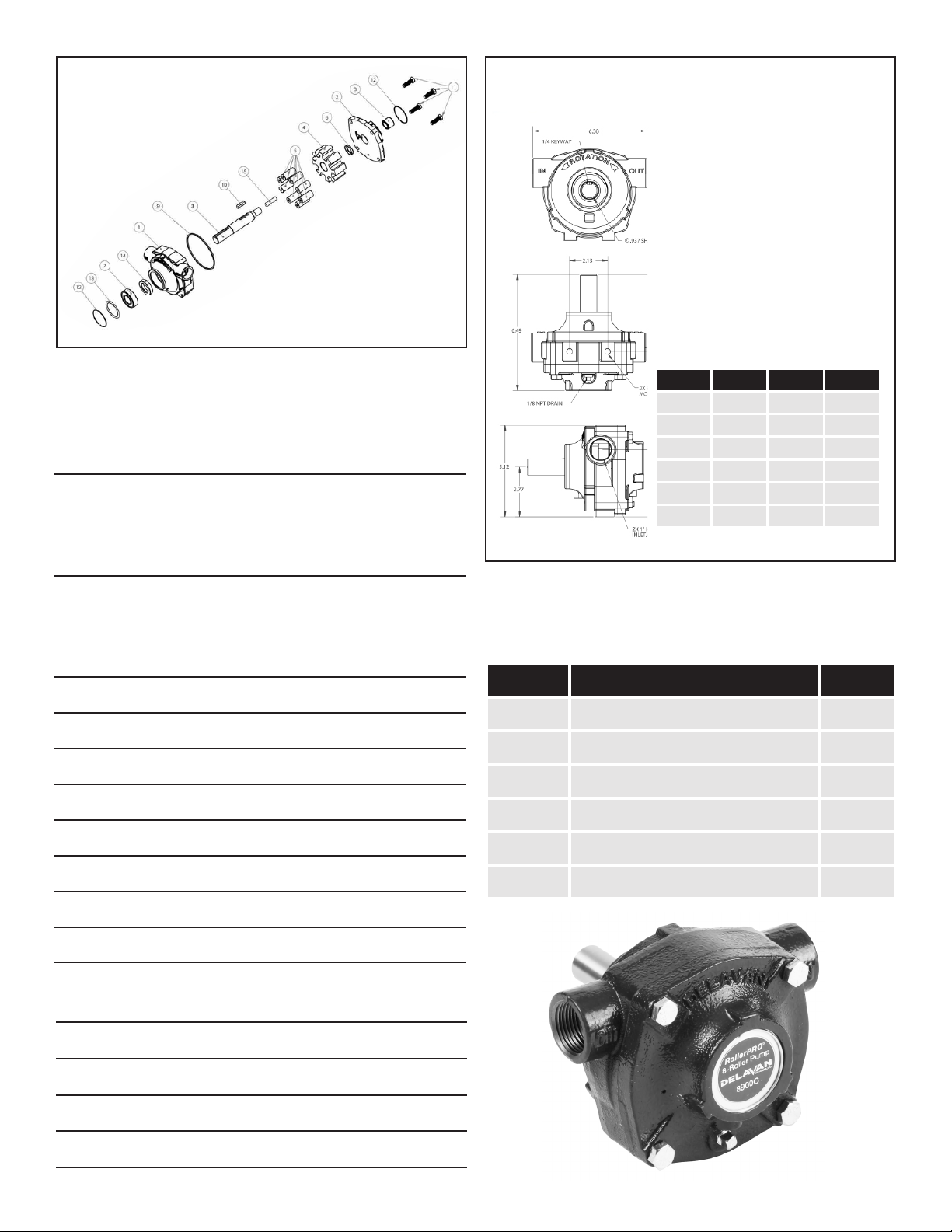

DELAVAN 8900 SERIES ROLLER PUMP PARTS LIST

HAMILTON NOZZLE - CALIBRATING YOUR SPRAYER
OPERATING DATA FOR 180° NOZZLES
ORIFICE
NUMBER
GPM SWATH GALLON PER ACRE
PSI 180° 180° 3 mph 4 mph 5 mph 8 mph 10 mph
#5
30 1.7 44’ 6.4 4.8 3.8 2.4 1.9
40 2.0 46’ 7.2 5.4 4.3 2.7 2.2
50 2.2 48’ 7.6 5.7 4.5 2.9 2.3
60 2.4 50’ 7.9 5.9 4.8 3.0 2.4
#10
30 3.7 50’ 12.2 0.2 7.3 4.6 3.7
40 4.2 50’ 13.9 10.4 8.3 5.2 4.2
50 4.6 52’ 14.6 10.9 8.8 5.5 4.4
60 5.0 52’ 15.8 11.9 9.5 5.9 4.8
#20
30 5.1 54’ 15.6 11.6 9.3 5.8 4.7
40 5.9 54’ 18.0 13.5 10.8 6.8 5.4
50 6.7 56’ 19.7 14.8 11.8 7.4 5.9
60 7.1 58’ 20.2 15.1 12.1 7.6 6.1
To determine pressure & Gallons Per Acre (GPA)
with a Hamilton nozzle, use the following formula:
495 x GPM
MPH x Swath In Feet
GPA =
Bestway Ag Trailer Sprayers w/Hamilton nozzles are supplied with #20
495 (constant) x 6.7 GPM
4 MPH x 56’ =
3316.5
224 = 14.805 GPA
EXAMPLE:
For your convenience, please reference the following chart for all pertinent data, including GPA
GPM =
GPA =
MPH =
PSI =
Gallons Per Minute
Gallons Per Acre
Miles Per Hour
Pressure Per Square Inch

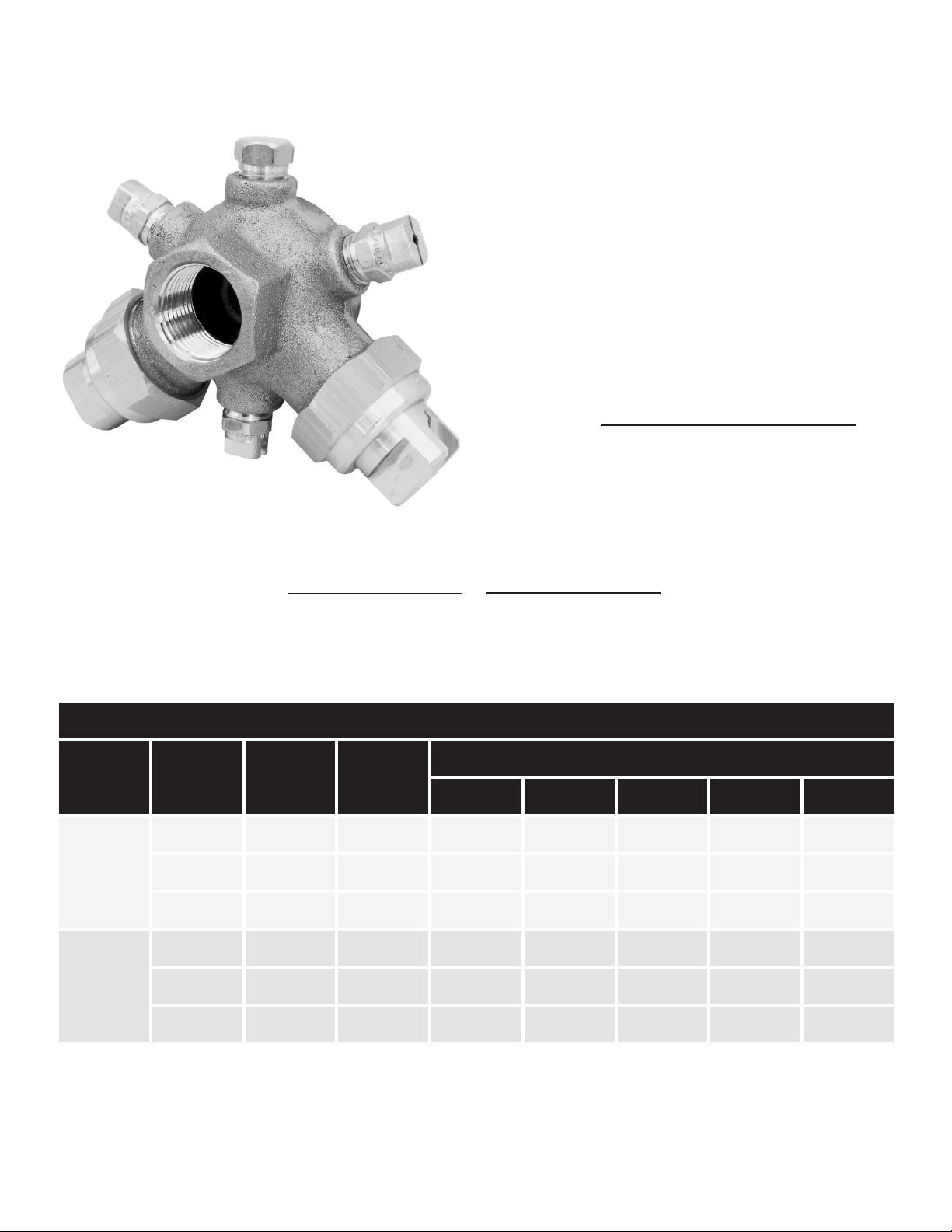

BOOMJET 5880 - CALIBRATING YOUR SPRAYER
OPERATING DATA FOR BOOMJET 5880
MODEL PSI GPM SWATH
GALLON PER ACRE
4 mph 5 mph 7.5 mph 10 mph 15 mph
5880-3/4-
2TOC10
20 2.83 39.5 8.9 7.1 4.7 3.5 2.4
30 1.46 40 10.7 8.6 5.7 4.3 2.9
40 4.00 40.5 12.2 9.8 6.5 4.9 3.3
5880-3/4-
2TOC20
20 6.08 47 16.0 12.8 8.5 6.4 4.3
30 7.45 50 18.4 14.8 9.8 7.4 4.9
40 8.60 52 20 16.4 10.9 8.2 5.5
To determine pressure & Gallons Per Acre (GPA)
with a BoomJet 5880, use the following formula:
495 x GPM
MPH x Swath In Feet
GPA =
Bestway Ag Trailer Sprayers w/BoomJet are supplied with #20 nozzle
495 (constant) x 6.08 GPM
4 MPH x 47’ =
3009.6
188 = 16.008 GPA
EXAMPLE:
For your convenience, please reference the following chart for all pertinent data, including GPA
GPM =
GPA =
MPH =
PSI =
Gallons Per Minute
Gallons Per Acre
Miles Per Hour
Pressure Per Square Inch

HYPRO BOOM EXTENDER TIPS - CALIBRATING YOUR SPRAYER
Bestway Ag Trailer Sprayers w/BXT are supplied with XT024 tips.
BROADCAST & TURF APPLICATIONS GALLONS PER ACRE (AT SWATH SHOWN) SWATH (FT)
@ 40PSI
48” HIGH
THREAD MODEL PSI GPM 4
MPH
5
MPH
6
MPH
8
MPH
10
MPH
12
MPH
15
MPH
20
MPH
1/4” MNPT XT010
30 0.9 8.9 7.1 5.9 4.5 3.6 3.0 2.4 1.8
13
40 1.0 9.9 7.9 6.6 5.0 4.0 3.3 2.6 2.0
50 1.1 10.9 8.7 7.3 5.4 4.4 3.6 2.9 2.2
60 1.2 11.9 9.5 7.9 5.9 4.8 4.0 3.2 2.4
1/4” MNPT XT020
30 1.7 13.6 10.9 9.0 6.8 5.4 4.5 3.6 2.7
15
40 2.0 16.0 12.8 10.6 8.0 6.4 5.3 4.3 3.2
50 2.2 17.6 14.1 11.7 8.8 7.0 5.9 4.7 3.5
60 2.4 19.2 15.3 12.8 9.6 7.7 6.4 5.1 3.8
1/4” MNPT XT024
30 2.1 16.2 13.0 10.8 8.1 6.5 5.4 4.3 3.2
16
40 2.4 18.6 14.9 12.4 9.3 7.4 6.2 5.0 3.7
50 2.7 20.9 16.7 13.9 10.4 8.4 7.0 5.6 4.2
60 2.9 22.4 17.9 15.0 11.2 9.0 7.5 6.0 4.5
3/8” MNPT XT043
30 3.7 31.6 25.3 21.1 15.8 12.6 10.5 8.4 6.3
14
40 4.3 36.7 29.4 24.5 18.3 14.7 12.2 9.8 7.3
50 4.8 41.0 32.8 27.3 20.5 16.4 13.7 10.9 8.2
60 5.3 45.2 36.2 30.2 22.6 18.1 15.1 12.1 9.0
GPM =
GPA =
MPH =
PSI =
Gallons Per Minute
Gallons Per Acre
Miles Per Hour
Pressure Per Square Inch
495 x GPM
MPH x Swath In Feet
GPA =

MODEL PSI GPM
GALLONS PER ACRE w/20” SPACING
4
MPH
5
MPH
6
MPH
7
MPH
8
MPH
9
MPH
10
MPH
12
MPH
14
MPH
16
MPH
18
MPH
20
MPH
(DG, TJ60, TP, XR) 8002
(AI, DG, TJ60, TP, TT, XR) 11002
1/4TTJ02
15 0.12 8.9 7.1 5.9 5.1 4.5 4.0 3.6 3.0 2.5 2.2 2.0 1.8
20 0.14 10.4 8.3 6.9 5.9 5.2 4.6 4.2 3.5 3.0 2.6 2.3 2.1
30 0.17 12.6 10.1 8.4 7.2 6.3 5.6 5.0 4.2 3.6 3.2 2.8 2.5
40 0.20 14.9 11.9 9.9 8.5 7.4 6.6 5.9 5.0 4.2 3.7 3.3 3.0
50 0.22 16.3 13.1 10.9 9.3 8.2 7.3 6.5 5.4 4.7 4.1 3.6 3.3
60 0.24 17.8 14.3 11.9 10.2 8.9 7.9 7.1 5.9 5.1 4.5 4.0 3.6
(DG, TJ60, TP, XR) 8003
(AI, DG, TJ60, TP, TT, XR)
11003
AIUB8503
15 0.18 13.4 10.7 8.9 7.6 6.7 5.9 5.3 4.5 3.8 3.3 3.0 2.7
20 0.21 15.6 12.5 10.4 8.9 7.8 6.9 6.2 5.2 4.5 3.9 3.5 3.1
30 0.26 19.3 15.4 12.9 11.0 9.7 8.6 7.7 6.4 5.5 4.8 4.3 3.9
40 0.30 22 17.8 14.9 12.7 11.1 9.9 8.9 7.4 6.4 5.6 5.0 4.5
50 0.34 25 20 16.8 14.4 12.6 11.2 10.1 8.4 7.2 6.3 5.6 5.0
60 0.37 27 22 18.3 15.7 13.7 12.2 11.0 9.2 7.8 6.9 6.1 5.5
(DG, TJ60, TP, XR) 8004
(AI, DG, TJ60, TP, TT, XR) 11004
AIUB8504
1/4TTJ04
15 0.24 17.8 14.3 11.9 10.2 8.9 7.9 7.1 5.9 5.1 4.5 4.0 3.6
20 0.28 21 16.6 13.9 11.9 10.4 9.2 8.3 6.9 5.9 5.2 4.6 4.2
30 0.35 26 21 17.3 14.9 13.0 11.6 10.4 8.7 7.4 6.5 5.8 5.2
40 0.40 30 24 19.8 17.0 14.9 13.2 11.9 9.9 8.5 7.4 6.6 5.9
50 0.45 33 27 22 19.1 16.7 14.9 13.4 11.1 9.5 8.4 7.4 6.7
60 0.49 36 29 24 21 18.2 16.2 14.6 12.1 10.4 9.1 8.1 7.3

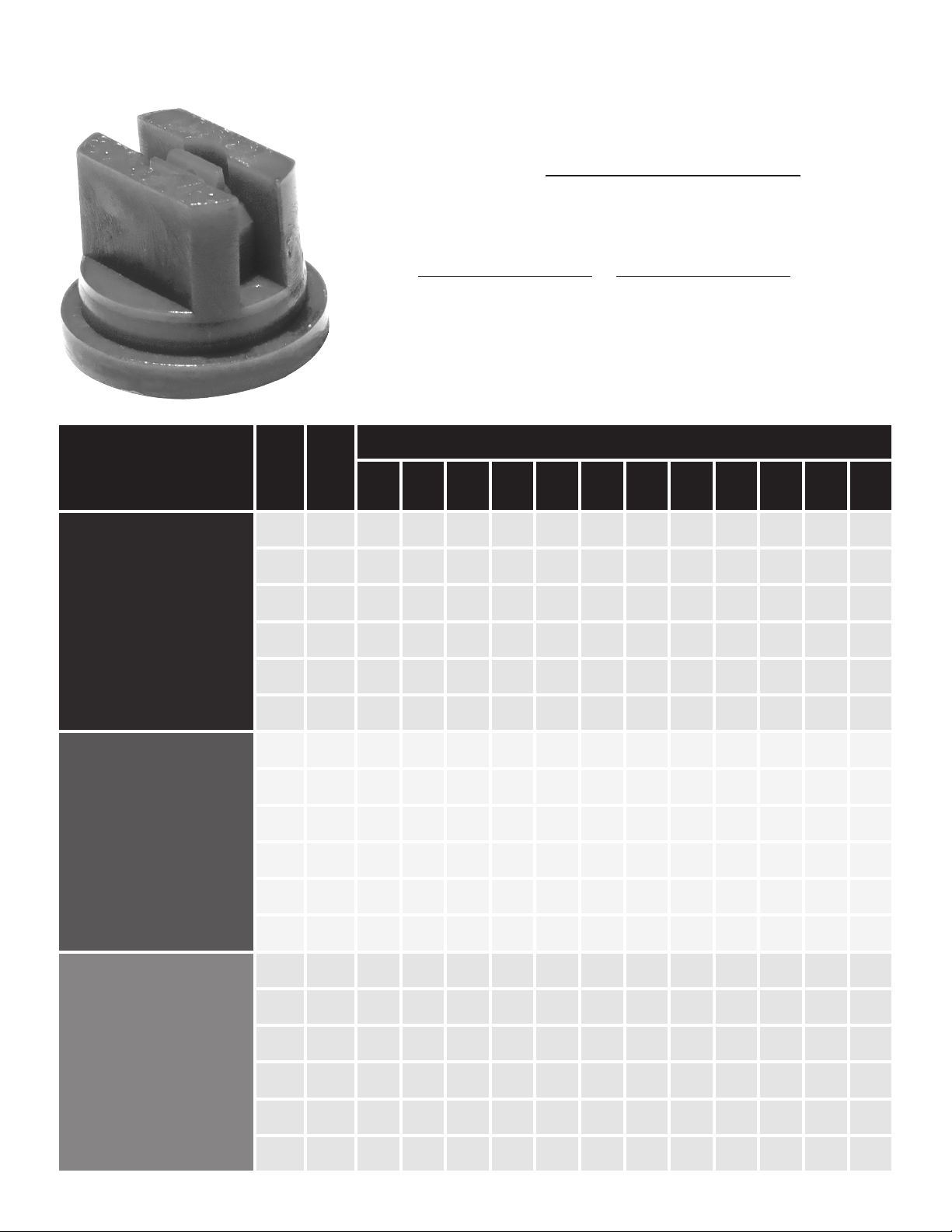

TEEJET SPRAY TIP CALIBRATION
FOR SIX AND EIGHT ROW BOOMS
Standard boom comes with 8003VP poly tips
GPA x MPH x NOZZLE SPACING
5940
GPM =
20gpa x 4mph x 20”
5940 =
1600
5940 = .27 GPM
EXAMPLE:
FORMULA:
Take the GPM calculated & look down the chart below to figure
what pressure you need to run at that speed.

NOTE: If spraying liquid nitrogen you will need to multiply the conversation factor with the GPA. MPH and
nozzle spacing.
20gpa x 4mph x 20” x 1.13
5940 =
1808
5940 = .31GPM
Conversion Factor: 28% Nitrogen - 10.65 pounds per gallon - 1.13
32% Nitrogen - 11.00 pounds per gallon - 1.15

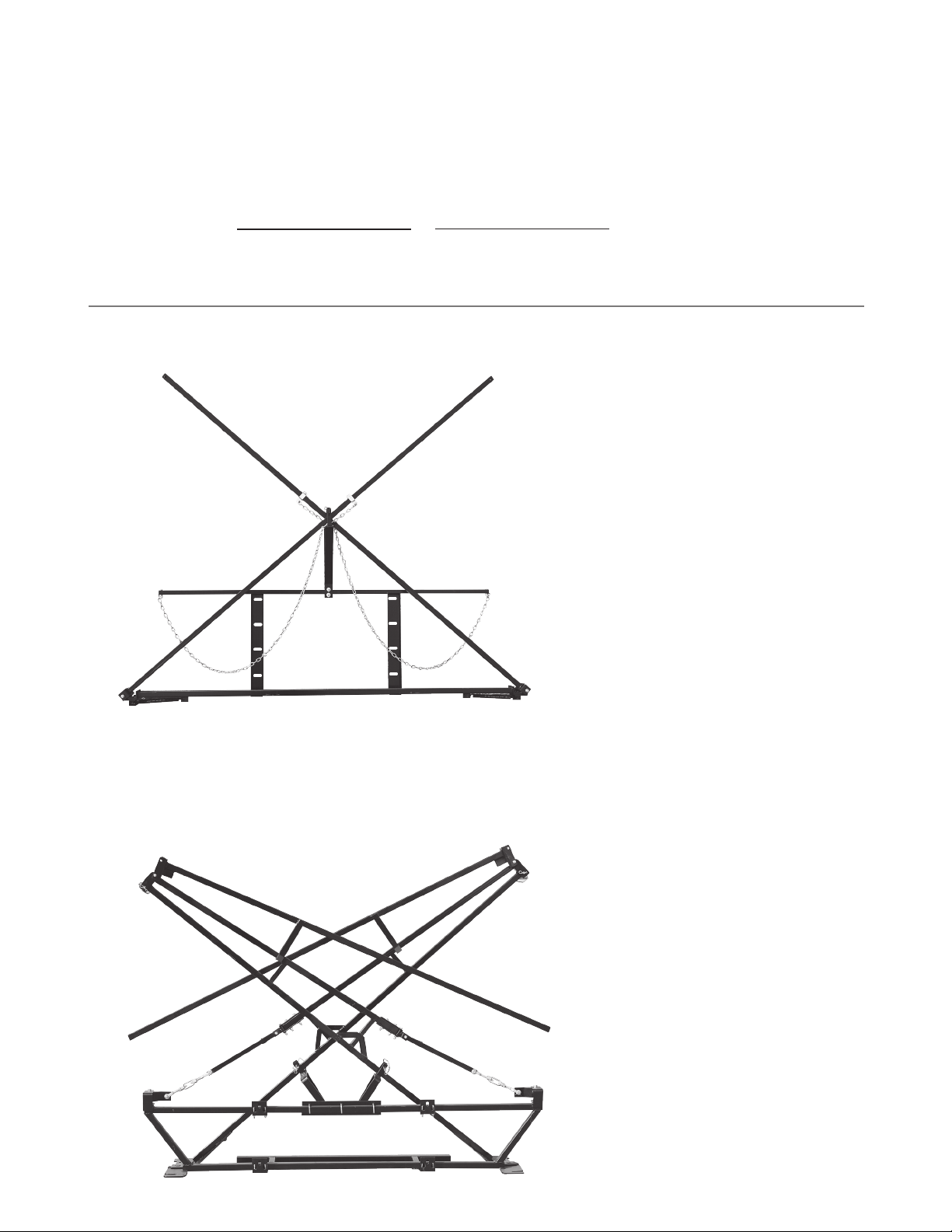

21’ and 28’ Booms
• Powder Coated Steel Frame
• 21’ or 28’ Breakaway Folding Booms
• Diaphragm Quickjet Nozzle Bodies
28’ and 35’ X-Fold Booms
• Powder Coated Steel Frame
• 28’ or 35’ Breakaway X-Fold Booms
• Diaphragm Quickjet Nozzle Bodies

PROBLEM
1. NO PRESSURE
2. PUMPS RUNS, BUT LOW PRESSURE
3. PUMP PRESSURE IS GOOD, BUT THERE
IS LOW OUTPUT THROUGH NOZZLES
4. EXCESSIVE VIBRATION OR NOISE
CAUSES & REMEDIES
A. Pump not properly primed.
B. Strainer clogged. Clean and/or replace.
C. Pump sucking air or pump has air lock.
Check hoses for cracks or holes. Make sure
fittings are tight. Centrifugal pump may
have air lock. Unscrew 1/8” plug from top
until water shoots out.
D. Suction line sucking together - replace with
stiffer hose.
E. Worn or leaking seals. Replace.
A. Suction line and fittings stopped up or hose
kinked. Check, all fittings and hose. Clean or
replace as necessary.
B. Worn rollers or impeller. Check and replace
as necessary.
C. Stopped up strainer. Check strainer. Clean
and replace if necessary.
A. Nozzle size may be too small. Check calibra-
tion and gallons per acre.
B. Outlet line too small or blocked. Inspect
line. Clean and replace if necessary.
C. By-pass is open too much. Inspect and close
off by-pass a little more.
A. Possible loose coupler or damaged shaft.
Check and reconnect/replace if necessary.
B. Excessive PTO or engine speed. Verify your
PTO and engine settings.
C. Impeller or internal problem. Inspect for is
sues. Call your Bestway Ag dealer for further
info or instructions.
TROUBLESHOOTING GUIDE

MAINTENANCE LOG
DATE: ACTION PERFORMED:
For your convenience, use the maintenance log below to record the date/time and maintenance actions
taken for the upkeep of your trailer sprayer. Keeping a detailed log will assist in trouble shooting, should the
need arise.
