Thank you for purchasing our products. Please read this manual carefully for
your correct operation of this equipment, and keep this manual for future
reference.
For your safety please don't open the rack to avoid electric shock due to high
voltage inside. Consult professionals for maintenance help.
Keep the equipment out of rain or humidity.
This equipment must work in places with good air flow.
Please check whether local voltage supply will meet the requirement of this
equipment.
Please pull out the plug when this equipment is not in use.
Load must be configured following this manual. Don't overload this equipment
.
PRECAUTIONS
Please make sure the local power supply is similar to what this appliance
requires ( ),and carefully check there is no any damage for 220V-240V ~ 50/60Hz
outlet and wire prior to operating the appliance.

7
9
10
10
3
4
5
6
8
CONTENTS
Introduction
Installation
Add itional
Instruction
Features
Front panel function instructions
Back panel function instructions
Network connection
FAQ
Safety Regulations
Specifications
Maintenance
4
Power cord connection
英文说明书
电子周边 版本 第3页 共11页
文件（图）号
三基音响科技有限公司
商品劳务号
物品规格
物品类别
物品名称
（图名）
三基/β3/PX128 PX136 PX128B(240V)

4
Please read this manual carefully before you begin to use this equipment, and
keep the manual for future reference.
FEATURES
It's a professional power sequence distributor, which can distribute mains
power into eight power outputs, and turn on/off every output power sequently,
to effectively reduce the power overload to the system, specially caters for large sound
reinforcement systems.
One main power input, six or eight controlled power outputs
Built-in processor, turn on clockwise, turn off anti-clockwise, available for
network connection, easy operation.
LED indication for each channel turn on/off
BYPASS switch and independent switch control for every channel.
INTRODUCTION

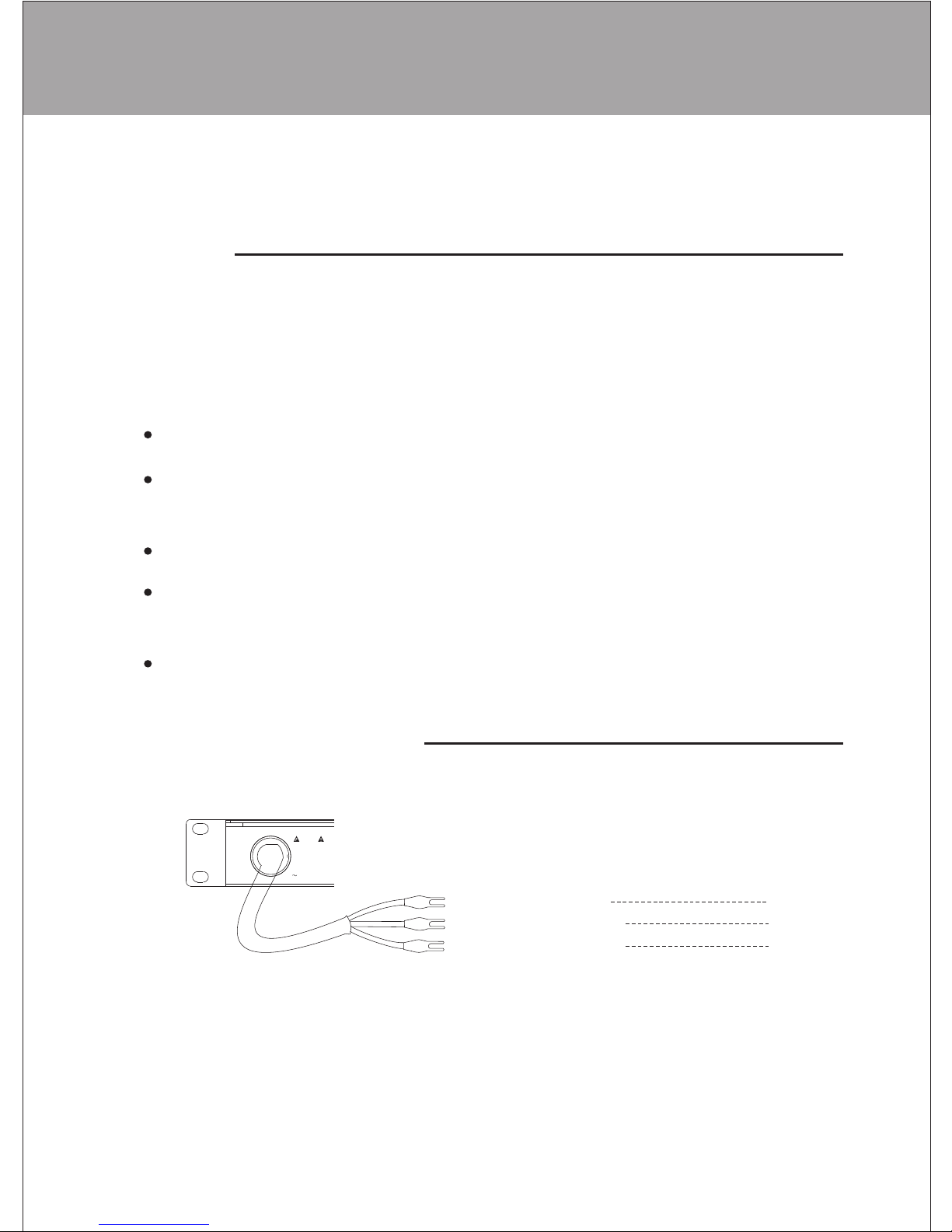

POWER CORD CONNECTION
Red sleeved cable L
N
G
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
220-240V
50-60Hz
Yellow sleeved cable
Green sleeved cable
英文说明书
电子周边 版本 第4页 共11页
文件（图）号
三基音响科技有限公司
商品劳务号
物品规格
物品类别
物品名称
（图名）
三基/β3/PX128 PX136 PX128B(240V)

5
POWER LINK
BYPASS ALL OFF CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
PROFESSIONAL
SEQUENCE POWER
PX128
ONE TOUCH ON
MAIN VOLTAGE

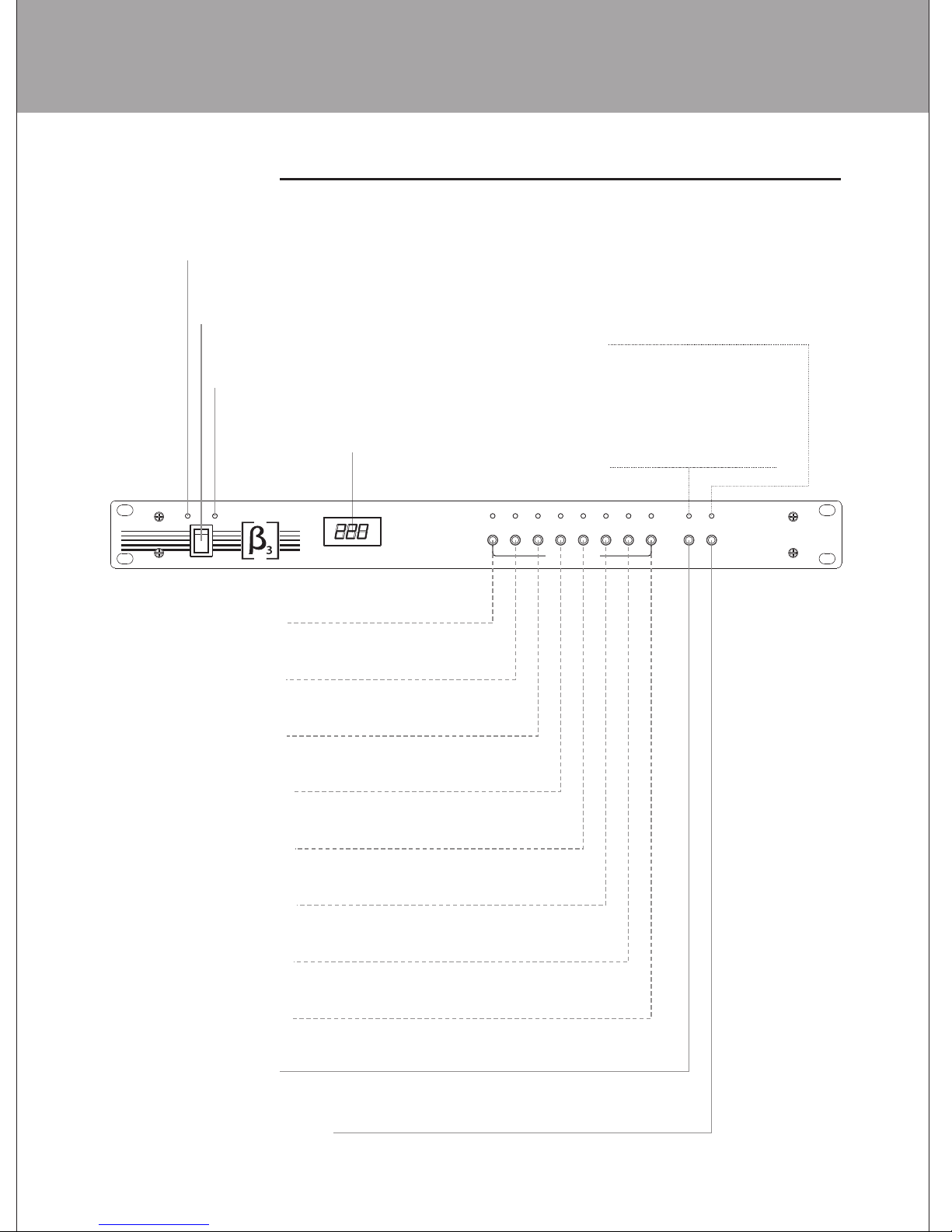

※ PX128 as example ( PX136 is same as PX128, except for 6 Channel)
1: Sequent turn on/off LED
The LED is active, when sequent switch is on.
2: Sequent switch control
Press switch, every power channel is connected
sequently
3: Network connection LED
The LED is active, when many systems are
connected at the same time.
4: Main power/voltage screen
Show main power/voltage
5: BYPASS switch LED
Press Bypass switch, Bypass
function is activated, and LED
is active
6: Main power switch LED
Press main power switch,
cut off all channels, the
LED is active
7:CH1----Switch
Press the switch can cut off power of this channel
independently.
8:CH2----Switch
Press the switch can cut off power of this channel
independently.
9:CH3----Switch
Press the switch can cut off power of this channel
independently.
10:CH4----Switch
Press the switch can cut off power of this channel
independently.
11:CH5----Switch
Press the switch can cut off power of this channel independently.
12:CH6----Switch
Press the switch can cut off power of this channel independently.
13:CH7----Switch
Press the switch can cut off power of this channel independently.
14:CH8----Switch
Press the switch can cut off power of this channel independently.
15: BYPASS switch
Press this switch, the function of sequent turn on/off is not available,
meanwhile switch on all power channels.
FRONT PANEL
FUNCTION INSTRUCTIONS
16: Main turn on/off switch
Press this switch, cut off all channels
英文说明书
电子周边 版本 第5页 共11页
文件（图）号
三基音响科技有限公司
商品劳务号
物品规格
物品类别
物品名称
（图名）
三基/β3/PX128 PX136 PX128B(240V)

6

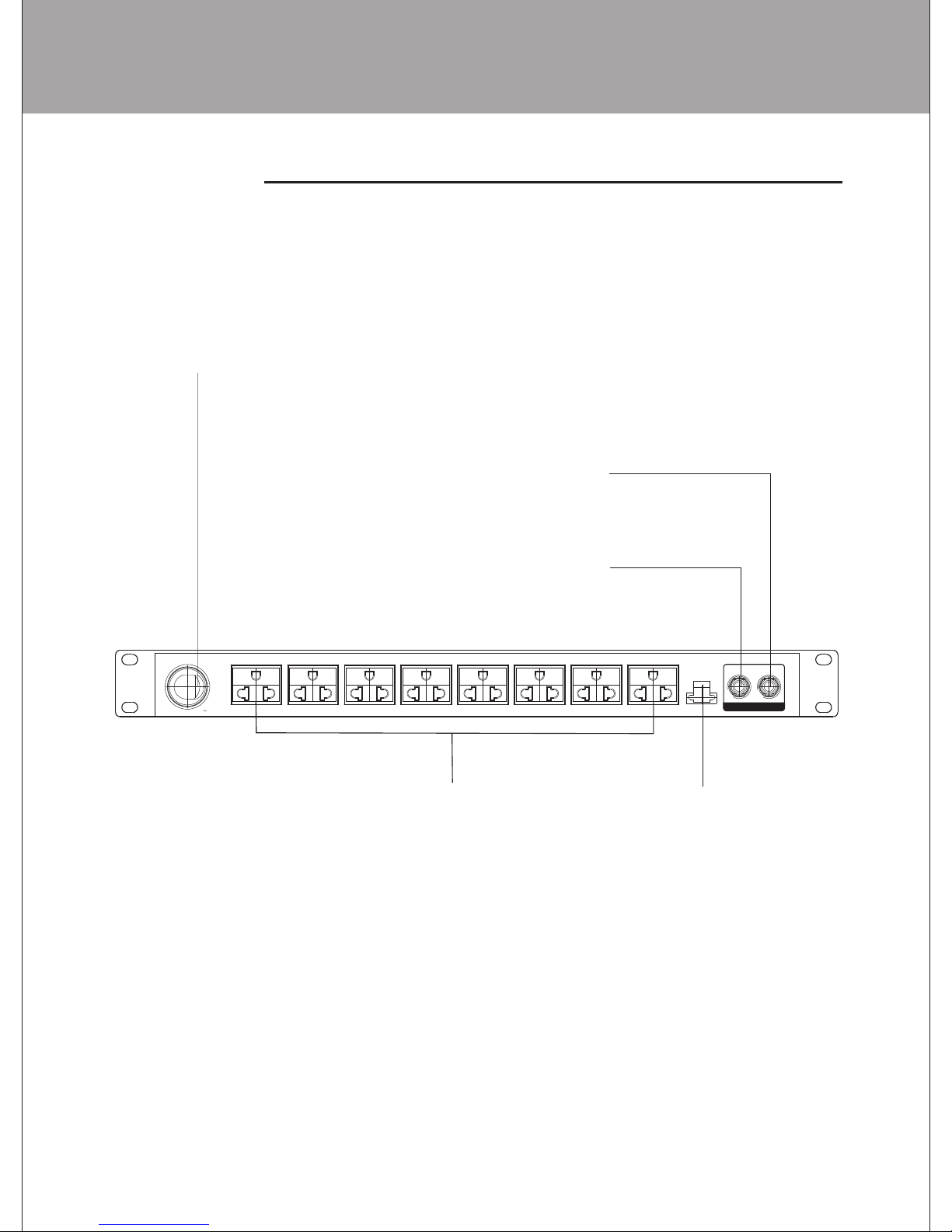

※ PX128 as example (PX136 is same as PX128, except for 6 Channel) and the remote control terminals.
BACK PANEL
FUNCTION INSTRUCTIONS
INPUT OUTPUT
LINK CONTROL
220-240V
50-60Hz
REMOTE
E
NL
EEEEEEE
CH 8 NL CH 7 NL
CH 6 NL
CH 5 NL CH 4 NL CH 3 NL CH 2 NL CH 1
1.Power in
(Please note if your local voltage is conformed to this instrument )
2.Parallel connection output socket
(When link, signal output from here)
3.Parallel connection input socket
(When link, signal input from here)
4.CH1-CH8 power distribution socket 5.remote control terminals
(It can control the sequencer
remotely with switch when
short-circuiting this terminal.)
英文说明书
电子周边 版本 第6页 共11页
文件（图）号
三基音响科技有限公司
商品劳务号
物品规格
物品类别
物品名称
（图名）
三基/β3/PX128 PX136 PX128B(240V)

7
E
NL
CH 8
INPUT OUTPUT
LINK CONTROL
E
NL
CH 8
INPUT OUTPUT
LINK CONTROL
E
NL
CH 8
INPUT OUTPUT
LINK CONTROL
INSTRUCTION OF PARALLEL CONNECTION CONTROL
1>Il lustration of Parallel connection
2>Remark:
Please turn off all the s when link parallel. After connection,
can use the first equipment to control all the s .
equence power distributor
equence power distributor
INSTALLATION
Sequence power distributor 2
( auxiliary)
Sequence power distributor 3
( auxiliary )
Sequence power distributor 1
( main )
2>Connection diagram of remote control terminal:
INPUT OUTPUT
LINK CO NT RO L
REMOTE
E
NL
CH 1
Remote switch
英文说明书
电子周边 版本 第7页 共11页
文件（图）号
三基音响科技有限公司
商品劳务号
物品规格
物品类别
物品名称
（图名）
三基/β3/PX128 PX136 PX128B(240V)

1
1
2
2
2
1
8
USUAL FAILURE AND EXCEPTION HANDLES
Failure No. Exception
Power indicated LED
doesn't light
Cannot be connected
parallel
Others
Check if the plug connect with the
power supply
equipment
Check if the power supply has the right voltage
Make sure to connect the link control cable before
power on
Check if the link connection is correct
Please check the settings and linking by
instruction
equipment
Please consult with your local specialist or browse
our website: www.beta3pro.com
ADDITIONAL INSTRUCTION
Please consult professional personnel for help if the aboven-mentioned
operation does not work.
英文说明书
电子周边 版本 第8页 共11页
文件（图）号
三基音响科技有限公司
商品劳务号
物品规格
物品类别
物品名称
（图名）
三基/β3/PX128 PX136 PX128B(240V)

9
DO NOT OPEN THE COVER：
Do not open the cover to avoid the risk of electric shock caused
by high voltage parts in the product. Any problems caused by
user's wrong actions are out of warranty.
AVOID OBJECT AND LIQUID ENTRY：
Take care that objects do not fall into and that liquids are not
spilled into the inside of the product . If the object or liquid enter
the product , please ask qualified personnel to check it.
Please hold the plug when pull out or plug Do not
pull out or touch the cord with wet hand, or it will cause the risk
of electric shock. Power supply cords should be routed so they
are not likely to be walked upon or pinched by items placed on
or against them. When removing the cord from a power outlet
be sure to remove it by holding the plug attachment and not by
in the cord.
pulling on the cord.
DO NOT DAMAGE THE POWER CORD：
SAFETY INSTRUCTIONS
ABNORMAL STATUS：
In the event of abnormal noise and smell, please put off
the power supply and pull out the cord, please ask
qualified personnel to check it.
NONUSE FOR A LONG TIME：
When nonuse it for a long time, please put off the power
supply and pull out the cord to avoid the unexpected
dangers.
ADDITIONAL INSTRUCTION
英文说明书
电子周边 版本 第9页 共11页
文件（图）号
三基音响科技有限公司
商品劳务号
物品规格
物品类别
物品名称
（图名）
三基/β3/PX128 PX136 PX128B(240V)

※
10
16KW
2KW
1s
220V-240V~50/60Hz
5Kg
6Kg
484×222×44.5 mm
555×310×78mm
One
：
：
：
：
：
：
：
：
：
：
：
PX128
SPECIFICATION
Total Max. Output (RMS)
Per Channel Max. Output (RMS)
Sequence Delay Time
Parallel Connection
Bypass Function
Voltage
N.W.
G.W.
Dimension (WxHxD)
Packing ( )WxHxD
User Manual
Parameters Subject To Change Without Notice
MAINTENANCE
The equipment can be cleaned with dry cotton cloth. If the equipment is
abnormally dirty, please clean it with a piece of cotton cloth dipped in detergent
for 5 to 6 seconds, and finally dry it with a dry cloth.
Don't use alcohol, insecticide, or any other volatile or corrosive liquid to clean
the equipment, which will cause colour fade or flake-off of the equipment surface.
When the equipment is not used for a long time, please keep it in an appropriate
dry place.
ADDITIONAL INSTRUCTION
available
available
16KW
2KW
1s
220V-240V~50/60Hz
5Kg
6Kg
484×222×44.5 mm
555×310×78mm
One
PX128B
available
available
18KW
3KW
1s
220V-240V~50/60Hz
5Kg
6Kg
484×222×44.5 mm
555×310×78mm
One
PX136
available
available
