Beta Three EC-2600U User manual

ED-B3-MA-070427-002
OUTPUT
INPUT
MUTE
DOWN
UP
DISPLAY
RECALL
/ENTER
DIGITAL SPEAKER CONTROLLER
MUTE MUTE MUTE MUTE MUTE MUTE MUTE
-6
-10
-20
-40
COMP
OVER
LOCK
IN-1
IN-2
HF
MF
LF
SLF
LIMITER
OVER
-6
-10
-20
-40 SLF
LF
MF
HF
IN-2
IN-1
-40
-20
-10
OVER
LIMITER IN-1
IN-2
HF
MF
LF
SLF
LIMITER
OVER
-6
-10
-20
-40 SLF
LF
MF
HF
IN-2
IN-1
-40
-20
-10
-6
OVER
LIMITER IN-1
IN-2
HF
MF
LF
SLF
LIMITER
OVER
-6
-10
-20
-40 SLF
LF
MF
HF
IN-2
IN-1
-40
-20
-10
-6
OVER
LIMITER
-6
PROGRAM
STATUS
REMOTE/ID
21 CBA D E F
POWER
Beta Three
C-2600U
Speaker controller andaudio processor
32bits floating-point DSP and digitalfilter arithmetic
Three-way stereo/six-way mono crossover or more kindsof config
DIGITAL SPEAKER PROCESSOR
C-2600U
Beta three
User Manual
R
28 27

CONTENT
1.
2.
2.1
2.2
2.3
3.
4.
5.
6.
7.
7.1
7.2
7.3
7.4
7.5
8.
8.1
8.2
8.3
9.
9.1
9.2
9.3
9.4
10.
11.
12.
13.
14.
PRECANTION
INTRODUCTION
Audio features
User interface
Other features
UNPACKING
AC POWER REQUIREMENTS
FRONT PANEL CONTROLFEATURES
REAR PANEL INTERCONNECT FEATURES
DISPLAYSAND OPERATION
Switching display mode
Indications and operations at lock
Display and operation during external control
To recall
Changing remote id
BUILT-IN SIGNAL PROCESSING
Input signal selecting block
Mater channel processing block
Output channel processing block
SYSTEM CONTROL SOFTWARE
How to get the software
Installing system control software
Connecting DEVICE to a computor
Application of software
TROUBLESHOOTING
SPECIFICATION
INSTALLATION RECORD
BLOCK DIAGRAM
DIMENSIIONS
1
2
2
2
2
3
3
4
5
6
6
7
7
7
8
9
9
9
9
11
11
11
11
12
20
21
22
24
24
DIGITAL SPEAKER PROCESSOR

|< >|
1
1> PRECARTIONS
NO!NO!
ABNORMAL PHENOMENA:
Please turn off the power and pull out the plug when
you find unusual sound or smell when operation.
POWER CORDS PROTECTION
Don't touch power cords with wet hands to avoid electric
shock.
Don't put the cords in crowded people.
KEEP AWAY FROM WATER ANDSUNDRY GOODS
DON'T OPEN THE COVER IF NOT GUIDED
BY AQUALIFIED ELECTRICIAN
PULL OUT THE POWER CORDSTO AVOID
FIRE WHEN YOU DON'T USETHIS UNIT.
DON'T OVERLOAD IT
DIGITAL SPEAKER PROCESSOR

|< >|
2
2> INTRODUCTION
Thank you for your purchasing of the DEVICE digital speaker processor. This processor builds on the advanced
and experienced ideas of design and marketing, the excellent audio performance and competitive quality/price
ratio make sure your interests.
This unit DEVICE , can provide two channel analog precise signal the precise digital control. She has audio
processor and audio management functions. It can be used to the middle/small sound reinforcement system. And
can be used a monitor to monitor to monitor the working issues. RS-485 PC port is provided for use with proper
software system. So it is fit for the large avenue systems. The front panel interface allows quick access to all
parameter by indication functions: Full control is also available via MIDI input and output jacks. Also indicate each
channel configure information (Sound resource, subwoofer, low frequency, middle frequency and high frequency).
Numeral remote ID or current users serial number. Setting ID or transfer user's program is available by touching
front panel buttons.
2.1 Audio Features
The DEVICE utilizes state of the art DSP technologies, beginning with 24bits, 64kHz delta-sigma A/D converters,
with 32 bits floating points DSP. Digital processing includes Gain, Polarity Invert, Parametric EQ, Shelving Filters,
Time Delay, Crossover Functions (Butter worth/Bessel/Linwitz), Compression, Limiting, and Signal Routing.
All inputs and outputs are precision balanced and RF protected using standard XLR connectors.
2.2 User Interface
Front panel interface:
LED dynamic indicate, Limiting function indication, Users Program configure indication.
Mute input/output indication button, Current program number and Unit ID indication.
Front panel operation/running, and Remote ID Changing function button.
Control system software:
The computer interface uses SYSTEM SOFTWARE for Windows98, which allows complete
PC control through an USB serial port. The system software is supplied with each unit,
or can be downloaded at no cost from the web site. Advantages of using the software
include greater preset capacity, and a very intuitive visual representation of the audio
routing and control process.
2.3 Other Features
Having 50 groups of configure programs, and accessory with audio equipment.
DIGITAL SPEAKER PROCESSOR

|< >|
3
3> UNPACKING
As a part of our system of quality control, every product is carefully inspected before leaving the factory to ensure
flawless appearance. After unpacking, please inspect for any physical damage. Save the shipping carton and all
packing materials, as they were carefully designed to minimize the possibility of transportation damage should the
unit again require packing and shipping. In the event that damage has occurred, immediately notify your dealer so
that a written claim to cover the damages can be initiated. The right to any claim against a public carrier can be
forfeited if the carrier is not notified promptly and if the shipping carton and packing materials are not available for
inspection by the carrier. Save all packing materials until the claim has been settled.
4> AC POWER REQUIREMENTS
Note:

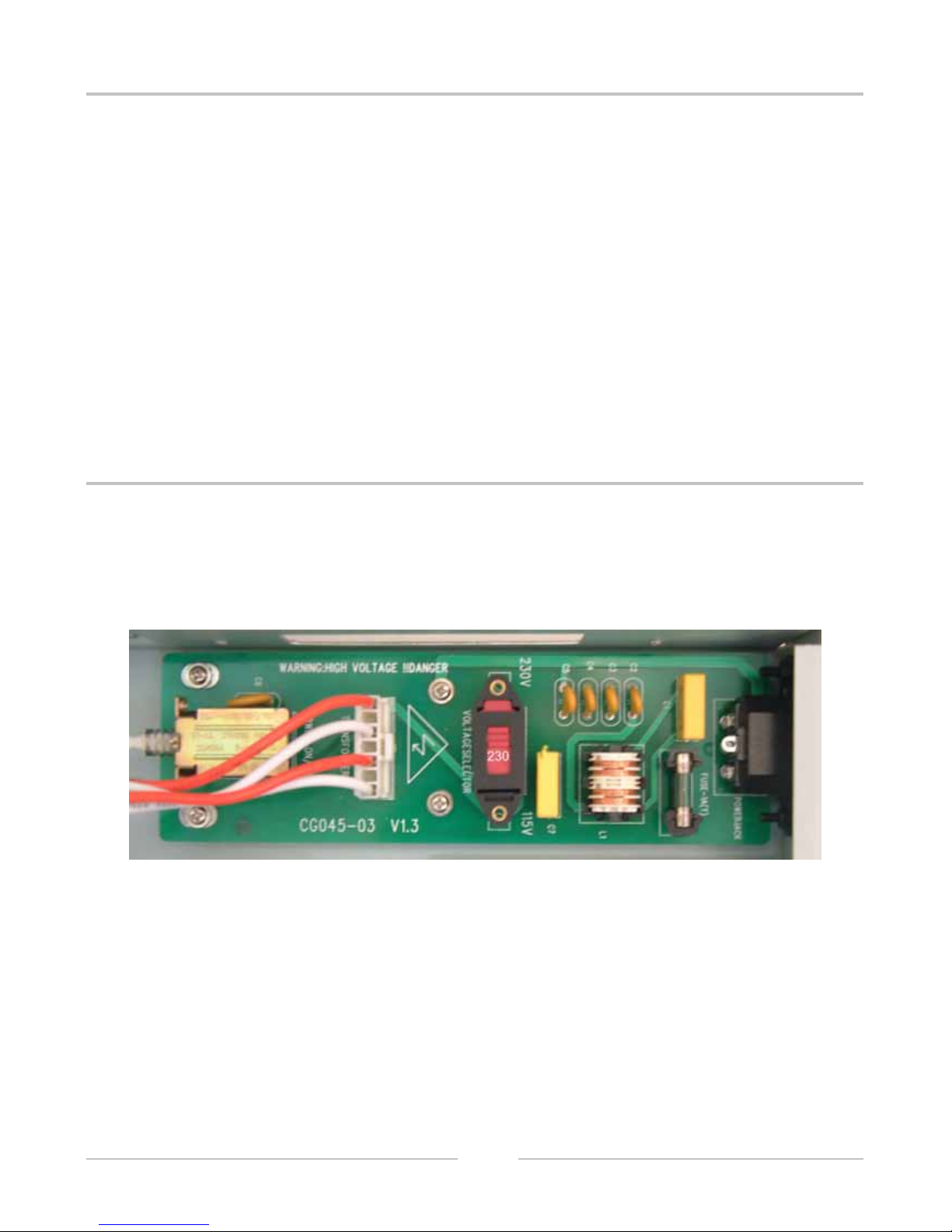

The 115V/230V switch is built in the DEVICE to avoid damage caused by wrong operation. The default set is 230V
before leaving factory. If the local voltage is 115V,please open the cover and set the switch at 110V under
disconnecting the ac. If the fuse is damaged, please replace the same type and rating fuse.
Instruction:
The show on the switch is standard. As above diagram, the show is 230V on switch, it means the current
ac voltage is 230V.
DIGITAL SPEAKER PROCESSOR

|< >|
4
5> FRONT PANEL CONTROL FEATURES
Power switch
To turn the power on/off. When the unit is turned on, the previous signal setting is recalled.
Input channel 1 mute button:
Press the button, the red LED on the left lights up, the input is muted. The output from Channel 1 has
not the signal output, but at the same time, input level dynamic range still shows the real input status.
Input channel 2 mute button:
Press the button, the red LED on the left lights up, the input is muted. The output from Channel 2 has
not the signal output, but at the same time, input level dynamic range still shows the real input status.
Output channel mute button:
press the button, the red LED on the left lights up, the output is muted, A-F channel have not output, and
the level dynamic range LED will be off.
Enter/recall button
When the ROGRAM indicator lights up, press the ENTER/RECALL , number display shows the
current program number, output channel LED show the channel status. Use the UP and DOWN
buttons to find the needed program, press the ENTER button and recall the program.If you want to
cancel the recalling, press DISPLAY button under the sparkling status.
Display button
UP button
DOWN button
Output channel peak limiter indicator
Front panel lock indicator
Status indicator
Program number or ID number display
Input channel level dynamic indicator
Output channel level dynamic indicator
Remarks:
Unit of level indicator
OVER:

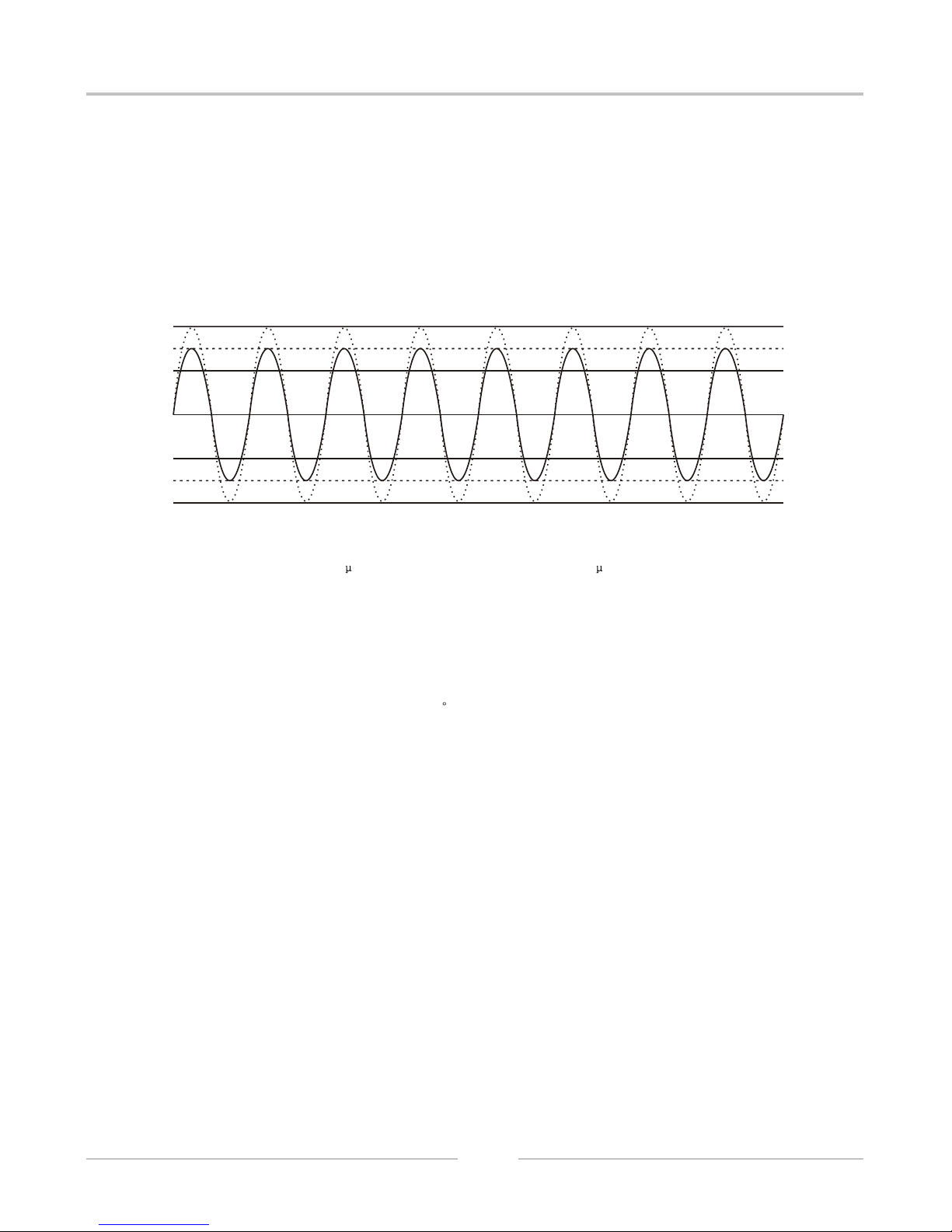

lights up when the wave reaches digital's full scale(the clipping level). You need to lower the level when it
lights up often.
-6,-10,-20,-40:
Indicates the level in decibels(0dBFS) on digital full scale.
OUTPUT
INPUT
MUTE
DOWN
UP
DISPLAY
RECALL
/ENTER
DIGITAL SPEAKER CONTROLLER
MUTE MUTE MUTE MUTE MUTE MUTE MUTE
-6
-10
-20
-40
COMP
OVER
LOCK
IN-1
IN-2
HF
MF
LF
SLF
LIMITER
OVER
-6
-10
-20
-40 SLF
LF
MF
HF
IN-2
IN-1
-40
-20
-10
OVER
LIMITER IN-1
IN-2
HF
MF
LF
SLF
LIMITER
OVER
-6
-10
-20
-40 SLF
LF
MF
HF
IN-2
IN-1
-40
-20
-10
-6
OVER
LIMITER IN-1
IN-2
HF
MF
LF
SLF
LIMITER
OVER
-6
-10
-20
-40 SLF
LF
MF
HF
IN-2
IN-1
-40
-20
-10
-6
OVER
LIMITER
-6
PROGRAM
STATUS
REMOTE/ID
21 CBA D E F
POWER
C-2600U
123
1018 19 19 19 19
14141414 14 14
19 19 1618
49 111715
12
13
Note:
When the operation on front panel is locked(the LOCK indicator lights up ) or when connecting with PC, all the
buttons is not available.
1.
2.
3.
4-9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
DIGITAL SPEAKER PROCESSOR
Beta Three
R

|< >|
5
6> REAR CONNECTING FEATRUE
1. Analog input terminals(IN-1,IN-2)
Connector: XLR-3-31
1GND2HOT3COLD
Circuit: Electronic balanced circuit
Maximum input level:+20dBu
12
3
4. Pare signal switch(BGM SWITCH)
Control voltage:DC+5V-+48V
Connecting: terminal board,
tight the screw
Action status: the voltage on two terminals>
5V DC,input switch to BGM, or
the In1 and IN2 are available
2. Analog output termainals
(A.B.C.D.E.F)
Connector: XLR-3-32
1: GND, 2: HOT, 3: COLD
Circuit: Electronic balanced circuit
Maximum input level:+20dBu
1 2
3
3. Spare signal input terminal(BGM)
Connector: 6.35 big three cores jack
1: GND, 2: HOT, 3: COLD
12
3
~ AC IN
IN OUT
RS485
21
ANALOG INPUT
FEDCBA
ANALOG OUTPUT
BGM
SWITCH
USB
BGM
12
36754
6. Remote control input terminal
(RS-485)
1GND
2A+
3B-
12
3
7. Remote control onput terminal
(RS-485)
1GND
2A+
3B-
12
3
8. Power input terminal
input voltage: Refer to 4
5. Control interface
(standard USB port; support USB2.0)
DIGITAL SPEAKER PROCESSOR

|< >|
6
7> DISPLAY AND OPERATIOIN
When PROGRAM is lit:
The number display indicates the current program number and each output channel
indicator indicates output level at that output;
When OUTPUT STATUS is lit:
The number display indicates the current program number and each output channel
indicator indicates output assignment status.
When REMOTE/ID is lit:
The number display indicators REMOTE ID number and each output channel indicator
indicates the level.
OUTPUT
INPUT
MUTE
DOWN
UP
DISPLAY
RECALL
/ENTER
MUTE MUTE MUTE MUTE MUTE MUTE MUTE
-6
-10
-20
-40
COMP
OVER
LOCK
IN-1
IN-2
HF
MF
LF
SLF
LIMITER
OVER
-6
-10
-20
-40 SLF
LF
MF
HF
IN-2
IN-1
-40
-20
-10
OVER
LIMITER IN-1
IN-2
HF
MF
LF
SLF
LIMITER
OVER
-6
-10
-20
-40 SLF
LF
MF
HF
IN-2
IN-1
-40
-20
-10
-6
OVER
LIMITER IN-1
IN-2
HF
MF
LF
SLF
LIMITER
OVER
-6
-10
-20
-40 SLF
LF
MF
HF
IN-2
IN-1
-40
-20
-10
-6
OVER
LIMITER
-6
PROGRAM
STATUS
REMOTE/ID
21 CBA D E F
POWER
Beta Three
7.1 Switching display mode
You can change the display mode by pressing the display button in turn.
The Display mode indicator shows the current display.(Not available during
external control)
PROGRAM
STATUS
REMOTE/ID
LOCKLOCK
IN-1
IN-2
HF
MF
LF
SLF
-40
-20
-10
-6
OVER
LIMITER
A
IN-1
IN-2
HF
MF
LF
SLF
-40
-20
-10
-6
OVER
LIMITER
A
Output level indication:
Indicates signal levels of each output after all signal processing.
Output level correspond to the level scale printed at the left side of the indicator.
When OVER is lit for a long time: means that the signal is too big, can lower the input
signal;
When LIMITER is lit: means the compressor is working.
Indicates simply which output channel is fed by which input channel and the output
frequency range based on the setting of filter cut-off frequencies.
This function helps prevent speaker from being damaged as you can make sure of each
output's status when you operate RECALL or connect an amplifier and loudspeaker.
The print at the right side of the LED show each indication's meaning as follows:
IN-1,IN-2
Indicates which input's signal is the sound source. When both indicators
light up, it indicates monomixed signal is the sound source.
HF,MF,LF,SLF
Indicates the frequency range of each output channel:
HF : High Frequency; Lights up when frequen cies>=1KHz;
MF : Middle Frequency; Lights up when frequencies from 500Hz to 1KHz;
LF : Low Frequency. Lights up when frequencies from 100Hz to 500Hz;
SLF : Super Low Frequency; Lights up when frequencies<=100Hz.
Output status indications:
DIGITAL SPEAKER PROCESSOR
DIGITAL SPEAKER CONTROLLER
C-2600U
R

|< >|
7
To assure the use security by using an external computer(need to install control software of this processor), you
can disable RECALL and REMOTE/ID operation with the unit, and then LOCK indicator lights up.
You can operate without using an external computer to LOCK and release LOCK of the unit
To LOCK
1). Turn off the power,
2). Turn on the power with keeping pressing UP button.(Sound is not output),
3). LOCK lights up while digital transistor display normal No., move away your hand from UP ,
Auto panel operation is prohibited and come to normal working status.
To release LOCK
1). Turn off the power
2). Turn on the power with pressing DOWN button.
3). LOCK lights down while digital transistor display normal No., move away your hand from
DOWN, Auto panel operation open and come to normal working status.

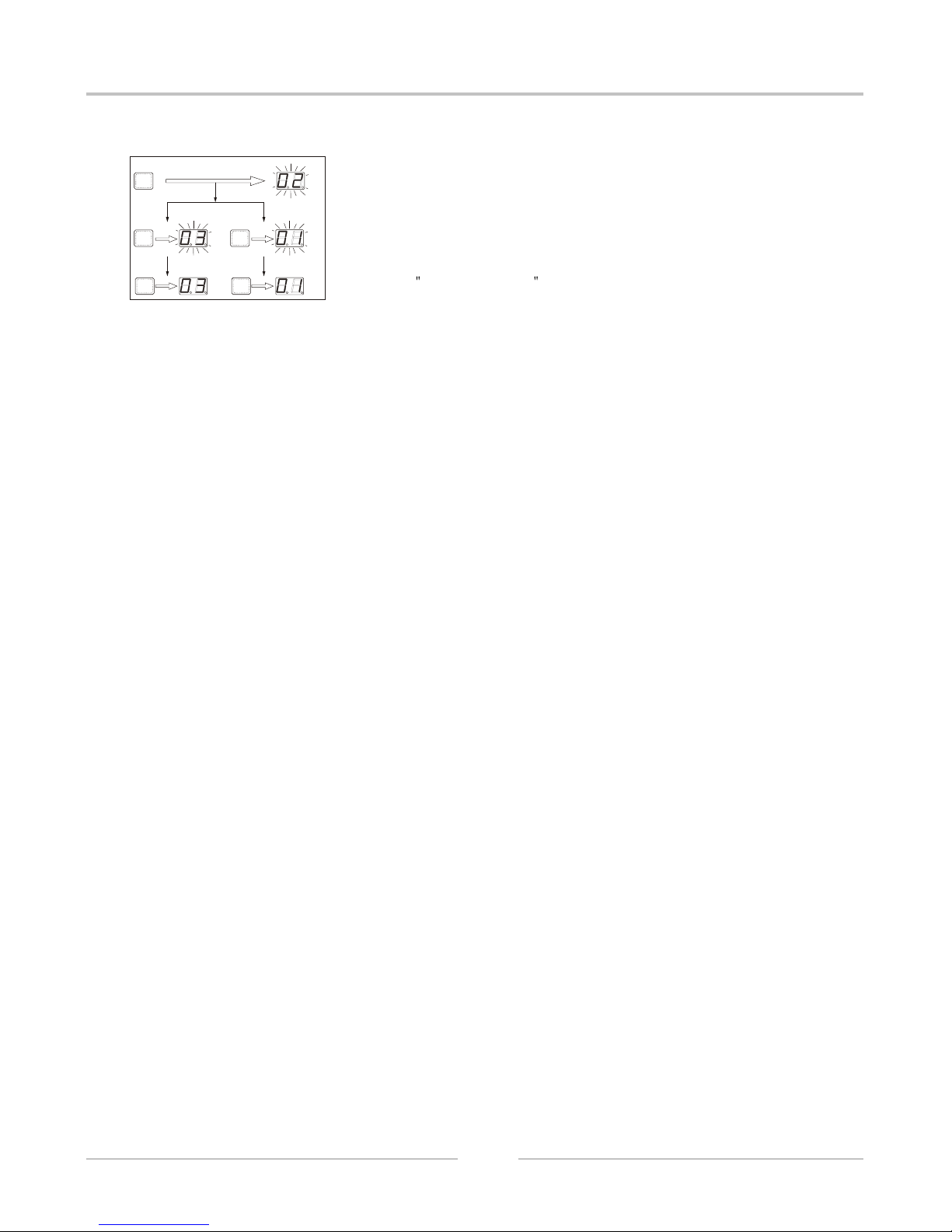

RECALL of stored programs with the unit is as follows,
1). Press RECALL/ENTER button while while PROGRAM indicator lights up.
Then the currently set program number flashes and each output channel
indicator turns to flash simultaneously, meaning that it is ready for setting
output status.(Program will not be changed until step 3),
2). Select program number you to RECALL output indicating the program
arrangement information with UP and DOWN,
3). Press RECALL/ENTER button.The program number will stop flashing and
display the newest programs' Number.
7.2 Indications and operation at LOCK
7.3 Display and operation during linking to computer
You cannot use buttons on the front panel while you control with an external
computer. In this case, indicator of LOCK at DISPLAY mode indicator light up.
The number of the display indicates the current program number.
PROGRAM
STATUS
REMOTE/ID
LOCKLOCK
Attention:
1). You can press DISPLAY button to cancel while digital transistors display, the mode will be back to the normal
status before starting RECALL,
2). Program NO. inside without save will not display,
3). RECALL operation is impossible if you press RECALL/ENTER when there is no RECALL-capable program.
Also, any stored programs which are set RECALL LOCK are never displayed. (use an external computer to
set and release RECALL LOCK.),
4). When the LOCK indicator is lit, RECALL operation is impossible.
7.4 RECALL : Transferring program
RECALL
/ENTER
DOWN
UP
RECALL
/ENTER
RECALL
/ENTER
DIGITAL SPEAKER PROCESSOR

|< >|
8
7.5 Changing remote ID
REMOTE ID is preset at factory to 01. It can only be changed by operating
from the panel:
Press DISPLAY button. Then REMOTE/ID indicator lights up and currently
selected number displays set number displays,
Press UP or DOWN button repeatedly until the number you want appears.
When you keep pressing them. The number gains or loses continuously,
Press RECALL/ENTER button, confirm the changing and display the
latest ID code.
RECALL
/ENTER
DOWN
UP
RECALL
/ENTER
RECALL
/ENTER
1).
2).
3).
DIGITAL SPEAKER PROCESSOR

|< >|
9
8> BUILT-IN SIGNAL PROCESSING
Signal Processing Block and procedure Chart ( go to 13 for reference).
8.1 input signal selecting block
Select the combination of 2 analog channels ( IN1+IN2) and 2 digital channels ( IN1,IN2).
8.2 Master channel processing block
1). 11-band parametric equalizer
EQ Type : (parametric equalizer type): Select one of Peaking/ bandpass/hi-shelf/lo-shelf/notch;
Frequency : Adjustable in a range of 20Hz-20kHz, at 1/12 oct steps and from 121 points.
Level : As for peaking and shelving, adjustable in a range of + 12.0dB and at 0.5dB steps.
Q : As for peaking, bandbass and notch, adjustable in 73 levels in a range of Q =0.31-19.4
Gain : Ajustable in a range of oo + 12.0dB at 0.5dB steps;
PEQ Link : You can link IN1 & IN2 by linking command, and adjust and influenced PEQ & Gain.
2). Master channel delay compressor
Can be adjusted with 15.515 sec steps up to 0-2.034 seconds.(15.515 sec is equal to
sound transfers to 5.275mm in air)
8.3 Output channel processing block
Each output channel is identical and can to be set independently.
1). Selecting the input signal
You can select the input source from master 2 channels from following 3 patterns.
IN-1 : Master IN-1 channel signal
IN-2 : Master IN-2 channel signal
IN-1+ IN-2 : Mono-mix signal of master 2 channels
2). Crossover filter (LCF,HCF)
Selectable OFF for both LCF and HCF. Also it allows to be used for a 2input/6output signal Distributor.
Frequency: Adjustable in a range of 20-20kHz, at 1/12 oct steps and from 121 points.
Filter type:
(1) 2nd order Butterworth(-12dB/oct slope)
(2) 3rd order Butterworth(-18dB/oct slope)
(3) 4th order Butterworth(-24dB/oct slope)
(4) 5th order Butterworth(-30dB/oct slope)
(5) 6th order Butterworth(-36dB/oct slope)
(6) 2th order Bessel(-12dB/oct slope)
(7) 3th order Bessel(-18dB/oct slope)
(8) 4th order Bessel(-24dB/oct slope)
(9) 5th order Bessel(-30dB/oct slope)
(10) 6th order Bessel(-36dB/oct slope)
(11) 2th order Linkwitz-Riley(-12dB/oct slope)
(12) 4th order Linkwitz-Riley(-12dB/oct slope)
DIGITAL SPEAKER PROCESSOR

|< >|
10
3). 3-band PEQ
4). Channel Level
5). Peak Limiter.
6). DELAY
7). Phase
8). Muting
9). Domain of output channel link
It offers 3-band PEQ for each output channel.
Each parameter of 3-band PEQ is same as the PEQ of master channel processing block.
Adjustable in 0.5dB steps over a range of oo -- +12.0dB.
Include Instantaneous waveform transformation type peak limiter in each channel. It can be set over a range
of -24.0dBFs+2dBFs, OFF at 0.5dB steps. When signal reaches the limiting level, the limiter indicator is lit.
Following is the chart before processing (narrow line) and after processing (wide line).
Real line: before processing Broken line: after processing
Capable adjust with 15.515 sec steps at 0- 2.034seconds ( 15.515 sec is equivalent to approximately
5.275mm in the speed of sound.
NOTE:
The minimum delay time between input and output while using an analog input/output is about 1.2msend
when delay time is set at 0. This delay is caused by signal's passing through A/D, D/A converter and the
signal processor.
Capable of switching normal or inverse (180 ).
Capable of setting for each channel.
Except Muting and source of invoice is individual setting everlasting, Parameter of other channels can be
adjustable by link.
DIGITAL SPEAKER PROCESSOR

|< >|
11
9> SYSTEM CONTROL SOFTWARE
This facility offers a mult-functional software control panel, which controls Max 50 equipments, and it equips lots of
relative documents and allow users to put into practice concretely and quickly.
9.1 How to get this software
The software is stored in the disc. of course, you can also down load the latest version of this software and
more our company's optimize collocated files and practical useness.
9.2 Installation of the software
System requirement: Window98 or above operation systems. Distinguish of clearance at 800*600 or above,
have at least a USB serial interface . Play the installation program DEVICE on the disc, and finish the steps
of the instruction installation procedures
9.3 Facility and the connection of computer
System demand: Windows98 operation systems or above, Distinguish of clearance at 800*600 or above.
Have at least a USB serial port . Play the installation systems DEVICE on the disc, and finish the steps of the
instruction installation procedures.
Use a computer installing control software , then it can control the facilities on RS485, and by USB which can
connect into any facility on the net( The connecting facility to computer play the role as the general line of
transistors of USB and RS485.
#01 #02 #03 #49 #50
RS485 Bus
Computer
OUTPUT
INPUT
MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE
LOCK
OUTPUT
INPUT
MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE
LOCK
OUTPUT
INPUT
MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE
LOCK
OUTPUT
INPUT
MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE
LOCK
RS485 Bus RS485 Bus RS485 Bus
DIGITAL SPEAKER PROCESSOR

|< >|
12

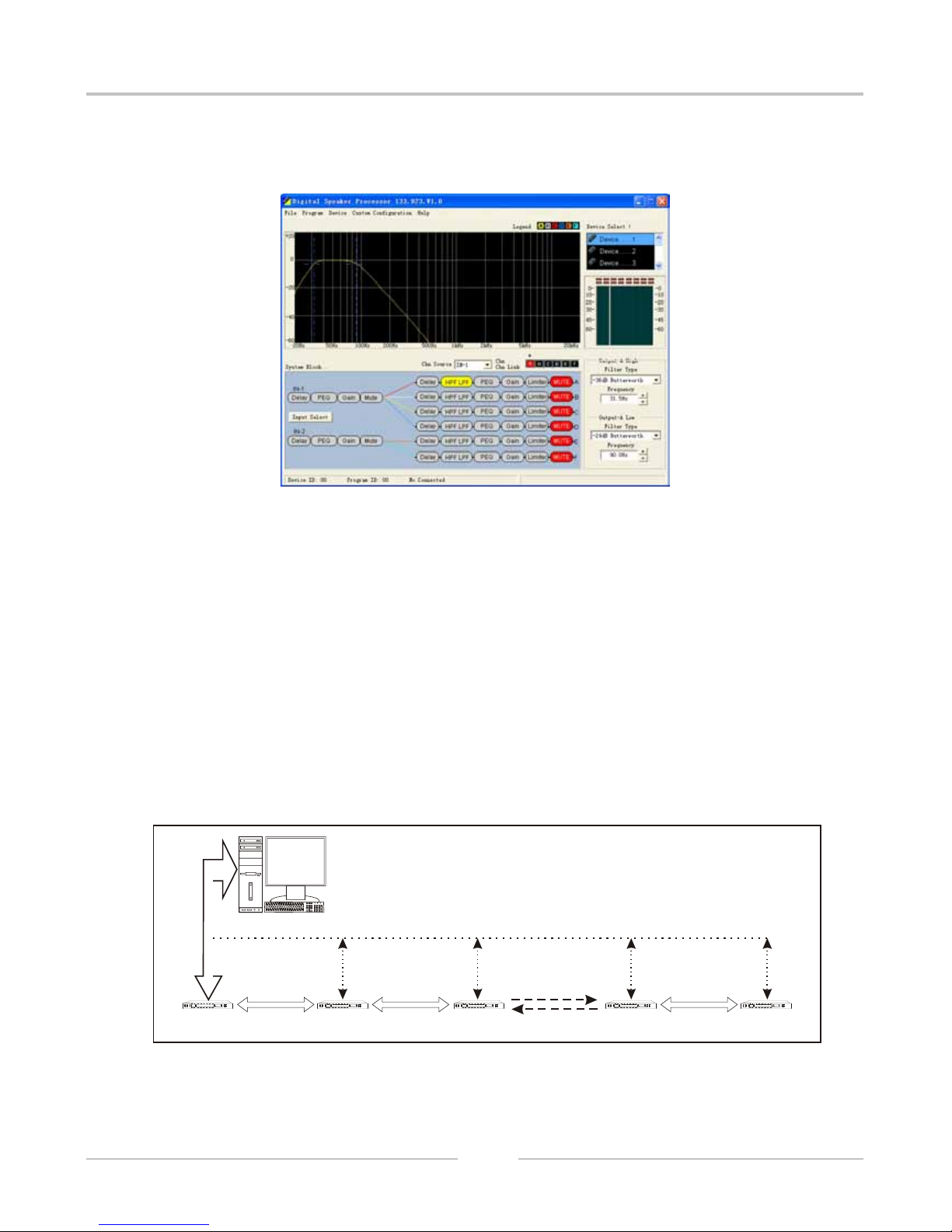

9.4 Using of the software
When you finish the installation , run the controlling software and it will display the following page:
1). Display of status: Device ID. Program ID, Serial Port,
2). Indication of communication between this facility and computer: It displays OK normal communication, or
ERROR for unmoral,
3). By different colors to identify the 13th curve of frequency response,
4). Device list, 2 times press No. of the device , then being ready to connect, and display the following interface:
5). Input channels IN1, IN2 and output channels OUT-A, B ,C D,E,F indication of electric level,
6). Indicate the currently adjustable output channels( *marks) and connection status among all channels , one time
press this area,
7). Parameters' adjustable areas, different parameters to different adjustable methods/types,
DIGITAL SPEAKER PROCESSOR
[ Before connect, there have two option: Download data from PC to DEVICE---Indicate that download data have
configed in computer, But only load into RAM. If to save datas, you should process the save operation(in Program
menu); Upload data from DEVICE to PC indicate that load the current program using in device into PC to review or edit ]
If online, press this device then show the "Disconnect with this device" information to process offline command.
4
3
5
6
7
1
13
12
11
15
14
89-10
2

|< >|
13

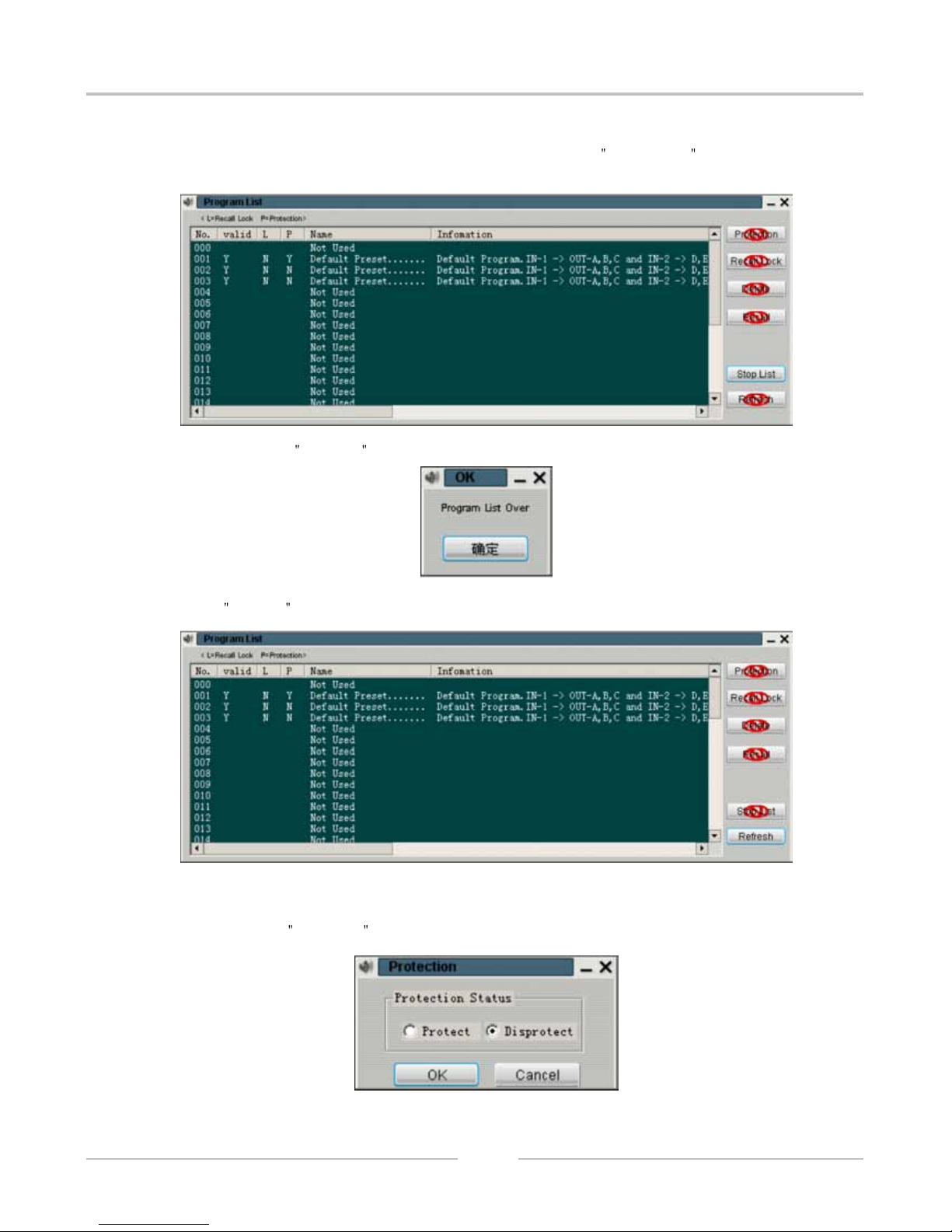

8). Program Operation Menu (effective only on line), after click, if choose program List order, then you can
see the following interface:
after listing(Press Stop List during the listing, the Program List will end )show:
Press Confirm , then Show:
Red Marks on the right of button, Show no operation.
Protection: If set Protection ,the program can not be revised or covered.
DIGITAL SPEAKER PROCESSOR

|< >|
14
Recall Lock: Prohibit/ Permit to transfer the program via the panel key, if set rohibit ,you can not see the
program on the Panel ,and even can not transfer the program..
If choosing Program Restore order :
Delete: the program protected will not be deleted
Recall: Press the Recall order, will implement the operation of Transferring Program, and set the choosing
program as the current using program.
Stop List: Stop List Order only will be used in implementing List Program.
Refresh: Refresh Order only will be used in after List Program ending.
Save the current program to program number designated, if choosing the New Program ,and automatically use the
new program number ,which is not being used, or otherwise save to program number designated. You may press
Modify to revise the program name and program information , and enter the contents in the Program Name
column and Program Information Column respectively , after finishing, please press Modify Confirm to save.
DIGITAL SPEAKER PROCESSOR

|< >|
15
9). Save the current configuration program to file, and click to show the following interface:
10). Open the program file in the computer, and click to show the following interface:
Choose the file, and press Open Button
11). Signal processing procedure ,Function Module, Parameter Adjustment range
11.1 Enter mode choosing: (1) analog 2 Channel (2) Analog Mono Mix: IN1+IN2
DIGITAL SPEAKER PROCESSOR

|< >|
16
11.2 Delay Adjustment Interface
Right corner is the Delay Adjustment Interface, if change the delay time, and the interface shows the
delay distance accordingly(Sound speed=340m/s).
11.3 PEQ Adjustment Interface
You can set PEQ Open/ Close and Link
Attention: Link setting is also effective to Enter Channel Gain.
Only press the button ,which show the Filter Curve accordingly, you can adjust the parameter ( Filter
Tyye, Central Frequency,Q/Bandwidth, Gain/Level).
DIGITAL SPEAKER PROCESSOR

|< >|
17
11.4 Input Channel Gain Adjustment Interface:
11.5 Input Channel Silence , press Mute , and turn red to show the state of Mute, otherwise ,
it is no Mute.
11.6 Output Channel Crossover setting Interface:
The above part is High Pass Filter ( cut low frequency), the under part is Low Pass Filter
(cut high frequency ).
DIGITAL SPEAKER PROCESSOR
1
2

|< >|
18
11.7 Output Channel Peak Limit Adjustment Interface
Adjustment Range :-24.0db +2.0db,OFF, 0.5db for each step.
12). Current output channel sound source choosing ( Choosing IN-1,IN-2,OR IN-1+IN-2)
13). Frequency Response Curve showing range, Show the PEQ curve of the main channel IN-1,IN-2 and the
Output Channel, and the curve of the HPF / LPF .
14). Click the button with mouse and then show the following interface.
11.8 Output Channel Mute ,setting same as the INPUT CHANNEL.
DIGITAL SPEAKER PROCESSOR
