BETCO FiberCAP 15 User manual

1
Operator Manual
E29974
FiberCAP™15
15” Carpet
Cleaning Machine
400 Van Camp • Bowling Green, Ohio 43402
Customer Service: 888-GO-BETCO • Fax: [phone] • Technical Service: 877-856-5954 • www.betco.com

2
Immediately check, when receiving the machine, that all the materials indicated on delivery documents have been received and
also that the machine has not been damaged in transit. If it has been damaged, this damage must be immediately reported to
the shipper and also to our customer service department. Only acting promptly in this manner will make it possible to receive
missing material and to be compensated for damage.
INTRODUCTION
This is a carpet cleaning machine which, via the mechanical action of
the rotating brush can clean many types of carpeted flooring.
The machine must be used only for this purpose.
Even the best machines will only work well if used correctly and kept
in good working order. We therefore suggest you read this instruction
booklet carefully and re-read it whenever difficulties arise while using
the machine. Please contact our technical service department or your
dealer if you have any questions about the machine.
TABLE OF CONTENTS
RECEIVING THE MACHINE
RECEIVING THE MACHINE.................................................................................................. 2
TECHNICAL SPECIFICATIONS............................................................................................. 2
GENERAL SAFETY REGULATIONS...................................................................................... 3
MACHINE PREPARATION...............................................................................................4 - 6
USE AND MAINTENANCE TIPS........................................................................................... 7
PARTS DIAGRAMS AND LISTINGS..............................................................................8 - 11
WARRANTY ...................................................................................................................... 12
Working Width in (mm) 15 (381)
Work Capacity ft2/hr (m2/hr) 7,500 (697)
Brush Speed RPM 380
Machine Only Weight Lbs (kg) 40.95 (18.6)
Machine and Trolly Weight Lbs (kg) 44.95 (20.4)
Power Supply V/Hz 110/120 and 50/60
Machine Only Dimensions (Width/Depth/Height) in (mm) 17.5 (445)/9.0 (229)/45.75 (1162)
Machine and Trolly Dimensions (Width/Depth/Height) in (mm) 23.0 (584)/13.5 (343)/50.0 (1270)
TECHNICAL DESCRIPTION Measurement Unit FiberCAP™15
SPECIFICATIONS

3
The regulations below must be carefully followed in order to avoid harm to the operator and damage to the machine.
• Read all labels on the machine carefully. Do not cover them for any reason and replace them immediately if they become
damaged.
• The machine must be used exclusively by authorized and trained personnel.
• When operating the machine be careful of other people.
• The power cable outlet must be provided with a proper ground.
• Avoid damaging the power cable by crushing, bending, cutting or stressing it.
• Whenever the power cable is damaged, immediately contact a BETCO service center.
• Do not set containers on the machine.
• Machine storage temperature is between -10°F and 130°F, never store outside under humid conditions.
• Operating conditions: room temperature between 33°F and 100°F with relative humidity between 30% to 95%.
• Only use the machine in closed areas and do not expose it directly to rain.
• Never use the machine in an explosive environment.
• Do not use the machine as a means of transport.
• Never use acidic chemicals which could damage the machine.
• Avoid running the brushes with the machine stopped; this could damage the floor.
• Never vacuum up flammable liquids.
• Never use the machine to gather dangerous powders.
• Use a powder fire extinguisher in case of fire. Do not use water.
• Do not hit against shelving or scaffolding. The operator must always be equipped with the appropriate safety device
(gloves, shoes, helmet, glasses, etc.)
• If the machine does not work properly, perform routine maintenance. Otherwise, request the assistance of the BETCO
technical service.
• When replacing parts ask for ORIGINAL spare parts from your Authorized BETCO Dealer and/or Retailer.
• Always turn off the machine and disconnect the power supply whenever maintenance is performed.
• Never use the machine without side guards or dust collection bins secured to the machine.
• Never wash the machine with direct or pressurized jets of water or with corrosive substances.
• Have your BETCO service center check the machine once a year.
• Before using the machine make sure that all doors and covers are positioned as shown in this operating and maintenance
manual.
• When your BETCO machine is ready to be retired, the machine must be disposed of properly. It contain oils and electronic
components. The machine was built using totally recyclable materials.
• Use only brushes furnished with the machine or those specified in the user's manual. Use of other brushes can
compromise safety.
GENERAL SAFETY REGULATIONS

4
1. ASSEMBLING THE HANDLE
The handle assembly is comprised of four individual parts.
A. Install the main cross bar onto the machine by pulling the finger pins
outward on both sides and locking them into the handle mounts of the
machine.
B. Insert the open end of both handle uprights into the cross bar.
C. Insert the open end of the round handle bar into each of the handle
uprights.
2. SIDE SHIELDS
Be sure the machine is not plugged in when performing this installation.
A. Place the open end of the teardrop hole over the mounting pins.
B. Slide the side shield to the right until the center spring pin locks it into place.
C. Repeat this installation on the other side of the machine.
3. ASSEMBLING THE STORAGE TRAY
A. Insert the metal support into the two holes on both sides of the plastic
storage tray.
B. Insert the metal axle through the single hole on both sides of the plastic
storage tray.
C. Attach the wheels to each end of the axle. The metal clip on the inside hub
of the wheel should lock into place on the channel at each end of the axle.
MACHINE PREPARATION
A
B
C
A
B
C

5
1. STARTING THE MACHINE
A. Attach the extension cord to the plug on the machine.
B. Insert cord through strain relief holder.
C. Plug into a grounded 110V/120V outlet.
D. Push down the start lever on the left side of the machine. The machine will
automatically start when the handle is lowered to an operating position.
E. To turn off the machine, simply raise the handle back to a locked an
uprightposition. The machine will automatically stop.
2. USING THE SWEEPING FUNCTION (Dust collection bins sold separately)
To use the machine as a sweeper, simply remove the side shields from the
machine and install the optional dust collection bins.
A. Be sure the machine is unplugged from any power source.
B. Press the center locking pin on the side shield and slide the shield to the left.
Then lift the side shield from the mounting pins on the base.
C. Place the open end of the teardrop hole on the dust collection bin over the
mounting pins.
D. Slide the dust collection bin to the right until the center spring pin locks it
into place.
E. Repeat this installation on the other side of the machine.
F. Now the machine can be plugged in to a power supply and used to sweep
loose debris from the floor.
G. The machine can be operated in a forward and backward motion.
H. After use, remove the dust collection bins and empty debris.
I. Reinstall the side shields or dust collection bins before resuming use.
WARNING: Be sure to keep loose carpets and cords from passing
under the machine while in operation.
MACHINE OPERATION
WARNING: Be sure to keep loose carpets and cords from passing
under the machine while in operation.

6
3. ENCAPSULATION CLEANING
Follow these steps for interim encapsulation cleaning of carpet:
A. Start by removing large and loose debris. This can be done by installing the
optional dust collection bins or with a vacuum.
B. In a spray bottle or pump sprayer dilute the Betco®FiberCAP™ MP
solution according to the directions on the bottle.
C. Spray a light mist of solution onto the carpeted surface.
D. If the optional dust collection bins were utilized, remove the dust collection
bins on the machine and install the side shields.
E. Turn on the machine and agitate the carpeted surface. Work in both a north-
south direction as well as an east-west direction to ensure that all sides of
the carpet fibers are agitated.
F. The carpeted surface should dry in 20-30 minutes.
G. Once dry, vacuum the carpet at the next scheduled service interval for that
area.
H. Repeat the process on a regular basis to maintain the best possible
appearance of the carpet.
MACHINE OPERATION
WARNING: Always wear gloves to protect yourself from contact
with hazardous chemicals.
WARNING: Be sure to keep loose carpets and cords from passing
under the machine while in operation.

7
USE AND MAINTENANCE TIPS
1. REMOVAL OF BRUSHES AND CLEANING THE MACHINE
After each use, the brushes should be removed and cleaned. The underside of
the machine should be cleaned as well.
A. Disconnect the power supply from the machine.
B. Lay the machine on the floor and pull the axle out from the center of the
brush on the right side of the machine.
C. Clean the brushes with jet-powered water.
D. Clean the underside of the machine with a hand brush or cloth.
E. Grease between the bearing, cover, and the bearing shaft entrance using
white lithium grease.
F. To install the brushes, simply slide the axle back through the center core of
the brush until it locks into place on the left side of the machine.
G. The brushes should be replaced once the overall bristle to bristle diameter is
less than 2.75”.
2. MACHINE LUBRICATION
A. Disconnect the power supply from the machine.
B. Remove the bearing cover monthly and clean using WD40 and then dry
thoroughly using compressed air.
C. Every 3 months, remove the gear cover, clean the gears with WD40, and
regrease the gears with white lithium grease.
D. Reinstall the bearing cover and gear cover before resuming operation.
3. MOTOR SAFETY SWITCH
A. The safety switch automatically cuts off the electricity when the motor
overloads.
B. Should this happen, disconnect the power supply, wait 30 seconds, and
press the button inwards to reset the safety switch.
C. Then reconnect the power supply and continue working.
D. If the safety switch continually trips, cease operation and please contact your
Authorized Betco Distributor or Retailer.
WARNING: Carry out all maintenance operations with the
power cord unplugged from the wall outlet.

8

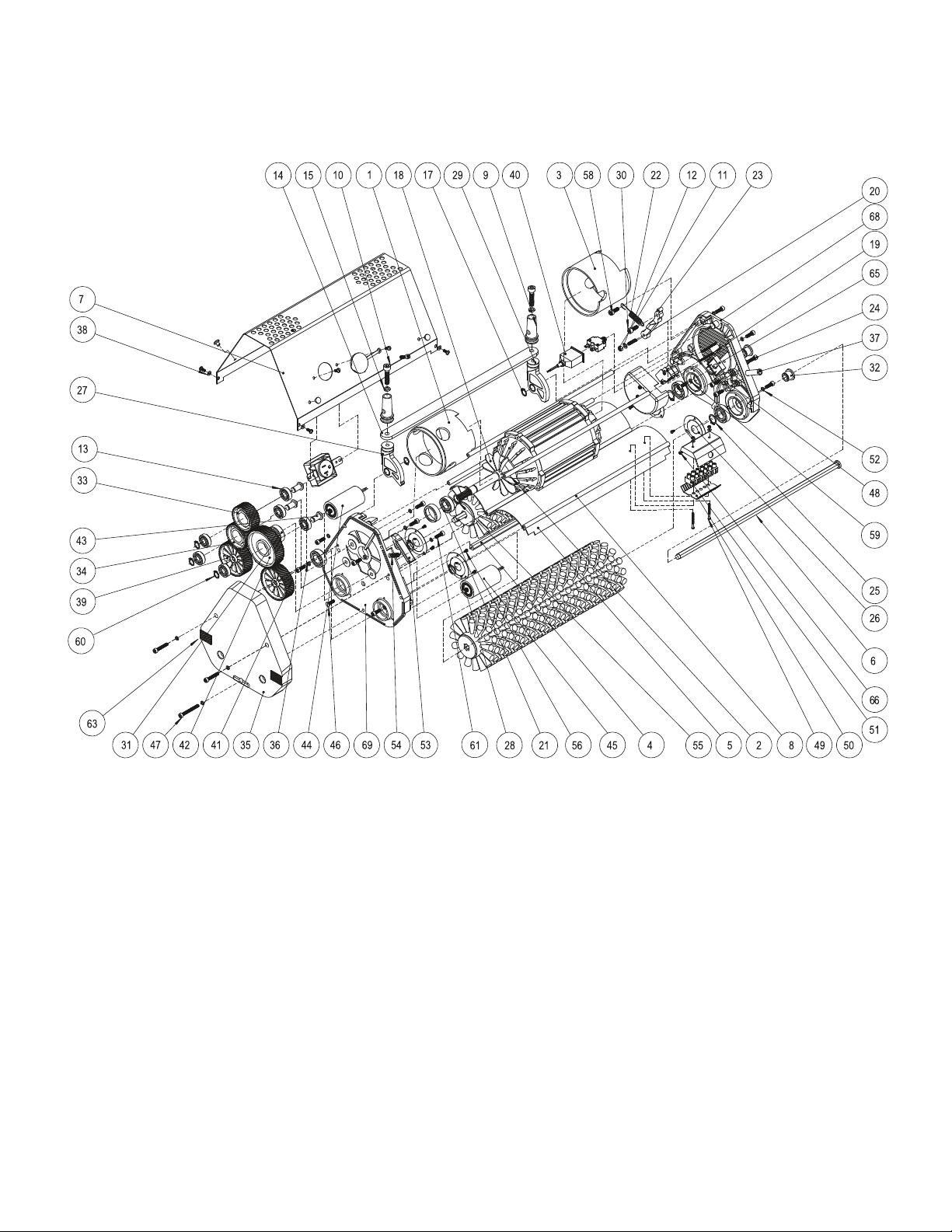

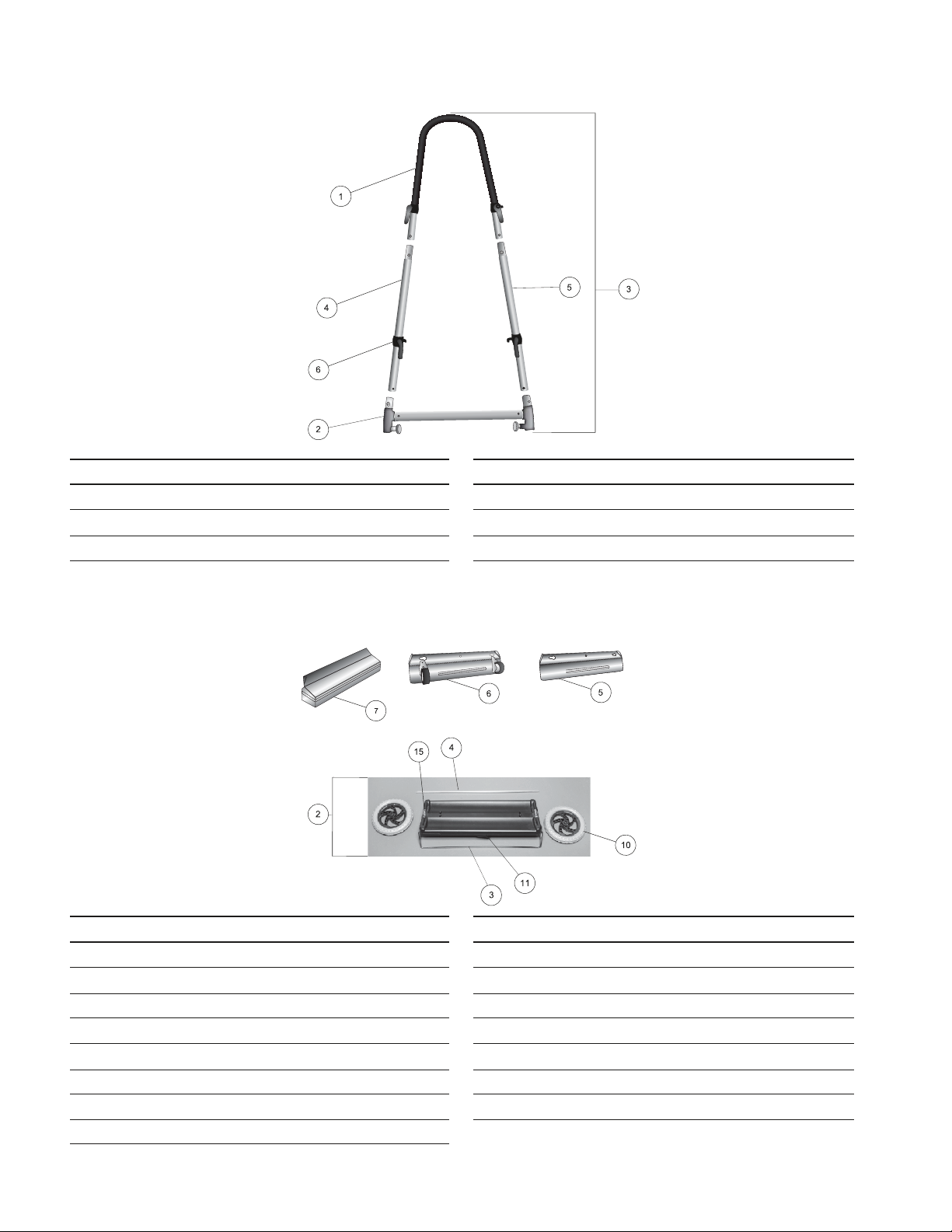

MACHINE DIAGRAM PARTS LISTING

9
1 E13190 Spacer, Motor
2 E13191 Motor, 1.0 HP
3 E13192 Spacer, Motor
4 E13194 Stud, Motor
5 E13195 Cover, Brush
6 E13196 Axle, Brush
7 E13197 Cover, Motor
8 E13198 Cover, Cable
9 E13199 Connector, Upper Handle
10 E13203 Screw, M8 x 25
11 E13209 Nut, Self-Locking, M5
12 E13210 Washer, M5
13 E13211 Bearing, 6000
14 E13213 Flat Bar
15 E13215 Ring, Spring
16 E13216 Plate, Isolation
17 E84600 Ring, Snap
18 E84603 Fan, Motor
19 E84605 Screw, Worm, M3 x 44
20 E84606 Screw, M5 x 20
21 E84607 Bearing, 6002 2RZ
22 E84610 Spring, Extension
23 E84611 Lever, Switch
24 E84612 Screw, M5 x 16
25 E84613 Ring, Retaining
26 E84614 Protective Plate
27 E84618 Connector, Handle, Lower G
28 E84619 Protective Plate
29 E84620 Connector, Handle, Lower E
30 E84621 Screw, M6 x 16
31 E84622 Bearing, 6003
32 E84623 Flange
33 E84624 Gear, 48, Right
34 E84625 Gear, 48, Left
35 E84626 Cover, Gear
36 E84627 Washer, Lock, M5
37 E84629 Grommet
38 E84630 Screw, M4 x 12
39 E84631 Gear, 66, Right
40 E84632 Circuit Breaker
41 E84635 Gear, 66, Left
42 E84636 Gear, 73, Right
43 E84637 Stud, Bearing
44 E84638 Capacitor, Start, 22 MFD
45 E84639 Capacitor, Run, 145 MFD
46 E84640 Screw, M5 x 30
47 E84641 Screw, M5 x 45
48 E84644 Clamp, Cable
49 E84645 Screw, M3 x 16
50 E84646 Plate, Wire Fixing
51 E84647 Wire Terminal, EKL1
52 E84650 Washer, Lock, M4
53 E84652 Handle Stop
54 E84653 Spring, Handle Stop
55 E84654 Ring, Snap
56 E84657 Screw, M3 x 6
57 E84658 Pin, Locking
58 E84664 Screw, Pan Hd Phil, M6 x 14
59 E84665 Spring Ring
60 E84667 Ring, Snap
61 E84668 Screw, M6 x 14
62 E84669 Screw, M5 x 30
63 E84681 Bumper, Rubber
64 E84683 Cord, Pigtail
65 E84685 Microswitch
66 E84686 Nut, M3
67 E84687 Spring Ring, M3
68 E84691 Housing Unit E, Complete
69 E84692 Housing Unit G, Complete
Item# Part# Description Item# Part# Description
MACHINE DIAGRAM PARTS LISTING

10
HANDLE DIAGRAM PARTS LISTING
1 E13200 Handle Bar, Upper Section
2 E13201 Handle Base Cross Bar
3 E13214 Handle Complete
4 E84670 Handle Tube, Lower Left
5 E84671 Handle Tube, Lower Right
6 E84677 Hook, Cord Wrap
Item# Part# Description Item# Part# Description
ACCESSORIES DIAGRAM PARTS LISTING
1 E13189 Tray w/ Clips
2 E13193 Storage Trolley, Complete
3 E13204 Support, Trolley
4 E13205 Axle, Trolley
5 E13206 Cover, Side, without Wheels
6 E13207 Cover, Side, with Wheels
7 E13208 Dust Bin, Sweeping
8 E13217 Pins, Plastic, Trolley
9 E84673 Bolt, Dust Bin
10 E84678 Wheel, Trolley
11 E84679 Belt, Velcro, Trolley
12 E84680 Cover, Wiring
13 E84682 Cover, Wiring
14 E84690 Cord, Extension, 50'
15 E84696 Bracket, Trolley
Item# Part# Description Item# Part# Description
