better homes BH15-084-899-10 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Manufacturing Page 1 Factory No. 16086
Date 2015-06-08 Rev. 2 Factory: KONRIC
54" Autumn Lane Media Fireplace
Stock # BH15-084-899-10
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [email protected]
LOT NUMBER:
DATE PURCHASED: / /

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 2 Factory No. 16086
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: 54" Autumn Lane Media Fireplace (Stock # BH15-084-899-10)
DATE OF MANUFACTURE: June 2015
MADE IN CHINA
How to adjust the European adjustable hinges on doors
Shipping may cause doors to go out of alignment. If you find that the doors need to be adjusted slightly,
turn the appropriate screw, as illustrated.
1. TO ADJUST DOOR FORWARD OR BACKWARD.
2. TO ADJUST DOOR TO RIGHT OR TO LEFT.
3. TO ADJUST DOOR UP OR DOWN.
MAXIMUM RECOMMENDED WEIGHT LOADS
MAXIMUM LOAD 50 lb. (22.6 kg)
FITS UP TO MOST 60"FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
PLACE TV BEHIND THE STOPPER
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT LIMITS.
NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR EQUIPMENT. TO
AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTRE OF THE UNIT; THE BASE OF THE
TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE UNIT WITHOUT
OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS
OR OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS COULD FALL
OFF OR BREAK THE UNIT
,
CAUSING POSSIBLE SERIOUS INJURY.
1
3
2

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 3 Factory No. 16086
Important
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED OFF
WITH DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw Cam Bolt into the pre-drilled small holes on panel. Connect both panels together; making
sure Cam Bolt goes into pre-drilled hole on the end of panel with Cam Lock.
2. Insert Cam Lock into pre-drilled large hole on panel. Make sure arrow on Cam Lock is pointed toward
Cam Bolt.
3. Once Cam Bolt is connected inside Cam Lock, take a Phillips screwdriver and tighten Cam Lock clockwise.
4. Plug Cam Cap into the cross slot of the Cam Locks to conceal the cam.
You are now ready to assemble the KD unit.

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 4 Factory No. 16086
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (1) B- Left Side Panel (1) C- Right Side Panel (1)
D- Upper Partition Panel (1) E- Fixed Shelf (1) F- Left Lower Partition Panel (1)
G- Right Lower Partition Panel (1) H- Middle Crossbar (1) I- Bottom Panel (1)
J- Door (2) K- Adjustable Shelf (2) L- Upper Back Panel (1)
M- Lower Back Panel (2) N- Firebox Support (1) O- Foot (4) P- Center Support w/Leveler (1)
Q- Partition Panel Molding (2) Fireplace Insert (1) Remote Control with Battery (1)

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 5 Factory No. 16086
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.

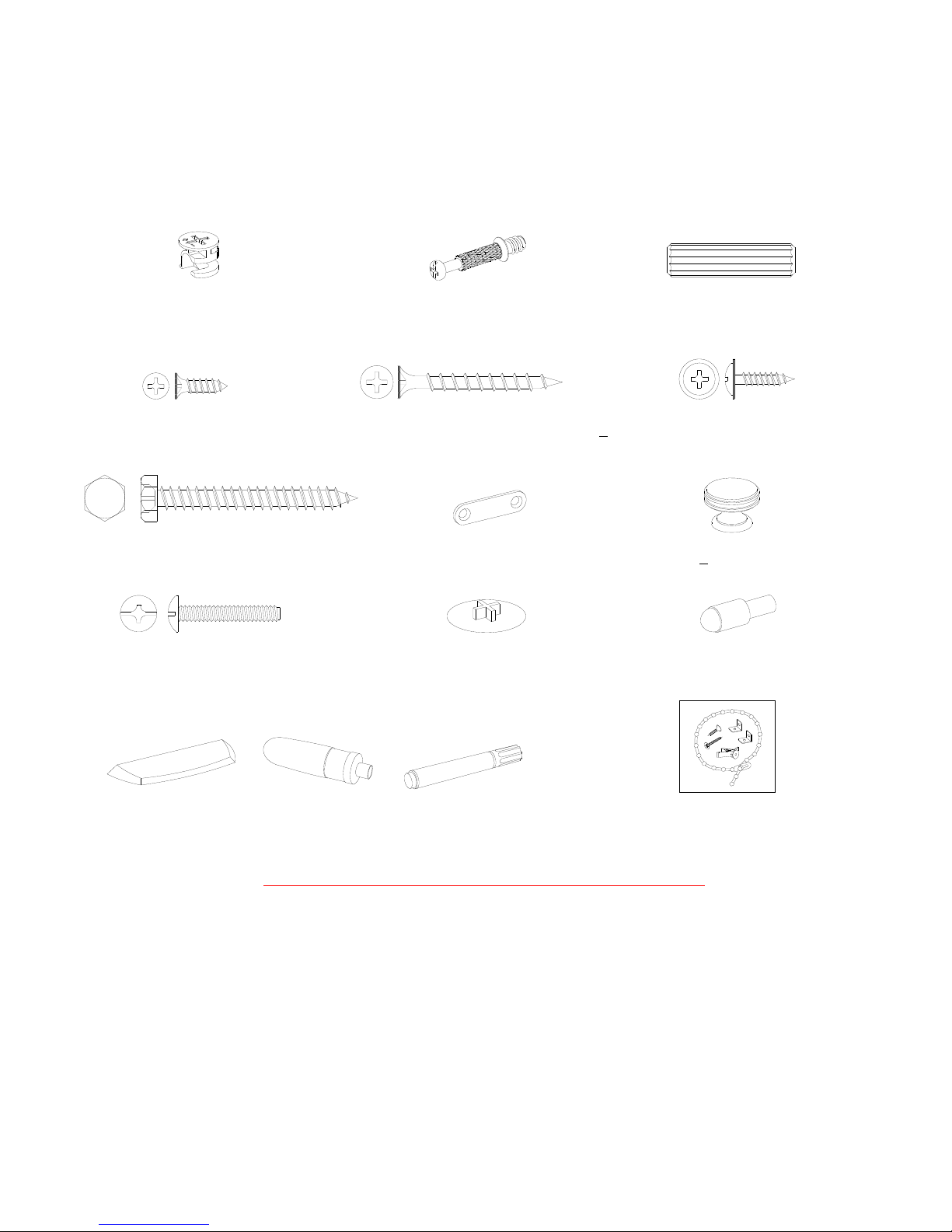

(1) Cam Lock (2) Cam Bolt (3) Ø8 x 30 mm Wood Dowel
(25+1 extra) (25+1 extra) (28+1 extra)
(4) Ø3.5 x 12 mm Screw (5) Ø4 x 40 mm Wood Screw (6) Ø3.5 x 15 mm Washer Head Screw
(4+1 extra) (8+1 extra) (30+1 extra)
(7) 2” Lag Bolt (2) (8) Metal Bracket (2) (9) Knob (2)
(10) Knob Bolt (2) (11) Cam Lock Cover (14+1 extra) (12) Shelf Pin (8+1 extra)
(13) Acrylic Stopper (1) Glue (1) Touch-up Pen (1) Tipping Restraint Hardware Kit (2)
(Included in plastic bag)
Tools required: Phillips screwdriver and hammer (not provided).

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 6 Factory No. 16086
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), Side Panels (B
and C) and Partition Panel Moldings (Q) by a Phillips screwdriver, as shown in the illustration.
x 2
A/B/C/Q
A
C
B
Q
Cam Bolt
(16 used in this step)
②

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 7 Factory No. 16086
Assembly Instructions

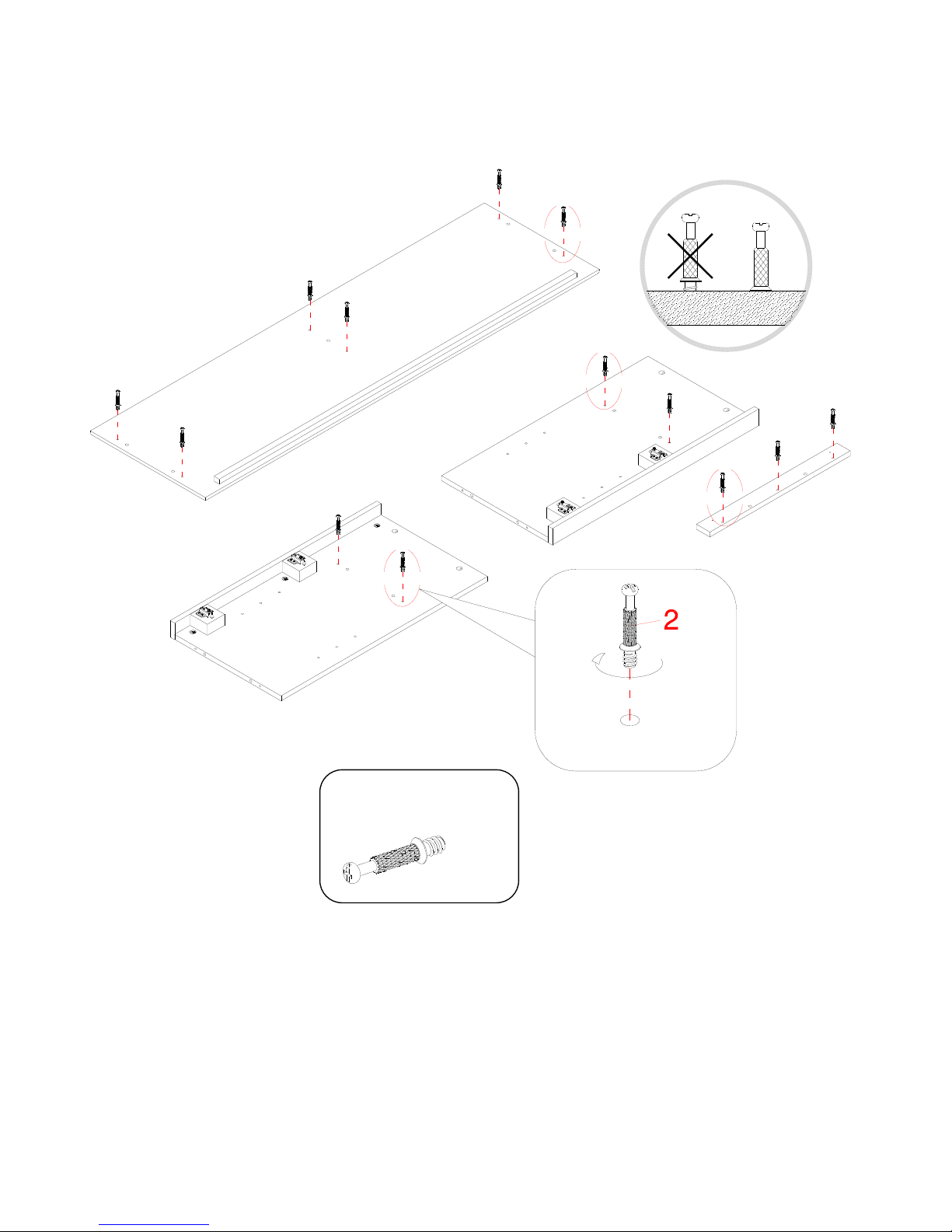

3. Securely screw the Cam Bolts (2) into the designated small holes on the Fixed Shelf (E) as shown.
Cam Bolt
(7 used in this step)
②
2
E

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 8 Factory No. 16086
Assembly Instructions
4. Insert two Wood Dowels (3) into the inner holes on the end of Left Lower Partition Panel (F). Tap in
with a rubber mallet, if necessary. Make sure that you use a small amount of glue with both ends of all
dowels.
5. Align the drilled holes on one Partition Panel Molding (Q) with the inserted Wood Dowel (3) on the
Left Lower Partition Panel (F), and then firmly press them together as shown. Attach the Partition Panel
Molding (Q) in place by engaging three Cam Locks (1) (Refer to page 3 on Cam Lock system operation
supplement).
6. Repeat the same procedure to combine the Right Lower Partition Panel (G) and the other Partition Panel
Molding (Q) together.
G
F
Q
Q
1
1
3
3
3
3
1
1
Wood Dowel
(4 used in this step)
③
Cam Lock
(6 used in this step)
①

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 9 Factory No. 16086
Assembly Instructions

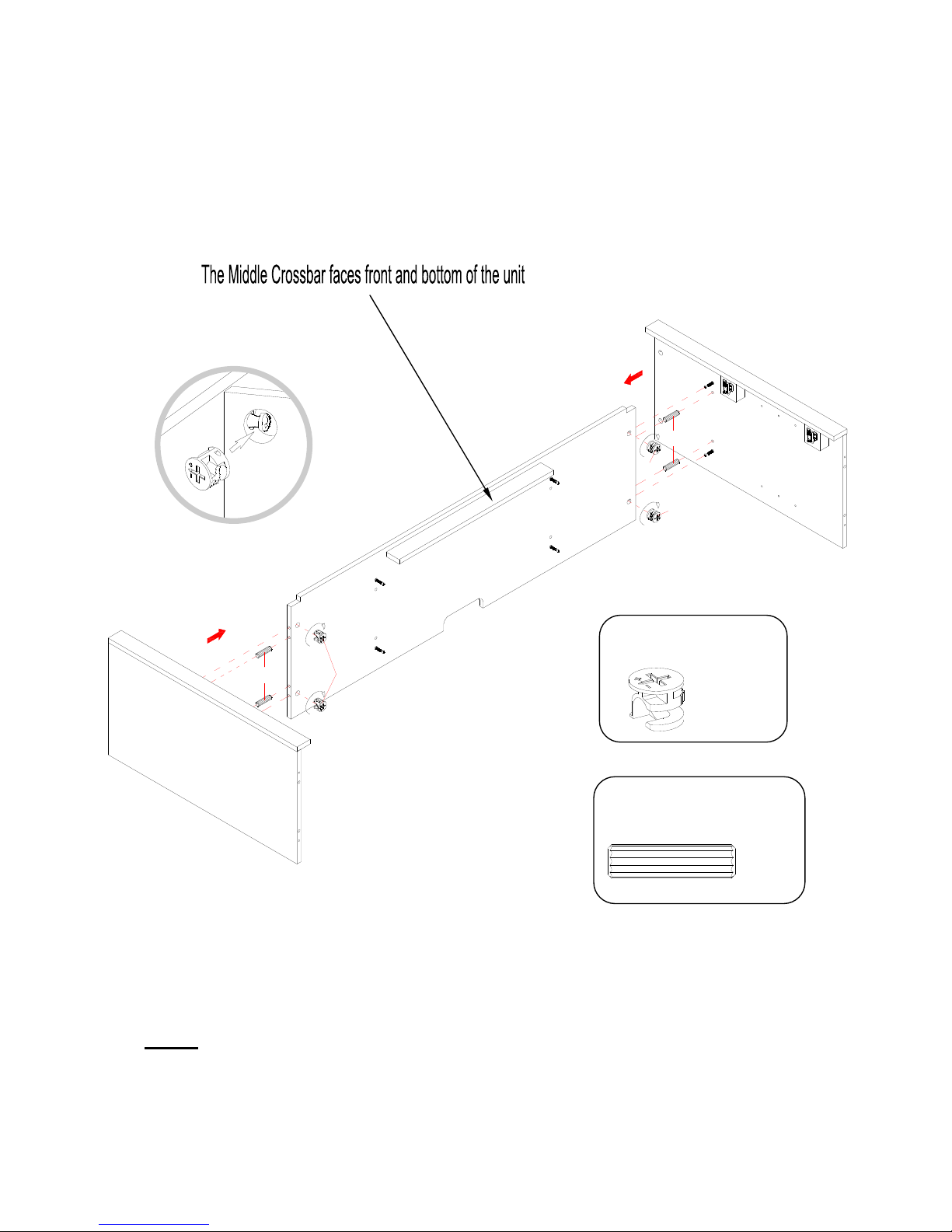

7. Align and attach the Middle Crossbar (H) to the Fixed Shelf (E) with two wood dowels (3) and three
cam locks (1). As shown.
1
1
1
3
3
H
E
Wood Dowel
(2 used in this step)
③
Cam Lock
(3 used in this step)
①

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 10 Factory No. 16086
Assembly Instructions

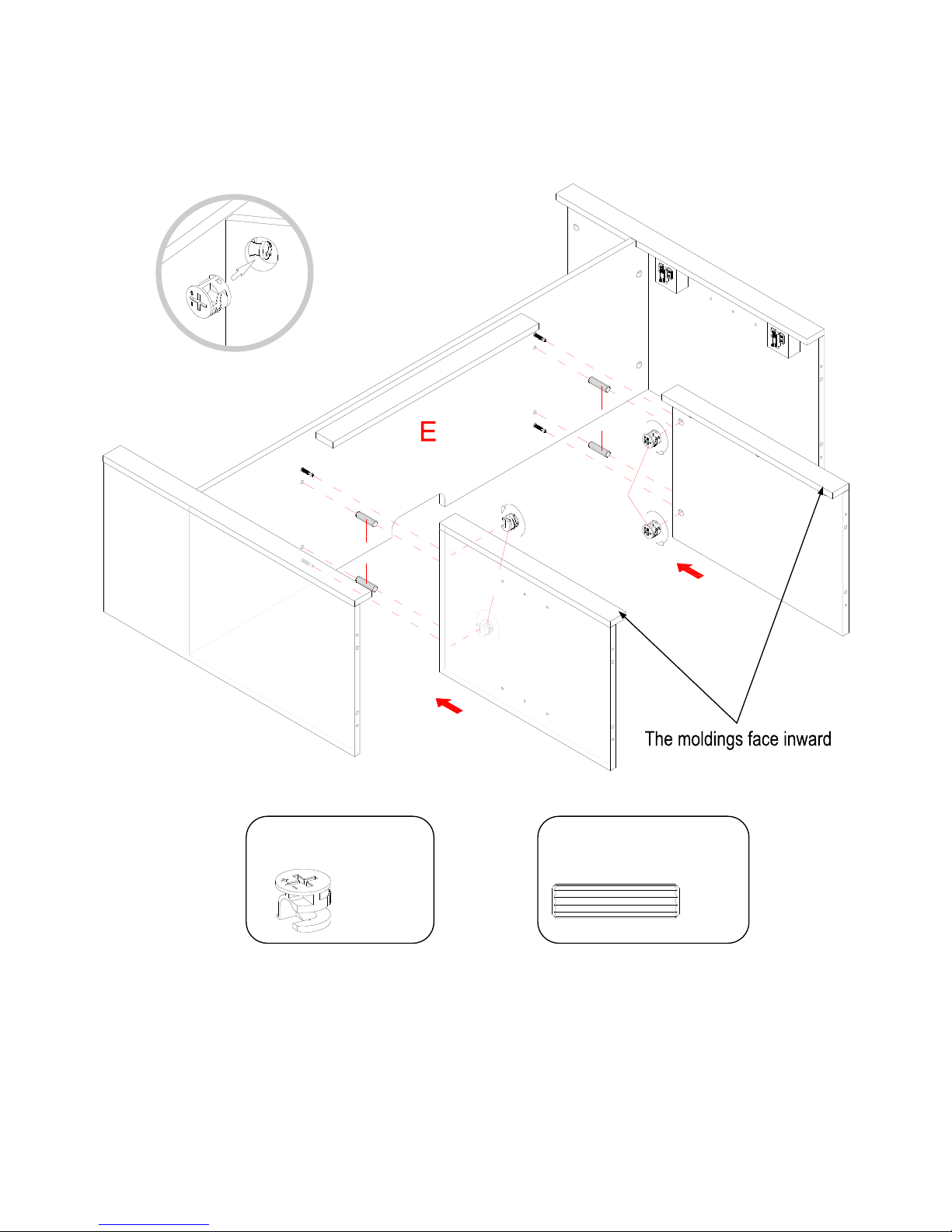

8. Insert four Wood Dowels (3) into the inner holes of Fixed Shelf (E) at both ends.
9. Align and attach the assembled Fixed Shelf (E) between the Left and Right Side Panels (B and C) and
keep the Middle Crossbar (H) facing the bottom edge, by using four Cam Locks (1) as shown.
NOTE: There are cam bolt holes on the top edge of partition panels.
B
E
C
H
3
3
1
1
1
Wood Dowel
(4 used in this step)
③
Cam Lock
(4 used in this step)
①

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 11 Factory No. 16086
Assembly Instructions
10. Insert four Wood Dowels (3) into the inner holes of the Lower Partition Panels (F and G) and attach
them to the Fixed Shelf (E) by using four Cam Locks (1). As shown.
B
C
G
F
H
3
3
1
1
Wood Dowel
(4 used in this step)
③
Cam Lock
(4 used in this step)
①

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 12 Factory No. 16086
Assembly Instructions
11. Insert eight Wood Dowels (3) into the inner holes on the bottom edge of the Side Panels (B and C) and
the Lower Partition Panels (F and G).
12. Ask for assistance to position the Bottom Panel (I) onto the inserted Wood Dowels (3) making sure the
back edges are flush with each other. Attach the Bottom Panel (I) in place by using eight 40 mm Wood
Screws (5).
5
5
5
5
B
F
G
C
I
Wood Dowel
(8 used in this step)
③
Ø4 x 40 mm Wood Screw
(8 used in this step)
⑤

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 13 Factory No. 16086
Assembly Instructions

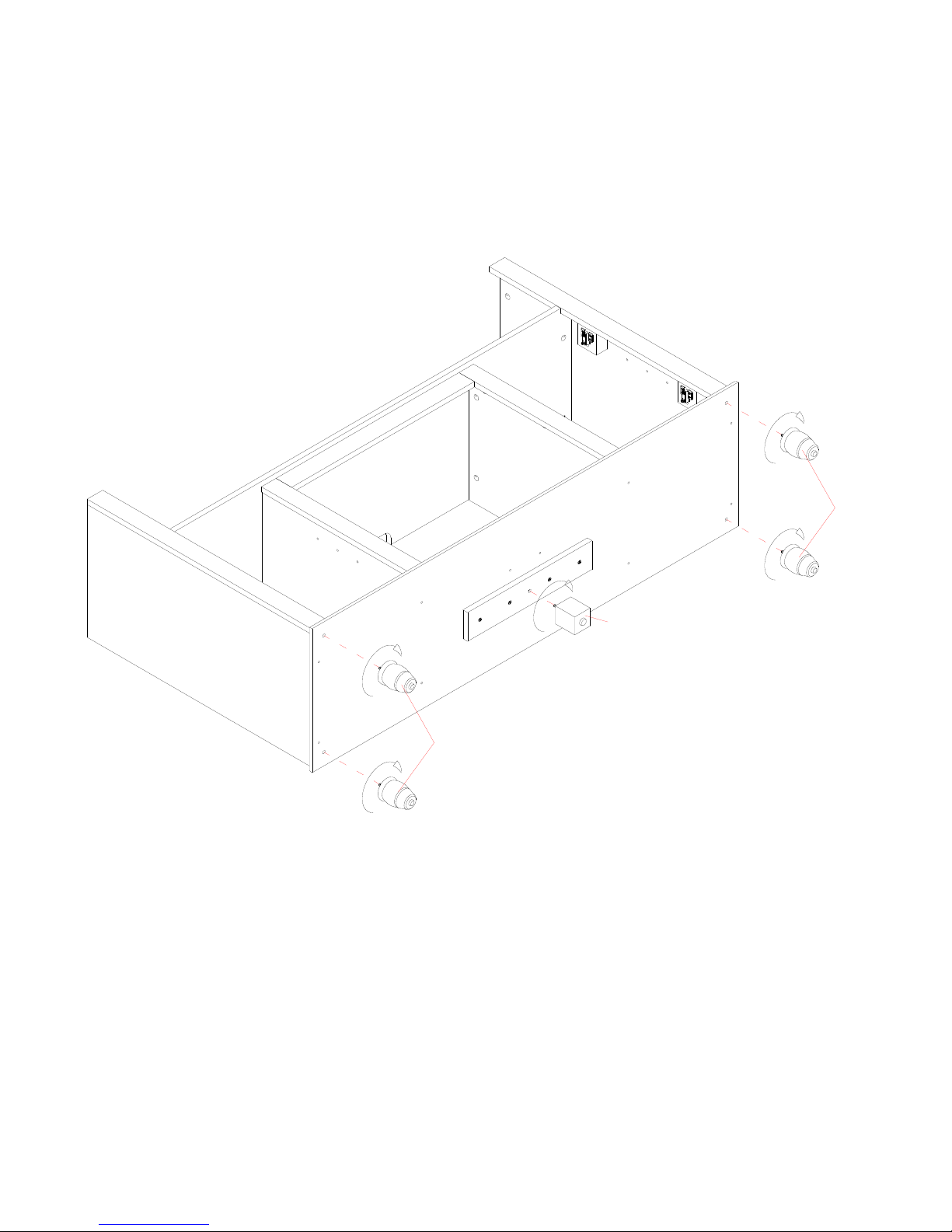

13. Securely screw the four Feet (O) and Center Support (P) into the threaded inserts on the Bottom Panel (I)
and set the pre-attached floor leveler on the center support to the correct height. As shown above.
I
O
O
P
B
F
G
C

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 14 Factory No. 16086
Assembly Instructions
14. Stand the assembled unit upright.
15. Securely screw two Cam Bolts (2) into the designated small holes on the Fixed Shelf (E) by a Phillips
screwdriver.
E
2
Cam Bolt
(2 used in this step)
②

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 15 Factory No. 16086
Assembly Instructions

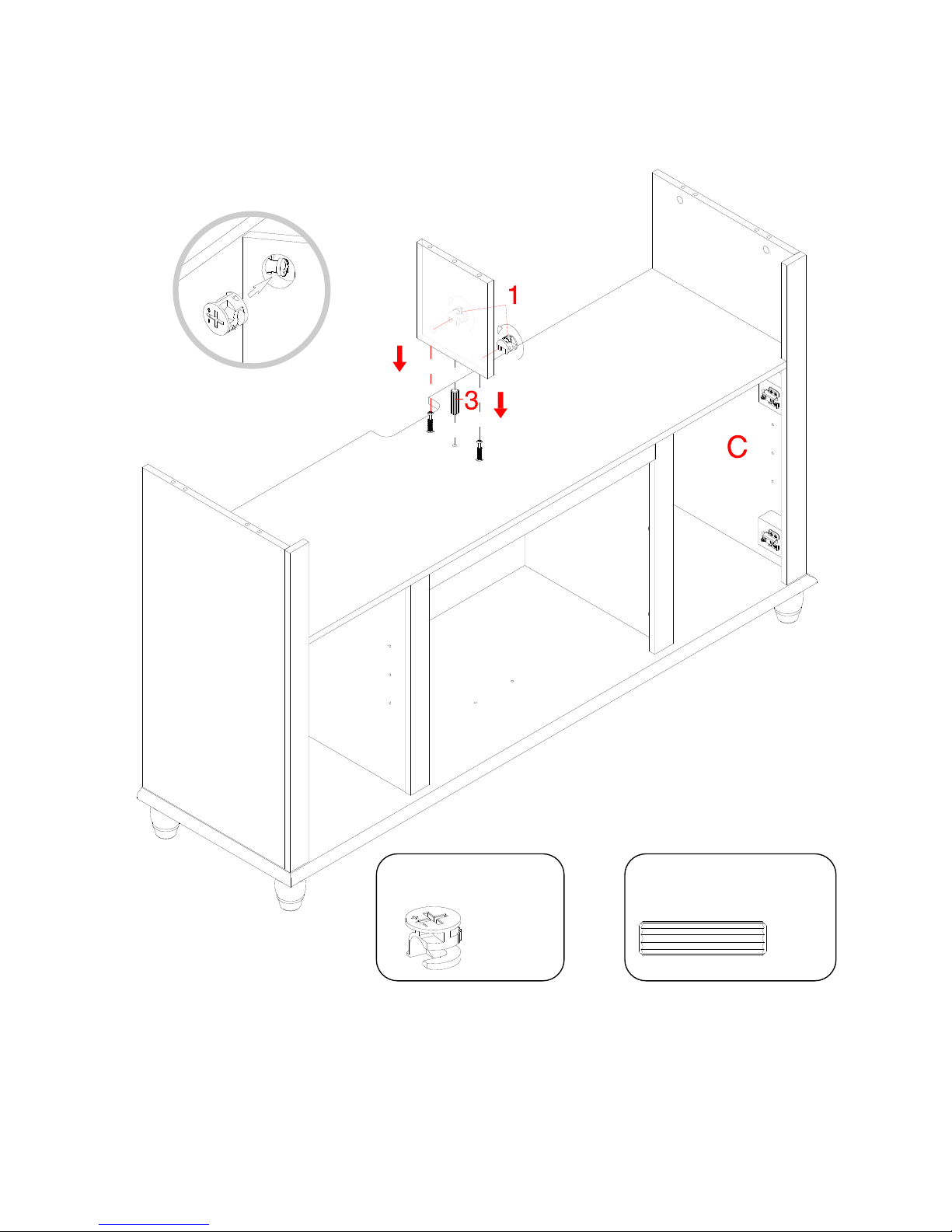

16. Insert one Wood Dowel (3) into the large hole on the Fixed Shelf (E). Attach the Upper Partition Panel
(D) to the Fixed Shelf (E) by engaging two Cam Locks (1).
E
D
B
Wood Dowel
(1 used in this step)
③
Cam Lock
(2 used in this step)
①

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 16 Factory No. 16086
Assembly Instructions

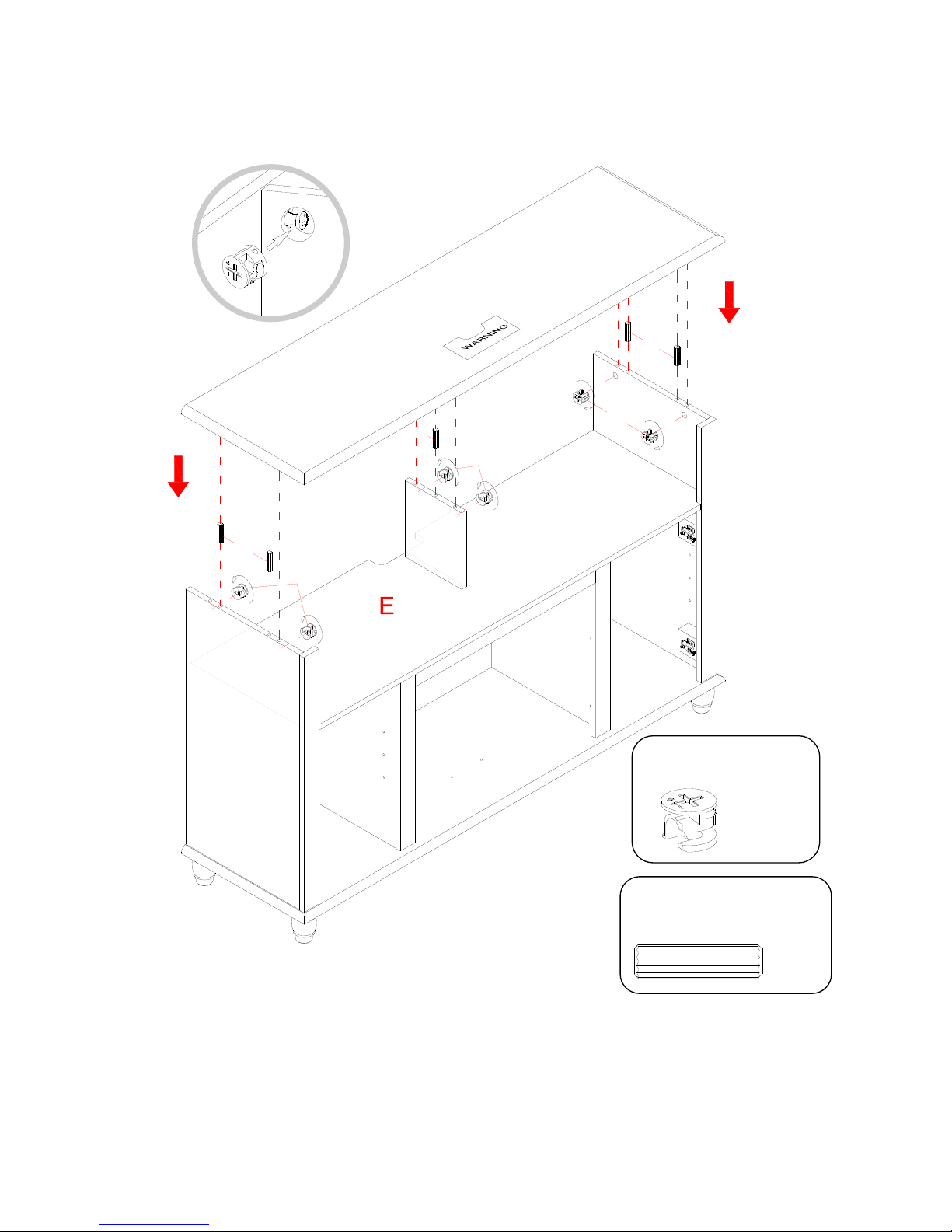

17. Insert five Wood Dowels (3) into the top inner holes of the Upper Partition Panel (D) and Side Panels
(B and C). Position the Top Panel (A) onto the inserted Wood Dowels (3) and fasten it in place with six
Cam Locks (1).
Wood Dowel
(5 used in this step)
③
Cam Lock
(6 used in this step)
①
3
1
1
3
3
1
B
C
A
D

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 17 Factory No. 16086
Assembly Instructions
18. Fasten the Middle Crossbar (H) to the Partition Panel Moldings (Q) by attaching two Metal Brackets (8)
at the joints, using two 12 mm Screws (4) per Bracket.
Ø3.5 x 12 mm Screw
(4 used in this step)
④
Metal Bracket
(2 used in this step)
⑧
F/G
H
4
8
F
G
H

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 18 Factory No. 16086
Assembly Instructions

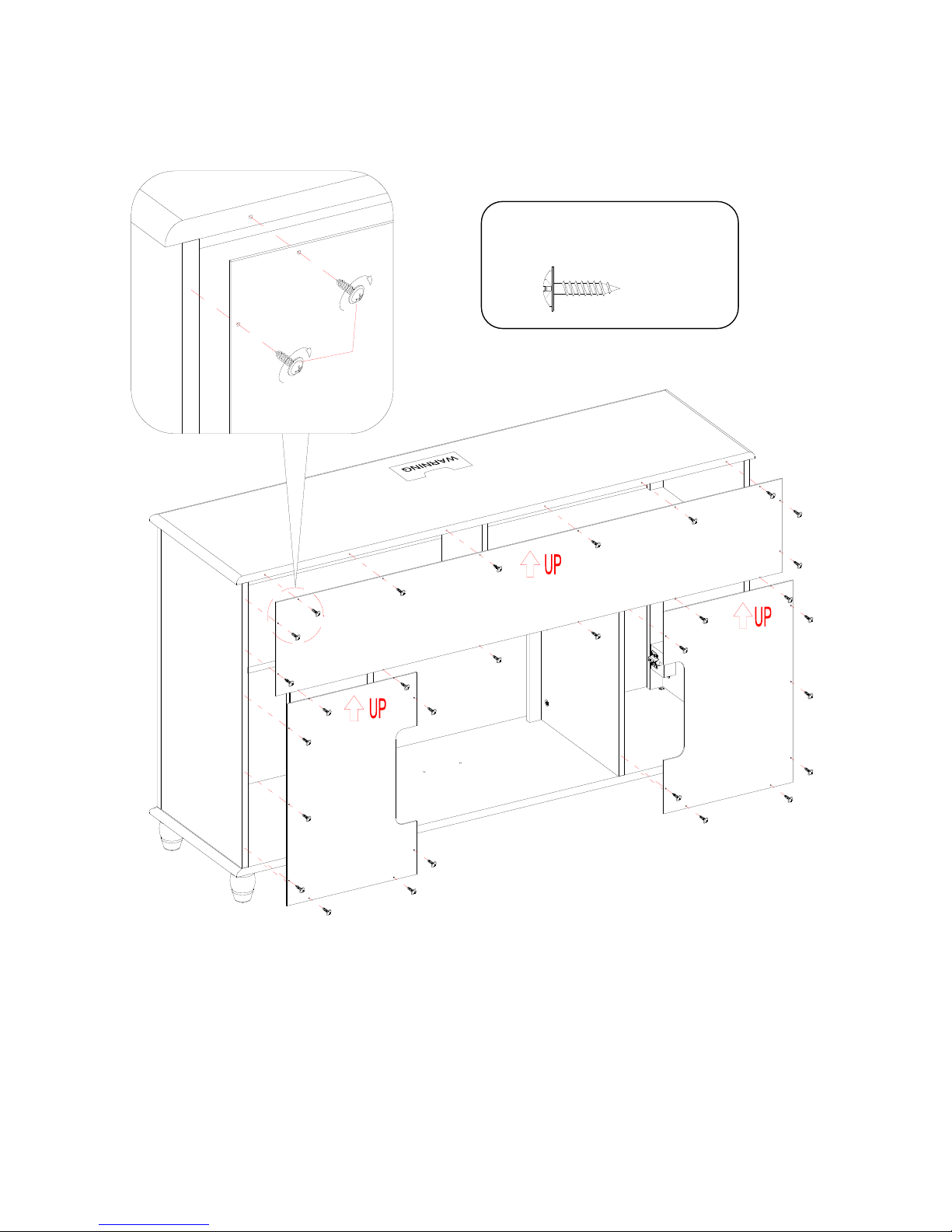

19. Pick up the Upper Back Panel (L) and align the pre-drilled holes against the upper long edge with the
pilot holes on the back stretcher of Top Panel (A). Attach the Back Panel (L) in place using the
provided Washer Head Screws (6).
20. Align and attach two Lower Back Panels (M) to the mantel base with the provided Washer Head
Screws (6).
M3.5 x 15 mm Washer Head Screw
(30 used in this step)
⑥
A
C
L
M
FM
B
6
B/C
E/F/G
A
L/M
I

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 19 Factory No. 16086
Assembly Instructions
21. Insert four Shelf Pins (12) into the holes at your desired height inside each side compartment. Tilt and
rest the Adjustable Shelves (K) onto the Shelf Pins (12).
22. Plug the Cam Lock Covers (11) onto the visible cams locks to conceal the cams.
Cam Lock Cover
(14 used in this step)
⑪
Shelf Pin
(8 used in this step)
⑫
K
K
12 12
B/C/F/G B/C/F/G
K
11
B
F
GC

Stock # BH15-084-899-10
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 20 Factory No. 16086
Assembly Instructions
23. Attach the Knob (9) to the outside of each Door (J) with the provided Knob Bolt (10).
24. Pick up one Door (J) and attach the extended Hinge Arms to the Hinge Bases installed on the Left Side
Panel (B). Loosen the bolt on the back of Hinge Base for an easy fit. Align and insert the “U” slot on
Hinge Arm under the bolt head on the back of Hinge Base. Make sure that both door hinges engage and
function properly. Tighten the bolt on the Hinge Base to lock the hinges in place.
25. Repeat the same procedure to attach the other Door (J) to the Right Side Panel (C).
26. Open and close the doors to make sure they are aligned and shut correctly. If necessary, adjust the
screws for a good fit. Refer to the hinge sticker on door for adjustment.
Knob Bolt
(2 used in this step)
⑩
J
B/C
1
J
B/C
J
10
9
A
BF
G
C
J
J
Knob
(2 used in this step)
⑨
