EdilKamin SCREEN EVO 80 Quick start guide

SCREEN EVO 80-100
WOOD FIREPLACE
UK Installation, use and maintenance

2
ENGLISH
The undersigned EDILKAMIN S.p.a. with head office
headquarters at Via Vincenzo Monti 47 - 20123 Milan -
Italy - VAT IT00192220192
Declares under its own responsability as follows:
The below listed wood burning products comply
with EU Regulation 305/2011 and the harmonized
European Standard EN 13229:2001+A1:2003+A2:20
04+AC:2006+AC:2007
Wood Fireplace trademark EDILKAMIN,
called SCREEN EVO 80 - 100
Year of manufacture: Ref. Data nameplate
Declaration of Performance
SCREEN EVO 80 - DoP n. EK 145
SCREEN EVO 100 - DoP n. EK 146
The liability of Edilkamin is limited to the product supply
only.
TABLE OF CONTENTS
Introduction 3
Safety information 4
Technical data 5
Dimensions 6
Preparation and packaging 8
Installation 10
Instructions for use 23
Maintenance 25
In the event of problems 26

3
ENGLISH
The product is uniquely identified by a number, the
“counterfoil”, which is indicated on the warranty
certificate inside the product.
Please keep:
• the warranty certificate accompanying the product
• the purchase receipt given to you by the retailer
• the declaration of conformity given to you by the
installer.
The warranty conditions are given in the warranty
certificate accompanying the product.
Dear Sir/Madam
Congratulations on choosing our product. Before you
use it, please read this manual carefully, to get the best
from your new appliance in total safety.
This manual is an integral part of the product. Please
keep it for the entire life of the product.
If you lose it, you can request a copy or download it
from www.edilkamin.com
After unpacking the product, check the condition and
completeness of the contents.
In the event of error, immediately contact the retailer
where the purchase was made, providing him with a
copy of the warranty booklet and the sales receipt.
The appliance must be installed and operated in
compliance with local and national law and European
regulations. For the installation, and for anything not
specifically indicated in the manual, observe local
regulations.
The diagrams in this manual are illustrative; they do
not always refer specifically to your product and are
not binding in any way.
SYMBOLS
Some parts of the manual use the following symbols:
INFORMATION:
Failure to follow these instructions could
compromise correct product use.
CAUTION:
Read carefully the message to which this
refers, as failure to do so may result in
serious damage to the product and may
endanger the safety of people using it.

4
ENGLISH
SAFETY INFORMATION
• Incorrect installations or improper maintenance
causes safety risks,for which Edilkamin cannot be
held liable.
• The product was not designed for use by people,
including children, whose physical, sensory or
mental capacities are reduced.
• The product was not designed for cooking.
• The product was designed to burn dry wood in the
quantities and methods described in this manual
• The product was designed for internal use and in
premises with normal humidity
• For the legal and standard guarantee, refer to the
Certificate of Guarantee found with the product
• The product must be installed in premises where
there is no danger of fire.
• In the event of fire, call the competent authorities
• Do not extinguish the fire with water jets
• The product must be kept in dry places and not
exposed to bad weather.
The safety risks can be caused, among other things,
by:
• contact with the fire and hot parts (e.g. glass and
piping). DO NOT TOUCH HOT PARTS and, with
the product off but hot, always use the glove sup-
plied. Otherwise you risk getting burnt
• use of unsuitable products for lighting (e.g. al-
cohol). DO NOT LIGHT OR RE-LIGHT THE FLA-
ME WITH LIQUID SPRAY PRODUCTS OR FLA-
METHROWERS. You risk getting seriously burned
and causing damage to property and people.
• use of fuel other than dry wood. DO NOT BURN
RUBBISH, PLASTIC OR ANYTHING OTHER THAN
DRY WOOD IN THE FIREPLACE. You risk dirtying
the product, fires in the chimney flue and causing
damage to the environment.
• use of fuel different from the recommended fuel.
DO NOT OVERLOAD THE FIREPLACE. There is
a risk of deformation with risks for people in the
event of attempted
• fixing up and irreversible changes to the colour of
the paint on the metal parts. Edilkamin or the retai-
ler cannot be held liable.
• cleaning the hot fireplace. DO NOT EXTRACT
HOT. You risk compromising the extractor and,
possibly, smoke in the environment
• cleaning of the smoke channel with various sub-
stances. DO NOT CLEAN WITH FLAMMABLE
PRODUCTS. There is a risk of fires, back draft.
• cleaning of the hot glass with unsuitable products.
DO NOT CLEAN THE HOT GLASS WITH WATER
OR SUBSTANCES OTHER THAN GLASS CLEA-
NERS RECOMMENDED OR DRY CLOTHES. The-
re is a risk of cracks in the glass as well as perma-
nent, irreversible damage to the glass
• deposit of inflammable materials under the safety
distance indicated on this manual. DO NOT REST
LINEN ON THE Product DO NOT POSITION THE
CLOTHES HORSE AT DISTANCES UNDER THO-
SE CONSIDERED SAFE. Keep any form of inflam-
mable liquid far from the appliance in use. There
is a risk of fire.
• blocked opening of the air vents in the premises
or air input. DO NOT BLOCK THE AIR VENT OPE-
NINGS OR BLOCK THE CHIMNEY FLUE. There is
a risk of a back draft in the room which could da-
mage property and people.
• use of the product as a support or ladder (DO NOT
CLIMB ON THE PRODUCT OR USE IT AS A SUP-
PORT). You risk damaging property and people.
• use of the product with the fireplace open. DO
NOT USE THE Product WITH THE DOOR OPEN.
For greater protection of the product, there is a
spring that allows the product to close automati-
cally.
• addition of fuel and door opening approaching the
fire with flammable and loose clothing. Do NOT
open the door or approach the glass with flam-
mable, wide clothing whose ends could catch fire
• open the door with incandescent material exiting.
Do NOT throw incandescent material out of the
product. You risk a fire
Lastly, you are advised to take all normal precautions
in relation to home heatingIf in doubt, do not act on
your own initiative, but contact the retailer or installa-
tion technician.

5
ENGLISH
EDILKAMIN s.p.a. reserves the right to change the products at its discretion without notice.
TECHNICAL CHARACTERISTICS according to EN 13229
The given data are indicative and taken during the certification stage at a notified Body under regulation conditions
SCREEN EVO 80 SCREEN EVO 100
Nominal power
Power output 12 14,5 kW
Efficiency 75,6 84,5 %
Emissions CO 13% O20,131 0,096 %
Temperature of fumes 287 198 °C
Minimum draught 5-12 5-12 Pa
Fuel consumption 3,5 3,7 kg/h
Heatable volume * 315 380 m3
Smoke outlet pipe diameter 200 200 mm
Air intake pipe diameter 130 130 mm
Weight including packaging 167 200 kg
TECHNICAL DATA FOR THE DIMENSIONING OF THE FLUE
SCREEN EVO 80 SCREEN EVO 100
Nominal power
Power output 12 14,5 kW
Temperature of fumes on exit from the discharge
pipe
344 237 °C
Minimum draught 5 5 Pa
Fume flow capacity 12,9 12,7 g/s
TECHNICAL DATA
* The heating volume is calculated with the heat request of 33 Kcal/m³ hour

6
ENGLISH
75
93
2
17,50
53
93
18
28 17
926
19,5
53
10 8,5 50 6,5
75
DIMENSIONS
SCREEN EVO 80 cm
Ø 13 cm air
combustion
warm air
Ø 14 cm : without kit Air difffuser
Ø 10 cm : with kit Air difffuser
Ø 20 cm
smoke outlet

7
ENGLISH
DIMENSIONS
SCREEN EVO 100 cm
75
17,5
2
113
521
18
110
113
1515
23
28 15 12
19,5
10
53
8,5 50 6,50
75
53
Ø 13 cm air
combustion
warm air
Ø 14 cm : without kit Air difffuser
Ø 10 cm : with kit Air difffuser
Ø 20 cm
smoke outlet

8
ENGLISH
INSTALLATION
AA
A
B
C

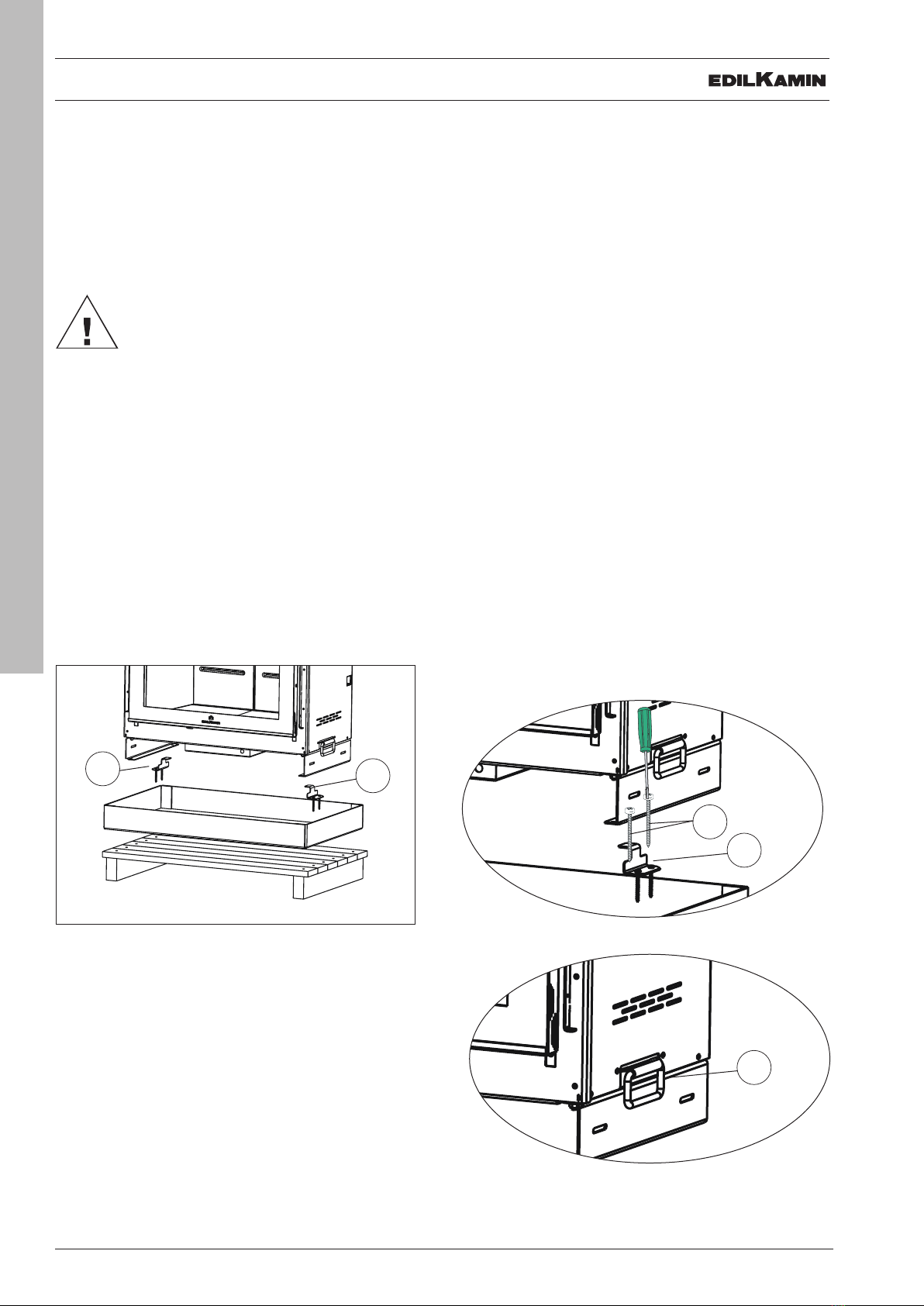

DETACH THE PRODUCT FROM THE PALLET
The product is secured to the pallet with two brackets
(A)
Remove the screws (B) to remove the brackets.
Remove the product from the pallet, taking special care
to protect the door and its glass pane from impact.
SHIFTING THE PRODUCT
To facilitate handling, the Screen UP is fitted with
handles (C).
Do not use the air intake or fumes outlet to handle the
appliance; it is easy to put them out of alignment in
this way.
PREPARATION AND UNPACKING
The materials composing the packaging are not toxic
or harmful, therefore no particular disposal processes
are required.
Storage, disposal and any recycling is the responsi-
bility of the end user in compliance with the laws in
force on the matter.
You are recommended to make each mo-
vement in a vertical position with suitable
devices, paying attention to the safety
standards in force.
Do not overturn the packaging and be
cautious when assembling parts.

9
ENGLISH
PACKAGING
The packaging can provide a useful indication of the product’s condition. Check the packaging on receipt and report
any anomalies to the reseller straight away.
The packaging comprises a single box containing the firebox and the following items:
Description gure No.
of
Use
Anti-corrosion discs 2 protects the packaged product against damp. Can be
disposed of as normal household waste
R2 unions 2 for ducting, for the version without ventilation kit
Lever for
air limitation
1 regulates the combustion air flow
Connector for
combustion air intake
pipe, to be positioned
behind or below
1 for connecting the combustion air intake pipe
Compensation vent
LABEL
2 allows hot air to circulate in the mantel and flow into the
room
Lever for opening the
door
for hinged-type opening of the hearth door, figure below*
Profile to be used in
the event of the inver-
sion of the door open-
ing direction
1 to be used in the event of the inversion of the door opening
direction on the side on which the door-opening latch is
fitted
INSTALLATION

10
ENGLISH
INSTALLATION
A
A
B
This operation should be carried out with the product not installed.
We recommend having this operation carried out by a specialised technician as incorrect execution
may cause problems with the product.
INVERSION OF THE HEARTH DOOR
SCREEN leaves the factory with the hearth door hinged on the left.
To invert the opening direction, follow the procedure given below:
1. Open the door using the level and lift the upper pin (A) with your finger or a flat screwdriver
2. Hold the upper pin (A) up, remove the door by sliding it off the lower pin (B).

11
ENGLISH
INSTALLATION
A
B
A
B
A
B
A
B
A
B
A
B
B
C
A
D
D1
B
C
A
D1
3. Unscrew dowel (C), lower pin (B) and upper door stop (D) with its plug (D1)
4. Refit lower dowel (C), lower pin (B) and upper door stop (D-D1) on the opposite side.

12
ENGLISH
INSTALLATION
E
F
G
5. Take the door removed in point 2, unscrew and remove the left profile (E). This will no longer be used as it will be
replaced with the new one provided with the product with a slot for the latch.
6. Unscrew and remove the profile on the right (F) and then unscrew the door opening latch (G).

13
ENGLISH
1
2
3
rivolto
verso
l'alto
rivolto
verso
il basso
bordo
continuo
bordo
con
gradino
bordo
continuo bordo
con
gradino
INSTALLATION
G
H
3
edge with step
7. Change the direction of the door opening latch (G), unscrewing the screw. The transformation is shown in the diagram
below from point 1 to point 3. Screw the latch onto the left side.
8. Detach the pre-cut upper profile (H) from the profile provided to allow access to the upper pin.
Fit it on the left side.
9. Insert the door onto the lower pin and secure it using the upper pin.
continuous
edge
edge with
step
facing up

14
ENGLISH
INSTALLATION
C
Fig. 1 Fig. 2
Fig. 3 Fig. 4
B
DA
E
OPTIONAL THERMOSTATIC VALVE
The product can be equipped with a thermostatic valve to control the flow of air to combustion, which must be
installed BEFORE THE CLADDING IS COMPLETED.
Brief description of the optional thermostatic valve installation procedure:
• open the hearth door (Fig. 1)
• Remove it to make the job easier by sliding it off the pins (fig 2) and details on door inversion instructions or
leave it
• remove the two deflectors (A -Fig. 3),the top deflector, the sides (C -Fig. 3), the fire plane (B -Fig. 3).
• remove the screwed-in plate (D -Fig. 3) and the plate below (E -Fig. 4), also screwed-in, to access the
compartment housing the thermostatic valve.

15
ENGLISH
INSTALLATION
• if it is not already assembled, assemble the thermostatic valve to its plate (provided - Fig. 5 - 6).
• unroll the sensor cable
• position the assembled thermostatic valve in its compartment and route the sensor cable through the opening
in the plate (Fig. 7).
• screw the sensor mounting plate (F- Fig. 7) into the provided holes.
• fit the sensor to its bracket as shown in figure 8.
Fig. 5 Fig. 6
Fig. 7 Fig. 8
the sensor cable
through the opening
F
sensor cable

16
ENGLISH
43/47,5 cm
33,5 cm
INSTALLATION
3
2
1
HEIGHT OF APPLIANCE
The Screen UP can be mounted on an optional stand
or any other appropriate support
OPTIONAL BASE
Place the bottom of the base (1) in the desired position
Provide a power socket at the rear of the base, in such
a way that the plug is accessible once the installation
is complete, if you intend to install the Air Diffuser
ducting system.
Secure the bottom of the base to the fl oor with 8 mm
steel anchor bolts, to prevent it from tipping over.
Position the top of the base (2) nd adjust its height
with the provided bolts (3).
MOUNTING TO THE BASE
Use the provided screws to secure the appliance to
the base
Failure to observe the above instructions
can cause the insert to tip over and may
result in serious damage and injury.

17
ENGLISH
INSTALLATION
INTRODUCTION ON INSTALLATION
Remember that:
• the product must be installed by qualified staff
who can issue a Declaration of Conformity
• all the local and national laws and the European
Standards must be met for installation and use of
the product.
• In the event of installation in apartment blocks, ask
the administrator’s opinion beforehand.
We give some general instructions below, however
these do not obviate the need to comply with local
regulations and do not affect the installer’s liability for
the installation.
CHIMNEY SYSTEM
(Smoke channel, chimney ue and chimney
stack)
This chapter is drafted according to the European
Standards EN 13384, EN 1443, EN 1856, EN 1457. The
installation technicians must take into consideration
these and any other local standards. The manual
should in no way be considered a replacement for the
laws in force.
The product must be connected to a suitable smoke
discharge that guarantees completely safe evacuation
of the smoke produced by combustion.
Before positioning the product, you need to check the
chimney flue is suitable.
SMOKE CHANNEL, CHIMNEY FLUE
The smoke channel (pipe that connects the smoke
outlet of the fireplace with the chimney flue inlet) and the
chimney flue must, along with other legal provisions:
• receive the discharge for a single product (multiple
product discharges are not permitted together)
• have a mainly vertical development
• no section should have a reserve slope
• have an inner section preferably circular and
however with a ratio between sides lower than 1.5
• complete the roof with the appropriate chimney
stack: direct discharge is forbidden on walls or
towards closed spaces, even if outdoors
• be created with materials with a fire reaction class
A1 pursuant to UNI EN 13501 or similar national
standard
• be appropriately certified, with an appropriate
fireplace plate, if metal
• keep the initial section
The hot air can circulate naturally
(natural convection) or with the aid of a
ventilation system (AIR DIFFUSER KIT)
to be purchased separately and applied
BEFORE completing the installation
process.
Contact your retailer for any further
information.
Checking the suitability of the installation
premises
• The volume of the room must be over 40 m3
• Installation is not permitted in bedrooms,
bathrooms or premises with other products that
take in air for combustion of the same premises
or in premises with an explosive atmosphere. Any
extractor fans, if working in the same environment
or space in which the product is installed, can
cause draft problems.
• In Italy, check compatibility pursuant to UNI 10683
and UNI 7129 in the presence of gas products.
• The floor must be able to support the weight of the
product and the accessories.
Protection from heat and safe distances
All the surfaces of the building adjacent to the pro-
duct must be protected against heating.The insulation
measurements to implement depend on the type of
surface present.
The product must be installed in accordance with the
following safety instructions:
- minimum distance of 20 cm from flammable materials
along the sides and back.
- no flammable materials may be kept within 80 cm
from the front of the appliance.
Electricity lines
There must be no electricity lines in the
walls or ceiling of the fireplace installation
area.

18
ENGLISH
B
A
INSTALLATION
THE SMOKE CHANNEL
•ifinmetalmusthaveaCEmarking(EN1856-2)or
similar national law;
•cannotbeinflexiblemetalmaterial
• to check the flow, a shutter is advised for draft over
25 Pa
THE CHIMNEY FLUE:
• must have a draft capable of creating negative
pressure ideally around 12 Pa. Lower drafts can
cause leaking smoke if the door is open; higher
values tend to generate fast combustion by
reducing the yield
• must be correctly sized to meet smoke evacuation
(EN 13384-1)
• must preferably be insulated, in steel with a circular
inner section. If rectangular, the inner edges must
have a radius under 20 mm and a ratio between
between the inner dimensions <1.5
• normally have a minimum height of 3-4 metres
• maintain a constant section
• be waterproof and thermally insulated to guarantee
draft.
• preferably create a collection chamber for
unburned fuel and any condensate
• be at least category T400, with an adequate
resistance to soot fireIf pre-existing, it must be
cleaned to avoid risk of fire.
THE CHIMNEY STACK
• must be wind-proof
• have an internal section equivalent to that of the
chimney flue and passage section outlet equal to
at least double the inner passage of the chimney
flue
• for paired chimney flues (which should be at least
2 m apart) the chimney stack of the chimney flue
receiving the product discharge with solid fuel or
that of the highest floor must be at least 50 cm
taller
• must go beyond the reflux zone
• must enable chimney maintenance
EXTERNAL AIR INTAKE
To re-integrate burnt oxygen during product fun-
ctioning, you need to have an installation premises
suitable for the external air intake.
We show an example rear air intake below, for a stand-
mounted product.
Connect the Ø 13 cm pipe (A) so that it does not
remain enclosed in the cladding and takes in air from
the air intake.
The pipe can be connected behind (B) or below (A)
In accordance with local regulations, the air intake can
be mounted outside or in suitable rooms not subject
to depression.

19
ENGLISH
INSTALLATION
C
G
C
NATURAL CONVECTION CIRCULATION
PRIOR TO INSTALLING THE FACING MATERIAL, IT IS
NECESSARY TO DECIDE WHETHER TO PURCHASE
AND INSTALL THE “AIR DIFFUSER KIT” FOR FORCED
VENTILATION
The ambient air enters the structure via the gap
between the feet and the frame itself, through the
compensation vent grilles.
The hot air produced by the firebox is introduced
into the rooms to be heated through the delivery vent
connected to the opening on the casing cover, through
a Ø 14 cm aluminium pipe.
The length of the ducting depends on the product’s
insulation and manner of use.
If you do not intend to use the hot air ducting kit, OPEN
ALL VENTS (C) in the casing, as well as the grille (G) at
the back of the product.
It is essential to guarantee the return of
the air into the room where the fireplace is
installed by means of grills at the base of
the walls or gaps under the doors.

20
ENGLISH
INSTALLATION
Vent
Natural convection circulation
The hot air produced by the fireplace is released into
the rooms to be heated by the nozzles connected to
the holes on the cover of the hood with aluminium
pipes Ø 14 cm.It is essential to guarantee the return of
the air into the room where the fireplace is installed by
means of grills at the base of the walls or gaps under
the doors.The diameter of the pipes must not be less
than Ø 14 cm.
The line of the pipes must be as straight as possible.
The aluminium pipes can be hidden with coffer work or
false beams or they can be built into the walls; in any
case, they must be well insulated.
The channels must have a maximum length of 4÷5 m
each.
The said length must be decreased by 1.2 m for
every curve and for every nozzle consequent to the
consequent load loss.
The following kits are available to channel hot air.
Kit one/bis solo locale caminetto
Kit two/bis
Kit three/bis
Further details are provided in the assembly instructions
supplied with the kit itself.
Circulation with Kit Air Diffuser
The Air Diffuser Kit carries hot air into the room where
the product is installed or into other rooms (depending
on the model), assisted by one or more fans.
It is adjusted with a remote control.
Edilkamin proposes two Air Diffuser Kit models:
ADJACENT Air Diffuser Kit
REMOTE Air Diffuser Kit
The difference is in the presence or 1 or 2 fans and the
relative aluminium pipes.
The kit can be combined with each of the following
Edilkamin vents:
Split, with lighting
Bent, with lighting
Origami
Sharp
The vents are not included in the Air Kit Diffuser and
you can choose the one of the four models available
and described which best suits your needs at the
retailer.
Kit Air Diffuser Remote- ex
Kit 1 bis-ex
Fan
Control
unit
Aluminium pipe,
dia. 60 mm
Vent
Compensation vent
Compensation vent
Aluminium pipe,
dia. 100 mm
Vent
Vent
Vent
