Beyond Acoustic SU-200R User manual

Manufactured by: Beyond Music UK Limited
Web: www.beyondacoustic.co.uk
Email: [e-mail]
SU-200R
SOLID STATE DUAL AUDIO RECORDER
INSTRUCTION MANUAL (Version 1.0)

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT
1. To ensure the best performance, please read this
manual carefully. Keep it in a safe place for future
reference.
2. Install your unit in a cool, dry, clean, dust-free
environment - away from windows and sources of moisture,
cold, vibration, or devices which may induce hum such as
transformers or electric motors. To prevent fire or electrical
shock, do not expose the unit to rain or water.
3. Do not operate the unit upside-down.
4. Never open the cabinet. If a foreign object drops into the
unit, contact your dealer.
5. Place the unit in a location with adequate air circulation.
Do not interfere with its proper ventilation; this will cause
the internal temperature to rise and may result in a failure.
6. Do not apply excessive force to switches, knobs or
cords/cables. Before moving the unit, always turn off the
power and carefully disconnect the power plug and the
cords connecting to other equipment. Always hold the plug,
never pull the cord itself.
7. Do not attempt to clean the unit with chemical solvents:
this might damage the finish. Use only a clean, dry cloth.
8. Be sure to read the "Troubleshooting" section on
common operating errors before concluding that your unit
is faulty.
9. This unit consumes power even when the power switch
is turned off. We recommend that you unplug the power
cord from the wall outlet if the unit is not going to be used
for a long time. This will save electricity and help prevent a
fire hazard. To disconnect the cord, pull it out by grasping
the plug, never pull the cord itself.
10. To prevent lightning damage, pull out the power cord
and where applicable, remove the antenna cable during an
electrical storm.
11. Digital signals may cause interference to other
equipment such as tuners or receivers. The SU-200R
should be moved away from such equipment if
interference is observed.
NOTE:
Please check the copyright laws in your country before
recording from records, compact discs, radio, etc.
Recording of copyrighted material may infringe copyright
laws.
CAUTION
The apparatus is not disconnected from the AC power
source so long as it is connected to the wall outlet, even if
the apparatus itself is turned off. To fully ensure that the
apparatus is indeed fully void of residual power, leave unit
disconnected from the AC outlet for at least fifteen
seconds.

Safety Instructions
1. Read Instructions - All the safety and operating
instructions should be read before the appliance is
operated.
2. Retain Instructions - The safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in
the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions
should be followed.
5. Attachments - Only use attachments/accessories
specified or provided by the manufacturer (such as the
exclusive supply adapter, battery etc.)
6. Water and Moisture - Do not use this unit near water.
For example, near a bathtub or in a wet basement and the
like.
7. Carts and Stands - Use only with the cart, stand, tripod,
bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart or rack is used, use
caution when moving the cart/apparatus combination to
avoid injury from tip-over.
7 A. An appliance and cart combination should be moved
with care. Quick stops, excessive force, and uneven
surfaces may cause an overturn.
8. Ventilation - The appliance should be situated so its
location does not interfere with its proper ventilation. For
example, the appliance should not be situated on a bed,
sofa, rug, or similar surface that may block the ventilation
slots.
9. Heat - The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
10. Power Sources - The appliance should be connected
to a power supply only of the type described in the
operating instructions or as marked on the appliance.
11. Power-Cord Protection - Power-supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.
12. Cleaning - Unplug this unit from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a dry cloth for cleaning.
13. Power lines - An outdoor antenna should be located
away from power lines.
14. Non-use Periods - The power cord of the appliance
should be unplugged from the outlet when left unused for a
long period of time.
15. Object and Liquid Entry - Care should be taken so
that objects do not fall and liquids are not spilled into the
enclosure through openings.
16. Damage Requiring Service - The appliance should be
serviced by qualified service personnel when:
A. The power supply cord or plug has been damaged; or
B. Objects have fallen into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or
exhibits a marked change in performance; or
E. The appliance has been dropped, or the enclosure
damaged.
17. Servicing - The user should not attempt to service the
appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualified service personnel.
18. Manufacturer declarations –In compliance with the
following requirements: RoHS Directive (2002/95/EU) and
WEEE Directive (2002/96/EU) if this product is ever no
longer functional please take it a recycling plaint for
environmental friendly disposal
19. CE declaration of conformity - EMC Directive
(2004/108/EC), Low Voltage Directive (2006/95/EC)

Before Getting Started
Introduction
Thank you for purchasing the SU-200R Dual Digital SD/USB Audio Recorder. The SU-200R offers convenient real-
time digital audio recording to both SD cards and USB drives. Its user-friendly operation makes it an ideal
recording platform for DJ mixes, band rehearsals, sermons, board meetings, and more. With a full set of playback
controls, the SU-200R can also function as a dual SD/USB player with separate and mixed audio outputs. Its slim
rack-mountable construction will fit neatly into standard rack cases.
Features
Records 192 kbps audio files directly to SD card or USB drive via RCA or XLR line in jacks
Compatible with SD/SDHC cards and USB flash drives up to 32GB
Dual recorder design allows for independent recording/playback on each side
Individual record level controls and record level LEDs for precise level control
Delete recorded files directly from recorder
Full-featured playback with single and repeat playback modes
Individual RCA input/output jacks
Individual XLR input/output jacks
Mixed RCA output jacks with toggle switch
Backlit buttons for use is low-light areas
1/4” headphone jack with volume control
Slim 1RU chassis
110V-240V compatible
Specifications
Channels…………………………….. 2 (stereo)
Recording Format................... MP3: 192 Kbps;
Recording Media.................... SD (64 MB-2GB) SDHC (4 GB-32GB) USB (up to 32GB) Support FAT16/32
USB compatibility.................... USB 1.0, 1.1, 2.0
Sampling Rate........................ 44.1kHz/48 kHz 16 BIT
Dynamic Range...................... ≥75dB
THD+N.................................. 1%
Frequency Response............... 20Hz – 18KHz
Input Impedance.……………..... 10K Ω
Nominal Input Levels…............ ≥1.5V
Output Impedance………………. 32~64 OHM STEREO
Maximum Output…….............. Line (10K Ω): 0.7V RMS (-3 dBV)

Getting Started
Unpacking
This SU-200R has been inspected and tested prior to being shipped. During unpacking, carefully check that you have
received all the required components. This is also the time to check the main unit for damage. If any damage is noticed,
promptly report this to your shipping carrier. Save the shipping boxes and all packaging materials in case the unit needs to be
shipped for service.
Box Contents
SU-200R Main Unit
AC Power Cable
Getting Connected
Inputs
The SU-200R can record any audio signal from a device with RCA outputs or balanced XLR outputs. Most commonly, users
will be running the output from a mixing device. Other connections can include direct output from a computer or mp3 player,
and even making a copy from the other side of the SU-200R. Follow the instructions below for making the connections.
Connecting to a mixing device:
If using RCA:
Connect a paired RCA audio cable from the RCA outputs on your mixing device to the RCA inputs on either side A or B on
the SU-200R.
If using XLR:
Connect a pair of XLR-M to XLR-F audio cables from the XLR outputs on your mixing device to the XLR inputs on either side A
or B on the SU-200R.

Getting Connected (cont.)

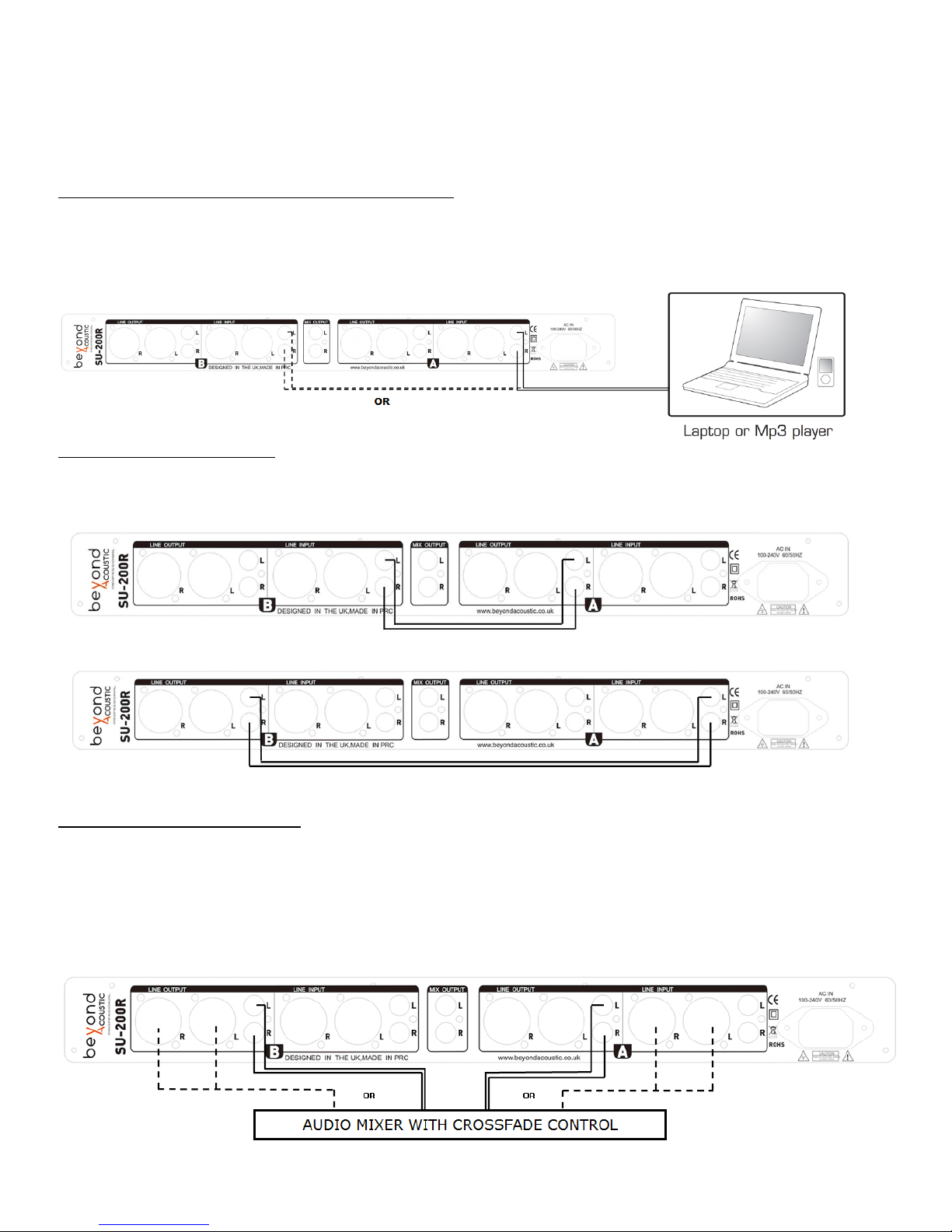

Connecting directly to a computer or portable audio device:
Using a stereo RCA to 3.5mm audio cable,(sole separately) connect the 3.5mm end to the audio output on your computer or
portable audio device, and connect the RCA ends to the inputs on either side A or B on the SU-200R.
NOTES: If your computer has a different audio output jack, use the appropriate cable. Some computer audio outputs are
labelled with a headphone symbol. NOTE : Be sure to set the audio volume to a sufficient level.
Connecting from side A to side B
Using a stereo RCA to RCA cable, connect one end to audio outputs, (on the side of your choice).
Connect the other end to the other side’s audio input jacks
Recording side A to B
Recording side B to A
Outputs
Connecting individual audio outputs:
You can connect the audio output from each side independently to a mixer (such as a DJ mixer). This allows the SU-200R to
be used as a dual USB/SD player used in conjunction with DJ-style mixers with a Cross-Fader.
1) Using a stereo RCA to RCA cable or two XLR-F to XLR-M cables, connect one end to the audio outputs of side A on the SU-
200R. Connect the other end to available inputs on the mixer.
2) Repeat above with the output from side B.

Getting Connected (cont.)
Connecting audio output from the toggled output:
The toggled output allows you to toggle between side A and side B audio from one set of jacks. The toggle on the front panel
is used to select the output.
1) Using a stereo RCA to RCA cable, connect one end to the toggled audio output on the SU-200R. Connect the other end to
an available input on your mixer or amplifier.
Features
Front Panel
1. POWER switch – Use this switch to turn the unit ON/OFF.

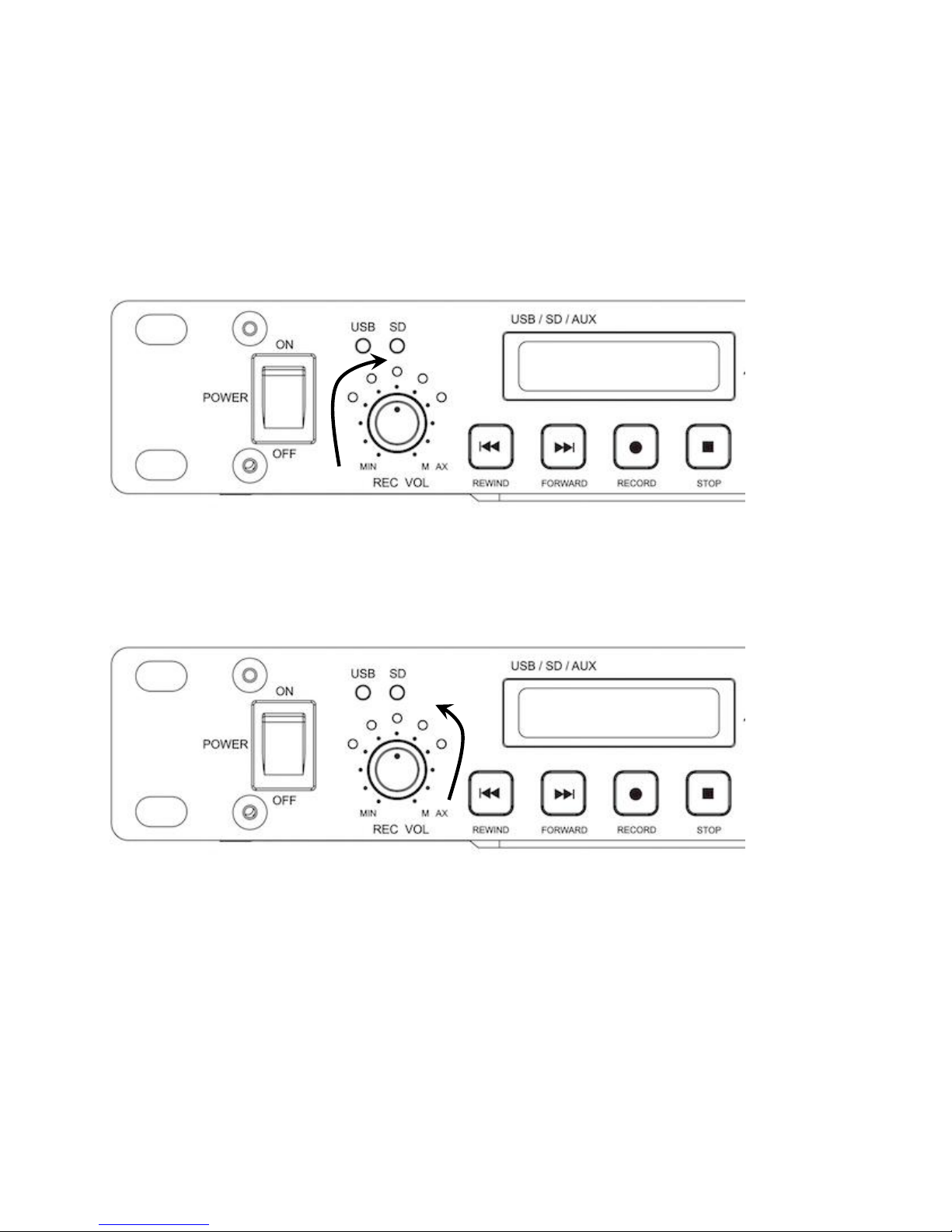

2. REC VOL – Use this knob to increase/decrease the recording level.
(see page 16 for instruction on recording)
3. PREVIOUS button – Use this button to go to the previous track or scan through the current
track.
4. NEXT button – Use this button to go to the next track or scan through the current track
5. RECORD button – Use this button to enter record mode and start recording. During recording,
This button can be used to pause the recording. (see Operations section for instructions on recording)
6. STOP button – Use this button to stop recording/playback
7. PLAY/PAUSE button – Use this button to start and pause playback.
8. REPEAT button – Use this button to enter a repeat playback mode. (see Operations section
for instructions on repeat playback mode).

Features (cont.)
9. SINGLE button – Use this button to enter single playback mode. (see Operations section for
instructions on repeat playback mode)
10. USB/SD button – Use this button to toggle between the USB and SD inputs
11. A/B OUTPUT switch – Use this switch to toggle side A, side B, and MIXED output to the MAIN OUTPUT jacks
12. +10 button – Use this button to advance 10 tracks at a time

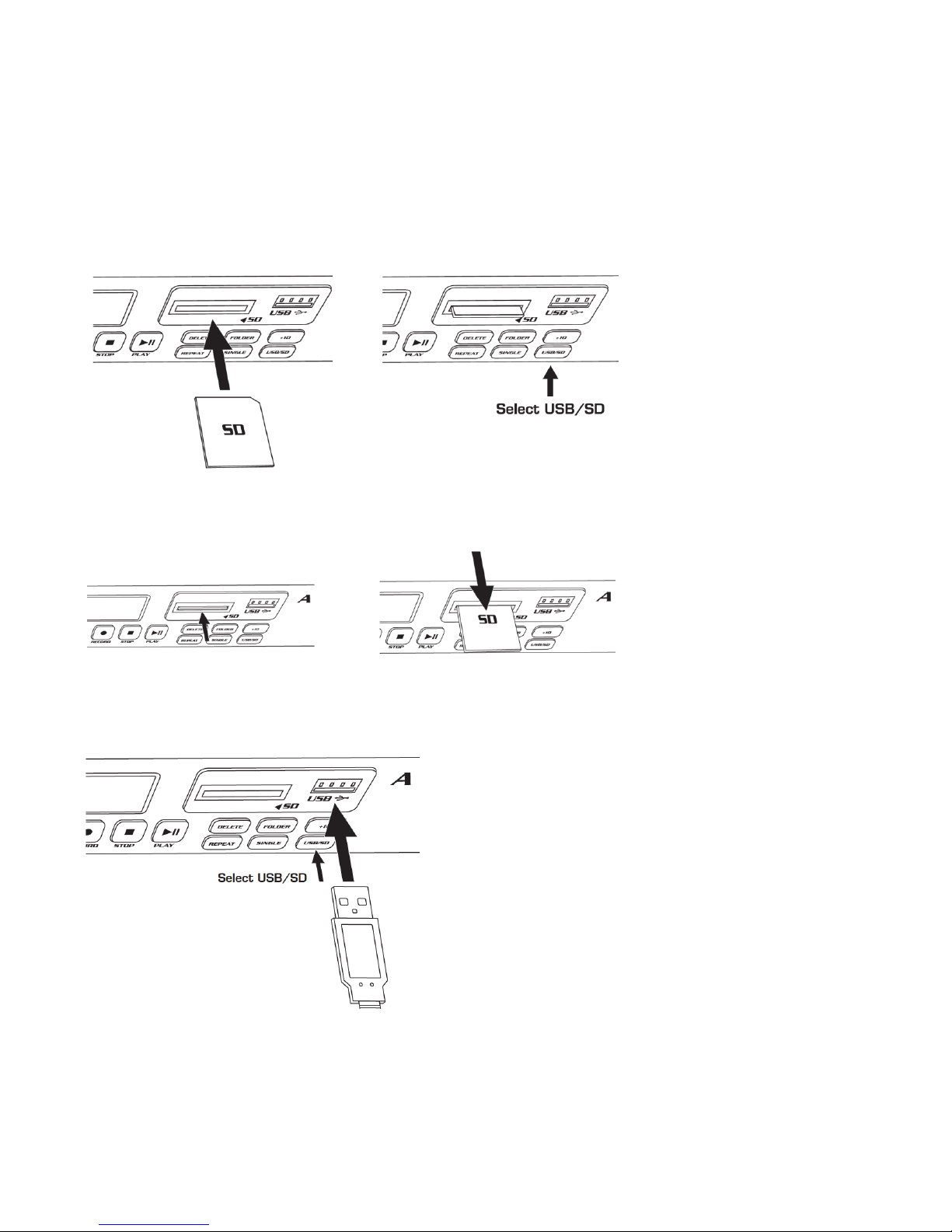

13. USB port – Insert USB thumb-drive for recording and playback
Front Panel
14. FOLDER button – Use this button to toggle through different folders. (See Operations section
for instructions on browsing folders).
15. SD CARD slot – Insert SD slot for recording and playback

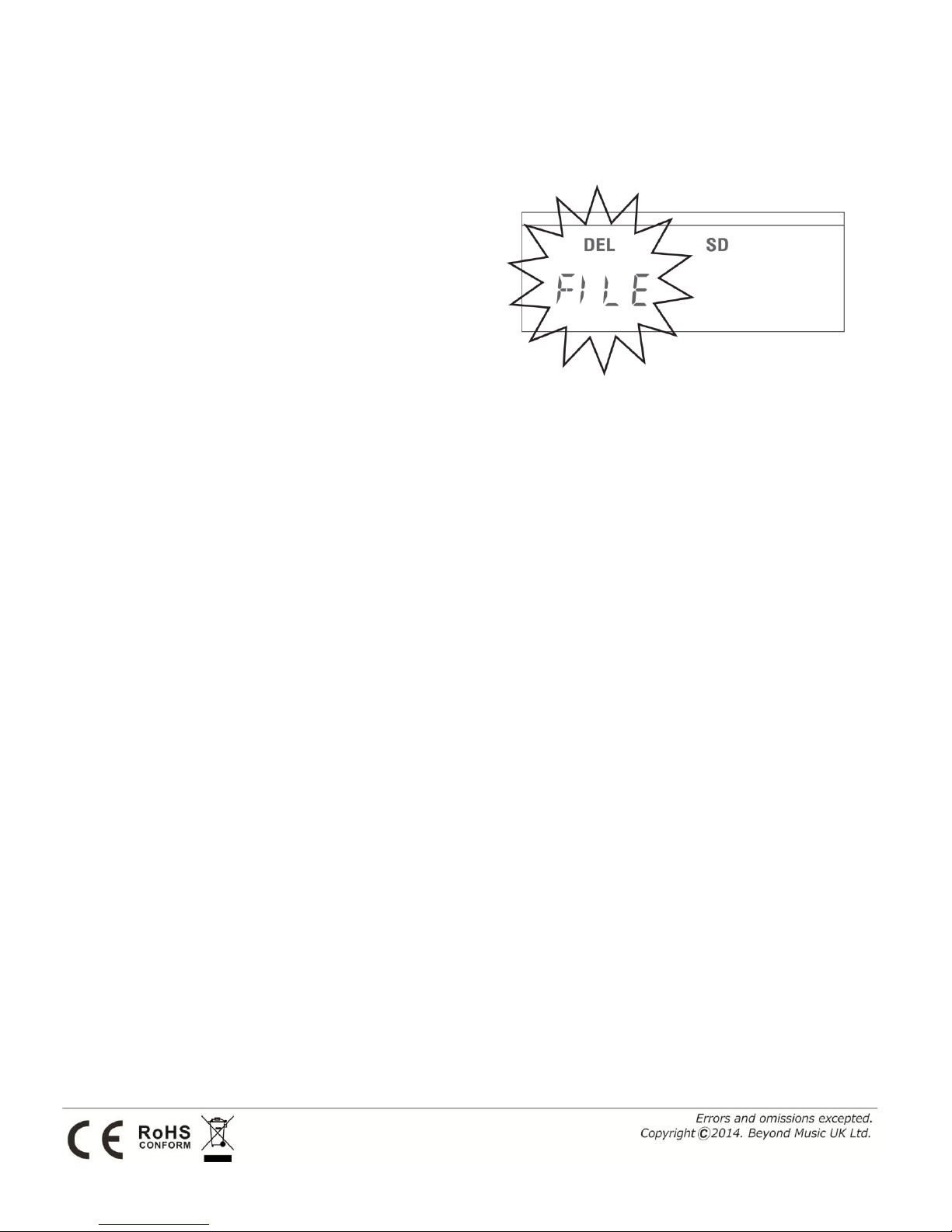

16. DELETE button – Use this button to delete a file. (See Operations section for instructions on
deleting a file)

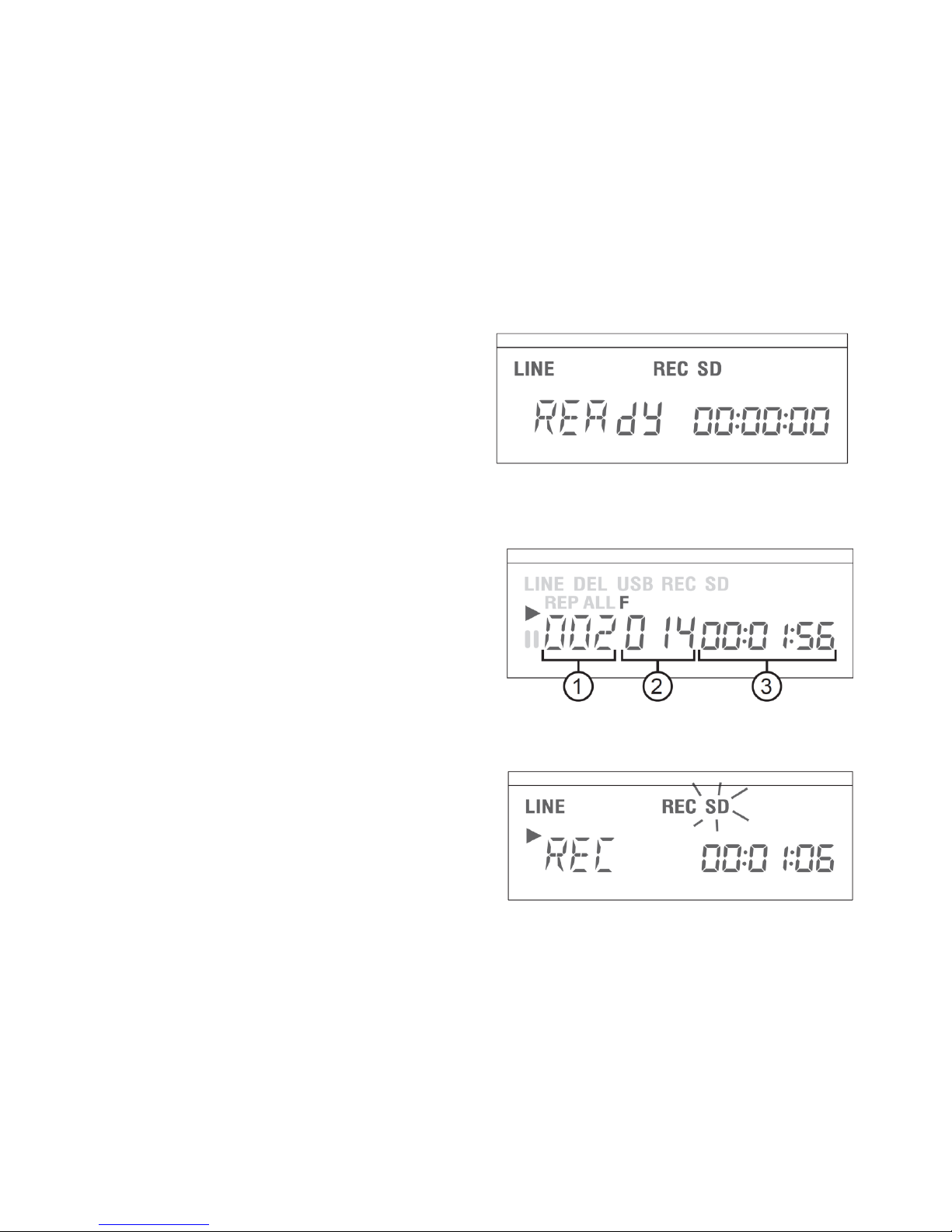

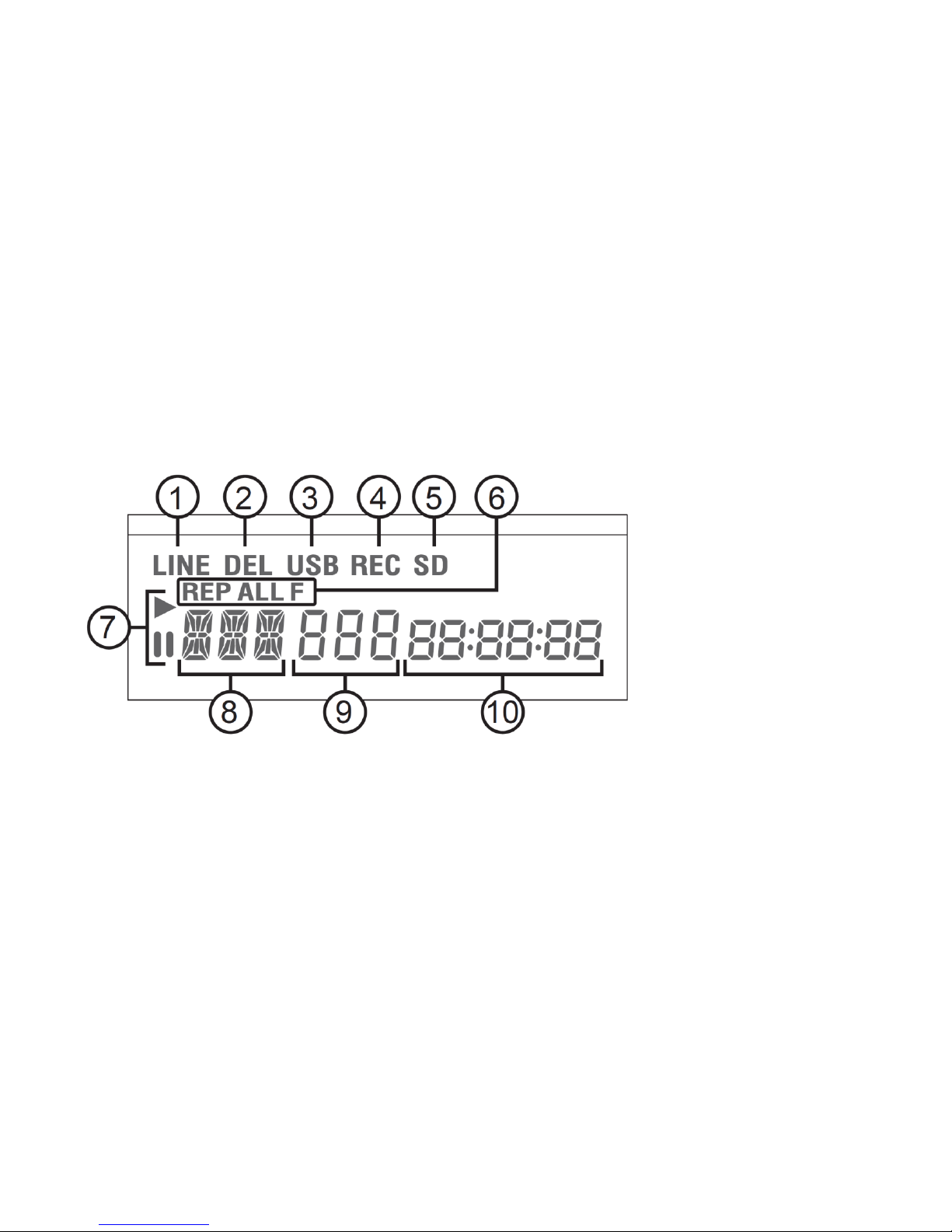

17. LCD display – Displays system information, current operations and settings.
18. VOL – Use this control to increase/decrease the volume of connected headphones
19. PHONE (1/4”) – Connect headphones to this jack, to monitors the output set by the A/B
output switch.
20. REC LEVEL LEDs - Use these LEDs to monitor and achieve an optimal recording level.
(See operations section for information on setting recording level)
21. SD LED – Indicates SD is selected for playback/recording.
22. USB LED – Indicates USB is selected for playback/recording.
Rear Panel
23. 24. XLR OUT jacks (balanced) L & R - Connect the audio output from these jacks to the XLR-M jacks on external
mixers, amplifiers, or other devices
25. 26. . RCA OUT jacks (unbalanced) R & L - Connect the audio output from these jacks to RCA audio inputs on
external mixers, amplifiers, or other devices

Features (cont.)
27. 28 XLR IN jacks (balanced) L & R - Connect the audio output from your audio source to these jacks using XLR-F/
XLR-M audio cables
29. 30. RCA IN jacks (unbalanced) R & L - Connect the audio output from your audio source to these jacks using RCA
audio cables.
31. 32. MIX OUTPUT jacks L & R - This output is controlled by the A/B output selector knob on the front panel. Switch
to A on the knob, and this jack will output audio playing from the A side player. Switch to B on the knob,
and this jack will output audio playing from the B side player. Switch to A+B on the knob, and this jack will
output mixed audio from both the A and B players. This output can be monitored from the headphone jack.
33. AC power socket, insert provided IEC AC power Cord to connect the AC main.
LCD window
1. LINE – Indicates the SU200R is set to record from the line in jacks.
2. DEL – Flashes in conjunction with “FILE” when deleting a file.
3. USB – Indicates that a USB device is selected for playback/recording
4. REC – Indicates record mode has been initiated or is in progress
5. SD - Indicates that SD card is inserted for playback for recording.
6. REP ALL F – Indicates repeat mode:
REP – repeat one
REP ALL – repeat all tracks on the SD/USB
REP F – repeat all tracks within a folder
7. PLAY/PAUSE – Indicates when playback is in progress or paused.
8. FOLDER – This section displays the total number of folders or current folder number.
9. FILE - This section displays the total number of files or current file number. Status messages include:
READY, FILE, RECEND, FILE.
10. TRACK TIMER – Displays the track time during recording or playback in hours:minutes:seconds format

Operations
Inserting an SD Card
1. Ensure that the lock tab on the SD card is not set to LOCK.
2. Insert the SD card right side up, and push it in until it clicks.
3. Use the USB/SD button to select SD.
4. Remove an SD card by pushing the card forward until it clicks and pushes out.
NOTE: The SU-200R cannot accept cards larger than 32GB.
Inserting a USB Flash Drive
1. Insert the USB drive or USB cable into the USB slot.
2. Use the USB/SD button to select USB.
Notes regarding storage media
1. The use of good quality SD cards is recommended (those with a high “Group” number).
2. It is best to keep USB/SD devices dedicated to audio files only (do not mix with videos, photos or
documents)
3. Ensure that there is enough space on your card or drive to complete your recording(s)
4. The use of partitioned USB/SD devices for recording is not recommended.

Operations (Cont.)
Adjusting the recording level
1. Ensure that your source signal device is plugged into the input of the SU-200R.
2. With the source signal playing, increase the REC LEVEL KNOB until the yellow REC LED starts to blink.
3. Slightly reduce the record level until the REC LEVEL LED is a constant green (no YELLOW). You now have an optimal
recording level.

Operations (Cont.)
Recording
1. Insert an SD card or USB drive to be recorded to.
2. Press the USB/SD button to select the device.
3. Connect your source device to the IN jacks on the rear
panel.
4. Set the recording level (see Adjusting the Recording
Level)
5. Press the RECORD button. When the display reads
READY, it is ready to record.
6. Press the RECORD button a second time to start
recording.
7. Press STOP to stop the recording, or press RECORD a
third time to PAUSE the recording. When STOP has
been pressed,
the LCD display will show RECEND to indicate the end of
recording.
NOTE: It is recommended that recorded files are copied or
deleted using a computer as files deleted on the recorder
may change the playing order.
Navigating Files and Folders
The LCD window displays folder/file information. The left
three digits indicate the folder number (or REC for record
folder). The right three digits indicate the file number.
When a USB drive or SD card is first inserted, total folders
and files will be displayed.
1. To navigate folders press the FOLDER button.
Each time FOLDER is pressed, it will enter the next
folder. When the last folder is reached it will cycle
back to folder 001. i.e. FOLDER 001, 002, 003,
004, 005, REC, 001, etc.
Record Folder
The SDR-4000 stores all recorded files in a folder called
RECORD. When a new SD card/USB drive is inserted, this
folder will be created automatically during the first
recording process. All recorded files will be located in the
following folder: ROOT/RECORD/LINE_IN
Recorded Files
The files are named using the following naming convention:
FILE_001.MP3
All recorded files are recorded in 44.1KHz Stereo 192Kbps MP3 format.
Files are played back in alpha-numerical order.
If required, recorded files can later be re-named by connecting the SD card or USB device directly to a computer or laptop.
Note: renaming a file may affect the order of playback.

Operations (Cont.)
Deleting Files
Files can be deleted directly from an SD card or USB drive.
1. Navigate to the file you want to delete. If you are sure
it is the correct file, push play listen and confirm that it is
the file you want to delete.
2. Press the DELETE button. The word FILE will begin to
blink in the display.
3. Press DELETE a second time to confirm and delete the
file.
NOTE: It is recommended that recorded files are copied or
deleted using a computer as files deleted on the recorder
may change the playing order.
Troubleshooting
Files are being recorded but there is no sound
Check your input devices and connections. (see Operations section)
Check the recording level (see Operations section)
Recording level is either too high or low
Re-adjust the recording level (see Operations section)
Check the playback level of your source device.
The sound is distorted
Check the incoming signal from the source device. If this is a mixer, check the outputs and make sure they are
not too high.
Check the recording level (see Operations section)
No audio output from the SU-200R
Check the output connections on the back of the SU-200R and connected devices. (see Operations section)
Check to make sure the output toggle selector is set correctly. (see Operations section)
Files are not recording to SD card/USB drive
Check the SD card or USB device on a computer to ensure it is working correctly.
Ensure that there is sufficient space on the SD card or USB device.
Warranty:
The warranty on Beyond Acoustic products is valid only in the country of
purchase. In the unlikely event of a product fault, please contact your
supplying dealer. Please retain your proof of purchase to obtain warranty
service.
